Scania 16 litre engine. Work Description - part 27

0115w15b.mkr

©

105

Fan drive

Special tools

Renewal of belt pulley bearing

1

Remove the poly-V-belt.

2

Disconnect the fan and place it in the fan
cowling.

3

Remove the fan bracket with belt pulley.

4

Remove the centre nut and washer in the
belt pulley.

5

Remove the retaining ring on the back.

6

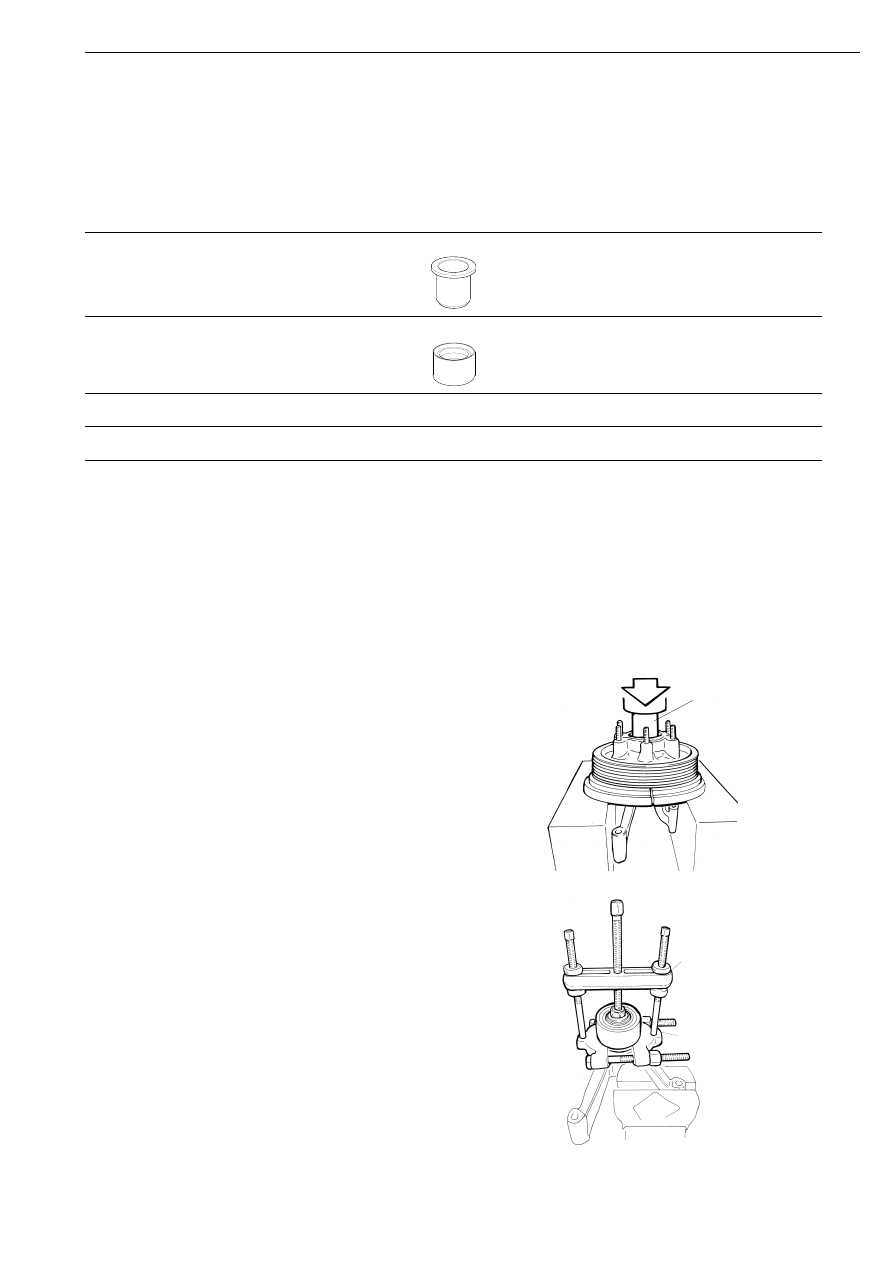

Press out the bearing and fan bracket using
tool 99 250.

Number

Designation

Illustration

Tool board

99 250

Drift

D3,C4

99 335

Drift

AD4-A2

587 517

Extractor plate

XA1

587 518

Puller

XA2

99 250

112 640

99 335

00

1883

114 507

99 250

7

Pull the bearing from the fan bracket using
tool 87 517 and 87 518.

114 508

587 518

587 517

Fan drive

106

©

0115w15b.mkr

Fitting

1

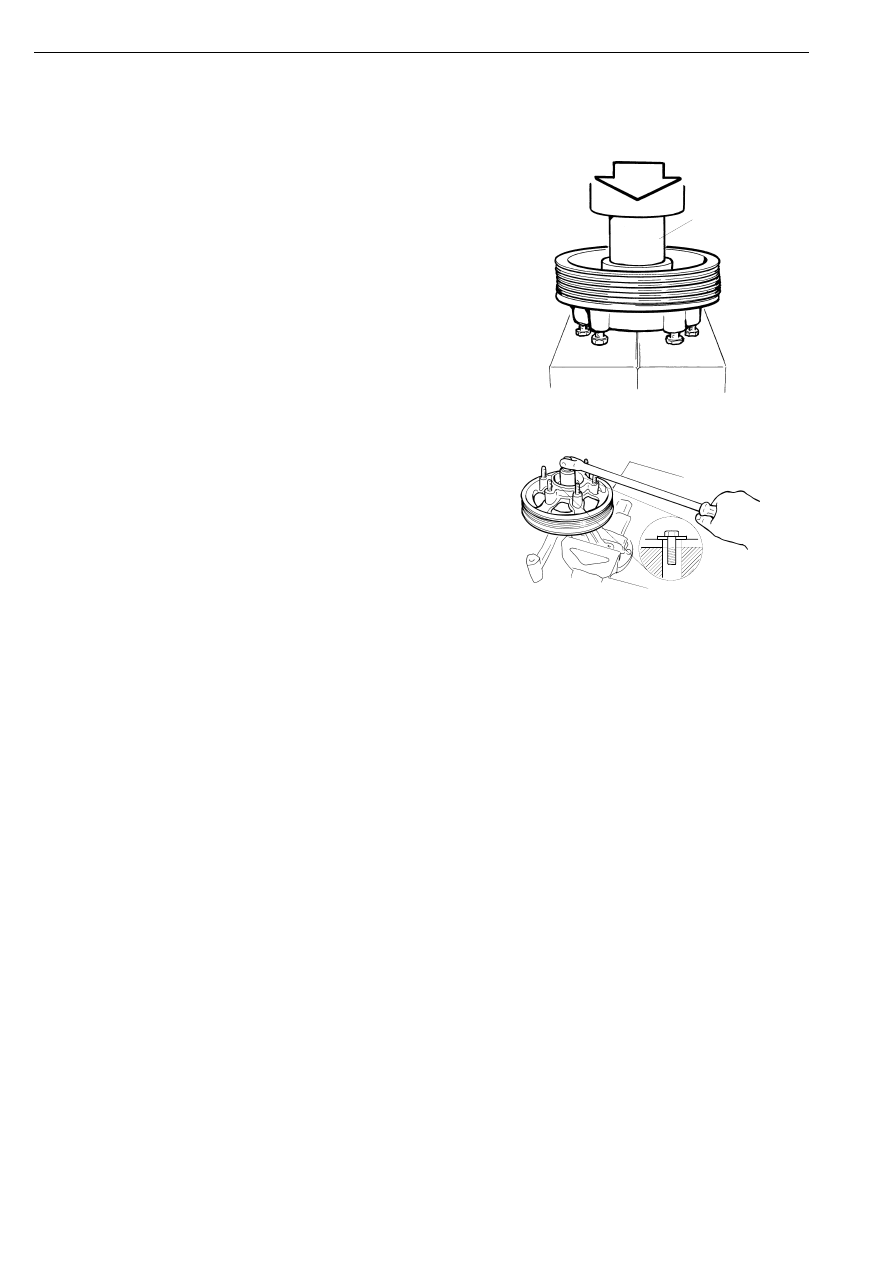

Press a new bearing into the belt pulley
using tool 99 335.

114 509

99 335

Note: Do not use the belt pulley as support
when pressing. Screw nuts onto the studs and
use these for support.

2

Fit the retaining ring.

3

Assemble the fan bracket and belt pulley.
Use an M14 bolt, at least 65 mm long, and
the standard washer as a counterhold when
tightening the fan bracket shaft in place in
the belt pulley.

114

5

1

0

4

Screw in the standard bolt and washer.

5

Fit the fan bracket with belt pulley.

6

Fit the fan.

7

Fit the poly-V-belt.

Fan drive

0120w13b.mkr

©

107

Lubrication system

General tightening torques

Specifications

A tolerance of +/- 15% applies to the specified
tightening torques unless stated otherwise.

The following tightening torques apply in general
unless otherwise specified:

Flange bolt M6

8.6 Nm

Flange bolt M8

26 Nm

Flange bolt M10

50 Nm

Flange bolt M12

92 Nm

Stud in casting M8

13 Nm

Stud in casting M10

25 Nm

Oil pressure

Idling

min. 1.4 bar

With warm engine running at 1000 rpm

min. 3.0 bar

With warm engine running at 2000 rpm

4.5 +/- 1 bar

Lubrication system

108

©

0120w13b.mkr

Oil filter

Renewing the oil filter

Tightening torque

Special tools

Note: The oil cleaner must be cleaned when
renewing the filter.

1

Unscrew the filter lid with a closed tool with
hexagon driver, e.g. socket 587 637.

Note: Do not use an adjustable spanner or other
open tool as there is risk of damaging the filter
lid.

2

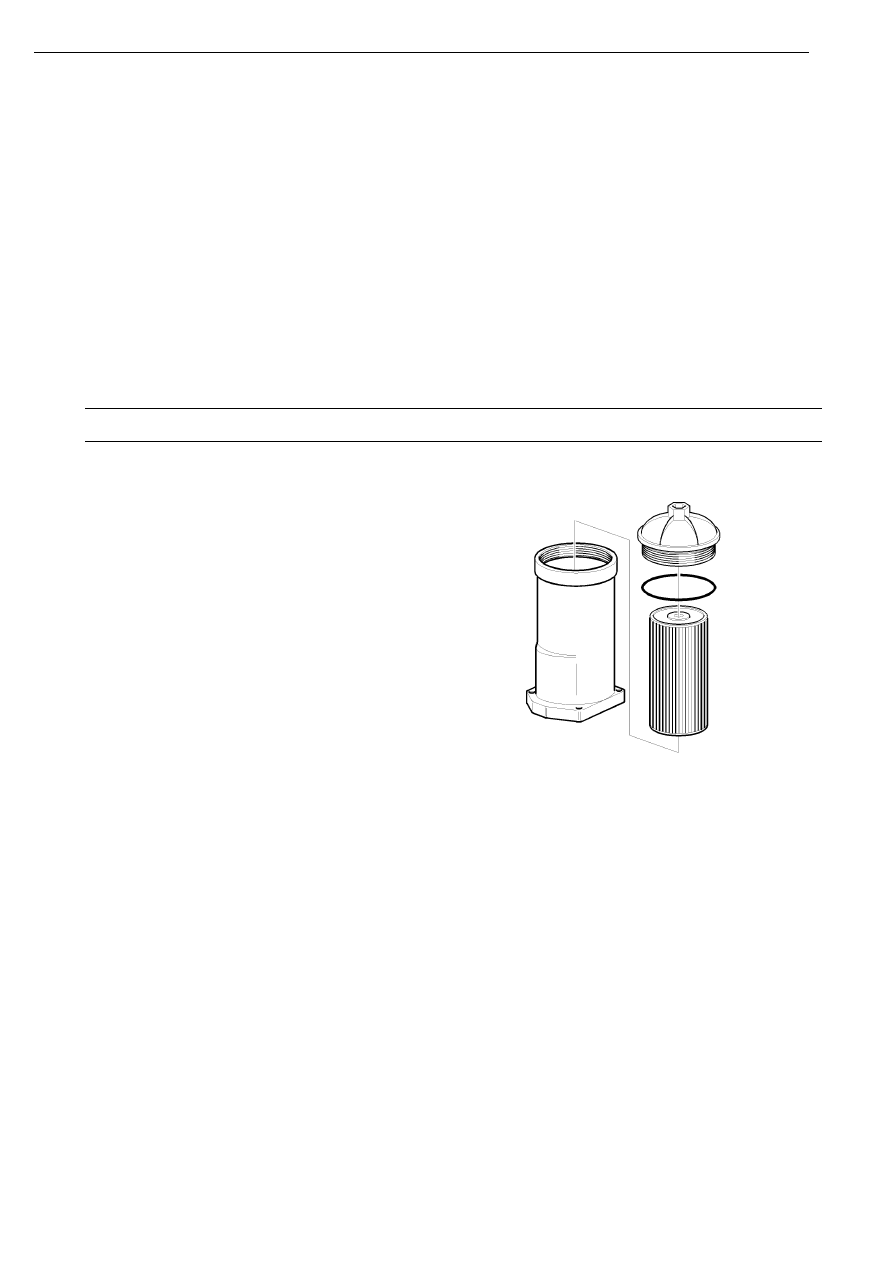

Lift out the filter housing lid with filter
element. The filter housing will drain
automatically once the filter has been
removed.

3

Undo the old filter from the lid by carefully
bending it to one side.

Filter housing lid

25 Nm

Number

Designation

Illustration

Location

587 637

Socket

Maintenance cabinet

115 765

Oil filter
