Scania 16 litre engine. Work Description - part 22

0110w14b.mkr

©

85

12 Clean and fit the gaskets for the front

housing and engine heater outlet. Fit the
front housing.

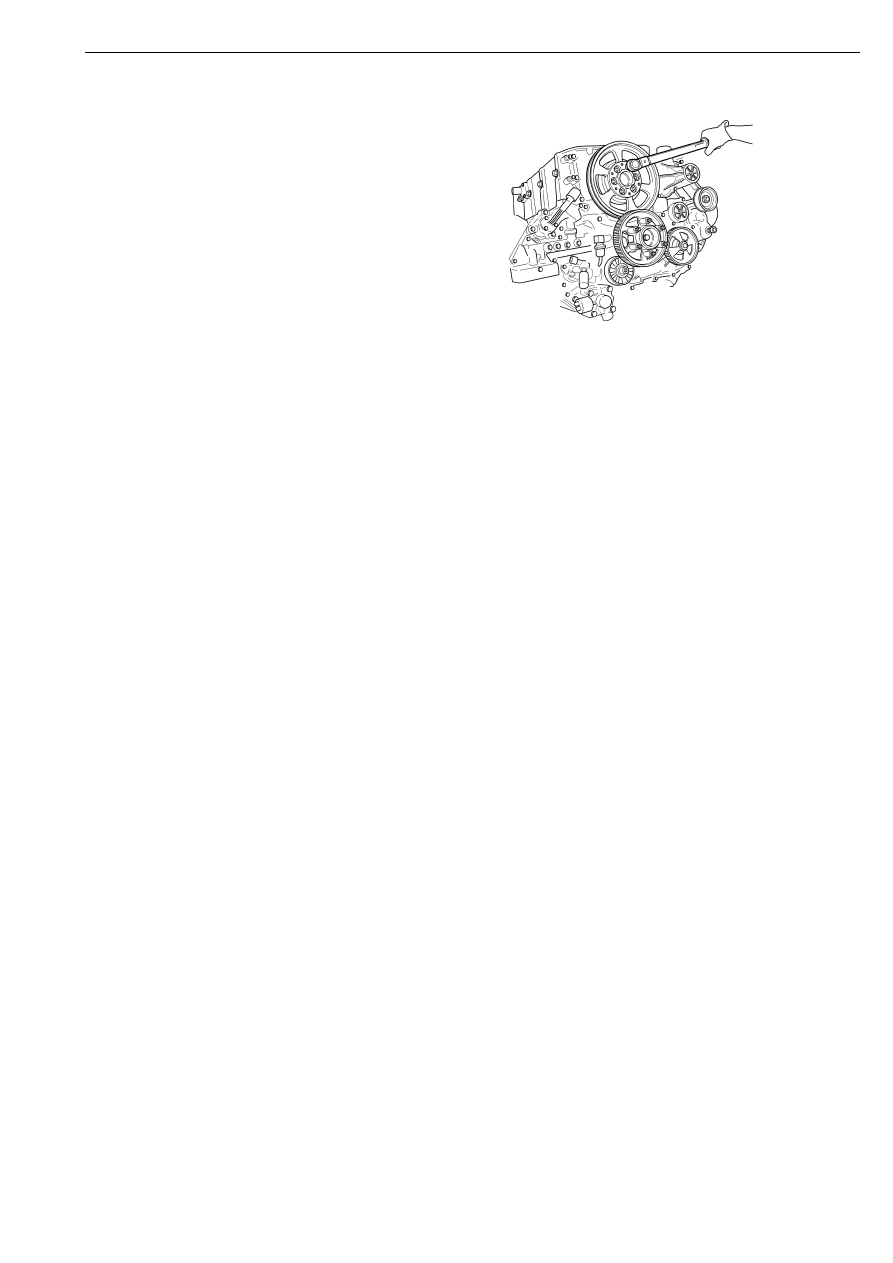

13 Fit the belt pulleys on the crankshaft.

Torque tighten the bolts on the inner belt
pulley to 92 Nm.

14 Fit the oil strainer and suction pipe.

15 Fit the flywheel housing as described in

Flywheel housing, fitting.

16 Fit the flywheel as described in Flywheel,

fitting.

17 Fit the fan, the fan ring and the poly-V-belts.

18 Fit the oil sump.

112 366

92 Nm

86

©

0115w15b.mkr

Timing gear

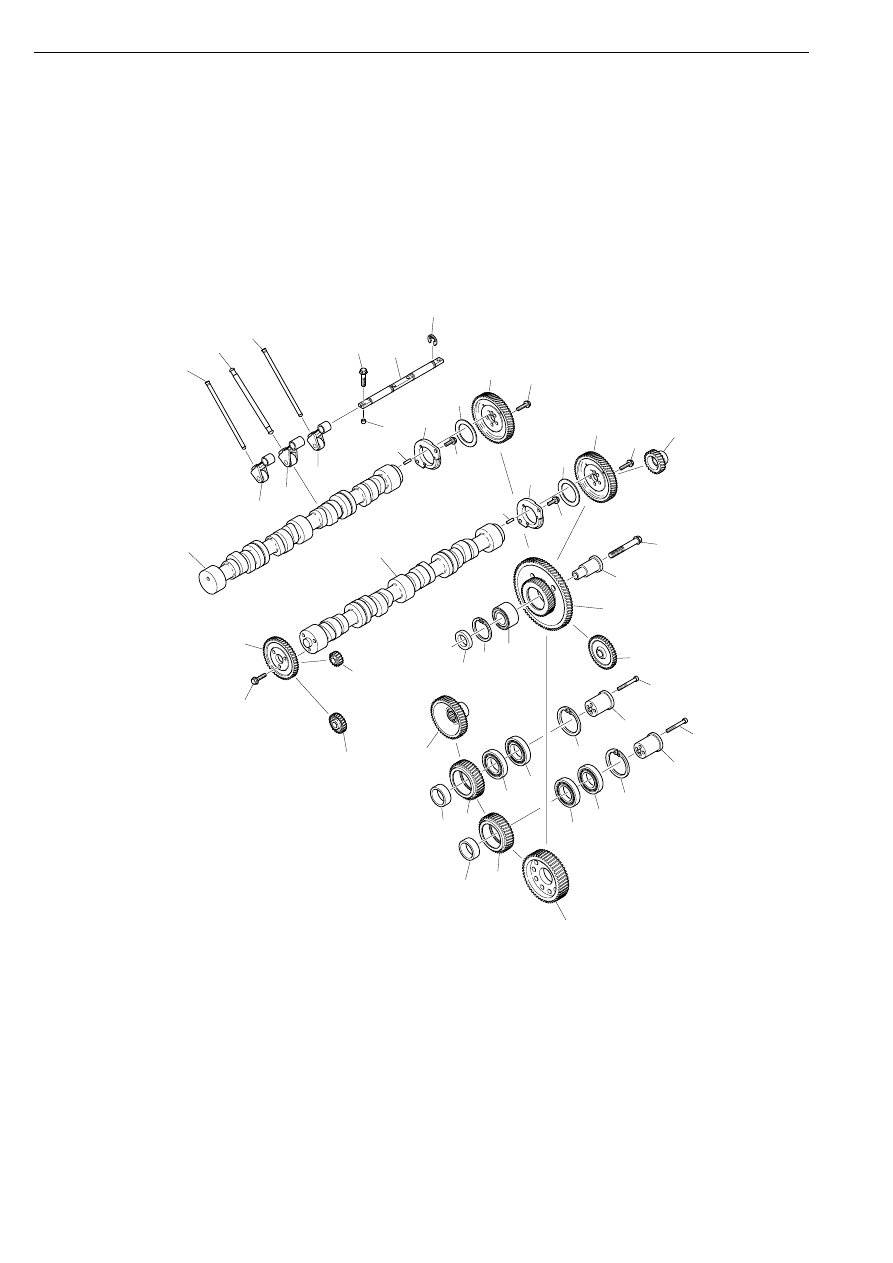

Exploded view drawing

Gear wheel transmission

1

2

3

3

4

4

5

5

6

6

7

8

9

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

45

46

116 686

Timing gear

0115w15b.mkr

©

87

1

Camshaft

2

Camshaft

3

Pin

4

Guide flange

5

Flange bolt

6

Thrust washer

7

Camshaft gear

8

Camshaft gear

9

Flange bolt

10 Intermediate gear

11 Ball bearing

12 Retaining ring

13 Spacer sleeve

14 Shaft

15 Screw

16 Oil pump gear

17 Spacer sleeve

18 Intermediate gear

19 Ball bearing

20 Ball bearing

21 Retaining ring

22 Shaft journal

23 Bolt

24 Spacer sleeve

25 Intermediate gear

26 Ball bearing

27 Ball bearing

28 Retaining ring

29 Shaft journal

30 Bolt

31 Camshaft gear

32 Flange bolt

33 Power take-off drive

gear

34 Compressor gear

35 Crankshaft gear

36 Hydraulic pump gear

37 Feed pump gear

38 Shaft

39 Roller tappet

40 Roller tappet

41 Roller tappet

42 Retaining ring

43 Guide sleeve

44 Flange bolt

45 Pushrod

46 Pushrod

47 Pushrod

Timing gear

88

©

0115w15b.mkr

General tightening torques

Specifications

A tolerance of +/- 15% applies to the specified
tightening torques unless stated otherwise.

The following tightening torques apply in general
unless otherwise specified:

Flange bolt M6

8.6 Nm

Flange bolt M8

26 Nm

Flange bolt M10

50 Nm

Flange bolt M12

92 Nm

Stud in casting M8

13 Nm

Stud in casting M10

25 Nm

Timing gear
