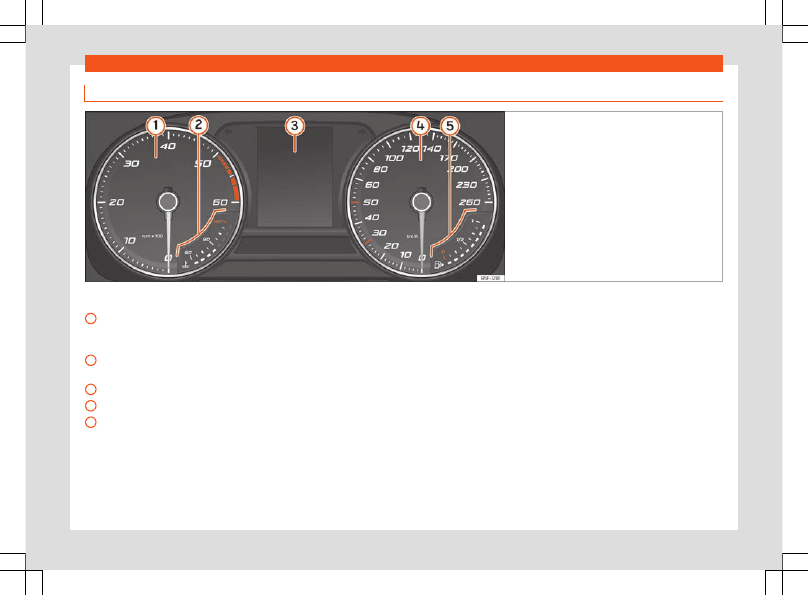

Engine coolant temperature indicator

›››

page 83

Displays on the screen

›››

page 70

Speedometer.
Fuel gauge

›››

page 81

Operation

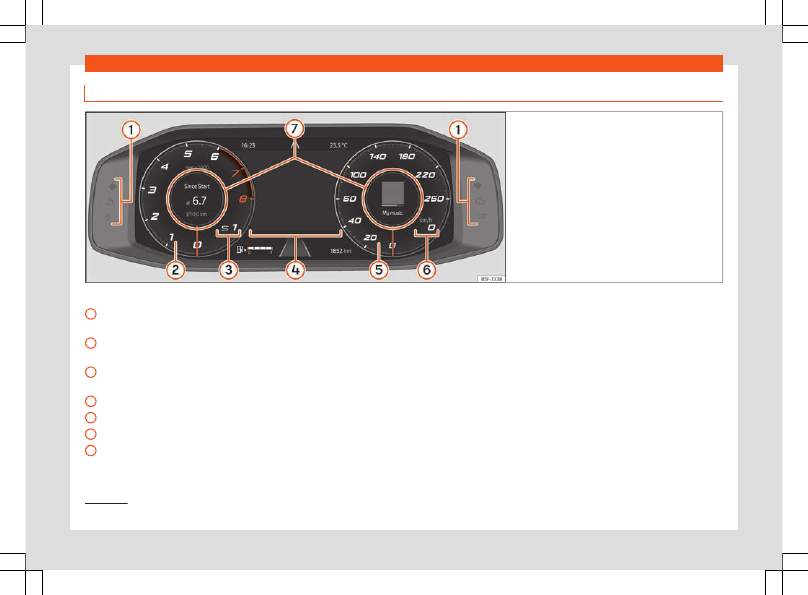

Digital dashboard (SEAT Digital Cockpit)

Fig. 61

Conventionally powered vehicles: SEAT

Digital Cockpit on the instrument panel (classic

view).

Details of the instruments

›››

Fig. 61

Control and warning lamps

›››

page 87

Revolution counter

. Revolutions per mi-

nute the engine is running

›››

Gear engaged or selector lever posi-
tion
Screen display

›››

page 70

Speedometer
Digital speed display
Information Profile

›››

page 68

The Digital SEAT Cockpit is an instrument
panel digital with monochrome screen in col-
our high resolution. It has a 5 views accessi-
ble using the button



of the multifunction

steering wheel. By selecting different infor-
mation profiles, indications other than the
classic circular instruments can be displayed,
such as navigation data, multimedia informa-
tion or travel data.

The 5 views are:

●

Classic

●

Dynamic

●

Assistance systems

●

Navigation

●

Night

All views will display information on the
screen about audio, phone, travel data, vehi-
cle status, navigation

and driving aids

Information profiles

Using the buttons





on the multifunction

steering wheel you can navigate through the
different information of the SEAT Digital
Cockpit.

Depending on the version.

Instruments and warning/control lamps

Information on the vehicle status, travel data
and assistants will be displayed on the left
side.

On the right side information will be dis-
played on audio, telephone, compass and
navigation manoeuvres.

Depending on the view in the

central area

the SEAT Digital Cockpit , information will be
displayed on:

●

Classic View and Dynamic View:

Initial da-

ta, date, distance travelled and autonomy.
Turning the right thumbwheel on the multi-
function steering wheel: navigation map, road
signs, driving data (clicking on



switches

between the different memories).

●

Assists View:

This is accessed by pressing

the button



or the button



on the multi-

function steering wheel. Turning the right
thumbwheel on the multifunction steering
wheel displays the list of assistants. Press



to turn the desired assistant on/off.

●

Navigation View:

By pressing the button



on the multifunction steering wheel and then
turning the thumbwheel you can view the
map in a larger or smaller view. If you pressed
the button



again, the map returns to auto-

matic scale.

●

Night View:

The speed is displayed in digital

format.

Classic View

The revolutions per minute and speedometer
needles appear in full length by a long press
on the button



on the multifunction steer-

ing wheel, regardless of the menu displayed
in the central area

›››

Fig. 61

With another long press on the button



the display will returns to the previous view.

looking in the instrument panel menu for

the



option using the right hand

thumbwheel on the multifunction steering
wheel, and then press



Information that may appear in the central
area of the SEAT Digital Cockpit speed-
ometer

●

Audio

●

Telephone

●

Compass

●

Navigation indications (the most recent

destinations are displayed by pressing the ar-
row on the right of the multifunction steering
wheel)

●





(close classic view).

Information that may appear in the central
area of the SEAT Digital Cockpit revolution
counter

●

Consumption and average consumption.

By pressing the arrow on the left of the multi-
function steering wheel, you can switch be-
tween the different memories of the travel
data.

●

Autonomy (fuel tank level).

●

Lubricating oil and coolant temperature

●

Average speed. By pressing the arrow on

the left of the multifunction steering wheel,
you can switch between the different memo-
ries of the travel data.

●

AdBlue autonomy.

●

Other travel data: km travelled and driving

time. By pressing the arrow on the left of the
multifunction steering wheel, you can switch
between the different memories of the travel
data.

●

Assist systems.

●





(close classic view).

Operation

Digital dashboard (SEAT Digital Cockpit)

Valid for: hybrid vehicles

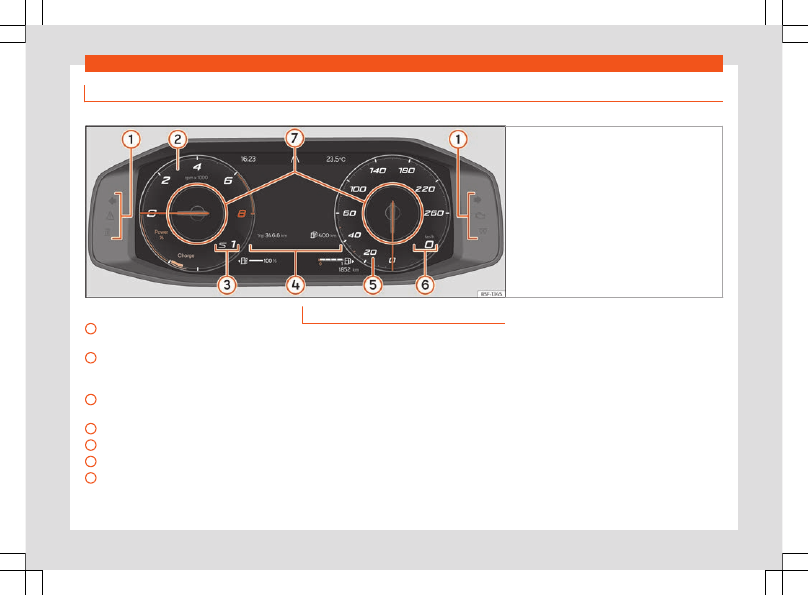

Fig. 62

SEAT Digital Cockpit on the instrument

panel (classic view).

Details of the instruments

›››

Fig. 62

Control and warning lamps

›››

page 87

Rev counter and Powermeter

. Revolu-

tions per minute the engine is running

›››

Gear engaged or selector lever posi-
tion
Screen display

›››

page 70

Speedometer
Digital speed display
Information Profile

›››

page 68

Status display

Possible indications on the instrument
panel display

Different pieces of information can be dis-
played on the screen of the instrument panel,
depending on the features of the vehicle.

●

Doors, bonnet and rear lid open

●

Warning and information messages

●

Odometer

●

Time

›››

●

Indications of the radio and navigation sys-

tem

●

Indications of the phone

●

Outside temperature

●

Indications of the compass

●

Selector lever positions

●

Gear-change recommendation

›››

page 233

●

Combined range (hybrid vehicles)

›››

page 71

●

Display of travel data (multifunction dis-

play) and menus for different settings

›››

page 72

●

Service interval display

›››

page 84

●

Speed warning

›››

●

Speed warning for winter tyres

Instruments and warning/control lamps

●

Start-Stop system status display

›››

page 223

●

Signs detected by the road signs detection

system and warning that the maximum per-
mitted speed has been exceeded

›››

page 76

●

Active cylinder management (ACT®) status

indication

›››

page 237

●

Low consumption driving



●

Identifying letters on engine (LDM)

●

Driver assistance system display

›››

page 239

●

Doors, bonnet and rear lid open

When the vehicle is unlocked and while driv-
ing, the instrument panel display shows if any
of the doors, the bonnet or rear lid are
opened and, in some cases, it is also indica-
ted by an audible warning. The display may
vary according to the type of instrument pan-
el fitted.

Selector control positions (DSG® dual
clutch gearbox)

The current position of the selector control is
shown on the side of the control and on the
instrument cluster display. When the control
is in the

D/S

position or in the Tiptronic posi-

tion, in some cases, the gear engaged in

each case is shown on the instrument cluster
display .

Outside temperature indicator

If the outside temperature is lower than ap-
proximately +4 °C (+39 °F), the “ice crystal
symbol”



on the outside temperature dis-

play also lights up. This symbol remains lit un-
til the outside temperature exceeds +6 °C
(+43 °F)

›››

When the vehicle is stationary, when the aux-
iliary heater is switched on or when driving at
very low speeds, the outside temperature in-
dicated may be higher than the actual tem-
perature due to the heat produced by the en-
gine.

The margin of measurement ranges from
-45 °C (-49 °F) to +76 °C (+169 °F).

Gear-change recommendation

While driving, the instrument panel of certain
vehicles may indicate a gear recommenda-
tion for saving fuel

›››

page 233

Odometer

The

odometer

registers the total distance

travelled by the car.

The

partial odometer

(

trip

) shows the dis-

tance travelled since the last time it was reset
to zero.

●

Set the odometer to zero via the Infotain-

ment system or the multifunction steering
wheel

›››

To reset the trip odometer (

trip

) to 0:

●

When in

Travel data

select

trip

●

Hold the



button on the windscreen

wiper lever or the



button on the multifunc-

tion steering wheel down for about 2 sec-
onds.

Combined operating range display



(hybrid vehicles)

The value shown is calculated and updated
according to the driving style. Therefore, the
range can vary even when the fuel tank is full
and the high-voltage battery is fully charged.

Range can be increased by reducing or
switching off comfort consumers, e.g. air con-
ditioning or seat heating.

Speed warning for winter tyres

If the maximum speed set is exceeded, this is
displayed on the instrument panel

›››

page 72

The speed warning can be set in the infotain-
ment system using the function button



Vehicle > Exterior > Tyres

›››

Indications of the compass

Depending on the equipment, when the igni-
tion is on, the instrument panel display

Operation

indicates the direction in which you are driv-
ing with a symbol, e.g. NW for Northwest.

When the Infotainment system is on and there
is no route guidance active, the graphic rep-
resentation of a compass is also shown.

Low consumption driving



Depending on the equipment, when the vehi-
cle is moving



is displayed on the instru-

ment cluster display when the vehicle is in an
economical consumption status due to active
cylinder management (ACT®)

›››

page 237

Identifying letters on engine (LDM)

Vehicles with analogue instrument panel:

●

Switch the ignition on, but do not start the

engine.

●

See Service menu

›››

page 72

Legal text about the property rights and
copyrights of the instrument cluster.

WARNING

Even when the outside temperature is high-
er than freezing temperature, some roads
and bridges could be frozen.

●

The “ice crystal symbol” indicates that

there may be a risk of freezing.

●

At outside temperatures above +4 °C

(+39 °F), there may be ice even when the
“ice crystal symbol” is not on.

●

The outside temperature sensor takes a

guideline measurement.

Note

●

There are different instrument panels and

therefore the versions and instructions on
the display may vary. In the case of dis-
plays without warning or information texts,
faults are indicated exclusively by the con-
trol warning lamps.

●

Some indications on the instrument panel

screen may be concealed by a sudden
event, e.g. an incoming call.

●

Depending on the equipment, some set-

tings and instructions can be carried out or
displayed on the infotainment system as
well.

●

If there are several warnings at the same

time, the symbols will be displayed one af-
ter the other for a few seconds. The sym-
bols will stay on until you remove the
cause.

●

If when switching on the ignition warnings

are shown about existing faults, it might not
be possible to change the settings or show
the information as described. In this case,
go to a specialised workshop and request a
repair.

Instrument panel menus

The number of menus and information items
available will depend on the vehicle’s elec-
tronics and features.

Some menu options can only be read when
the vehicle is stationary.

■

Driving data

›››

■

Assist systems.

■

Front Assist On/Off

›››

page 246

■

ACC (only display)

›››

page 250

■

Lane Assist On/Off

›››

page 258

■

Side Assist On/Off

›››

page 264

■

Navigation.

■

Audio.

■

Telephone.

■

Vehicle status.

›››

page 74

Service Menu

In the Service menu various settings can be
adjusted depending on the features.

Open the Service menu

Vehicles with analogue instrument panel:

●

To open up the

Service

menu, select the

Range

information profile while in the

Driv-

ing data

menu, and keep the



key pressed

on the multifunction steering wheel for

Instruments and warning/control lamps

approximately 5 seconds. When it is released,
the

Service

menu will be displayed. Now

you can browse through the menu using the
keys on the multifunction steering wheel as
usual.

Vehicles with digital instrument panel (SEAT
Digital Cockpit):

●

While in

Classic View

, go to the Initial Da-

ta screen, press the



button on the multi-

function steering wheel for about 5 seconds
and release it.

●

Next, the

Configuration list

menu is

displayed, where you can choose between
the

Service menu

or the

View selection

from where the instrument cluster views can
be switched on and off.

Restart the service interval display

Select the

Service

menu and follow the in-

structions on the screen of the instrument
panel.

Restart the oil service

Select the

Restore Oil service

menu and

follow the instructions on the instrument pan-
el display.

Reset driving data (vehicles with an ana-
logue instrument cluster)

Select the

Reset trip

menu and follow the

instructions on the instrument panel display
to reset the value.

Identifying letters on engine (LDM)

Select the menu

Engine code

. The identify-

ing letters of the engine will be shown on the
instrument cluster display at the bottom left.

Setting the clock

Select the

Time

menu and set the correct

time by turning the right thumbwheel of the
multifunction steering wheel.

Next Service

This specifies when the next workshop in-
spection is scheduled.

Driving data indicator (multifunc-
tion display)

Applies to vehicles with analogue instrument

panel

The display of the travel data (multifunction
display) shows different values about the
journey and the consumption.

Change from one display to another

●

Turn the right thumbwheel of the multifunc-

tion steering wheel

›››

page 86

Changing memory

Vehicles with analogue instrument panel:

●

Press the



button on the windscreen

wiper lever or the



button of the multifunc-

tion steering wheel.

Vehicles with digital instrument panel:

●

Depending on the view, select

Trip data

and press the left arrow or the



button on

the multifunction steering wheel.

Since start:

The memory is deleted if

the journey is interrupted for more than 2
hours.

Since refuelling:

Display and stor-

age of the journey data and the con-
sumption values collected. When refuel-
ling, the memory is deleted.

Long-term:

This memory contains trav-

el data up to a maximum of 19 hours and
59 minutes or 99 hours and 59 minutes,
or up to a maximum of 1999.9 km or
9999.9 km. When one of these values is
exceeded (varies depending on the ver-
sion of the instrument panel), the memo-
ry is deleted.

–

Operation

Delete journey data presets

●

When in

Travel data

select desired memo-

ry.

●

Hold the



button of the multifunction

steering wheel or the



button of the multi-

function wheel pressed down for about 2
seconds.

Select the instructions

In the Infotainment system, in the menu Vehi-
cle settings, you can display different travel
data

›››

Current consumption:

The current

fuel consumption display operates
throughout the journey, in litres/100 km;
and with the engine running and the ve-
hicle stopped, in litres/hour.

Average consumption:

The average

fuel consumption is displayed after driv-
ing for approximately 300 metres.

Travelling time:

This indicates the

hours (h) and minutes (min) since the ig-
nition was switched on.

Range:

Approximate distance in km that

can still be travelled if the same driving
style is maintained.

–

AdBlue range or



Approximate

distance in km that can still be travelled
with the current level of the AdBlue®
tank with the same driving style. The in-
dication appears from a range of less
than 2,400 km and cannot be deactiva-
ted.

Distance:

Distance covered in km (m)

after switching on the ignition.

Average speed:

The average speed

will be shown after driving for approxi-
mately 100 metres.

FAS:

Reduced assistant indication.

Oil and coolant temperature indication
(only with digital instrument panel)

The engine reaches its operating tempera-
ture when, under normal driving conditions,
the oil temperature is between

80°C

(176°F)

and

120°C

(248°F). If a great effort is required

from the engine and the outside temperature
is high, the engine oil temperature may in-
crease. This does not present any problem as
long as the warning lamps





›››

page 331

do not appear on the display.

–

Warning and information messages
(Vehicle status)

The system runs a check on certain compo-
nents and functions when the ignition is
switched on and while the vehicle is moving.
Faults are displayed on the instrument cluster
display as red and yellow warning symbols

accompanied by messages and, depending
on the case, even an audible warning

›››

page 87

. The representation of the mes-

sages and symbols may vary depending on
the version of the instrument panel.

Existing faults can also be checked manually.
To do so, open the menu

Vehicle info

›››

page 92

Priority 1 warning (red)

The symbol lights up or flashes (in part ac-
companied by audible warnings).



Stop

driving!

Danger! Check the fault and elimi-

nate the cause. If necessary, seek professio-
nal assistance.

Priority 2 warning (yellow)

The symbol lights up or flashes (in part ac-
companied by audible warnings). Operating
faults or the lack of operating fluids can

Not available in all countries.

With an analogue instrument panel, the warn-

ings are always shown in white.

Instruments and warning/control lamps

cause damage to the vehicle or a fault.
Check the faulty function as soon as possible.
If necessary, seek professional assistance.

Information message

It provides information about processes in the
vehicle.

Accessing warnings and information

●

In the infotainment system, press





Ve-

hicle data > Vehicle status

●

Or:

Access the

Vehicle

menu, then press

the



button on the multifunction steering

wheel or the



button on the wind-

screen wiper lever and select

Warning mes-

sage memories

Driver alert system (break recom-
mendation)

Fig. 63

On the instrument panel display: driver

alert system symbol.

The Fatigue detection informs the driver when
their driving behaviour shows signs of fatigue.

Function and operation

Fatigue detection determines the driving be-
haviour of the driver when starting a journey,
making a calculation of tiredness. This is con-
stantly compared with the current driving be-
haviour. If the system detects that the driver is
tired, an audible warning is given with a
sound and an optic warning is shown with a
symbol and complementary message on the
instrument panel display

›››

Fig. 63

. The mes-

sage on the instrument panel display is
shown for approximately 5 seconds, and de-

pending on the case, is repeated. The system
stores the last message displayed.

The message on the instrument panel display
can be switched off by pressing the



button on the windscreen wiper lever or the
button



on the multi function steering wheel

›››

page 85

The message can be recalled to the instru-
ment panel display using the multifunction
display

›››

Conditions of operation

Driving behaviour is only calculated on
speeds above about 65 km/h (40 mph) up to
around 200 km/h (125 mph).

Switching on and off

Fatigue detection can be activated or deacti-
vated in the infotainment system using the
function button



> Assistants > Driver

alerts > Fatigue detection

›››

. A

mark indicates that the adjustment has been
activated.

System limitations

The Fatigue detection has certain limitations
inherent to the system. The following condi-
tions can limit the Fatigue detection or pre-
vent it from functioning.

Vehicles with analogue instrument panel.

Operation

●

At speeds below 65 km/h (40 mph)

●

At speeds above 200 km/h (125 mph)

●

When cornering

●

On roads in poor condition

●

In unfavourable weather conditions

●

When a sporty driving style is employed

●

In the event of a serious distraction to the

driver

Fatigue detection will be restored when the
vehicle is stopped for more than 15 minutes,
when the ignition is switched off or when the
driver has unbuckled their seat belt and
opened the door.

In the event of slow driving during a long peri-
od of time (below 65 km/h, 40 mph) the sys-
tem automatically re-establishes the tired-
ness calculation. When driving at a faster
speed the driving behaviour will be recalcula-
ted.

WARNING

Do not let the comfort afforded by the Fati-
gue detection system tempt you into taking
any risks when driving. Take regular breaks,
sufficient in length when making long jour-
neys.

●

The driver always assumes the responsi-

bility of driving to their full capacity.

●

Never drive if you are tired.

●

The system does not detect the tiredness

of the driver in all circumstances. Consult
the information in the section

›››

page 75,

System limitations

●

In some situations, the system may incor-

rectly interpret an intended driving ma-
noeuvre as driver tiredness.

●

No warning is given in the event of the ef-

fect called microsleep!

●

Please observe the indications on the in-

strument panel and act as is necessary.

Note

●

Fatigue detection has been developed

for driving on motorways and well paved
roads only.

●

If there is a fault in the system, have it

checked by a specialised workshop.

Road signs detection system

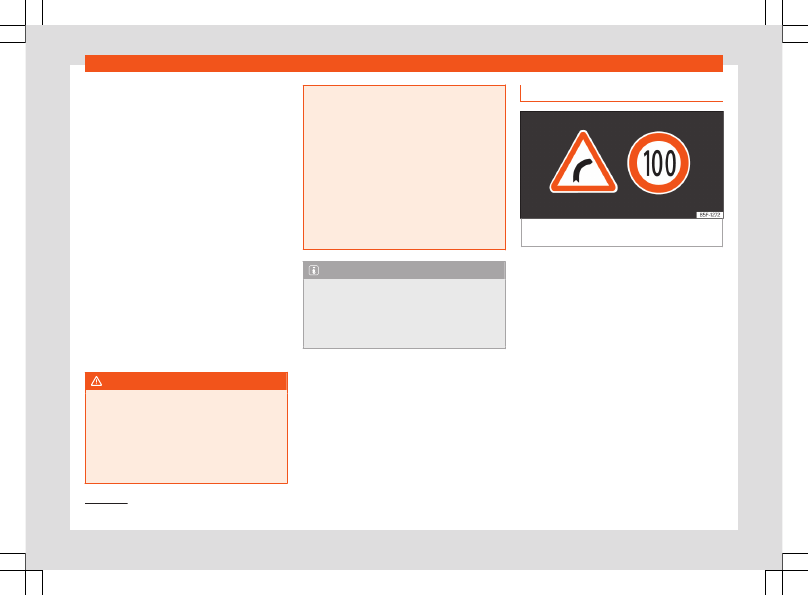

Fig. 64

On the instrument panel display: ex-

amples of recognised signals.

The traffic signal detection system is activa-
ted whenever the vehicle ignition is switched
on.

The system records the standard traffic signs
in front of the vehicle with a camera located
on the base of the interior mirror and provides
information about speed limits, hazard warn-
ings and overtaking prohibitions.

Within its limitations, the system also displays
additional signals, such as time-specific pro-
hibitions, signs for vehicles towing trailers

›››

page 294

or limitations that only apply in

the event of rain. Even on journeys without
signs, the system may display any applicable
speed limits.

System available depending on the country.

Instruments and warning/control lamps

The traffic sign detection system does not
work in all countries. Keep this in mind when
travelling abroad.

Shown on the display

In Germany, on motorways and vehicle
roads, besides speed limits and overtaking
provisions the system also displays the end of
prohibition signs. The valid speed limit at the
time in other countries is always shown.

The traffic signs detected by the system are
displayed on the dash panel display

›››

Fig. 64

and, depending on the navigation

system fitted in the vehicle, on the infotain-
ment system as well

›››

page 89

Hazard warning signs are not displayed in the
infotainment system.

Road sign detection system messages:

There are no traffic signs available

●

The system is in its start-up phase.

●

OR:

the camera has not recognized any

mandatory or prohibitive sign.

Error: Dynamic Road Sign Display

●

There is a fault in the system. Have the sys-

tem checked by a specialised workshop.

Speed warning currently unavailable

●

The speed warning function of the road

sign detection system is faulty. Have the sys-
tem checked by a specialised workshop.

Dynamic Road Sign Display: please
clean the windscreen.

●

The windscreen is dirty in the camera area.

Clean the windscreen.

Dynamic Road Sign Display currently
restricted.

●

The navigation system is not transmitting

data. Check if the navigation system has up-
dated maps.

●

OR:

the vehicle is in a region not included

on the navigation system's map.

No data available

●

The traffic sign detection system does not

work in the current country.

Display of traffic signs

When the traffic sign detection system is con-
nected, a camera located on the base of the
interior rear-view mirror records the traffic
signs in front of the vehicle. After checking
and evaluating the information from the cam-
era, the navigation system and the current
vehicle data, up to two valid road signs are
displayed, with their corresponding addition-
al signs:

●

First position.

The sign that is currently val-

id for the driver is shown in the screen. For ex-
ample, a maximum speed limit of 130 km/h
(100 mph)

›››

Fig. 64

●

Second position.

A second traffic sign may

be displayed in the second position, such as
a hazard warning sign, an overtaking prohibi-
tion or an alternative speed limit.

Additional sign:

If the windscreen wiper is

working while you are driving, the signal with
the additional rain sign will be shown first, on
the left, as it is the one that is applicable at
the time.

A sign valid only with restrictions, e.g. no over-
taking at certain times, may be displayed.

Speed warning (depending on the instru-
ment panel)

If the system detects that the permitted
speed is exceeded, it may warn the driver
with a “gong” and visually with a message on
the dash panel display.

Trailer mode

In vehicles equipped with a towing bracket
device from the factory and a trailer that is
electrically connected to the vehicle, it is
possible to activate or deactivate the display
of specific traffic signs for vehicles with trailer,
such as speed limits or overtaking prohibi-
tions. It can be activated or deactivated in the
infotainment system using the button



> As-

sistants > Driver alerts > Road signs de-
tect. > Consider trailer

›››
