Safety

●

Any work on the head-protection airbag

system or removal and installation of the
airbag components for other repairs (such
as removal of the roof lining) should only
be performed by a specialised workshop.
Otherwise, faults may occur during the air-
bag system operation.

●

The side and head airbags are managed

through sensors located in the interior of
the front doors. To ensure the correct oper-
ation of the side and curtain airbags nei-
ther the doors nor the door panels should
be modified in any way (e.g. fitting loud-
speakers). If the front door is damaged, the
airbag system may not work correctly. All
work carried out on the front door must be
done in a specialised workshop.

Transporting children
safely

Safety for children

Introduction

For safety reasons, as we have learned from
accident statistics, we recommend that chil-
dren under 12 years of age travel in the rear
seats. Depending on their age, height and
weight, children travelling in rear seats must
use a child seat or a seat belt. For safety rea-
sons, the child seat should be installed in the
rear seat, behind the front passenger seat or
in the centre back seat.

The physical laws involved and the forces
acting in a collision apply also to children

›››

page 16

. But unlike adults, children do not

have fully developed muscle and bone struc-
tures. This means that children are subject to
a greater risk of injury.

To reduce the risk of injuries, children must al-
ways use special child restraint systems
when travelling in the vehicle.

We recommend the use of child safety prod-
ucts from the SEAT Original Accessories Pro-
gramme, which includes systems for all ages
made by “Peke” (not for all countries) (see
www.seat.com).

These systems have been especially de-
signed and approved, complying with the
ECE-R44. regulation.

SEAT recommends securing the child seats
shown on the website as described below:

●

Child seats in the opposite direction of trav-

el (group 0+): ISOFIX and support foot (RÖ-
MER BABY SAFE PLUS SHR II + ISOFIX BASE /
PEKE G0 I-SIZE + I-SIZE BASE).

●

Child seats in the direction of travel (group

1): ISOFIX and Top Tether (RÖMER DUO PLUS
+ TOP TETHER / PEKE G1 TRIFIX I-SIZE).

●

Child seats facing the direction of travel

(group 2): safety belt and ISOFIX (RÖMER
KIDFIX XP).

●

Child seats facing the direction of travel

(group 3): safety belt and ISOFIX (RÖMER
KIDFIX XP).

Follow the manufacturer's instructions and
observe any statutory requirements when in-
stalling and using child seats. Always read
and note

›››

page 28

We recommend you always carry the manu-
facturer's Child Seat Instruction Manual to-
gether with the on-board documentation.

Transporting children safely

Child seats group classification

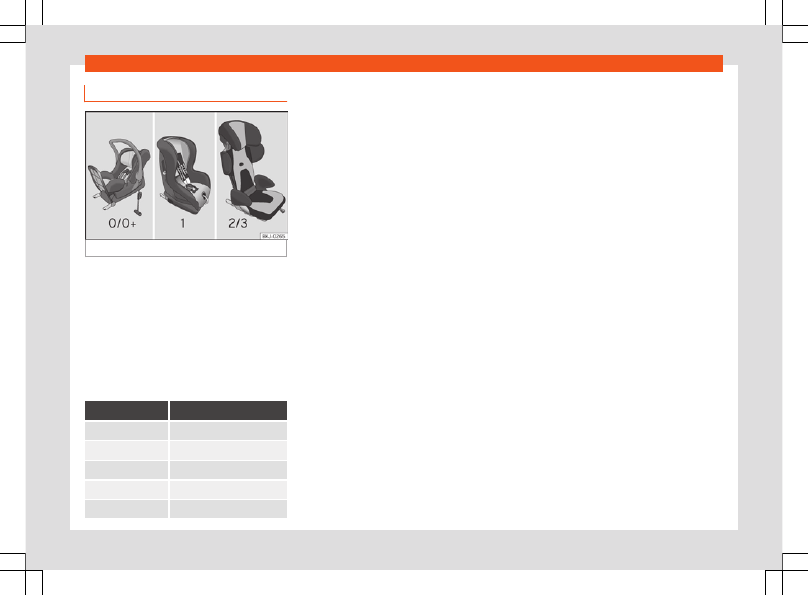

Fig. 20

Examples of child seats.

Use only child seats that are officially ap-
proved and suitable for the child.

Child seats are subject to the regulation ECE-
R 44 or ECE-R 129. ECE-R stands for: Eco-
nomic Commission for Europe Regulation.

Child seats by weight group

The child seats are grouped into 5 catego-
ries:

Age group

Weight of the child

Group 0

Up to 10 kg

Group 0+

Up to 13 kg

Group 1

From 9 to 18 kg

Group 2

From 15 to 25 kg

Group 3

From 22 to 36 kg

Child seats that have been tested and ap-
proved under the ECE-R 44 or ECE-R 129
standard bear the test mark ECE-R 44 or
ECE-R 129 on the seat (the letter E in a circle
with the test number below it).

Follow the manufacturer's instructions and
observe any statutory requirements when in-
stalling and using child seats.

We recommend you to always include the
manufacturer's Child Seat Instruction Manual
together with the on-board documentation.

SEAT recommends you use child seats from
the

Original Accessories Catalogue

. These

child seats have been designed and tested
for use in SEAT vehicles. You can find the right
child seat for your model and age group at
SEAT dealers.

Child seats by approval category

Child seats may have the approval category
of universal, semi-universal, vehicle specific
(all according to the ECE-R 44 standard) or i-
Size (according to the ECE-R 129 standard).

●

Universal

: child seats with universal appro-

val can be installed in all vehicles. There is no
need to consult any list of models. In the case
of universal approval for ISOFIX, the child
seat is additionally provided with a Top Tether
belt.

●

Semi-universal

: semi-universal approval,

in addition to the standard requirements of

universal approval, requires safety devices to
lock the child seat, which require additional
testing. Child seats with semi-universal ap-
proval include a list of vehicle models for
which they can be installed.

●

Vehicle-specific

: vehicle-specific approval

requires a dynamic test of the child seat for
each vehicle model separately. Child seats
with vehicle-specific approval also include a
list of vehicle models for which they can be
installed.

●

i-Size

: child seats with i-Size approval must

meet the requirements prescribed in the ECE-
R 129 standard in relation to installation and
safety. Child seat manufacturers can tell you
which seats have i-Size approval for this vehi-
cle.

Safety

Fitting and using child seats

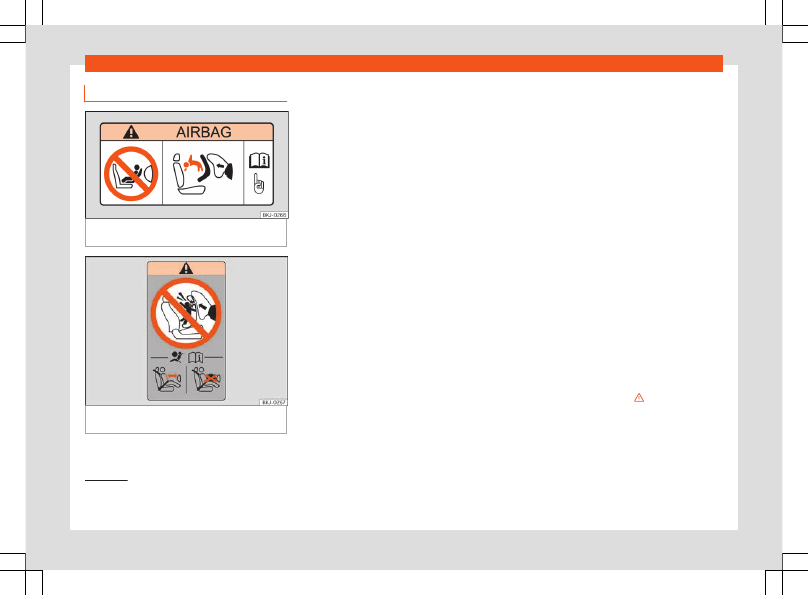

Fig. 21

Airbag sticker: on the passenger’s sun

visor

Fig. 22

Airbag sticker: on the rear frame of the

passenger side door

Warnings about fitting a child seat

Take the following general warnings into ac-
count if you are going to fit a child seat. They
are valid for all child seats regardless of their
attachment system.

●

Please read and follow the child seat man-

ufacturer's operating instructions.

●

The child seat should preferably be fitted to

the rear seat behind the front passenger seat
so that the child can exit the vehicle on the
pavement side.

●

Set the height of the seat belt such that it

adapts to the child seat naturally, without
twisting. The lowest position of the seat belt
height regulator must be used with rear-fac-
ing child seats.

●

To correctly use a child seat in the back,

the front backrest must be adjusted so that
there is no contact with the child seat in the
back in the case that it goes opposite to the
direction of the car. In the case of front facing
restraint systems, the front backrest must be
adjusted so that there is no contact with the
child's feet.

●

If a semi-universal type chair is to be instal-

led, in which the method of attachment to the
car is through the seat belt and support

bracket, it should never be installed in the
central rear seat as the ground clearance is
lower than in other places and the support
bracket will not allow the seat to remain suffi-
ciently stable.

●

When fitting a child seat on the front pas-

senger seat, the seat must be moved back-
wards as far as possible and placed in the
highest position. The backrest must also be
put in a vertical position

Important information about the front pas-
senger front airbag

A sticker with important information about the
passenger airbag is located on the passeng-
er's sun visor and/or on the passenger side
door frame

›››

Fig. 21

Read and always observe the safety informa-
tion included in the following chapters:

●

Safety distance with respect to the passen-

ger airbag

›››

page 20

●

Objects between the passenger and the

passenger side airbag

›››

in Front airbags

on page 23

The passenger side front airbag, when ena-
bled, is a serious risk for a child that is facing
backward since the airbag can strike the seat

Compliance with current national legislation

and the manufacturer's instructions is required
when using or installing child seats.

Transporting children safely

with such force that it can cause serious or
fatal injuries. Children up to 12 years old
should always travel on the rear seat.

Therefore we strongly recommend you to
transport children on the rear seats. This is
the safest location in the vehicle. Alternative-
ly, the front passenger airbag can be disa-
bled with a key-operated switch

›››

page 23

When transporting children, use a child seat
suitable for the age and size of each child

›››

page 27

WARNING

●

If a child seat is secured to the front pas-

senger seat, the risk to the child of sustain-
ing critical or fatal injuries in the event of an
accident increases.

●

An inflating front passenger airbag can

strike the rear-facing child seat and project
it with great force against the door, the roof
or the backrest.

●

Never install a child seat facing back-

wards on the front passenger seat unless
the front passenger front airbag has been
disabled. Risk of potentially fatal injuries to
the child! However, if necessary, the front
passenger front airbag must be deactiva-
ted

›››

page 23

. If the passenger seat has a

height adjustment option, move it to the
highest, most upright position. If you have a
fixed seat, do not install any child restraint
system in this location.

●

For those vehicles that do not include a

key lock switch to deactivate the airbag,
the vehicle must be taken to a technical
service. Do not forget to reconnect the air-
bag when an adult wants to sit in the front
passenger seat.

●

Never allow a child to be transported in a

vehicle without being properly secured, or
to stand up or kneel on a seat while travel-
ling. In an accident, the child could be flung
through the vehicle, causing possibly fatal
injuries to themselves and to the other vehi-
cle occupants.

●

Never leave a child alone in the child seat

or in the vehicle.

●

Children who are less than 1.5 metres tall

must not wear a normal seat belt without a
child seat, as this could cause injuries to
the abdominal and neck areas during a
sudden braking manoeuvre or in an acci-
dent.

●

When a child seat is mounted in the rear

seats, the door child-proof lock should be
activated

›››

page 73

Attachment systems

Depending on the country, different attach-
ment systems are used for safely installing
child seats.

Attachment systems overview

●

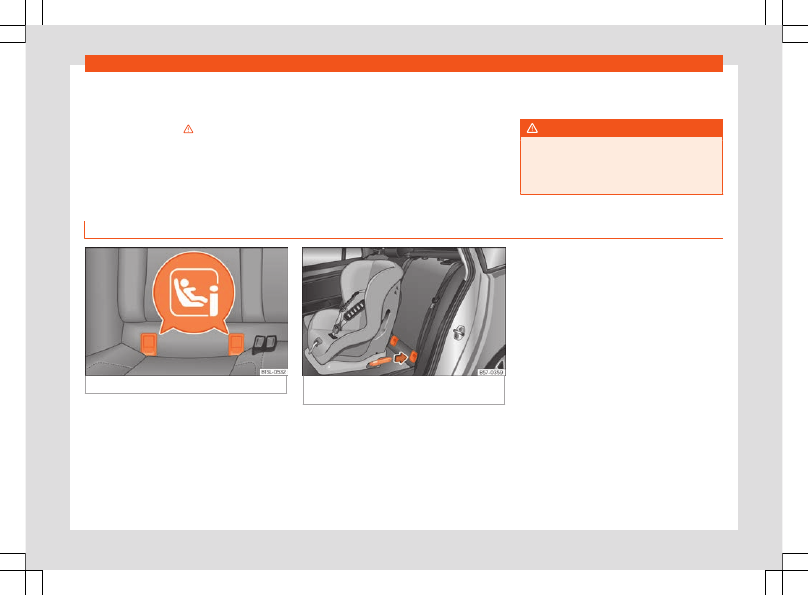

ISOFIX

: ISOFIX is a standardised attach-

ment system allowing quick and safe attach-
ment of child seats in the vehicle. ISOFIX at-
tachment establishes a rigid connection be-
tween the child seat and the car body.

The child seat has two rigid attachment clips,
called connectors. These connectors are fit-
ted into the ISOFIX attachment rings found
between the seat cushion and the backrest
of the vehicle's back seat (on the sides). ISO-
FIX attachment systems are used mainly in
Europe

›››

page 30

. If necessary, ISOFIX at-

tachment may have to be supplemented with
a Top Tether belt or a support bracket.

●

Automatic three-point seat belt

. When-

ever possible, it is preferable to attach the
child seats with the ISOFIX system rather than
attaching them with an automatic three-point
seat belt

›››

page 33

Additional attachment:

●

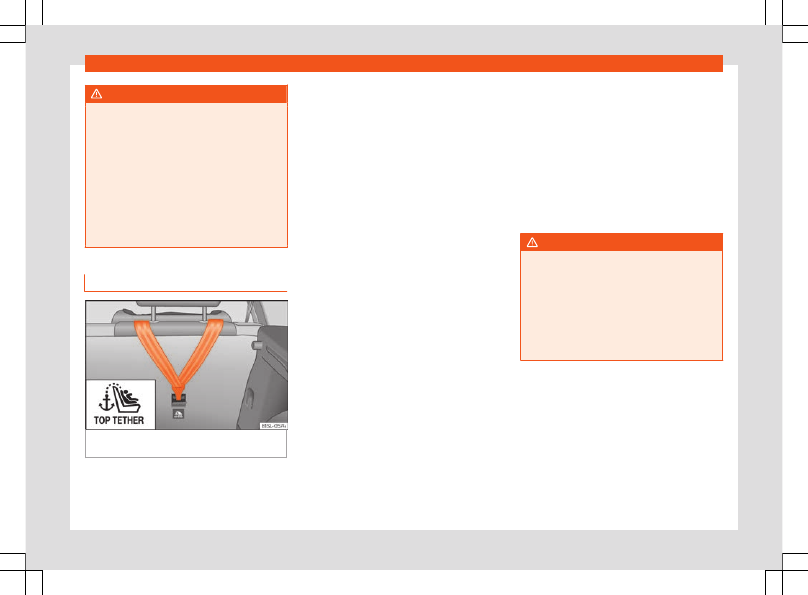

Top Tether

: the Top Tether belt is guided

over the back of the rear seat and attached
to an anchor point with a hook. Anchor points
are located at the back of the rear seat back-
rest on the boot side

›››

page 32

. The rings

for retaining the Top Tether belt are marked
with an anchor symbol.

●

Support bracket

: some child seats rest on

the floor of the vehicle with a support bracket.
The support bracket prevents the child seat

Safety

from tipping forward in the event of impact.
Child seats fitted with a support bracket
should only be used in the passenger seat
and side rear seats

›››

. For the assembly of

this type of seat you should also consult the
list of approved vehicles for this assembly,
available in the instructions for child restraint
systems.

Recommended systems for attaching
child seats

SEAT recommends attaching child seats as
follows:

●

Baby carriers or child seats in the oppo-

site direction of travel:

ISOFIX and support

bracket or i-Size.

●

Child seats in the direction of travel:

ISO-

FIX and Top Tether.

WARNING

Incorrect use of the support bracket can
cause serious or fatal injury.

●

Make sure the support bracket is correct-

ly and safely installed.

Fit a child seat with the ISOFIX / i-Size and Top Tether system

Fig. 23

Rear seat: ISOFIX/i-Size securing rings.

Fig. 24

Rear seats: fitting a child seat with the

ISOFIX system.

Child seats can be secured quickly, easily
and safely on the rear seats with the ISOFIX/i-
Size and Top Tether system.

Two “ISOFIX” retaining rings are fitted on each
rear side seat. The “ISOFIX” rings are located

between the rear seat backrest and the seat
cushioning

›››

Fig. 23

. The Top Tether rings

are located on the rear part of the rear seat
backrests (behind the backrest or in the lug-
gage compartment)

›››

page 32

To understand the compatibility of the ISO-
FIX/i-Size systems in the vehicle, check the ta-
ble below.

Transporting children safely

Age group

Class according to size

Front passenger seat

Rear seats

Group 0

: up to 10 kg

IL-SU

Group 0+

: up to 13 kg

IL-SU

Group 1

: 9 to 18 kg

IL-SU

IUF

Group 2

: 15 to 25 kg

–

IL-SU

Group 3

: 22 to 36 kg

–

IL-SU

i-Size child restraint system

–

i-U

: space not suitable for fixing an ISOFIX or i-Size child seat in this group.

IL-SU

: space suitable for installing an ISOFIX child seat with semi-universal approval. Take the child seat manufacturer's vehicle list into account.

IUF

: suitable place for installing an ISOFIX child seat with universal approval.

i-U

: space suitable for fitting a forward- or rear-facing i-Size child seat with universal approval.

i-UF

: space suitable for fitting a forward-facing i-Size child seat with universal approval.

The indication of class according to size corresponds to the authorised bodyweight for the child seat. In child seats with universal or semi-universal approval, the class

according to size is indicated on the ECE approval label. The indication of class according to size is stated on the corresponding child seat.

Securing the child seat with the “ISOFIX/i-
Size” system

You are obliged to follow the seat manufac-
turer's instructions.

●

Press the child seat onto the “ISOFIX/iSize”

retaining rings until the child seat is heard to
engage securely

›››

Fig. 24

. If the child seat is

equipped with Top Tether anchor points, se-
cure it to the correspondent ring

›››

page 32

Observe the manufacturer's instructions.

●

Pull on both sides of the child seat to ensure

that it is properly anchored.

Child seats with the “ISOFIX” and Top Tether
attachment system are available from Tech-
nical Services.

Safety

WARNING

The securing rings are designed only for
use with “ISOFIX” and Top Tether system
child seats.

●

Never secure other child seats that do

not have the “ISOFIX” or Top Tether system,
or safety belts or any other objects to the
securing rings – as this can result in poten-
tially fatal injuries to the child.

●

Ensure that the child seat is correctly se-

cured to the “ISOFIX” and Top Tether secur-
ing rings.

Top Tether securing belts

Fig. 25

Back of the rear seats: Top Tether ring

concealed underneath a cut in the carpet.

Child seats with the Top Tether system come
with a strap for securing the seat to the vehi-
cle anchor point, located at the back of the
rear seat backrest and provide greater re-
straint.

The objective of this strap is to reduce for-
ward movements of the child seat in a crash,
to reduce the risk of injuries to the head from
hitting the inside of the vehicle.

Using the Top Tether in rear-facing moun-
ted seats

Currently, there are very few rear-facing child
safety seats that have Top Tether. Please
carefully read and follow the seat manufac-
turer instructions to learn the proper way to
install the Top Tether strap.

Securing the retainer strap

●

Follow the manufacturer's instructions to

deploy the child seat Top Tether retaining
strap.

●

Place the belt under the headrest of the

back seat (depending on the instructions of
the chair itself, lift or remove the headrest if
necessary).

●

Slide the strap and secure it properly with

the anchorage of the backrest

›››

Fig. 25

●

Firmly tighten the strap following the manu-

facturer's instructions.

Releasing the retaining strap

●

Loosen the strap following the manufactur-

er's instructions.

●

Push the lock and release it from the an-

choring support.

WARNING

An undue installation of the safety seat will
increase the risk of injury in the event of a
crash.

●

Never tie the retainer strap to a hook in

the luggage compartment.

●

Never secure or tie luggage or other

items to the lower anchorages (ISOFIX) or
the upper ones (Top Tether).

Transporting children safely

Fitting a child seat using the seat belt

If you want to fit a universal approval catego-
ry (U) child seat in your vehicle, you must
check that the seat is approved for your vehi-

cle. You will find any necessary information
on the child seat’s orange ECE approval la-

bel. The following table shows the different
fitting options.

Age group

Weight of the child

Front passenger seat

Rear seats

Front passenger air-

bag activated

Front passenger air-

bag deactivated

Group 0

Up to 10 kg

Group 0+

Up to 13 kg

Group 1

Rear-facing

From 9 to 18 kg

Forward-facing

From 9 to 18 kg

Group 2

From 15 to 25 kg

Group 3

From 22 to 36 kg

universal.

vehicle seat unsuitable for fitting this group of child seat.

Fitting a child seat using the seat belt

●

Set the height of the seat belt such that it

adapts to the child seat naturally, without
twisting. The lowest position of the seat belt
height regulator must be used with rear-fac-
ing child seats.

●

Put the seat belt in place and pass it

through the child seat according to the in-
structions of the child seat manufacturer.

●

Make sure that the seat belt is not twisted.

●

Insert the latch plate into the seat's buckle

until you hear the engagement click.

WARNING

When travelling, children must be secured
in the vehicle with a restraint system suita-
ble for age, weight and size.

●

Read and always observe information

and warnings concerning the use of child
seats

›››

page 28

Emergencies

Emergencies

Self-help

Emergency equipment

First aid kit, warning triangle and
fire extinguishers

Fig. 26

In the luggage compartment: warning

triangle.

Warning triangle

The use of reflective warning triangles is
obligatory in emergencies in some countries.
As are the first aid kit and a set of spare light
bulbs.

Depending on the vehicle’s equipment, the
warning triangle can be found in a compart-
ment located under the floor panel of the

load area in the luggage compartment

›››

Fig. 26

First aid kit

The first aid kit must comply with legal re-
quirements. Check the expiry date of the
contents of the first aid kit.

Fire extinguisher

A fire extinguisher can be stored in a holder in
the passenger seat footwell.

The fire extinguisher must conform to legal
requirements, be ready for use and be
checked regularly. Check the certification
seal on the extinguisher.

WARNING

Loose objects in the vehicle interior can be
violently thrown in case of a sudden ma-
noeuvre or braking and especially in acci-
dents causing serious injury.

●

Secure or store fire extinguishers, first aid

kit, reflective vests and warning triangle
securely in the vehicle.

Note

●

The first aid kit, warning triangle, reflec-

tive vests and fire extinguishers are not part
of the vehicle's standard equipment.

●

The warning triangle should meet legal

requirements.

●

Before acquiring accessories and emer-

gency equipment see the instructions in
“Accessories and spares”

›››

page 204

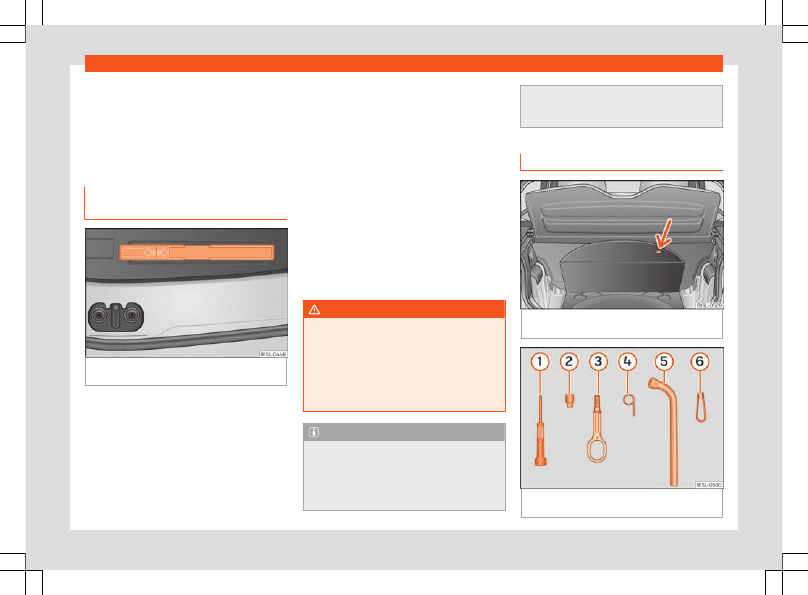

Vehicle tool kit

Fig. 27

In the luggage compartment: carpet

raised.

Fig. 28

Underneath the floor panel of the lug-

gage compartment: vehicle tool kit.

Self-help

The vehicle tool kit is located under the floor
panel in the luggage compartment

›››

Fig. 27

To access the vehicle tools

›››

page 90

The tool kit includes:

Screwdriver with hexagon socket in the
handle for screwing and unscrewing the
wheel nuts
Adapter for the anti-theft bolt
Towing eye, removable
Hook for extracting the central wheel
trims
Wheel spanner
Clip for removing the wheel bolt caps

Some of the items listed are only provided in
certain model versions, or are optional extras.

WARNING

If loose, the vehicle tool kit and anti-punc-
ture kit could be thrown violently in the
passenger compartment in case of sudden
manoeuvres, sudden braking and acci-
dents, and could cause serious injuries.

●

Always check that the vehicle tool kit and

the anti-puncture kit are securely fastened
in the luggage compartment.

WARNING

Unsuitable or damaged vehicle tools can
cause injury or accidents.

●

Never work with inappropriate or dam-

aged tools.

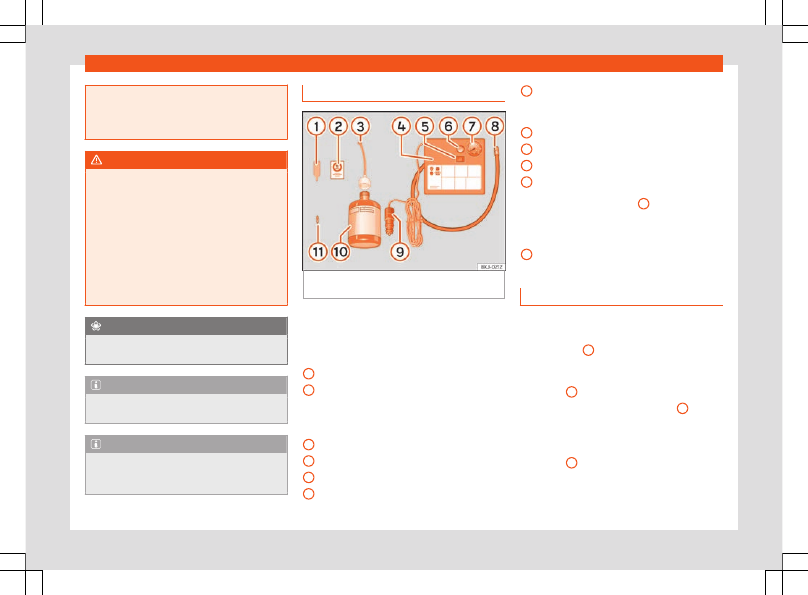

Tyre repair

TMS (Tyre Mobility System)

The Tyre Mobility System will reliably seal
punctures caused by the penetration of a for-
eign body of up to about

4 mm

in diameter.

Do not remove foreign objects, e.g. screws
or nails, from the tyre.

After inserting the sealant residue in the tyre,
you must again check the tyre pressure
about 10 minutes after starting the engine.

You should only use the tyre mobility set if the
vehicle is parked in a safe place, you are fa-
miliar with the procedure and you have the
necessary tyre mobility set! Otherwise, you
should seek professional assistance.

Do not use the tyre sealant in the following
cases:

●

If the wheel rim has been damaged.

●

In outside temperatures below -20°C

(-4°F).

●

In the event of cuts or perforations in the

tyre greater than 4 mm.

●

If you have been driving with very low pres-

sure or a completely flat tyre.

●

If the sealant bottle has passed its use by

date.

WARNING

Using the tyre mobility system can be dan-
gerous, especially when filling the tyre at
the roadside. Please observe the following
rules to minimise the risk of injury:

●

Stop the vehicle safely as soon as possi-

ble. Park it at a safe distance from sur-
rounding traffic to fill the tyre.

●

Ensure the ground on which you park is

flat and solid.

●

All passengers and particularly children

must keep a safe distance from the work
area.

●

Turn on the hazard warning lights to warn

other road users.

●

Use the tyre mobility system only if you

are familiar with the necessary procedures.
Otherwise, you should seek professional
assistance.

●

The tyre mobility set is intended for tem-

porary emergency use only until you can
reach the nearest specialised workshop.

●

Replace the repaired tyre with the tyre

mobility set as soon as possible.

●

The sealant is a health hazard and must

be cleaned immediately if it comes into
contact with the skin.

●

Always keep the tyre mobility set out of

the reach of small children.

Emergencies

●

Always stop the engine, apply the hand

brake and put it in gear when using a man-
ual gearbox, in order to reduce the risk of
involuntary movement of the vehicle.

WARNING

A tyre filled with sealant does not have the
same performance properties as a conven-
tional tyre.

●

Never drive faster than 80 km/h

(50 mph).

●

Avoid heavy acceleration, hard braking

and fast cornering.

●

Drive for only 10 minutes at a maximum

speed of 80 km/h (50 mph) and then check
the tyre.

For the sake of the environment

Dispose of used or expired sealant observ-
ing any legal requirements.

Note

A new bottle of sealant can be purchased
at SEAT dealerships.

Note

Take into account the separate instruction
manual of the tyre mobility system’s manu-
facturer.

Anti-puncture kit contents

Fig. 29

Standard representation: anti-punc-

ture kit contents.

The anti-puncture kit is located underneath
the floor covering in the luggage compart-
ment. It includes the following components

›››

Fig. 29

Valve insert remover
A sticker to be adhered to the instrument
cluster, within the driver's visual field, to
remind that the maximum advisable
speed “max. 80 km/h” or “max. 50 mph”
Filler tube with cap
Air compressor
ON/OFF switch
Air bleed screw (it can also be integrated
in the inflator tube).

Warning provided by tyre pressure moni-
toring system (it can also be integrated in
the inflator tube).
Tube for inflating tyres
12 volt connector
Bottle of sealant
Spare tyre valve

The

valve insert remover

has a gap at

the lower end for a valve insert. The valve in-
sert can only be screwed or unscrewed in this
way. This also applies to its replacement part

Sealing and inflating a tyre

Sealing the tyre

●

Unscrew the tyre valve cap and insert. Use

the

›››

Fig. 29

tool to remove the insert.

Place it on a clean surface.

●

Shake the tyre sealant bottle vigorously

›››

Fig. 29

●

Screw the inflator tube

›››

Fig. 29

into

the sealant bottle. The bottle's seal will break
automatically.

●

Remove the lid from the filling tube

›››

Fig. 29

and screw the open end of the

tube into the tyre valve.

●

With the bottle upside down, empty

all

the contents into the tyre.

Self-help

●

Remove the bottle from the valve.

●

Place the insert back into the tyre valve us-

ing the tool

›››

Fig. 29

Inflating the tyre

●

Screw the compressor tyre inflator tube

›››

Fig. 29

into the tyre valve.

●

Check that the air bleed screw is closed

›››

Fig. 29

●

Connect the vehicle's drive system.

●

Insert the connector

›››

Fig. 29

into the

vehicle's 12-volt socket

›››

page 97

●

Turn the air compressor on with the

ON/OFF switch

›››

Fig. 29

●

Keep the air compressor running until it rea-

ches 2.0 to 2.5 bar (29-36 psi/200-250 kPa).

A maximum of 8 minutes

●

Disconnect the air compressor.

●

If it does not reach the pressure indicated,

unscrew the tyre inflator tube from the valve.

●

Move the vehicle 10m so that the sealant is

distributed throughout the tyre.

●

Screw the compressor tyre inflator into the

valve.

●

Repeat the inflation process.

●

If the indicated pressure still cannot be

reached, the tyre is too badly damaged. Stop
and request assistance from an authorised
technician.

●

Disconnect the air compressor. Unscrew

the tyre inflator tube from the tyre valve.

●

When the tyre pressure is between 2.5 and

2.0 bars, continue driving without exceeding
80 km/h (50 mph).

●

Attach the sticker

›››

Fig. 29

to the in-

strument cluster, within the driver's visual
field.

●

Check the pressure again after 10 minutes

›››

page 37

WARNING

When inflating the wheel, the air compres-
sor and the inflator tube may become hot.

●

Protect hands and skin from hot parts.

●

Do not place the hot flexible inflator tube

or hot air compressor on flammable mate-
rial.

●

Allow them to cool before storing the de-

vice.

●

If it is not possible to inflate the tyre to at

least 2.0 bars (29 psi / 200 kPa), the tyre is
too badly damaged. The sealant is not in a
good condition to seal the tyre. Do not con-
tinue driving. Seek specialist assistance.

CAUTION

Switch off the air compressor after a maxi-
mum of 8 operational minutes to avoid
overheating! Before switching on the air
compressor again, let it cool for several mi-
nutes.

Check after 10 minutes of driving

Screw the inflator tube

›››

Fig. 29

again

and check the pressure on the gauge

1.3 bar (19 psi / 130 kPa) and lower:

●

Stop the vehicle!

The tyre cannot be

sealed sufficiently with the tyre mobility set.

●

You should obtain professional assistance

›››

1.4 bar (20 psi / 140 kPa) and higher:

●

Set the tyre pressure to the correct value

again.

●

Carefully resume your journey until you

reach the nearest specialised workshop with-
out exceeding 80 km/h (50 mph).

●

Have the damaged tyre replaced.

WARNING

Driving with an unsealed tyre is dangerous
and can cause accidents and serious in-
jury.

●

Do not continue driving if the tyre pres-

sure is 1.3 bar (19 psi / 130 kPa) and lower.

●

Seek specialist assistance.

Emergencies

Changing a wheel

What to do first

●

Park the vehicle on a horizontal surface and

in a safe place as far away from traffic as
possible.

●

Apply the handbrake.

●

Switch on the hazard warning lights.

●

Position the selector lever in

●

Keep the vehicle tool kit

›››

page 34

and

the spare wheel available.

●

Observe the applicable legislation for each

country (reflective vest, warning triangles,
etc.).

●

All occupants should leave the vehicle and

wait in a safe place (for instance behind the
roadside crash barrier).

WARNING

●

Always observe the above steps and pro-

tect yourself and other road users.

●

If you change the wheel on a slope, block

the wheel on the opposite side of the car
with a stone or similar to prevent the vehi-
cle from moving.

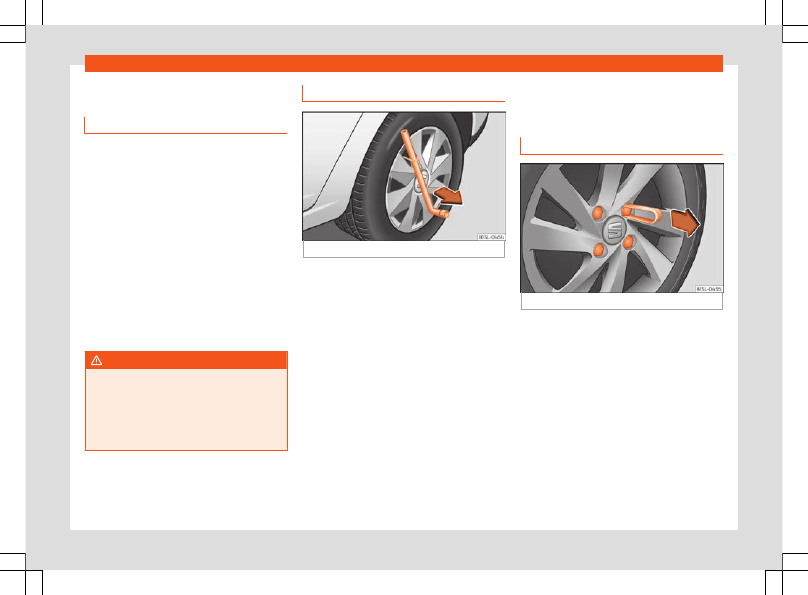

Integral wheel trim

Fig. 30

Remove the wheel cover.

The wheel covers must be removed for ac-
cess to the wheel bolts.

Removing

●

Take the wheel brace and the wire hook

from the vehicle tool kit

›››

page 34

●

Hook the wire through one of the grooves of

the trim.

●

Insert the box spanner through the hook,

rest it on the tyre and remove the wheel trim

›››

Fig. 30

Fitting

●

Press the trim against the wheel so that the

hole for the valve fits over the tyre valve.

●

Make sure that the trim is correctly fitted all

the way around the wheel. If you are using an

anti-theft wheel lock, screw it in the opposite
position to the valve.

Wheel bolt caps

Fig. 31

Wheel: wheel nuts with caps.

Removal

●

Fit the plastic clip (vehicle tools

›››

Fig. 28

)

over the cap until it clicks into place

›››

Fig. 31

●

Remove the cap with the plastic clip.

The caps protect the wheel bolts and should
be remounted after changing the tyre.

The

anti-theft wheel locking bolt

has a

special cap. This only fits on anti-theft locking
bolts and is not for use with standard wheel
bolts.

Self-help

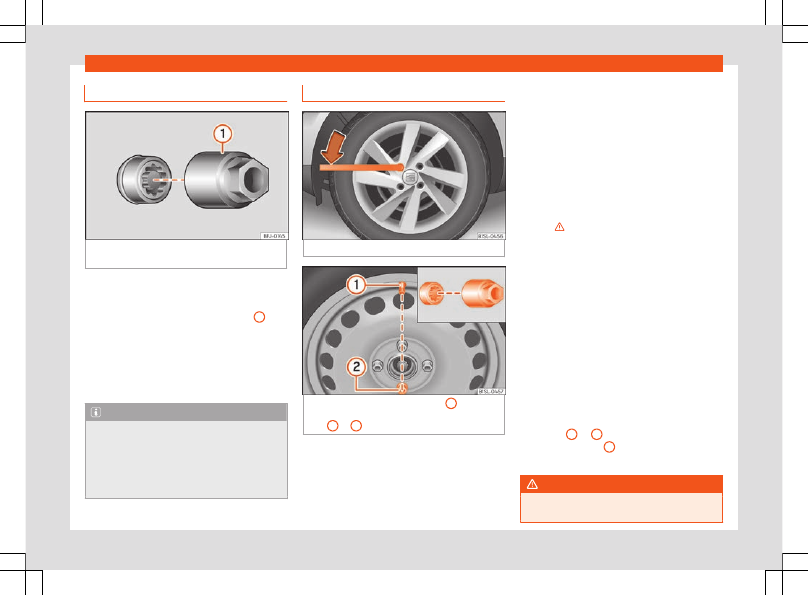

Anti-theft wheel nuts

Fig. 32

Anti-theft wheel bolt with cap and

adapter.

Loosening the anti-theft wheel bolt

●

Remove the wheel cover or the cap.

●

Insert the special adapter

›››

Fig. 32

(ve-

hicle tools

›››

page 34

) onto the anti-theft

wheel bolt and push it on as far as it will go.

●

Insert the wheel brace (vehicle tools) onto

the adapter as far as it will go.

●

Remove the wheel bolt

›››

page 39

Note

Make a note of the code number of the an-
ti-theft wheel bolt and keep it in a safe
place, but not in your vehicle. If you need a
new adapter, you can obtain it from the
SEAT Official Service, indicating the code
number.

Loosening wheel bolts

Fig. 33

Wheel change: loosen the wheel nuts.

Fig. 34

Wheel change: tyre valve

and the

correct position for the anti-theft wheel locking

bolt

Use only the wheel wrench belonging to the
car to loosen the wheel bolts.

Loosen the wheel bolts only about one turn
before raising the vehicle with the jack.

If the wheel bolt is very tight, carefully push
on the end of the wheel wrench with your
foot. Hold on to the vehicle for support and
take care not to slip during this operation.

Loosening wheel bolts

●

Fit the wheel wrench on as far as it will go

›››

Fig. 33

●

Hold the wrench at the end and rotate the

bolt approximately

one

turn anticlock-

wise

›››

Important information about wheel bolts

Factory-fitted rims and wheel bolts are spe-
cially matched during construction. There-
fore, if different rims are fitted, the correct
wheel bolts with the right length and heads
must be used. This ensures that wheels are
fitted securely and that the brake system
functions correctly.

In certain circumstances, you should not even
use wheel bolts from vehicles of the same
model.

In wheels with full hubcaps, the anti-theft
locking bolt must be threaded onto positions

›››

Fig. 34

, taking the tyre valve’s po-

sition as reference

. Otherwise it will not be

possible to mount the hubcap.

WARNING

If the wheel bolts are not properly tight-
ened, they could come loose while driving

Emergencies

and cause an accident, serious injury and
loss of vehicle control.

●

Use only wheel bolts which correspond

to the rim in question.

●

Never use different wheel bolts.

●

Wheel bolts and threads should be clean,

free of oil and grease, and it should be pos-
sible to screw them easily.

●

To loosen and tighten wheel bolts, only

use the wheel wrench that came with the
car from the factory.

●

The wheel bolts should only be loosened

slightly (about one turn) before raising the
vehicle with the jack. Risk of accident!

●

Never apply grease or oil to wheel bolts

or to the wheel hub threads. Even if the
bolts have been tightened to the prescri-
bed torque, they could come loose while
driving.

●

Never loosen the screwed joints of wheel

rims with bolted ring trims.

●

If wheel bolts are tightened below the

prescribed torque, the bolts and rims could
come loose while driving. If tightening tor-
que is too high, the wheel bolts or threads
can be damaged.

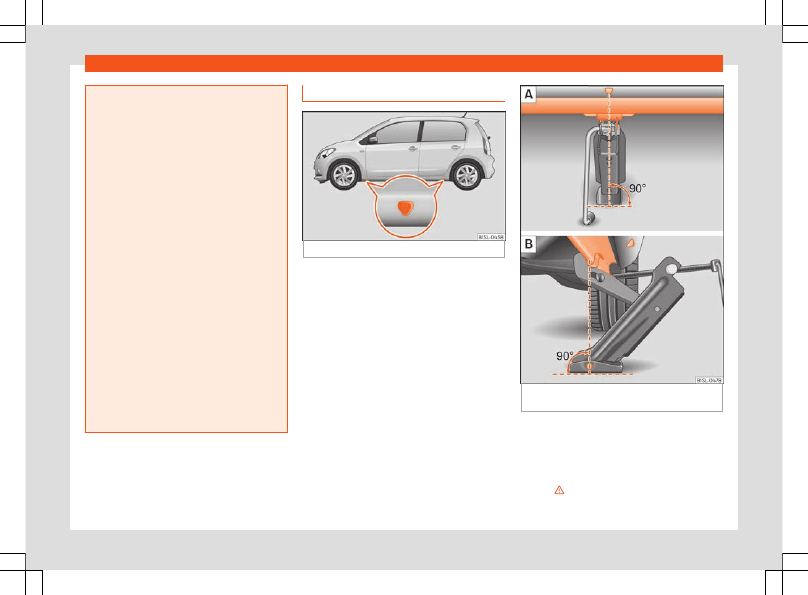

Raise the vehicle

Fig. 35

Jack position points.

Fig. 36

Cross member: positioning the jack on

the vehicle.

●

Rest the jack (vehicles tools) on firm

ground. If necessary use a large, strong
board or similar support. If the surface is slip-
pery (for example tiles) place the jack on a
rubber mat or similar to prevent it from slip-
ping

›››

Self-help

●

Find the support point on the strut (sunken

area) closest to the wheel to be changed

›››

Fig. 35

●

Raise the jack with the crank handle until it

can be inserted just below the support point
of the vehicle.

●

Make sure that the base of the jack rests

firmly on the ground and that it is exactly be-
low the vertical support point

›››

Fig. 36

●

Centre the jack and continue to raise it us-

ing the crank handle until the claw grasps the
reinforcement located under the vehicle

›››

Fig. 36

●

Keep raising the jack until the wheel comes

slightly off the ground.

WARNING

The factory-supplied jack is only designed
for changing wheels on this model. On no
account attempt to use it for lifting heavier
vehicles or other loads. Risk of injury.

●

Make sure the jack remains stable. If the

surface is slippery or soft, the jack could
slip or sink, respectively, with the conse-
quent risk of causing injuries.

●

Lift the vehicle using only the jack sup-

plied from the factory. Other jacks, even
those approved for other SEAT models
could slip, with the consequent risk of in-
jury.

●

Place the jack only at the support points

provided on the strut and align it. Other-

wise, the jack could slip because it does
not have sufficient grip on the vehicle: risk
of injury!

●

You should never place a body limb such

as an arm or leg under a raised vehicle that
is solely supported by the jack.

●

If you have to work underneath the vehi-

cle, you must use suitable stands addition-
ally to support the vehicle, there is a risk of
accident!.

●

Never raise the vehicle if it is tilting to one

side or the engine is running.

●

Never start the engine when the vehicle is

raised. The vehicle may come loose from
the jack due to the engine vibrations.

CAUTION

The vehicle must not be raised on the
crossbar. Place the jack only at the support
points provided on the strut and align it.
Otherwise, the vehicle may be damaged.

Removing and installing a wheel

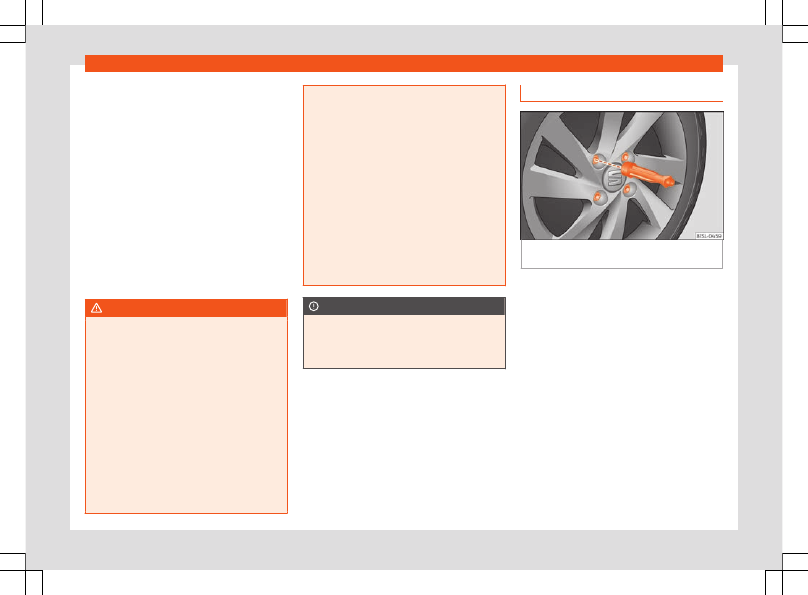

Fig. 37

Wheel change: loosen wheel nuts us-

ing the socket in the handle of the screwdriver.

Change the wheel after loosening the wheel
bolts and raising the vehicle with the jack.

When removing/fitting the wheel, the rim may
hit and damage the brake disc. For this rea-
son, please take care and get a second per-
son to assist you.

Taking off the wheel

●

Using the hexagonal socket in the wheel

brace

›››

Fig. 37

, unscrew the slackened

wheel bolts and place them on a clean sur-
face.

●

Take off the wheel.

Putting on the spare wheel

Check the direction of rotation of the tyre

›››

page 42

Seat Mii electric (2021 year). Manual in english - page 2
