Section 6: Technical specifications
Vehicle identification plates
6.2
Technical information for the emergency services
6.3
Engine identification
6.4
Dimensions
6.5
Engine specifications
6.9
Towing weights
6.10
Weights
6.10
Replacement parts and repairs
6.12
Service sheets
6.13
Anticorrosion check
6.19
6.1
VEHICLE IDENTIFICATION PLATES
A
1
2
3
4
5
10
6
A
9
7
8

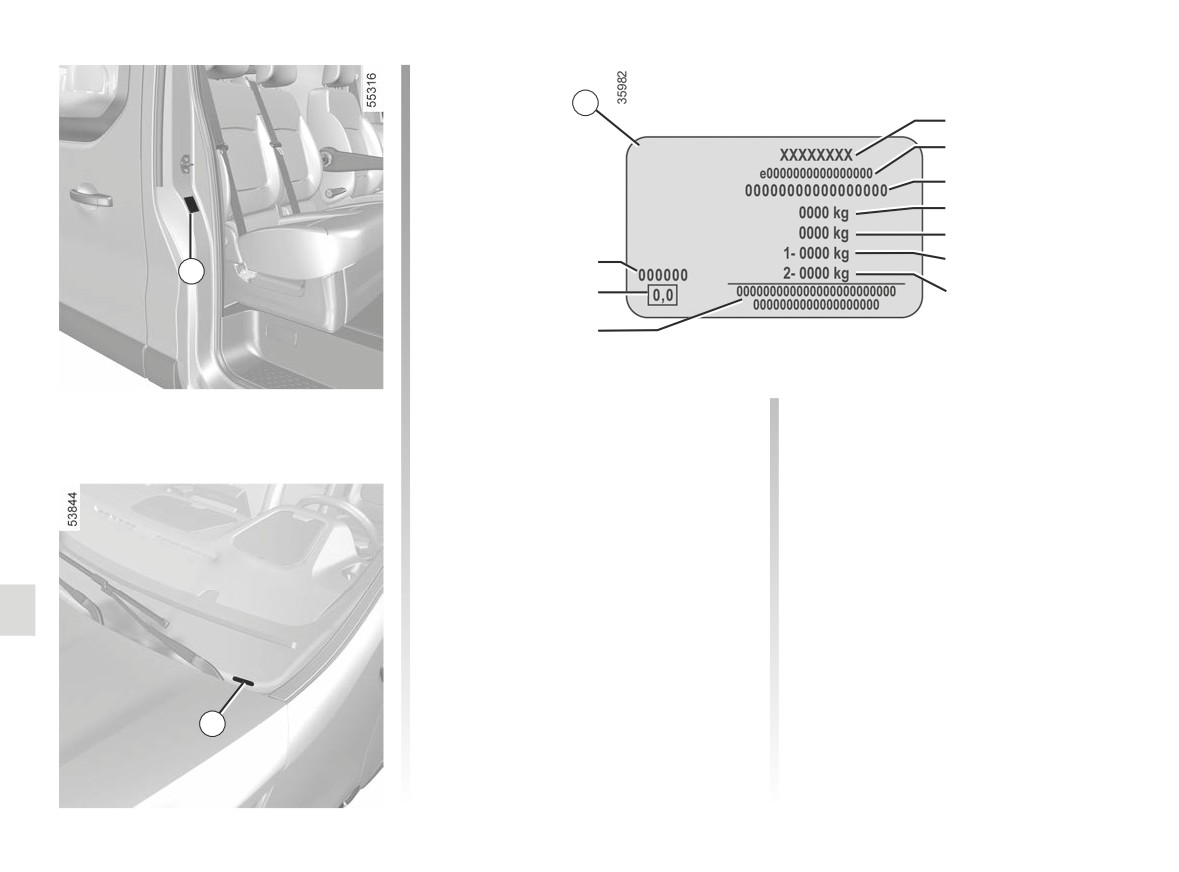

The information shown on the ve-
4
MAM
(Maximum Authorised
hicle identification plate should be
Mass).
quoted on all correspondence or
5
GTW (Gross train weight: vehicle
orders.
fully loaded, with trailer).
6
MPAW (Maximum Permissible
The presence and location of the in-
Weight) for front axle.
formation depends on the vehicle.
7
Maximum permissible weight on
rear axle.
Vehicle identification plate A
8
Reserved for related or additional
1
Manufacturer name.
entries.
2
EC design number or approval
9
Not used.
number.
10
Paint reference (colour code).
3
Identification number.
Depending on the vehicle, this
information is also given on
marking B.
B
6.2
TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES
A
A

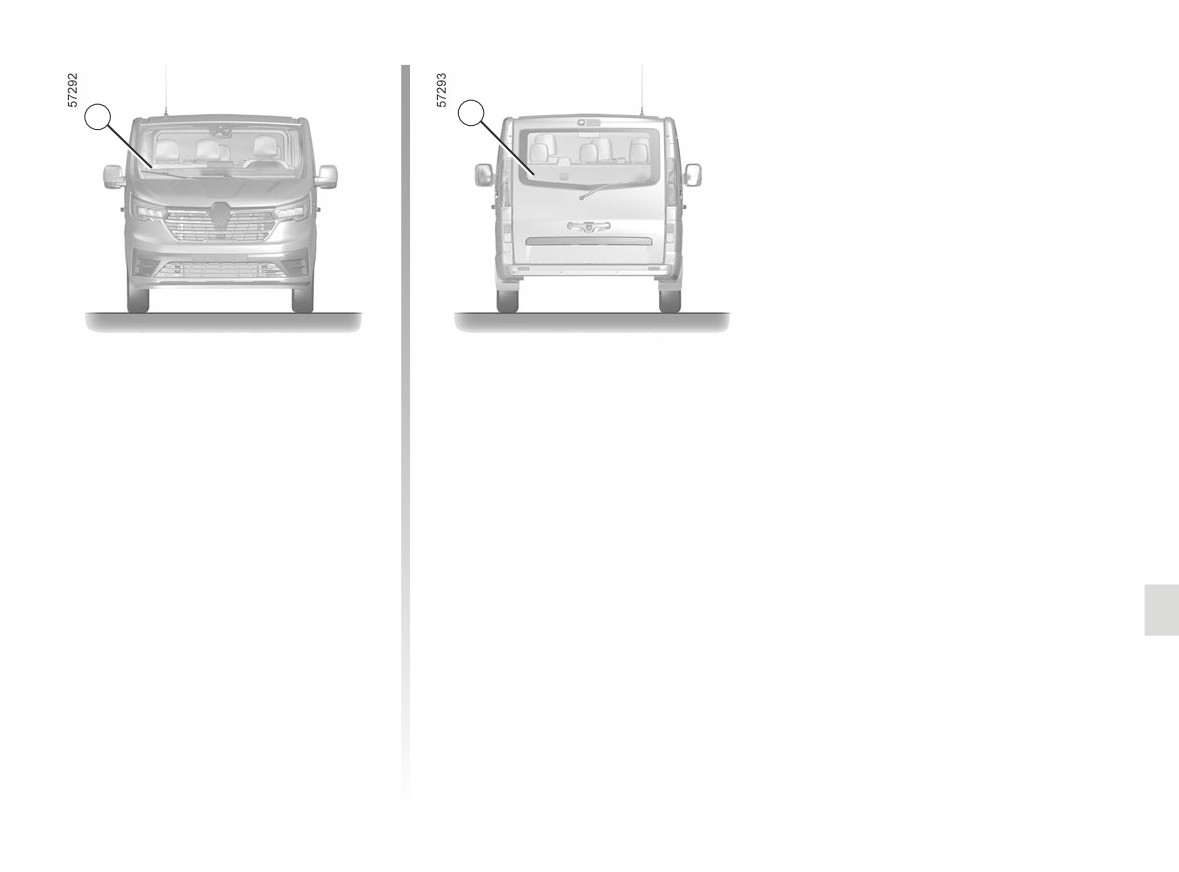

The QR Code on the A label allows
Ensure that the A label is always visible
emergency workers using a tablet or
and present on the windscreen as well
smartphone to immediately access the
as the rear screen.
technical information useful for working
Any modification or damage would
on the vehicle in the event of an acci-
prevent access to the information.
dent.
Note: on versions not fitted with a rear
window, the A label is only present on
the windscreen at the front.
6.3
ENGINE IDENTIFICATION
A
1
2
3
A

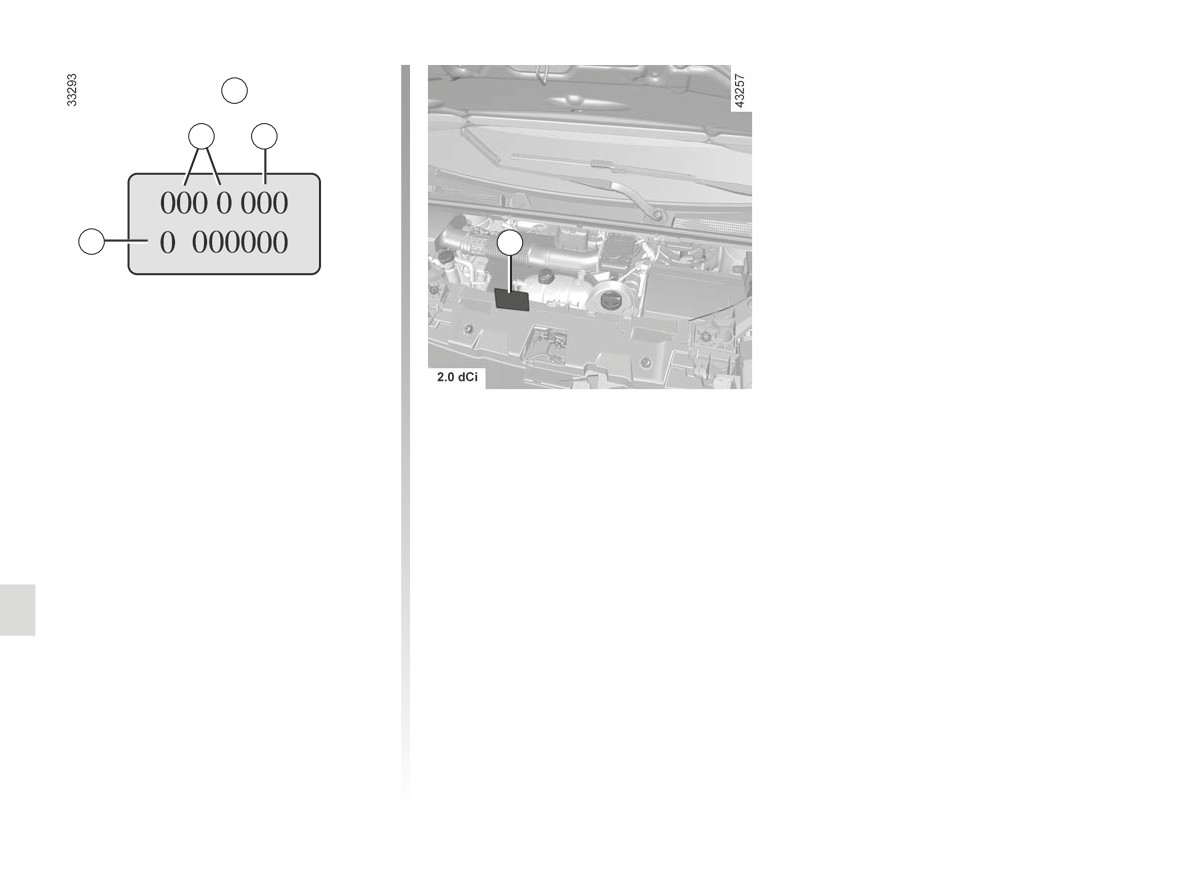

Please quote the engine identifica-
tion information in area A in all cor-
respondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine serial number.
6.4
DIMENSIONS (in metres) (1/4)

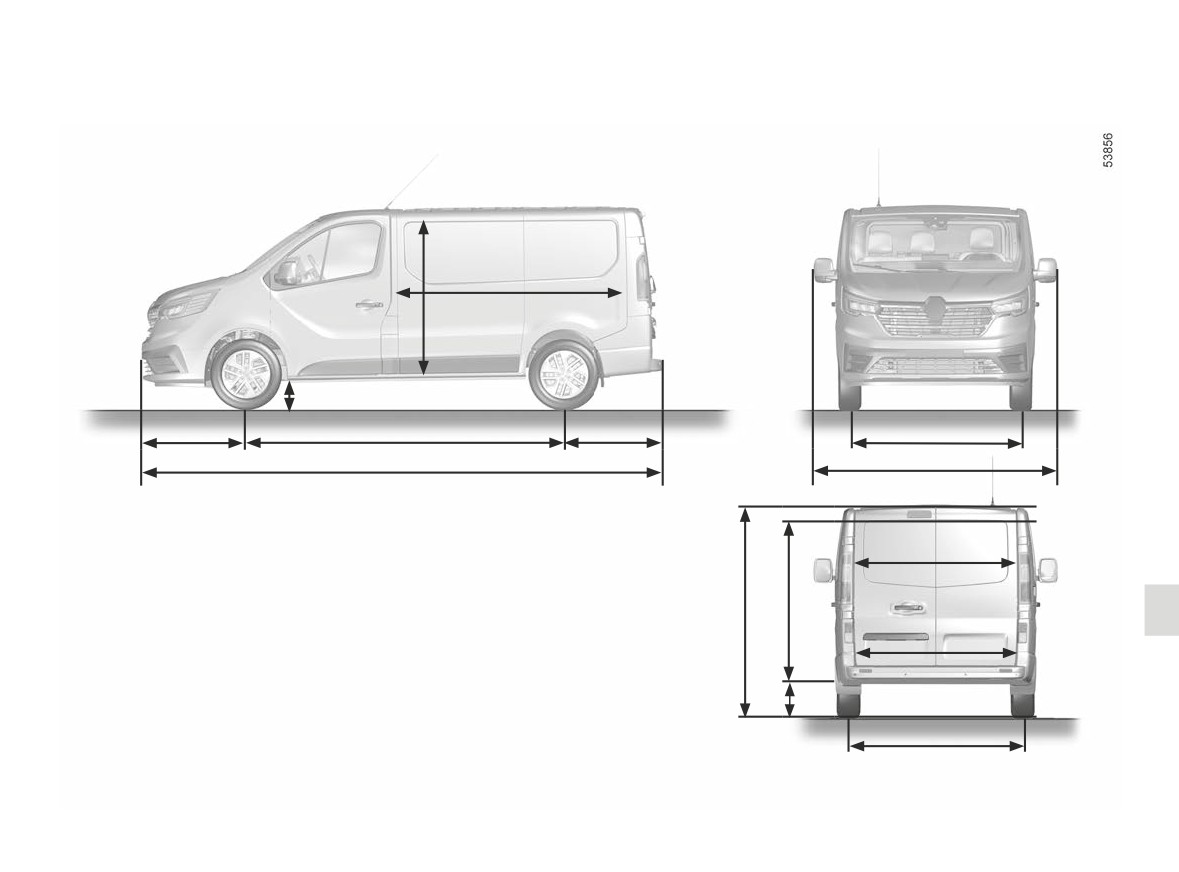

Van version
Q
Z1
K
C
A
D
E
B
G
Y
Z
H
Y1
J
F
6.5
DIMENSIONS (in metres) (2/4)
Complete vehicles without recent alterations
Standard chassis
Long chassis
VAN
Standard van
Raised van
Standard van
Raised van
A
3.098
3.498
B
5,080
5,480
C
1,014
D
0.968
E
1.615
F
1.628
G
2,312 → 2,165(1)
H(2)
1,953 → 1,997
2,476 → 2,509
1,953 → 1,997
2,476 → 2,509
J(2)
0,552
K(3)
0.160 → 0.166
Q
1.387
1.913
1.387
1.913
Y
1.370
1.167
1.370
1.167
Y1
1.391
Z
1.295
1.818
1.295
1.818
Z1
2.537
2.937
(1) Door mirrors folded in
(2) Unloaded
(3) Loaded
6.6
DIMENSIONS (in metres) (3/4)

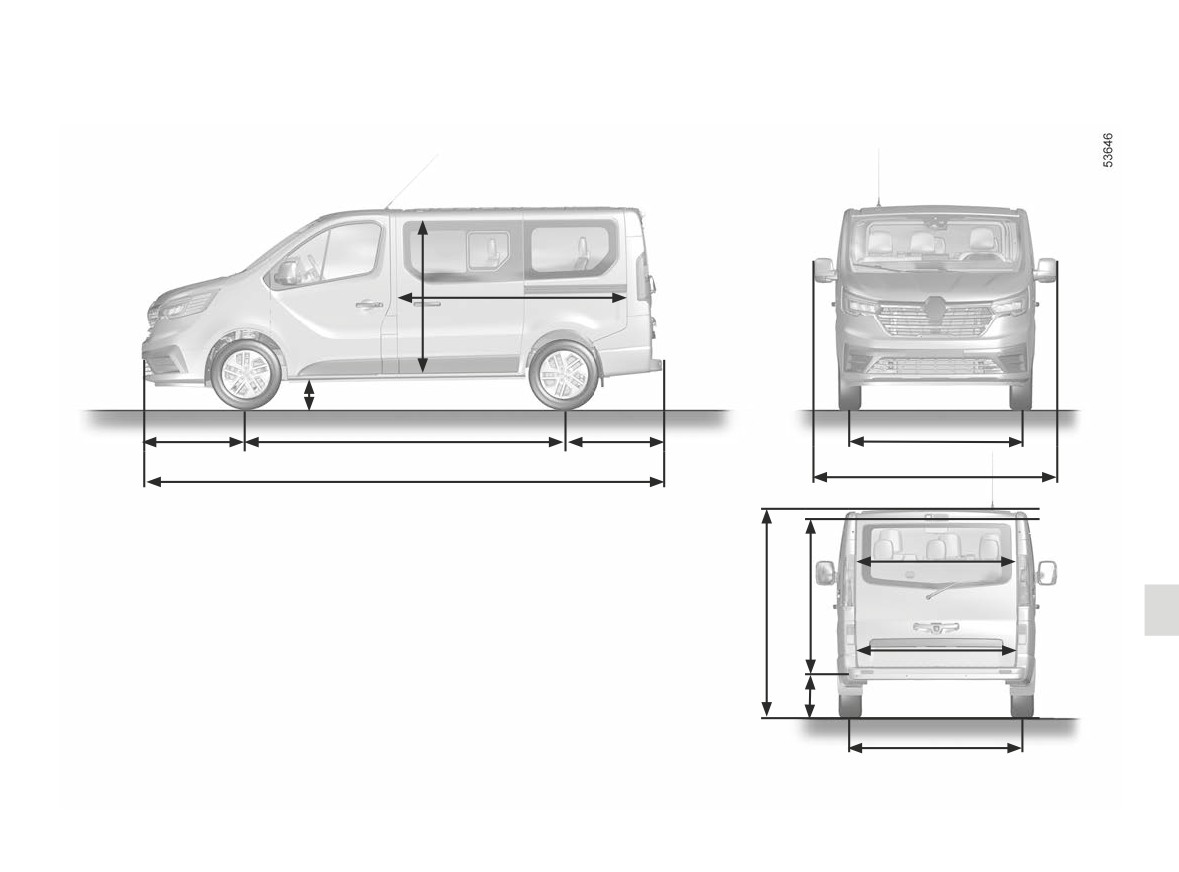

Combi version
Q
Z1
K
C
A
D
E
B
G
Y
Z
H
Y1
J
F
6.7
DIMENSIONS (in metres) (4/4)
Complete vehicles without recent alterations
Standard chassis
Long chassis
COMBI
With 3rd row
Without 3rd row
With 3rd row
Without 3rd row
bench seat
bench seat
bench seat
bench seat
A
3.098
3.498
B
5,080
5,480
C
1,014
D
0.968
E
1.615
F
1.628
G
2,312 → 2,165(1)
H(2)
1,935 → 2,020
1,935 → 2,020
J(2)
0,552
K(3)
0.160→ 0.161
Q
1.369
Y
1.370
Y1
1.391
Z
1.306
Z1
0.736
1.620
1.136
2.020
(1) Door mirrors folded in
(2) Unloaded
(3) Loaded
6.8
ENGINE SPECIFICATIONS
Versions
2.0 dCi
Engine type
M9R
(see engine plate)
Cubic capacity (cc)
1997
Type of fuel
Diesel
Octane rating
The label located in the fuel filler flap indicates the authorised fuels.
Fuel types that meet
European standards and are
Diesel fuel compliant with standard EN 590 contains up to 7 % fatty acid methyl
compatible with the engines
ester in volume.
of vehicles sold in Europe
(in any other case, contact an
Approved Dealer).
Diesel fuel compliant with standard EN 16734 contains up to 10 % fatty acid
methyl ester in volume.
Diesel fuel compliant with standard EN 15940 contains up to 7% acid methyl
ester in volume.
Spark plugs
-
-
6.9
WEIGHTS (in kg) (1/2)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. Contact
an approved Dealer.
Versions (marketed depending on country)
Standard VAN
Raised VAN
Maximum Permissible All-Up Weight (MMAC)
Maximum permissible weight
Weights indicated on the vehicle identification plate ➥ 6.2
Total train weight (MTR)
Braked trailer weight*
obtained by calculating: GTW - MAM
Unbraked trailer weight *
750
Permissible nose weight*
100
Maximum permissible load on roof
200 (including carrying device)
150 (including carrying device)
* Towing weight (towing a caravan, boat etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
- When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
- rear axle maximum permissible weight exceeded by no more than 15%;
- maximum permissible all-up weight exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 48 mph (80 kph), depending on local legislation,
and the tyre pressure must be increased by 0.2 bar (3 PSI).
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.
6.10
WEIGHTS (in kg) (2/2)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. Contact
an approved Dealer.
COMBI Versions (versions marketed depend on country)
Maximum Permissible All-Up Weight (MMAC)
Maximum permissible weight
Weights indicated on the vehicle identification plate ➥ 6.2
Total train weight (MTR)
Braked trailer weight*
obtained by calculating: GTW - MAM
Unbraked trailer weight*
750
Permissible nose weight*
100
Maximum permissible load on roof
200 (including carrying device)
* Towing weight (towing a caravan, boat etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
- It is important to respect local towing regulations in force, specifically those set out in the Highway Code. Contact an approved
Dealer about adapting any towing equipment.
- When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
- rear axle maximum permissible weight exceeded by no more than 15%;
- maximum permissible all-up weight exceeded by no more than 10% or 100 kg (whichever is reached first).
In both cases, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h), depending on local legisla-
tion, and the tyre pressure must be increased by 0.2 bar (3 PSI).
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.
6.11
REPLACEMENT PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
