Renault Talisman (2016 year). Instruction - part 15

3.42

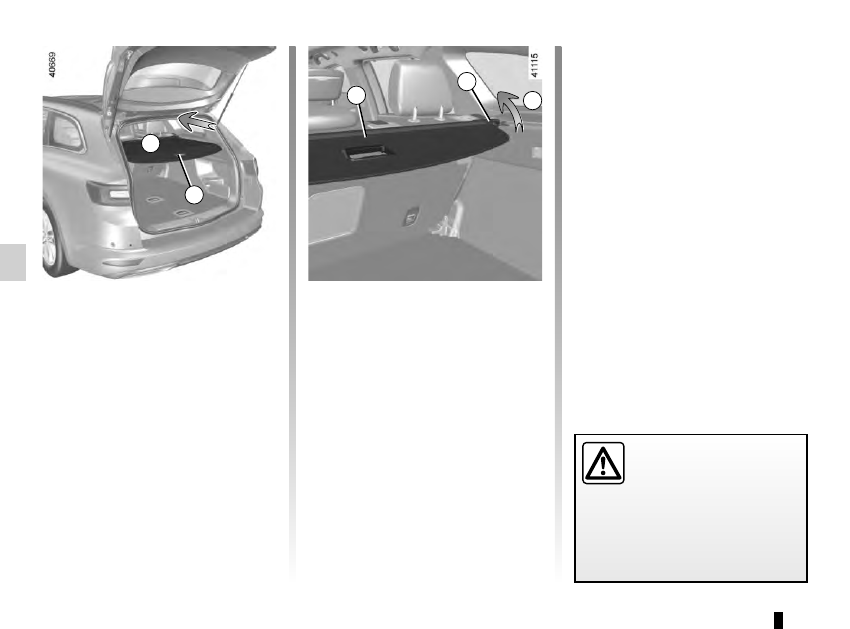

To remove the flexible

section of the luggage

compartment cover 2

Pull handle 1 gently to release the pins

from their mounting points located on

each side of the boot.
Guide the luggage cover to halfway,

then pull on the handle 1 gently again

to finish winding.

LUGGAGE COMPARTMENT COVER

Do not place any heavy or

solid objects on the luggage

cover. These may pose a

risk to the vehicle occu-

pants if the driver has to brake sud-

denly or if the vehicle is involved in

an accident.

Removing/refitting the

luggage cover 2

Slide button 3 and lift the right-hand

side (movement B) of the roller at the

same time.
Then lift the left-hand side of the roller

and then remove the assembly.
To refit the luggage cover, carry out this

procedure in reverse.

3.43

LUGGAGE NET

(1/2)

– attach the two hooks 5 of the net

straps 3 on the anchoring points 4

located under the carpet;

– adjust the net strap 3 so that it is taut.

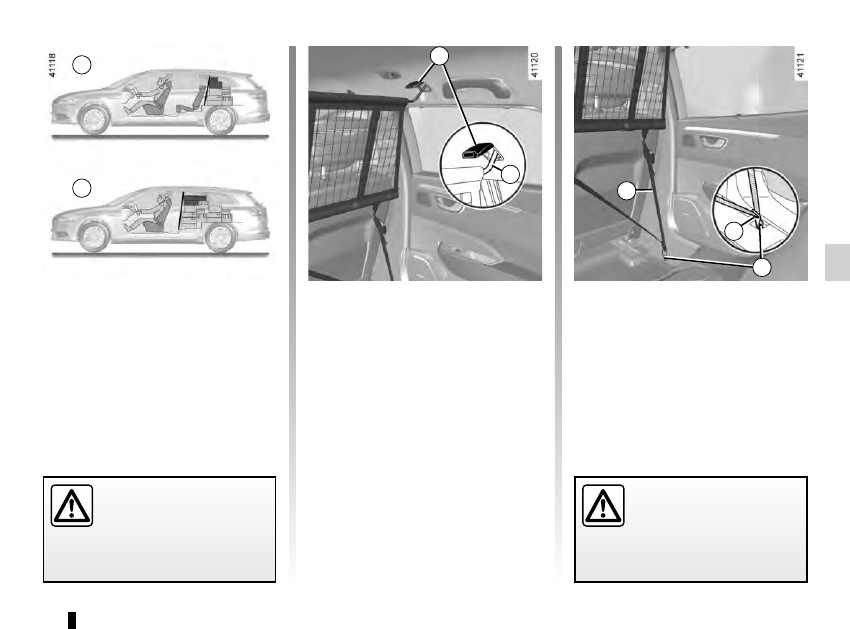

Fitting the luggage net

behind the front seats

Inside the vehicle on each side:
– lower cover 1 to gain access to the

anchoring points for the top part of

the luggage net;

– insert the top rod of net 2 into the an-

choring points;

Depending on the vehicle, this may be

used when transporting animals or lug-

gage to isolate them from the passen-

ger section.
It can be positioned:
– behind the rear seats A;
– behind the front seats B.

The luggage net is de-

signed to retain a maximum

weight of 10 kg.
Risk of injury.

Do not install the luggage

net in this position when a

passenger is occupying a

rear seat.

3.44

LUGGAGE NET

(2/2)

– fix the net belt hook 9 onto the an-

choring points 10;

– adjust net strap 8 so that it is taut.

The seatbacks must not touch the

luggage net.

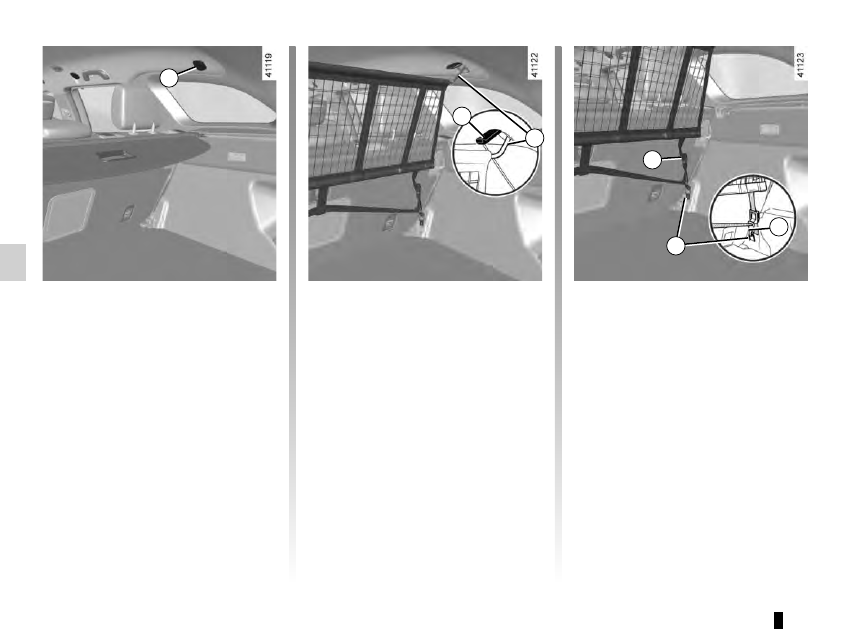

Fitting the luggage net

behind the rear seats

Inside the vehicle on each side:
– lift cover 6 to access the luggage net

upper mounting rail;

– insert upper rod 7 for the net into the

rail;

3.45

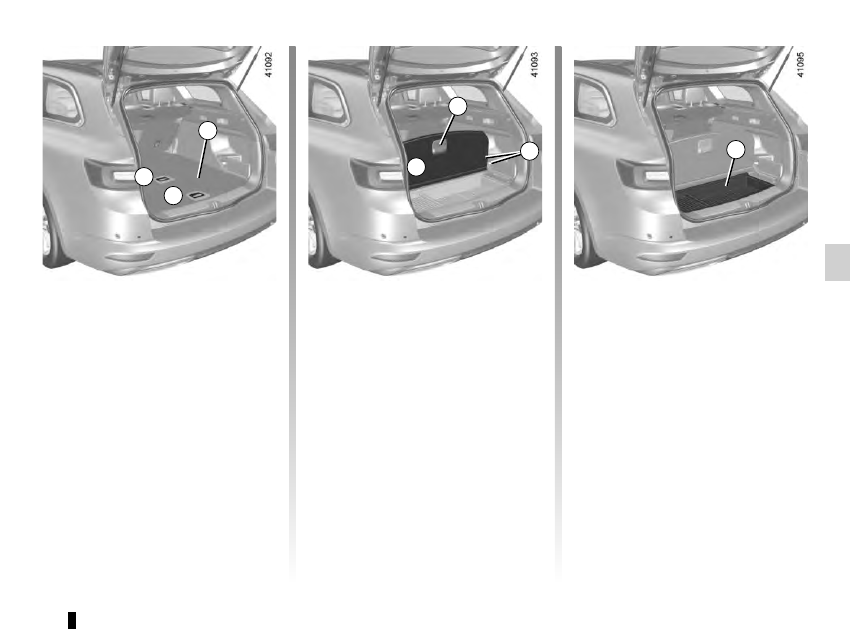

BOOT FITTINGS

(1/2)

Mobile floor 1

It is made up of two independent

parts, A and B.

Intermediate position
This enables you to compartmentalise

the boot into two separate spaces.
Lift section B using handle 2. It is held

between the tabs 3.
To replace section B in the flat-floor po-

sition, lift it upwards to remove it from

its intermediate position and reposition

it horizontally.

Storage under floor 4

To access it, lift section B of the floor

using the handle 2.

3.46

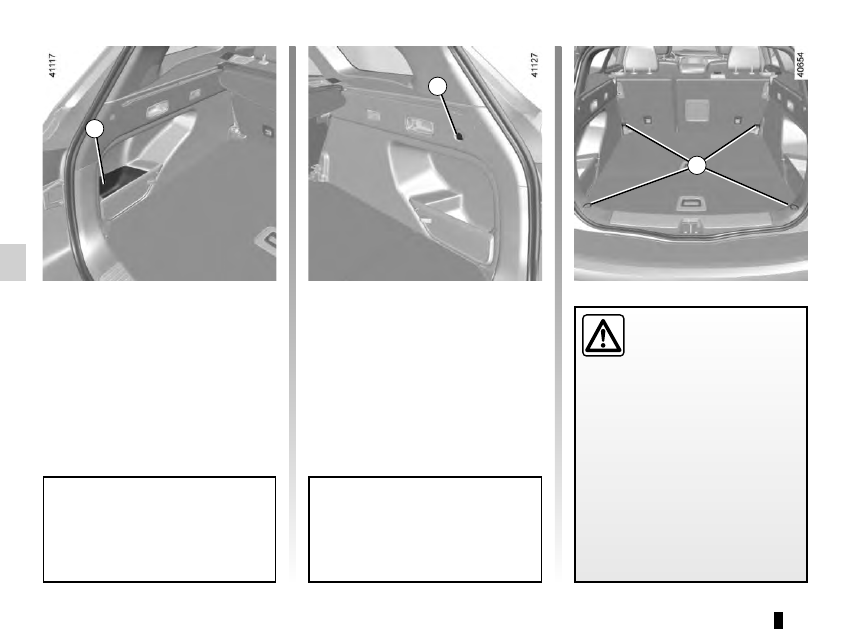

BOOT FITTINGS

(2/2)

If your vehicle is not equipped with

anchorage points, you can get them

from an authorised dealer.

Bag hooks 6

Maximum weight: 5 kg

Anchorage points

Attachment points 7

Storage compartment 5

Always position the heavi-

est items directly on the

floor. Use the lashing

points 7 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such a

way that no items will be thrown for-

ward and strike the occupants if the

driver has to brake suddenly. Fasten

the rear seat belts, even if the seats

are not occupied.

Always place objects being trans-

ported so that the heaviest items

are resting against the back of the

rear bench seat.

3.47

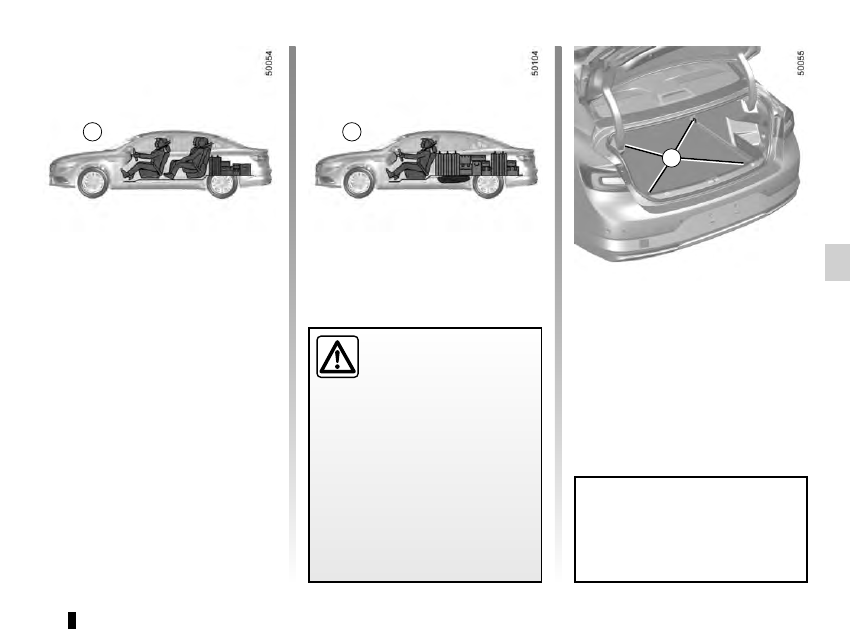

Always position the objects transported

so that the largest surface is against:
– the back of the rear bench seat, for

normal loading (example A).

– The front seatbacks with the

rear seatbacks folded down, the

mobile floor in the flat-floor position

(example B).

If you have to place objects on the

folded seat back, it is vital that you

remove the headrests before folding

the seat back so that it can be folded as

flat as possible against the seat.

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT

Always position the hea-

viest items directly on

the floor. Use the lashing

points 1 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such

a way that no items will be thrown

forward and strike the occupants if

the driver has to brake suddenly.

Fasten the rear seat belts, even if

the seats are not occupied.

Anchorage points

Hooks 1 located on each corner of the

luggage compartment allow the load to

be secured.

Always position objects being trans-

ported so that the heaviest items

are resting against the back of the

rear seat.

3.48

Permissible nose weight, maxi-

mum permissible towing weight,

braked and unbraked: refer to

the information on “Weights” in

Section 6.
Choice and fitting of towing

equipment

Maximum weight of towing equip-

ment: 38 kg
For fitting and conditions of use,

refer to the equipment’s fitting ins-

tructions.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

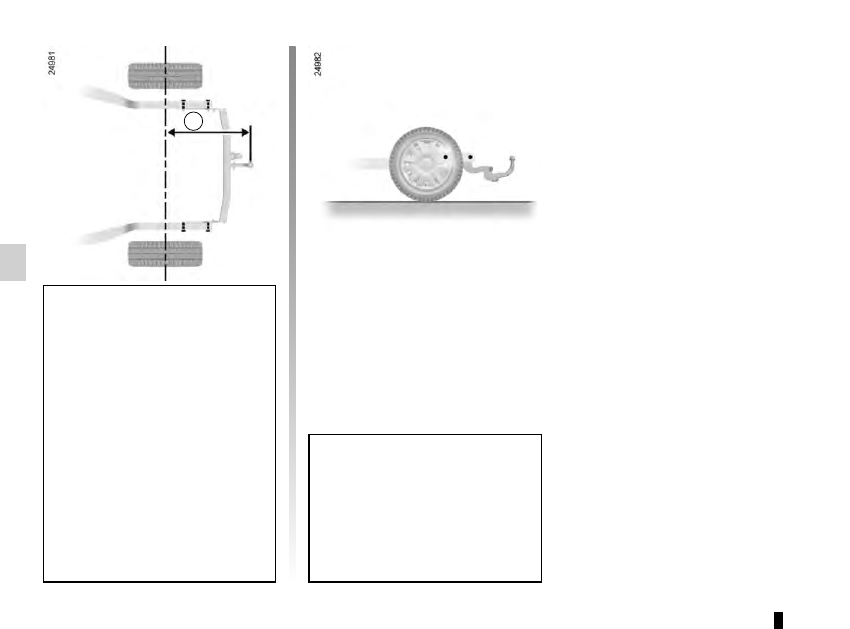

TRANSPORTING OBJECTS towbar

A: 1,205 mm (4-door version).
A: 1,222 mm (estate version).

If the towbar ball obscures the regis-

tration plate or the rear fog lights, it

should be removed when not in use.
In all cases, comply with local leg-

islation.

3.49

ROOF BARS

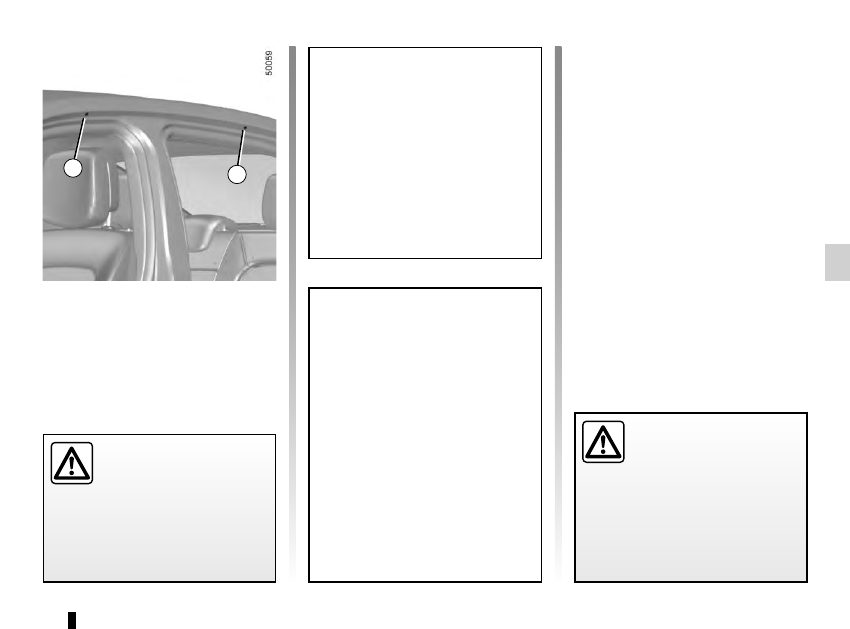

Access to the mounting

points

Open the doors to access the mount-

ing points 1.

For information on the range of

equipment adapted to your vehi-

cle, we advise you to consult an ap-

proved Dealer.
Refer to the fitting instructions for in-

formation on how to fit roof bars and

conditions of use.
Please keep these instructions with

the rest of the vehicle documenta-

tion.
Maximum permissible load on

roof rack: refer to the information

on “Weights” in Section 6.

If original roof bars, ap-

proved by our Technical

Department, are supplied

with screws, only use these

screws for attaching the roof bars to

the vehicle.

The attaching of any carry-

ing device (bike rack, lug-

gage box, etc.) resting on

the luggage compartment

lid is prohibited. To install a carrying

device on your vehicle, contact an

Approved Dealer.

Precautions during use

Handling the tailgate
Before handling the tailgate, check the

objects and/or accessories (bike rack,

roof box, etc.) fitted to the roof bars:

these must be correctly positioned and

secured, so as not to hinder the opera-

tion of the tailgate.

Estate versions
For vehicles fitted with original roof

bars, the roof bars are fixed and

must not be removed. To change

them contact an approved Dealer.

3.50

MULTIMEDIA EQUIPMENT

(1/2)

Using the telephone
We remind you of the need

to conform to the legislation

in force concerning the use

of such equipment.

Hands-free telephone

integrated control

For equipped vehicles, use the steering

wheel controls 4.

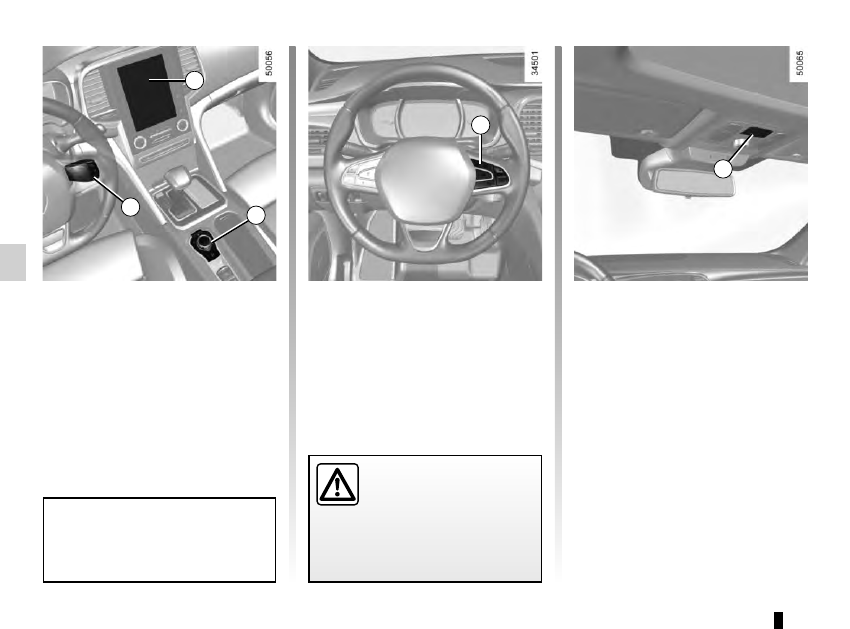

Multimedia systems

1 Multimedia touchscreen display;

2 Central control;

3 Steering column controls;

4 Steering wheel controls;

5 Microphone.

Refer to the equipment instructions

for information on how to operate

this equipment.

3.51

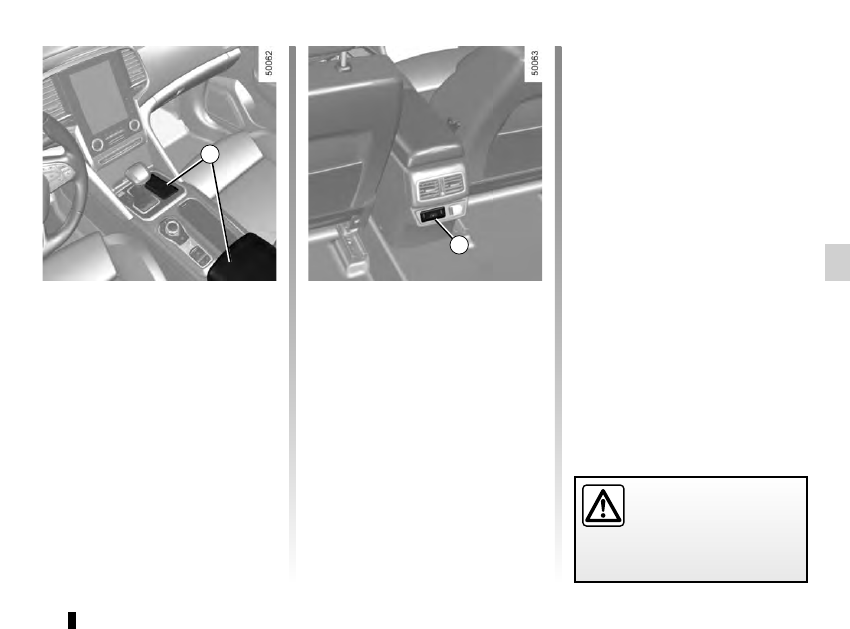

Multimedia sockets 6

You can use sockets USB or the SD

card reader to access the multime-

dia content of your accessories and

the system update (please refer to the

equipment instructions).
The various sources can be selected

from the multifunction screen and from

the steering column controls.

MULTIMEDIA EQUIPMENT

(2/2)

Multimedia sockets 7

Sockets USB can only recharge acces-

sories with a maximum power rating

of 12 Watts (voltage: 5V) per socket,

which have been approved by our

Technical Department.
The JACK socket enables the radio to

be used with an auxiliary cable.

The sockets USB can also recharge ac-

cessories with a maximum power rating

of 12 Watts (voltage: 5V) per socket,

which have been approved by our

Technical Department.
The JACK socket enables the radio to

be used with an auxiliary cable.

Connect accessories with a

maximum power of 12 watts

only.
Fire hazard.

4.1

Section 4: Maintenance

Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2

Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4

Engine oil level: topping up/filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5

Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.6

Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7

engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7

brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.8

windscreen/headlight washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.9

Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.9

Battery: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10

Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12

Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.14

Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.16

4.2

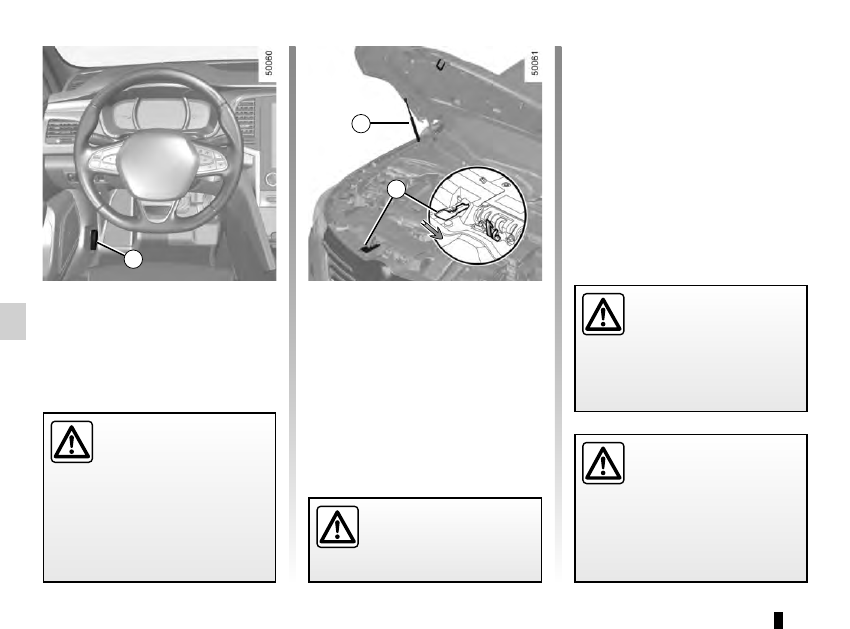

BONNET

(1/2)

Unlocking the bonnet catch

To unlock, push tab 3 at the same time

as opening the bonnet.

Opening the bonnet

Lift the bonnet, guiding it up, and it

will rest in position with the help of two

struts 2.

To open, pull handle 1, located on the

left-hand side of the dashboard.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Do not press down on the

bonnet: there is a risk that

the bonnet may accidentally

close.

Before performing any

action in the engine com-

partment, the ignition must

be switched off by pressing

the engine stop button (please see

the information on “Starting, stop-

ping the engine” in Section 2).

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

4.3

BONNET

(2/2)

Closing the bonnet

Check that nothing has been left in the

engine compartment.
To close the bonnet again, hold the

bonnet in the middle and guide it down,

allowing a 30 cm gap before it is closed,

then release it. It will latch automatically

under its own weight.

Ensure that the bonnet is

properly locked.
Check that nothing is pre-

venting the catch from loc-

king (gravel, cloth, etc.).

After carrying out any work

in the engine compart-

ment, check that nothing

has been left behind (cloth,

tools, etc.).

These may damage the engine or

cause a fire.

In the event of even a slight

impact involving the radia-

tor grille or bonnet, have the

bonnet lock checked by an

authorised dealer as soon as pos-

sible.

4.4

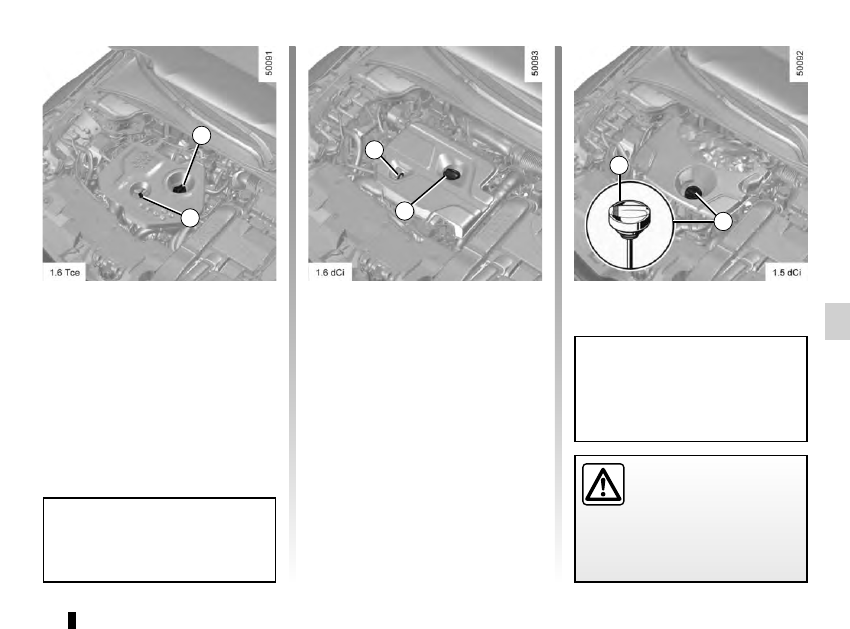

ENGINE OIL LEVEL: general information

It is normal for an engine to use oil for

lubrication and cooling of moving parts

and it is normal to top up the level be-

tween oil changes.
However, contact your approved

Dealer if more than 0.5 litres is being

consumed every 600 miles (1,000 km)

after the running in period.
Oil change frequency: check the oil

level from time to time and certainly

before any long journey to avoid the

risk of damaging your engine.

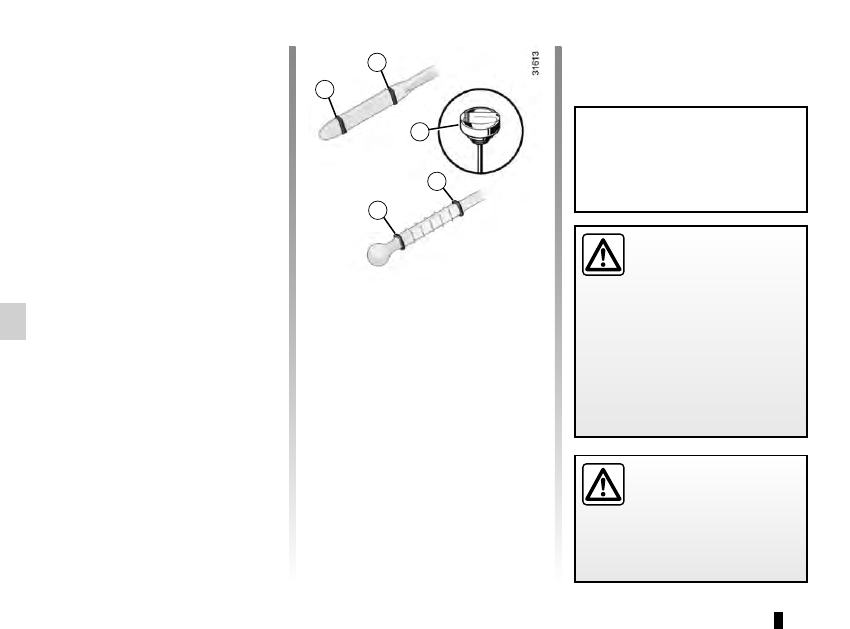

Reading the oil level

The oil level should be read with the ve-

hicle on level ground, after the engine

has been switched off for some time.
The dipstick must be used to read

the exact oil level and make sure

that the maximum level has not been

exceeded (risk of engine damage).

Refer to the following pages.
The instrument panel display only

alerts the driver when the oil level is at

its minimum.

– remove the dipstick and wipe with a

clean, lint-free cloth;

– push the dipstick in as far as it will

go (for vehicles equipped with a cap-

type dipstick C, screw the cap in as

far as it will go);

– take out the dipstick again;

– read the level: it should never fall

below minimum mark A or exceed

maximum mark B.

Once the operation has been com-

pleted, ensure that the dipstick is

pushed in as far as it will go or that

the “cap-type dipstick” is completely

screwed in.

In order to prevent splashing, it is

recommended that a funnel be used

when topping up/filling the oil.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

Exceeding the maximum

engine oil level
Under no circumstances

must the maximum fill

level B be exceeded: risk of damage

to the engine and catalytic con-

verter.

If the oil level exceeds the maximum

level, do not start your vehicle and

contact an approved Dealer.

4.5

ENGINE OIL LEVEL: topping up, filling

(1/2)

Topping up/Filling

The vehicle must be parked on level

ground and the engine should be cold

(for instance, before the engine is

started up for the first time in the day).

– Unscrew cap 1;
– top up the level (as a guide, the ca-

pacity between the minimum and

maximum reading on the dipstick 2

is between 1.5 and 2 litres, depend-

ing on the engine);

– wait for approximately 20 minutes to

allow the oil to flow into the engine;

– check the level using the dipstick 2

(as described above).

Once the operation has been com-

pleted, ensure that the dipstick is

pushed in as far as it will go or that

the “cap-type dipstick” is completely

screwed in.

Do not exceed the max level and

do not forget to refit cap 1 and dip-

stick 2.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

In order to prevent splashing, it is

recommended that a funnel be used

when topping up/filling the oil.

4.6

Engine oil grade

Refer to the Maintenance Service

Booklet for your vehicle.

Never run the engine in an

enclosed space as exhaust

gases are poisonous.

Engine oil change: if you

are changing the oil when

the engine is hot, be careful

not to scald yourself if the

oil overflows.

Filling: take care when

topping up the oil that

no oil drips onto engine

components - risk of fire.

Remember to refit the cap securely

as there is a risk of fire if oil splashes

onto hot engine components.

Consult your approved Dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

ENGINE OIL LEVEL: topping up, filling (2/2) / OIL CHANGE

Exceeding the maximum

engine oil level
Under no circumstances

must the maximum fill level

be exceeded: risk of damage to the

engine and catalytic converter.

If the oil level exceeds the maximum

level, do not start your vehicle and

contact an approved Dealer.

Oil change

Service interval: refer to the

Maintenance Service Booklet for your

vehicle.

Oil change capacity

Please refer to the maintenance docu-

ment for your vehicle, or contact an au-

thorised dealer.

Always check the engine oil level using

the dipstick, as explained previously (it

should never fall below the minimum

level, or be over the maximum level on

the dipstick).

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Content .. 13 14 15 16 ..
