Renault Scenic (2018 year). Instruction - part 20

5.20

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(2/5)

Direction indicator lights/

brake and side lights

(continued)

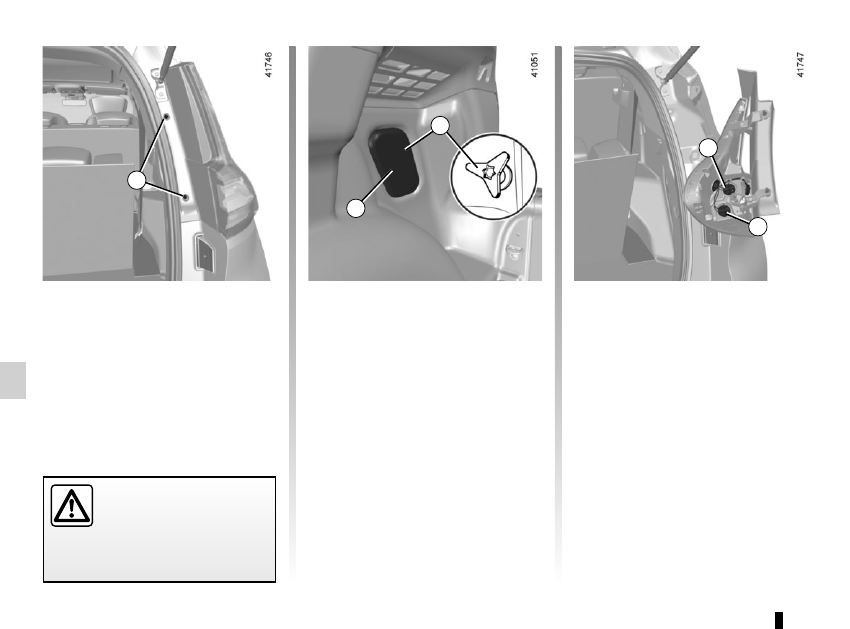

Long chassis version
Open the luggage compartment lid and

remove the bolts 5 using a tool.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

Open the luggage compartment,

remove the cover 6 to access the

screw 7 and undo it.
Remove the rear lights unit.
Unclip the bulb holder a quarter of a

turn.
Replace the bulb.

Direction indicator light 8
Bulb type: PY21W.
Brake light 9
Bulb type: P21W.

Refitting

To refit, proceed in the reverse order,

taking care not to damage the wiring.

5.21

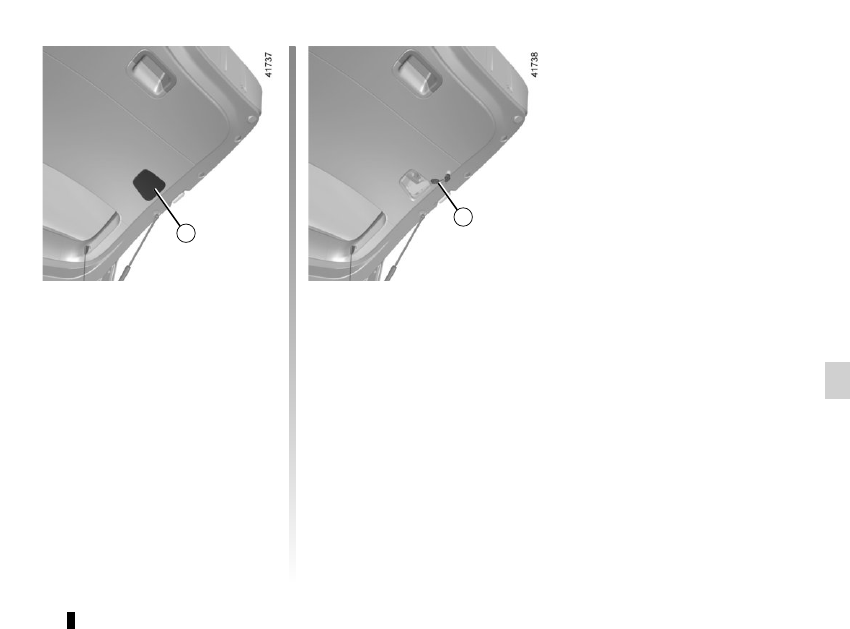

Reversing lights

From the luggage compartment, unclip

the cover 10 on the interior trim of the

luggage compartment lid.

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(3/5)

Unclip the bulb holder 11 a quarter of

a turn.
Bulb type: W16W.

Refitting
To refit, proceed in the reverse order,

taking care not to damage the wiring.

5.22

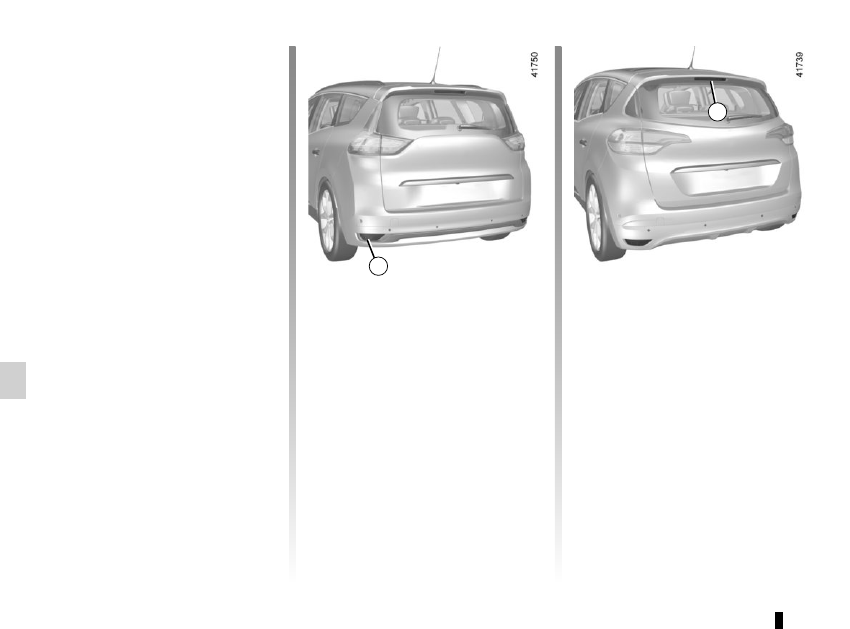

Fog light 12

Unscrew the flap located under the

rear bumper using a flat-blade screw-

driver or similar. Access the bulb holder,

then unscrew it by turning towards the

centre of the vehicle.
Bulb type: P21W.

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(4/5)

LED lighting

The lights are equipped with an LED

lighting system as soon as the side

lights are switched on.
Consult an approved Dealer to replace

the LEDs.
This lighting does not replace a faulty

side light.

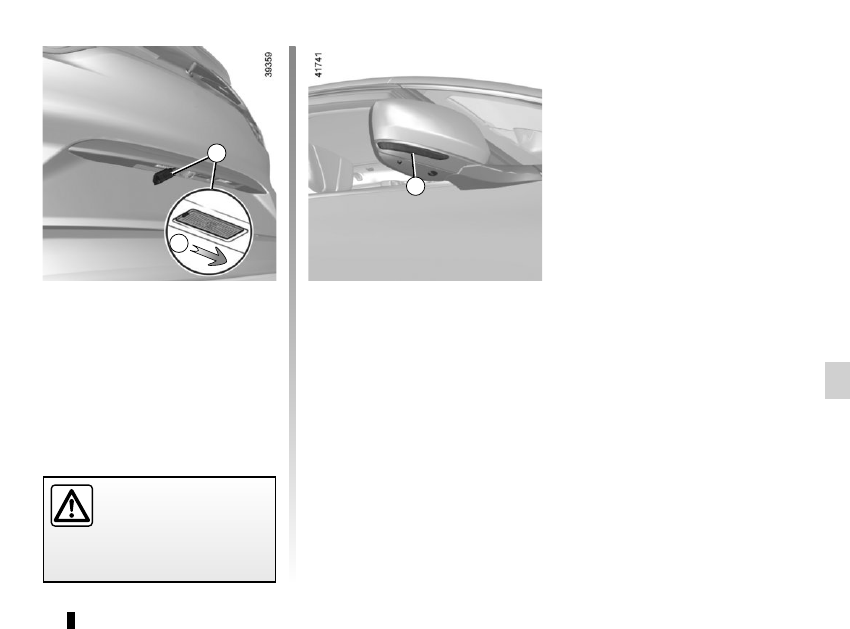

High level brake light 13

Consult an approved Dealer.

5.23

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs

(5/5)

Indicator lights 15

Consult an approved Dealer.

Number plate lights 14

Unclip the light 14 by sliding the light to

the right (movement A).
Remove the light cover to gain access

to the bulb.
Bulb type: festoon type bulb W5W.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.24

INTERIOR LIGHTING: changing bulbs

(1/3)

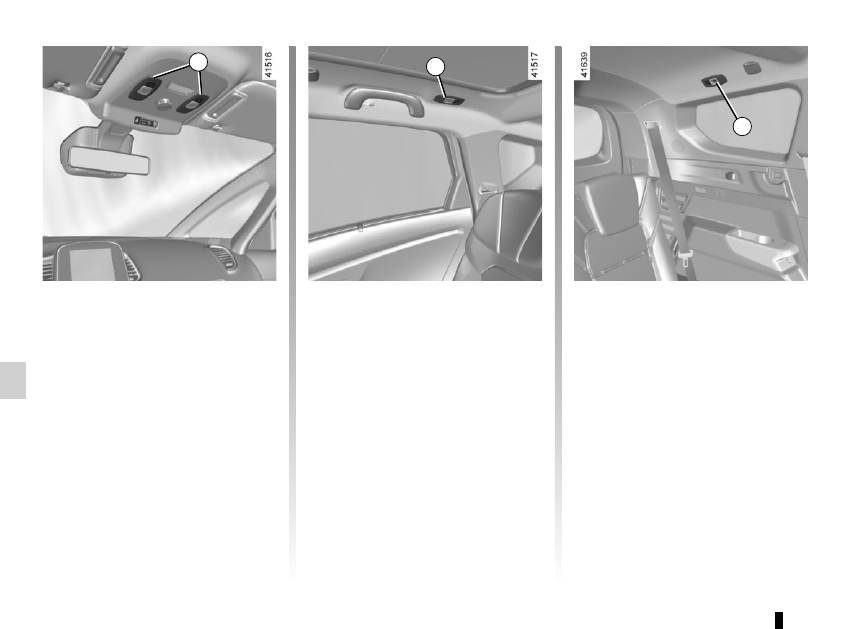

Map reading lights 1

Please consult an authorised dealer.

Ambient lighting

Please consult an authorised dealer.

5.25

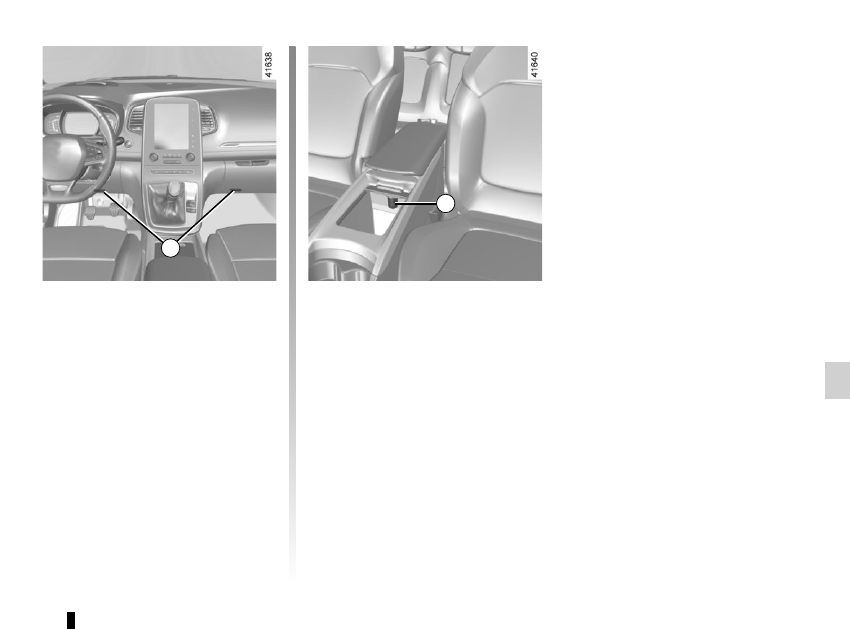

Centre console storage

compartment light 3

Unclip the light 3 by hand by pulling for-

wards then pull the bulb downwards.
Bulb type: W5W.

Footwell lights 2

Please consult an authorised dealer.

INTERIOR LIGHTING: changing bulbs

(2/3)

5.26

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

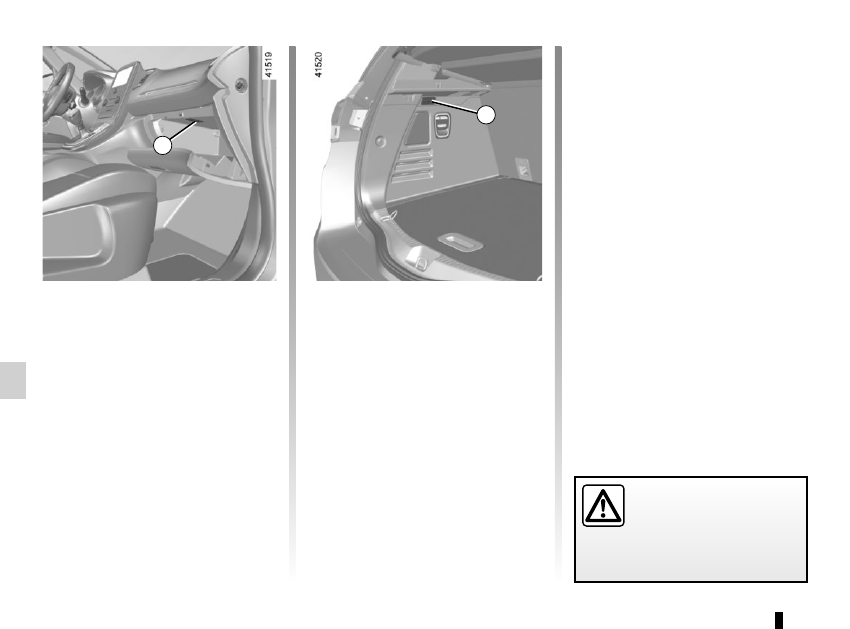

INTERIOR LIGHTING: changing bulbs

(3/3)

Boot lights 5

Using a flat-blade screwdriver or simi-

lar, unclip the light 5 by pressing the

tab located on one side of the light to

access the bulb.
Bulb type: W5W.

Glove box light 4

Using a flat-blade screwdriver or simi-

lar, unclip the light 4 by pressing the

tab located on one side of the light to

access the bulb.
Bulb type: W5W.

5.27

FUSES

(1/2)

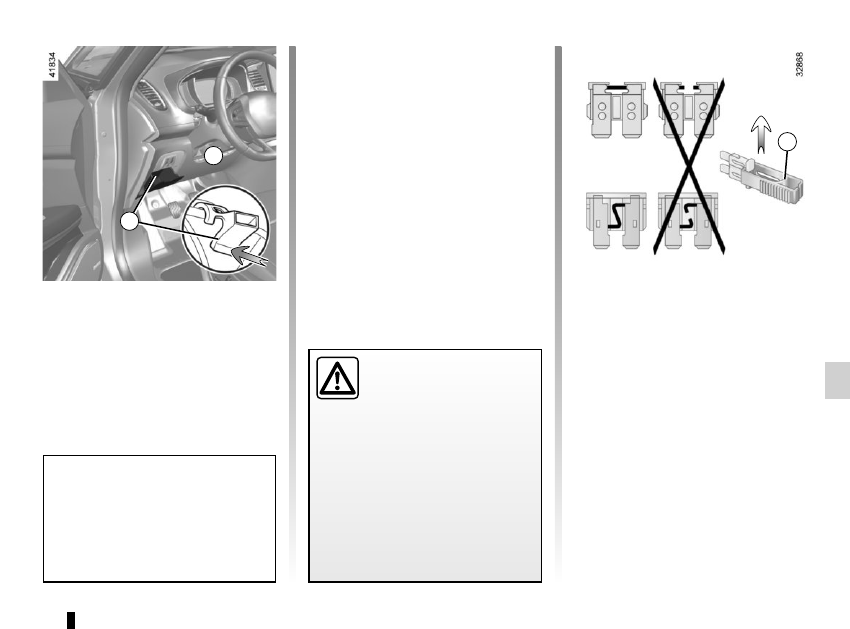

Fuse box

If any electrical component does not

work, check the condition of the fuses.
Open flap A. Press the bottom of clip 1

and pull simultaneously on flap A to

remove it and access the fuses.

Tweezers 2

Remove the fuse using tweezers 2, lo-

cated underneath the fuses.
To remove the fuse from the tweezers,

slide the fuse to the side.
It is not advisable to use the free fuse

locations.

Check the fuse in question

and replace it, if neces-

sary, by a fuse of the same

rating.

If a fuse is fitted where the rating is

too high, it may cause the electrical

circuit to overheat (risk of fire) in the

event of an item of equipment using

an excessive amount of current.

In accordance with local legislation

or as a precautionary measure:
obtain an emergency kit containing

a set of spare bulbs and fuses from

an approved Dealer.

Use the fuse allocation label in storage

compartment A to identify the fuses.
Certain fuses should only be replaced

by a qualified professional. These fuses

are not listed on the label.
Only change the fuses represented on

the label.

5.28

FUSES

(2/2)

Allocation of fuses

(the presence of certain fuses depends on the vehicle equipment level)

Symbol

Allocation

Symbol

Allocation

Windscreen washer



“Hybrid Assist” system

Third row accessories socket, boot accessories

socket

Towbar socket

Front cigarette lighter, front and rear second row

accessories socket



Diagnostic socket, audio alarm



Not used

Horn



Heated door mirrors



Instrument panel, dashboard control lighting

Brake lights, passenger compartment central unit



Rear electric windows



Parking brake

Front windscreen wiper



Additional servo

Direction indicator lights, hazard warning lights

Radio, multifunction screen, multimedia acces-

sories sockets, parking brake control



Rear USB sockets on console



Passenger compartment centre unit, rear wiper,

rear fog light

Locking the doors and luggage compartment

5.29

12 VOLT BATTERY: troubleshooting

(1/2)

To avoid all risk of sparks:

– Ensure that any consumers (cour-

tesy lights, etc.) are switched off

before disconnecting or reconnect-

ing the battery;

– when charging, stop the charger

before connecting or disconnecting

the battery;

– to avoid creating a short circuit be-

tween the terminals, do not place

metal objects on the battery;

– always wait at least one minute after

the engine has been switched off

before disconnecting a battery;

– make sure that you reconnect the

battery terminals after refitting.

Connecting a battery charger

The battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Do not disconnect the battery when the

engine is running. Follow the instruc-

tions given by the manufacturer of

the battery charger you are using.

Special procedures may be

required to charge some

batteries. Contact your au-

thorised dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well venti-

lated area.
Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
Please note when working close to

the engine that it may be hot. In ad-

dition, the engine cooling fan may

start at any moment. The



warning light in the engine compart-

ment reminds you of this.
Risk of injury.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

5.30

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.
The two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.
Ensure that there is no risk of contact

between the two vehicles (risk of short

circuiting when the positive terminals

are connected) and that the discharged

battery is properly connected. Switch

off your vehicle ignition.
Start the engine of the vehicle supply-

ing the current and run it at a moderate

speed.

12 VOLT BATTERY: troubleshooting

(2/2)

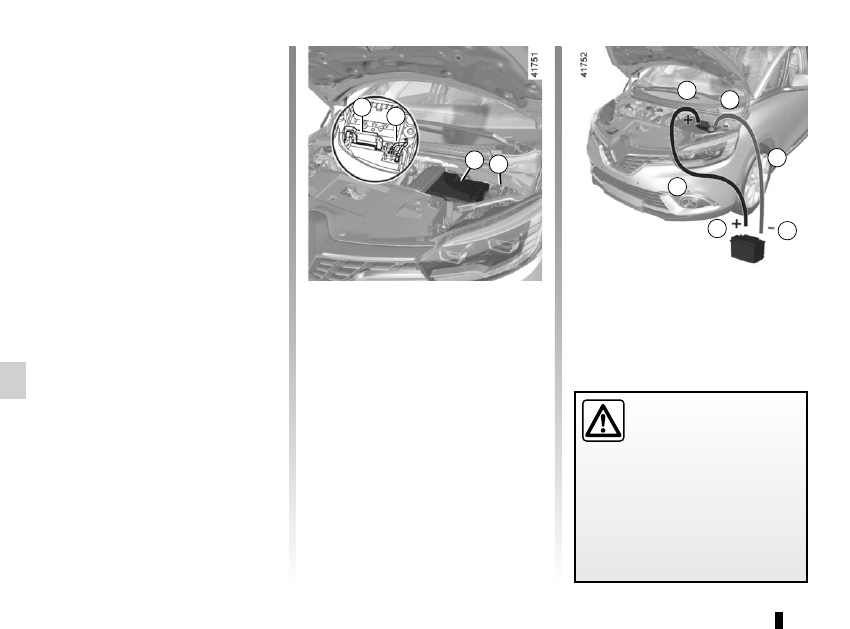

Lift the red cover on box 1 located

behind the battery.
Connect the positive cable A to sup-

port 3 (+) located under the box

cover 1, then to terminal 5 (+) of the

battery supplying the current.
Connect the negative cable B to the

terminal 4 ( – ) of the battery supply-

ing the current then to the metal cable 2

( – ) of the discharged battery.
Start the engine, and as soon as it starts

running, disconnect cables A and B in

reverse order ( 2 - 4 - 5 - 3).

Check that there is no con-

tact between leads A and B

and that the positive lead A

is not touching any metal

parts on the vehicle supplying the

current.
Risk of injury and/or damage to

the vehicle.

5.31

Operating faults

If the battery is too weak to ensure cor-

rect operation, you can still start and

lock/unlock the vehicle (please refer to

the information on “Locking/unlocking

the opening elements” in Section 1).

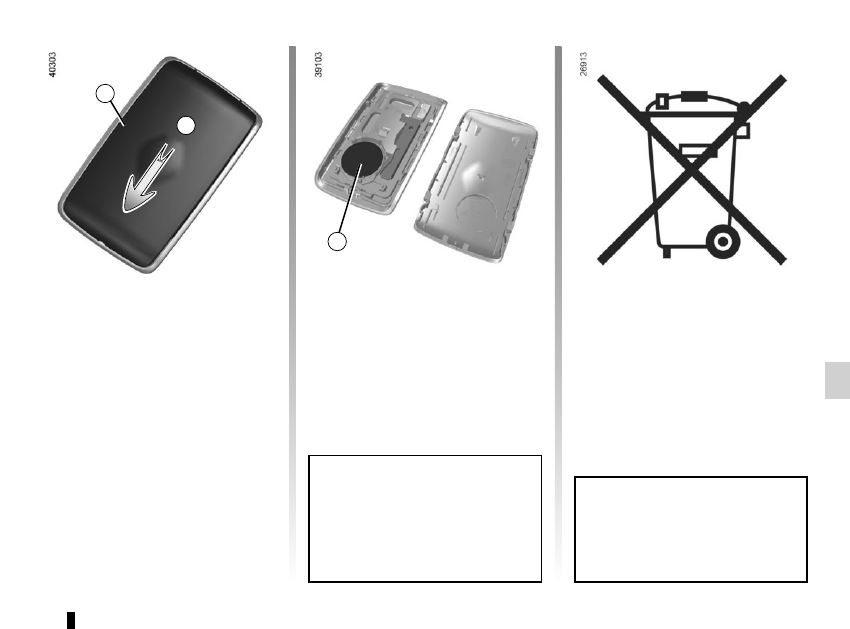

RENAULT CARD: battery

Replacing the battery

When the message “Keycard battery

low” appears on the instrument panel,

replace the battery in the RENAULT

card:

–

slide the rear casing 1 downwards

while pressing on zone A;

– remove the battery cover 2;

–

remove the battery by pressing on

one side and lifting the other;

–

replace it according to the direc-

tion and template shown inside the

cover.

When refitting, proceed in the reverse

order, then press one of the buttons on

the card four times, close to the vehicle:

the message will disappear.
Note: it is not advisable to touch the

electronic circuit or contacts on the

RENAULT card when replacing the bat-

tery.

The batteries are available from ap-

proved Dealers, and their service

life approximately two years. Check

that there is no dye on the battery:

risk of an incorrect electrical con-

tact.

Do not throw away your used bat-

teries; give them to an organisation

responsible for collecting and recy-

cling batteries.

5.32

Operating faults

If the battery is too weak to ensure cor-

rect operation, you can still start and

lock/unlock the vehicle (please refer to

the information on “Locking/unlocking

the opening elements” in Section 1).

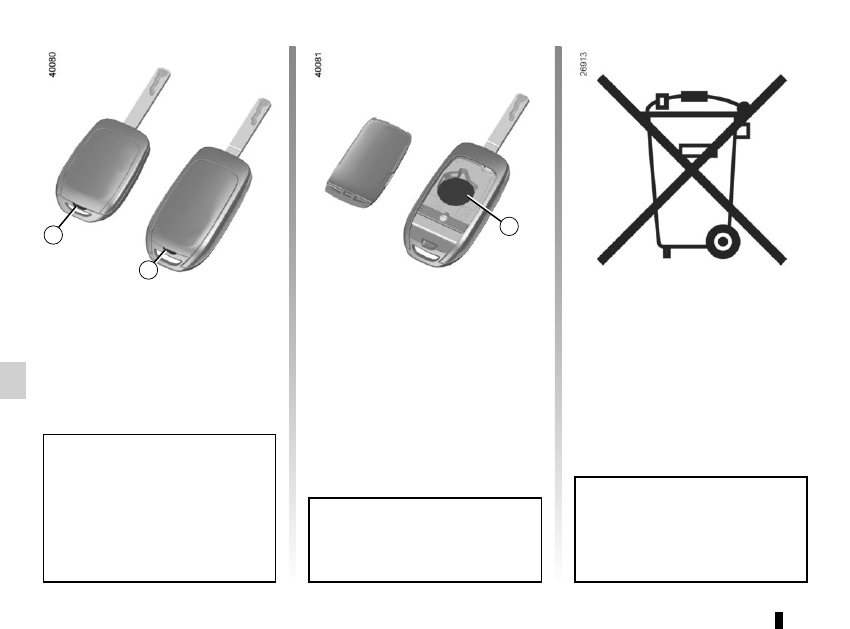

Replacing the battery

Open the case at slot 1 using a flat-

blade screwdriver or similar, and re-

place the battery 2, observing the po-

larity shown on the back of the cover.

Note: It is not advisable to touch the

electronic circuit in the key cover when

replacing the battery.

RADIO FREQUENCY REMOTE CONTROL: batteries

When refitting, ensure that the cover

is correctly clipped on and the screw

tightened.

The batteries are available from ap-

proved Dealers, and their service

life approximately two years.
Check that there is no dye on the

battery: risk of an incorrect electri-

cal contact.

Do not throw away your used bat-

teries; give them to an organisation

responsible for collecting and recy-

cling batteries.

5.33

ACCESSORIES

Electrical and electronic accessories

Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-

sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.

Connect accessories with a maximum power of 120 Watts only. Fire hazard. When several accessory sockets are

used at the same time, the total power of the connected accessories must not exceed 180 watts.

No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected

system may result in damage being caused to the electrical equipment and/or the components connected to it.

If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.

Establish the rating and position of this fuse.

Using the diagnostic socket

The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electronic systems.

For your safety we recommend that you use only electronic accessories approved by the manufacturer, consult an Approved

Dealer. Serious accident risk.

Use of transmitting/receiving devices (telephones, CB equipment etc.).

Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the

vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform

to the legislation in force concerning the use of such equipment.

Fitting aftermarket accessories

If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of

your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your

vehicle, which are the only accessories for which the manufacturer will provide a warranty.

If you are using an anti-theft device, only attach it to the brake pedal.

Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-

larly. Do not lay one mat on top of another. There is a risk of wedging the pedals.

5.34

WINDSCREEN WIPER BLADES: replacement (1/2)

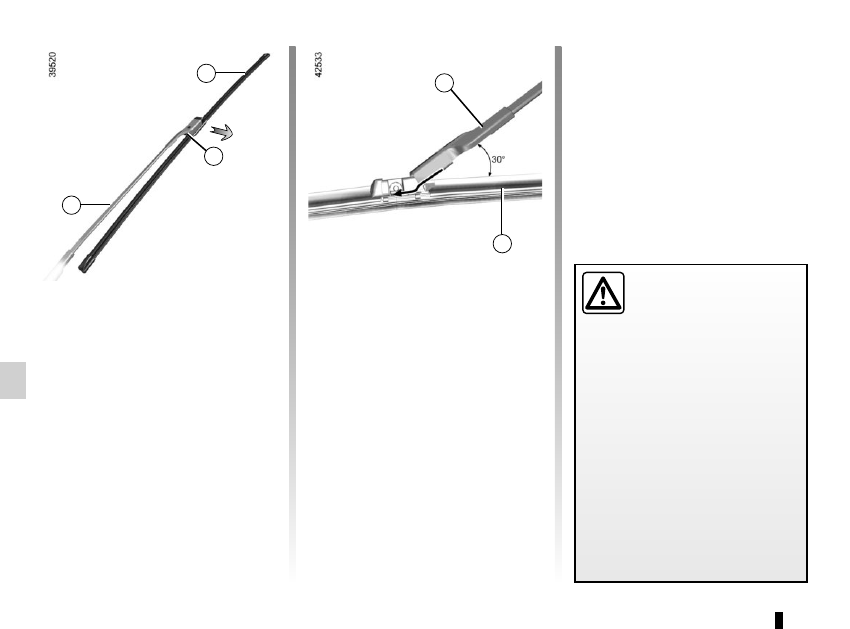

Windscreen wiper blades 1

With the ignition on and the engine

switched off, lower the windscreen

wiper stalk fully: the blades stop slightly

away from the bonnet.

Lift wiper arm 3, press button 2 to re-

lease the blade.

Refitting
Offer up the blade 3 of the wiper arm 1

at an angle of 30°.
Slide the blade along the arm until

it clips on. Check that it is correctly

locked in place. Lower the windscreen

wiper arm carefully.
With the ignition on, return the wind-

screen wiper stalk to the stop position.

The blade on the driver’s side must

always be above the passenger blade.

If this is not the case, a quick sweep of

the windscreen wipers should be per-

formed once the vehicle is travelling at

over 4 mph (7 km/h).

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating or damaging the

blades).

–

Check the condition of the wiper

blades.

Replace the wiper blades as soon

as they begin to lose efficiency

(approximately once a year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

Note: before restarting your vehicle,

lower the windscreen wiper blades

onto the windscreen to avoid any risk

of damaging the bonnet or the wipers.

5.35

WINDSCREEN WIPER BLADES: replacement (2/2)

Check the condition of the wiper

blades.
– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

To refit
To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

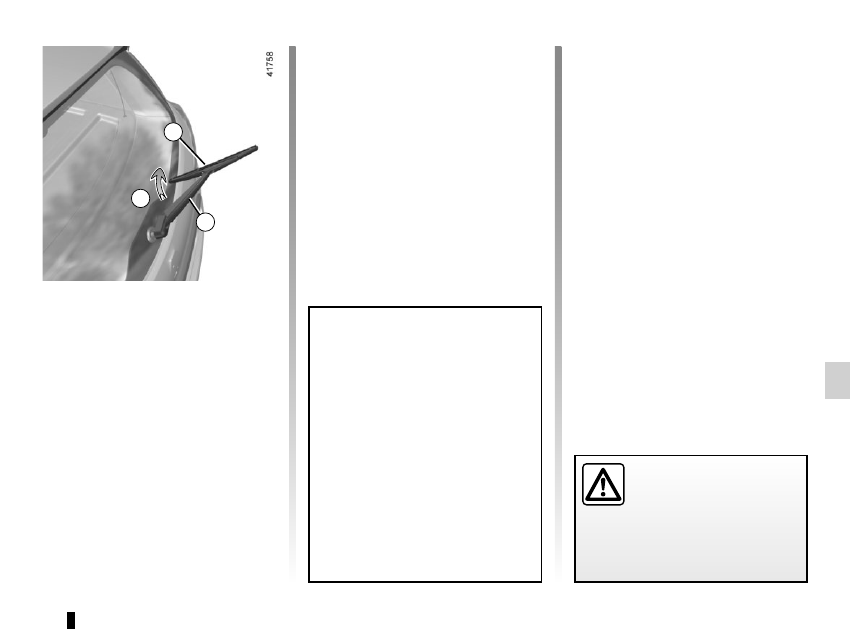

Rear screen wiper blade 4

Stalk in stop position (deactivated):

– lift the wiper arm 5;

– turn the blade horizontally 4 (move-

ment A) until it unclips;

– remove the blade by pulling it.

Before changing the rear

wiper blade, make sure the

stalk is in the stop position

(deactivated).

Risk of injury.

Content .. 18 19 20 21 ..
