Control instruments

WARNINg LIgHTs

(1/4)

The

warning light means

you should

drive very carefully to

an approved Dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Left-hand direction indicator

tell-tale light

Right-hand direction indica-

tor tell-tale light

}

Handbrake “on” or elec-

tronic parking brake warn-

ing light

Refer to the information on the

“Handbrake” or “Electronic parking

brake” in Section 2.

side light tell-tale light

main beam headlight tell-tale

light

dipped beam headlight tell-

tale light

front fog light tell-tale light

Rear fog light tell-tale light

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

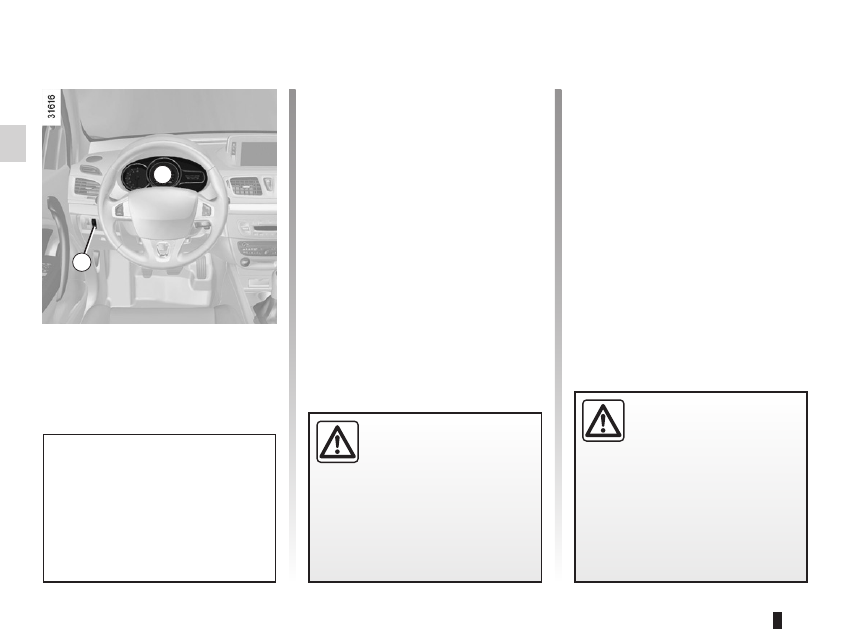

The instrument panel A lights up

when the ignition is switched on. You

can adjust the brightness of the instru-

ment panel by turning control knob 1.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.

ABS .......................................................................(current page)

air bag....................................................................(current page)

variable power-assisted steering ...........................(current page)

filter

particle filter .....................................................(current page)

speed limiter ..........................................................(current page)

cruise control .........................................................(current page)

1.51

ENG_UD18927_5

Tableau de bord : témoins lumineux (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

WARNINg LIgHTs

(2/4)

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it does not go out after the ignition is

switched on, or lights up when driving,

there is a fault with the ABS. Braking

will then be as normal, without the ABS.

Contact an approved Dealer as soon as

possible.

Toxic fume filter system

Warning Light

This lights up when the ignition is

switched on and goes out when the

engine is started.

– If it lights up continuously, consult

your approved Dealer as soon as

possible;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to the information on

“Antipollution, fuel economy and driv-

ing” in Section 2.

Warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other indicator lights

and/or messages on the instrument

panel.

It means you should

drive very care-

fully to an approved Dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Air bag warning light

This comes on when the igni-

tion is switched on and goes out after a

few seconds.

If it does not light up when the ignition

is switched on, or comes on when the

engine is running, there is a fault in the

system.

Contact your approved Dealer as soon

as possible.

preheating warning light

(diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation. This goes

out as soon as the engine starts.

speed limiter and cruise

control warning light

See the information on the “Speed lim-

iter” and “Cruise control” in Section 2.

fuel economy indica-

tor light

This lights up to advise you to change

to a higher gear (up arrow) or lower

gear (down arrow).

The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.

warning buzzer ......................................................(current page)

battery....................................................................(current page)

seat belts ...............................................................(current page)

engine oil ...............................................................(current page)

1.52

ENG_UD18927_5

Tableau de bord : témoins lumineux (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

WARNINg LIgHTs

(3/4)

Oil pressure warning light
If it comes on when you are

driving accompanied by the

warning light and a beep, it is essential

to stop and switch off the ignition. Check

the oil level (refer to the information on

the “Engine oil level” in Section 4). If

the level is correct, the light has come

on for another reason; contact an ap-

proved Dealer.

Brake circuit fault warning

light

If it comes on during braking and is ac-

companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

approved Dealer.

sTOp light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages,

and is accompanied by a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

Engine coolant temperature

warning light

This lights up when the ignition is

switched on and goes out when the

engine is started. If it comes on when

you are driving accompanied by the

warning light and a beep, it is

essential to stop and switch off the ig-

nition.
Check the coolant level (refer to the in-

formation on “Levels” in Section 4). If

the level is correct, the light has come

on for another reason; consult an ap-

proved dealer.

Battery charge warning light

If it comes on together with the

warning light and a beep, it in-

dicates that the electrical circuit is over-

charged or undercharged.

The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.

1.53

ENG_UD18927_5

Tableau de bord : témoins lumineux (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

front seat belt reminder

warning light

This lights up on the central display

when starting the engine then, if the

driver’s or front passenger’s seat belt

(if this seat is occupied) is not fastened

and the vehicle has reached approxi-

mately 12 mph (20 km/h), it flashes and

a bleep sounds for around 120 sec-

onds.

Note: an object placed on the passen-

ger seat base may activate the warning

light in some cases.
Rear seat belt reminder (depending

on vehicle)
the

warning light on the cen-

tral display lights up accompanied by a

message on the instrument panel indi-

cating the number of seat belts buck-

led for approximately 30 seconds each

time:

– the vehicle is started;

– a door is opened;

– a rear seat belt is fastened or unfas-

tened.

Check that the rear passengers are

wearing seat belts and that the number

of seat belt shown as fastened corre-

sponds to the number of rear bench

seat places occupied.

WARNINg LIgHTs

(4/4)

Heated seats operating indi-

cator

This indicates that one of the heated

seats is in operation.

Low fuel level warning light

This comes on when the igni-

tion is switched on and goes out after a

few seconds. If it comes on when driv-

ing accompanied by a beep, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left after the warning light first

comes on.

particle filter
Refer to the information on

“Special features of diesel versions” in

Section 2.

The presence and operation of the warning lights dEpENd ON THE EQUIpmENT ANd cOUNTRY.

indicators:

instrument panel .............................(up to the end of the DU)

display ..................................................(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

fuel level ................................................................(current page)

coolant ...................................................................(current page)

control instruments ...............................(up to the end of the DU)

levels:

fuel ...................................................................(current page)

levels:

coolant .............................................................(current page)

1.54

ENG_UD18928_3

Tableau de bord : afficheurs et indicateurs (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

dIspLAYs ANd INdIcATORs

(1/2)

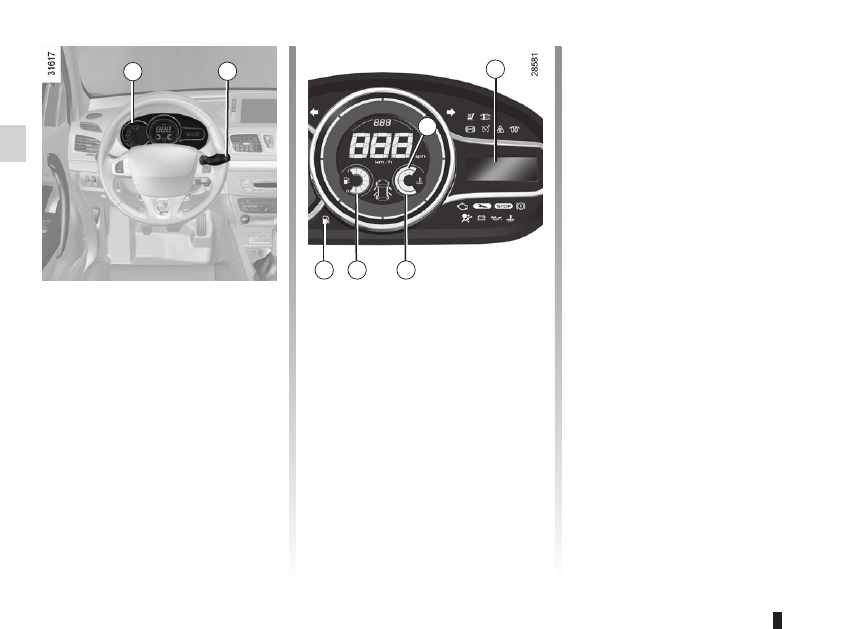

Rev counter 1 (rpm × 1 000)

fuel level gauge 5

If the minimum level is reached, in-

dicator light 6 comes on and a beep

sounds. Fill up as soon as possible.

There is only approximately 30 miles

(50 km) worth of fuel left after the warn-

ing light first comes on.

coolant temperature indicator 4

In normal use, indicator 4 should be

before area a. Under severe condi-

tions, the needle may enter this area.

This is not serious unless the

warning light comes on, accompanied

by a message on the instrument panel

and a beep.
Trip computer and warning system
Refer to the information on the “Trip

computer and warning system” in

Section 1.

Engine oil level low warning
When the engine is started, display 3

alerts the driver when the oil level is

at its minimum. Refer to Section 4:

“Engine oil level”.
The first time the alert appears, it can

be cleared by pressing one of the but-

tons on the end of stalk 2.
Subsequent warnings will disappear

automatically after 30 seconds.

1.55

ENG_UD18928_3

Tableau de bord : afficheurs et indicateurs (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

Instrument panel in miles

(option to switch to km/h)
– With the ignition off, press one of the

buttons 9 or 10 at the end of stalk 2

and start button 8;

– the speedometer unit indicator

flashes for approximately ten sec-

onds, then the new unit is displayed:

release button 9 or 10 when the unit

stops flashing.

To return to the previous mode, repeat

the same operation.
Note: once the battery is switched off,

the trip computer and warning system

automatically returns to the original unit

of measurement.

dIspLAYs ANd INdIcATORs

(2/2)

speedometer 7 (mph or km/h)

Overspeed buzzer

Depending on the vehicle and country,

a buzzer sounds for approximately 10

seconds every 40 seconds, as long as

the vehicle is travelling in excess of 72

mph (120 km/h).

control instruments ...............................(up to the end of the DU)

indicators:

instrument panel .............................(up to the end of the DU)

trip computer and warning system........(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

warning lights........................................(up to the end of the DU)

instrument panel messages..................(up to the end of the DU)

1.56

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

trip computer and warning system

TRIp cOmpUTER ANd WARNINg sYsTEm

(1/10)

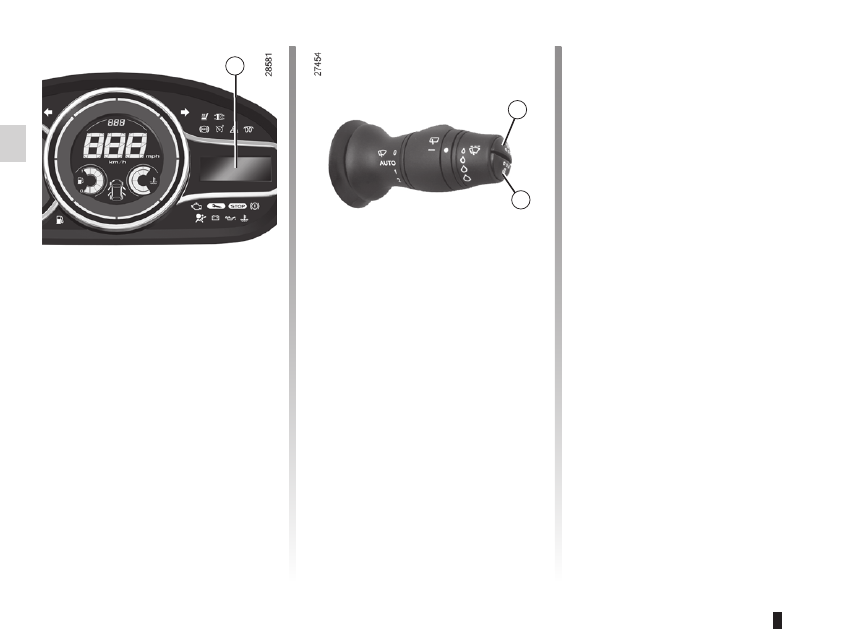

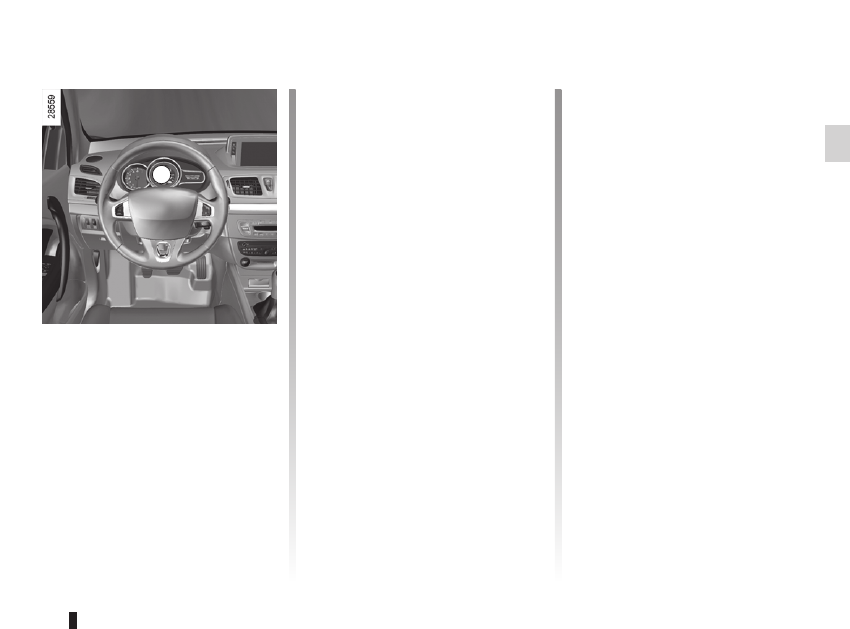

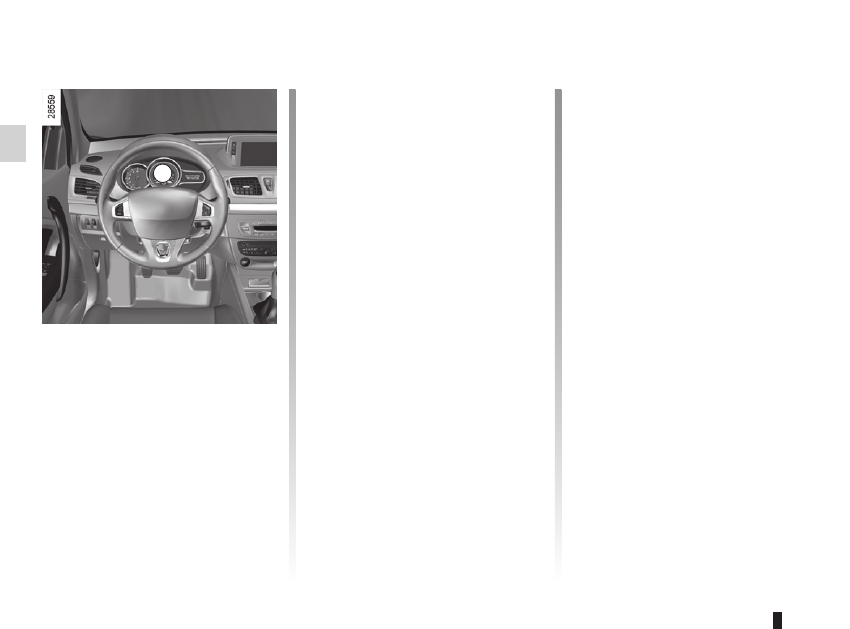

Trip computer and warning

system 1

Depending on the vehicle, this includes

the following functions:
–  distance travelled;
–  journey parameters;
–  information messages;
–  operating  fault  messages  (con-

nected to the warning light

);

– warning messages (connected to the

warning light);

– vehicle settings customisation

menu.

All these functions are described on the

following pages.

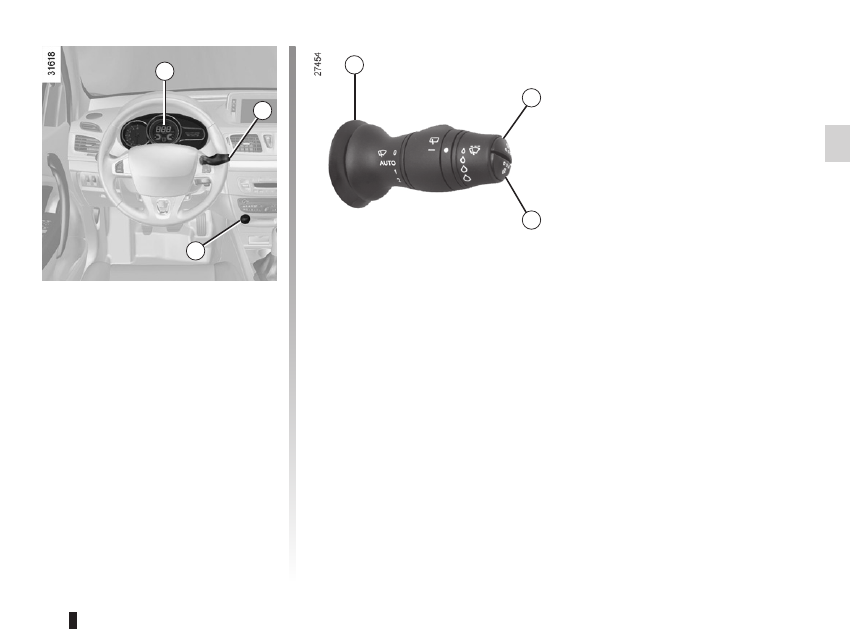

display selection keys 2

and 3

Scroll through the following information

upwards (button 2) or downwards (but-

ton 3) by pressing briefly and succes-

sively (the display depends on the vehi-

cle equipment and country).
a) total mileage and trip mileage re-

corder;

b) journey parameters:

– fuel used;

– average fuel consumption;

– current fuel consumption;

– estimated range;

– distance travelled;

– average speed;

c) mileage before service;
d) tyre pressure monitor;
e) vehicle settings customisation menu;
f) trip log, operating faults and informa-

tion message readout.

1.57

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(2/10)

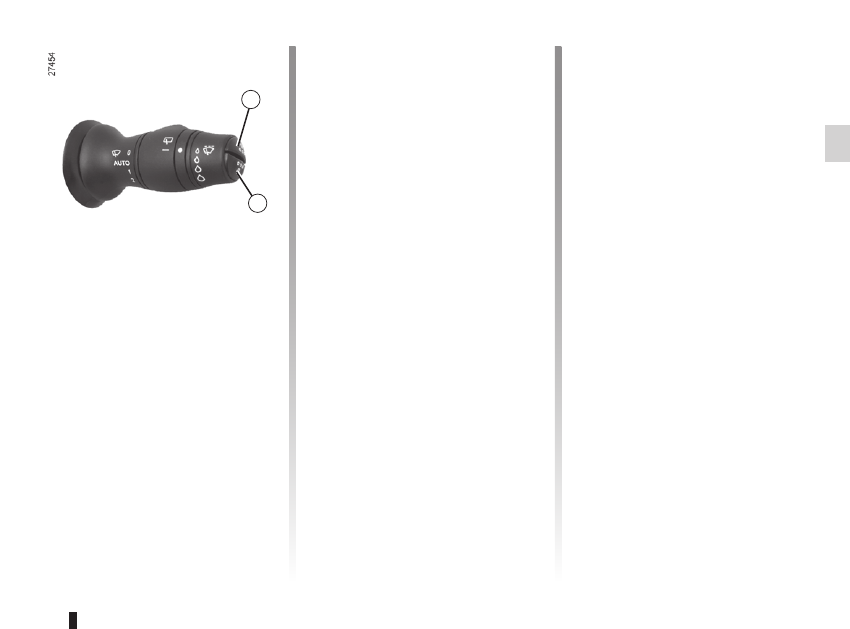

Trip mileage resetting

With “trip mileage recorder” selected on

the display, press button 2 or 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With one of the journey parameters se-

lected on the display, press button 2

or 3 until the display resets.

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption, range and average speed

will become more stable and reliable

the further you travel after pressing the

reset button.
For the first few miles after pressing

the reset key you will notice that the

range increases as you travel. This

range takes into account the average

fuel consumption since the last time the

reset button was pressed. Therefore,

the average fuel consumption may de-

crease when:
– the vehicle stops accelerating;
– the engine reaches its operating

temperature (if the engine was cold

when reset key was pressed);

– when driving from a built-up area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

1.58

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(3/10)

Examples of selections

Interpreting the display selected

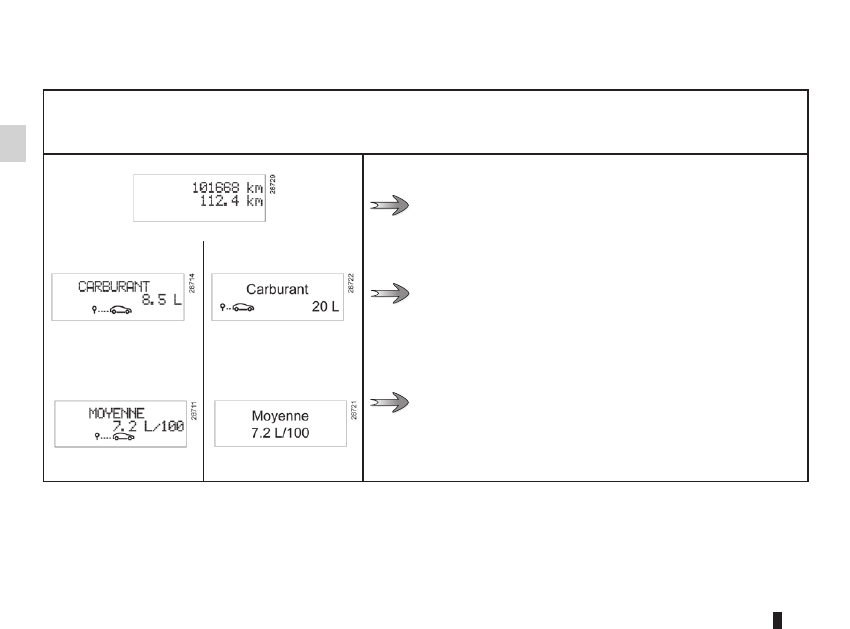

a) Total mileage and trip mileage recorder.

b) Journey parameters.

fuel used.

Fuel consumed since the last reset.

Average fuel consumption since the last reset.
The value is displayed after having travelled at least

400 metres since the last reset.

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

1.59

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(4/10)

Examples of selections

Interpreting the display selected

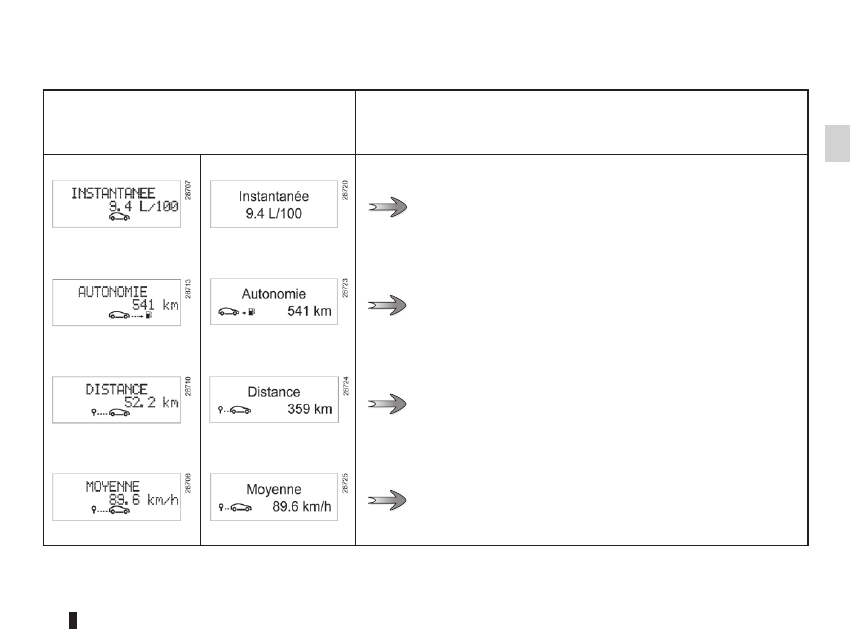

current fuel consumption.

This value is displayed above a speed of approximately 18 mph

(30 km/h).

Estimated range with remaining fuel.

This range takes into account the average fuel consumption

since the last time the reset button was pressed. The value is

displayed after driving 400 metres.

distance travelled since the last reset.

Average speed since the last reset.

The value is displayed after driving 400 metres.

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

1.60

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(5/10)

Examples of selections

Interpreting the display selected

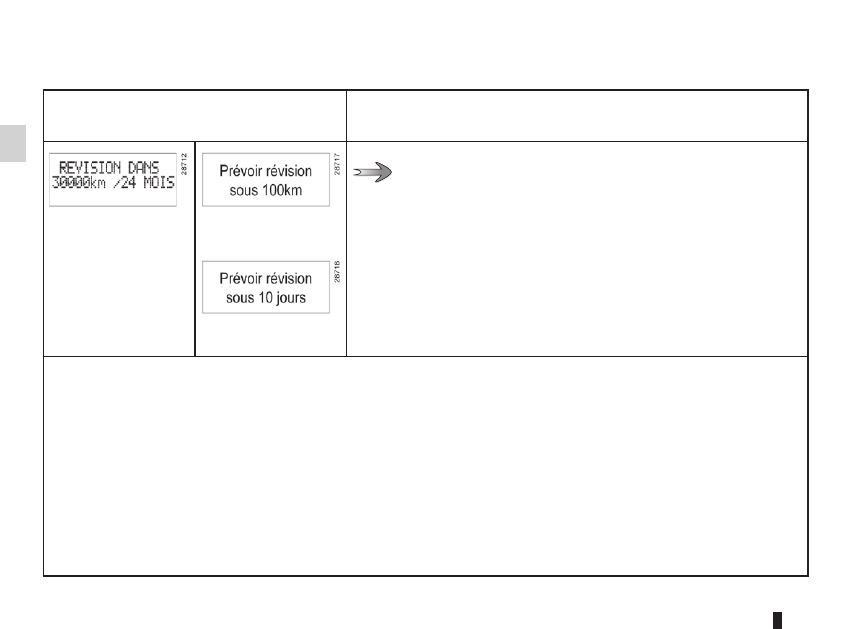

c) mileage before service.

Distance remaining until the next service (displayed in miles (kil-

ometres) and months), then when the service nears, several sce-

narios are possible:

– range less than

900 miles (1,500 km) or one month: the

message “Service due in” is displayed accompanied by the

nearest term (distance or time);

– range equal to

0 miles (0 km) or date of service reached:

the message “service vehicle” is displayed accompanied by

warning light

The vehicle requires a service as soon as possible.

Note: depending on the vehicle, the distance before a service changes according to driving style (frequent driving at low

speeds, door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next service

can therefore decrease more quickly in some cases than the actual distance travelled.
Resetting the display after the service in accordance with the maintenance schedule.

The mileage before service must only be reset after a service which complies with the recommendations in the maintenance

schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re-

placement intervals for other parts in the maintenance schedule.
special note: To reset the distance before service, press and hold one of the display reset buttons for approximately 10 sec-

onds until the display shows the mileage permanently.

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

1.61

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(6/10)

Examples of selections

Interpreting the display selected

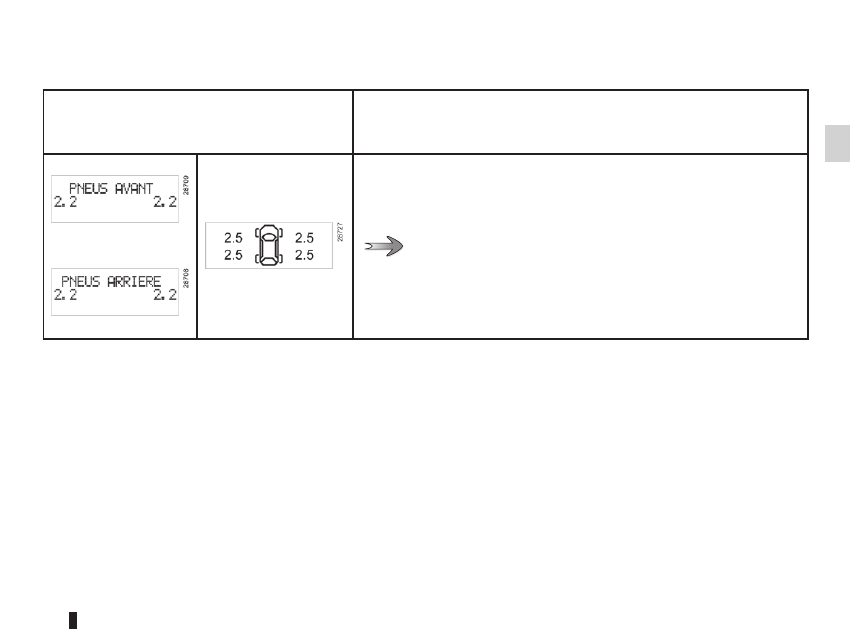

d) Tyre pressure monitor

Refer to the information on the “Tyre pressure monitor” in

Section 2.

Journey parameters (1/2)

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

1.62

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(7/10)

Examples of selections

Interpreting the display selected

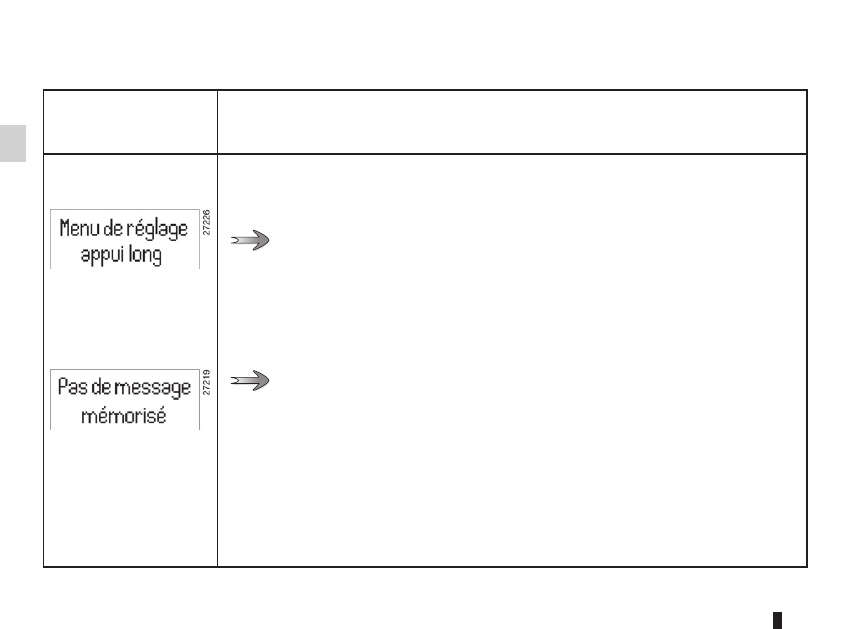

e) vehicle settings customisation menu.

Enables certain vehicle functions to be set (instrument panel language, parking

distance control, etc.). Refer to the information on “Vehicle settings customisation

menu” in Section 1.

f) Trip log.

Successive display:
– of information messages (passenger air bag OFF etc.),
– of operating fault messages (check the injection system, etc.).

Journey parameters (2/2)

The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.

1.63

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(8/10)

Examples of messages

Interpreting the display selected

“Battery low start engine” Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been

switched off for some time whilst listening to the radio).

“please remove keycard” Request to remove the RENAULT card from the reader when you leave the vehicle.

“checking control

functions”

Displayed with the ignition on when the vehicle is running self-diagnostics.

“Traction control off”

Indicates that you have deactivated the ASR function.

“Turn steering

wheel + sTART”

Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering

column.

“No message available” No warning is stored.

“steering wheel

not locked”

Indicates that the steering column has not been locked.

“stop vehicle”

Indicates an electronic parking brake fault. Apply the electronic parking brake manually and

ensure that the vehicle is immobilised using a chock.

Information messages

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

1.64

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(9/10)

Operating fault messages

These appear with the

warning light and mean that you should drive very carefully to an approved dealer as soon

as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

warning light stays on. Examples of operating fault messages are given in the following pages.

Examples of messages

Interpreting the display selected

“clean diesel filter”

Indicates the presence of water in the diesel filter.

“check lighting”

Indicates a fault in the directional headlights.

“check vehicle”

Indicates a fault on one of the pedal sensors or in the battery management system.

“check airbag”

Indicates a fault in the restraint system in addition to the seat belts. In the event of an accident,

it is possible that they may not be triggered.

“check anti-pollution

system”

Indicates a fault in the vehicle’s particle filter system.

“check injection”

Indicates an engine fault.

1.65

ENG_UD18879_3

Ordinateur de bord (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_1

TRIp cOmpUTER ANd WARNINg sYsTEm

(10/10)

Warning messages

These appear with the

warning light and require you to stop immediately, for your own safety, as soon as traffic

conditions allow. stop your engine and do not restart it. contact an approved dealer.

Examples of warning messages are given in the following pages.

Note: the messages appear on the display either individually or

alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpreting the display selected

“Engine failure hazard”

Indicates engine overheating, or an injection or engine oil pressure fault.

“power steering fault” or

“Risk of steering locking”

Indicates a fault in the steering.

“parking brake fault”

Indicates an electronic parking brake fault. Apply the electronic parking brake manually and

ensure that the vehicle is immobilised using a chock.

“Battery charging fault”

Indicates a fault in the vehicle battery charging circuit (alternator etc.).

“puncture”

Indicates a puncture on the tyre displayed on the instrument panel.

Content .. 2 3 4 5 ..
