6.4

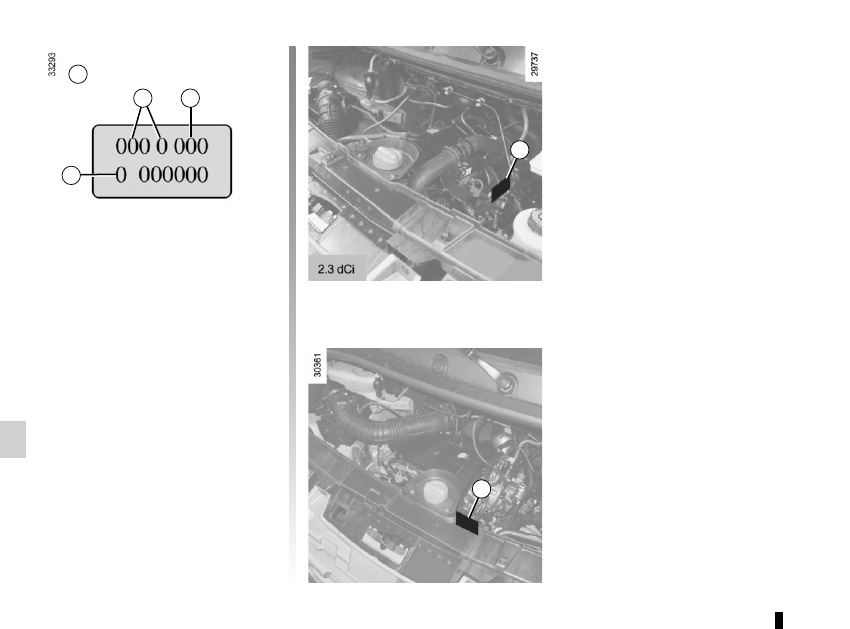

ENGINE IDENTIFICATION PLATES

The information on the engine plate

or label A  should be quoted on all

your correspondence or orders.

(Location varies depending on engine)

  1 Engine type.

  2 Engine suffix.

  3 Engine number.

A

A

A

1

2

3

6.5

ENGINE SPECIFICATIONS

Engine type (indicated on the engine plate)

M9T

Cubic capacity (cc)

2 299

Injection

Diesel

Type of fuel

Diesel

6.6

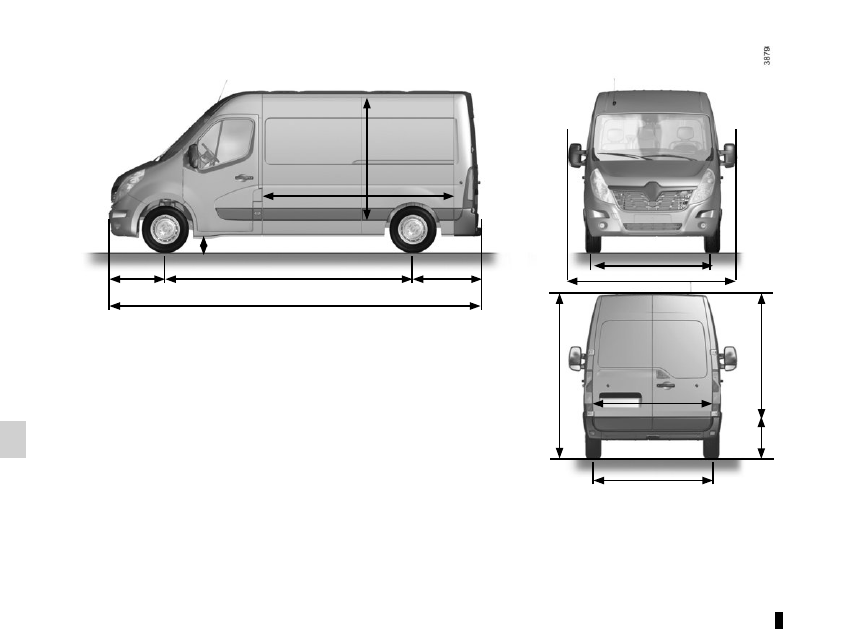

DIMENSIONS (in metres)

(1/2)

C

A

D

B

K

Q

Z1

E

G

F

H

Z

J

Y

6.7

DIMENSIONS (in metres)

(2/2)

Complete vehicles without recent alterations

Short (L1)

Average (L2)

Medium (L2.5)

Long (L3)

Long (L4)

A

3,182

3,682

4,006

3,682 → 4,332

4,332

B

5,048

5,548

5,967

6,198

6,848

C

0,842

D

1,024

1,024 → 1,674

1,575 → 1,674

E

1,750

F

1,730

1,730 → 1,860

1,612 → 1,730

1,612

G

2,470

H

2,222 → 2,500

2,256 → 2,745

2,256 → 2,261

2,270 → 2,815

2,267 → 2,808

J

0,546 → 0,560

0,543 → 0,787

0,735 → 0,740

0,542 → 0,775

0,700 → 0,789

K

0,189 → 0,196

0,166 → 0,185

0,166

0,166 → 0,208

0,166 → 0,178

Q

1,700 → 1,894

1,894 → 2,144

-

1,798 → 2,048

Y

1,580

-

1,580

Z

1,627

1,820

-

1,724 → 1,820

1,724

Z1

2,583

3,083

-

3,733

4,383

6.8

WEIGHTS (in kg)

Versions

Up to 3.5 tonnes

from 3.5 to

4.5 tonnes

Maximum permissible all-up weight

(MMAC)

Total train weight

Weights indicated on the identification plate

(refer to the information on “Vehicle identification plates” in Section 6)

Braked Trailer Weight* (Masse Remorque

Freinée/MRF)

obtained by calculating: MTR - MMAC

Unbraked Trailer Weight*

750

Permissible nose weight*

Front

wheel

drive

versions

Rear wheel drive

versions with MRF

of up to 3 tonnes

Rear wheel drive versions

with MRF of between

3 and 3.5 tonnes

-

100

120

140

120

Maximum permissible load on roof

Standard version: 200

Raised version: prohibited

* Towing weight (Towing a caravan, boat, etc.)

Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the

identification plate.

–  It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in

the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.

–  When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is

permitted:

–  the Maximum permissible weight at the rear may be exceeded by no more than 15%,

–  the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occurs first).

  In either case, the maximum speed of the vehicle and trailer must not exceed 48 mph (80 kph), depending on local legislation,

and the tyre pressure must be increased by 0.2 bar (3 PSI).

–  The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%

at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

The weights indicated are for a basic vehicle without options: they vary depending on the your vehicle’s equipment.

Contact an approved dealer.

6.9

Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same

level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out

within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the

repair order.

REPLACEMENT PARTS AND REPAIRS

6.10

SERVICE SHEETS

(1/6)

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

VIN: ..................................................................................

6.11

SERVICE SHEETS

(2/6)

VIN: ..................................................................................

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

6.12

SERVICE SHEETS

(3/6)

VIN: ..................................................................................

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

6.13

SERVICE SHEETS

(4/6)

VIN: ..................................................................................

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

6.14

SERVICE SHEETS

(5/6)

VIN: ..................................................................................

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

6.15

SERVICE SHEETS

(6/6)

VIN: ..................................................................................

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

Date:

 Miles

(km):

  Invoice

number:

Comments/miscellaneous

Type of operation:

Stamp

Service



□

.......................................

□

Anticorrosion check:
OK  □  Not

OK*



□

*See specific page

6.16

ANTICORROSION CHECK

(1/6)

If the continuation of the warranty is subject to repair, it is indicated below.

VIN: ..........................................................

Corrosion repair operation to be carried

out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

6.17

ANTICORROSION CHECK

(2/6)

If the continuation of the warranty is subject to repair, it is indicated below.

VIN: ..........................................................

Corrosion repair operation to be carried

out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

6.18

ANTICORROSION CHECK

(3/6)

If the continuation of the warranty is subject to repair, it is indicated below.

VIN: ..........................................................

Corrosion repair operation to be carried

out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

6.19

ANTICORROSION CHECK

(4/6)

If the continuation of the warranty is subject to repair, it is indicated below.

VIN: ..........................................................

Corrosion repair operation to be carried

out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:

Repair to be carried out:

Stamp

Date of repair:
