Renault Master (2018 year). Instruction - part 5

1.66

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Seat which does not allow a

child seat to be fitted.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

CHILD SEATS: attachment using the ISOFIX system

(9/12)

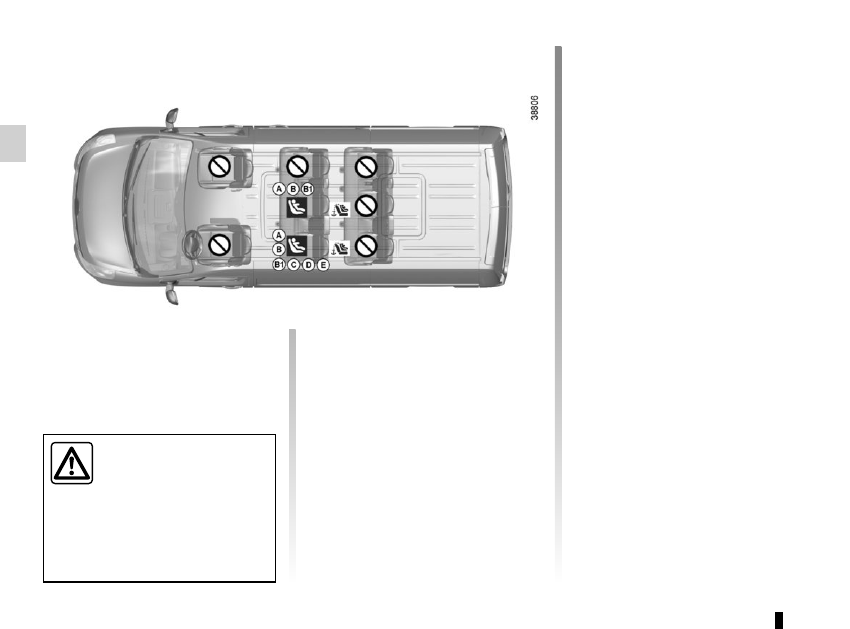

8-seater Combi

1.67

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Seat which does not allow a

child seat to be fitted.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

CHILD SEATS: attachment using the ISOFIX system

(10/12)

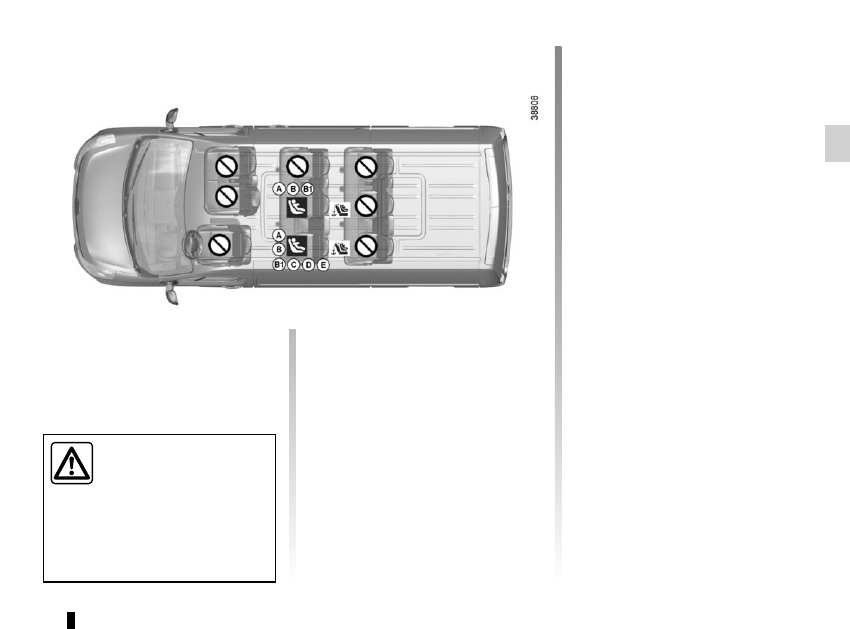

9-seater Combi

1.68

CHILD SEATS: attachment using the ISOFIX system

(11/12)

The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-

ble regulations are respected.

9-seater Combi version

Front seats

Rear seats

Child seat group

Weight of

the child

Size of

Isofix

seat

central

side

2nd row side seats

2nd row

centre

seat

3rd row

Behind

driver

Behind front

passenger

C a r r y c o t f i t t e d

across the vehicle

Group 0

< 10 kg

F, G

Rear-facing shell

seat

Group 0 or 0 +

< 13 kg

IL (1)

Rear-facing seat

Group 0+ and 1

< 13 kg and

9 to 18 kg

C, D

IL (1)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL (2)

Booster seat

Group 2 and 3

15 kg to

25 kg and

22 to 36 kg

1.69

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(2) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situa-

tions, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat

(please refer to the section entitled “Rear headrests” in Section 3). Do not push the seat in front of the child more than halfway

back on its runners and do not recline the seatback more than 25°.

CHILD SEATS: attachment using the ISOFIX system

(12/12)

1.70

Deactivating the front

passenger air bag

(depending on the vehicle)

You must deactivate the passenger

airbag before fitting a child seat on the

front passenger seat.

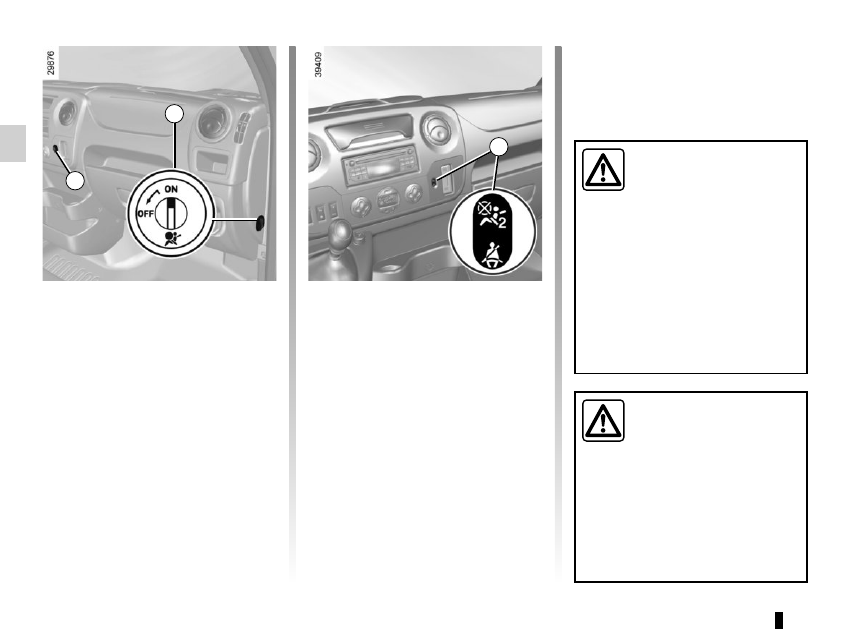

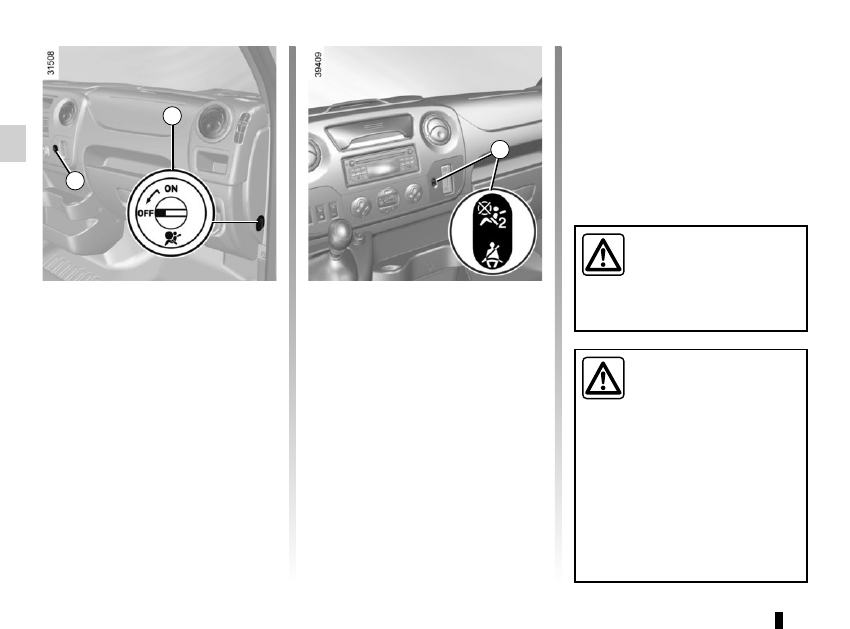

To deactivate the air bag: with the

vehicle stopped and the ignition off,

press and turn lock 2 to the OFF posi-

tion.

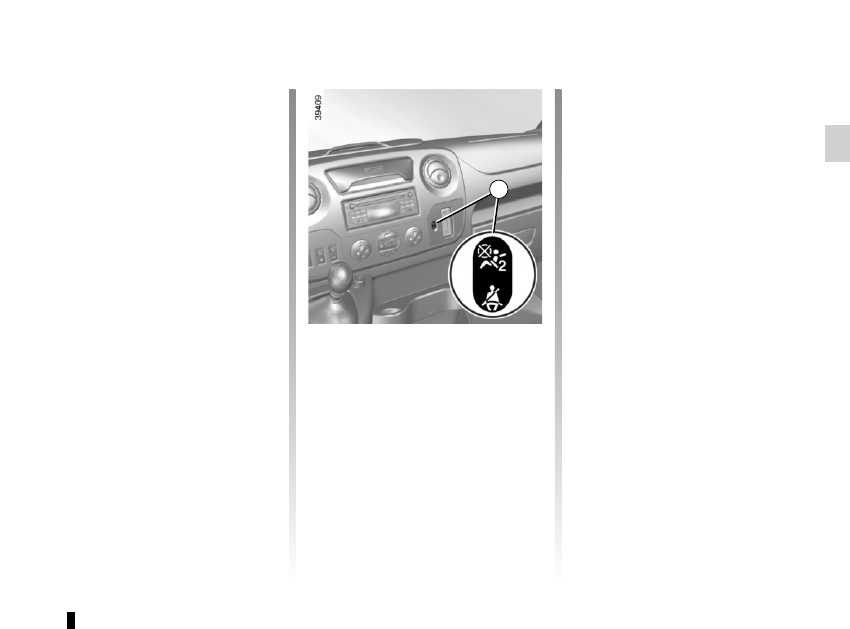

With the ignition on, you must check

that the warning light 1

is lit on

the dashboard and, depending on the

vehicle, that the message “Passenger

airbag off” is displayed.

This light remains permanently lit to

let you know that you can fit a child

seat.

CHILD SAFETY: deactivating, activating the front passenger air bag

(1/3)

The front passenger airbag

must also be deactivated

when a forward-facing child

seat is installed in the front

passenger seat.

The passenger air bag must

only be deactivated or acti-

vated with the ignition off.
If it is interfered with when

the vehicle is being driven, indicator

lights

and

will come

on.
Switch the ignition off then on again

to reset the air bag in accordance

with the lock.

1.71

CHILD SAFETY: deactivating, activating the front passenger air bag

(2/3)

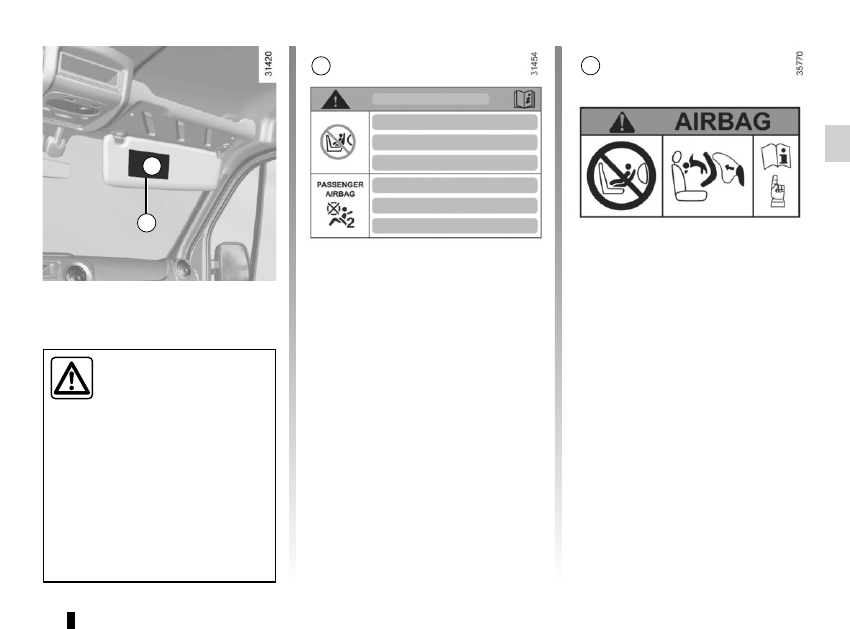

The markings on the dashboard and

labels A on each side of the passen-

ger sun visor 3 (for example, the labels

shown above) will remind you of these

instructions.

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

1.72

Operating faults

In the event that the front passenger air

bag activation/deactivation system is

faulty, child seats must not be fitted to

the front seat.

Allowing any other passenger to sit in

that seat is not recommended.

Contact your approved Dealer as soon

as possible.

Activation of the front

passenger air bag

You should reactivate the air bag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.
To reactivate the air bag: with the

vehicle stopped and the ignition off,

press and turn lock 2 to the ON posi-

tion.
With the ignition on, you must check

that the warning light 1

is not lit

up on the dashboard.

CHILD SAFETY: deactivating, activating the front passenger air bag

(3/3)

The passenger air bag must

only be deactivated or acti-

vated when the vehicle

is stationary. If it is inter-

fered with when the vehicle is being

driven, indicator lights

and

will come on. Switch the ig-

nition off then on again to reset the

air bag in accordance with the lock

position.

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

1.73

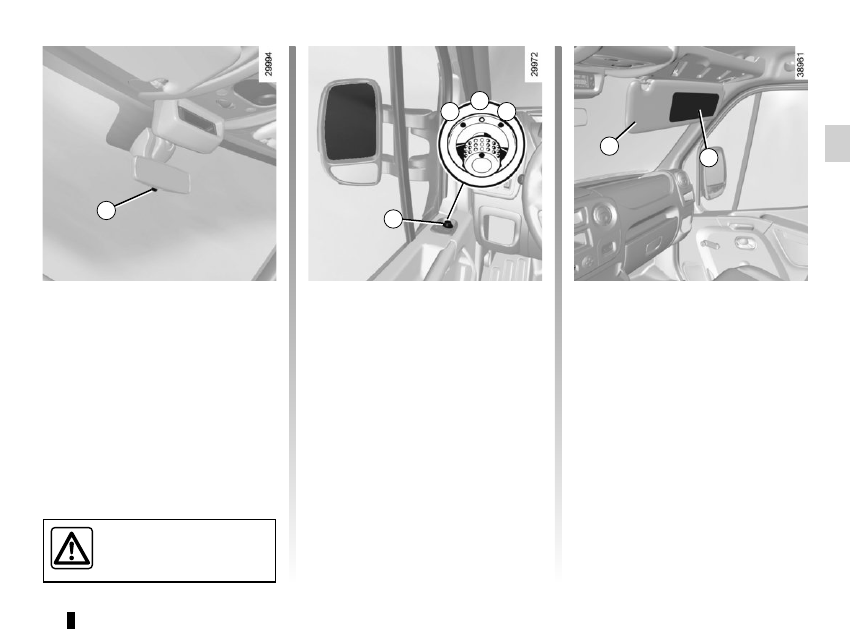

REAR-VIEW MIRRORS

Interior rear view mirror

The interior rear-view mirror is adjust-

able. When driving at night, to avoid

being dazzled by the headlights of the

vehicle behind: tilt the small lever 1 lo-

cated behind the rear-view mirror.

Electrically-adjustable door

mirrors

With the ignition on, position control 2

on:
A to adjust the left-hand door mirror,

C to adjust the right-hand door mirror,

B to deactivate it.

Heated door mirrors

Depending on the vehicle, the mirrors

are heated either alone or in conjunc-

tion with the rear windows.

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

Additional rear-view mirror 4

(depending on the vehicle)
Lower the sun visor 3 to access the

special mirror to increase lateral vision

when manoeuvring.

1.74

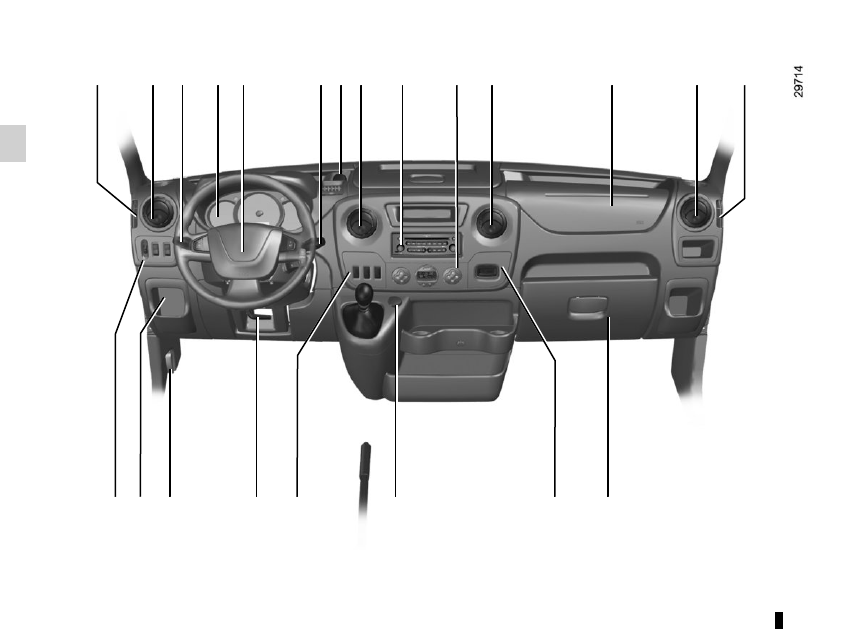

DRIVER’S POSITION, LEFT-HAND DRIVE

(1/2)

1.75

DRIVER’S POSITION: LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1 Side window demister outlet.

2 Side air vent.

3 Stalk for:

–

direction indicator lights;

–

exterior lights;

–

front fog lights;

–

rear fog lights.

4 Instrument panel.

5 Location for driver’s air bag.

6 –

Windscreen wiper/washer stalk.

– Information readout control.

7 Accessories socket.

8 Centre air vent.

9 Location for:

– radio;

– storage compartment.

10 Heating and ventilation controls.

11 Centre air vent.

12 Passenger airbag location.

13 Side air vent.

14 Side window demister.

15 Storage compartments.

16 Location for:

– storage compartment;

– audio connection socket;

– front passenger air bag deacti-

vation warning light.

17 Cigar lighter or accessories socket.

18 Switches:

– cruise control/speed limiter;

– activation/deactivation of the

Stop and Start function;

– activation/deactivation of ECO

mode;

– fast idle speed;

– power take-off.

19 Steering wheel height adjustment

control.

20 Bonnet release.

21 Fuse box.

22 Controls for:

– electric beam height adjust-

ment;

– activation/deactivation of the

parking distance control;

– activating/deactivating the load

position;

– activation/deactivation of the

traction control.

1.76

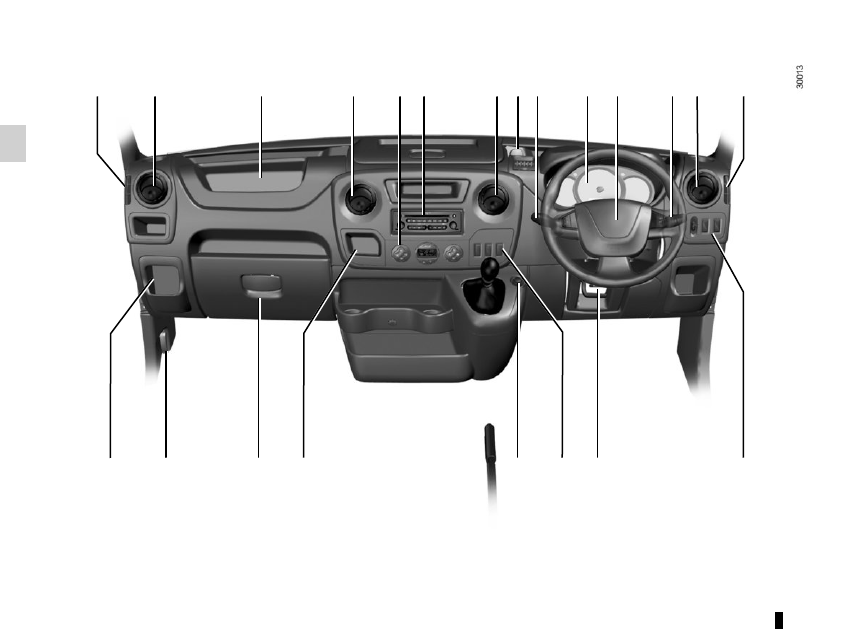

DRIVER’S POSITION, RIGHT-HAND DRIVE

(1/2)

1.77

DRIVER’S POSITION, RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1 Side window demister outlet.

2 Side air vent.

3 Location for passenger air bag.

4 Centre air vent.

5 Heating and ventilation controls.

6 Location for:

– radio;

– storage compartment.

7 Centre air vent.

8 Accessories socket.

9 Stalk for:

–

direction indicator lights;

–

exterior lights;

–

front fog lights;

–

rear fog lights.

10 Instrument panel.

11 Driver airbag location.

12 –

Windscreen wiper/washer stalk;

– Information readout control.

13 Side air vent.

14 Side window demister.

15 Controls for:

– electric beam height adjust-

ment;

– activation/deactivation of the

parking distance control;

– activating/deactivating the load

position;

– activation/deactivation of the

traction control.

16 Steering wheel height adjustment

control.

17 Switches:

– cruise control/speed limiter;

– activation/deactivation of the

Stop and Start function;

– activation/deactivation of ECO

mode;

– fast idle speed;

– power take-off.

18 Cigar lighter or accessories socket.

19 Location for:

– storage compartment;

– audio connection socket;

– front passenger air bag deacti-

vation warning light.

20 Storage compartment.

21 Bonnet release.

22 Fuse box.

1.78

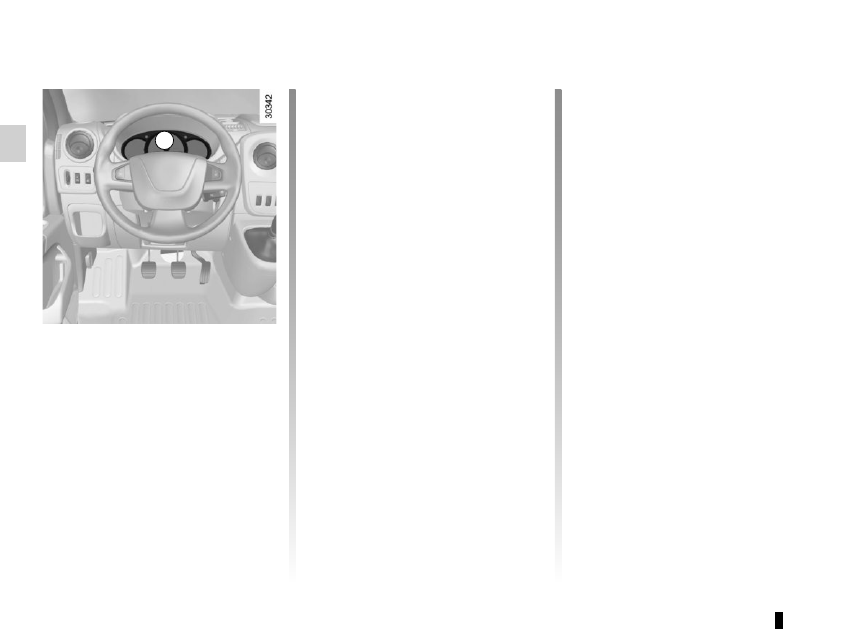

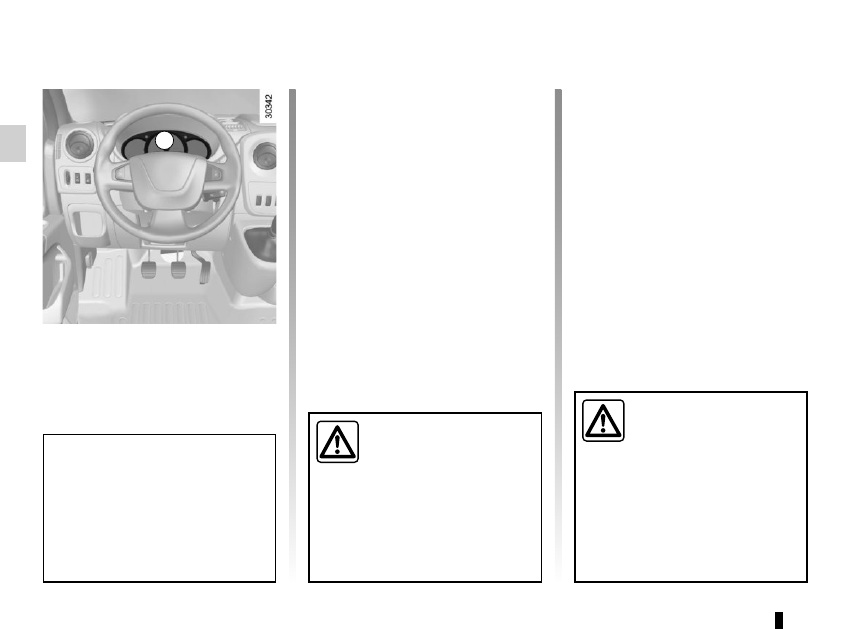

Instrument panel A

WARNING LIGHTS

(1/4)

Left-hand direction indicator

tell-tale light

Right-hand direction indica-

tor tell-tale light

Battery charge warning light

It should go out as soon as the

engine starts. If it comes on when you

are driving, it indicates that the circuit

has discharged. Stop as soon as traf-

fic conditions allow and contact an ap-

proved dealer.

Low fuel level warning light
This goes out as soon as the

engine starts. If it lights up or remains

lit, fill up with fuel as soon as possible.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

Warning light

means you

should drive very carefully to an

authorised dealer as soon as

possible. Failure to follow this rec-

ommendation risks damaging your

vehicle.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions

allow. Switch off the engine and do

not restart it. Contact an approved

Dealer.

Side light tell-tale light

Front fog light tell-tale



Rear fog light tell-tale light

Main beam headlight telltale

Dipped beam headlight tell-

tale



Automatic main beam head-

light indicator light

Please refer to the information

on “External signals and lights” in

Section 1.

1.79

WARNING LIGHTS

(2/4)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Handbrake on and brake cir-

cuit incident warning light

This comes on when the ignition is

switched on and goes out as soon as

the handbrake is released. If it comes

on during braking or when the vehicle

is being driven, accompanied by the

indicator light, it means that one

of the circuit levels is too low; it may be

dangerous to continue driving. Consult

an approved dealer.



Tyre pressure loss warning

Please refer to the information

on the “Tyre pressure loss warning” in

Section 2.

Warning light
This comes on when the igni-

tion is switched on and goes out after

about 3 seconds. If it comes on, pos-

sibly accompanied by other warning

lights, you should visit an approved

dealer as soon as possible. Depending

on the vehicle, this warning light is ac-

companied by a message on the instru-

ment panel.

Toxic fume filter system

warning light

On equipped vehicles, the light comes

on when the ignition is switched on then

goes out.

– If it lights up continuously accom-

panied by the

warning light,

please consult an authorised dealer

as soon as possible;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

an approved dealer as soon as pos-

sible.

Please refer to the information on

«Maintenance and anti-pollution

advice» in Section 2.

Indicator light Airbag
This light comes on when the

ignition is switched on and goes out

within about 3 seconds. If it comes on,

there is a fault in the system. Contact

an approved dealer as soon as possi-

ble.

Door status warning light
If it lights up when the ignition

is switched on, it indicates that

a door is not properly closed.

Not used

STOP light
This comes on when the igni-

tion is switched on and goes out after

about 3 seconds.

If it comes on, possibly accompanied

by other warning lights, stop soon as

traffic conditions allow. Contact an ap-

proved dealer as soon as possible.

Depending on the vehicle, this warning

light is accompanied by a message on

the instrument panel.

Coolant temperature warn-

ing light

If this remains lit while driving accom-
panied by the

indicator light, it

indicates engine overheating. Stop and

allow the engine to run at idle speed for

about a minute or two. The tempera-

ture should drop. Otherwise, stop the

engine. Let the engine cool down, then

check the coolant level. Contact an ap-

proved Dealer if necessary.

1.80

WARNING LIGHTS

(3/4)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Anti-lock braking warning

light

This light comes on when the ignition is

switched on and goes out within about

3 seconds. If it comes on when you are

driving, it indicates a fault in the anti-

lock braking system. Braking will then

occur normally, without the anti-lock

system.

Contact an approved dealer as soon as

possible.

Water in the diesel filter

warning light

If it comes on when you are driving, it

indicates the presence of water in the

diesel. Contact your approved dealer

as soon as possible.

Oil pressure warning light

This light comes on when the

ignition is switched on and goes out

within about 3 seconds. If it lights up

while you are driving, stop at once and

switch off the ignition. Check the oil

level. If the level is correct, the light has

come on for another reason; contact an

approved dealer.



Traction control warning

light

Refer to the information on “Driving cor-

rection devices and aids” in Section 2.

Brake pad wear warning

light

Depending on the vehicle, if the warn-

ing light comes on, you must have your

brake pads checked as soon as possi-

ble.



Emergency active brake

assist

Refer to the information on “Driving cor-

rection devices and aids” in Section 2.

Preheating warning light

This should come on when

the ignition is switched on. It indicates

that the heater plugs are in operation. It

goes out as soon as preheating is suf-

ficient and the engine may be started.

Digital tacograph warning light

If it comes on, there is a fault in the

system. Refer to the handbook for the

equipment.



Engine standby warning

light

Please see information about “Stop and

Start function” in Section 2.



Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

1.81

WARNING LIGHTS

(4/4)

‰

Gear change indicator

This lights up to advise you to

change to a higher gear (up arrow) or,

depending on the vehicle, a lower gear

(down arrow).



Electronic Stability Control

warning light (ESP).

There are several reasons for the warn-

ing light to come on: please refer to in-

formation on “Driver correction devices

and aids” in Section 2.

Cruise control and

speed limiter indica-

tor lights

Refer to the information on the “Speed

limiter” and “Cruise control” in Section 2.



Warning light for additive

level and faults in the ex-

haust gas reduction system

Refer to the information on "Additive

tank" in Section 1.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.



Lane departure system war-

ning light

Please refer to the information on “Lane

departure warning” in Section 2.

On display B

Seat belt reminder light

The light lights up constantly

when the vehicle is started, then when

the car reaches a speed of about

10 mph (16 km/h), if the driver’s seat

belt is not fastened, it flashes and a

beep sounds for about 90 seconds.

Depending on the vehicle, this flashes if

the front passenger seat belt is not fas-

tened.

Passenger Airbag OFF

Refer to the information on

“Child safety: deactivating/activating

the front passenger airbag” in section 1.

Content .. 3 4 5 6 ..
