Renault Laguna (2012 year). Instruction

accessories...........................................(up to the end of the DU)

5.29

ENG_UD27824_1

Accessoires VT (X06 - X35 - X44 - X45 - X77 - X81 - X85 - X90 - X91 - X70 - X76 - X83 - X61 - TEST - X95 - X33 - X47 - X43 - X38 - H79 - X62 - X32 - X09 - X67 - X92 -

ENG_NU_936-5_BK91_Renault_5

Accessories

AcceSSOrIeS

electrical and electronic accessories

Before installing this type of accessory, make sure it is compatible with your vehicle. You can get advice from an au-

thorised dealer.
Connect accessories with a maximum power of 120 watts only.

Fire hazard.

No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected

system may result in damage being caused to the electrical equipment and/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.

Establish the rating and position of this fuse.

use of transmission/receiving devices (telephones, cB equipment etc.).

Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the

vehicle: it is advisable only to use equipment with an external aerial.

Furthermore, we remind you of the need to conform

to the legislation in force concerning the use of such equipment.

Fitting after-market accessories

If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of

your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your

vehicle, which are the only accessories for which the manufacturer will provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-

larly. Do not lay one mat on top of another.

there is a risk of wedging the pedals

wiper blades .........................................(up to the end of the DU)

wipers

blades .............................................(up to the end of the DU)

5.30

ENG_UD20530_1

Balais d’essuie-vitres (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Wipers (replacing blades)

WInDScreen WIPer BLADeS

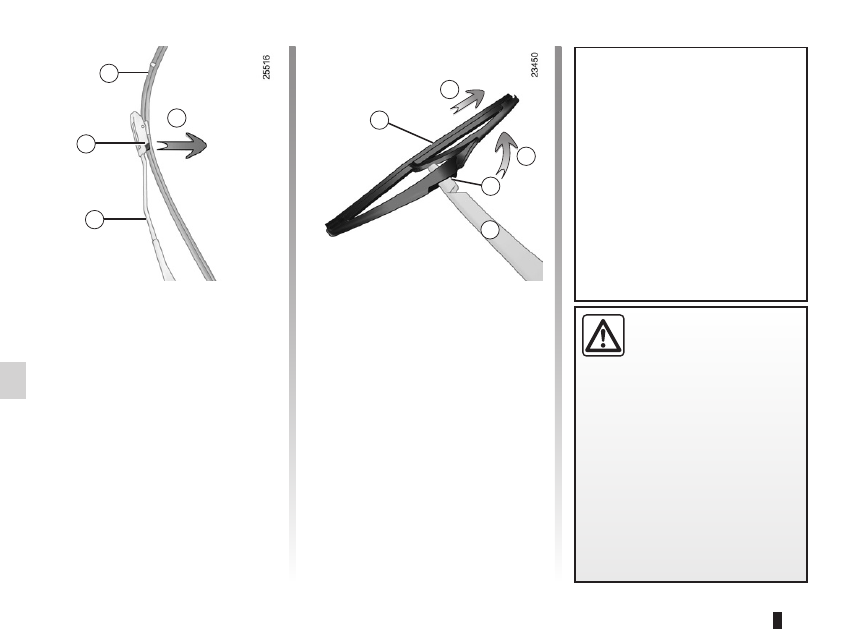

replacing windscreen wiper

blades 1

With the ignition on and engine

switched off, lower the windscreen

wiper stalk completely: they stop

slightly away from the bonnet.

Lift wiper arm 3, pull tab 2 (move-

ment A) and push the blade upwards.
to refit

Slide the blade along the arm until it

clips on. Make sure that the blade is

correctly locked in position. Return the

windscreen wiper stalk to the park po-

sition.

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

– Check the condition of the wiper

blades. Replace the wiper blades

as soon as they begin to lose ef-

ficiency (approximately once a

year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

Check the condition of the wiper

blades. You are responsible for their

service life:

– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

rear screen wiper blade 4

– Lift wiper arm 6;
– pivot blade 4 until some resistance is

met (movement C);

– depending on the vehicle, press

tab 5, then remove the blade by pull-

ing it (movement B).

to refit
To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

towing

breakdown ......................................(up to the end of the DU)

towing hitch...........................................(up to the end of the DU)

5.31

ENG_UD20531_1

Remorquage : dépannage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Towing

tOWInG: breakdown

Before towing, unlock the steering

column: with the clutch depressed,

engage

first gear (lever in position n

r for vehicles with automatic trans-

missions), insert the RENAULT card in

the card reader then press the engine

start button for

two seconds.

The column is unlocked, the acces-

sory functions are supplied: the vehi-

cle lights can be used (indicators, brake

lights etc.). At night the vehicle must

have its lights on.
Once you have finished towing, press

the engine start button twice (risk of

running down the battery).
The speed specified by current legis-

lation for towing must always be ob-

served. If your vehicle is the towing

vehicle, do not exceed the maximum

towing weight for your vehicle (refer to

the information on “Weights” in Section

6).

towing a vehicle with an

automatic gearbox

With the engine switched off, the trans-

mission is no longer lubricated. It is

preferable to tow this type of vehicle on

a trailer or tow it with the front wheels

off the ground.
under exceptional circumstances,

you may tow the vehicle with all four

wheels on the ground, only going for-

ward, with the gear lever in the

n posi-

tion, and for a distance not exceeding

30 miles (50 km).

Do not remove the

RENAULT card from the

reader when the vehicle is

being towed.

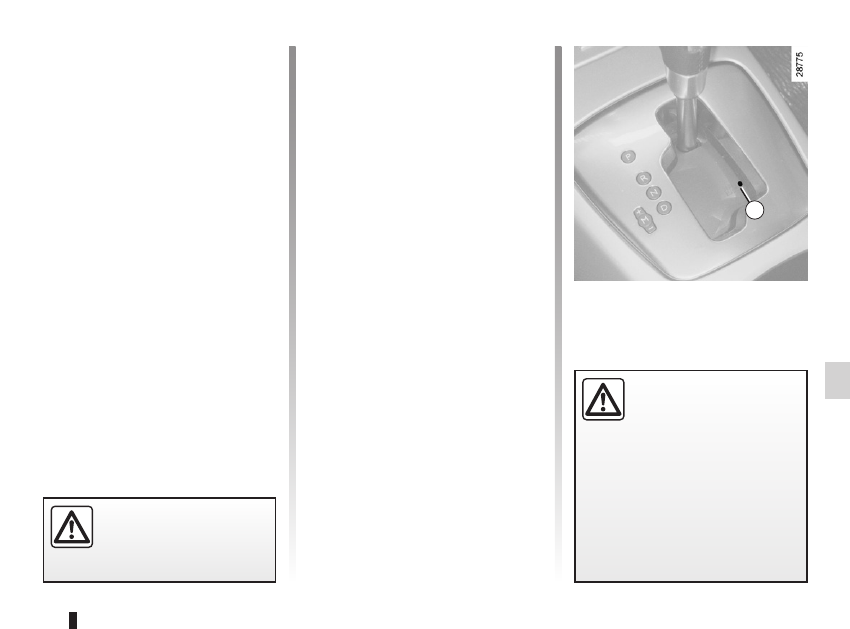

If the lever is stuck in

even though you are de-

pressing the brake pedal,

the lever can be released

manually. To do this, insert a rigid

rod in the hole 1, press the rod and

unlocking button located on the gear

lever knob simultaneously.

5.32

ENG_UD20531_1

Remorquage : dépannage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

tOWInG: breakdown

(continued)

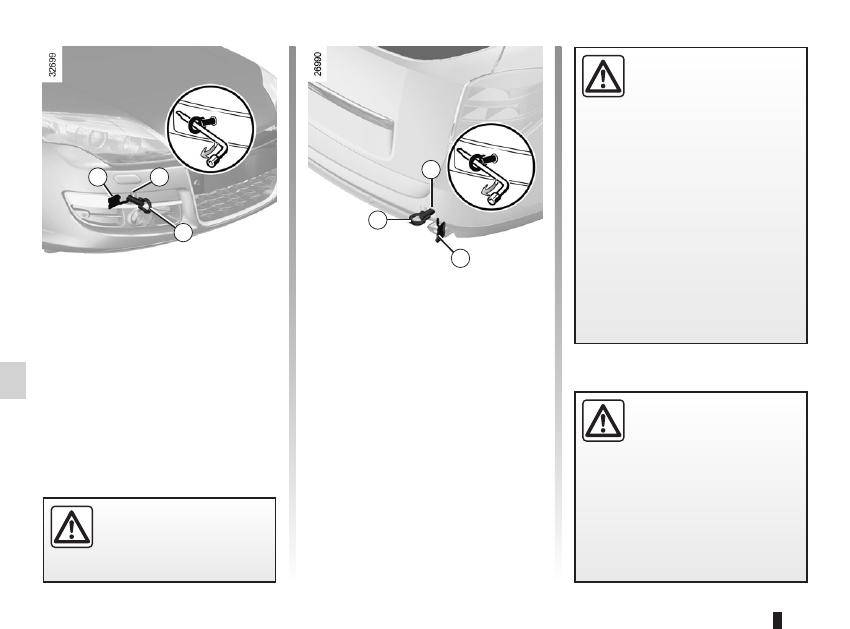

Only use the front 3 and rear 5

towing points (never use the drive-

shafts or any other part of the vehicle).

These towing points may only be used

for towing: never use them for lifting the

vehicle directly or indirectly.

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

Access to towing points

Unclip cover 2 or 6 by sliding a flat tool

(or the key integrated in the RENAULT

card) under the cover.
Screw in towing hitch 4 fully: as much

as possible by hand at first, then finish

by tightening it using the wheelbrace.
Use only towing hitch 4 and the wheel-

brace located under the luggage com-

partment carpet in the tool kit (refer

to the information on the “Tool kit” in

Section 5).

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

– A vehicle must not be towed if it is

not fit to be driven.

– Avoid accelerating or braking

suddenly when towing, as this

may result in damage being

caused to the vehicle.

– When towing a vehicle, it is ad-

visable not to exceed

15 mph

(25 km/h).

Do not leave the tools unse-

cured inside the vehicle as

they may come loose under

braking.

After use, check that all the tools

are correctly clipped into the tool kit,

then, depending on the vehicle, po-

sition it correctly in its housing.
Risk of injury.

operating faults .....................................(up to the end of the DU)

faults

operating faults ...............................(up to the end of the DU)

5.33

ENG_UD28899_2

Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - K95 - J95 - R95 - X98 - Renault)

ENG_NU_936-5_BK91_Renault_5

Operating faults

OPerAtInG FAuLtS

(1/5)

the following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved Dealer as soon as possible.

using the renAuLt card

POSSIBLe cAuSeS

WHAt tO DO

The RENAULT card does not lock or

unlock the doors.

Card battery is flat.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the

information on “Locking/unlocking the

doors” in Section 1 and “Starting/Stopping

the engine” in Section 2).

Use of appliances operating on the

same frequency as the card (mobile

phone, etc.).

Stop using the equipment or use the

emergency key (refer to the informa-

tion on “Locking/unlocking the doors” in

Section 1).

Vehicle located in a high electromag-

netic radiation zone.
Vehicle battery flat.

Use the emergency key integrated in the

card (refer to the information on “Locking/

unlocking the doors” in Section 1).

5.34

ENG_UD28899_2

Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - K95 - J95 - R95 - X98 - Renault)

ENG_NU_936-5_BK91_Renault_5

OPerAtInG FAuLtS

(2/5)

the starter is activated

POSSIBLe cAuSeS

WHAt tO DO

The instrument panel indicator lights are

weak or fail to light up and the starter

does not turn.

Battery terminals not tight,

battery terminals discon-

nected or oxidised.

Retighten or reconnect the terminals, or clean them if

they are oxidised.

Discharged battery or not

operational.

Connect another battery to the faulty battery. Refer to

information on “Battery: troubleshooting” in Section 5

or replace the battery if necessary.

Do not push the vehicle if the steering column is

locked.

The engine will not start.

Starting conditions are not

fulfilled.

Refer to the information on “Starting/stopping the

engine” in Section 2.

The RENAULT “hands-free”

card does not work.

Insert the card in the card reader in order to start the

engine.

Refer to the information on “Starting/stopping the

engine” in Section 2.

The engine cannot be switched off.

Card not detected.

Insert the card in card reader.

Electronic fault.

Press the starter button quickly five times. The engine

can be restarted by pressing on the clutch pedal if the

Stop and Start function is activated.

The steering column remains locked.

Steering wheel locked.

Move the steering wheel while pressing the engine

start button (refer to the information on “Starting the

engine” in Section 2).

5.35

ENG_UD28899_2

Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - K95 - J95 - R95 - X98 - Renault)

ENG_NU_936-5_BK91_Renault_5

OPerAtInG FAuLtS

(3/5)

On the road

POSSIBLe cAuSeS

WHAt tO DO

Vibrations.

Tyres not inflated to correct pres-

sures, incorrectly balanced or dam-

aged.

Check the tyre pressures: if this is not the

problem, have them checked by an ap-

proved Dealer.

White smoke from the exhaust.

This is not necessarily a fault. Smoke

may be caused by regeneration of the

particle filter.

Please refer to the information on “Special

features of diesel versions” in Section 2.

Smoke under the bonnet.

Short-circuit or cooling system leak.

Stop, switch off the ignition, stand away

from the vehicle and contact an approved

dealer.

The oil pressure warning light comes

on:

while cornering or braking

The level is too low.

Top up the engine oil (refer to the informa-

tion on “Engine oil level – Topping up/refill-

ing” in Section 4).

is slow to go out or remains lit

under acceleration

Loss of oil pressure.

Stop the vehicle and contact an approved

Dealer.

5.36

ENG_UD28899_2

Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - K95 - J95 - R95 - X98 - Renault)

ENG_NU_936-5_BK91_Renault_5

OPerAtInG FAuLtS

(4/5)

On the road

POSSIBLe cAuSeS

WHAt tO DO

Steering becomes heavy.

Assistance overheating.

Consult an approved dealer.

The engine is overheating. The cool-

ant temperature indicator is in the

warning zone and warning light

comes on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

approved dealer as soon as possible.

Coolant boiling in the coolant reser-

voir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved dealer.

radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by our Technical Department may be used for this purpose.

5.37

ENG_UD28899_2

Anomalies de fonctionnement (X91 - B91 - K91 - D91 - X95 - B95 - D95 - K95 - J95 - R95 - X98 - Renault)

ENG_NU_936-5_BK91_Renault_5

OPerAtInG FAuLtS

(5/5)

electrical equipment

POSSIBLe cAuSeS

WHAt tO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

Fuse damaged.

Replace the fuse, refer to the information

on “Fuses”.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown bulb.

See information on “Headlights: changing

the bulbs” or “Rear lights: changing the

bulbs” in section 5.

The direction indicators do not work.

Faulty electrical circuit.

Consult an approved dealer.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Traces of condensation in the lights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature.
In this situation, these traces soon dis-

appear when the lights are switched

on.

The illumination of the seat belt re-

minder warning light does not match

the seat belt status.

An object is stuck between the floor

and the seat and is disrupting the op-

eration of the sensor.

Remove any objects from underneath the

rear seats.

6.1

ENG_UD29780_15

Sommaire 6 (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_6

Section 6: Technical specifications

Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2

Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7

Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7

Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8

Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9

Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

vehicle identification .............................(up to the end of the DU)

paintwork

reference ..........................................................(current page)

vehicle identification plates ...................(up to the end of the DU)

technical specifications .........................(up to the end of the DU)

6.2

ENG_UD29076_5

Plaques d’identification véhicule (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_6

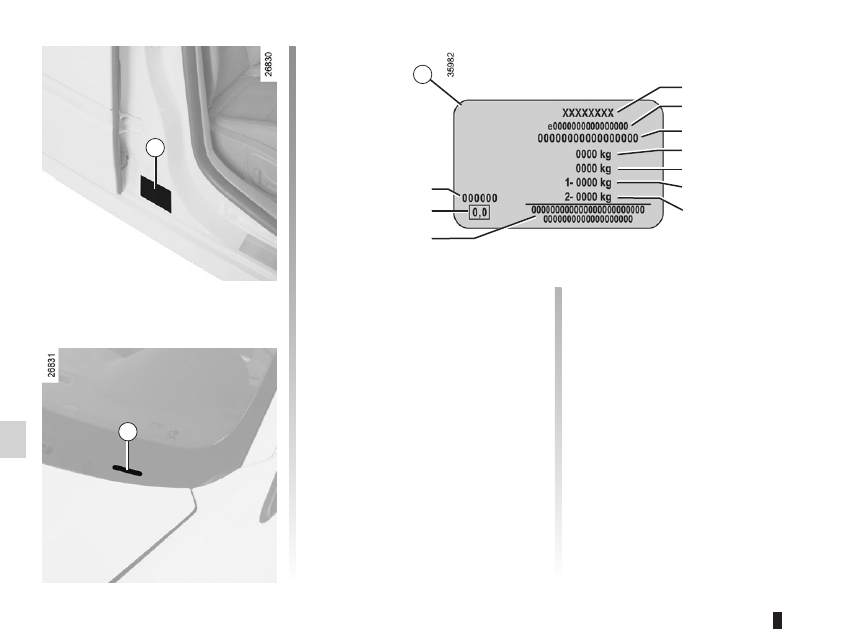

Vehicle identification plates

Vehicle identification plates

2
3

the information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
the presence and location of the in-

formation depends on the vehicle.
Vehicle identification plate A

1 Manufacturer name.

2 EC design number or approval

number.

3 Identification number.

depending on the vehicle, this

information is also given on

marking B.

4 MAM (Maximum Authorised Mass)

for front axle.

5 GTW (Gross train weight: vehicle

fully loaded, with trailer).

6 MPAW (Maximim Permissible

Weight) for front axle.

7 MPAW on rear axle.

8 Reserved for related or additional

entries.

9 Diesel exhaust emissions.

10 Paint reference (colour code).

6.3

ENG_UD25516_3

Plaque d’identification moteur (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_6

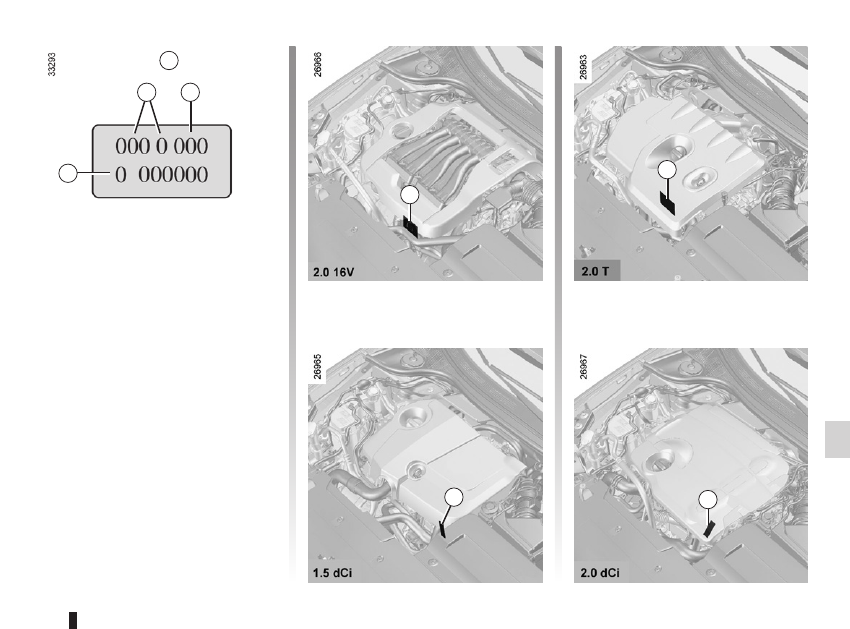

Engine identification plates

engine identification plates

Quote the information on the identi-

fication plate or label A in all corre-

spondence or when ordering parts.

(Location varies depending on engine)

1 Engine type.

2 Engine suffix.

3 Engine number.

dimensions ...........................................(up to the end of the DU)

technical specifications .........................(up to the end of the DU)

6.4

ENG_UD20545_1

Dimensions (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_6

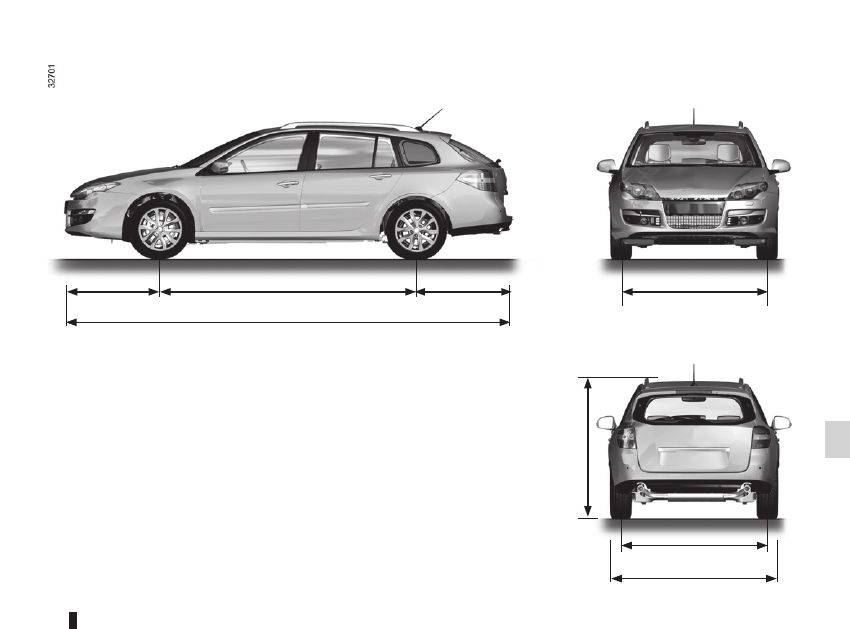

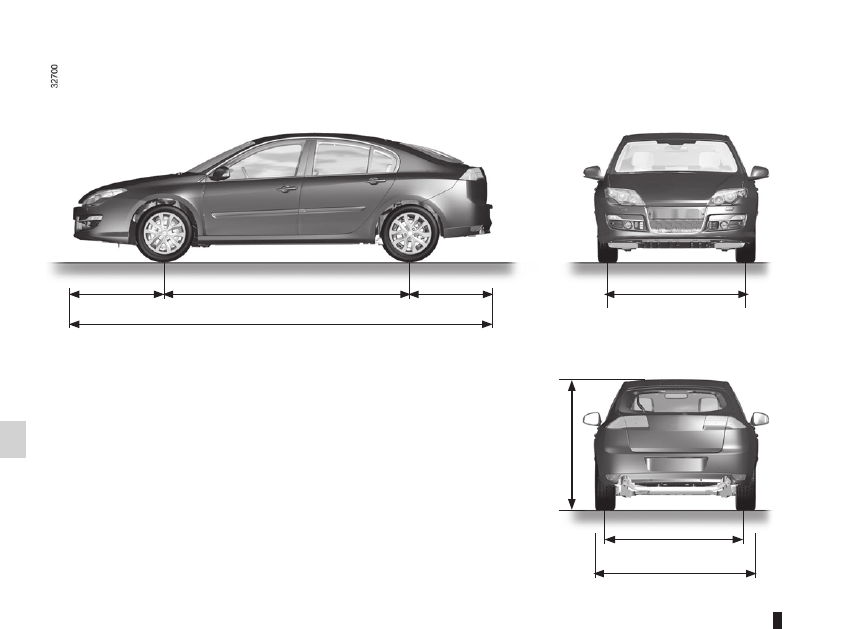

Dimensions

1.014

2.756

0.925

1.557

4.695

1.512

2.060

1.445*

dimensions (in metres)

* Unladen

engine

technical specifications ...................(up to the end of the DU)

technical specifications .........................(up to the end of the DU)

engine specifications ............................(up to the end of the DU)

6.6

ENG_UD23697_2

Caractéristiques moteur (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_6

Engine specifications

engine specifications

Versions

2.0 16V

2.0t

1.5 dci

2.0 dci

engine type

(see engine plate)

M4R

F4R Turbo

K9K

M9R

cubic capacity (cc)

1 995

1 998

1 461

1 995

type of fuel

octane Rating

It is

essential that you use unleaded petrol of the

octane rating stated on the label inside the fuel filler

flap.

If not available, for a limited time only, use unleaded

fuel:

Diesel

The label located in the fuel filler

flap indicates authorised fuels.

– with an Octane rating

of 91 for a label show-

ing 95 or 98;

– fuel containing a max-

imum 85% ethanol

(E85).

– with an Octane rating

of 91 for a label show-

ing 95 or 98;

– with an octane rating of

87 for a label showing

91, 95 or 98.

spark plugs

Only use the spark plugs specified for your vehicle’s

engine.

The type should be marked on a label affixed inside

the engine compartment. If it is not then contact your

approved dealer.

Fitting spark plugs which are not to specification may

damage the engine.

technical specifications .........................(up to the end of the DU)

towing a caravan ..................................(up to the end of the DU)

towing weights ......................................(up to the end of the DU)

weights .................................................(up to the end of the DU)

6.7

ENG_UD27698_3

Masses (poids) (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_6

Weights

Towing weights

Weights (in kg)

the weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. consult

your approved dealer.

maximum permissible all-up weight (mmac)

gross train Weight (mtR)

Weights are indicated on the vehicle identification plate (refer to

the information on “Vehicle identification plates” in Section 6)

Braked trailer Weight*

found by calculating:

mtR - mmac

Unbraked trailer Weight*

650

permissible nose weight*

permissible load on the roof with the carrying device

80 kg (including the carrying device)

* towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on the

identification plate.

– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in

the Road Traffic Regulations. Contact your approved dealer about any towing equipment.

– When towing, under no circumstances may

the total train weight (vehicle + trailer) be exceeded. However the following is

permitted:

– rear axle MMTA exceeded by no more than 15%,

– maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).

In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must

be increased by 0.2 bar (3 PSI).

– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%

at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

Weight transfer

The towing load must not exceed 1,500 kg.

If the Maximum Authorised Mass of the vehicle has not been reached, up to 200 kg can be transferred to the braked trailer, within

the limits of the Gross Train Weight.

Renault Laguna (2012 year). Instruction - part 13
