Renault Laguna (2012 year). Instruction

storage compartments ..........................(up to the end of the DU)

storage compartment............................(up to the end of the DU)

fittings ...................................................(up to the end of the DU)

3.17

ENG_UD20458_1

Rangements, aménagements habitacle (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

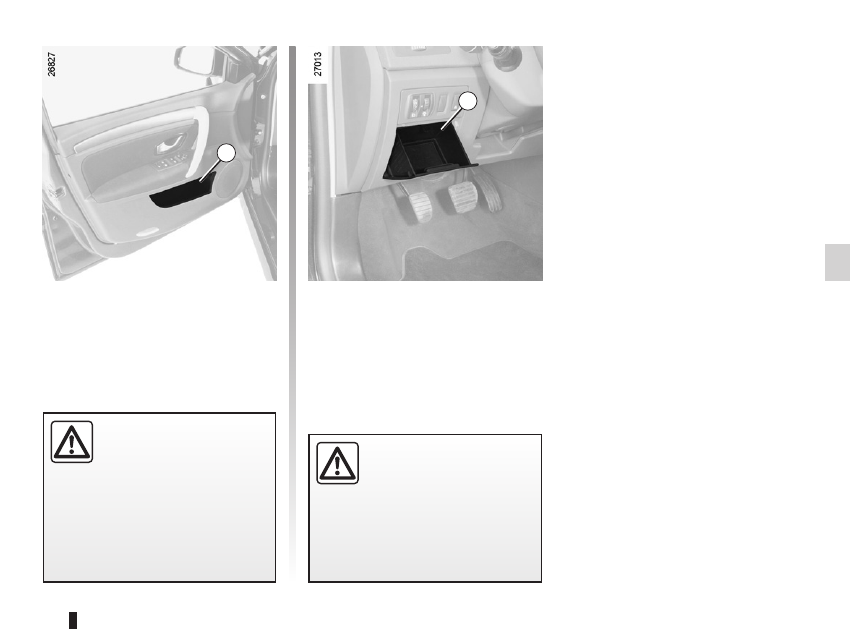

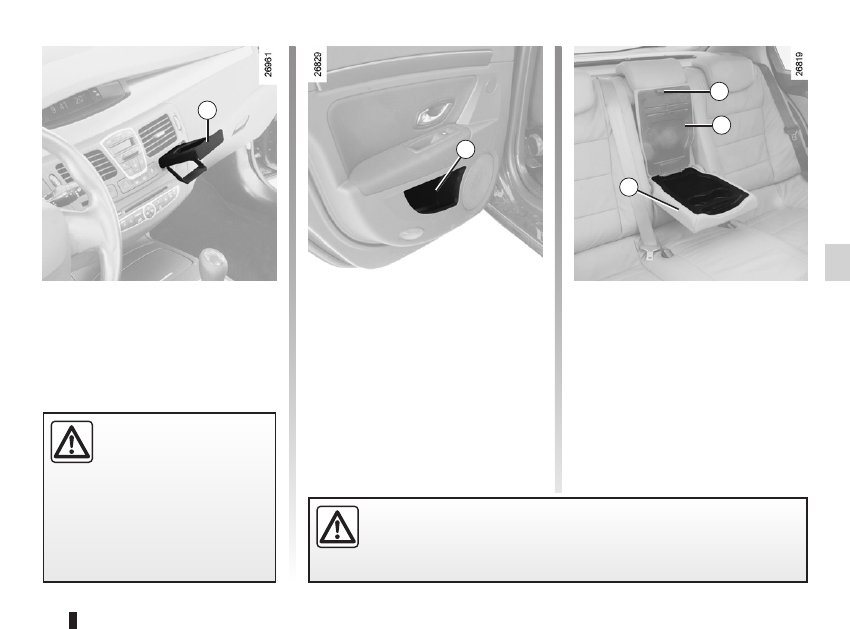

Passenger compartment storage space and fittings

Dashboard storage

compartment 2

Door pockets 1

PASSENgER coMPARTMENT SToRAgE SPAcE AND FITTINgS

(1/4)

Nothing should be placed

on the floor area in front of

the driver as such objects

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

Ensure that no hard, heavy

or pointed objects are

placed in the “open” stor-

age compartments in such

a way that they may fall onto pas-

sengers during sudden turning or

braking.

armrest:

front ..................................................................(current page)

3.18

ENG_UD20458_1

Rangements, aménagements habitacle (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

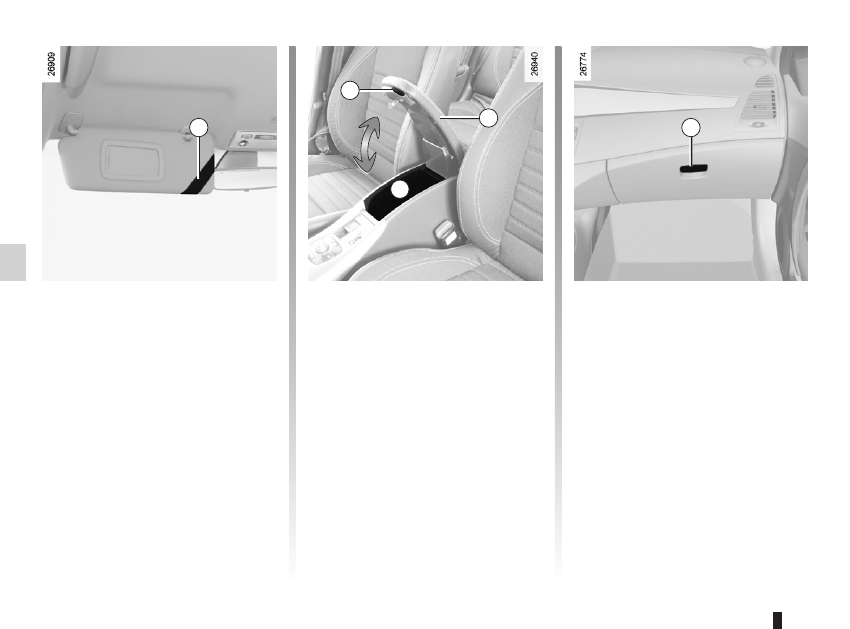

Front centre armrest storage

compartment A

Press button 4 and lift cover 5.

PASSENgER coMPARTMENT SToRAgE SPAcE AND FITTINgS

(2/4)

Sun visor storage 3

This can be used for storing motorway

tickets, cards, etc.

glove box

Pull handle 6 to open it.
The glove box can hold A4-sized docu-

ments, a large bottle of water, etc.
It is ventilated and refrigerated.

boîte à gants ....................................................... (page courante)

3.19

ENG_UD20458_1

Rangements, aménagements habitacle (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Door pockets 8

PASSENgER coMPARTMENT SToRAgE SPAcE AND FITTINgS

(3/4)

cup holder 7

This can be used to hold a can or a cup.
Press the top to deploy or store it.

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of burning if hot liquid

escapes.

Rear armrest storage

Lower armrest 11 and lift cover 10 using

unlocking handle 9.

Ensure that no hard, heavy or pointed objects are placed in the “open”

storage compartments in such a way that they may fall onto passengers

during sudden turning or braking.

armrest:

rear ..................................................................(current page)

3.20

ENG_UD20458_1

Rangements, aménagements habitacle (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

PASSENgER coMPARTMENT SToRAgE SPAcE AND FITTINgS

(4/4)

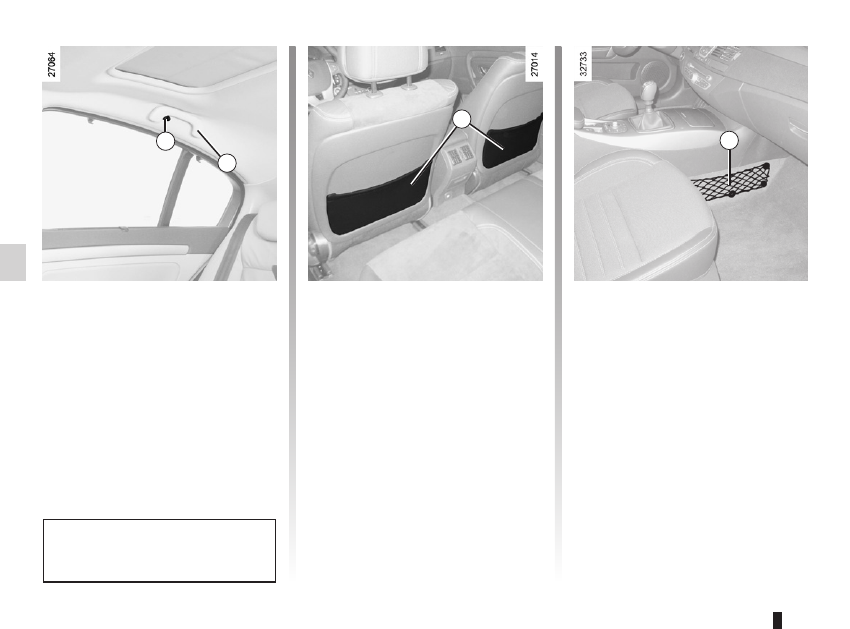

clothes hooks 12

grab handle 13

This offers support and can be held

when the vehicle is being driven.

Front seat storage

compartments 14

Do not use it for getting into or out of

the vehicle.

Storage net 15

ashtrays ................................................(up to the end of the DU)

cigar lighter ...........................................(up to the end of the DU)

accessories socket ...............................(up to the end of the DU)

3.21

ENG_UD27634_2

Cendrier, allume-cigares, prises accessoires (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

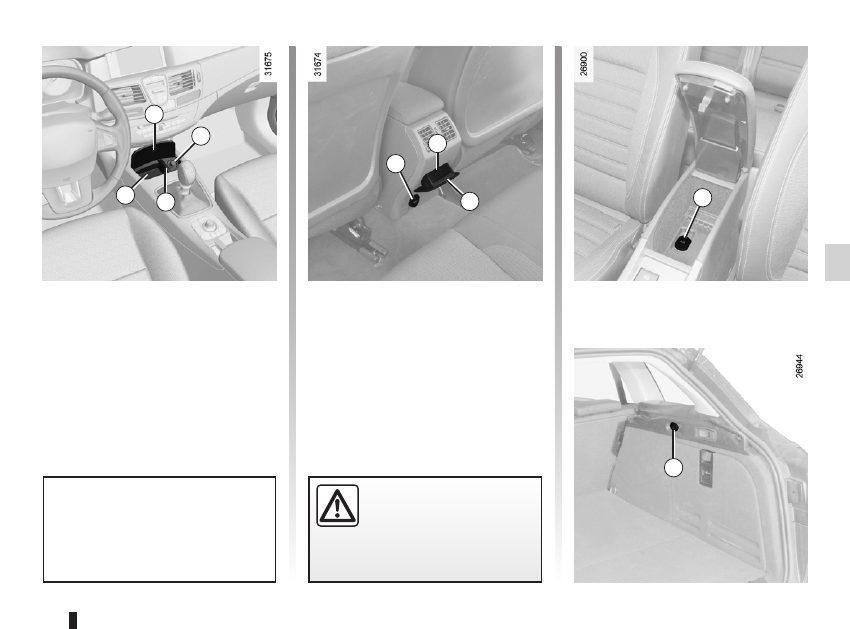

Ashtray/cigarette lighter

Accessories socket

Front ashtray 4

Press the cover 1 to open it. To empty

it, pull side 3 by lifting it from the rear of

the container.

Rear ashtray 7

(depending on vehicle)

Pull cover 7 to open it. To empty it,

press tab 6.

AShTRAy/cIgAR lIghTER/AccESSoRIES SockET

cigarette lighter 2

With the ignition on, push in the cigar

lighter; it will spring back with a click

when it is ready. Pull it out to use. After

use, replace it without pushing it all the

way in.

Accessories sockets

Depending on the vehicle, you can use

one of the sockets 5 or the cigarette

lighter 2.

If your vehicle is not fitted with a

cigar lighter and an ashtray, these

can be obtained from an approved

Dealer.

Connect accessories

with a maximum power of

120 Watts only.
Fire hazard.

headrest................................................(up to the end of the DU)

3.22

ENG_UD20467_1

Appuis-tête arrière (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

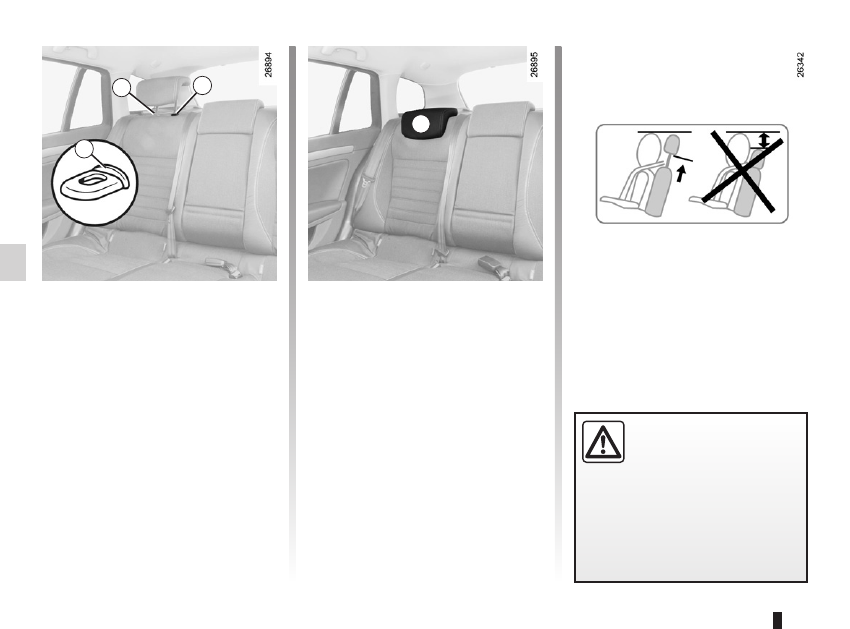

Rear headrests

REAR hEADRESTS

Position for use

Raise or lower the headrest while pull-

ing it towards the front of the vehicle.

To remove the headrest

Press tab 1 and 2 simultaneously

remove the headrest.
Note: on the saloon version, first lower

the bench seatback (refer to the infor-

mation on the “Rear seat functions” in

Section 3).

To refit the headrest

Insert the headrest rods into the

sleeves, and lower the headrest to the

first notch.

Storage position

Lower the headrest as far as possi-

ble, then press tab 2 and lower it com-

pletely.
When the headrest is set at the

lowest position (position A) this is

for storage only:. It should not be in

this position when a seat is occupied.

The headrest is an impor-

tant safety component:

ensure that it is in place and

in the correct position. The

distance between your head and the

headrest and the distance between

the head and section A should be

as small as possible.

rear bench seat.....................................(up to the end of the DU)

rear seats

functions ..........................................................(current page)

3.23

ENG_UD13354_2

Banquette arrière (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

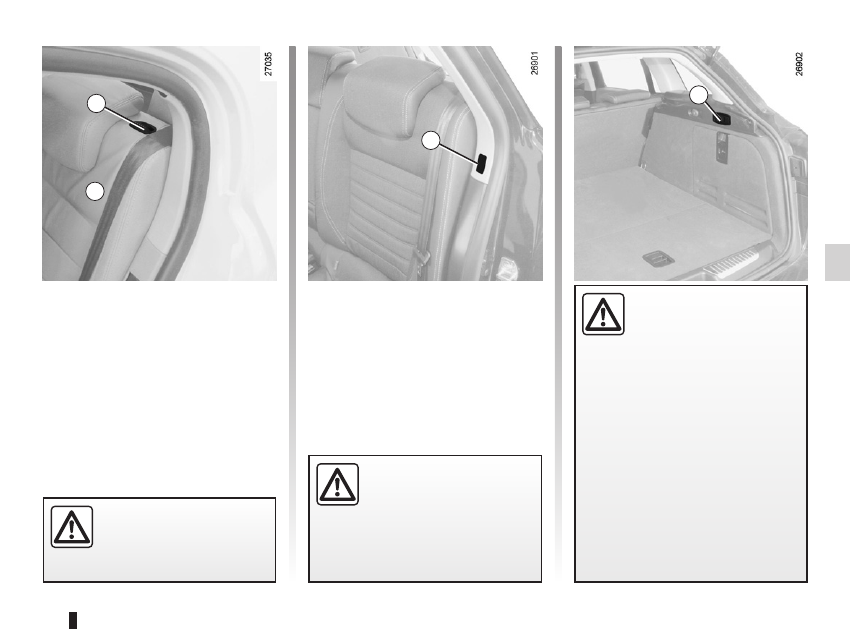

The seatbacks can be folded down in

order to transport large objects.
In all situations, lower the rear head-

rests (refer to the information on the

“Rear headrests” in Section 3).

Saloon version

Press button 1 and lower seatback A.

Rear bench seat

REAR BENch SEAT

Sport tourer versions

Press button 2 or pull handle 3: the

seatback will fold down by itself.
Note: when you are folding a seatback

back up, check that it is correctly locked

(button 2 is flush).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted,

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.
When moving the rear seats, ensure

that nothing obstructs the anchor-

age points (passenger’s arm or leg,

a pet, gravel, cloth, toys, etc.).

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

Check that no-one, includ-

ing animals, is in the vicin-

ity of the rear bench seat

before pulling handle 3.

Risk of injury.

tailgate ..................................................(up to the end of the DU)

3.24

ENG_UD18314_2

Coffre à bagages (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

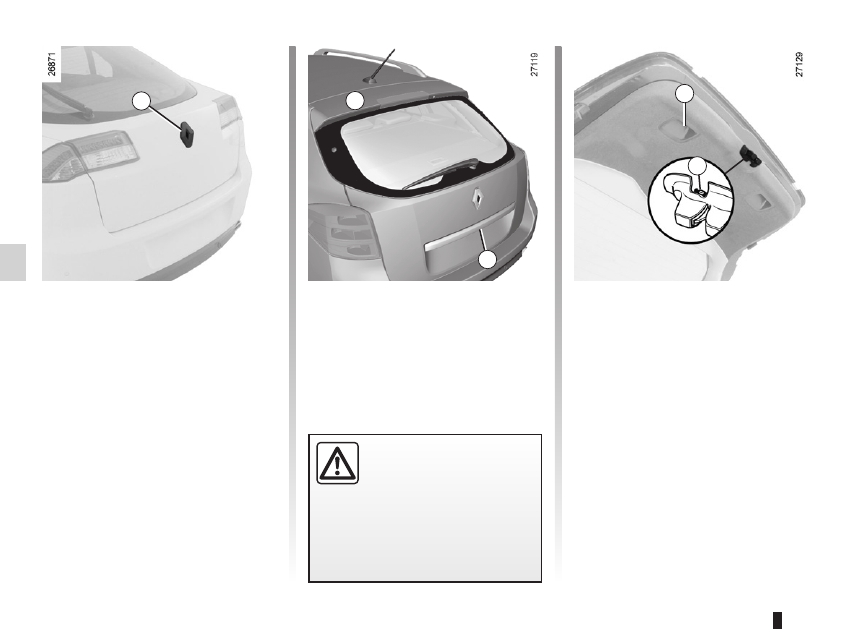

Luggage compartment

TAIlgATE

Saloon version

To open

Press button 1 and lift the tailgate.
To close

Lower the tailgate using the handles 3

inside the tailgate to help you.

Sport tourer versions

To open

Press button 2 and lift the tailgate.
To close

Lower the tailgate using the handles 3

inside the tailgate to help you.

opening manually from

inside the vehicle

Special note:
If it is impossible to unlock the tailgate,

it can be done from inside.
– access the luggage compartment by

folding forward the seatback(s) of

the rear bench seat,

– insert a pencil or similar object in

cavity 4 and slide the unit as shown

in the illustration,

– push the tailgate to open it.

It is prohibited to fit any ac-

cessories (bike rack, lug-

gage rack, etc.) which rest

on tailgate spoiler A.

Risk of injury and/or damage.

opening rear screen..............................(up to the end of the DU)

3.25

ENG_UD3339_1

Lunette arrière ouvrante (X91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Lunette arrière ouvrante

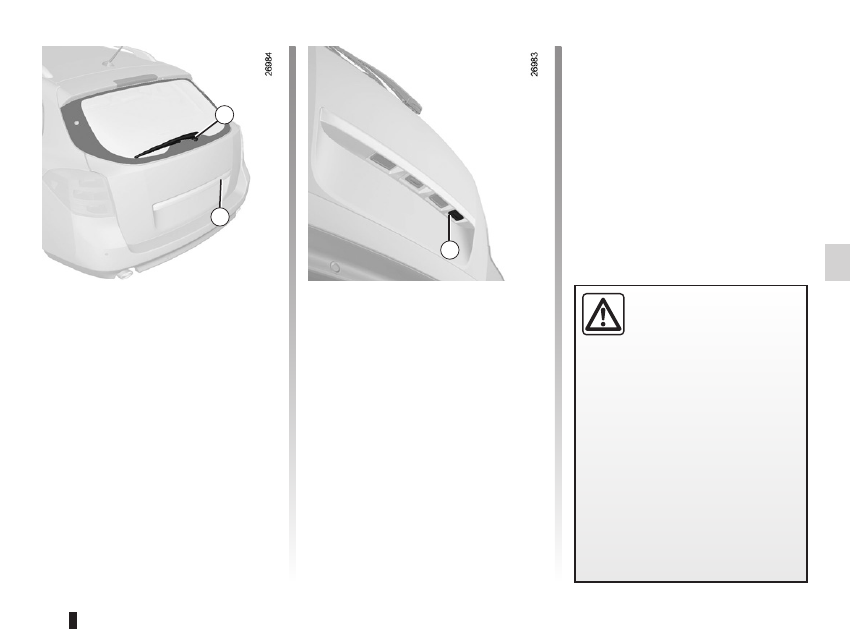

Vehicle with opening rear

screen

The rear screen is locked and unlocked

at the same time as the doors.

To open
Press button 2.
Lift the rear screen by the base of

screen wiper 1.

Driving with the rear screen

open may be unpleasant

for passengers as exhaust

gases may enter the pas-

senger compartment. This use is

solely

for short distances, whilst

transporting bulky objects with-

out having to open the tailgate. In

that case, close the other windows

and the sunroof and switch the

ven-

tilation to medium or maximum

power, as this will help to prevent

exhaust gas from entering the pas-

senger compartment.

oPENINg REAR ScREEN

To close
Hold the base of screen wiper 1 and

fold back the rear screen until it locks

in position.

use restriction
It is not possible to open the tailgate

and the opening rear screen at the

same time (electronically inhibited).

rear parcel shelf ....................................(up to the end of the DU)

tailgate ..................................................(up to the end of the DU)

rear parcel shelf ....................................(up to the end of the DU)

3.26

ENG_UD23648_2

Tablette arrière (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

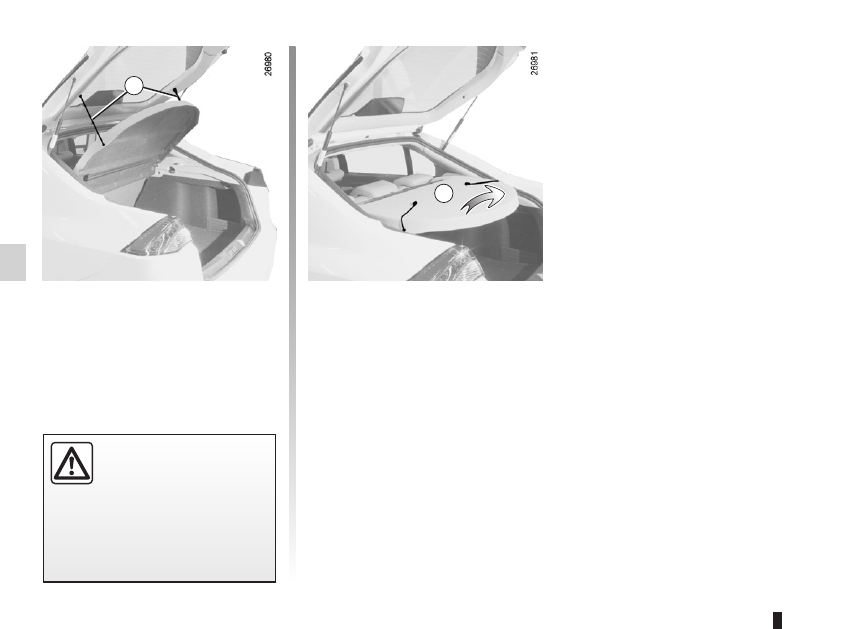

Rear parcel shelf

Removal

Unhook the two cords 1 (tailgate side).

Do not place any objects,

especially heavy or hard

objects, on the parcel shelf.

These may pose a risk to

the vehicle occupants if the driver

has to brake suddenly or if the vehi-

cle is involved in an accident.

Lift rear parcel shelf 2 slightly and pull it

towards you.
To refit it, proceed in reverse order to

removal.

REAR PARcEl ShElF

luggage compartment cover .................(up to the end of the DU)

rear parcel shelf ....................................(up to the end of the DU)

3.27

ENG_UD20469_1

Cache-bagages (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

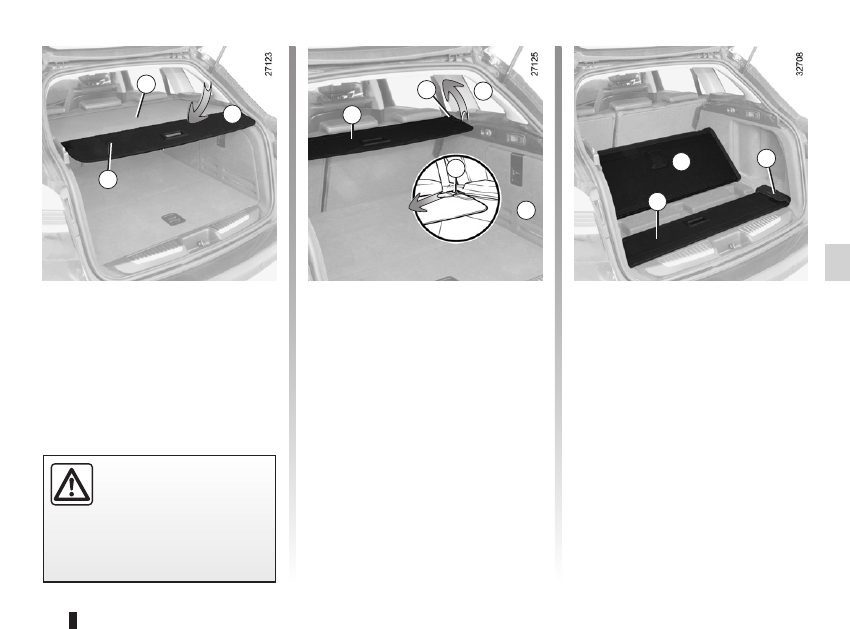

Luggage cover

luggAgE coMPARTMENT coVER

To remove the flexible section 1 of

the luggage cover 2
Press on the rear of the luggage com-

partment cover (movement A): the lug-

gage compartment cover rolls out au-

tomatically.

Removing the luggage cover 2
Slide button 3 and lift the right-hand

side (movement B) of the roller at the

same time.
Then lift the left-hand side of the roller

and remove it.
To refit the luggage cover, carry out this

procedure in reverse.

luggage compartment cover

storage 2
Lift up the rear of luggage compartment

carpet 3;
Remove cover C from the side storage

compartment then tilt cover D;
Store luggage compartment cover 2 by

inserting it, one side at a time;
Reposition cover D and cover C.

Do not place any heavy or

solid objects on the luggage

cover. These may pose a

risk to the vehicle occu-

pants if the driver has to brake sud-

denly or if the vehicle is involved in

an accident.

storage compartments ..........................(up to the end of the DU)

tailgate ..................................................(up to the end of the DU)

3.28

ENG_UD23649_2

Rangements, aménagements coffre à bagages (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

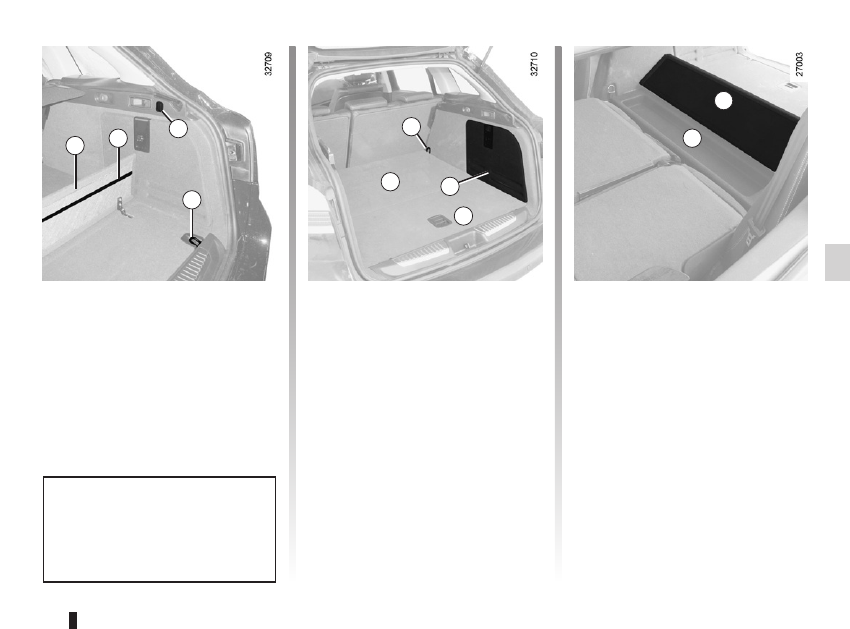

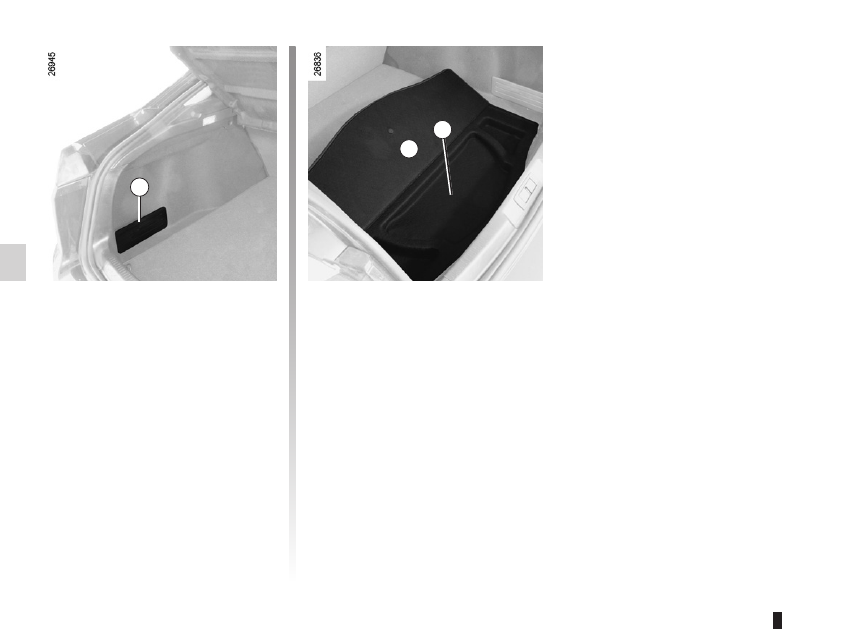

Luggage compartment storage space and fittings

Saloon version

Side storage compartments
Located on each side of the luggage

compartment, storage compartments 1

may be used to store oil containers, etc.

luggAgE coMPARTMENT SToRAgE SPAcE AND FITTINgS

(1/2)

Storage under carpet 2
Fold back section A to open it.

3.29

ENG_UD23649_2

Rangements, aménagements coffre à bagages (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Sport tourer versions

Separating the luggage

compartment
The loading area can be separated.
Lift divider 3.

On the back there is an elastic strip 4 to

hold small objects vertically in position.
Maximum weight: 30 kg.

hook for holding bags whilst

cornering
Prevents bags moving when the vehi-

cle goes around a corner.
Press on hook 5, it will deploy. To store

it, lift it and press the top again.
Maximum weight: 20 kg.

Side storage compartments
Located on each side of the luggage

compartment, storage compartments 7

may be used to store oil containers, etc.

luggAgE coMPARTMENT SToRAgE SPAcE AND FITTINgS

(2/2)

Anchorage points
Hooks 6 located on each corner of the

luggage compartment, allow the load to

be secured.

Storage under the carpet
Fold back section C to open it.
Storage compartment D
Lower the bench seat back and lift up

the front of the boot carpet B.

Always place objects being trans-

ported so that the heaviest items

are resting against the back of the

rear bench seat.

transporting objects

in the luggage compartment ...........(up to the end of the DU)

towing rings ..........................................(up to the end of the DU)

towing

towing equipment ............................(up to the end of the DU)

towing equipment

fitting ...............................................(up to the end of the DU)

towing a caravan ..................................(up to the end of the DU)

3.30

ENG_UD29077_2

Transport d’objets : dans le coffre / attelage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Transporting objects:

in the boot

Always position the heavi-

est items directly on the

floor. Use the lashing points

on the floor of the luggage

compartment, if these are fitted to

the vehicle. The luggage should be

loaded in such a way that no items

will be thrown forward and strike the

occupants if the driver has to brake

suddenly. Fasten the rear seat belts,

even if the seats are not occupied.

Always place the objects to be trans-

ported so that their largest side rests

against the back of the rear bench seat

for normal loads (e.g.: A), or against the

back of the front seats when the rear

bench seatbacks are folded down.
If you have to place objects on the

folded seat back, it is vital that you

remove the headrests before folding

the seat back so that it can be folded as

flat as possible against the seat.

TRANSPoRTINg oBjEcTS IN ThE BooT

(1/2)

3.31

ENG_UD29077_2

Transport d’objets : dans le coffre / attelage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

towbar

TRANSPoRTINg oBjEcTS IN ThE BooT

(2/2)

/ToWINg

Permissible nose weight, maxi-

mum permissible towing weight,

braked and unbraked: refer to

the information on “Weights” in

Section 6.
For fitting and conditions of use,

refer to the equipment’s fitting in-

structions.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

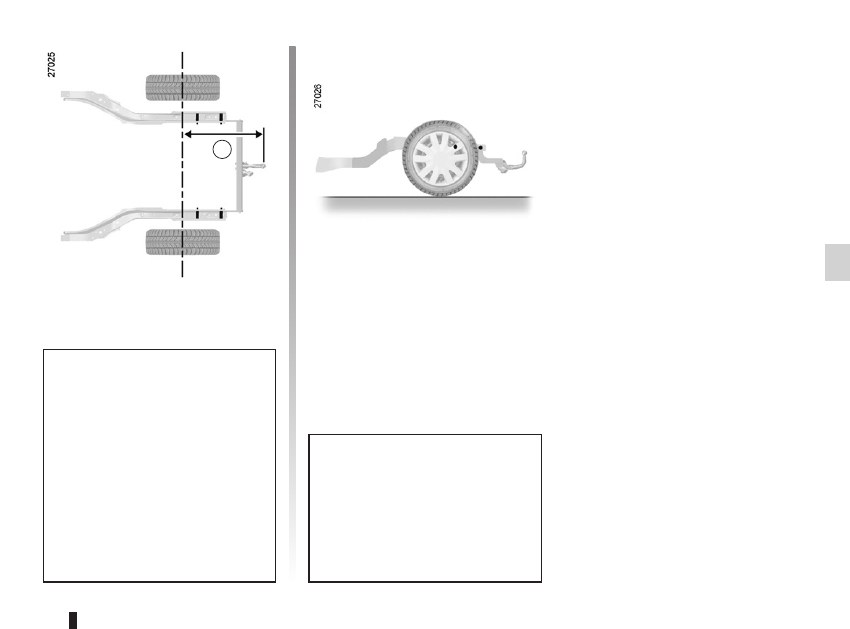

If the towbar ball obscures the regis-

tration plate or the rear fog lights, it

should be removed when not in use.
In all cases, comply with local leg-

islation.

Saloon version B = 1,051 mm

Estate version B = 1,159 mm

transporting objects

luggage net .....................................(up to the end of the DU)

luggage retaining net ............................(up to the end of the DU)

3.32

ENG_UD20953_5

Filet de séparation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

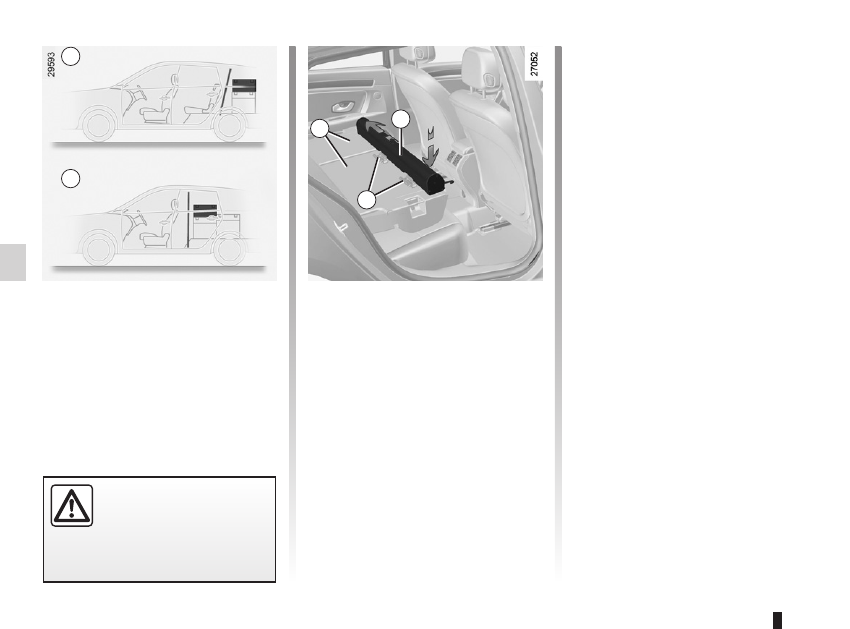

Depending on the vehicle, this may be

used when transporting animals or lug-

gage to isolate them from the passen-

ger section.
It can be positioned:
– behind the rear seats A, rear bench

seat in raised position or rear bench

seat folded;

– behind the front seats B.

Luggage net

Refitting the luggage net
With the rear bench seatbacks 1 com-

pletely folded down, find the roller.

From the right-hand rear door, slide

roller 2 on the rails 3 located on the

back of the large section of the rear

bench seatback: ensure it is correctly

locked by moving it back and forth

gently, then lock the rear bench seat-

backs back into place.

luggAgE NET

(1/3)

The luggage net is de-

signed to retain a maximum

weight of 10 kg.
Risk of injury.

Removing/refitting the

luggage net

Removing the luggage net
With the rear bench seatbacks 1 com-

pletely folded down, from the right-hand

rear door side, pull roller 2 towards you

until it unclips. Then, lift it so it can be

recovered.

Renault Laguna (2012 year). Instruction - part 9
