Renault Laguna Tourer (2012 year). Instruction - part 12

tyres ......................................................(up to the end of the DU)

wheels (safety) .....................................(up to the end of the DU)

5.11

ENG_UD22249_4

Pneumatiques (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Tyres (tyre and wheel safety, use in winter)

tYreS

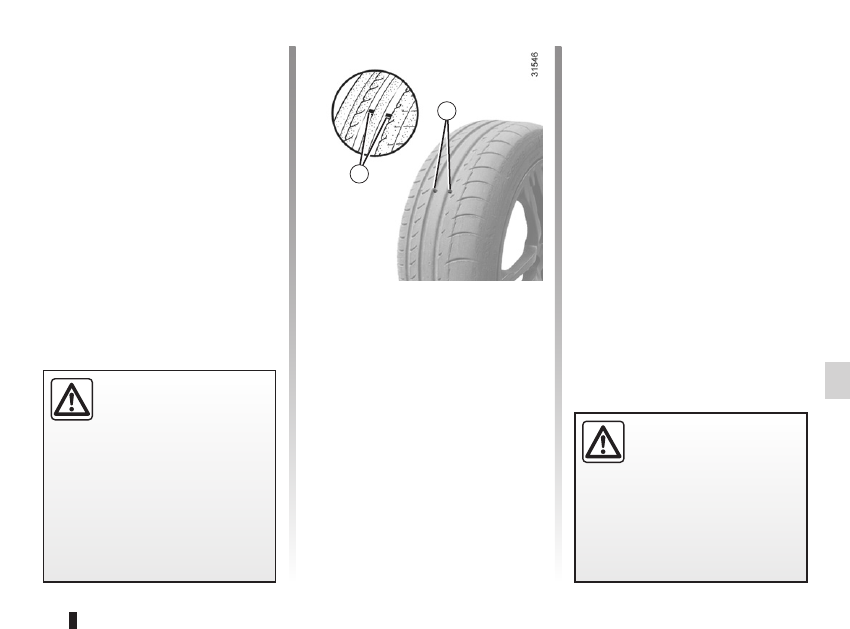

Maintaining the tyres

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

Department have wear warning strips 1

that are

indicators moulded into the

tread at several points.

tyre and wheel safety

The tyres are the only contact between

the vehicle and the road, so it is essen-

tial to keep them in good condition.
You must make sure that your tyres

conform to local road traffic regulations.

When the tyre tread has been eroded

to the level of the warning strips,

they

become visible 2: it is then necessary

to replace your tyres because the tread

profile is no more

than 1.6 mm deep

and this causes poor road holding

on wet roads.
An overloaded vehicle, long journeys

by motorway, particularly in very hot

weather, or continual driving on poorly

surfaced minor roads will lead to more

rapid tyre wear and affect safety.

When they need to be re-

placed, only tyres of the

same make, size, type and

profile should be used.

tyres fitted to the vehicle should

either be identical to those fitted

originally or conform to those

recommended by your approved

dealer.

Incidents which occur when

driving, such as striking the

kerb, may damage the tyres

and wheel rims, and could

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

tyre pressure..........................................................(current page)

5.12

ENG_UD22249_4

Pneumatiques (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Pressures should be checked when the

tyres are cold; ignore higher pressures

which may be reached in hot weather

or following a fast journey.
If tyre pressures cannot be checked

when the tyres are

cold, the normal

pressures must be increased by

0.2 to

0.3 bar (or 3 PSI).
never deflate a hot tyre.
Special note

Depending on the vehicle, there may

be an adapter which needs to be posi-

tioned on the valve before air is added.

Fitting new tyres

emergency spare wheel

Refer to the information on the

“Emergency spare wheel” and in-

structions on “Changing a wheel” in

Section 5.

tYreS

(continued)

tyre pressures

Adhere to the tyre pressures (including

the emergency spare wheel). The tyre

pressures should be checked at least

once a month and additionally before

any long journey (refer to the label af-

fixed to the edge of the driver’s door).

Incorrect tyre pressures

lead to abnormal tyre wear

and unusually hot running.

These are factors which

may seriously affect safety and lead

to:
– poor road holding,
– risk of bursting or tread separa-

tion.

The pressure depends on the load

and the speed of use. Adjust the

pressures according to the condi-

tions of use (refer to the information

on “Tyre pressures”).

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and lead

to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

For safety reasons, this op-

eration must be carried out

by a specialist.
Fitting different tyres may

change your vehicle as follows:
– It may mean that your vehicle no

longer conforms to current regu-

lations;

– It may change the way it handles

when cornering;

– It may cause the steering to be

heavy;

– It may affect the use of snow

chains.

5.13

ENG_UD22249_4

Pneumatiques (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

tYreS

(continued)

use in winter

chains

For safety reasons, fitting snow

chains to the rear axle is strictly for-

bidden.
chains cannot be fitted to tyres which

are larger than those originally fitted to

the vehicle.
Snow or Winter tyres

We would recommend that these be

fitted to all

four wheels to ensure that

your vehicle retains maximum adhe-

sion.
Warning: These tyres sometimes have

a specific direction of rotation and a

maximum speed index which may be

lower than the maximum speed of your

vehicle.
Studded tyres

This type of equipment may only be

used for a limited period and as laid

down by local legislation. It is neces-

sary to observe the speed specified by

current legislation.
These tyres must, at a minimum, be

fitted to the two front wheels.

Chains may only be fitted

to tyres of the same size

as those originally fitted to

your vehicle.

If your vehicle is originally fitted

with tyres with a diameter of 17”,

snow chains may be used (but only

specific chains). Consult an ap-

proved dealer.

In all cases, we would recommend

that you contact an approved dealer

who will be able to advise you on

the choice of equipment which is

most suitable for your vehicle.

changing wheels around

This practice is not recommended.

Vehicles fitted with the

tyre pressure monitor
Each of the sensors incor-

porated in the valves is ded-

icated to a single wheel: under no

circumstances should you swap the

wheels, without having the system

reset.
There is a risk of incorrect informa-

tion which could have serious con-

sequences.

lights

front .................................................(up to the end of the DU)

lights

changing bulbs ................................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

indicators ..............................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

lights:

dipped beam headlights ..................(up to the end of the DU)

lights:

direction indicators ..........................(up to the end of the DU)

lights:

main beam headlights .....................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

5.14

ENG_UD29072_3

Projecteurs avant avec lampes halogènes : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Front side light

Remove cover A, then pull bulb

holder 6 to access the bulb.
Bulb type: W5W.

Direction indicator lights

Consult an approved dealer.

Headlights (changing bulbs)

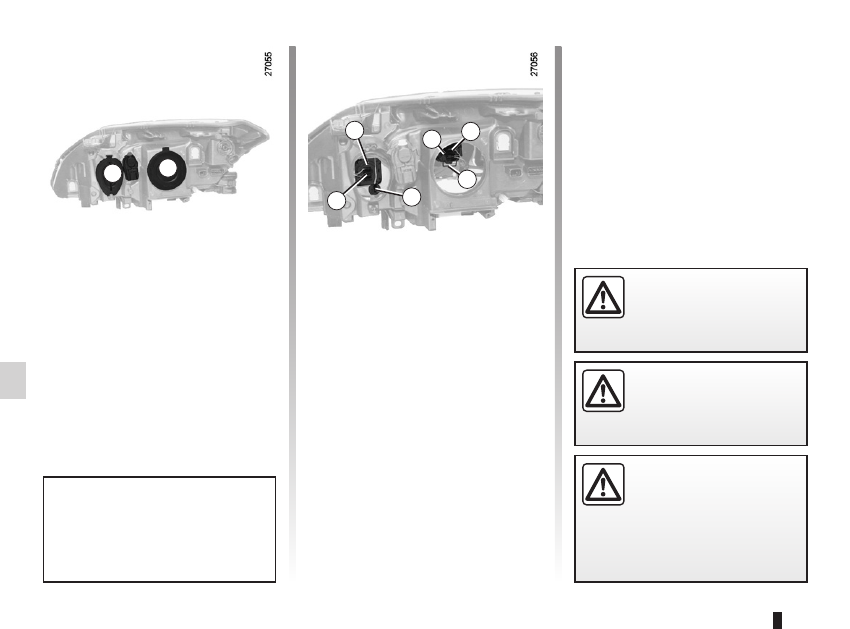

HALOGen HeADLIGHtS: changing bulbs

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

However, because the protective

covers need to be removed,

you are

advised to have your bulbs replaced

by an approved dealer.

Dipped beam/main beam

headlights

Remove cover A or B then unclip

bulb 2 by pressing on connector 1, and

remove the assembly from its housing

or remove spring 5 then connector 4

from bulb 3.
Bulb type: only use anti UV 55W bulbs

to ensure the plastic glass on the head-

lights is not damaged.

2 → H7

3 → H7
Do not touch the bulb glass. Hold it

by its base.

When the bulb has been changed,

make sure you refit the cover correctly.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

bulbs

changing .........................................(up to the end of the DU)

lights:

dipped beam headlights ..................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

lights:

direction indicators ..........................(up to the end of the DU)

lights:

side lights ........................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

lights

front .................................................(up to the end of the DU)

5.15

ENG_UD29073_3

Projecteurs lampes xénon : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

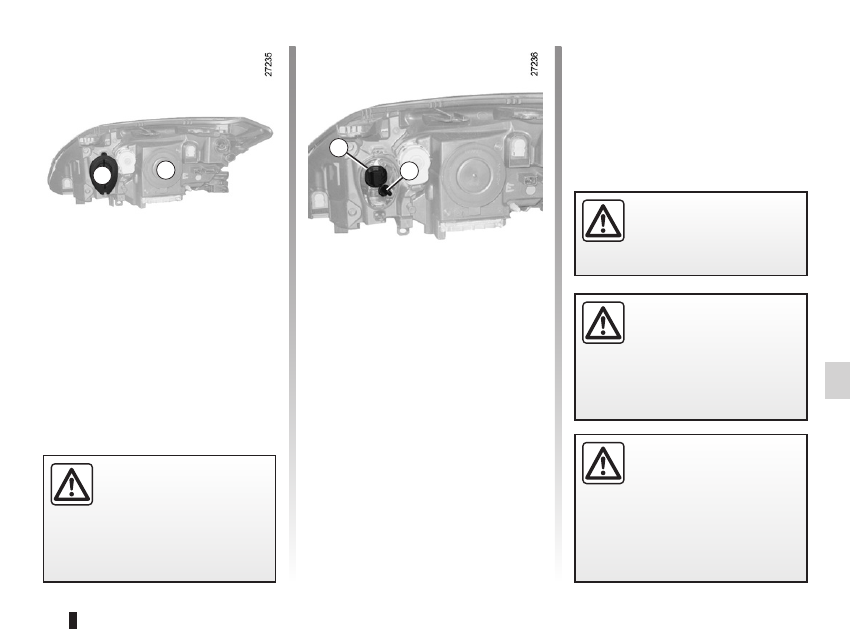

XenOn HeADLIGHtS: changing bulbs

Because some components (the bat-

tery, its mounting) need to be removed,

you are advised to have your bulbs

replaced by an approved dealer.

Dipped beam headlights with

discharge bulbs B

Bulb type: D1S.

A special mounting is re-

quired to fit this type of

headlight,

it is forbidden to

fit a headlight with xenon

bulbs to a vehicle which was not

designed for it.

Daytime running light

Remove cover A, then turn bulb

holder 1 to the left.

Bulb type: W21/5W.

Front side light

Remove the cover A, then pull bulb

holder 2.

Bulb type: W5W.

Direction indicator lights

Consult an approved dealer.

Due to the danger involved

in handling high-voltage de-

vices, this type of bulb must

be replaced by an approved

dealer.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

bulbs

changing .........................................(up to the end of the DU)

fog lights ...............................................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

lights:

fog lights .........................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

lights

additional ........................................(up to the end of the DU)

lights

fog lights .........................................(up to the end of the DU)

5.16

ENG_UD20519_1

Projecteurs avant : feux de brouillard avant / additionnel (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

HeADLIGHtS: additional/front fog lights

Additional lights

If you wish to fit fog lights or long range

headlights to your vehicle, consult an

approved dealer.

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

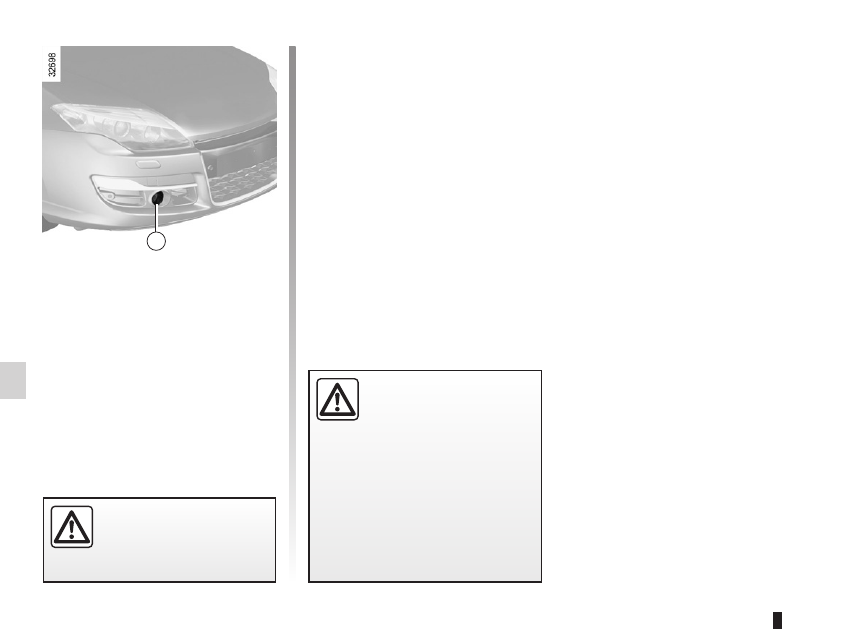

Front fog lights 1

However, because the front bumper

needs to be removed,

you are advised

to have your bulbs replaced by an

approved dealer.

bulbs

changing .........................................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

lights:

direction indicators ...........................................(current page)

lights:

dipped beam headlights ...................................(current page)

lights:

brake lights ......................................................(current page)

lights:

reversing lights .................................................(current page)

lights:

fog lights ..........................................................(current page)

indicators:

direction indicators ...........................................(current page)

bulbs

changing .........................................(up to the end of the DU)

5.17

ENG_UD20527_1

Feux arrière et latéraux : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Rear lights (changing bulbs)

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs

(1/5)

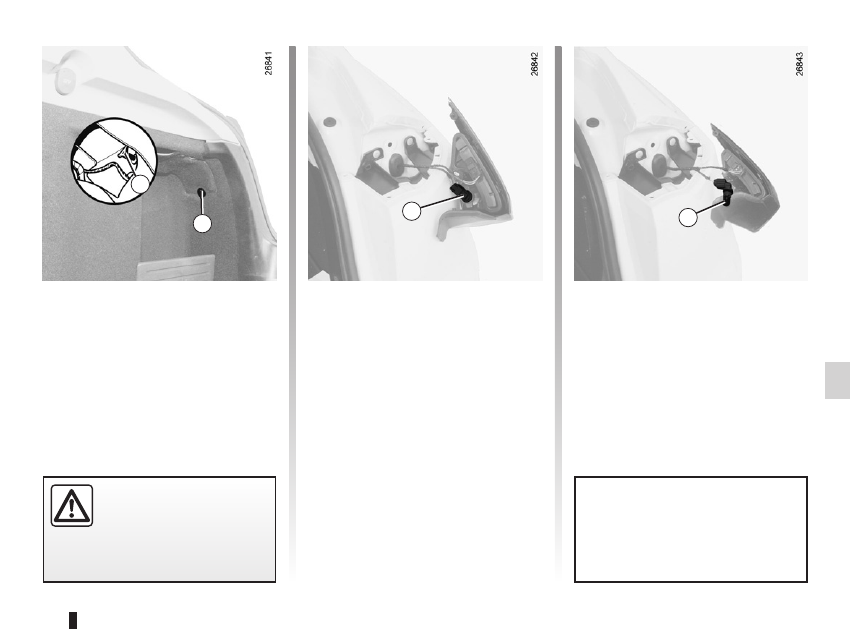

Undo bulb holder 3 a quarter of a turn.

Replace bulb 4.
Bulb type: W16W.

Saloon version

Direction indicator lights

From the luggage compartment, undo 2

a quarter of a turn to access bolt 1.
Undo it then pull the light unit outwards.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

5.18

ENG_UD20527_1

Feux arrière et latéraux : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

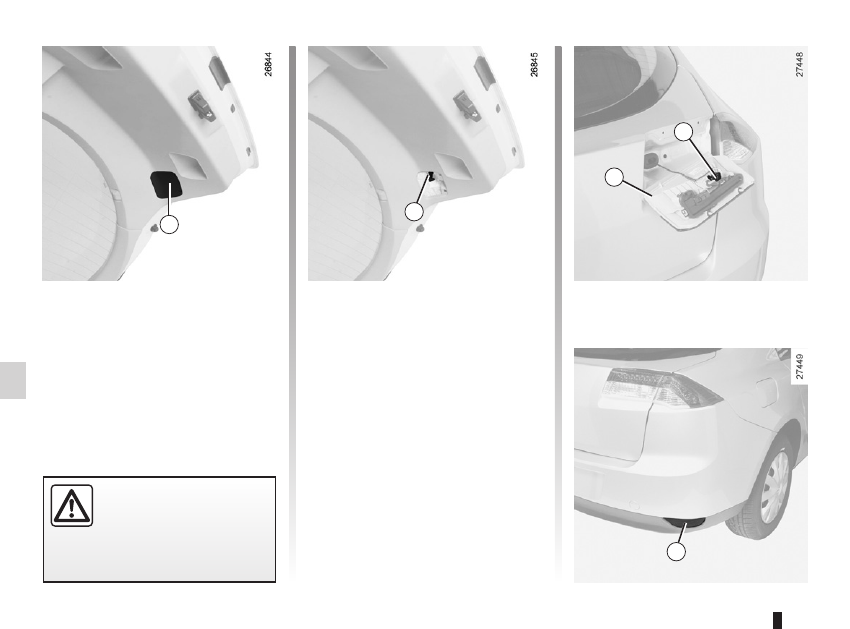

Undo bolt 6 in order to remove light

unit 7 by pushing it outwards.
Undo bulb holder 8 a quarter of a turn

then replace the bulb.
Bulb type: W16W.

rear fog light

Undo bulb holder 9, turning it towards

the centre of the vehicle by accessing it

from underneath.
Bulb type: P21W.
note: only the bulb on the driver’s side

lights up.

Saloon version (continued)

reversing light

From the luggage compartment, unclip

flap 5.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs

(2/5)

5.19

ENG_UD20527_1

Feux arrière et latéraux : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs

(3/5)

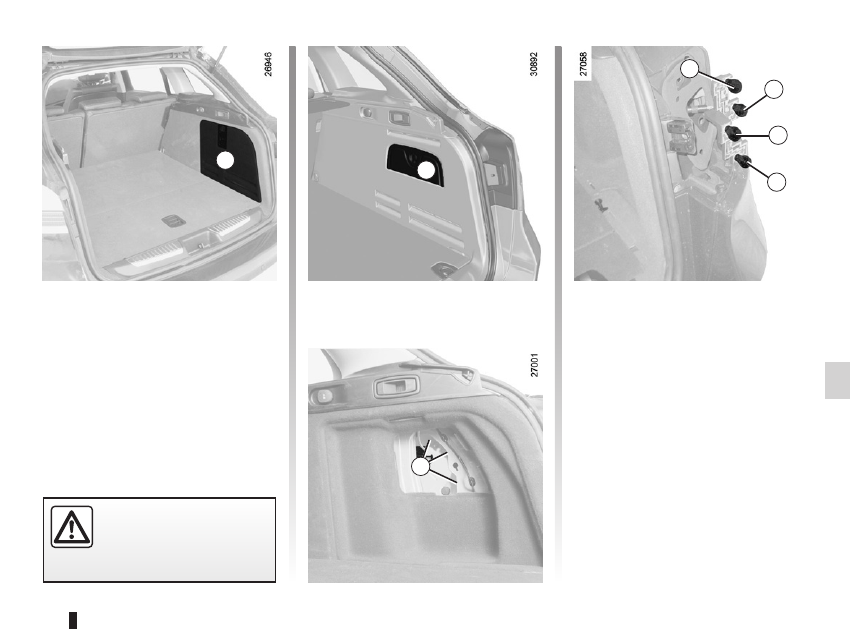

Sport tourer versions

From the luggage compartment,

remove the side carpet.

note: depending on the vehicle, it may

be necessary to remove the door of

storage compartment A.

From inside, undo the three bolts 10

then, from the outside, detach the light

unit by pulling it back, and unclip the

bulb holder.

Replace the bulb concerned.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

11 Side lights/stop lights

Bulb type: P21/5W.

12 Direction indicator light

Bulb type: PY21W.

13 reversing light

Bulb type: P21W.

14 rear fog light

Bulb type: P21W.

5.20

ENG_UD20527_1

Feux arrière et latéraux : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs

(4/5)

From inside, undo the three screws 18

then, from the outside, detach the light

unit by pulling it back, and unclip the

bulb holder.
Replace the bulb concerned.

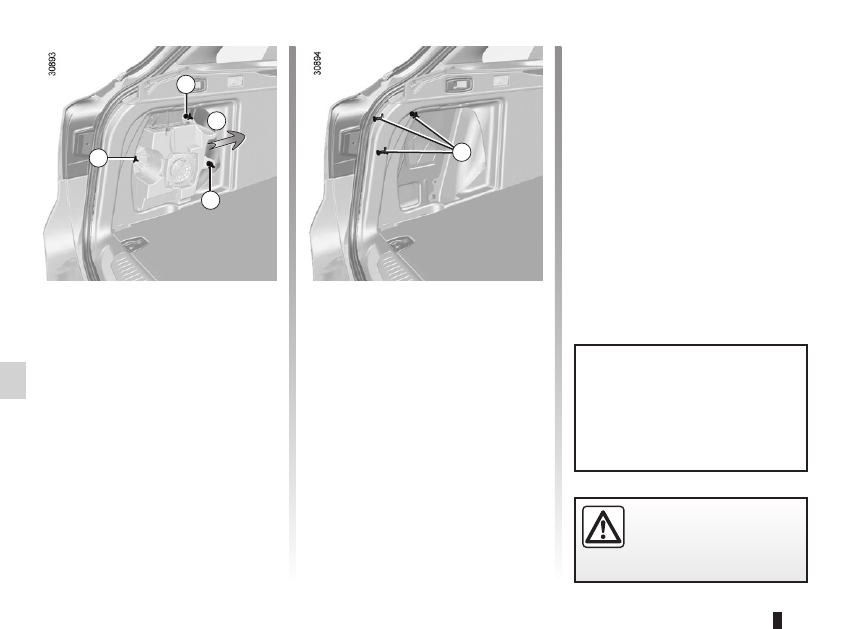

Accessibility for vehicles

equipped with a speaker

on the left of the luggage

compartment

From the luggage compartment,

remove the side carpet.
Undo the three screws 15, 16 and 17

and remove the speaker.
note: on 5-door versions, hold the

housing with both hands and pull the

top part of the housing towards you

while holding mounting 16 up against

the trim.

Push the housing towards the front of

the vehicle (movement B) then remove

the housing.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.21

ENG_UD20527_1

Feux arrière et latéraux : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

reAr LIGHtS AnD SIDe LIGHtS: changing bulbs

(5/5)

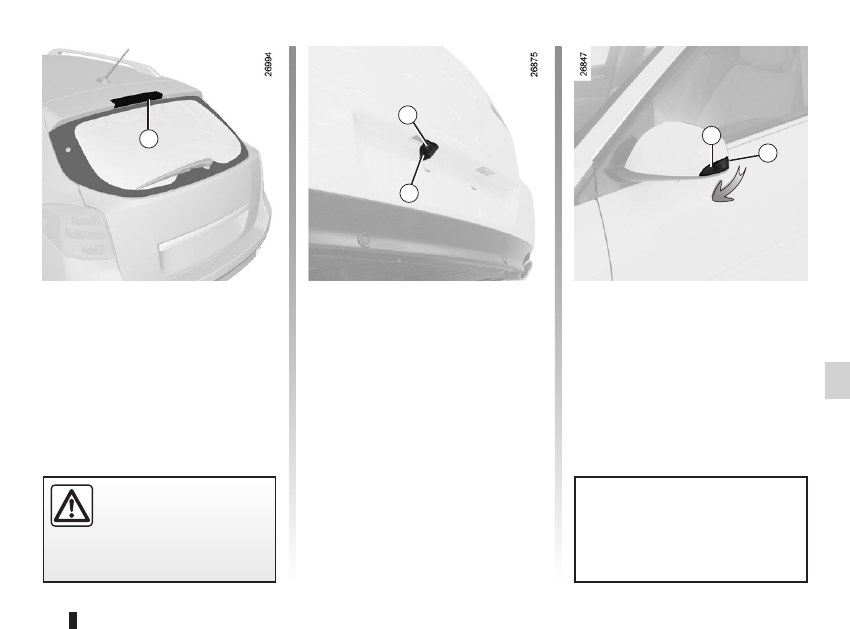

Side indicator lights 22

Unclip indicator light 22 (using a flatb-

lade screwdriver type tool positioned

at C to move the indicator light towards

the front of the vehicle).
Turn the bulb holder a quarter of a turn

and take out the bulb.
Bulb type: W5W.

number plate lights 20

Unclip light 20 by pressing tab 21.
Remove the light cover to gain access

to the bulb.
Bulb type: c5W festoon type bulb.

Saloon and sport tourer

versions

High level brake light 19

Consult an approved Dealer.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

To comply with current legislation,

or as a precaution, you can obtain

an emergency kit from an approved

dealer containing a set of spare

bulbs and fuses.

courtesy light ........................................(up to the end of the DU)

lighting:

interior .............................................(up to the end of the DU)

5.22

ENG_UD20796_3

Eclairage intérieur : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Interior lights (changing bulbs)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

InterIOr LIGHtS: changing bulbs

(1/2)

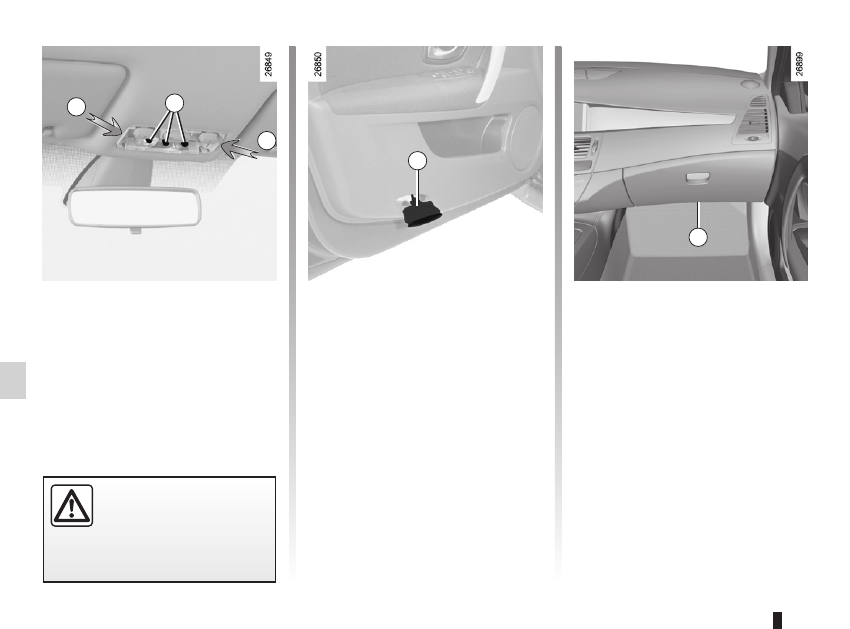

courtesy light

Insert a flat-blade screwdriver type tool

to unclip the light cover on side A then

side B.
Remove the bulb concerned 1.
Bulb type: W5W.

Front floor lights

These are located behind the dash-

board and on the lower section.
Turn bulb holder 3 a quarter of a turn

and take out the bulb.
Bulb type: W5W.

Door lights

Unclip light 2 (using a flat-blade screw-

driver or similar).
Turn the bulb holder a quarter of a turn

and take out the bulb.
Bulb type: W5W.

5.23

ENG_UD20796_3

Eclairage intérieur : remplacement des lampes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

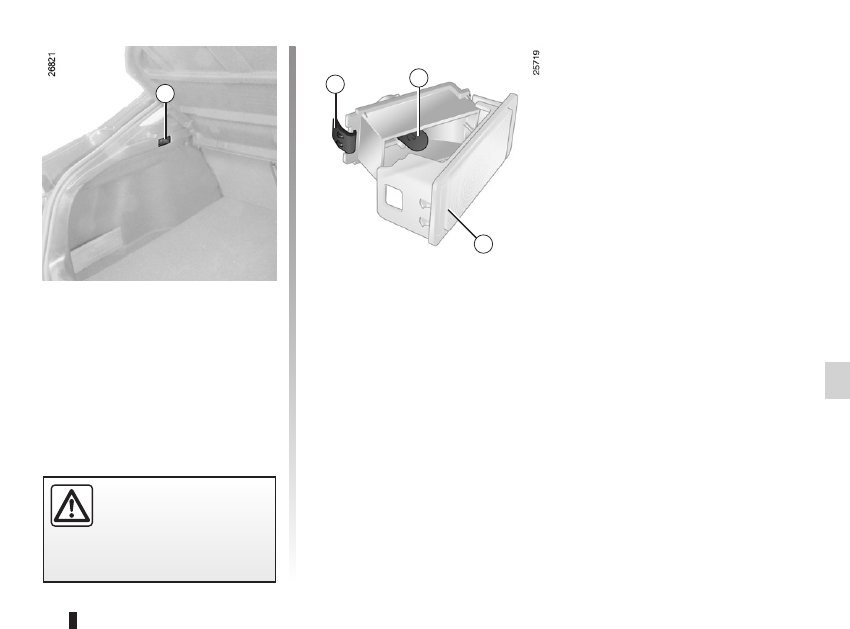

Luggage compartment lights

Unclip the light at 4 using a flat-blade

screwdriver or similar.

Disconnect the light.
Press tab 5 to release lens 7 and

access bulb 6.
Bulb type: W5W.

InterIOr LIGHtS: changing bulbs

(2/2)

fuses .....................................................(up to the end of the DU)

5.24

ENG_UD23676_2

Fusibles (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

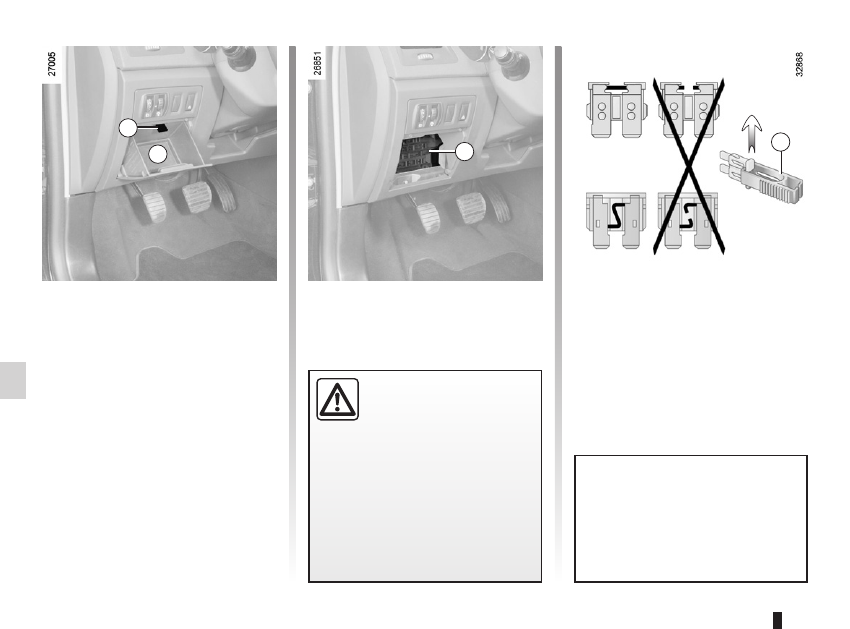

Fuses

clip 3

Remove the fuse using tweezers 3, lo-

cated at the back of storage compart-

ment A.
To remove the fuse from the tweezers,

slide the fuse to the side.
It is not advisable to use the free fuse

locations.

Check the fuse in question

and

replace it, if neces-

sary,

by a fuse of the same

rating.

If a fuse is fitted where the rating is

too high, it may cause the electrical

circuit to overheat (risk of fire) in the

event of an item of equipment using

an excessive amount of current.

Fuse box 2

If any electrical component does not

work, check the condition of the fuses.
Open storage compartment A. Press

tab 1 to move it then pull it towards you

to unclip it.
To identify the fuses, refer to the fuse

allocation label (shown on the following

page).

FuSeS

(1/2)

In accordance with local legislation

or as a precautionary measure:
Obtain an emergency kit containing

a set of spare bulbs and fuses from

an approved Dealer.

5.25

ENG_UD23676_2

Fusibles (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

FuSeS

(2/2)

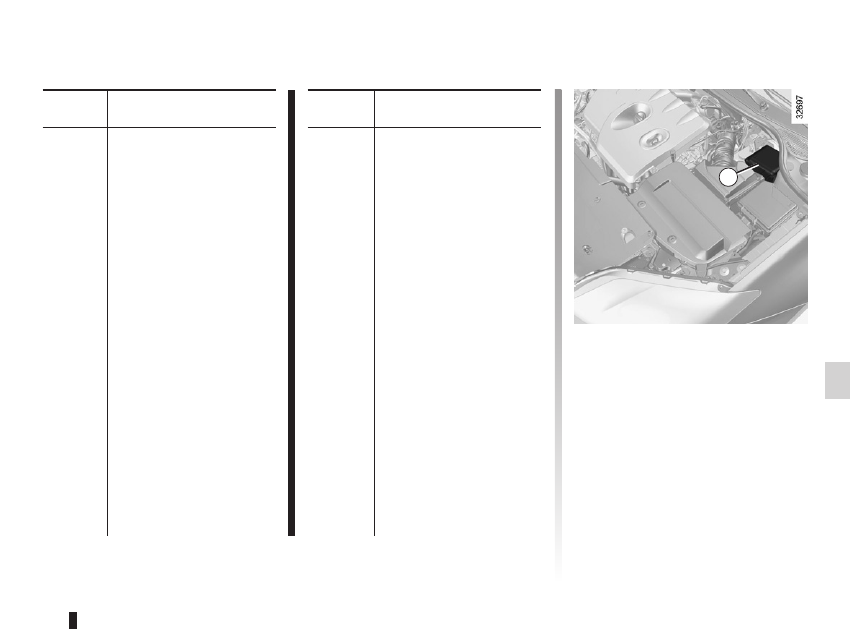

Some accessories are protected by

fuses located in the engine compart-

ment in fuse box A.
However, because of their reduced ac-

cessibility, we advise you to have your

fuses replaced by an approved Dealer.

Allocation of fuses (DePenDInG On tHe eQuIPMent LeVeL)

Symbol

Allocation

Symbol

Allocation

Interior lighting



Radio amplifier



Interior rear-view mirror

Radio

Heated rear screen

Instrument panel

Horn

Driving correction devices



Child safety



Electric seats

Indicator

Accessories sockets



Electric windows

Ventilation

Heated seats

Air conditioning

Rear screen wiper

Cigar lighter

[

Sunroof



Heating system



Electronic parking brake

Windscreen washer

Towing equipment supply

battery

troubleshooting ...............................(up to the end of the DU)

5.26

ENG_UD29075_3

Batterie : dépannage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_5

Battery

connecting a battery charger

the battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Follow the instructions given by the

manufacturer of the battery charger

you are using.

to avoid all risk of sparks:

Do not place metal objects on the bat-

tery as this could create a short circuit

between the terminals.

Battery

Never disconnect it.

BAtterY: troubleshooting

(1/2)

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.
the two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.

Special procedures may be

required to charge some

batteries. Contact an ap-

proved Dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well-venti-

lated area.
Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
The engine may be hot when car-

rying out operations in close prox-

imity. In addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

Content .. 10 11 12 13 ..
