Renault Kangoo (2018 year). Instruction - part 15

5.39

On the road

POSSIBLE CAUSES

WHAT TO DO

Vibrations.

Tyres not inflated to the correct pres-

sure, incorrectly balanced or dam-

aged.

Check the tyre pressures: if this is not the

problem, have them checked by an ap-

proved Dealer.

Coolant boiling in the coolant reservoir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved Dealer.

Smoke under the bonnet.

Short circuit or cooling system leak.

Stop, switch off the ignition, stand away

from the vehicle and contact an approved

dealer.

The oil pressure warning light comes

on:

while cornering or braking

The level is too low.

Top up the engine oil level (refer to the in-

formation on “Engine oil level: topping up/

filling” in Section 4).

is slow to go out or remains lit under

acceleration

Loss of oil pressure.

Stop the vehicle and contact an approved

Dealer.

OPERATING FAULTS

(3/6)

5.40

On the road

POSSIBLE CAUSES

WHAT TO DO

Steering becomes heavy.

Assistance overheating.
Fault with the electric assistance

motor.
Fault in the assistance system.

Drive carefully at reduced speed, be aware

of the level of force in the steering wheel

needed to turn the wheels. Consult an ap-

proved dealer

The engine overheats. The coolant

temperature indicator and the warn-
ing light

come on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved Dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

approved Dealer as soon as possible.

OPERATING FAULTS

(4/6)

Radiator: If there is a lack of coolant, remember that it must never be topped up using cold coolant while the engine is

very warm. After any procedure on the vehicle which has involved even partial draining of the cooling system, it must

be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved by our Technical

Department may be used for this purpose.

5.41

OPERATING FAULTS

(5/6)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown bulb.

See information on “Headlights: changing

bulbs” or “Rear and side lights: changing

bulbs”.

The direction indicators do not work.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

5.42

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

Traces of condensation in the lights

and headlights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature and humidity.
In this case, the traces will disappear

slowly once the lights are switched

on.

The front seat belt reminder light

comes on when the seat belts are

fastened.

An object is stuck between the floor

and the seat and is disrupting the op-

eration of the sensor.

Remove all objects from underneath the

front seats.

OPERATING FAULTS

(6/6)

6.1

Section 6: Technical specifications

Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2

Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.4

Weights (in kg) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.6

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.7

Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.9

Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10

Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.16

6.2

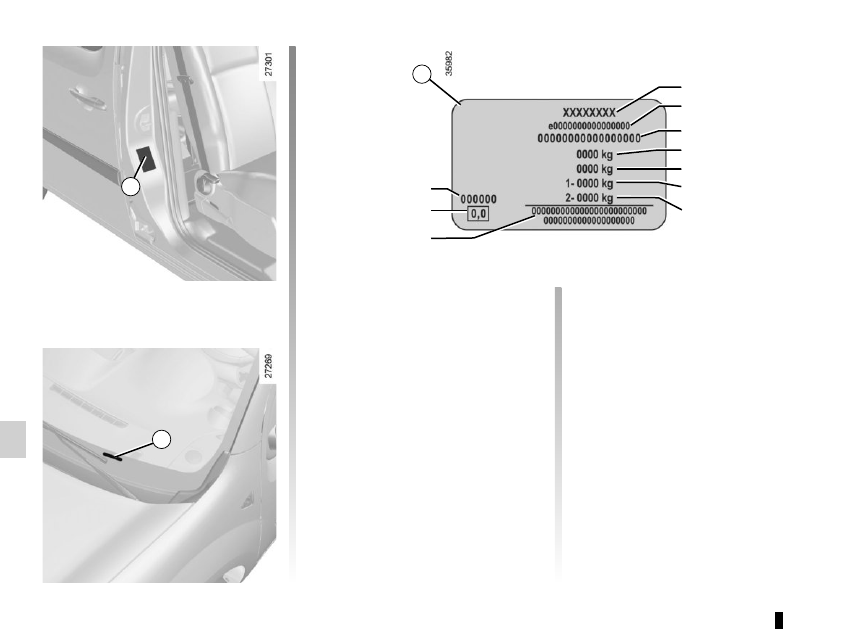

VEHICLE IDENTIFICATION PLATES

The information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
The presence and location of the in-

formation depends on the vehicle.

Vehicle identification plate A

1 Manufacturer name.

2 EC design number or approval

number.

3 Identification number.

Depending on the vehicle, this

information is also given on

marking B.

4 MAM (Maximum Authorised

Mass).

5 GTW (Gross train weight: vehicle

fully loaded, with trailer).

6 MPAW (Maximim Permissible

Weight) for front axle.

7 MPAW on rear axle.

8 Reserved for related or additional

entries.

9 Diesel exhaust emissions.

10 Paint reference (colour code).

1
2
3
4

6.3

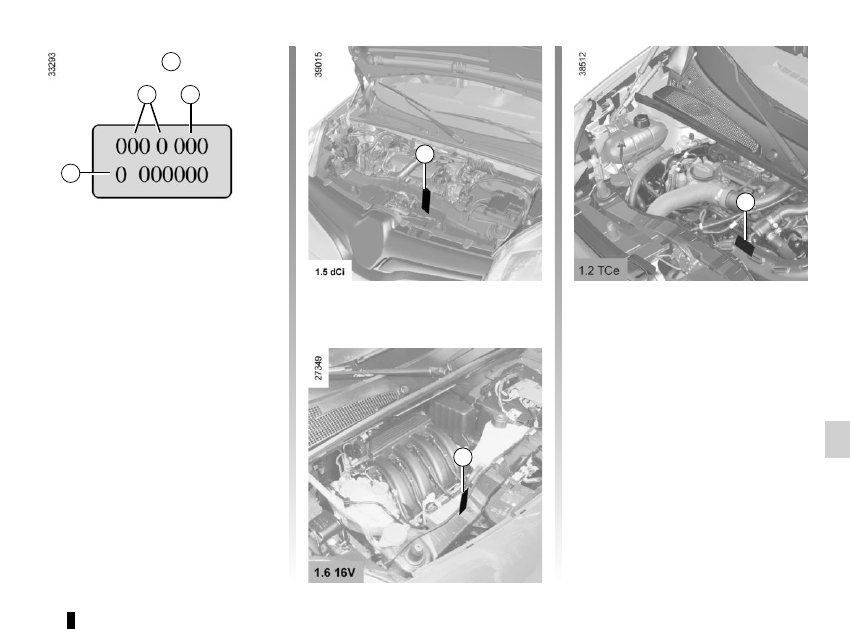

Quote the details given on engine

plate C on all communication or

orders.

(Location varies depending on engine)

1 Engine type.

2 Engine suffix.

3 Engine number.

ENGINE IDENTIFICATION PLATES

6.4

ENGINE SPECIFICATIONS

(1/2)

Versions

1.2 TCe

1.6 16V

1.5 dCi

Engine type

(see engine plate)

H5F Turbo

K4M

K9K

Cubic capacity (cc)

1 197

1 598

1461

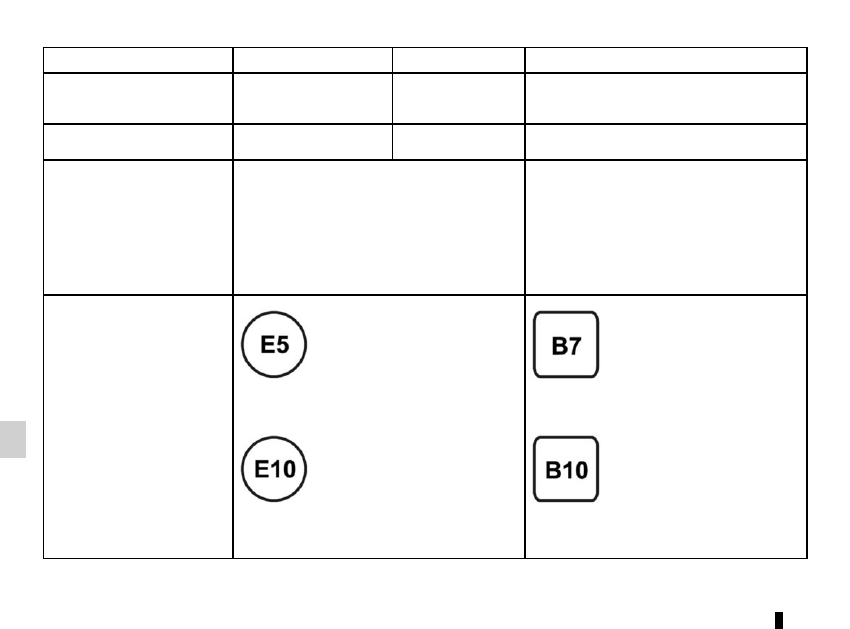

Type of fuel

Octane rating

Petrol
It is essential that you use unleaded petrol of

the octane rating stated on the label inside the

fuel filler flap.
Refer to «Fuel tank» in Section 1.

Diesel
The label located in the fuel filler flap indicates

the authorised fuels.

Fuel types that meet

European standards and are

compatible with the engines

of vehicles sold in Europe

(in any other case, contact an

Approved Dealer).

Unleaded petrol compliant with

standard EN 228 contains up to

5 % ethanol in volume.

Diesel fuel compliant with

standard EN 590 contains up

to 7 % fatty acid methyl ester in

volume.

Unleaded petrol compliant with

standard EN 228 contains up to

10 % ethanol in volume.

Diesel fuel compliant with

standard EN 16734 contains up

to 10 % fatty acid methyl ester in

volume.

6.5

ENGINE SPECIFICATIONS

(2/2)

Versions

1.2 TCe

1.6 16V

1.5 dCi

Engine type

(see engine plate)

H5F Turbo

K4M

K9K

Cubic capacity (cc)

1 197

1 598

1461

Spark plugs

Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine

compartment. If it is not then contact an approved Dealer.
Fitting spark plugs other than those specified may damage the

engine.

–

6.6

The weights indicated are for a basic vehicle without options: they vary depending on the your vehicle’s equipment.

Contact an approved Dealer.

Maximum permissible all-up weight (MMAC)

Total train weight (MTR)

Van version

Estate version

Weights are indicated on the vehicle identification plate (refer to

the information on “Vehicle identification plates” in Section 6)

Braked Trailer Weight *

found by calculating: MTR - MMAC

Unbraked trailer weight *

610

695

Permissible nose weight *

Maximum permissible load on roof

100 (including the carrying device)

* Towing weight (Towing a caravan, boat, etc.)

Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the

identification plate.
– It is important to respect local towing regulations in force, specifically those set out in the Highway Code. Please contact your

authorised dealer about adapting any towing equipment.

– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is

permitted:

– the Maximum permissible weight at the rear may be exceeded by no more than 15%,

– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occurs first).

In either case, the maximum speed of the vehicle and trailer must not exceed 48 mph (80 km/h) (van versions) or 60 mph

(100 km/h) (estate versions) and the tyre pressure must be increased by 0.2 bar (3 PSI).

– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%

at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

Load transfer on Estate versions, average wheelbase

Depending on the local legislation, if the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be

transferred to the braked trailer, within the limits of the Gross Train Weight.

WEIGHTS (in kg)

6.7

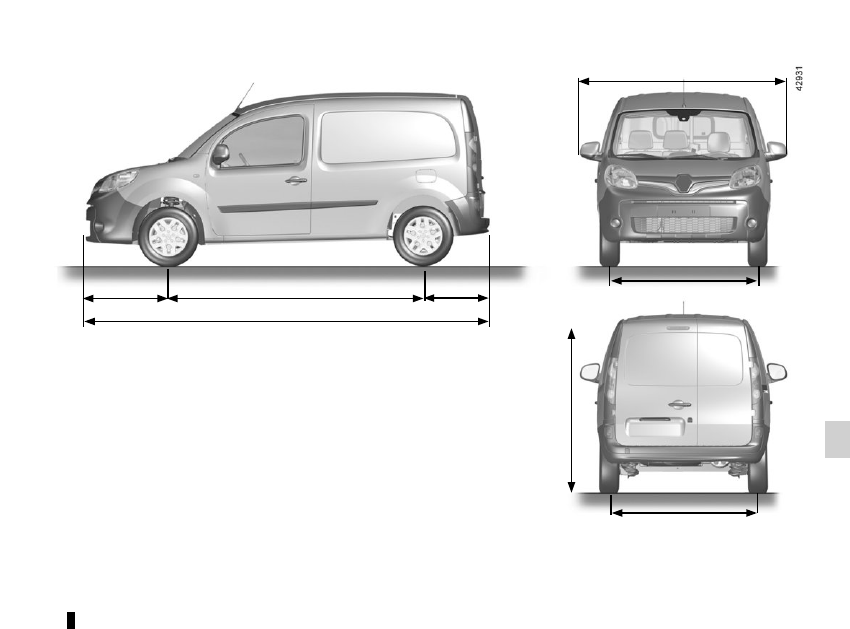

DIMENSIONS (in metres)

(1/2)

B
D

6.8

DIMENSIONS (in metres)

(2/2)

Short

Medium

Long

0,9

2.3

2.7

3,1

0.7

3,9

4,3

4,7

2.1

1.5

H (unladen)

1.8

Turning circles between kerbs

9.6

10.7

11.9

Turning circles between walls

10.1

11.2

12.4

Important: if the vehicle is fitted with roof bars, the height must be increased by 0.070 m (the bars cannot be moved).

6.9

Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same

level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out

within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the

repair order.

REPLACEMENT PARTS AND REPAIRS

6.10

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

VIN: ..................................................................................

SERVICE SHEETS

(1/6)

6.11

SERVICE SHEETS

(2/6)

VIN: ..................................................................................

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

6.12

SERVICE SHEETS

(3/6)

VIN: ..................................................................................

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page

Date: Miles (Km): Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service □
....................................... □
Anti-corrosion check:
OK □ Not

OK*

□

*See specific page
