Renault Kangoo (2018 year). Instruction - part 4

1.50

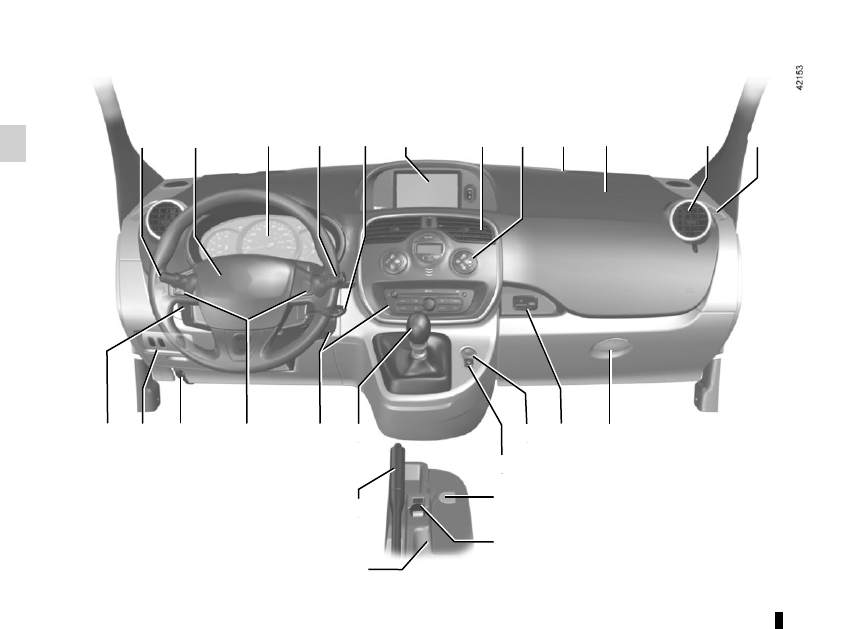

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

1.51

21 Gear lever.

22 Remote control/location for radio,

navigation system.

23 Cruise control/speed limiter

controls.

24 Bonnet release control.

25 Controls for:

– parking distance;
–

headlight vertical beam adjust-

ment.

26 Controls for:

–

cruise control/speed limiter.

–

deactivating/activating the Stop

and Start function.

–

activation/deactivation of the trac-

tion control or grip system.

1 Stalk for:

–

direction indicator lights,

– exterior lights,

– front fog lights,

– rear fog lights.

2 – Horn,

– location for driver’s air bag.

3 Instrument panel.

4 Stalk for:

– wipers,

– windscreen washer,

– trip computer and warning

system.

5 Ignition switch.

6 Multimedia display or touchscreen:

– seat belt reminder warning light,

– air bag deactivation warning

light,

– navigation,

– clock,

– exterior temperature.

7 Centre air vent.

8 Controls for ventilation, heating

and de-icing.

9 Windscreen demister outlet.

10 Location for passenger air bag.

11 Side air vent.

12 Side window demister outlet.

13 Glovebox.

14 Storage space or accessories

socket.

15 Hazard warning lights switch.

16 Door electric locking/unlocking

switch.

17 ECO mode switch.

18 Cigarette lighter/12 V socket.

19 Central storage compartment.

20 Handbrake.

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1.52

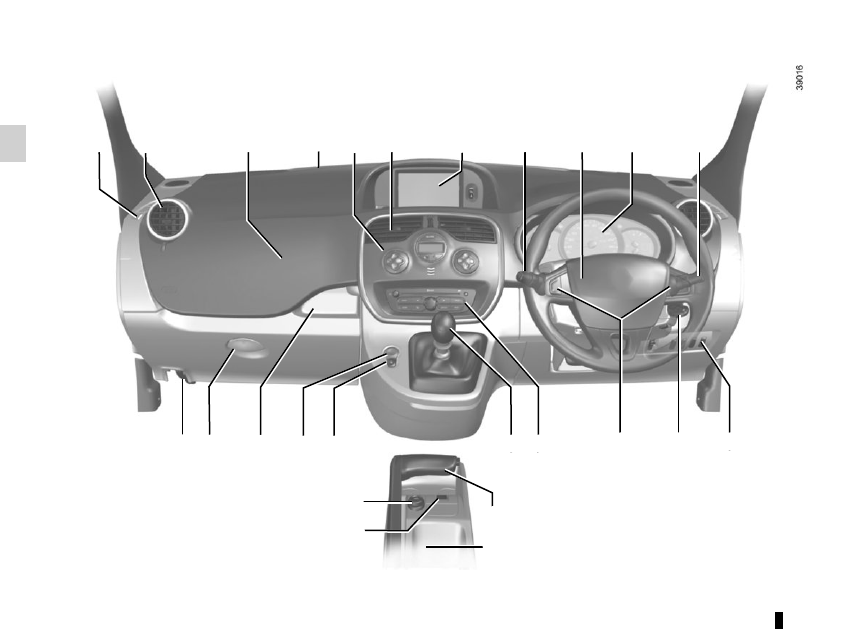

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

1.53

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

15 Location for radio, navigation

system.

16 Gear lever.

17 Handbrake.

18 Central storage compartment.

19 ECO mode switch.

20 Cigarette lighter/12 V socket.

21 Door electric locking/unlocking

switch.

22 Hazard warning lights switch.

23 Storage space or accessories

socket.

24 Glovebox.

25 Bonnet release control.

9 – Horn.

– Location for driver’s air bag.

10 Instrument panel.

11 Stalk for:

– wipers,

– windscreen washer,

– trip computer and warning

system.

12 Controls for:

–

cruise control/speed limiter;

–

activating/deactivating the trac-

tion control or grip system;

–

deactivating/activating the Stop

and Start function;

–

parking distance control;

–

headlight beam adjustment.

13 Ignition switch.

14 Cruise control/speed limiter con-

trols.

1 Side window demister outlet.

2 Side air vent.

3 Location for passenger airbag.

4 Windscreen demister outlet.

5 Controls for ventilation, heating

and de-icing.

6 Centre air vent.

7 Multimedia display or touchscreen:

– seat belt reminder warning light,

– air bag deactivation warning

light,

– navigation,

– clock,

– exterior temperature.

8 Stalk for:

–

direction indicator lights,

– exterior lights,

– front fog lights,

– rear fog lights.

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1.54

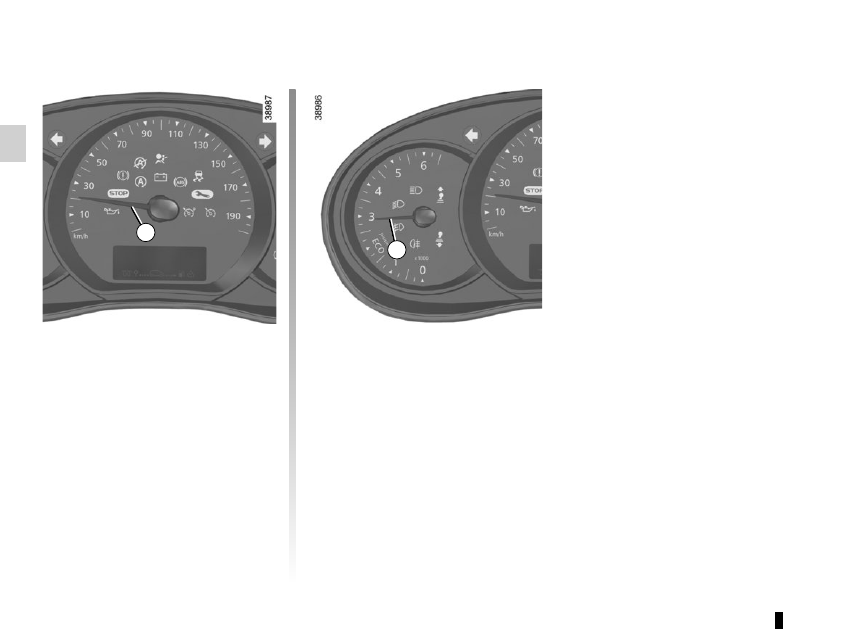

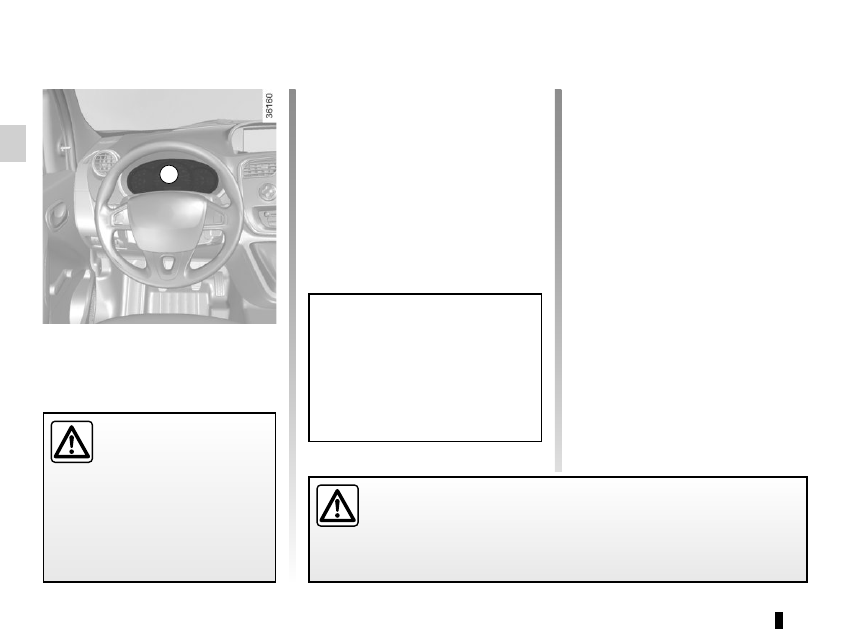

Instrument panel A

WARNING LIGHTS

(1/4)

If no lights or sounds are apparent, this indicates a fault in the instrument

panel. This indicates that it is essential to stop immediately (as soon as

traffic conditions allow). Ensure that the vehicle is correctly immobilised

and contact an approved Dealer.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions

allow. Switch off the engine and do

not restart it. Contact an approved

Dealer.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

The

warning light means

you should drive very carefully to

an approved Dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Main beam headlight tell-tale

light

Dipped beam headlight tell-

tale

Front fog light tell-tale light

Rear fog light tell-tale

Direction indicator tell-tale

light

Variable power assisted

steering warning light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it comes on when driving accompa-

nied by a beep, this indicates a fault in

the system.
Contact an approved Dealer as soon as

possible.

‰

Gear change indicator.

This lights up to advise you to

change to a higher gear (up arrow) or

lower gear (down arrow).

1.55

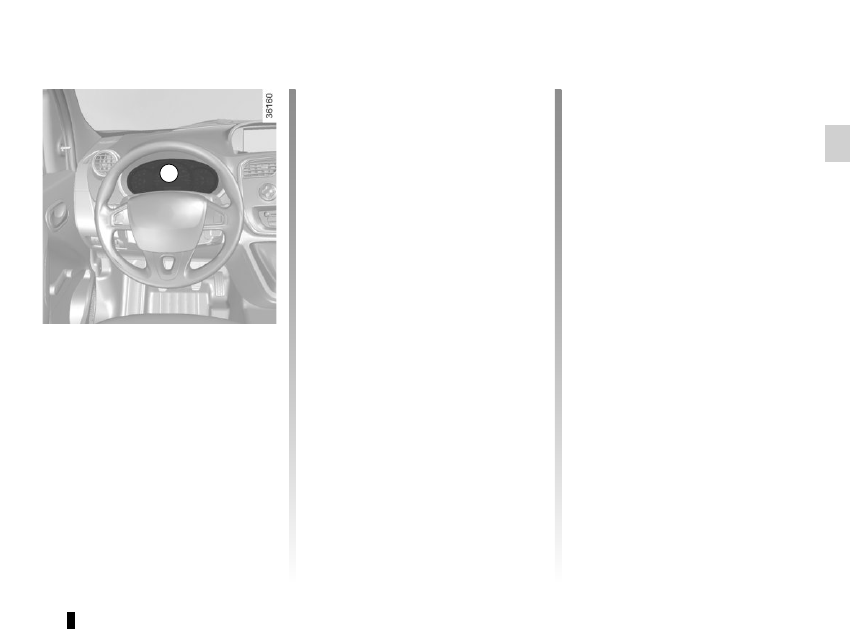

WARNING LIGHTS

(2/4)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Warning light

It comes on when the ignition is

switched on, sometimes at the same

time as other warning lights and then

goes out after several seconds.
If the light comes on, you should visit an

approved Dealer immediately.
Depending on the vehicle, this warning

light is accompanied by a message on

the instrument panel.

Warning light for monitoring

exhaust gas

On equipped vehicles, the light comes

on when the ignition is switched on then

goes out.

– If it lights up continuously accom-

panied by the

indicator light,

consult an approved Dealer as soon

as possible;

– If it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to “Emission control, fuel econ-

omy and driving advice” in section 2.

Coolant temperature warn-

ing light

If this remains lit while driving accom-
panied by the

indicator light, it

indicates engine overheating. Stop and

allow the engine to run at idle speed

for a minute or two. The temperature

should drop. If not, stop the engine.

Let the engine cool down, then check

the coolant level. Contact an approved

Dealer if necessary.

Handbrake “on” warning

light and brake circuit inci-

dent warning light

This comes on when the ignition is

switched on. If it comes on during brak-

ing or when the vehicle is being driven,
accompanied by the

indicator

light, it means that one of the circuit

levels is too low; it may be dangerous to

continue driving. Consult an approved

Dealer.

STOP light

It comes on when the ignition is

switched on, sometimes at the same

time as other warning lights and then

goes out after several seconds.

It indicates that it is essential to stop as

soon as traffic conditions allow. Contact

an approved Dealer as soon as possi-

ble.

Depending on the vehicle, this warning

light is accompanied by a message on

the instrument panel.

1.56

WARNING LIGHTS

(3/4)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it does not go out after the ignition is

switched on, or lights up when driving,

there is a fault with the ABS. Braking

will then be as normal, without the ABS

system.

Contact an approved Dealer as soon as

possible.

Low fuel level warning light
This comes on when the igni-

tion is switched on and goes out after a

few seconds. If it comes on when driv-

ing and is accompanied by a beep, fill

up with fuel as soon as possible. There

is only approximately 30 miles (50 km)

worth of fuel left after the warning light

first comes on.

Preheating warning light (on

diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation. It goes

out after preheating is sufficient and the

engine can be started.

Electronic fault warning light
If it comes on when driving, it

indicates an electronic or electrical fault

or, for diesel versions, the presence of

water in the diesel fuel.
Contact your approved Dealer as soon

as possible.

Air bag warning light

This comes on when the igni-

tion is switched on and goes out after

a few seconds. If it does not come on

when the ignition is switched on or if it

flashes, there is a fault in the system.

Contact an approved Dealer as soon as

possible.

Oil pressure warning light
If it comes on while you are

driving, stop at once and switch off the

ignition.
Check the oil level (refer to section 4

“Engine oil level”). If the level is normal,

the light has come on for another

reason: contact an approved Dealer as

soon as possible.

1.57

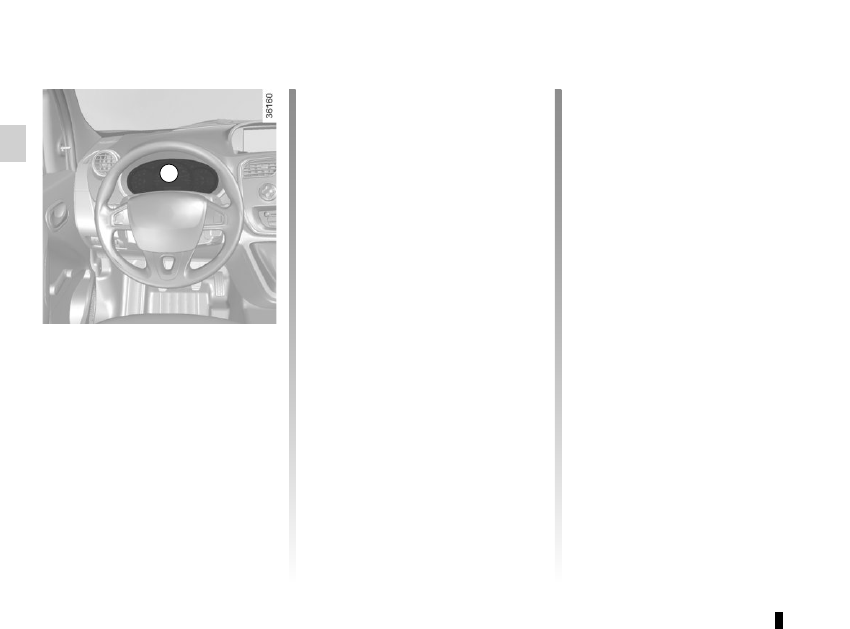

WARNING LIGHTS

(4/4)

Seat belt reminder light

Depending on the vehicle, it is

displayed on the instrument panel or on

the central display of the dashboard. It

remains on when the engine is started

if your seat belt is not fastened. A beep

sounds at a low volume for 30 seconds,

then at a high volume for 90 seconds.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Battery charge warning light
If it comes on when you are

driving, it indicates that the circuit is

overcharged or has discharged. Stop

and consult an approved Dealer as

soon as possible.

Door status warning light

If it lights up when the ignition is

switched on, it indicates that a door is

not properly closed.



Engine standby warning

light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.



Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

Cruise control and

speed limiter indica-

tor lights
Refer to the information on the “Speed

limiter” and “Cruise control” in Section 2.



Warning light for electronic

stability program ( ESC ) and

traction control system

Please refer to the information on

“Driver correction devices and aids” in

Section 2.



Tyre pressure loss warning
Please refer to the information

on the “Tyre pressure loss warning” in

Section 2.



Traction control warning

light

Please refer to the information on

“Driver correction devices and aids” in

Section 2.

1.58

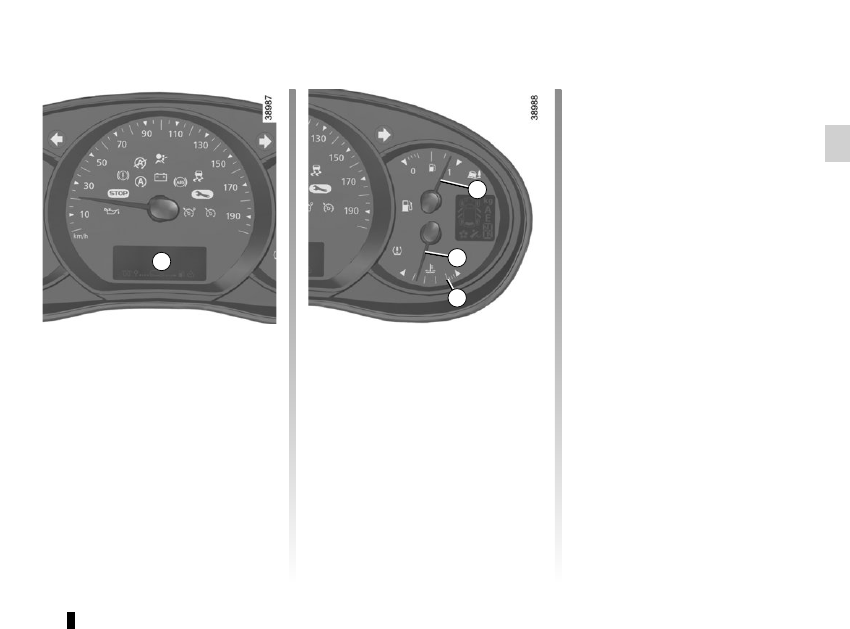

DISPLAYS AND INDICATORS

(1/3)

Rev counter 2

(graduations x 1000)

Speedometer 1

Overspeed buzzer
Depending on the vehicle, a beep

sounds for 10 seconds approximately

every 40 seconds as long as the ve-

hicle is travelling at over 72 miles per

hour (120 km/h).
Note: depending on the vehicle, the de-

sired speed may be programmed; con-

sult an approved Dealer.

The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.

1.59

DISPLAYS AND INDICATORS

(2/3)

Fuel gauge A
The number of squares lit shows the

fuel level. When it is at the minimum

level, the last square comes on, accom-

panied by a beep. A warning light also

lights up on the instrument panel.
Fill up as soon as possible. There is

only approximately 30 miles (50 km)

worth of fuel left after the warning light

first comes on.

Coolant temperature indicator 4

or A
In normal use, the needle should be po-

sitioned before zone B. Under “inten-

sive” operating conditions, the needle

may approach this zone. The only

warning is if the indicator light comes

on or the message “engine overheat-

ing” appears.

The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.

Fuel gauge 3
The needle shows the fuel level. When

it is at the minimum level, the fuel warn-

ing light comes on, accompanied by a

beep.
Fill up as soon as possible. There is

only approximately 30 miles (50 km)

worth of fuel left after the warning light

first comes on.

1.60

DISPLAYS AND INDICATORS

(3/3)

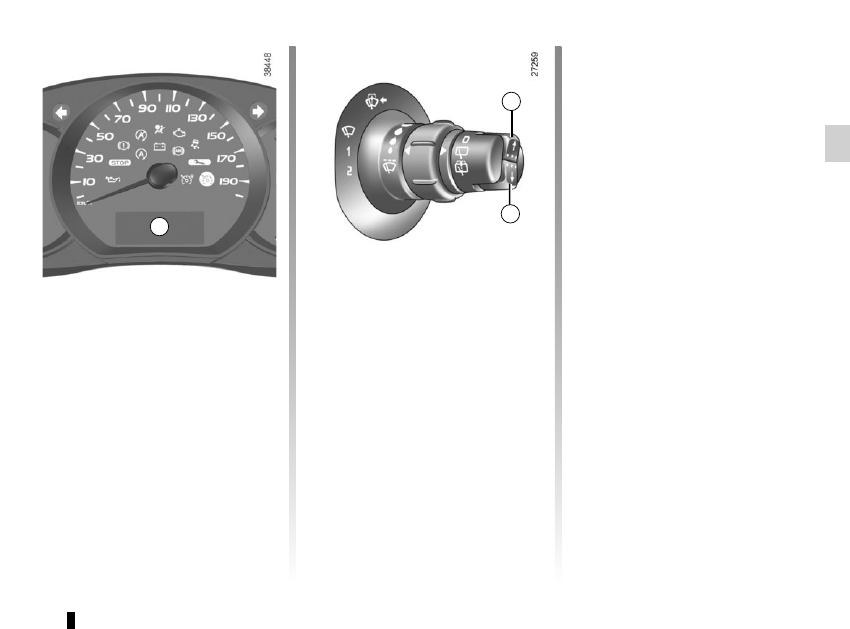

Low engine oil level warning

Depending on the vehicle, when the

engine is started and for 30 seconds,

display A alerts the driver when the

minimum engine oil level is reached.

Refer to the information on the “Engine

oil level” in Section 4.

Display selection keys 5 or 6

Depending on the vehicle, pressing the

button repeatedly enables the informa-

tion on the display to be selected and

the trip mileage recorder to be reset (for

this, the trip mileage must be selected

on the display).

– Display selection
Press briefly to move from the total

mileage to the trip mileage and vice

versa.

– Resetting the trip mileage recorder
Once trip mileage has been selected on

the display, press and hold the button.

Multifunction display
Total mileage recorder.
Trip mileage recorder.
Setting the time.
OR
Trip computer and warning system
Refer to the information on the “Trip

computer and warning system” in

Section 1.

The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.

1.61

TRIP COMPUTER: general information

(1/2)

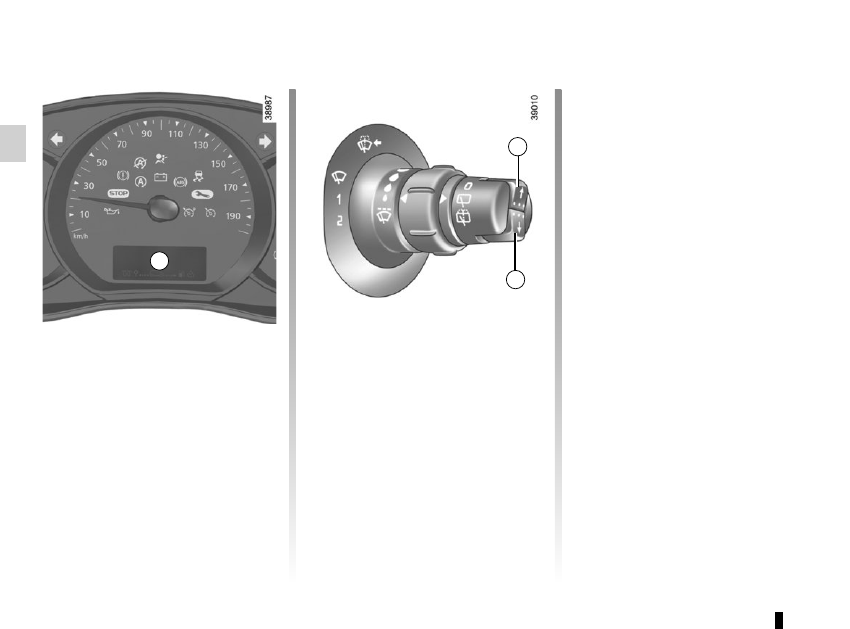

Trip computer and warning

system A

Depending on the vehicle, this includes

the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ-

ated with the

warning light);

– warning messages (connected to the

warning light

All these functions are described on the

following pages.

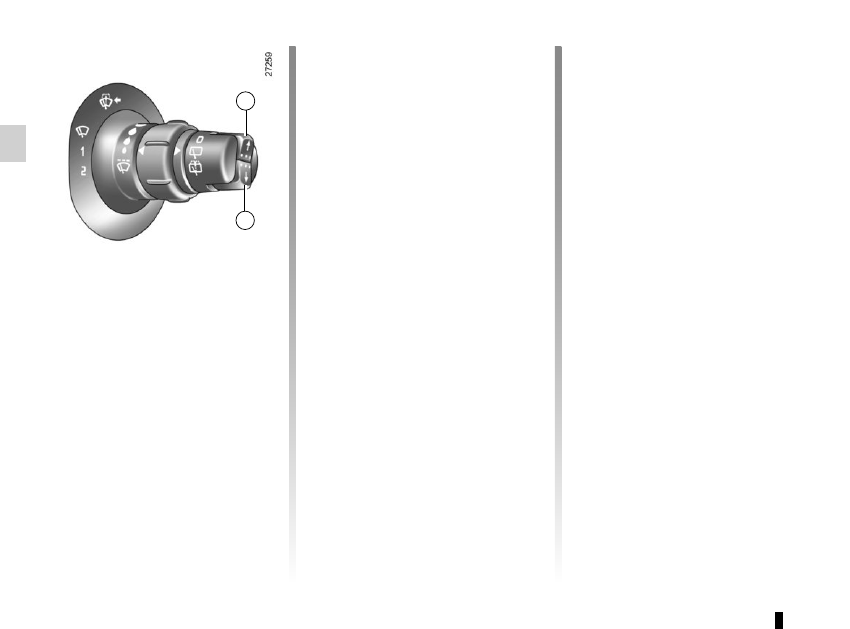

Display selection keys 1

and 2

Scroll through the following informa-

tion upwards (button 1) or downwards

(button 2) by pressing briefly and suc-

cessively (the display depends on the

vehicle equipment and country).
a) Total mileage and trip mileage re-

corder,

b) journey parameters:

– fuel consumed;

– average fuel consumption;

– current fuel consumption;

– estimated range;

– distance travelled;

– average speed;

c) Mileage before oil change
d) Cruise control and speed limiter pro-

grammed speed

e) Reset the tyre pressure
f) Trip log, operating faults and infor-

mation message readout.

1.62

TRIP COMPUTER: general information

(2/2)

Trip mileage resetting

With “trip mileage recorder” selected on

the display, press button 1 or 2 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With one of the journey parameters se-

lected on the display, press button 1

or 2 until the display resets.

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption, range and average speed

will become more stable and reliable

the further you travel after pressing the

reset button.
For the first few miles after pressing the

reset button you may notice:
– that the range increases as you

travel. This range takes into account

the average fuel consumption since

the last time the reset button was

pressed. Therefore, the average fuel

consumption may decrease when:

–

the vehicle has just stopped ac-

celerating;

–

the engine reaches its operat-

ing temperature (if the engine

was cold when the reset key was

pressed);

–

when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

1.63

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

(1/4)

Examples of selections

Interpreting the display selected

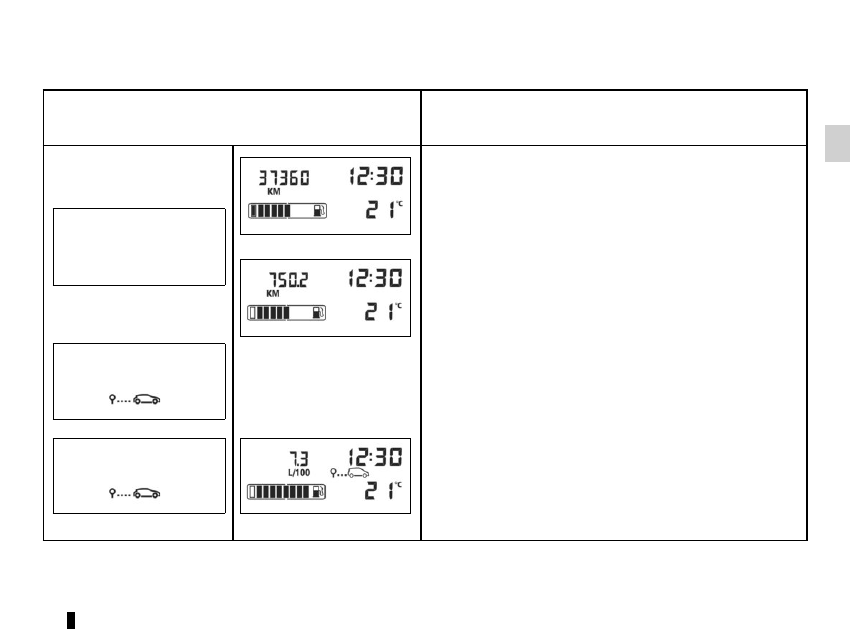

a) Total mileage and trip mileage recorder

37360 KM
7080 KM

b) Journey parameters
Fuel consumed since the last reset.

FUEL USED

26.0 L

AVERAGE

Average fuel consumption since the last reset.
This value is displayed after driving 400 metres and takes into

account the distance travelled and the fuel used since the last

time the reset button was pressed.

7.3 L/100

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.64

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

(2/4)

Examples of selections

Interpreting the display selected

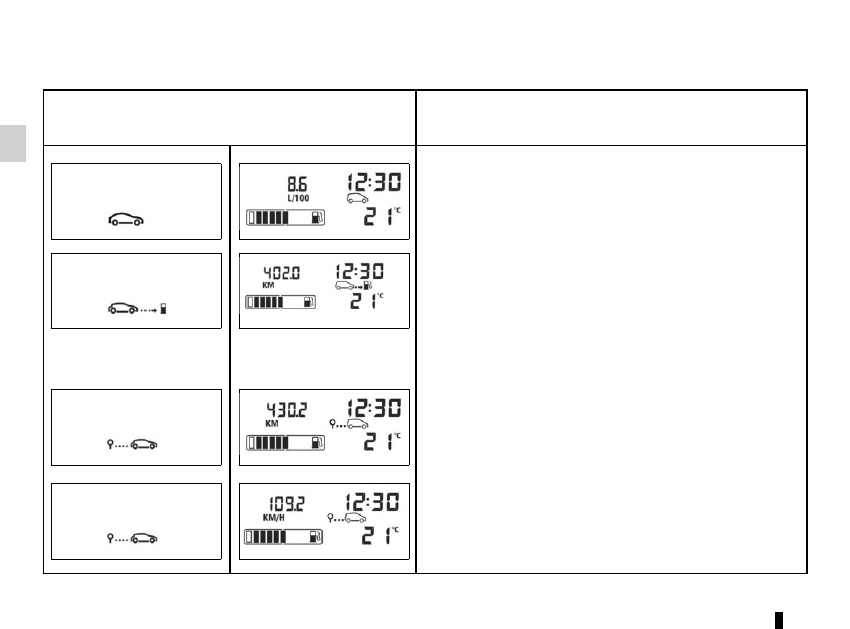

CURRENT

Current fuel consumption
This value is displayed after a speed of approximately 20 mph

(30 km/h) is reached.

8.6 L/100

RANGE

Estimated range with remaining fuel
This range takes into account the average fuel consumption

since the last time the reset button was pressed.
The value is displayed after driving 400 metres.
Several minutes after the reserve light has come on (refer to the

information on the “Instrument panel”), the estimated range will

no longer be displayed.

402.0 KM

DISTANCE

Distance travelled since the last reset.

430.0 KM

AVERAGE

Average speed since the last reset.
The value is displayed after driving 400 metres.

109.2 KM/H

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.65

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

(3/4)

Examples of selections

Interpreting the display selected

c) Mileage before service

Distance remaining until the next service (displayed in kilometres),

then when the service nears, several scenarios are possible:

–

distance/time less than 1,800 miles (3,000 km) or two months:

the message “SERVICE DUE ” is displayed;

–

mileage before service equal to 0 miles (0 km) or service date

reached: the message “SERVICE PROMPTLY” is displayed

when the selected display is “mileage before service”, along
with the symbol

and the warning light

The vehicle requires a service as soon as possible.

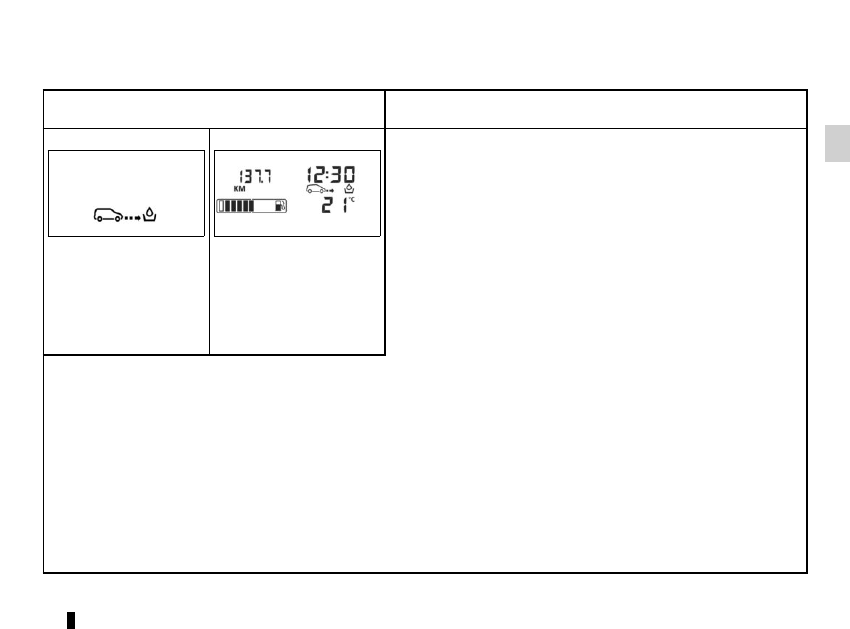

SERVICE IN

137.7 KM

Note: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low

speeds, door-to-door, prolonged periods at idle speed, towing a trailer, etc.). The distance remaining until the next service can

therefore, in some cases, be less than the actual distance remaining.

Resetting the display after the service in accordance with the maintenance schedule.

The mileage before service must only be reset after a service which complies with the recommendations in the Maintenance

Document.

If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re-

placement intervals for other parts in the maintenance schedule.

Special features: to reset the mileage before service value, go to the service page (see image above) and press and hold one

of the display’s reset buttons for at least 10 seconds until the mileage before service value is displayed continuously. Refer to

the information on the “Trip computer and warning system: general information” in Section 2.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Content .. 2 3 4 5 ..
