Renault Grand Scenic (2016 year). Instruction

1.34

CHILD SAFETY: choosing a child seat mounting

(2/2)

The third ring 3, 4 and 5 (for long chas-

sis versions) or 6 (for short chassis ver-

sions) is used to attach the upper strap

on some ISOFIX seats.

The ISOFIX anchorage points have been exclusively designed for child

seats with the ISOFIX system. Never fit a different type of child seat, seat

belt or other objects to these anchorage points. Check that nothing is ob-

structing the anchorage points.

If your vehicle has been involved in a road accident, have the ISOFIX anchorage

points checked and replace your child seat.

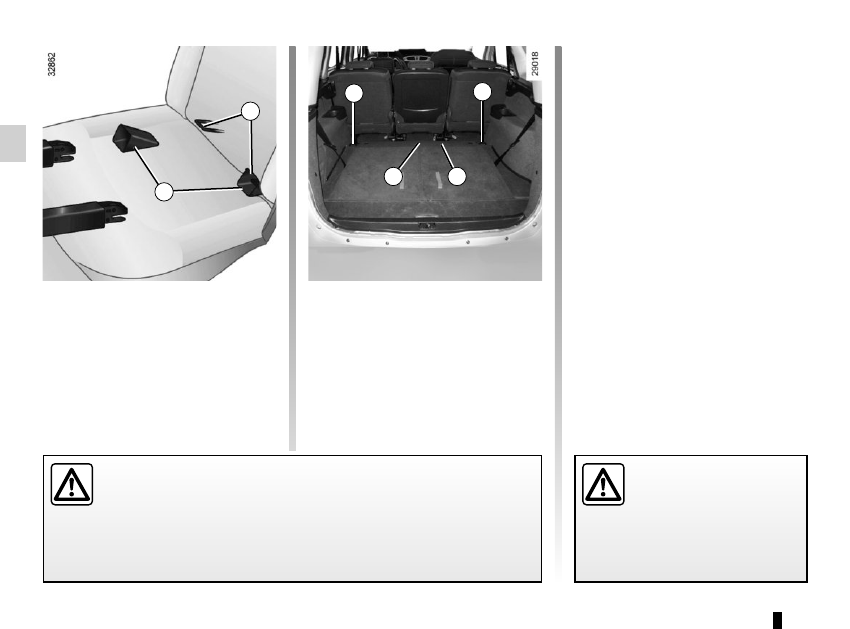

Attachment using the ISOFIX

system (continued)

The two rings 1 are located between

the seatback and the seat base of the

seat and are identified by a marking.

To ensure your child seat can be easily

fitted and locked on the rings 1, use

access guides 2 on the child seat.

The rings are located on the floor and

indicated by markings on the luggage

compartment carpet. To access these

anchoring points, push the rear seat

forward and lift the cover if necessary.
Note: for 7-seater vehicles, the rings

are located on the luggage compart-

ment floor and are visible.
In all cases, attach the strap hook to the

corresponding ring (3 and 4 for the rear

side seats and 5 or 6 for the rear centre

seat) and place the seat in the desired

position.
Tighten the strap so that the child seat-

back is in contact with the back of the

vehicle seat. Do not make any further

adjustments to the seat position set-

tings.

The child seat strap must

be attached to the corre-

sponding ring.
Do not use any other

mounting point.

1.35

CHILD SAFETY: fitting a child seat

(1/11)

In the front seat
The laws concerning children travel-

ling in the front passenger seat differ in

every country. Consult the legislation in

force and follow the indications on the

diagram on the following page.
Before fitting a child seat in this seat (if

authorised):

– lower the seat belt as far as possible;

– move the seat as far back as possi-

ble;

– gently tilt the seatback away from

vertical (approximately 25°);

– on equipped vehicles, raise the seat

base as far as possible.

Do not change these settings after the

child seat is installed.

Some seats are not suitable for fitting

child seats. The diagram on the follow-

ing page shows you how to attach a

child seat.
The types of child seats indicated may

not be available. Before using a differ-

ent child seat, check with the manufac-

turer that it can be fitted.

Fit the child seat in a rear

seat wherever possible.
Check that when installing

the child seat in the vehicle

it is not at risk of coming loose from

its base.
If you have to remove the headrest,

check that it is correctly stored so

that it does not come loose under

harsh braking or impact.
Always attach the child seat to the

vehicle even if it is not in use so that

it does not come loose under harsh

braking or impact.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a rear-facing child

seat to this seat, check

that the air bag has been deacti-

vated (refer to the information on

“Child safety: deactivating/activat-

ing the front passenger air bag” in

Section 1).

1.36

CHILD SAFETY: fitting a child seat

(2/11)

In the rear seat
A carrycot can be installed across the

vehicle and will take up at least two

seats. Position the child with his or her

feet nearest the door.
Move the front seat as far forward as

possible to install a rear-facing child

seat, then move back the seat in front

as far as it will go, although without al-

lowing it to come into contact with the

child seat.
For the safety of the child in the for-

ward-facing seat, do not move the seat

in front back past the middle of the

runner, do not tilt the seatback too far

(maximum of 25°) and move the seat

backwards as far as possible.
Check that the child seat is resting

against the back of the vehicle seat and

that the headrest of the vehicle is not

obstructing its use.
For 7-seater vehicles, the second row

rear seats must be pushed forward

before a child is seated in the third row

rear seats.

In the rear centre seat
Some child seats are too wide to allow

access to the seat belt buckles. Check

that your child seat can be fitted in this

seat.
When fitting an ISOFIX child seat in

this place, ensure that the two seat

belt buckles are placed flat under the

child seat, except in the case of booster

seats attached to the ISOFIX locks,

whose fitting is authorised

Ensure that the child seat

or the child’s feet do not

prevent the front seat from

locking correctly. Refer to

the information on the “Front seat”

in Section 1 or “Rear seat operation”

in Section 3.

The floor of your vehicle

has storage spaces. Before

installing a child seat with

a floor support, ensure that

this seat can be correctly installed

by consulting the list of compatible

vehicles supplied with the child seat.
Risk of serious injury in the event of

sudden braking or accident.

When fitting a child seat

(Group 2 or 3 booster seat),

check that the seat belts op-

erate (wind) correctly: refer

to Section 1 “Rear seat belts”. If

necessary, adjust the position of the

vehicle seat.

1.37

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

−

Seat which only allows a rear-

facing seat with “Universal” approval

to be attached with a seat belt.

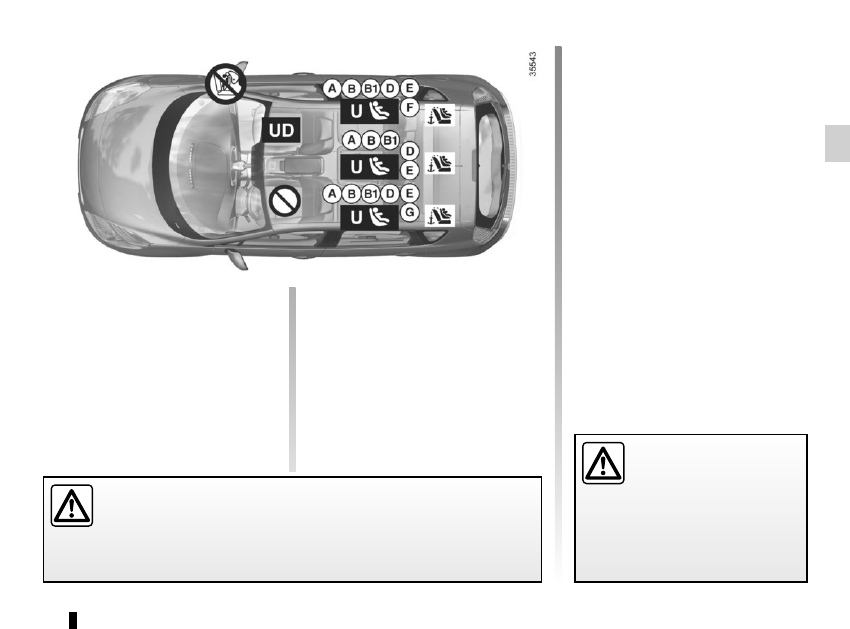

Installation diagram,

5-seater short chassis

version

Check the status of the air bag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting child

seats.

CHILD SAFETY: fitting a child seat

(3/11)

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a for-

ward-facing ISOFIX child seat with uni-

versal approval to be fitted. The anchor-

ing points are visible on the floor behind

the seat concerned or under the carpet,

and indicated by a marking.

The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seat in group 1 (from 9

to 18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child

seat to the front passenger seat, check that the air bag has been deacti-

vated (refer to the information on “Child safety: deactivating/activating the

front passenger air bag” in Section 1).

1.38

CHILD SAFETY: fitting a child seat

(4/11)

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front passenger

seat (1) (5)

Rear side seats

Rear centre

seat

Carrycot fitted across the vehicle

Group 0

< 10 kg

F, G

U - IL (2)

U (2)

Shell seat/rear-facing seat

Group 0, 0+ and 1

< 13 kg and 9 to

18 kg

E, D

U - IL (3)

U (3)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

U - IUF - IL (4)

Booster seat

Group 2 and 3

15 to 25 kg and

22 to 36 kg

U (4)

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,

tilting the seatback slightly (approximately 25°).

(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the

door.

(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it

will go, although without allowing it to come into contact with the child seat.

(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its run-

ners and do not recline the seatback more than 25°.

(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in the front passenger seat, check

that the air bag deactivator is in the OFF position.

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.39

CHILD SAFETY: fitting a child seat

(5/11)

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a for-

ward-facing ISOFIX child seat with uni-

versal approval to be fitted. The anchor-

ing points are visible on the floor behind

the seat concerned or under the carpet,

and indicated by a marking.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seat in group 1 (from 9

to 18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child

seat to the front passenger seat, check that the air bag has been deacti-

vated (refer to the information on “Child safety: deactivating/activating the

front passenger air bag” in Section 1).

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

−

Seat which only allows a rear-

facing seat with “Universal” approval

to be attached with a seat belt.

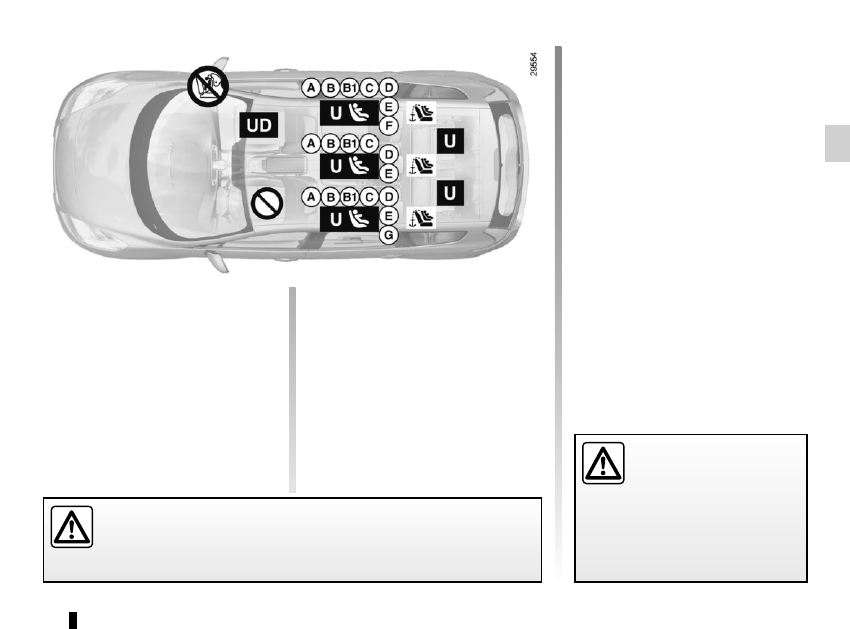

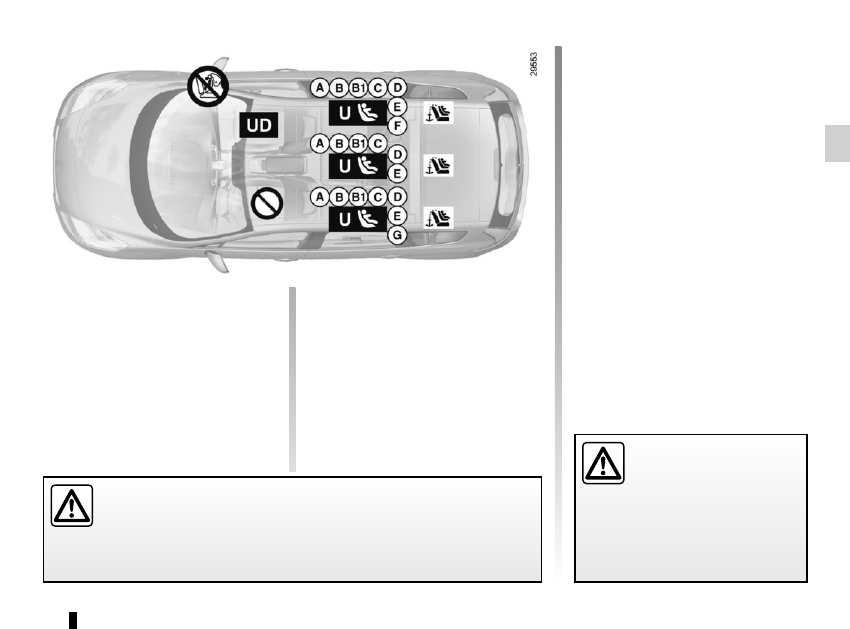

Installation diagram,

5-seater long chassis

version

Check the status of the air bag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting child

seats.

1.40

CHILD SAFETY: fitting a child seat

(6/11)

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front passenger

seat (1) (5)

Rear side seats

Rear centre

seat

Carrycot fitted across the

vehicle

Group 0

< 10 kg

F, G

U - IL (2)

U (2)

Shell seat/rear-facing seat

Group 0, 0+ and 1

< 13 kg and 9 to

18 kg

E, D

U - IL (3)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

U - IUF - IL (4)

U- IUF - IL (4)

Booster seat

Group 2 and 3

15 to 25 kg and

22 to 36 kg

U (4)

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,

tilting the seatback slightly (approximately 25°).

(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the

door.

(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it

will go, although without allowing it to come into contact with the child seat.

(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its run-

ners and do not recline the seatback more than 25°.

(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in the front passenger seat, check

that the air bag deactivator is in the OFF position.

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.41

CHILD SAFETY: fitting a child seat

(7/11)

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

choring points are located on the floor

behind the seat concerned and indi-

cated by a marking.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seat in group 1 (from 9

to 18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing

child seat in the front passenger seat, check that the air bag deactivator

is in the OFF position.

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

−

Seat which only allows a rear-

facing seat with “Universal” approval

to be attached with a seat belt.

Installation diagram,

7-seater version

Check the status of the air bag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting child

seats.

1.42

CHILD SAFETY: fitting a child seat

(8/11)

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front

passenger

seat (1) (6)

Row 2 rear

side seats

Row 2 rear

centre seat

Row 3 rear

seats (5)

Carrycot fitted

across the vehi-

cle

Group 0

< 10 kg

F, G

U - IL (2)

U (2)

Shell seat/rear-

facing seat

Group 0, 0+ and 1

< 13 kg and

9 to 18 kg

E, D

U - IL (3)

Forward-facing

seat

Group 1

9 to 18 kg

A, B, B1

U - IUF - IL (4)

Booster seat

Group 2 and 3

15 to 25 kg

and 22 to

36 kg

U (4)

RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat to the front passenger seat, check that

the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front passenger

air bag” in Section 1).

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.43

X =  Seat not suitable for fitting child seats.
U =  Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF/IL =   On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,

tilting the seatback slightly (approximately 25°).

(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners

and do not recline the seatback more than 25°.

(5) Push the seat(s) in front of the child in a third row seat as far forward as possible.

(6) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in the front passenger seat, check

that the air bag deactivator is in the OFF position.

CHILD SAFETY: fitting a child seat

(9/11)

1.44

CHILD SAFETY: fitting a child seat

(10/11)

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a for-

ward-facing ISOFIX child seat with uni-

versal approval to be fitted. The anchor-

ing points are visible on the floor behind

the seat concerned or under the carpet,

and indicated by a marking.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seat in group 1 (from 9

to 18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child

seat to the front passenger seat, check that the air bag has been deacti-

vated (refer to the information on “Child safety: deactivating/activating the

front passenger air bag” in Section 1).

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

−

Seat which only allows a rear-

facing seat with “Universal” approval

to be attached with a seat belt.

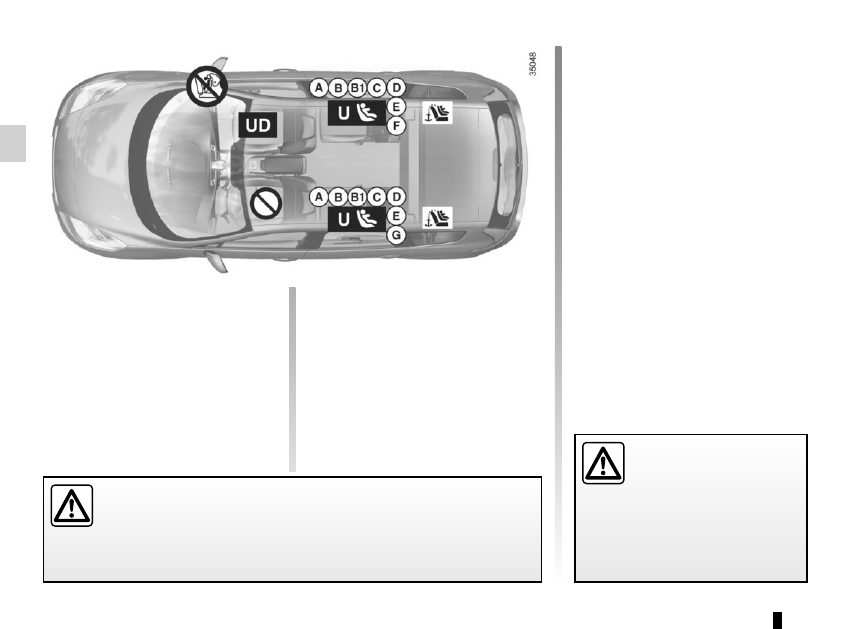

View of four-seater version

installation

Check the status of the air bag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting child

seats.

1.45

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front passenger

seat (1) (5)

Rear side seats

Carrycot fitted across the ve-

hicle

Group 0

< 10 kg

F, G

U - IL (2)

Shell seat/rear-facing seat

Group 0, 0+ and 1

< 13 kg and 9 to

18 kg

E, D

U - IL (3)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

U - IUF - IL (4)

Booster seat

Group 2 and 3

15 to 25 kg and

22 to 36 kg

U (4)

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,

tilting the seatback slightly (approximately 25°).

(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the

door.

(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it

will go, although without allowing it to come into contact with the child seat.

(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its run-

ners and do not recline the seatback more than 25°.

(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in the front passenger seat, check

that the air bag deactivator is in the OFF position.

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

CHILD SAFETY: fitting a child seat

(11/11)

1.46

Front passenger air bag

deactivation

You must deactivate certain devices

in addition to the front passenger seat

belt before fitting a child seat in the front

passenger seat.

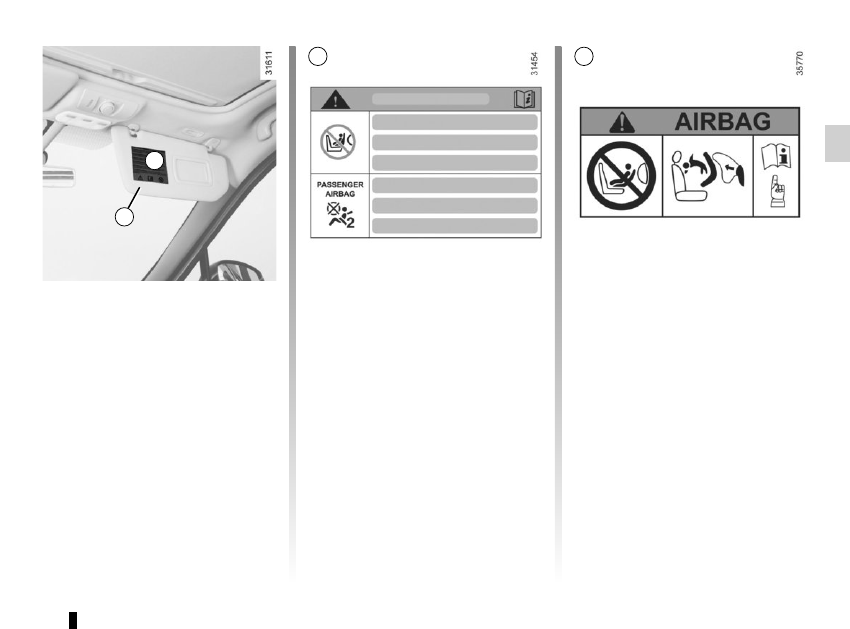

The front passenger air bag

must only be deactivated or

activated when the vehicle

is stationary.

If it is interfered with when the vehi-

cle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the air bag in accordance

with the lock position.

CHILD SAFETY: deactivating/activating the front passenger airbag

(1/3)

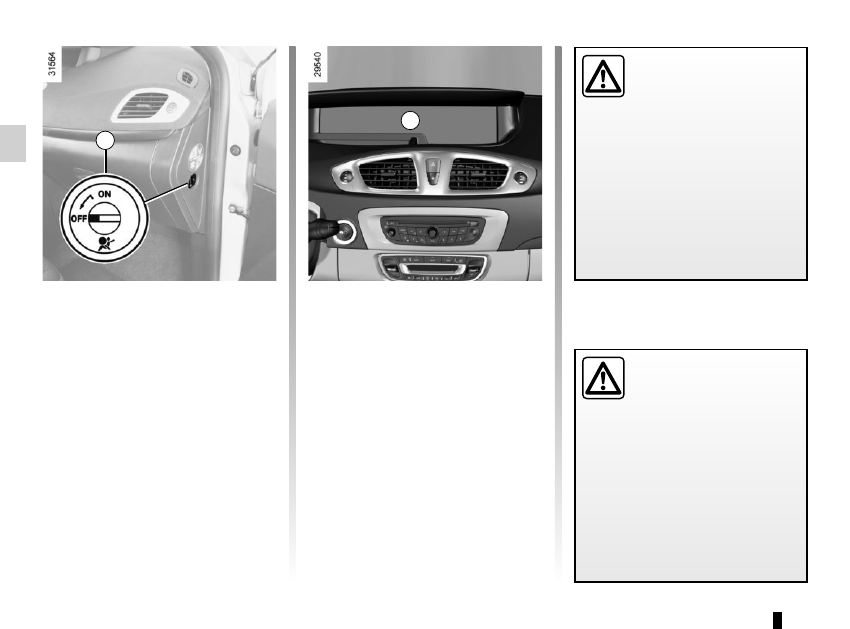

To deactivate the air bag: when the

vehicle is stationary, push and turn

lock 1 to the OFF position.
With the ignition on, you must check

that the warning light

is lit on

the instrument panel A and, depend-

ing on the vehicle, that the message

“Passenger airbag off” is displayed.
This light remains permanently lit to

let you know that you can fit a child

seat.

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

1.48

CHILD SAFETY: deactivating/activating the front passenger airbag

(3/3)

Operating faults

It is not permitted to fit a rear-facing

child seat to the front passenger seat

if the air bag activation/deactivation

system is faulty.
It is not recommended to allow any

other passenger to sit in that seat if the

two warning lights

›

and

are lit at the same time.
Contact your approved dealer as soon

as possible.

Activation of the front

passenger air bag

You should reactivate the air bag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.

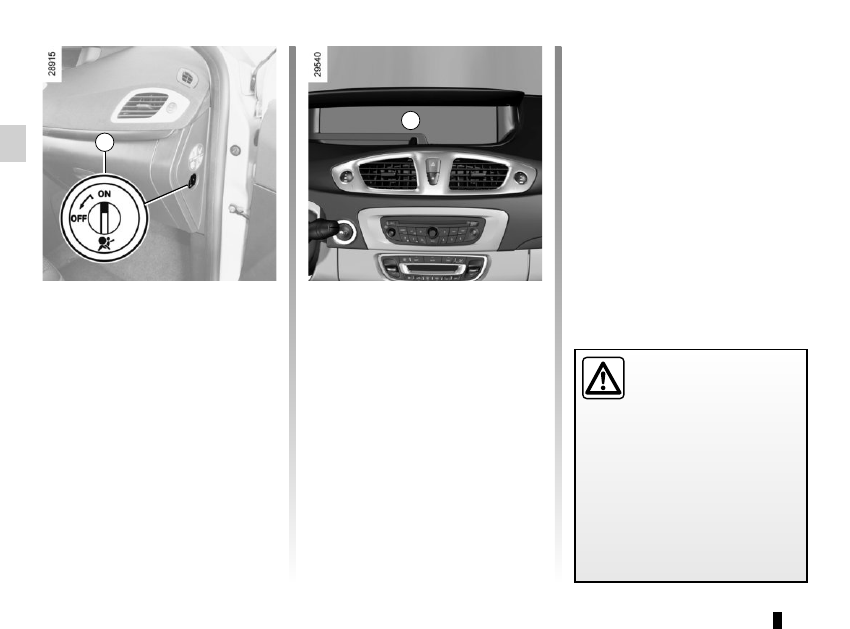

To reactivate the air bag: when the

vehicle is stationary, push and turn

lock 1 to the ON position.
With the ignition on, it is essential to

check that the

›

warning light is lit

on the instrument panel A, and that it

goes out after a few seconds.

The front passenger air bag

must only be deactivated or

activated when the vehicle

is stationary.

If it is interfered with when the vehi-

cle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the air bag in accordance

with the lock position.

1.49

STEERING WHEEL/POWER-ASSISTED STEERING

Operating faults
The steering may become stiff when

driving or when the steering wheel is

turned repeatedly. This is due to the

power assistance overheating. In this

case, it must be allowed to cool down.

Power-assisted steering

Variable power-assisted steering
The variable power-assisted steering

system is equipped with an electronic

control system which alters the level of

assistance to suit the vehicle speed.
Steering is made easier during parking

manoeuvres (for added comfort) whilst

the force needed to steer increases

progressively as the speed rises (for

enhanced safety at high speeds).

Adjusting the steering wheel

height and depth

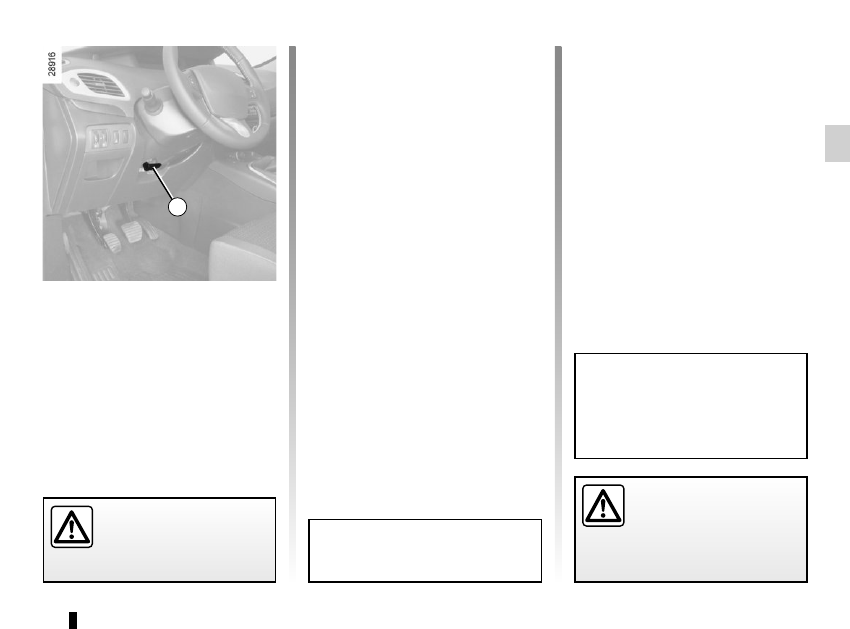

Pull lever 1 and move the steering

wheel to the required position.
Then, push the lever back fully, beyond

the point of resistance to lock the steer-

ing wheel.
Make sure that the steering wheel is

correctly locked.

For safety reasons, only

adjust the steering wheel

when the vehicle is station-

ary.

Never leave the steering wheel at

full lock while stationary.

Never switch off the igni-

tion when travelling down-

hill, and avoid doing so in

normal driving (assistance

is not provided).

With the engine switched off, or if

there is a system fault, it is still pos-

sible to turn the steering wheel. The

force required will be greater.

Renault Grand Scenic (2016 year). Instruction - part 3
