Renault Espace (2016 year). Instruction - part 13

3.13

ADDITIONAL AIR CONDITIONING

(2/2)

Switching on or off

From the multifunction screen, press

button 4.

Mode AUTO

Press button 6. The system uses the

most suitable amount of air to reach

and maintain the desired comfort level.

Mode OFF

Press button 5 to deactivate the func-

tion.
Note: For these two modes, the rear

control 2 is locked and the warning

light 9 is displayed for notification.

FAST:Turn the control to 10.

Enables the system to reach the de-

sired comfort level more quickly.
OFF: Turn the control to 12.

Enables the additional air-conditioning

to be deactivated.

Adjusting the ventilation

speed.

Turn the control 2 to move the marker 8

to zone A.

Mode MANUAL
Press button 7 to activate. The rear

control 2 is then operational and the

warning light 9 goes out.
From the rear control panel 2, move the

marker 8 to:
AUTO: Turn the control to 11. Enables

the optimal comfort level.

3.14

AIR CONDITIONING: information and advice on use

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

There is a risk of damage or of

fire.

Do not open the refriger-

ant fluid circuit. The fluid

may damage eyes or skin.

Fuel consumption

You will normally notice an increase in

fuel consumption (especially in town)

when the air conditioning is operating.
For vehicles fitted with air conditioning

with no automatic mode, switch off the

system when it is not required.
Advice for reducing consumption

and helping to preserve the environ-

ment
Drive with the air vents open and the

windows closed.
If the vehicle has been parked in the

sun, open the doors for a few moments

to let the hot air escape before starting

the engine.

Maintenance

Refer to the Maintenance Document

for your vehicle for the inspection fre-

quency.

Operating faults

As a general rule, contact your ap-

proved dealer in the event of an oper-

ating fault.
– Reduction in de-icing, demisting

or air conditioning performance.

This may be caused by the passen-

ger compartment filter cartridge be-

coming clogged.

– No cold air is being produced.

Check that the controls are set cor-

rectly and that the fuses are sound.

Otherwise, switch off the system.

Presence of water under the

vehicle

After prolonged use of the air condi-

tioning system, it is normal for water

to be present under the vehicle. This is

caused by condensation.

Advice on use

In some situations, (air conditioning

off, air recirculation activated, ventila-

tion speed at zero or low, etc.) you may

notice that condensation starts to form

on the windows and windscreen.
If there is condensation, use the “Clear

View” function to remove it, then use

the air conditioning in automatic mode

to stop it forming again.

Vehicles equipped with the

ECOmode: once activated, ECO

mode can reduce the perform-

ance of the automatic air condition-

ing. Please refer to the information

on “Driving advice, Eco-driving” in

Section 2.

3.15

OUTSIDE AIR QUALITY AND DEODORISATION FUNCTION

With the air conditioning switched

on, from the screen A, select Menu,

Vehicle, Take care.

Outside air quality

The air quality is given using a graph on

the multifunction screen.
Three colours indicate the air quality

level (from the cleanest to the most

polluted):
1 (blue)
2 (light grey)
3 (grey)

Deodorisation function

This reduces unpleasant odours in the

passenger compartment.

Deodorization cycle
– ON: helps to reduce the unpleasant

odour more quickly in the passenger

compartment,

– OFF: stop the function.
Note:
The function is on a timer. It stops auto-

matically after a few minutes.

Take care

Deodorization cycle

Please refer to the multimedia in-

structions for further information.

3.16

ELECTRIC WINDOWS

(1/2)

These systems operate:
– with the engine running;
– with the ignition off until one of the

front doors is opened (limited to ap-

proximately 12 minutes).

– with the engine off, front doors

closed, after pressing the start

button.

Press the window switch down or pull it

up to lower or raise the window to the

desired height: the rear windows do not

open fully.

Safety of rear occupants

The driver can disable operation of the rear electric windows and doors

by pressing switch 4. A confirmation message is displayed on the instru-

ment panel.

Driver’s responsibility

Never leave your vehicle with the RENAULT card or key inside, and never leave

a child, adult who is not self-sufficient or a pet, even for a short while. They may

pose a risk to themselves or to others by starting the engine or activating equip-

ment (such as the gear lever or electric windows). If any part of the body becomes

trapped, reverse the direction of the window immediately by pressing the relevant

switch.
Risk of serious injury.

Avoid resting any objects against

a half-open window: there is a risk

that the electric window could be

damaged.

From the driver’s seat, use switch:

1 for the driver’s side;

2 for the front passenger side;

3 and 5 for the rear passenger win-

dows.

From the passenger seats, use

switch 6.

3.17

Operating faults

In case of a fault when closing a

window, the system reverts to normal

mode: pull the switch as many times as

necessary until the window closes com-

pletely, hold the switch (still on the clo-

sing side) for around one second, then

completely lower then raise the window

to reset the system.
If necessary, contact an approved

Dealer.

ELECTRIC WINDOWS

(2/2)

Remote control window

closing

(vehicles with 4 one-touch electric win-

dows).
When you lock the doors from the out-

side, press the locking button on the

RENAULTcard twice in quick suc-

cession, or on the driver’s door in

hands-free mode, and all the windows

will close automatically (and, depen-

ding on the vehicle, the sunroof).
It is recommended that the user only

operates the system when the vehi-

cle can be seen clearly and no one is

inside.

When closing the windows,

ensure that no part of the

body (arm, hand, etc.) is

protruding from the vehicle.

Risk of serious injury.

One-touch mode
This mode works in addition to the ope-

ration of the electric windows described

previously.
Briefly press or pull the window switch

fully: the window is fully lowered or

raised. Pressing the switch again stops

the window moving.
Note: if the window detects resistance

when closing (e.g.: branch of a tree,

etc.) it stops and then lowers again by a

few centimetres.

3.18

ELECTRIC SUNROOF

(1/3)

To slide the curtain 1

With the ignition on:
– Full opening: move marker 3 on

button 2 to position A. The points in

between correspond to the progres-

sive opening positions of the curtain;

– to close: move mark 3 on button 2

to position 0.

To slide the sunroof

With the ignition on:
– to open: move mark 3 on button 2

to position B, depending how far

you wish it to open. The points in

between correspond to the progres-

sive opening positions;

– To close: move the marker 3 on

button 2 to position A.

Moving the position 0 directly to po-

sition B causes the simultaneous

opening of the curtain and the roof.

Driver’s responsibility

Never leave your vehicle

with the RENAULT card or

key inside, and never leave

a child, adult who is not self-suffi-

cient or a pet, even for a short while.

The reason for this is that the child

may endanger itself or others by

starting the engine, activating

equipment such as the sunroof for

example, or locking the doors.

If something gets trapped, reverse

the direction of travel as soon as

possible by turning button 2 fully to

the right (position B).

Risk of serious injury.

Special features

Pressing button 2 allows the curtain to

be automatically positioned depending

on the position of the sunroof.

Pressing button 2 when the roof and

the curtain are in the same opening po-

sition enables the curtain to be opened

fully.

3.19

ELECTRIC SUNROOF

(2/3)

Closing the sunroof by

remote control

(depending on the vehicle)
If you press the locking button on

the card twice in quick succession

RENAULT,, the windows and the elec-

tric sunroof will close automatically.
It is recommended that the user only

operates the system when the vehi-

cle can be seen clearly and no one is

inside.

Precautions during use

– Vehicle with loaded roof bars.

As a general rule, if there is a load

on the roof, use of the sunroof is not

recommended.
Before using the sunroof, check the

objects and/or accessories (bike

racks, roof boxes, etc.) attached to

the roof bars: they should be pro-

perly arranged and secured and

should not interfere with the opera-

tion of the sunroof.
Contact an approved dealer for de-

tails of possible conversions;

– check that the sunroof is properly

closed before leaving your vehicle;

– clean the seal every three months

using products recommended by our

Technical Department;

– do not open the sunroof immedia-

tely after it has rained or immediately

after washing the vehicle.

When closing the sunroof,

ensure that no part of the

body (arm, hand, etc.) is

protruding from the vehicle.

Risk of serious injury.

Special features
Your vehicle is fitted with an anti-pinch

facility: when the sunroof encounters

resistance whilst closing (arm, tree

branch etc.), it stops and then moves

back a few centimetres.
After closing the sunroof by remote

control, pressing button 2 allows the

sunroof to return to its previous posi-

tion.

3.20

Operating fault

– If the sunroof will not close, turn

switch 2 to position B to open the

sunroof, then turn switch 2 to posi-

tion 0 until the sunroof is completely

closed.

– If the curtain does not close, turn

switch 2 to position A to open the

curtain, then turn switch 2 to posi-

tion 0 until the curtain is fully closed.

ELECTRIC SUNROOF

(3/3)

/FIXED GLASS SUNROOF

If the blockage persists, keep switch 2

pressed until it closes completely.
Please consult an authorised dealer.

Fixed glass roof

Opening the blind
Press the top of handle 4.

Closing the blind
Pull handle 4 until it clicks in the lock.
If the blind becomes skewed when

opening or closing, close fully and then

fully open the blind.

3.21

When the doors or boot are un-

locked and opened, the reading and

footwell lights come on temporarily.

Map reading lights

Press switch 1 to get:
– permanent lighting;
– immediate switching off.

From the multifunction screen, it is pos-

sible to deactivate/activate the cour-

tesy lights upon opening the doors or

the boot. To do this, please refer to

“Vehicle settings customisation menu”

in Section 1.

INTERIOR LIGHTING

(1/2)

3.22

Boot lights

Light 4 comes on when the boot is

opened.

Storage drawer light

Light 3 comes on when the storage

drawer is opened.

INTERIOR LIGHTING

(2/2)

Door lights

Light 2 comes on when the door is

opened.

3.23

SUN VISOR, BLINDS

Front sun visor

Lower the sun visor 1 on the wind-

screen or unclip it and lower it over the

side window.

Vanity mirror

Lift the cover 2.
The light 3 switches on automatically.

Lateral sun visor

Pull the sun visor up by tab 4 until

hooks 5 engage in their housings (make

sure the hooks are properly locked in

position).

When driving, ensure the

courtesy mirror cover is

closed. Risk of injury.

3.24

Dashboard storage

compartment 2

Door pockets 1

It can hold a 1.5 litre bottle.

PASSENGER COMPARTMENT STORAGE/FITTINGS

(1/5)

Nothing should be placed

on the floor area in front of

the driver as such objects

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

Ensure that no hard, heavy

or pointed objects are

placed in the “open” stor-

age compartments in such

a way that they may fall onto pas-

sengers during sudden turning or

braking.

Passenger storage drawer 3

To open, move your fingers into area 4-

it will open by itself. If on a steep slope,

assist the drawer opening by pulling

handle 5. It can hold A4 documents. It

is ventilated and refrigerated.

Maximum load allowed in the pas-

senger storage compartment: 6 kg,

evenly distributed.

When driving, ensure

that the storage drawer is

closed. Risk of injury.

3.25

PASSENGER COMPARTMENT STORAGE/FITTINGS

(2/5)

Central storage

compartment 11

Slide the curtain 12 to open the storage

compartment.
Depending on the vehicle, this may be

used to hold a removable cup-holder.

Cup holders 6 and 9

Storage compartment 7

Storage compartments 8

and 10

When turning corners, accelerating or braking, ensure that the receptacle

being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.

3.26

PASSENGER COMPARTMENT STORAGE/FITTINGS

(3/5)

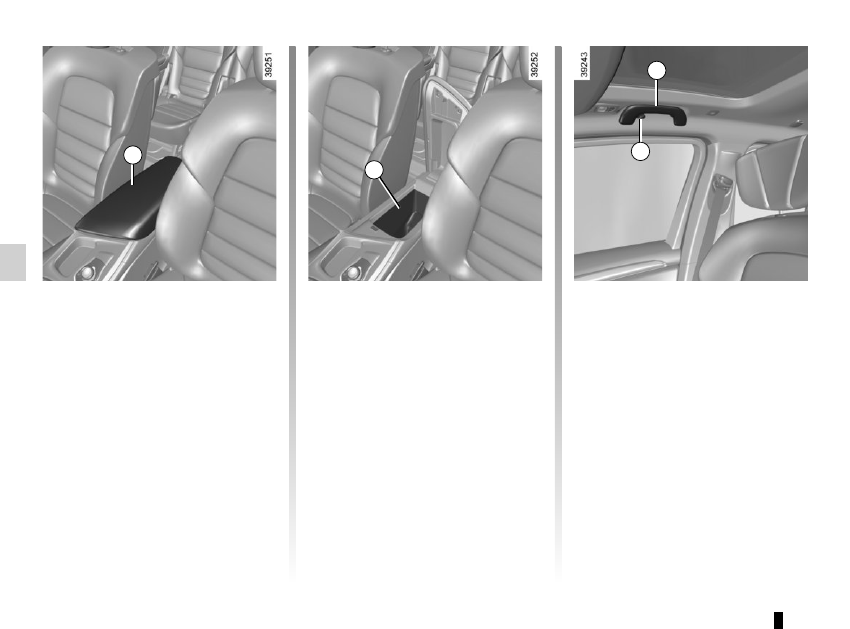

Centre console storage

compartment 14

Lift up the armrest 13.

Grab handle 15

This offers support and can be held

when the vehicle is being driven.
Do not use it for getting into or out of

the vehicle.

Clothes hooks 16

3.27

PASSENGER COMPARTMENT STORAGE/FITTINGS

(4/5

Ensure that no hard, heavy

or pointed objects are

placed in the “open” stor-

age compartments in such

a way that they may fall onto pas-

sengers during sudden turning or

braking.

Storage drawer 18 under the

centre console

Rear door storage

compartment 17

Nothing should be placed

on the floor area in front of

the driver as such objects

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

Front seat storage pockets 19

3.28

PASSENGER COMPARTMENT STORAGE/FITTINGS

(5/5)

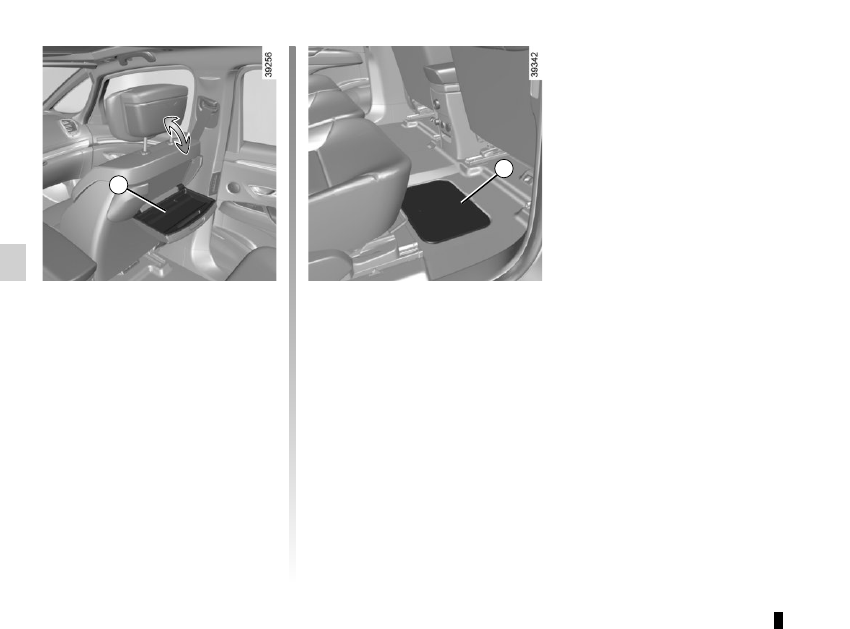

Rear parcel shelf 20

Flap under the feet of the

right rear passenger 21

This location houses the tool kit. Please

refer to the information on “Tools” in

Section 5.

Content .. 11 12 13 14 ..
