Passenger storage

compartment 4

Passenger storage

compartment 5

Pull handle 5 to open it.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(2/4)

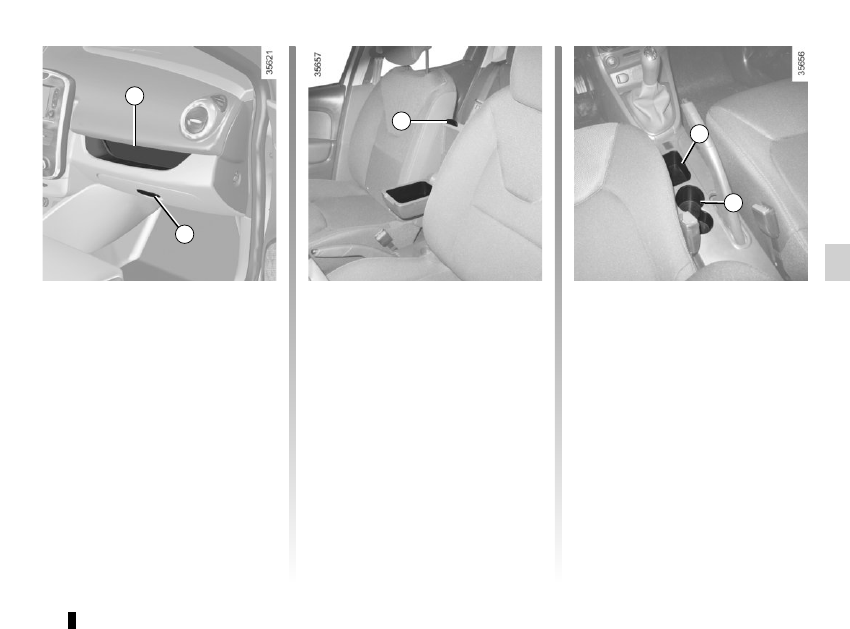

Armrest storage

compartment

With the armrest in its lowered position,

press button 6 and lift armrest cover.

Storage compartment 7

Cup holders 8

This can be used for storing a mobile

ashtray, cup holder, etc.

3.18

PASSENGER COMPARTMENT STORAGE, FITTINGS

(3/4)

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of injury if hot liquid

escapes.

Rear centre console storage

compartment 9

This can be used for storing a mobile

ashtray, cup holder, etc.

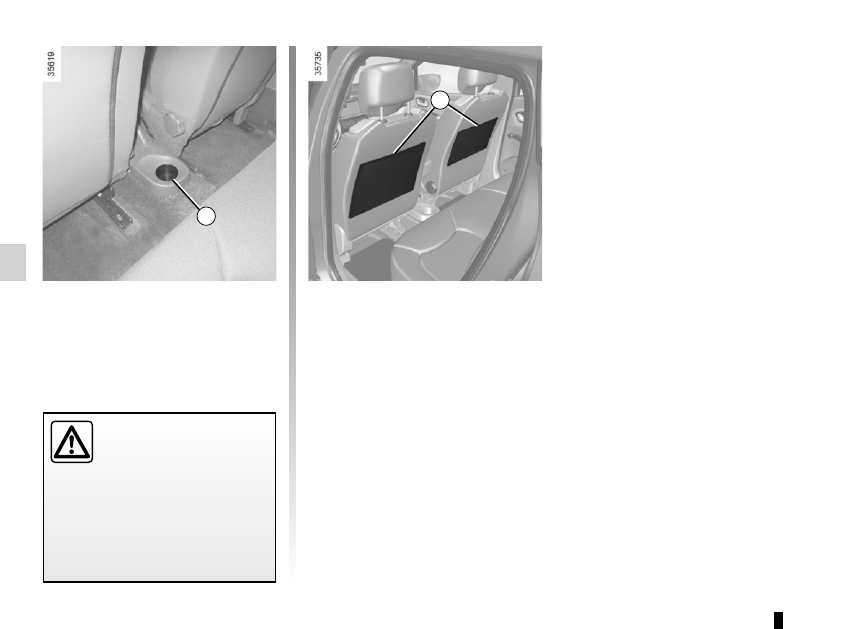

Front seat storage pockets 10

3.19

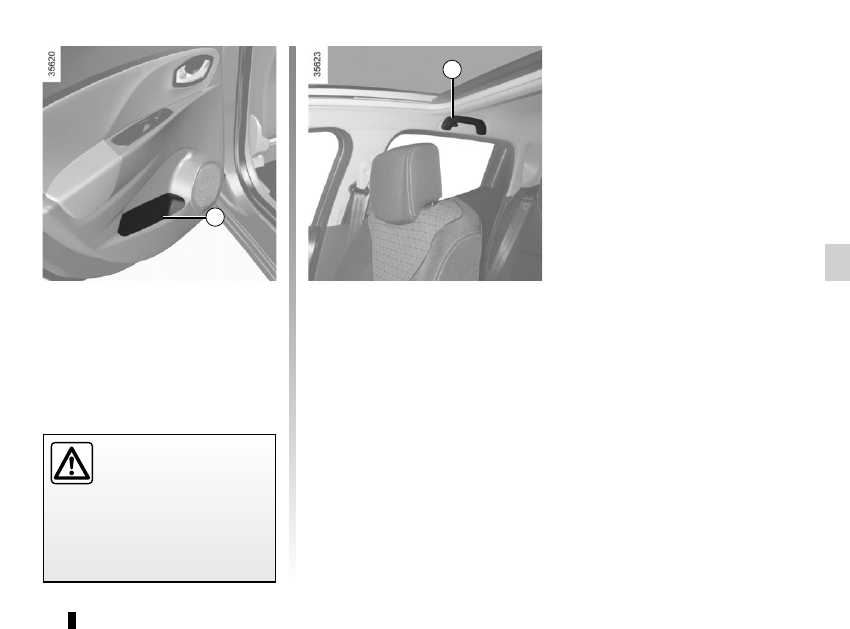

Rear door storage

compartment 11

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

Grab handle 12

This offers support and can be held

when the vehicle is being driven. Do

not use it for getting into or out of the

vehicle.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(4/4)

3.20

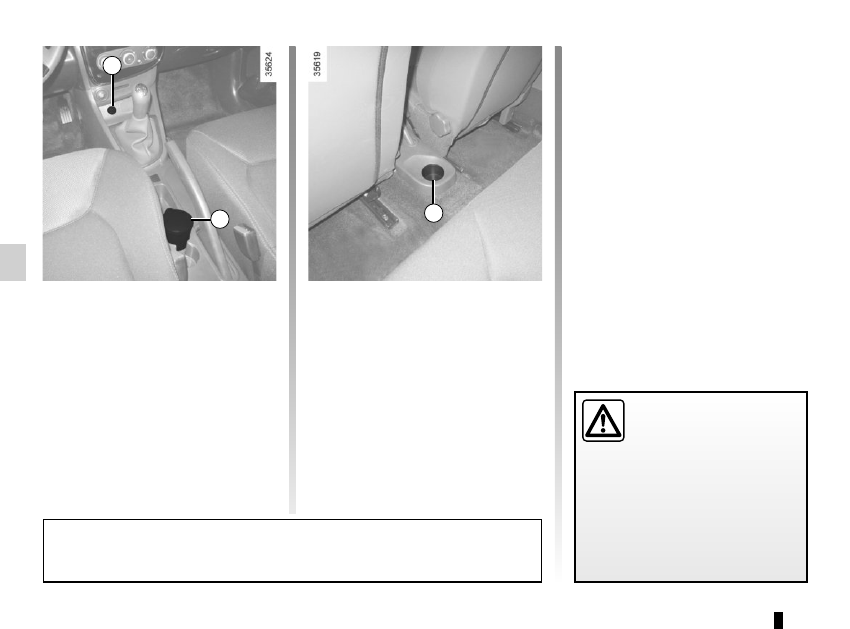

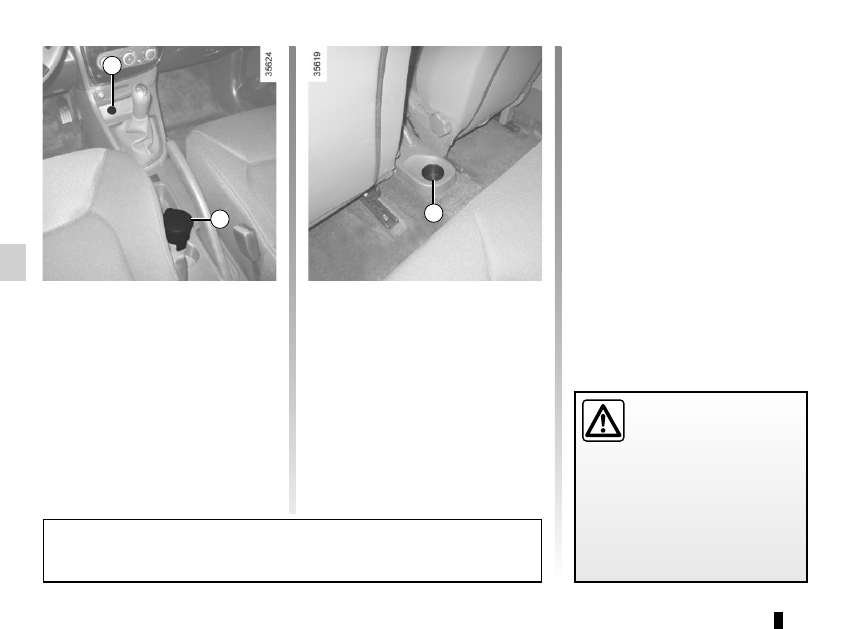

Accessories socket 1

It is provided for connecting accessories

approved by our Technical Department.

Cigarette lighter 1

With the ignition on, push in the ciga-

rette lighter 1. It will spring back with a

click when it is ready. Pull it out to use.
After use, replace it without pushing it

all the way in.

Ashtray

It can be housed in either position 2

or 3.

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET

Connect accessories with

a maximum power of

120 watts (12 V) only.

When several accessory

sockets are used at the same time,

the total power of the connected

accessories must not exceed

180 watts.

Fire hazard.

If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-

tained from an authorised dealer.

3.21

The headrest is a safety

component; check that it is

fitted and in the correct po-

sition. The top of the head-

rest should be as close as possible

to the top of the head.

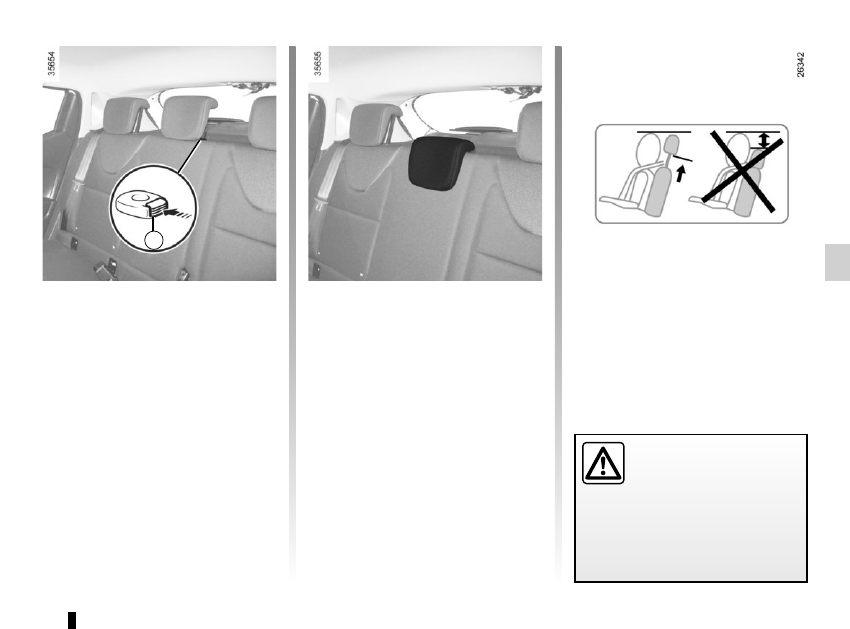

To raise the headrest

Raise the headrest as far as it will go,

then press button A and remove the

headrest.

To refit the headrest

Enter the rods in their housing and

push down the headrest until it locks to

use it in the high position. Check that it

is correctly locked.

Position for use

Raise the headrest as far as possible to

use it in the high position. Check that it

is correctly locked.

Storage position

Press button A and lower the headrest

completely.
When the headrest is set at the

lowest position, this is for storage

only. It should not be in this position

when a seat is occupied.

REAR HEAD RESTS

3.22

To fold down the seatback
Ensure that the front seats are far

enough forward.
Lower the headrests fully.
Place the seat belts in their guides A.
Press button 1 and lower the seat-

back B.

Before moving the seatback, put

the seat belt in belt guide A to avoid

damaging it.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

The configuration of the two-seat

bench with the small seatback B

pulled down, does not allow the

central seat to be used as it would

be impossible to buckle the seat belt

(belt buckles inaccessible).

REAR BENCH SEAT: functions

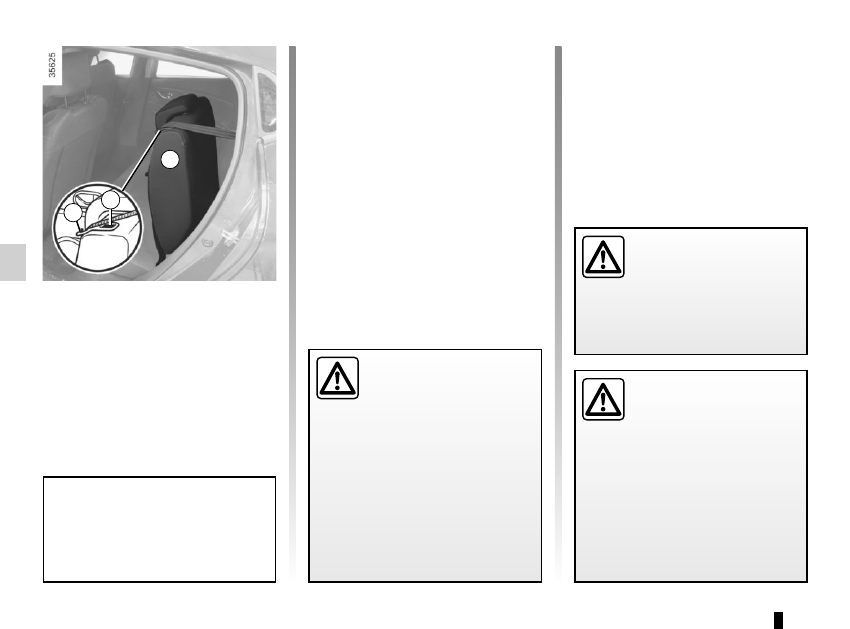

To replace the seatback, proceed in

the reverse order to removal.
Refit the seatback and click it back into

place.

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted,

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

3.23

Do not place any objects,

especially heavy or hard

objects, on the parcel shelf.
These may pose a risk to

the vehicle occupants if the driver

has to brake suddenly or if the vehi-

cle is involved in an accident.

Opening the doors manually

from the inside

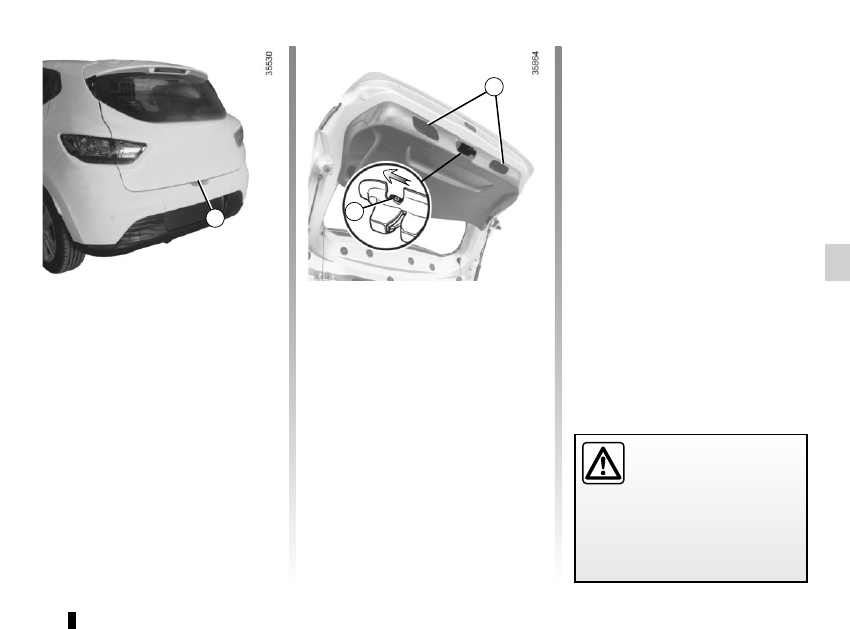

If it is impossible to unlock the tailgate,

it can be done manually from inside:
– access the luggage compartment by

tilting the rear bench seatback(s),

– insert a pencil or similar object in

recess 3 and slide the unit as shown

in the illustration;

– push the tailgate to open it.

BOOT

To open

Press button 1 and lift the tailgate.

To close

Lower the tailgate using the handles 2

inside the tailgate to help you.

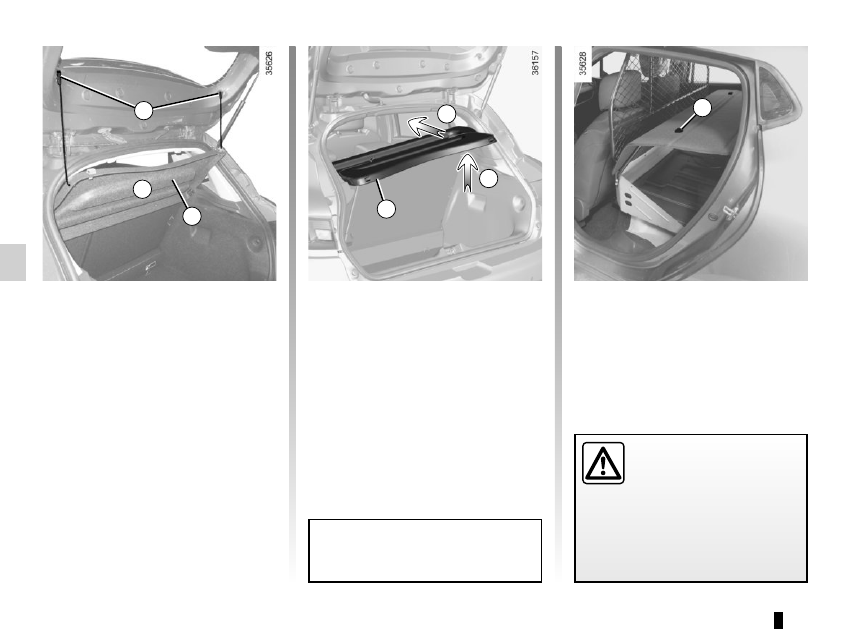

3.24

Utility version

Unclip mountings 3 on either side of the

parcel shelf, then remove it via the boot.
To refit it, proceed in the reverse order

to removal.

Do not place any objects,

especially heavy or solid

objects on the luggage

compartment cover. These

may pose a risk to the vehicle occu-

pants if the driver has to brake sud-

denly or if the vehicle is involved in

an accident.

REAR PARCEL SHELF

Removal

– Lower the rear headrests;
– unhook the two cords 1 from the boot

door;

– lift the parcel shelf 2 to half height in

order to unclip it (movement A);

Maximum weight on rear parcel

shelf: 25 kg, evenly distributed.

– push the shelf in (B movement) and

turn it;

– pull the shelf towards you.
To refit, proceed in the reverse order to

removal.

3.25

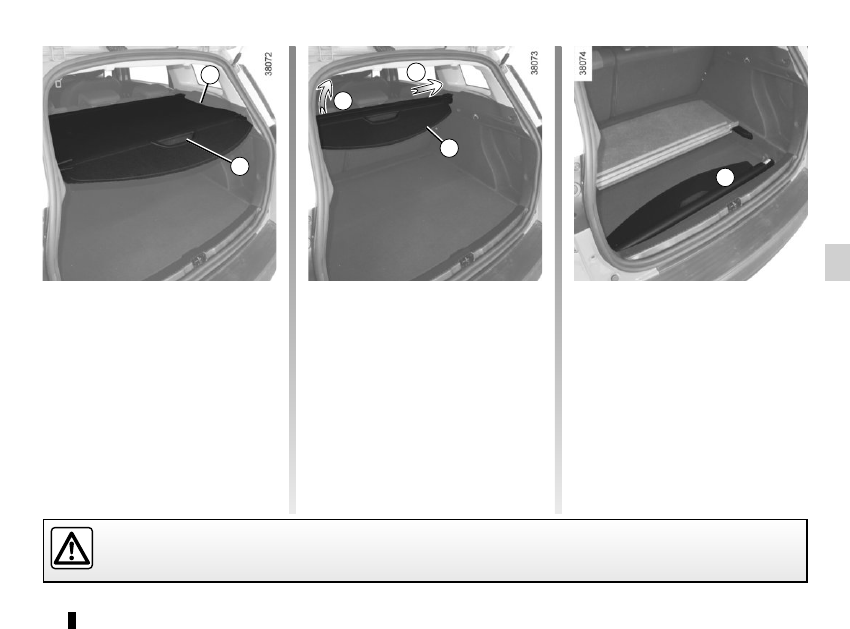

To remove the flexible

section of the luggage

compartment cover 1

Pull handle 2 gently to release the pins

from their mounting points located on

each side of the luggage boot.
Guide the luggage cover onto the roller.

LUGGAGE COMPARTMENT COVER: estate version

Removing the luggage

compartment cover

Using the handle 2, push the luggage

cover to the right (movement A) and lift

the left-hand side (movement B) in the

inertia reel.
To refit the luggage cover, insert the

right-hand side, then push it to the right

(movement A) and lower the left-hand

side of the inertia reel into its housing.

Luggage compartment cover

storage 1

Lift the mobile floor (please refer to the

information on “Boot storage space and

fittings” in section 3).
Store the luggage compartment cover

by inserting it, one side at a time.
Replace the mobile floor.

Do not place any objects, especially heavy or solid objects on the luggage compartment cover. These may pose a risk

to the vehicle occupants if the driver has to brake suddenly or if the vehicle is involved in an accident.

3.26

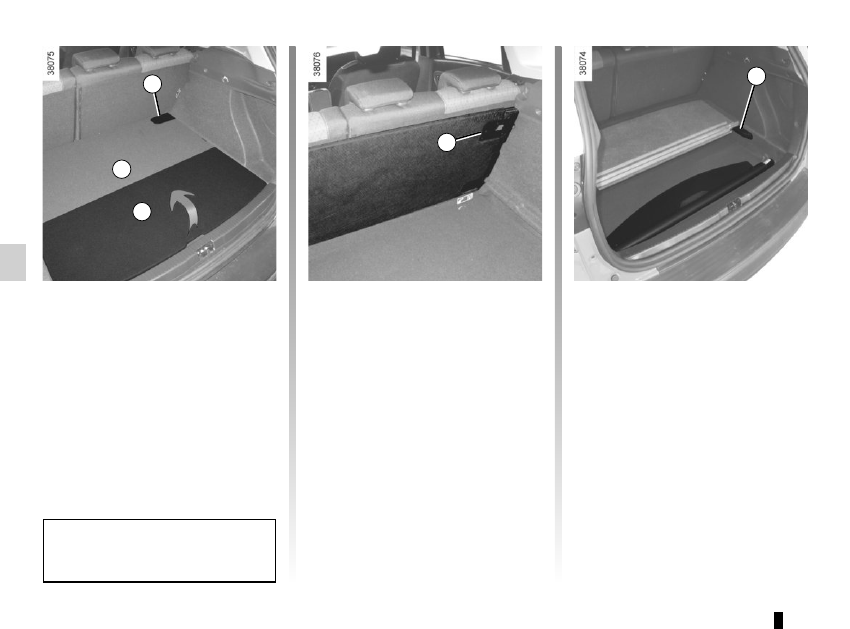

Mobile floor

When fitted to the vehicle, it can be

used to make loading easier.
Note: if you need to access the ISOFIX

ring and/or the net ring at the bottom of

the boot, open flap 3.

BOOT ARRANGEMENTS

Maximum weight for the mobile

floor: 100 kg evenly distributed.

Movable floor storage
– Lower section 1 onto section 2;
– lift the assembly and position it

against the back of the rear bench

seat;

– push the catch 4 to lock the mobile

floor in the folded position.

Removing the mobile floor
– Lower section 1 onto section 2;
– remove the assembly.

Repositioning the mobile floor
Position it in the boot, using the 5 run-

ners provided.

3.27

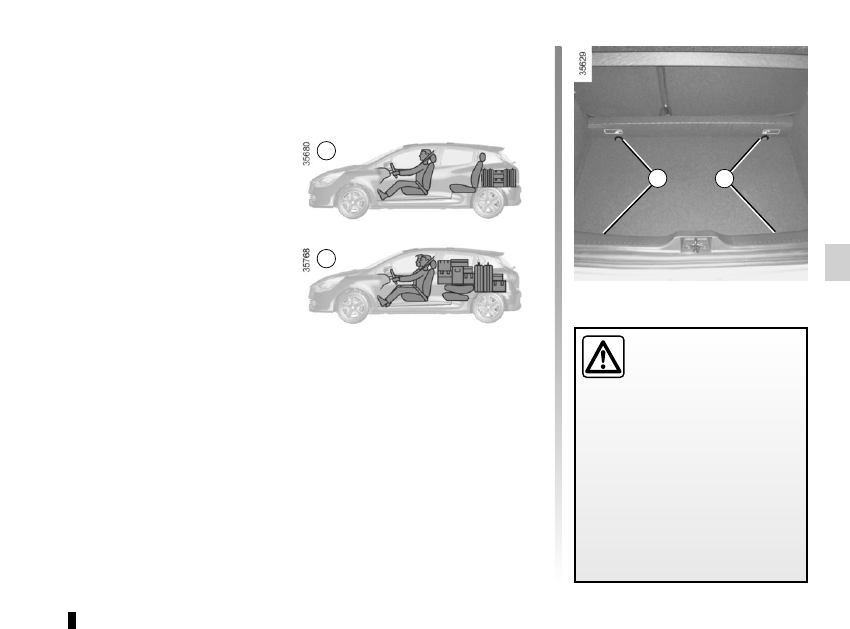

Always position the heavi-

est items directly on the

floor. Use the lashing

points 1 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such a

way that no items will be thrown for-

ward and strike the occupants if the

driver has to brake suddenly. Fasten

the rear seat belts, even if the seats

are not occupied.

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT

Always position the objects transported

so that the largest surface is against:

– The rear bench seatback for normal

loads (example A).

– The front seatbacks with the rear

seatbacks folded down, as is the case

for maximum loads (example B).

If you have to place objects on the folded

seatback, it is necessary that you lower

the headrests before folding the seat-

back so that it can be folded as flat as

possible against the seat.

3.28

Permissible nose weight, maxi-

mum permissible towing weight,

braked and unbraked: refer to

the information on “Weights” in

Section 6.
Choice and fitting of towing

equipment
Maximum weight of towing equip-

ment:

– 18 kg (5-door version);

– 18 kg (Utility version);

– 21.5 kg (Estate version).
For fitting and conditions of use,

refer to the equipment’s fitting ins-

tructions.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

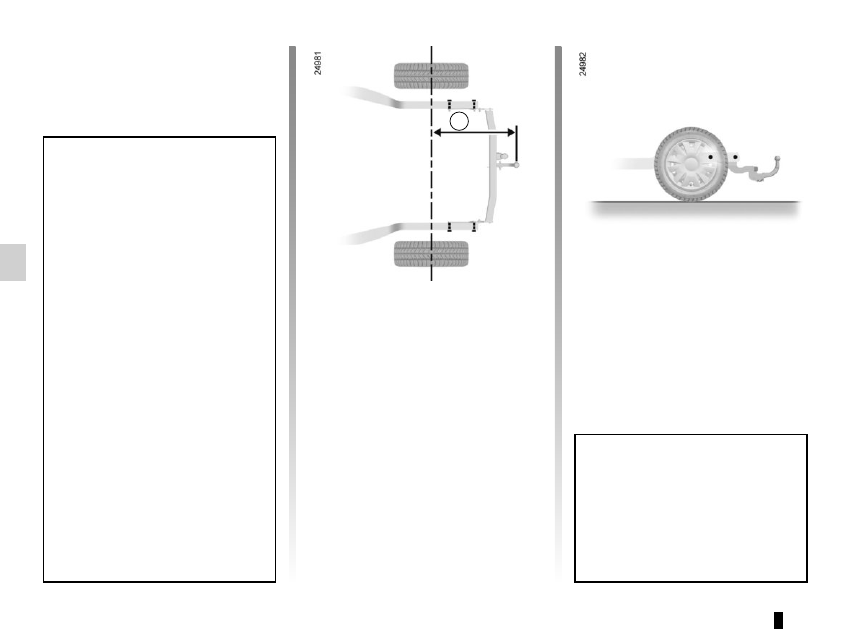

TRANSPORTING OBJECTS towbar

A: 697 mm (5-door version).
A: 697 mm (Utility version).
A: 948 mm (Estate version).

If the towbar ball obscures the regis-

tration plate or the rear fog lights, it

should be removed when not in use.
In all cases, comply with local leg-

islation.

3.29

TRANSPORTING OBJECTS: Luggage net

(1/2)

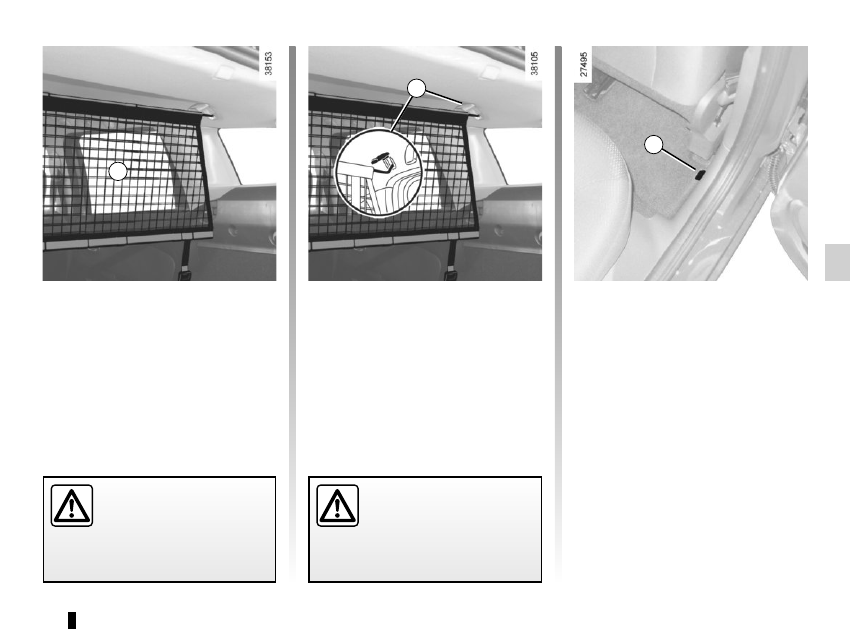

Luggage net A

On equipped vehicles, this can be used

when transporting animals or luggage,

to separate them from the passenger

section.
It can be positioned:
– behind the front seats;
– behind the rear bench seat.

Fitting the luggage net

behind the front seats

Inside the vehicle on each side:
– lift the cover 1 to access the upper

mounting ring of the net;

– fix the net strap hook onto the ring;

– to access the lower net ring 2 the

first time you use it, please contact

an authorised dealer;

– once you have accessed the lower

ring attachment, attach the hook of

the net strap to the ring 2;

– adjust the net strap so that it is taut.

The luggage net is de-

signed to retain a maximum

weight of 10 kg.
Risk of injury.

Do not install the luggage

net in this position when a

passenger is occupying a

rear seat

3.30

TRANSPORTING OBJECTS: Luggage net

(2/2)

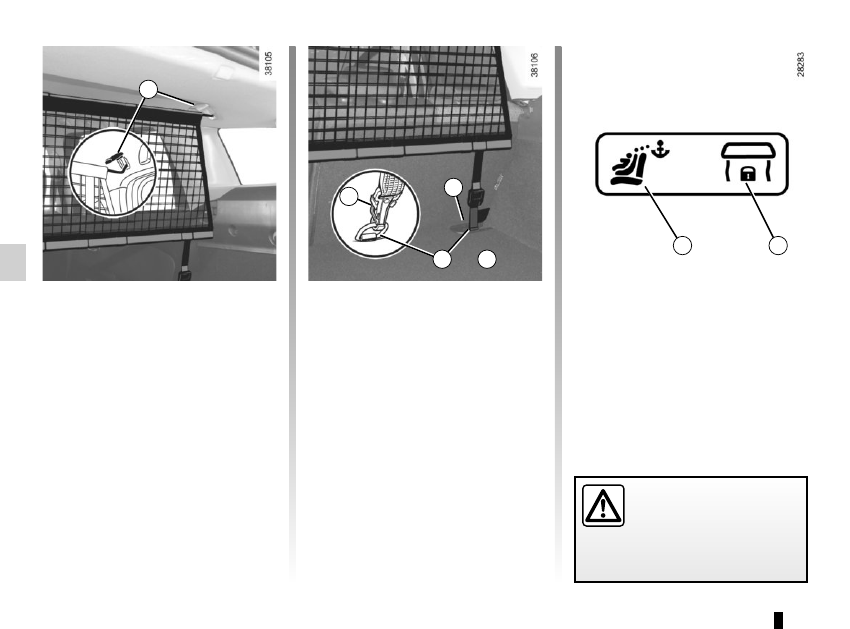

Fitting the luggage net

behind the rear bench seat

Inside the vehicle on each side:
– lift the cover 3 to access the upper

mounting ring for the net;

– fix the net strap hook onto the ring;

– in the boot, it is essential to attach

the hook of the lower mounting strap

of the net to the anchoring hook 5

identified by the marking 7 (if fitted

to a mobile floor B, open flap 4 to

access the anchoring hook 5);

– adjust the net strap C so that it is

taut.

Marking

A marking on the boot floor indicates

the location of the seat rings ISOFIX 6

and luggage net 7.
A marking on the mobile floor indicates

the location of the access flaps for the

seat strap ISOFIX 6 and the luggage

net 7.

The luggage net must not

be used to restrain or hold

objects.
Risk of injury.

3.31

For information on the range of

equipment adapted to your vehi-

cle, we advise you to consult an ap-

proved Dealer.
Refer to the manufacturer’s instruc-

tions for information on how to fit

and use the roof rack bar.
Please keep these instructions with

the rest of the vehicle documenta-

tion.
Maximum permissible load on

roof rack: 80 kg (including the car-

rying device).

Precautions during use

Handling the tailgate
Before handling the tailgate, check the

objects and/or accessories (bike rack,

roof box, etc.) fitted to the roof bars:

these must be correctly positioned and

secured, so as not to hinder the opera-

tion of the tailgate.

ROOF BARS/SPOILER

Spoiler A

Accessing the mounting

points

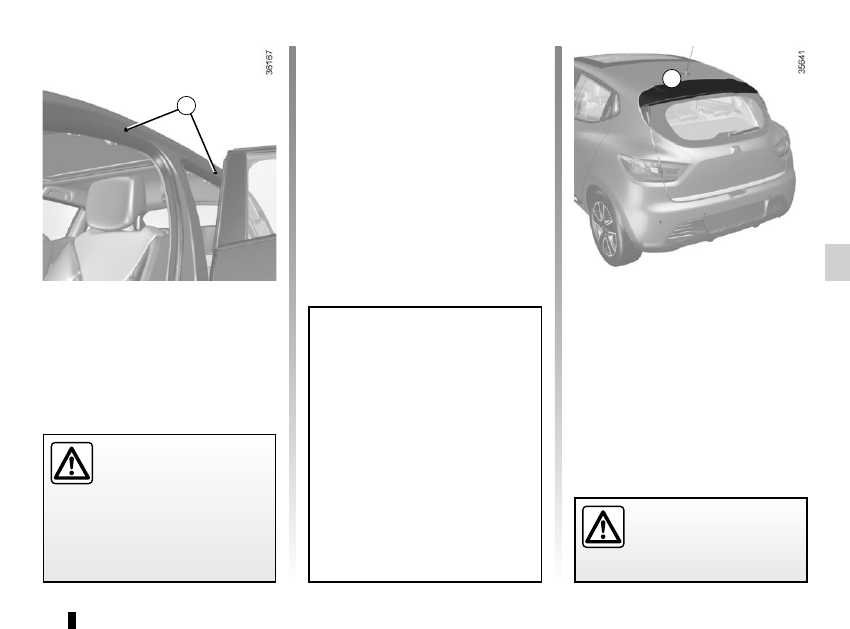

Open the doors to access the mount-

ing points 1.

If original roof bars, ap-

proved by our Technical

Department, are supplied

with screws, only use these

screws for attaching the roof bars to

the vehicle.

It is forbidden to fix objects

and/or accessories (bike

racks, etc.) to the spoiler.

3.32

The presence and location of this equip-

ment depends on the vehicle version.

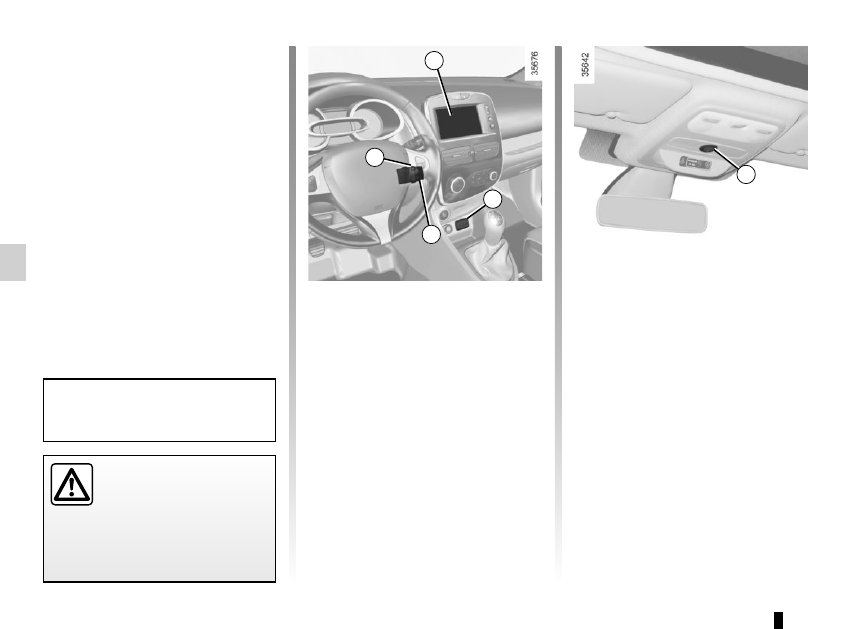

1 Multimedia touchscreen;

2 Multimedia sockets;

3 Steering column control;

4 Voice commands;

5 Microphone.

Using the telephone
We remind you of the need

to conform to the legislation

in force concerning the use

of such equipment.

MULTIMEDIA EQUIPMENT

Refer to the equipment instructions

for information on how to operate

this equipment.

Renault Clio Sport Tourer (2016 year). Instruction - part 10
