The engine hood connector is dismounted as follows:

- easy pull the blocking clip of the wiring connector and then disconnect the engine hood contact;
- press the blocking clips of the lateral sides of the contact;
- push upward the contact in order to remove it from its place.

Mount the new contact in its support by downward pushing, until a “click” is heard, confirming

the correct connecting.

Connect the wires connector to the contact of the hood.
Check the proper operation of the hood contact and of the anti  intrusion system.

DISMOUNTING – REMOUNTING OF THE  HOOD CONTACT

82B

HORN - ENGINE IMMOBILISER

82B -  54

NOTE
If the dismounting / remounting of the front doors or hatchback contacts,

check after that, the correct operation of the anti intrusion system.

LEFT SIDE VOLUME SENSOR REPLACEMENT

If sensor replacement is required, proceed as follows:

- take out carefully the sensor from its support by detaching from clips;
- dismount the attachment screw of the sensor support on the front left pillar upholstery.
- dismount the three attachment screws of the upper upholstery of the front left pillar and

carefully remove the upholstery;

- carefully disconnect the sensor connector from the vehicle’s wiring;
- mount the new volume sensor and its support performing the above mentioned operations

in reverse order, and then checking the proper operation of the anti intrusion system.

ATTENTION
Be sure that the volume sensor mounted on the left side has marked the

letter “T” on the red colour collar.
Mount the volume sensor in such way, to be oriented towards the back of the vehicle,
parallel with  the side windows.

RIGHT SIDE VOLUME SENSOR REPLACEMENT

If sensor replacement is required, proceed as follows:

- take out carefully the sensor from its support by detaching from clips;
- dismount the attachment screw of the sensor support on the front right pillar upholstery.
- dismount the three attachment screws of the upper upholstery of the front right pillar and

carefully remove the upholstery;

- carefully disconnect the sensor connector from the vehicle’s wiring;
- mount the new volume sensor and its support performing the above mentioned operations

in reverse order, and then checking the proper operation of the anti intrusion system.

ATTENTION
Be sure that the volume sensor mounted on the right side has marked the letter

“R” on the white colour collar.

Mount the volume sensor in such way, to be oriented towards the back of the vehicle,

parallel with  the side windows.

VOLUME SENSOR DISMOUNTING – REMOUNTING

83

INSTRUMENT PANEL

INSTRUMENT PANEL ( until 01.06.2001)

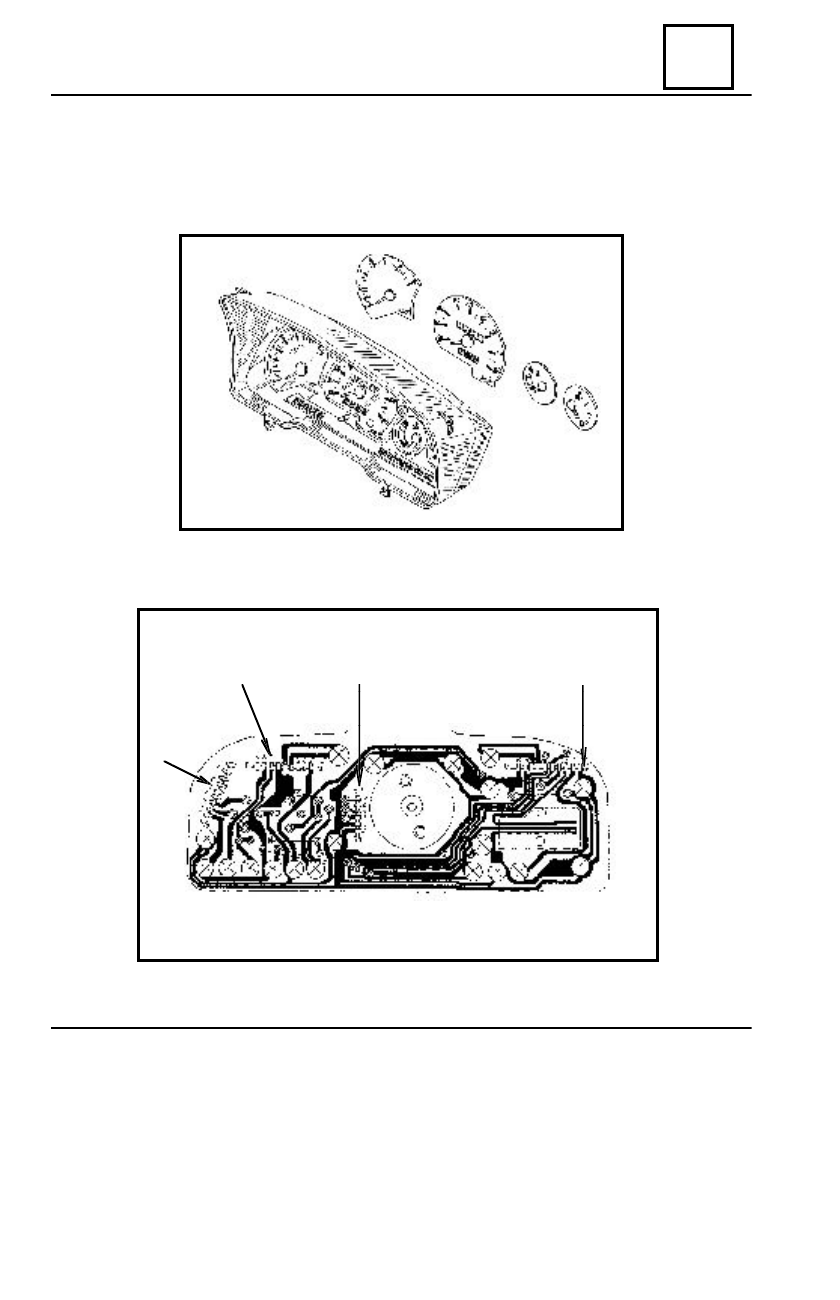

A . INSTRUMENT PANEL – CONNECTORS DISPOSAL

                                                 ( until 01.06.2001)

83-1

A

C

B

D

83

INSTRUMENT PANEL

CONNECTOR C

1. Instrument panel lighting
2. Ground
3. Anti starting  indicator
4. Supply (+ IC)
5. Free
6. Injection failure indicator

CONNECTOR D

1. Battery charging circuit failure indicator
2. Fuel minimum level warning
3. Free
4. Free
5. Free
6. Free
7. Free
8. Free

83-2

The correspondence between the positions from A,B,C,D connectors of the instrument panel

and the components of the vehicle electric equipment is the following :

CONNECTOR A

1. Free
2. Rear window defrosting indicator
3. RPM
4. Cooling fluid temperature indicator
5. Oil pressure warning
6. Cooling fluid temperature warning
7. Left turning indicator
8. Left turning indicator
9. Hazard lights indicator

10. Instrument panel ground

CONNECTOR  B

1. High beam indicator
2. Free
3. Free
4. Right turning indicator
5. Right turning indicator
6. Supply ()+DC)- after contact
7. Hand brake, braking system failure warning
8. Brake pads wear indicator
9. Free

CONNECTORS ( until 01.06.2001)
