LOWER INTERNAL ACCESSORIES

57

57 - 2

DASHBOARD

DASHBOARD VISOR

Dismount by frontal withdrawal and detachment.

LOWER DASHBOARD CASING

DISMOUNTING
Disconnect the front wiring connectors from the fuse box fixed by means of four screws on

the door (4) of the lower casing (5) and disconnect the choke cable.

Dismount the screw and the cage nut, which fix the lower casing on the front hood opening

control support.

Loosen the three screws that fix the lower casing on the lower side of the dashboard.

REMOUNTING
Perform in the reverse order the dismounting operations.

DISMOUNTING

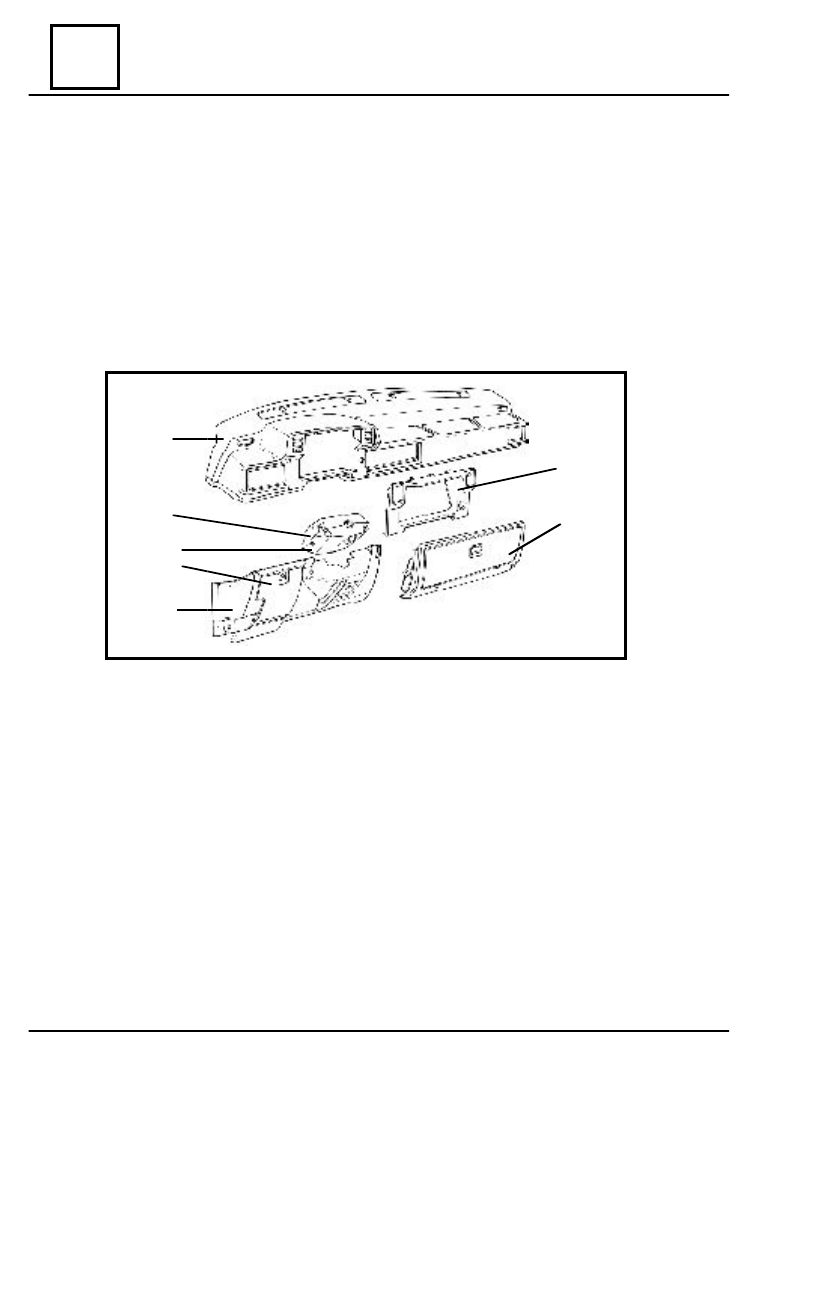

For the dismounting of the dashboard assembly, perform the following operations:
Disconnect the battery.
Dismount:

1. - the steering wheel and the steering wheel half-cases;
2. - dashboard visor;
3. - central console and the climate control assembly;
4. - dashboard lower casing;
5. - documents compartment;
6. - upper dashboard.

1

2

3
4

5

7

6

      LOWER INTERNAL ACCESSORIES

57

57 - 3

DASHBOARD UPPER PART

DISMOUNTING

Loosen from the central and the lateral aerators, the airflow pipes, mounted on the climate

control group.

Disconnect the instrument panel, the counters from the dashboard and detach the  mileage

counter cable from the instrument panel.

Dismount the screws that are attaching the dashboard by means of the lateral attachment

supports, on the climate control box.

Remove the four metal attachment screws of the dashboard on the windscreen lower cross

bar, after previously, the two windscreen defrosting grills, were detached from the dashboard.

Remove the upper part of the dashboard. (1)

DASHBOARD  UPPER PART

LOWER INTERNAL ACCESSORIES

57

57 - 4

DISMOUNTING

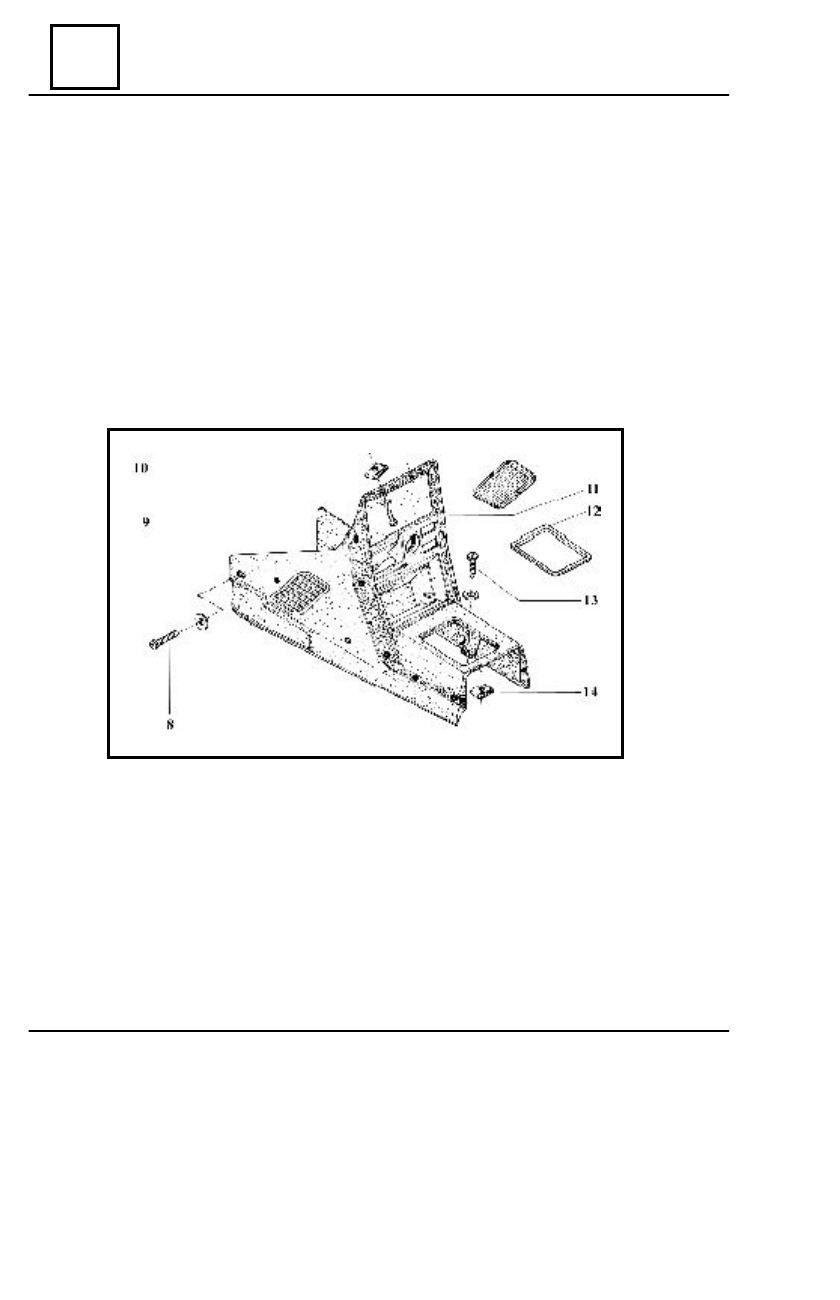

Remove from the central console the attachment frame (13) of the gearbox lever bellows by

detaching it from clips.

Loosen the attachment screws (8) of the central console (12) from the climate control group.
Dismount the two metal screws  (14) and the fast nuts (15) of the central console attachment,

in the lower part, on the control box of the gearbox lever.

Loosen the screws  (9) and the attachment nuts (10) of the central console, on the upper side,

on the dashboard.

Dismount the climate control assembly from the central console.
Disconnect from the electric cigarette lighter, the wires from the dashboard wiring.
Disconnect the radio equipment.
Remove the central console.

REMOUNTING

Perform in the reverse order the dismounting operations, when mounting the central console,

engage the gearbox lever in different gears.

CENTRAL CONSOLE

      LOWER INTERNAL ACCESSORIES

57

57 - 5

DOCUMENTS COMPARTMENT

57

DISMOUNTING

Dismount the attachment screw of the documents compartment (7) on the right support of the

dashboard upper part, the two screws and the fast nuts which attach the hood on the dashboard.

Disconnect the supply wires of the documents compartment lighting

REMOUNTING

Perform in the reverse order the dismounting operations.
