Dacia SuperNova (engine E7J). Manual - part 64
30
GENERAL
30 - 19
CHECKING OF THE FRONT AXLE ADJUSTMENT
Case 1:
The symmetry dimension “X” is correct-the value “A” is equaled distributed.
Case 2:
The symmetry dimension “X” is incorrect-read the value “A” on each side, adds it, and
calculate the average value, establishing the value for each side.
Example:
Right side value : A = 16;
Left side value : A = 10;
16 + 10 = 26;
26 : 2 = 13;
Operating the steering rods tie bar, restore the same value for both sides A = 13.
In this position, lock the rotating plates at zero point.
Check in the following sequence:
- camber angle;
- caster angle;
- parallelism;
- ball joint angle.

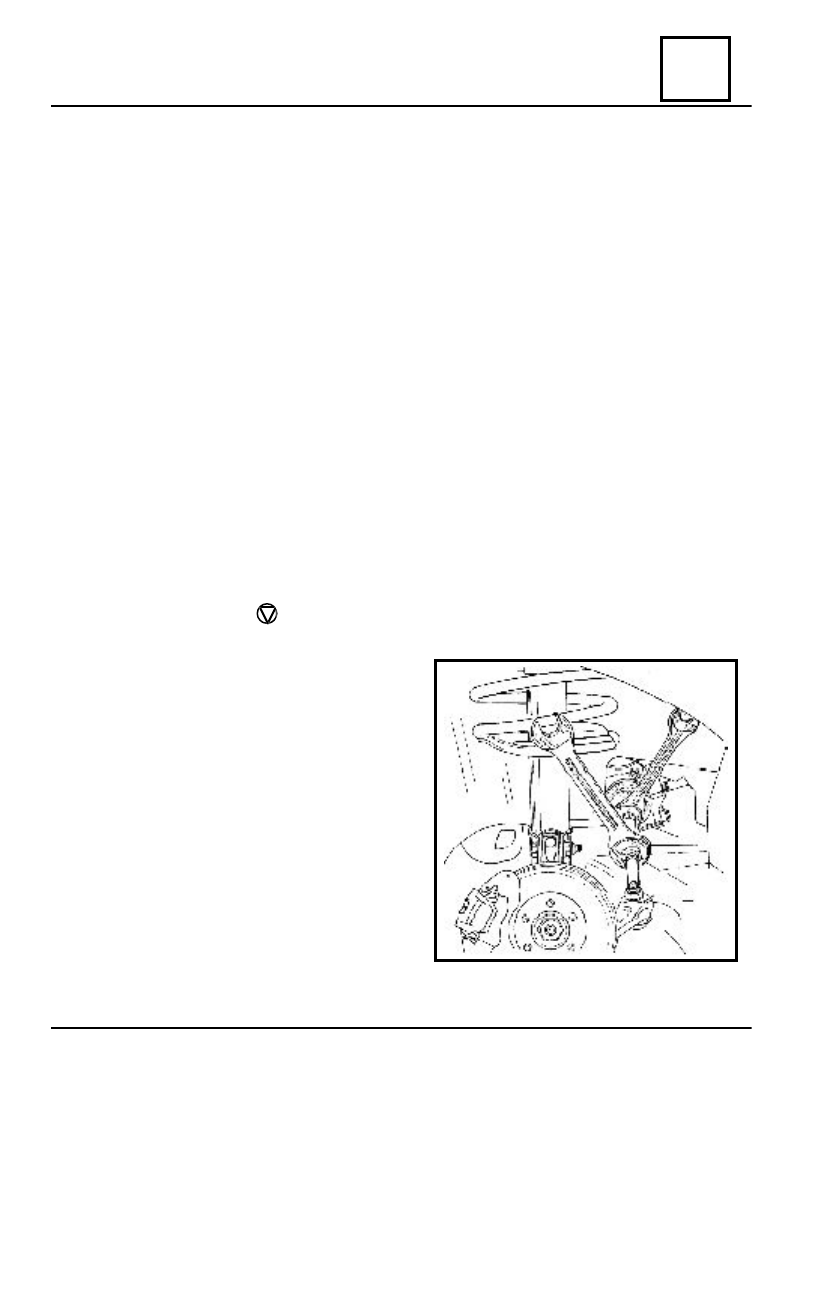

PARALLELISM ADJUSTMENT
Loosen the lock nut (1) maintaining the tie
rod of steering connecting rod (2) in a fixed
position.
Act upon the tie rod of steering connecting
rod taking into account its rotation sense of
in order to obtain the convergence or
divergence and also the fact that one of its
complete rotation leads to an axial
displacement of 1,5 mm.
OBSERVATION
The opening between the wheel’s front
and rear is measured on a F=340 mm.
After obtaining the correct parallelism,
tighten the lock nut at the required moment
of 5 daNm.
