ELECTRIC DIAGRAMS

89 - 11

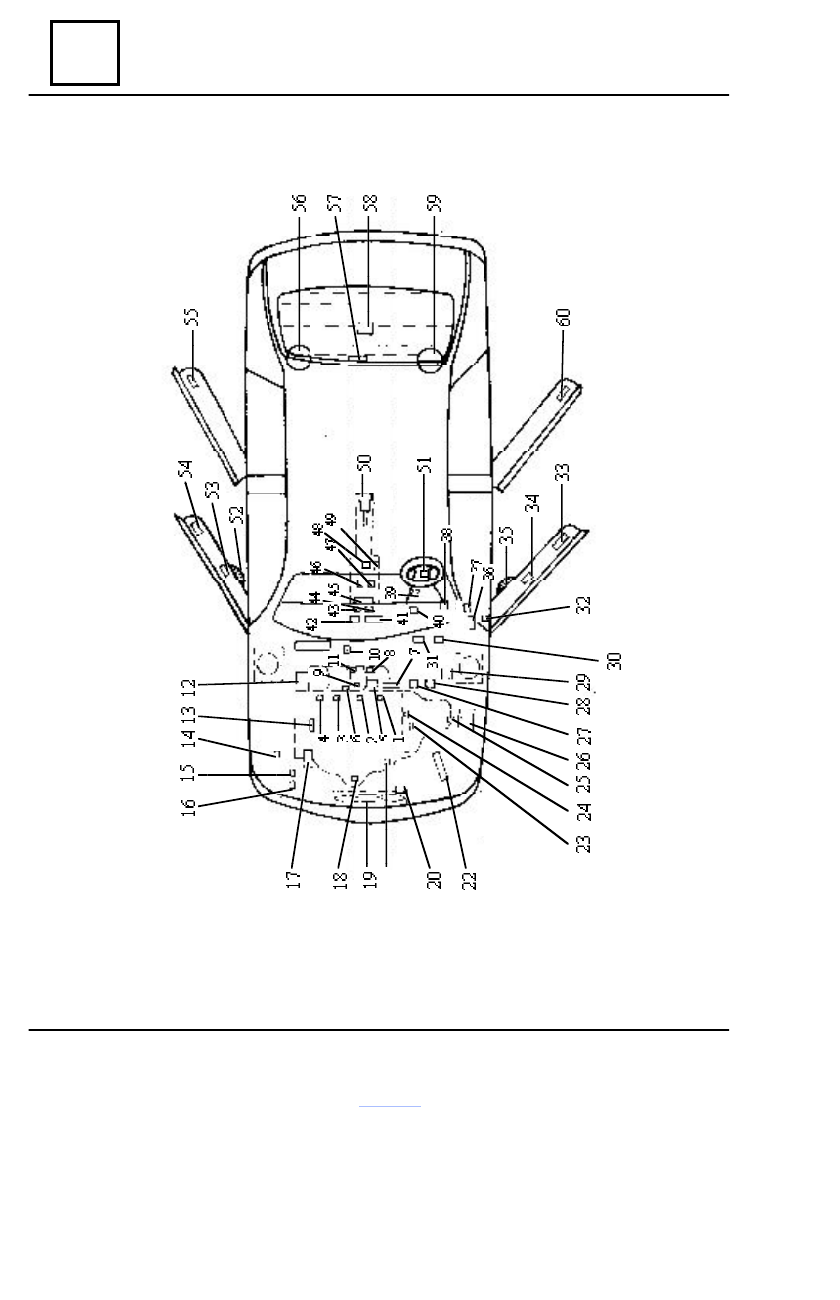

Electric components location on the vehicle

 Injector 1
 Injector 2
 Injector 3
 Injector 4
 Atmospheric pressure sensor
 Detonation sensor
  Starter
 Injection air temperature sensor
 Valve potentiometer
 Upstream oxygen sensor
 Step-by step engine
 Alternator
 Ignition coil
 Canister purging valve
 AC pressure sensor (pressure controller)
 Pressure controller DA
 AC compressor clutch
 Upstream oxygen sensor
 Cooling motor fan and AC
 Cooling engine fan resistance for AC
 Oil pressure contact
 Injection computer
  RPM sensor
 Injection water temperature sensor
 Reverse driving contact
 Fuse box and engine relays
 Vehicle speed transducer
 ICP brake system
 Chock sensor
 Windscreen wiper  motor

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

 Windscreen washing pump
 Left front door contact
 Left front door actuator
 Left electric window actuator
 Left front door  speaker
 Cockpit fuse box
 UCE cockpit
 Rear window defrosting switch
 Anti-starting bushing
  STOP contact
 Radio
 Doors locking switch
 Lighter
 Hazard switch
 Climate control panel
 Electric right window switch
 Electric left window switch
 UCE airbag
 Diagnostic  socket
 Handbrake contact
 Driver airbag
 Right front door  speaker
 Electric right window actuator
 Right front door actuator
 Right rear door actuator
 Right rear  speaker
 STOP-S3 lamp
 Fuel level transmitter and electric pump
 Left rear door  speaker
 Left rear door actuator

31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

No.

DENOMINATION

No.

DENOMINATION

89

ELECTRIC DIAGRAMS

89 - 12

Electric components location on the vehicle

89

ELECTRIC DIAGRAMS

89 - 13

FUNCTIONAL ELECTRIC DIAGRAMS

  Functional electric diagrams

89

ELECTRIC DIAGRAMS

89 - 14

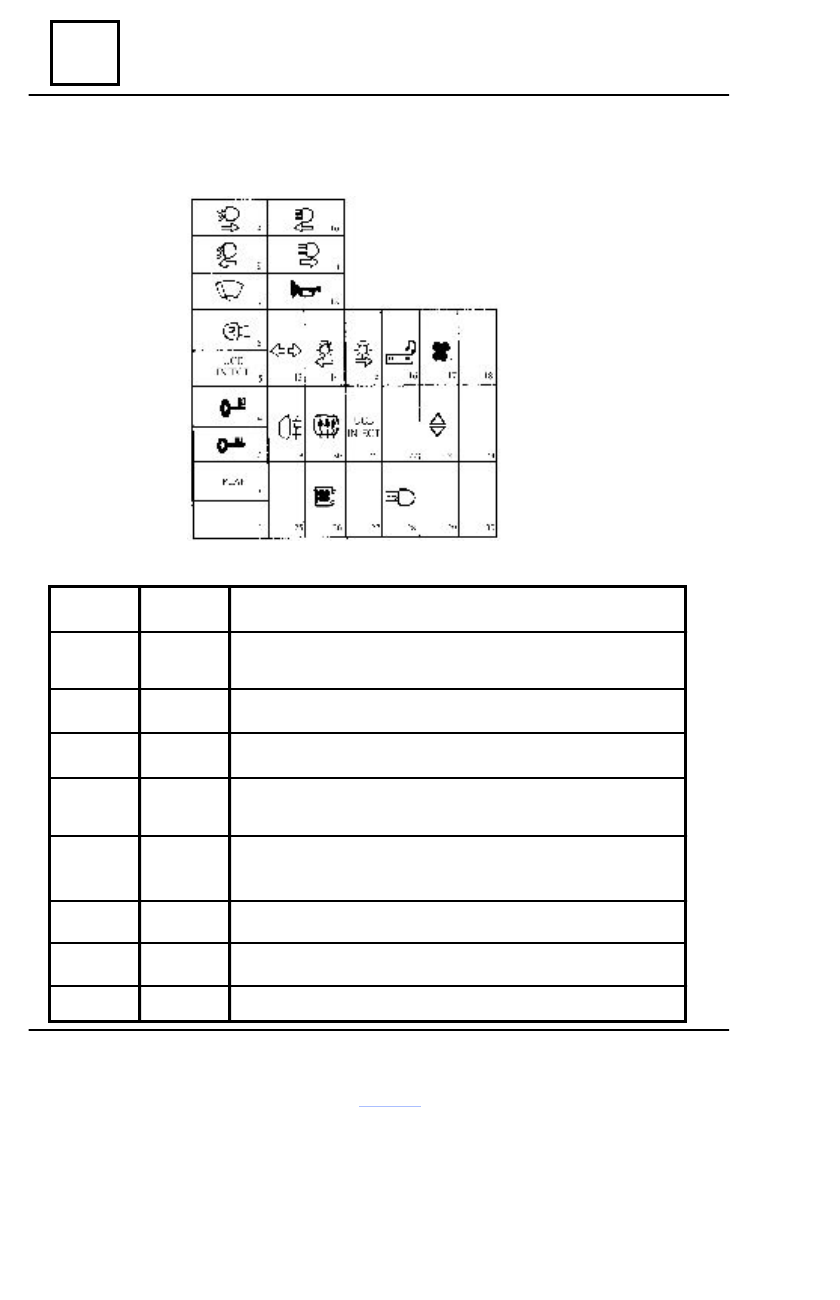

Cockpit fuse box

The cockpit fuse box is placed in driving post left side, being attached on the dashboard lateral

side.

The fuses are protecting the following electric components and circuits:



Instrument panel, UCE cockpit (ceiling lamp), radio (I.C.)

 UCE cockpit,  climate control panel



AC (I.C.)

 U.C.E. cockpit, diagnostic socket, UCE airbag, anti-starting
 bushing (DC)

 U.C.E. injection, fuel pump relay/ ignition coil,



instrument panel

  (DC)

 Windscreen washer-wiper switch (windscreen washing pump),
 reverse driving switch, STOP contact (I DC), air conditioning
 climate control panel.
 Windscreen wiper switch,  UCE cockpit (wiper timer operation),
 windscreen wiper motor (stopping at fix point).

Left meeting lights, instrument panel (indicator)

Right meeting lights

F02

F03

F04

F05

F06

F07

F08

F09



 FUSE

NUMBER

FUSE TYPE

PROTECTED

CIRCUIT

15A

20 A

15A

10 A

10 A

20 A

7,5 A

7,5 A
