Dacia Solenza (engine E7J). Manual - part 160





86

86 - 10

AUTO RADIO

REMOUNTING

Mount the antenna  cable (insert the antenna connector (3) through the space between the

roof and the ceiling attachment support, observing the mounting position existent prior to the
dismounting.

Mount the antenna holder on the roof.
Unstuck the Aplix pills protection and these are to stacked on the roof, attaching the antenna

cable.

Mount the sun visors (see chapter 71).
Attach in clips the roof antenna cable on the covering of the right front upper pillar.
Mount the covering of the right front upper pillar.
Replace and mount the attachment clip of the roof antenna cable on the driving post cross

member, observing its mounting position existent prior to the dismounting.

Mount the upper dashboard (see chapter 57).

Roof antenna

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 1

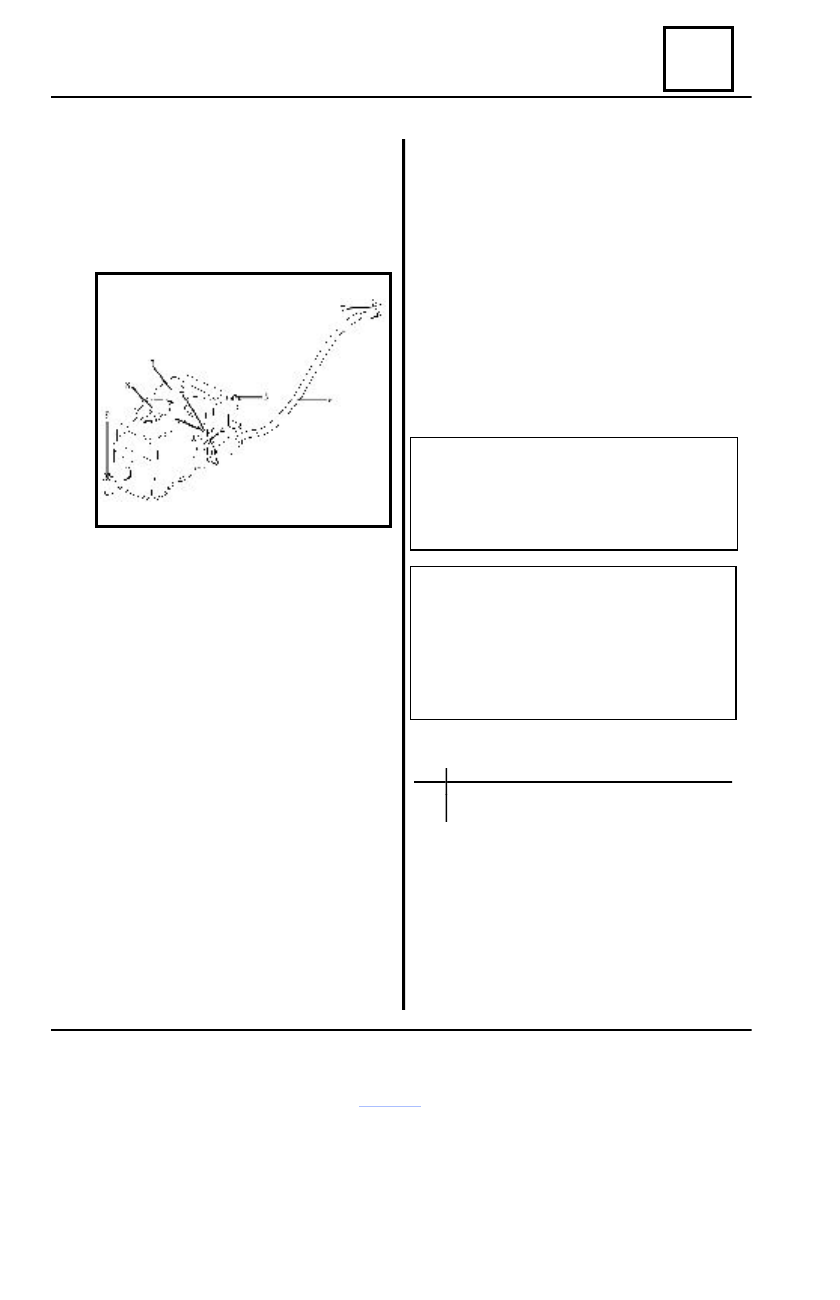

It is located on the left side of the climate

control box, being attached by means of a
screw. It has the windscreen washing electric
pump attached on the washer reservoir.

In the drawing, the following elements may

be identified:

1,2 Pins of the electric pump.
3 Windscreen washing reservoir
4 Electric pump
5 Attachment screw
6 Washing hose
7 Adjustable nozzle
8 Washing reservoir  cap
9 Washing bushing

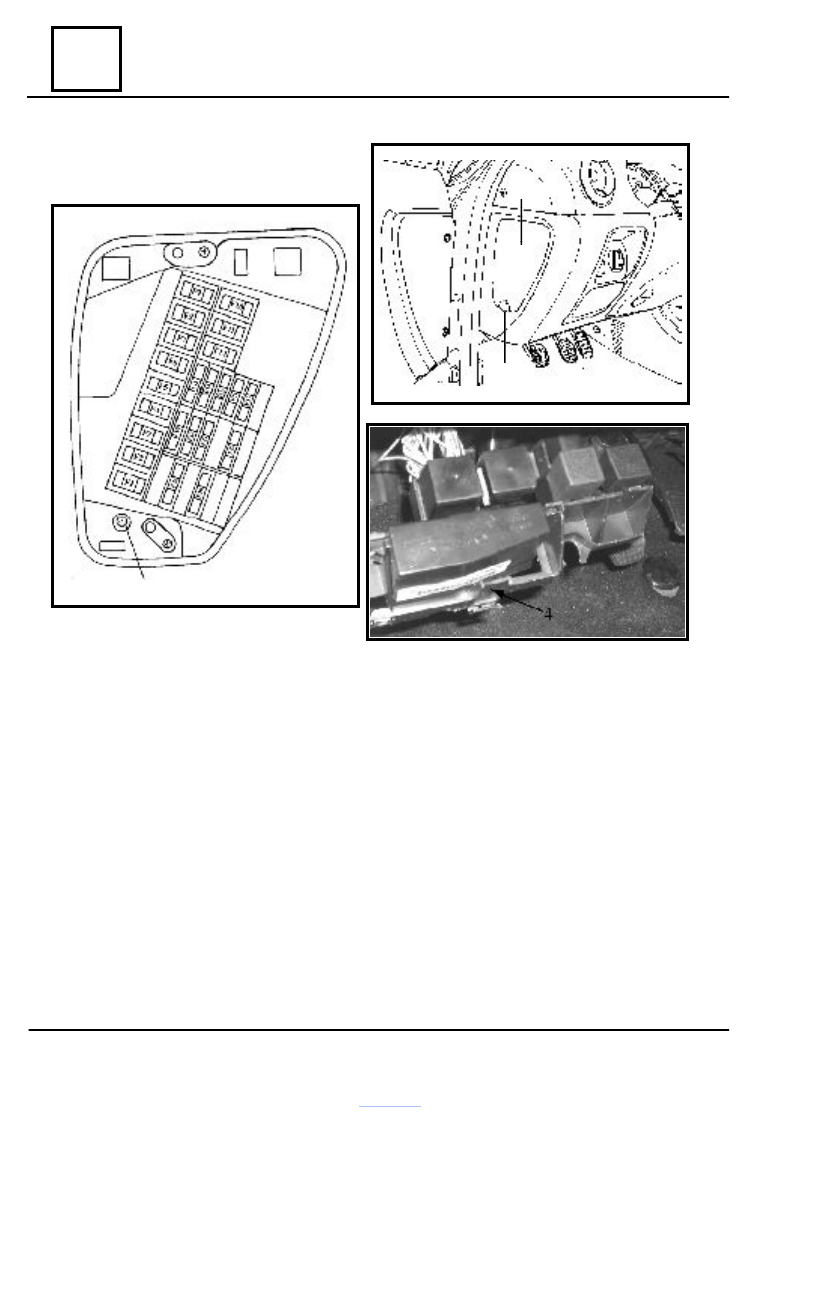

DISMOUNTING

Disconnect the battery (-) terminal.
Dismount the climate control gasket.
Dismount the climate control protector.
Dismount the attachment screw of the

washing reservoir.

Carefully remove the front wiring branch

(in order not to damage the splice), from its
location in the wall between the engine
compartment and the climate control box.

Extract the washing reservoir from the

washing bushing (9).

Disconnect the washing hose connected  to

the electric pump.

Carefully remove  the  washing reservoir from

the climate control compartment and tilt it in such
way that windscreen washing fluid is not flowing
out.

REMOUNTING

Perform the dismounting operations in the

reverse order.

Check the operation of the assembly and

eventually adjust by means of a “needle” the
nozzle in order to correctly wash the  windscreen.

ATTENTION!
Do n ot close front bonnet after

dismounti ng the  windscr een wash ing
assembly, because it may be possible the
front wiring damaging.

REMARK:
The washing fluid level must be between

the minim and maxim levels marks on the
washing reservoir (0.8 l).

The required tightening moment of  the

attachment screw of the windscreen washing
assembly: 2 Nm.

Connector

Pin

Denomination

1

Windscreen washing pump control

2

Mass

Windscreen washing

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 2

DISMOUNTING

Disconnect the battery (-) terminal.

Pull the seat (1) of the access flap (2) to the fuse box located in the cockpit, at the left end of the

dashboard. Carefully remove flap (2).

Dismount the attaching screw (3) of the fuse box on the driving post cross-beam, lift it from seat (4) and

carefully remove it.

REMOUNTING
Attach the assembly on the driving post crossbeam in its seat (4) and mount the screw (3).
Carefully mount back, the access flap (2) to the fuse box.
Reconnect the battery (-) terminal.
Perform functional tests, noticing the correct operation of all consumers supplied by means of the cockpit

relays assembly and UCE decoder.



Relays and UCE decoder assembly from cockpit

2

1

3

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 3

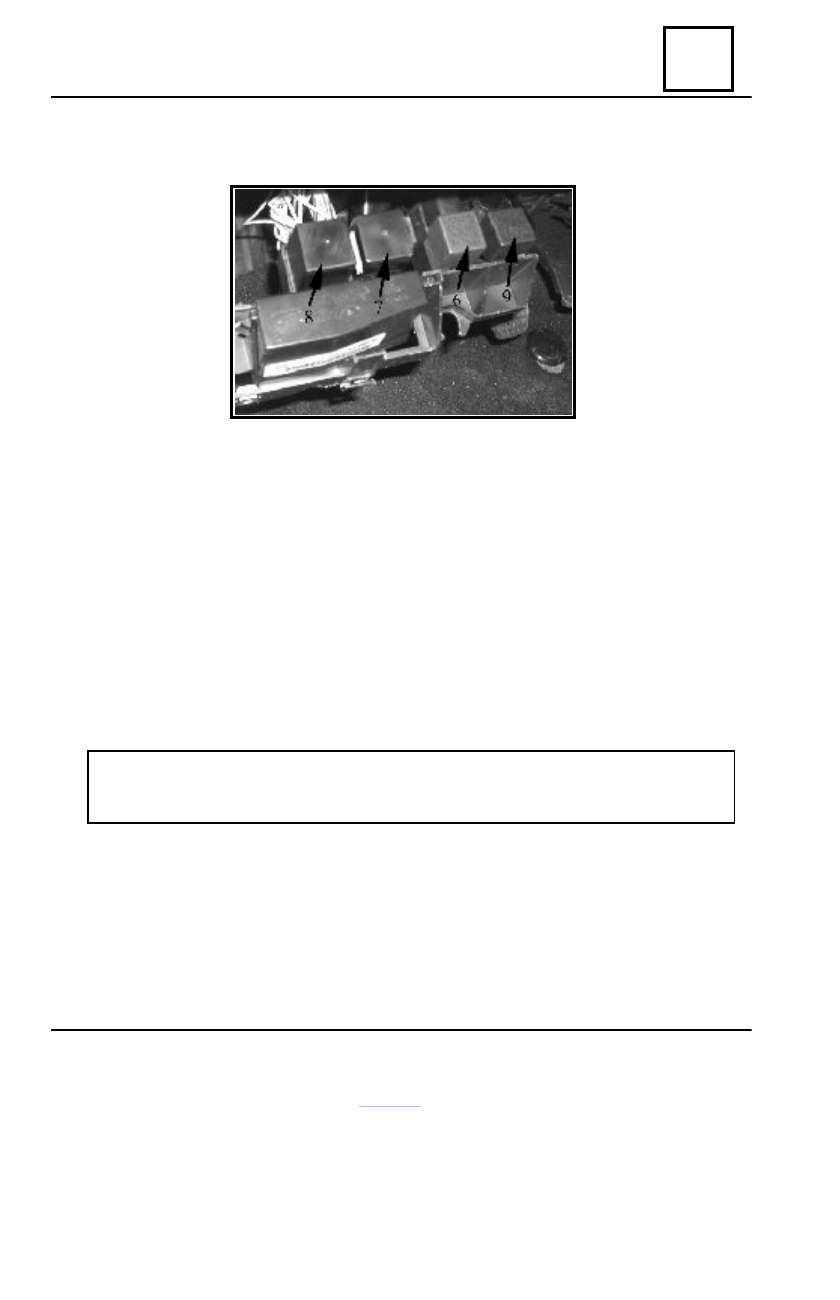

REPLACEMENT OF COCKPIT INTERMEDIARY RELAY

DISMOUNTING

Disconnect the battery (-) terminal.
Dismount the relays assembly and UCE decoder.
Remove the relay: flash (6), timer (7), signaling (8) or speed limit warning (9) from their

connectors. Mark the identification of the relays mounting position.

REMOUNTING

Reconnect the relays observing the mounting position prior to dismounting.
Remount the assembly relays and UCE  decoder.
Reconnect the battery  (-) terminal.

Perform functional tests, noticing the correct operation of all consumers supplied by means of the

cockpit relays assembly and UCE decoder.

OBSERVATION :
After battery reconnecting, re- program the clock, and for vehicles equipped with

programmable radio tape player, re-introduce the radio code.



Relays and UCE decoder assembly from cockpit
