Dacia Solenza (engine E7J). Manual - part 156

84

STEERING - CONNECTOR

84 - 9

Connector

Pin

Denomination

1

Driver window lowering

2

Mass

3

Supply + after contact

4

Supply + parking

5

Driver window lifting

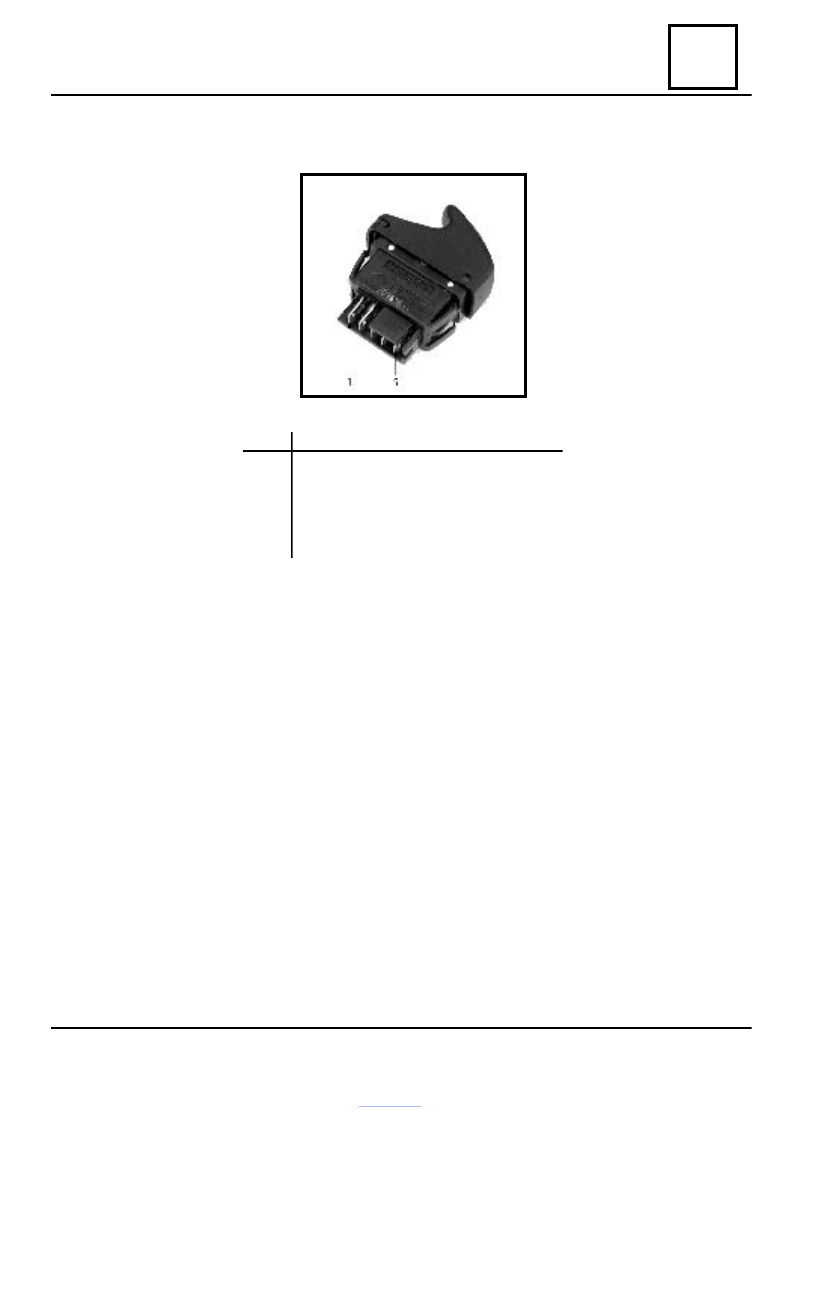

Driver electric window switch

84

STEERING - CONNECTOR

84 - 10

Connector

Pin

Denomination

1

Supply + parking

2

Control + signaling relay

3

Left turning lights control

4

Right turning lights control

5

Mass

6

+ Battery

7

+ Accessories

8

Control + signaling

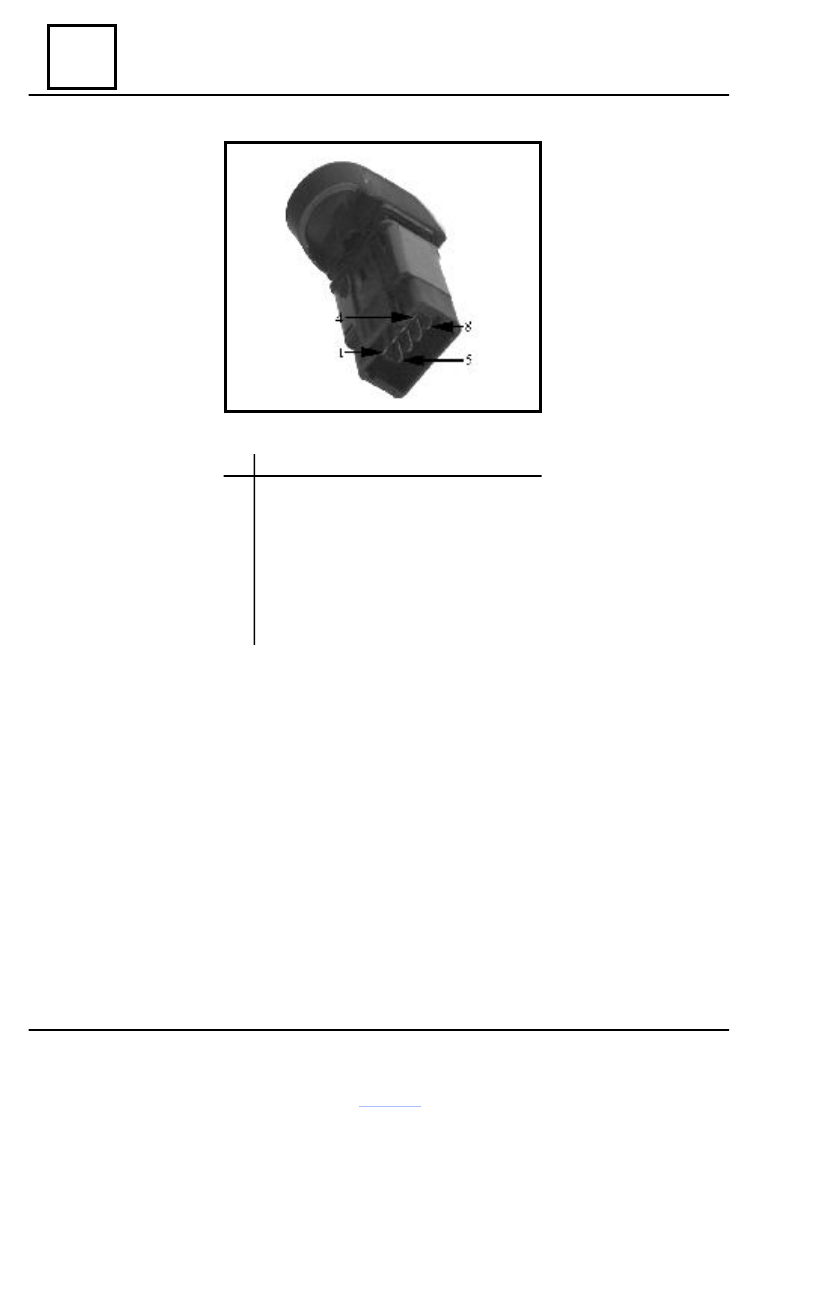

Hazard switch

84

STEERING - CONNECTOR

84 - 11

DISMOUNTING

Disconnect the battery (-) terminal.
Dismount the upper part dashboard.

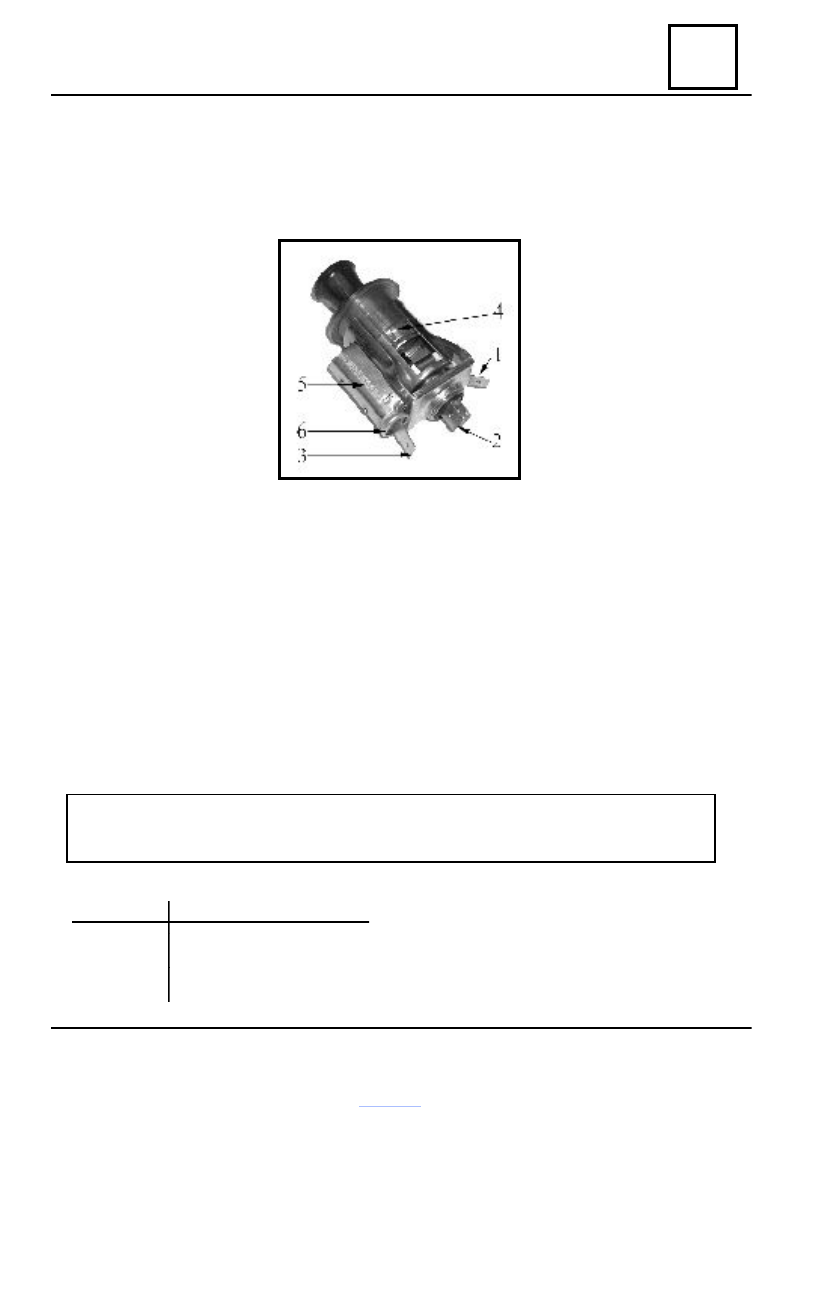

Disconnect connectors (1), (2) and (3). Mark identification of their mounting position.

Holding with one hand the fix part (4) dismount the  lighter attachment clamp (5) on the lower

part dashboard.

Extract the lighter fix body (part).

REMOUNTING

Position the lighter fix body in the dashboard lower part. Holding with one hand the fix body,

mount the lighter  attachment clamp. The required tightening moment is 1.5 Nm applied to the fix
body (4).

Connect the lighter connectors, observing their mounting position existent prior to dismount-

ing.

Mount the upper part dashboard.
Reconnect the battery  (-) terminal.
Check the operation of the electric lighter.

REMARK:
 In order to replace the bulb, dismount the lighter, dismount the bulb holder (6) from

the clamp (5) and replace the bulb.

Connectors

Connector

Denomination

1

Mass

2

Supply + after contact

3

Supply + parking

Electric lighter

85

WINDSCREEN WIPER

85 - 1

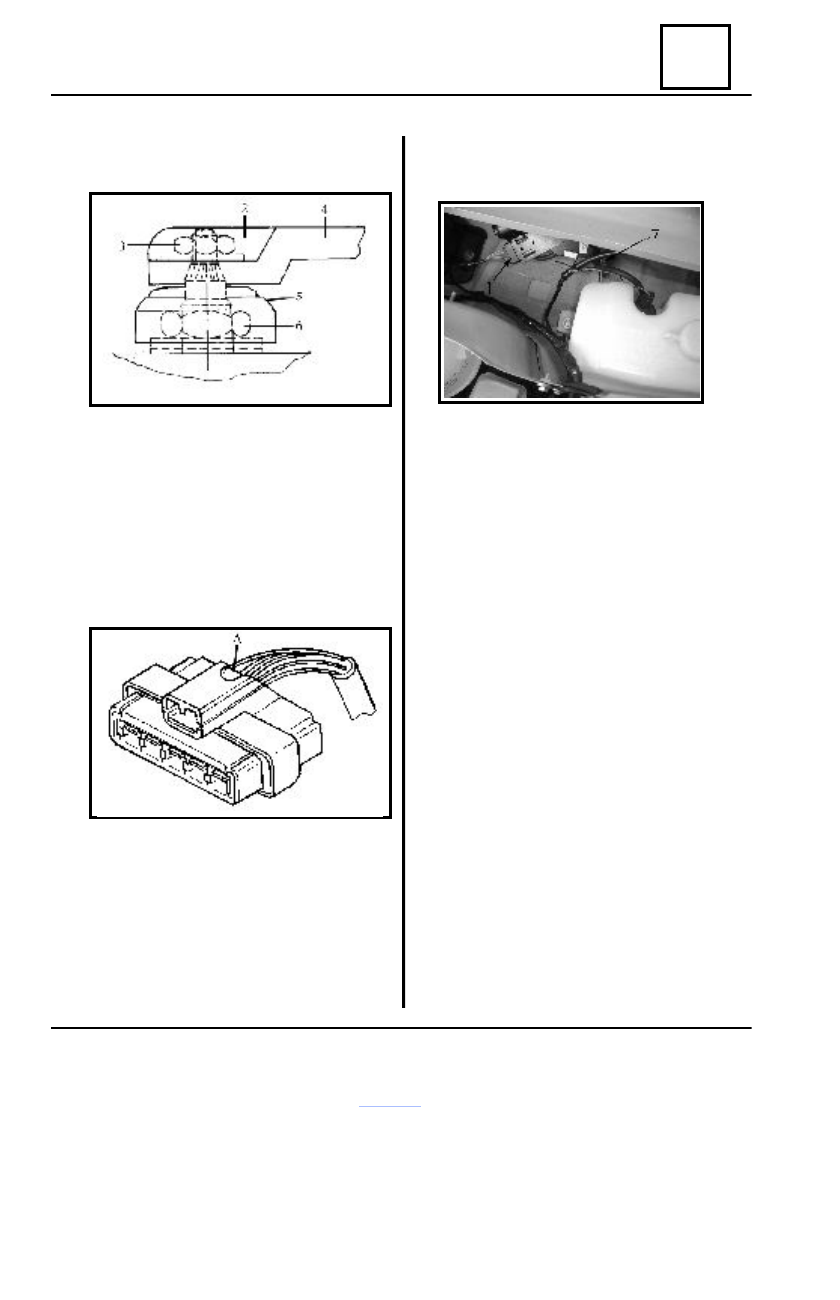

The drive mechanism is mounted in the cli-

mate control box.

DISMOUNTING

Ensure that assembly is stopped in the

position “  stopped at fix  point”.

Disconnect the battery (-) terminal.
Dismount the climate control gasket.
Dismount the climate control protector
Dismount the wiring connector (1) from the

windscreen wiper electric motor (push on the
connector A point and detach from clips).

Remove the protectors (2) from shafts.
Dismount the attachment nuts (3) of the

windscreen wiper blade-arm assemblies.

Dismount the windscreen wiper blade-arm

assemblies (4). Mark the identification of their
mounting position and of the two windscreen
wiper blade-arm assemblies (left-right).

Remove the covers (5).

Dismount the shafts attachment nuts (6) on

the windscreen lower frame; recover the washers
and gaskets.

Detach from  clips the  washing hose.
Dismount the mechanism attachment screw

(7) on the windscreen lower crossbeam.

Extract the mechanism from the climate

control box, by rotating it.

REMOUNTING

Perform the dismounting operations in the

reverse order.

REMARK:
When mounting the drive mechanism, the

wiper electric motor must be in the position
”stopped at fix  point”.
     The required tightening moment of the
mechanism attachment screw (7) on the
windscreen lower crossbeam : 6-8 Nm.
   The required tightening moment of the shafts
attachment nuts (6) on the windscreen lower
crossbeam: 8 ± 15 % Nm.
     The required tightening moment of the
attachment nuts (3) of the windscreen wiper
blades and arms : 12 ± 15% Nm.
     The required tightening moment of the
attachment screw (7) of the windscreen washing
assembly : 2 Nm.

Drive mechanism
