INSTRUMENT PANEL

83

83 - 2

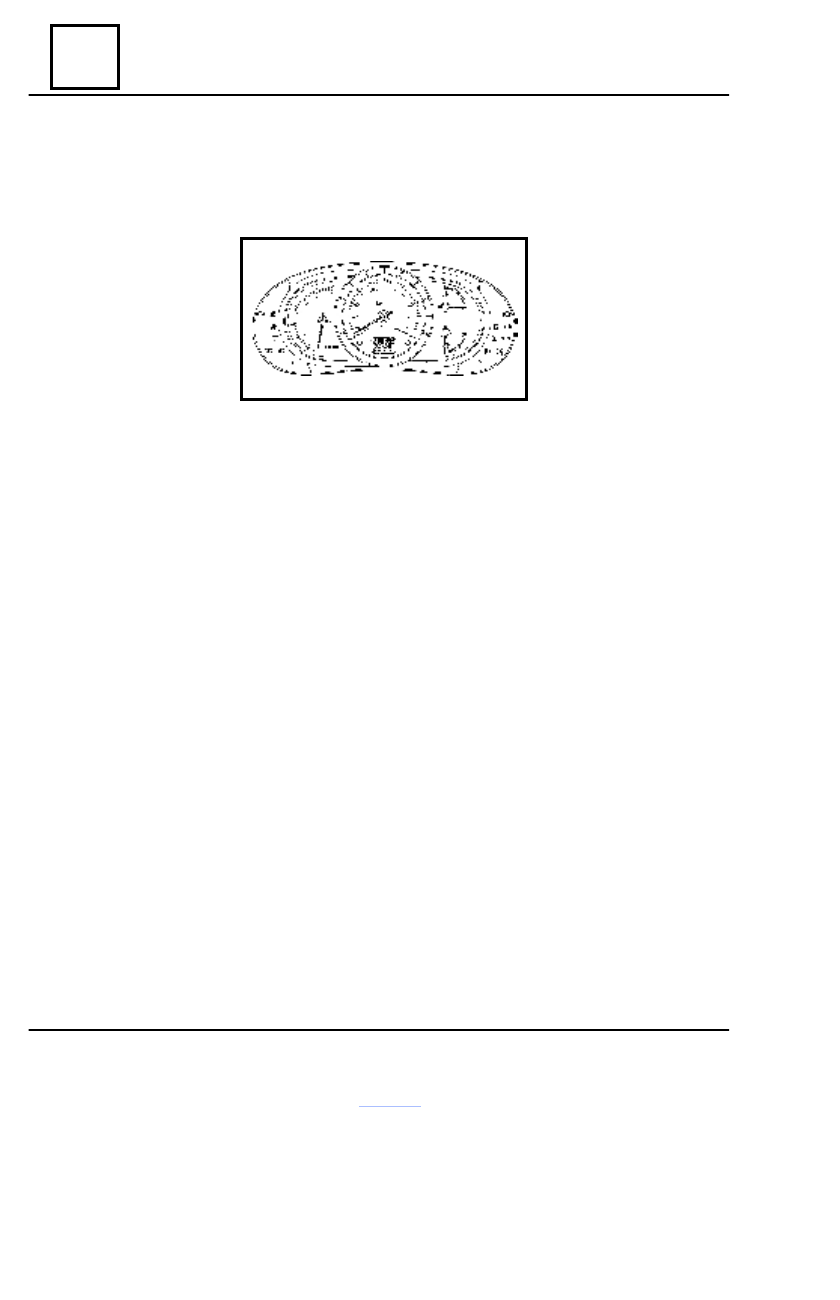

Instrument panel with RPM meter

83

INSTRUMENT PANEL

83 - 3

Connector D (gray)

Pin     Denomination

1.

Mass

2.

Free

3.

Free

4.

Free

5.

Water temperature alert

6.

Oil pressure alert

7.

Battery charging indicator

8.

Fog lamp indicator

9.

Fog projectors indicator

10.

Right turning indicator

Connector C (black)

Pin Denomination

1.

Free

2.

Free

3.

Free

4.

Handbrake indicator / ICP braking
system

5.

Free

6.

Anti-starting indicator

7.

– Fuel level transmitter

8.

Fuel level signal

9.

Free

10.

+ Battery

Connector A (white)

Pin

 Denomination

1.

Left turning indicator

2.

Meeting lights indicator

3.

Road lights indicator

4.

Rear windscreen defrosting indicator

5.

Free

6.

Free

7.

Free

8.

+ Parking lights

9.

Water temperature indicator

10.

 Free

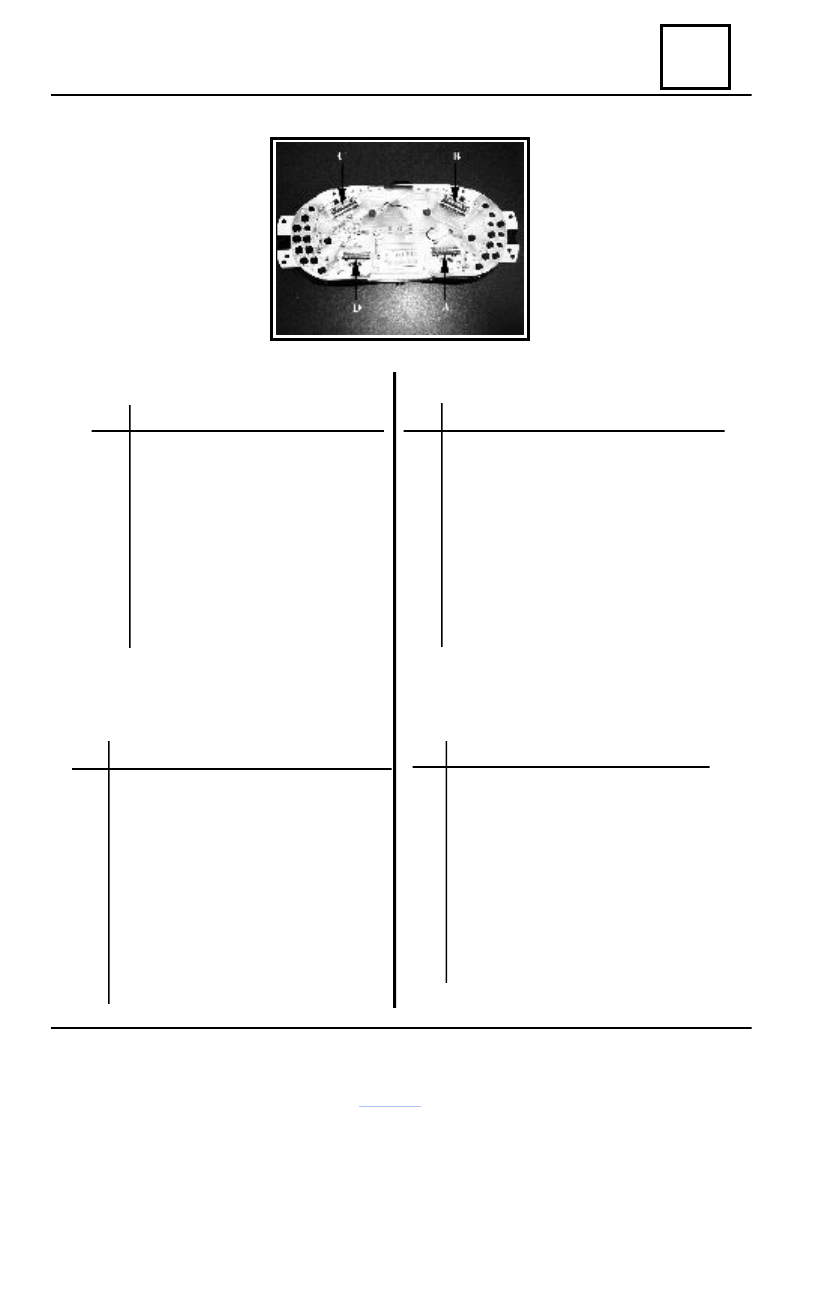

Connectors disposal

Connector B (brown)

Pin

Denomination

1.

Vehicle speed signal

2.

Engine RPM signal

3.

Free

4.

Free

5.

+ After contact

6.

Driver safety belt indicator

7.

OBD indicator

8.

Free

9.

Free

10.

+ After contact

INSTRUMENT PANEL

83

83 - 4

DISMOUNTING

Disconnect the battery (-) terminal.
Dismount the 3 attachment screws of the steering wheel half-casing, by means of a TORX 20

screwdriver.

Detach from clips the steering wheel half-casings and remove them.
By means of a TORX 20 wrench (“L” shaped), dismount the side attachment screws of the

upper dashboard.

By means of a TORX 20 screwdriver dismount the two front attachment screws of  the upper

dashboard.

Detach from the three clips of the windscreen lower crossbeam, the upper dashboard.
Dismount the radio-tape player from the upper dashboard (if the vehicle is equipped with

radio): press its side clips and extract it from the upper dashboard. Disconnect the antenna’s
connector and the radio-tape two connectors.

Disconnect the central locking switch connector (if the vehicle is provided with central locking).
Remove the upper dashboard towards vehicle right part.
By means of a TORX 20 screwdriver, dismount the attachment screws of the instrument

panel on the lower dashboard.

Disconnect the four connectors of the instrument panel. Mark the identification mounting

position of  the connectors.

REMOUNTING

Perform the dismounting operations in  the reverse order.
Perform functional tests of the instrument panel.

OBSERVATION: After battery reconnecting, re-program the clock and for the

vehicles equipped with programmable radio, reinsert the radio code.

Perform functional  instrument panel

83

INSTRUMENT PANEL

83 - 5

The instrument panel (speedometer, mileage) and the speed limit alert

*

 are receiving the

information regarding vehicle speed from an electronic transducer.

This information is also used by  the UCE injection.

Connector

Pin

Denomination

A

Supply after contact (+DC)

B1

Vehicle speed signal

B2

Mass

 * For vehicles with speed limit alert.

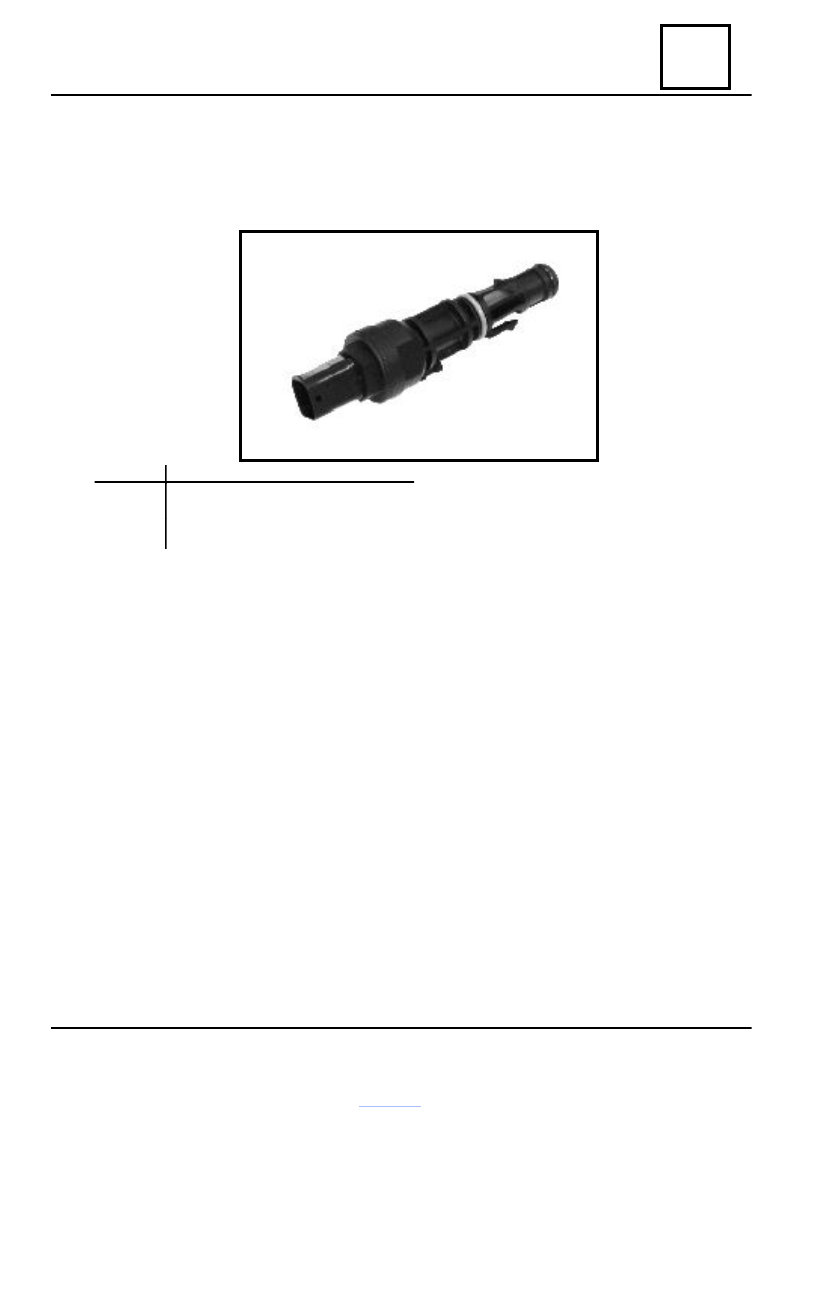

Speed transducer
