INSIDE AND REAR LIGHTING

81 - 3

REPLACEMENT OF THE SIDE REAR LAMP

DISMOUNTING

Dismount the attachment screws of the wing protector.
Dismount the wing protector
Disconnect the connector
Detach from  clips  the side rear  lamp.

REMOUNTING

Perform the dismounting operations in  the reverse order.

Inside and rear lighting

INSIDE AND REAR LIGHTING

81

81 - 4

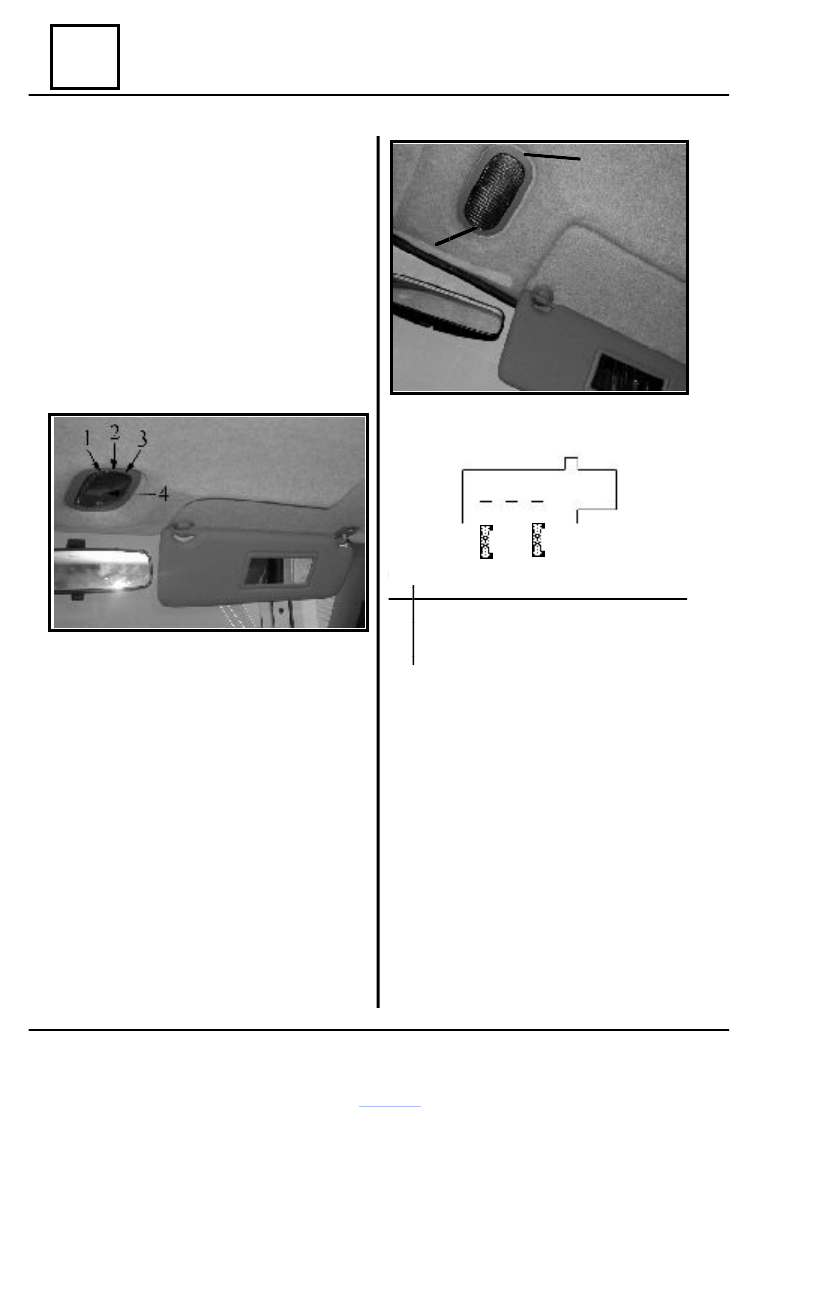

The ceiling lamp is central located, between

the two sun visors.

The ceiling lamp  has 3 operating positions

subject to  ceiling lamp glass position (4):

- position 1 : ceiling lamp off
- position 2  delayed ceiling lighting; this

will light for 15 seconds after driver’s front door
closing or after the command of unlocking the
doors with the RF remote control. This delay
turns out in the moment of setting the contact.

- position 3  : ceiling lamp permanently

lighting.

DISMOUNTING

Disconnect the battery (-) terminal.
Detach from  clips  the  assembly from the lamp

support by means of a little screwdriver acting in
front of the slot (A).

Disconnect the connector
Remove the roof lining around ceiling lamp

support.

Detach from  clips the  ceiling lamp support.

REMOUNTING

Perform the dismounting operations in the

reverse order.

Check the ceiling lamp operation.

Ceiling lamp connector

Pin

Denomination

1

Mass

2

+protected battery  –  exit  fuse  F02

3

Ceiling lamp control

REPLACEMENT OF CEILING

LAMP BULB

DISMOUNTING

Disconnect the battery (-) terminal;
Detach carefully the lamp glass using a

small screwdriver acting in point (B).

Remove the worn bulb and replace it.

REMOUNTING

Perform the dismounting operations in the

reverse order, using for lamp glass clips
attachment, a small screwdriver positioned in
point (B).

Check the ceiling lamp operation.

Ceiling lamp

A

B

3

1

81

INSIDE AND REAR LIGHTING

81 - 5

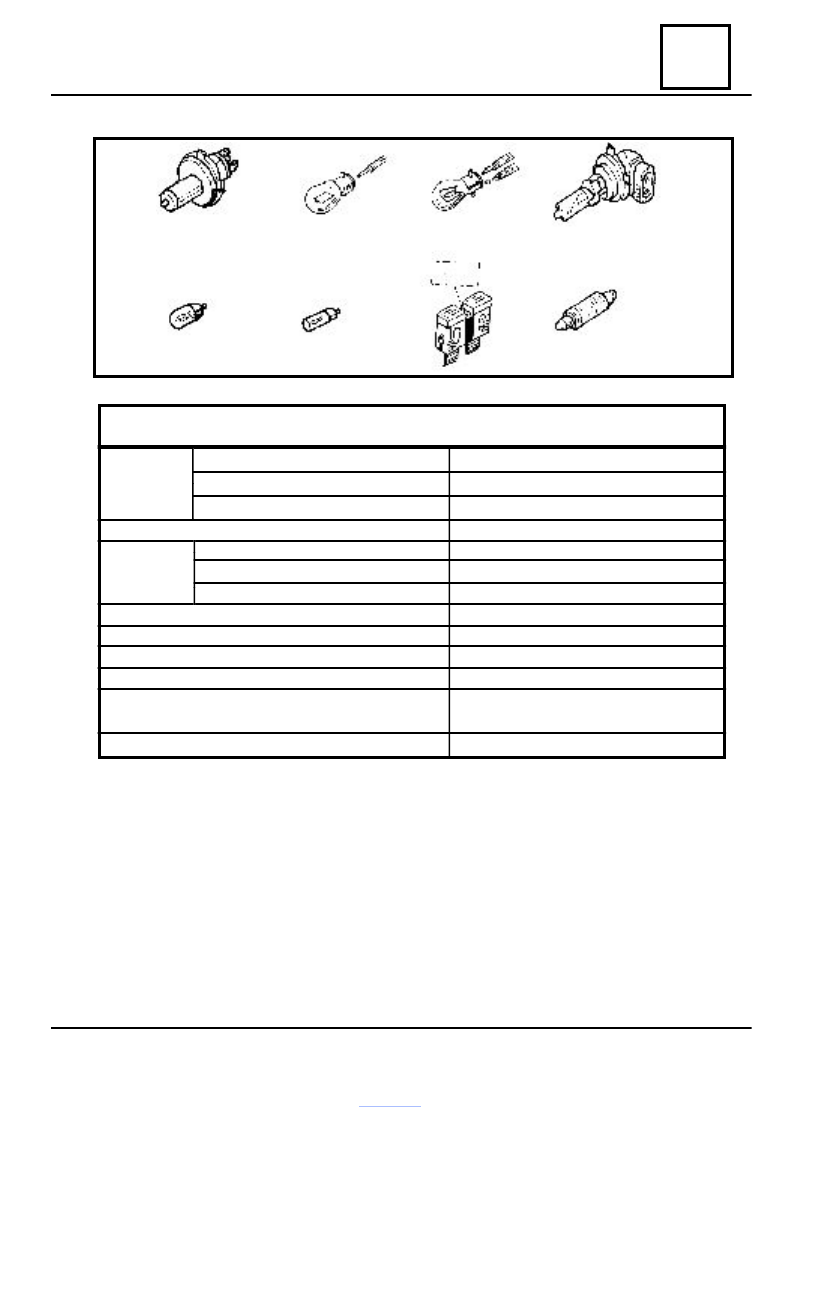

Bulbs

BULBS

Headlamps

High/low beam lights

Bulb H4, 12V-60/55W

Parking lights

Bulb W5W, 12 V-5W

Front turning lamp

Bulb PY21W,  12V-21W (colored)

Fog projectors

Halogen bulb H11, 12V-55W

Rear

Parking, stop lights

Bulb AB1, 12V-21/5W

lamps

Turning  lights

Bulb PY21W, 12V-21W

Rear fog lamp and reverse driving

Bulb P21W 12V/21W

Rear side signaling lamps

Bulb WY5W 12V-5W

Ceiling lamp

Bulb C5W, 12V-5W

License plate lamp

Bulb W5W,  12V-5W

Additional STOP lamp

Bulb C21W, 12V/21W Sv8,5

Instrument panel

Bulb12V, 2W (brown holder)
Bulb 12V, 1,2W (black holder)

Climate control panel

Bulb  12V,  1,2  W



(black holder

INSIDE AND REAR LIGHTING

81

81 - 6

Lamps failures diagnostic

FOG LAMP  NOT WORKING

Yes

Yes

Yes

Yes

No

No

No

No

Replace fuse  F06

 Replace the  STOP contact

Replace fuse  F19

Replace under  steering
wheel control.

Check fuse F06 from cockpit fuse box.
Is it worn?

Check the continuity and resistance against vehicle mass between:
- exit fuse F06       pin2 reverse driving contact connector
- pin1 reverse driving contact connector     pin 6 right rear lam
connector
- pin 4 right rear lamp connector      vehicle mass
Are they good?

Defective wiring. Fix it.

Check fuse F19 from cockpit fuse box. Is
it worn?

Check the continuity and

resistance against vehicle mass between:
- battery        pin B2 light control lever and signaling,
- pin A3       inlet fuse F19,
- exit fuse F19        pin 1 left rear lamp connector,
- pin 4 left rear lamp connector       vehicle mass.
Are they good?

 Defective wiring.  Fix it.

 REAR DRIVING LAMP  NOT WORKING
