Dacia Solenza (engine E7J). Manual - part 131

80

BATTERY - FRONT HEADLIGHTS

80 - 3

DISMOUNTING

After identification and elimination of the real cause of the battery discharging, proceed as

follows:

Remove the plastic protector from the plus plug of the battery.
Dismount the attachment nut of the mass wiring from the minus plug of the battery.
Dismount the attachment nut of the wiring from the plus plug of the battery.
Dismount the battery attachment clamp screw.
Carefully take off the battery.

REMOUNTING

Perform the dismounting operations in  the reverse  order. After that, reset the radio by intro-

ducing the radio code (if the vehicle is equipped with radio) and adjust the dashboard clock.

Battery

BATTERY - FRONT HEADLIGHTS

80

80 - 4

NOTE :
After headlamps dismounting, their adjustment must be performed.

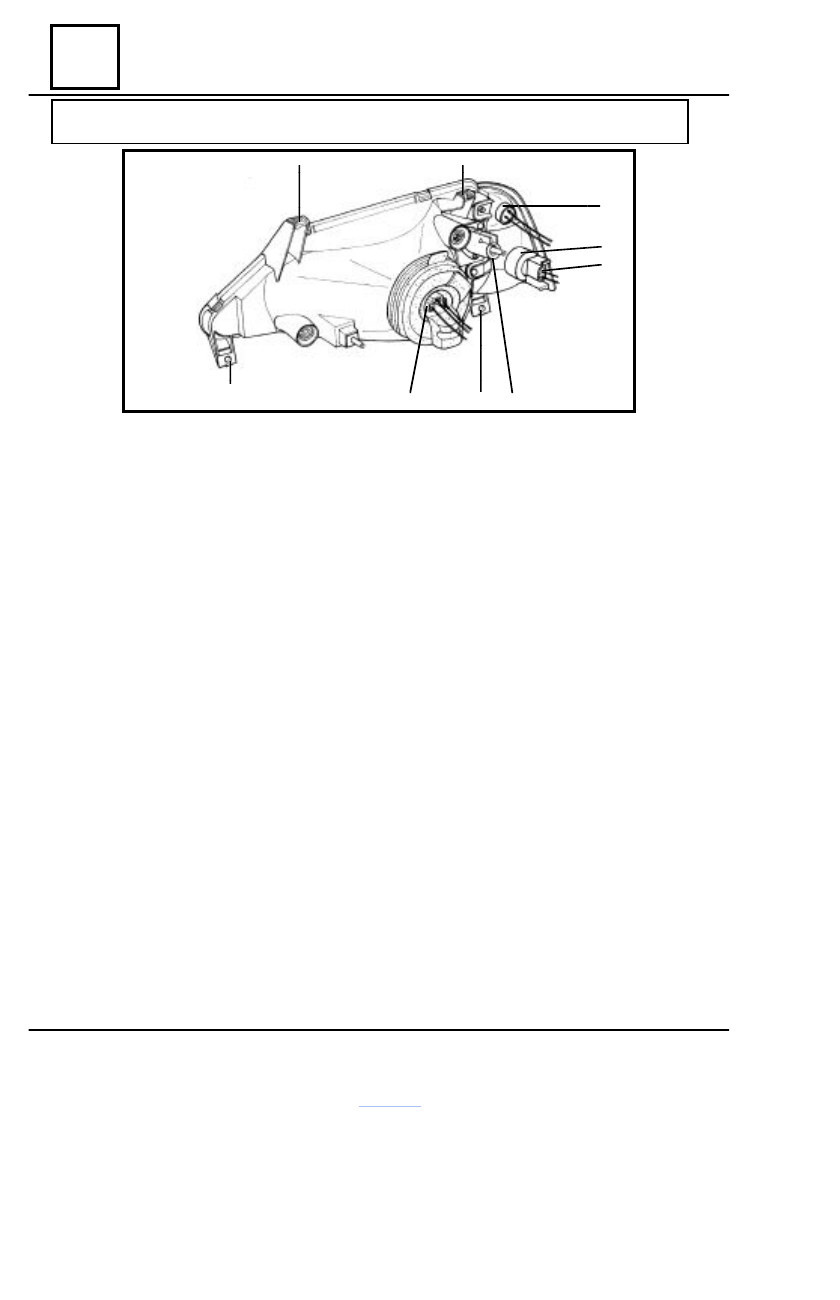

DISMOUNTING

Disconnect the battery  (-)  plug.
Pull backwards the gasket of the headlamp adjustment correction control (1).
Dismount the headlamp adjustment correction control from the headlamp adjustment

device (see replacement of the headlamps mechanic adjustment control).

Disconnect the connector (2) of the headlamp bulb.
Disconnect the connector (3) of the turning light bulb.
Rotate and remove the holder  (5) of the parking lamp bulb.
Dismount the front grill.
Dismount the 4 attachment screws TORX 20  (6)  of the headlamp-turning lamp assembly.
Carefully remove the headlamp assembly from its place.

REMOUNTING

In point (6) placed at headlamp lower part, the closest to the turning bulb, introduce a TORX

20 screw.

Carefully introduce the headlamp assembly in its place, taking care that screw is not falling

down.

Mount this screw, by means of a TORX 20 screwdriver.
Mount the other three screws (6).
Mount the front grill.
Position the holder (5) in its place and rotate it, ensuring its good attachment.
Position the holder (4) in its place and rotate it, ensuring its good attachment.
Reconnect the turning  bulb  connector (3)
Reconnect the headlamp bulb  connector (2).
Mount the headlamp adjustment control at the  headlamp adjusting connector   (see replacement

of the headlamps mechanic adjustment control).

Reconnect the battery  (-)  plug.
Check the operation of the bulbs of the headlamp-turning lamp assembly.

Headlamp assembly

6

6

6

6

5

4
3

1

2

80

BATTERY - FRONT HEADLIGHTS

80 - 5

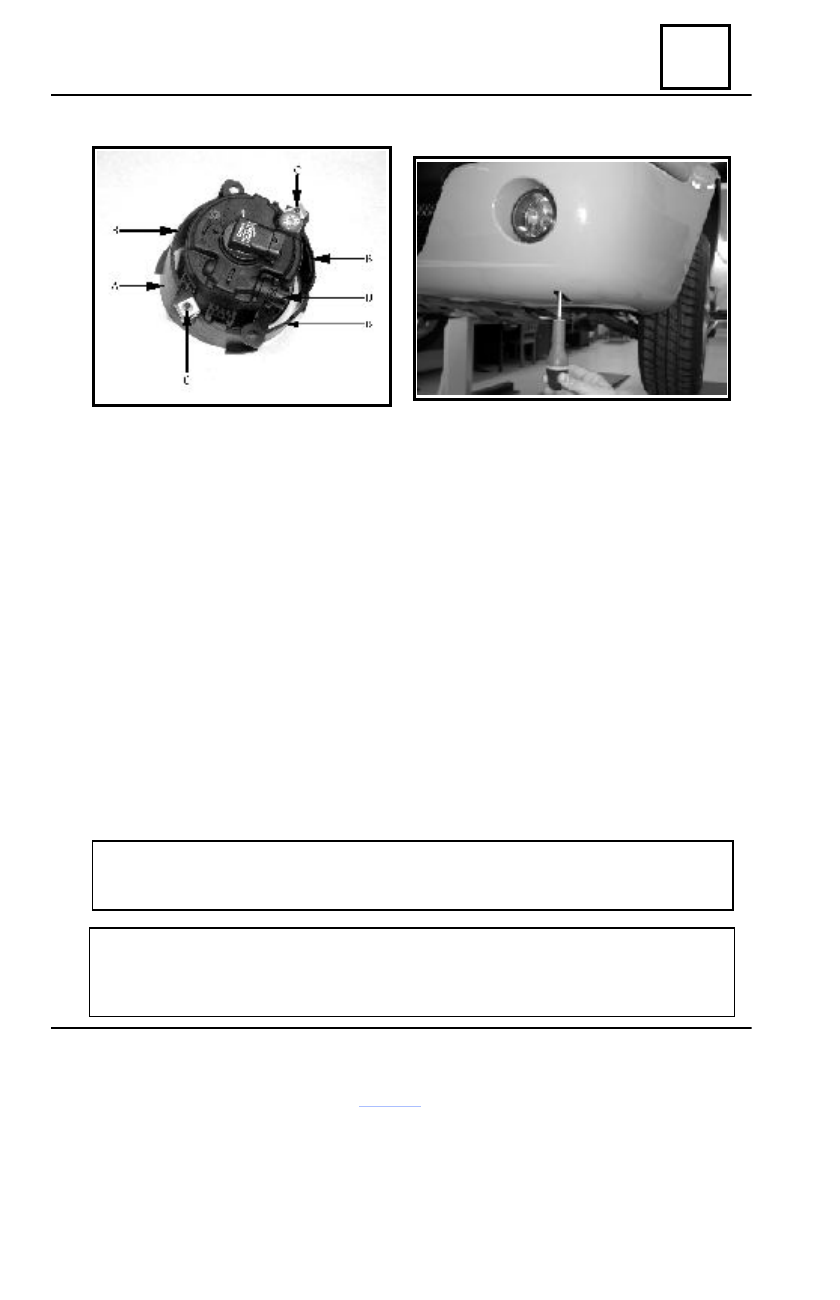

DISMOUNTING

Lift the vehicle by means of an elevator.
Disconnect the fog projector connector from the vehicle wiring (pull the two clips of the

connector).

Detach carefully from the 3 clips of points (B), the fog projector support (A) from the bumper,

using a straight screwdriver.

Dismount the two screws TORX 20 (C). Mark the mounting position of the fog projector on

the support.

Extract the fog projector from its support.

REMOUNTING

Position the new fog projector in the support (A)
Mount the two screws TORX 20, observing the mounting position before dismounting.
Position and push forward the fog projector assembly in the bumper until all 3 clips (B)

ensuring the correct positioning of the fog projector assembly, are attached.

Reconnect the fog  projector connector
Lower the vehicle from the elevator.
Check the operation of the  fog projectors.

REMARK:
In order to dismount – remount the left fog projector the dismounting/remounting of

the acoustic warning is necessary to be performed.

REMARK:

 After remounting the fog projectors, it is obligatory to perform their adjustment, by
means of a screwdriver positioned through the bumper slot, acting upon the adjustment
screw (D).

A

Fog projectors

BATTERY - FRONT HEADLIGHTS

80

80 - 6

Bulbs

  FOG PROJECTOR BULB REPLACEMENT

DISMOUNTING

Suspend the vehicle on an elevator.
Disconnect the fog projector connector
Rotate the bulb holder (F) and extract it from its place.

REMOUNTING

Perform the dismounting operations in the reverse order, correctly positioning the bulb holder in

its place.

Perform fog projector adjustment
NOTE:
Because the fog projector is equipped with a halogen bulb, do not touch the bulb glass

balloon directly by hand.

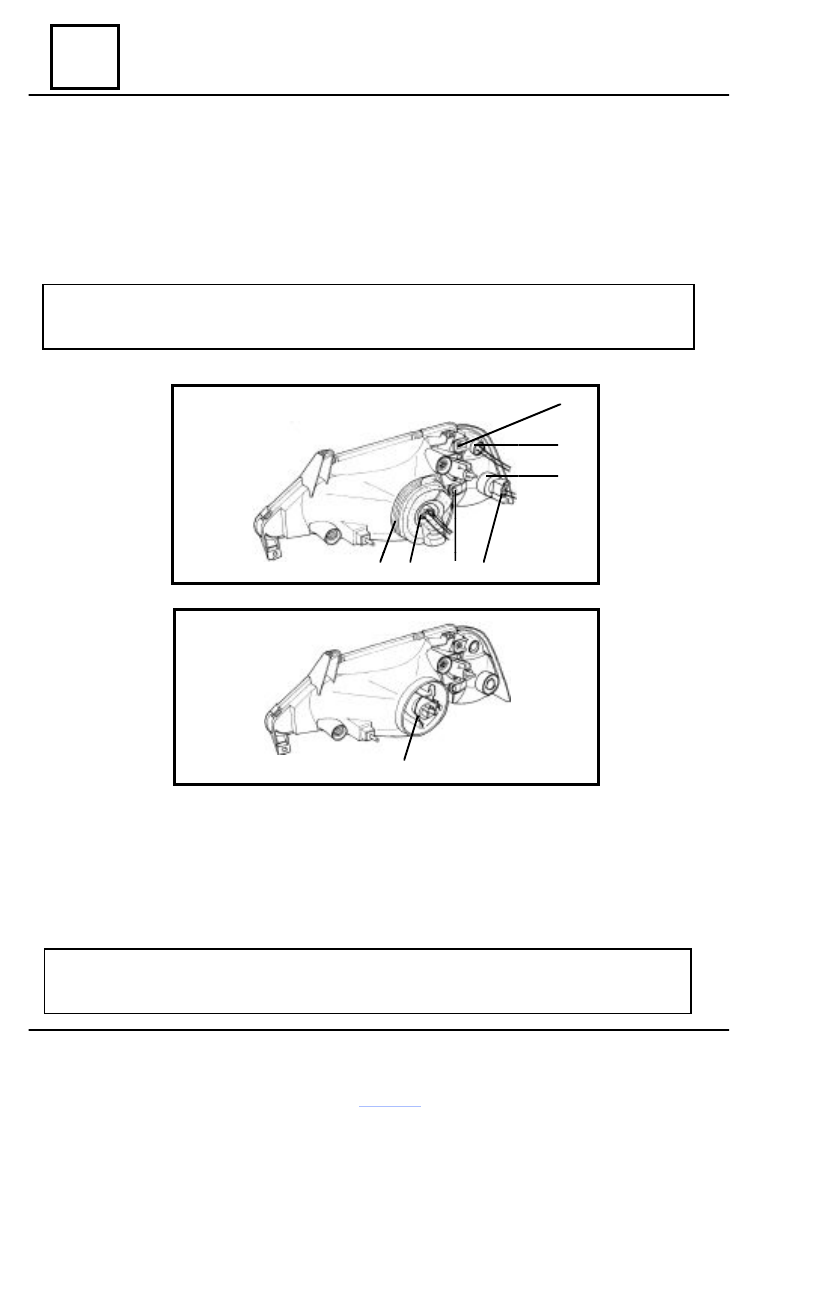

HEADLAMP BULB REPLACEMENT

DISMOUNTING

Disconnect the connector (2).
Remove the rubber protector (7). Mark its mounting position.
Release the attachment clamp (8) and remove the headlamp bulb

REMOUNTING

Perform the dismounting operations in the reverse order. Position correctly the rubber protector

(7) observing the mounting position before dismounting. Perform headlamp adjustment.

NOTE:
Because the headlamp is equipped with a halogen bulb, do not touch the bulb glass balloon

directly by hand.

7

2

3

4

8

5

10

10
