Dacia Solenza (engine E7J). Manual - part 114

57

57  - 8

INSIDE ACCESSORIES

Inside rear view mirror

DISMOUNTING

Dismounting of the interior rear view mirror (1) is to be performed by its depressing from the

support (2) in the direction of the arrow shown in the drawing.

The rear view mirror support (2) is stacked on windshield  (3).

REMOUNTING

Perform the dismounting operations in  the reverse order.

57

57  - 9

INSIDE ACCESSORIES

Sun visors

DISMOUNTING

Dismount the sun visor (2) attachment screw (1).
Extract the sun visor from the hook (3).

REMOUNTING

Perform the dismounting operations in  the reverse order.

57

57  - 10

INSIDE ACCESSORIES

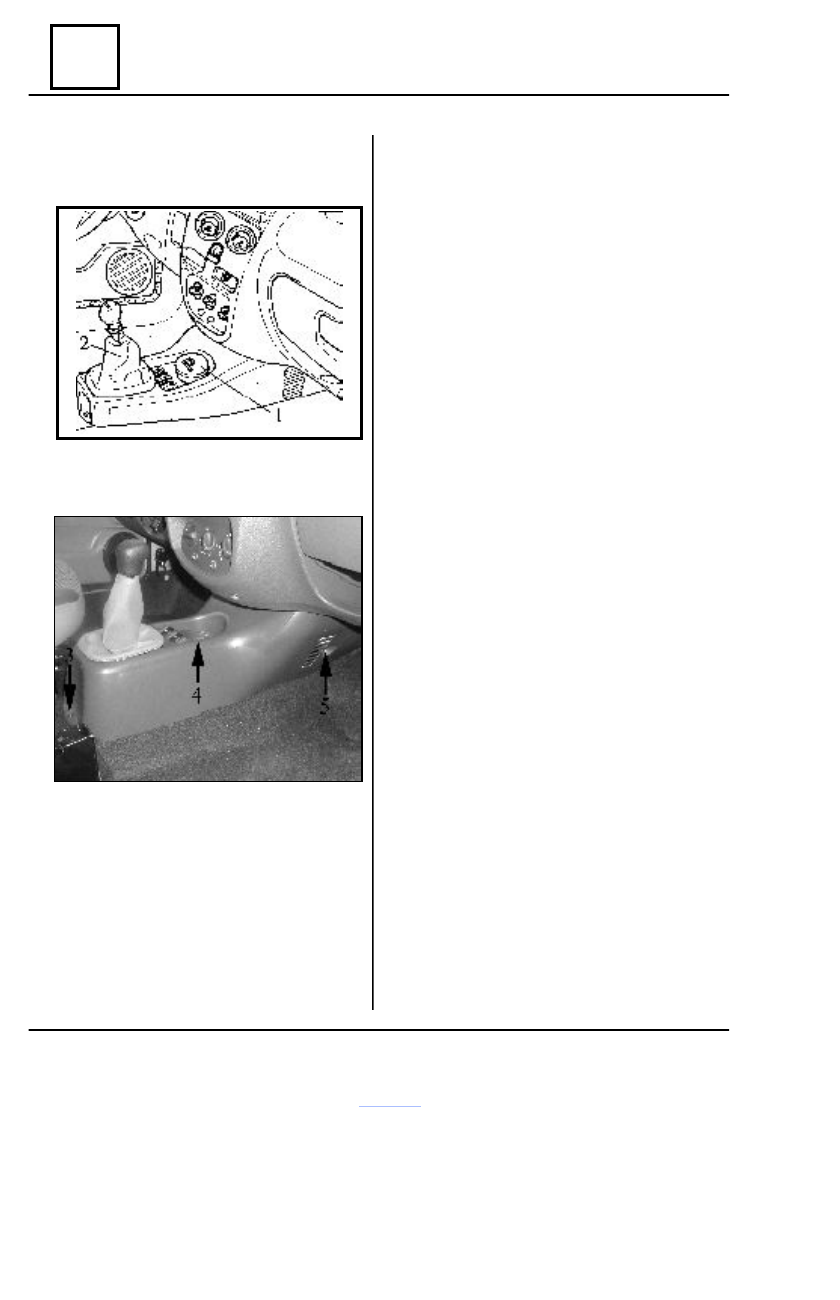

Central console

DISMOUNTING

Disconnect the battery.
Extract the ashtray (1) from its place.

Remove the gearbox lever covering (2) from

the central console.

Dismount:

- attachment screw (3) of the central

console on  the  tunnel;

- attachment screw (4) of the central

console on the gearbox lever support.

Detach the central console from the climate

maintenance- ventilating distributor clips
(RACV) from points (5).

Swing over the diagnostic socket cap  and

push inside the console.

Disconnect the window lifting switch

connector (for vehicles equipped with electric
windows).

Detach from clips the window-lifting switch

and release the central console.

REMOUNTING

Perform the dismounting operations in the

reverse order.

Check the correct operation of the

switches of the front electric windows.

57

57  - 11

INSIDE ACCESSORIES

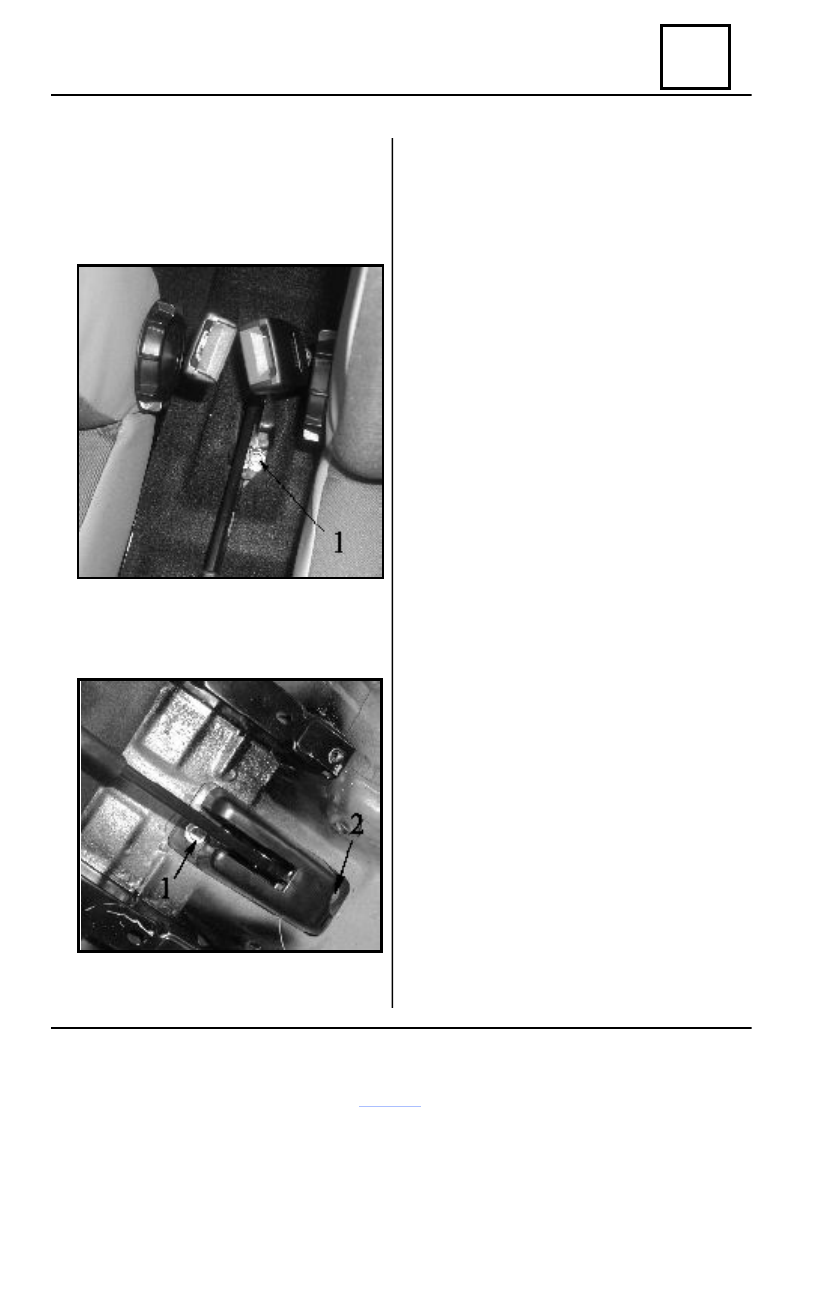

Handbrake case

DISMOUNTING

Through the cutting out existent in the cock-

pit carpet in the handbrake lever, dismount the
attachment screw (1) of the handbrake case in
front part, on the tunnel.

Move towards front the seats.
Dismount:

- bench seat (see chapter 75);

- attachment screws of the front safety belts

at lower part;

- attachment screws of the locks on the tun-

nel;

Detach from  clips the carpet  and  roll it  towards

front part.

Dismount the attachment screw (2) of the

handbrake case on the tunnel, in the rear part.

Release the handbrake case.

REMOUNTING

 Perform the dismounting operations in the re-

verse order.

The safety belts screws are to be tighten to the

required moment of 2,7 daNm.
