Dacia Solenza (engine E7J). Manual - part 95

40

GENERAL

40 - 6

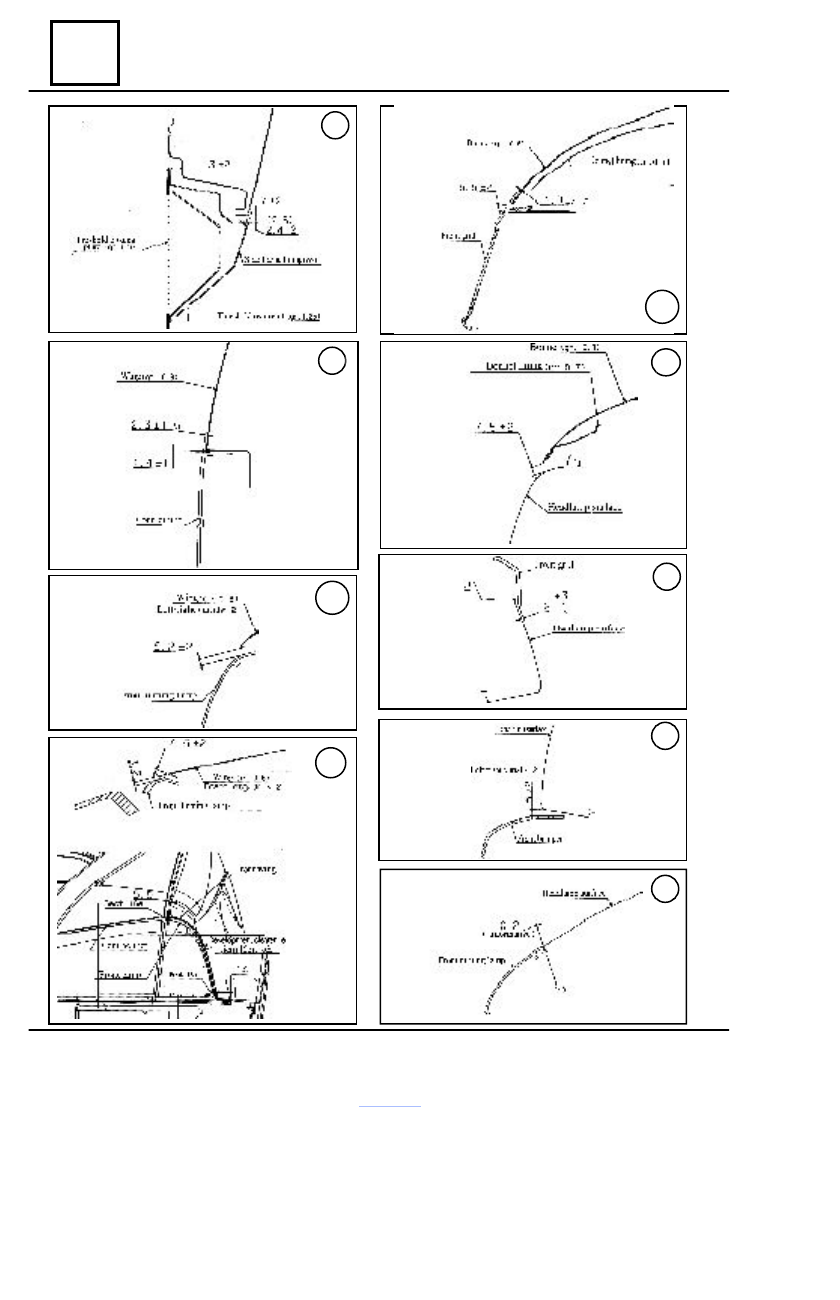

Openings clearance

19

16a

18

17

16c

21

16d

13

14

40

GENERAL

40 - 7



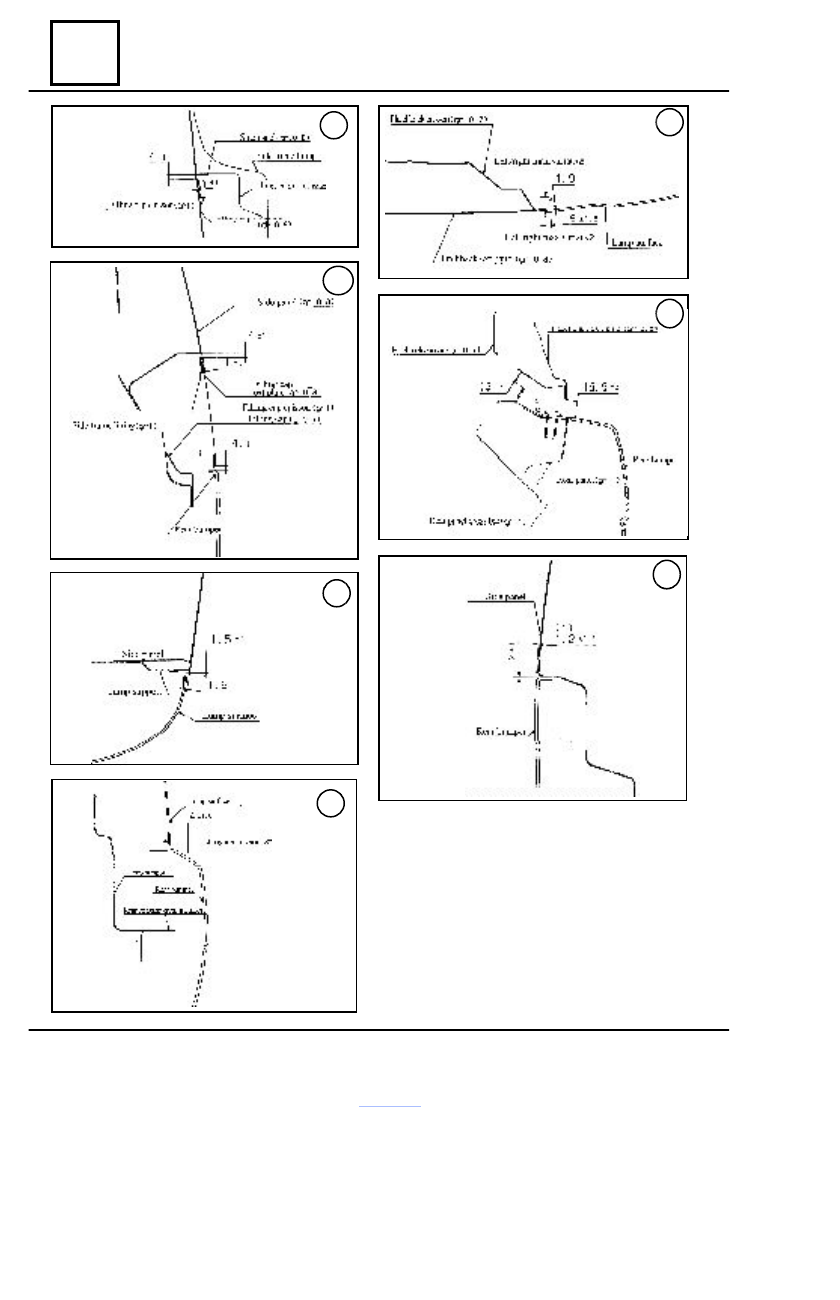

  Openings clearance

25

23

24

22

40

GENERAL

40 - 8

26

32

36

31

35

26a

33

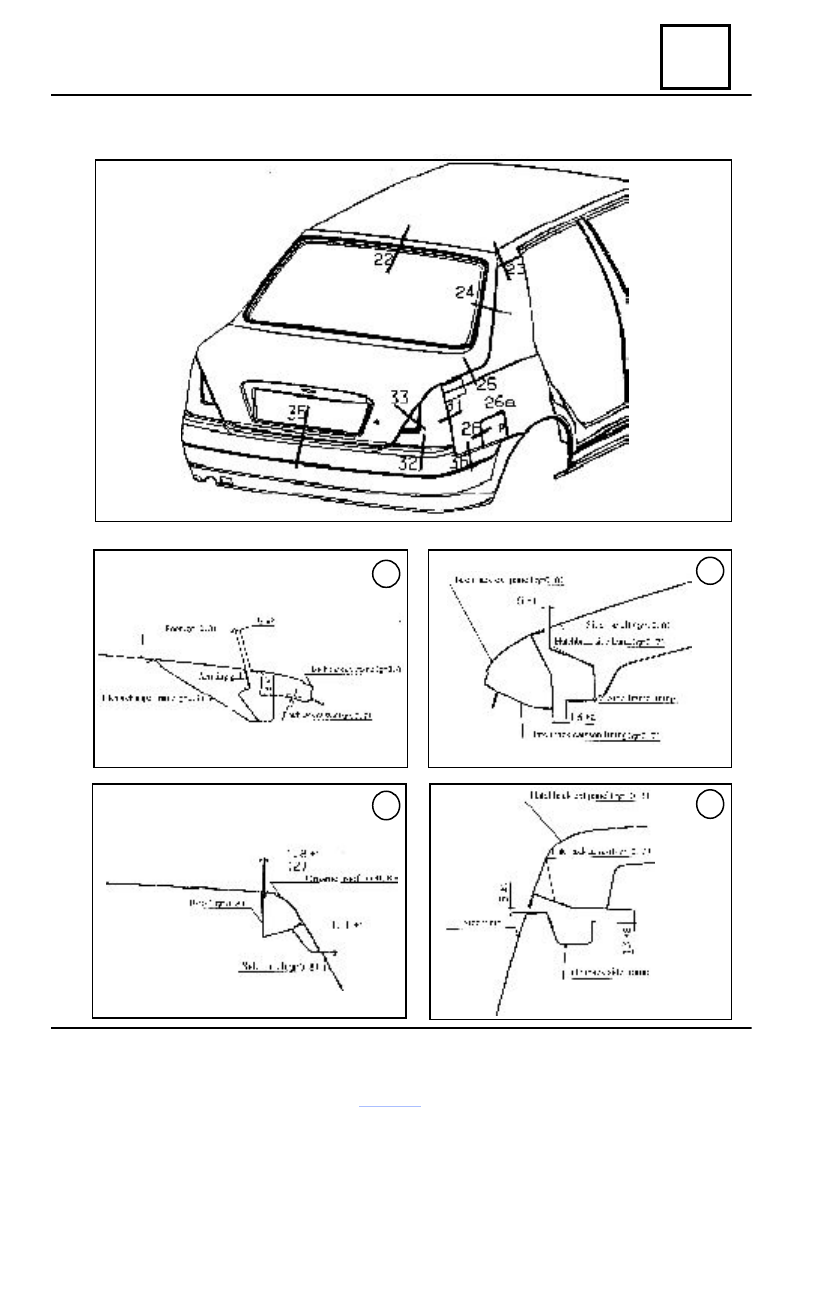

  Openings clearance

40

GENERAL

40 - 9

Repairing general conditions

The replacement (reparation) operations of the weldable elements described in this chapter

are specified subject to: cutting out of the parts to be replaced, access to the welded elements,
tools and checking devices accessibility, etc.

In case the vehicle body has suffered important deformations it is recommended the straight-

ening of the damaged body elements, by means of some hydraulic presses.

For this range of vehicles, the elements resistance structure which are affecting the vehicle

security, are not to be partially replaced (not to be cut), but entirely.
After welding detaching, the body elements must remain straight, without breakage or cracks,
the possible holes being covered out with filling material or by tinning. The body elements sur-
faces are  to  be  pickled (  to  eliminate possible oxidation marks), dried and initially applied a paint
layer.

The electric welding detaching of the body elements, may be performed as follows:

- with a well sharpen chisel, this method may lead to parts deformation or even parts

breaking.

- by using some extractors equipped with steel cutter type Brendeo or Pickvant (max. 6

mm) having the cutting head shaped as shown in pict.1.

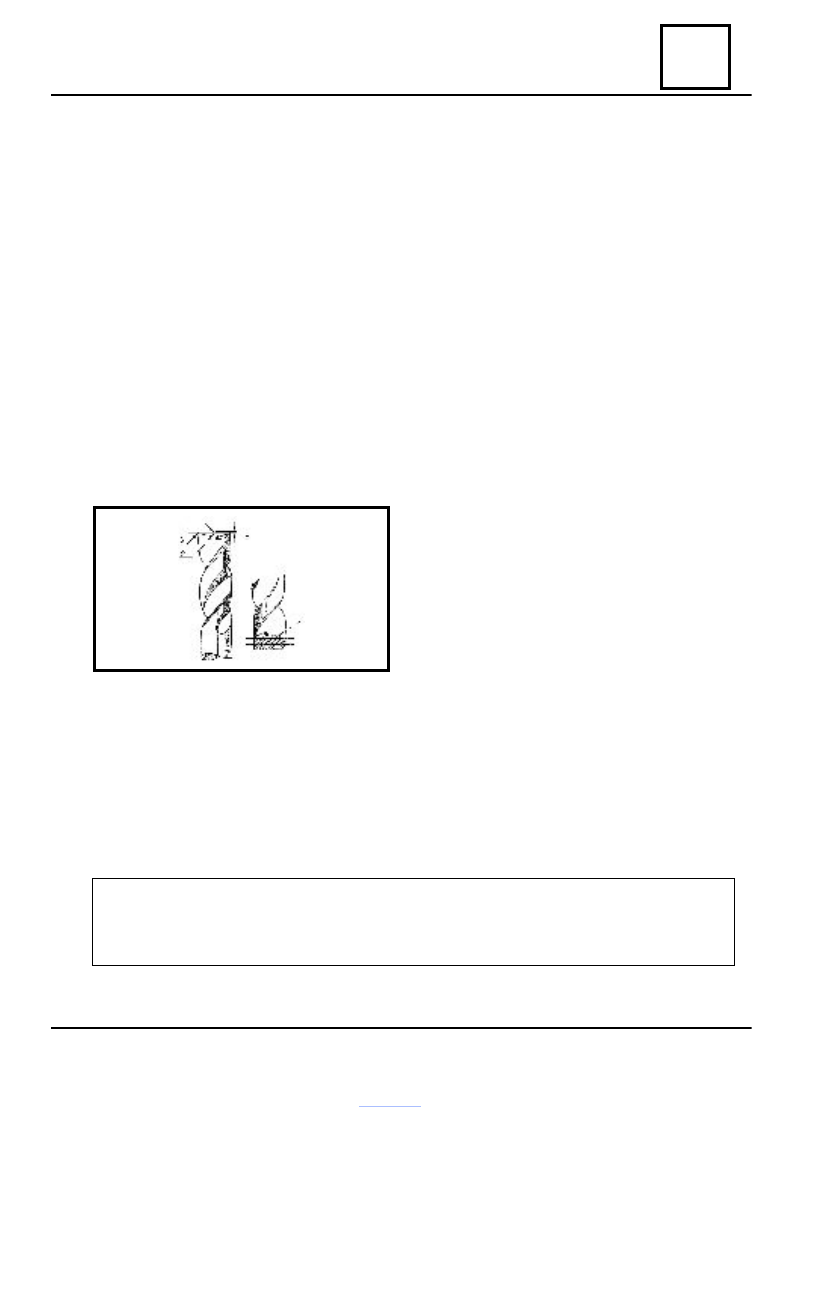

1. Centering point
2. Sharpen slope
3. Drill acting edges
4. Gap for catching the welding material
P = aprox. 0.4 mm

Whatever method is used, the remaining element must be in good order and to allow per-

forming of a good quality welding point.

The plates cutting it is recommended to be performed (subject of importance and thickness)

using manual scissors or pneumatic portable tools for plates cutting.

During cutting or welding of the body elements it is necessary to protect the electric wiring

from the interior of the body structure.

The cutting, welding, or strengthening operation done on body welded elements, are to be

performed on body checking/ straightening benches recommended by the producer.

IMPORTANT !

   When removing or straightening the body resistance elements, it is forbidden the
total or partial heating, in order to avoid the mechanical resistance and metal elastic-
ity decreasing.
