Dacia Solenza (engine E7J). Manual - part 81

33

REAR AXLES ELEMENTS

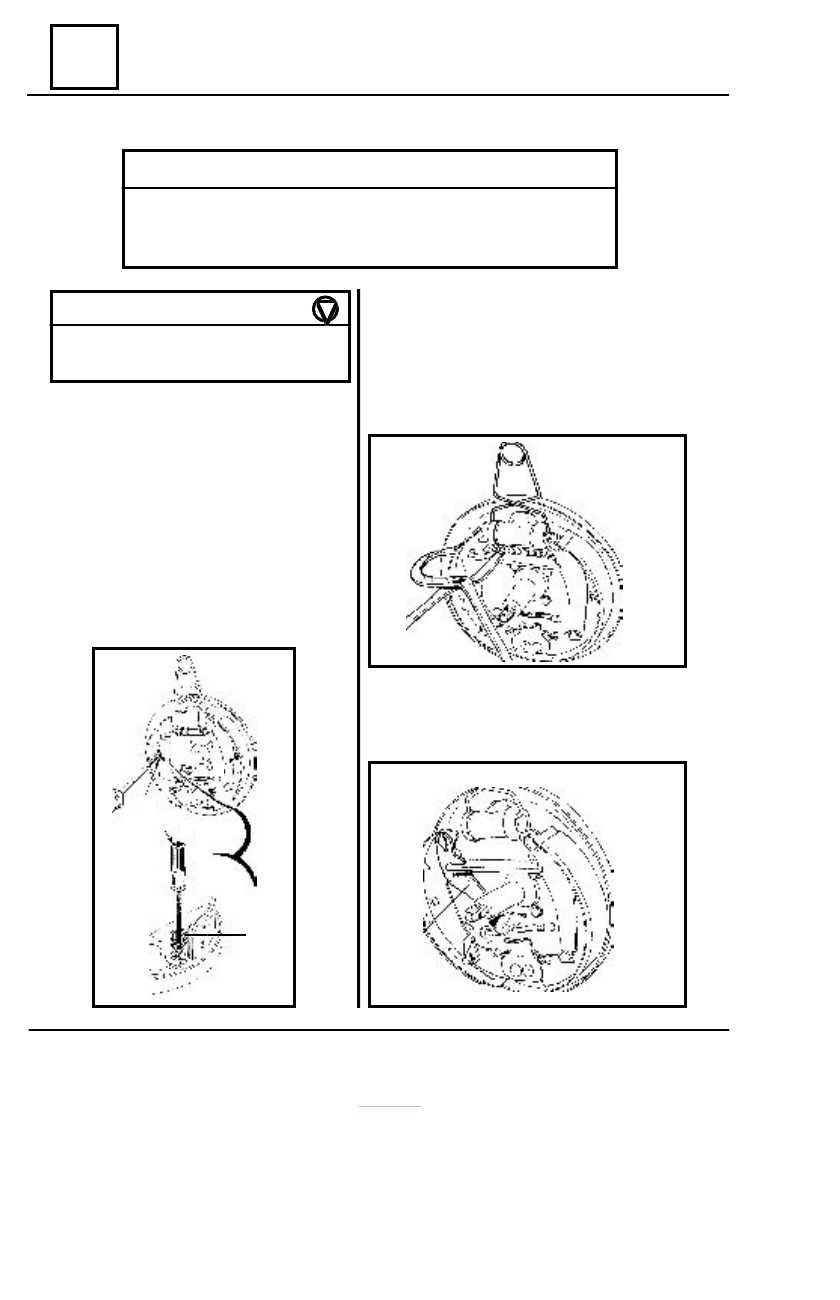

33 - 10

Brake shoes

SPECIAL TOOLS

Plug extracting pliers

RO441

Dismounting pliers for shoes return spring

FR03

Pliers for maintaining brake cylinders pistons

FR05A

 TIGHTENING

MOMENTS

(daNm)

Wheel screws

7.5

Rear wheel steering knuckle nut 1 6

C

R

R

T

R

DISMOUNTING

The replacement of brake shoes must be

performed in complete set, never mount the
brake shoes equipped with  brake linings of
different brands and qualities.

Dismount :

- the brake drum ( see the correspond-

ing paragraph);

- the two maintenance springs (R) of

the shoes with a brake cylinder rod (T).

By means of the pliers FR05A the brake cyl-

inder pistons are immobilized.

Remove the return upper spring of the shoes

using the pliers FR03.

Release the end of the hand brake cable from

the hand brake lever.

Swing the  adjustment lever (C) up to the mo-

ment it comes into contact with the rear wheel
steering knuckle.

Distance the shoes from the plate.

33

REAR AXLES ELEMENTS

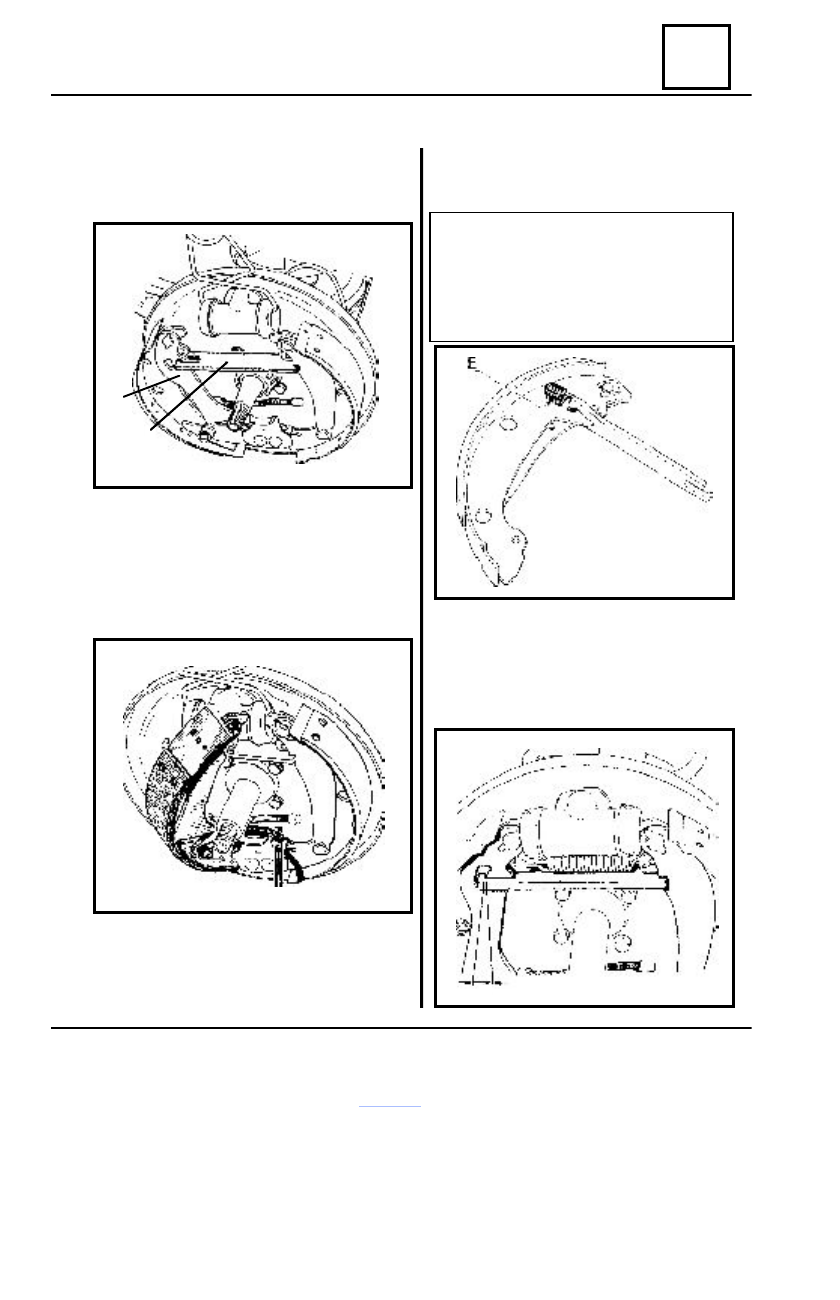

33 - 11

Brake shoes

C

B

H

Dismount the auxiliary connecting rod (B)

connection from the adjustment lever (C).

Bring the adjustment lever in the initial

position.

Rotate the compression shoe with 90

degrees.

Dismount the lower spring.

Remove the (front) compression shoe, then

the tensioning one.

REMOUNTING

Perform in reverse order the dismount-

ing operations.
REMARK:

The adjustment of the device for the

automatic clearance taking over, is de-
pending of the spring tensioning (E),
that is caught between the rear shoe and
the auxiliary connecting rod.

Measure the value  H=1mm, between the

auxiliary connecting rod and the front shoe. If
the value H is not correct, replace the auxil-
iary connecting rod spring (E) and the shoes
return springs.

33

REAR AXLES ELEMENTS

33 - 12

Brake shoes

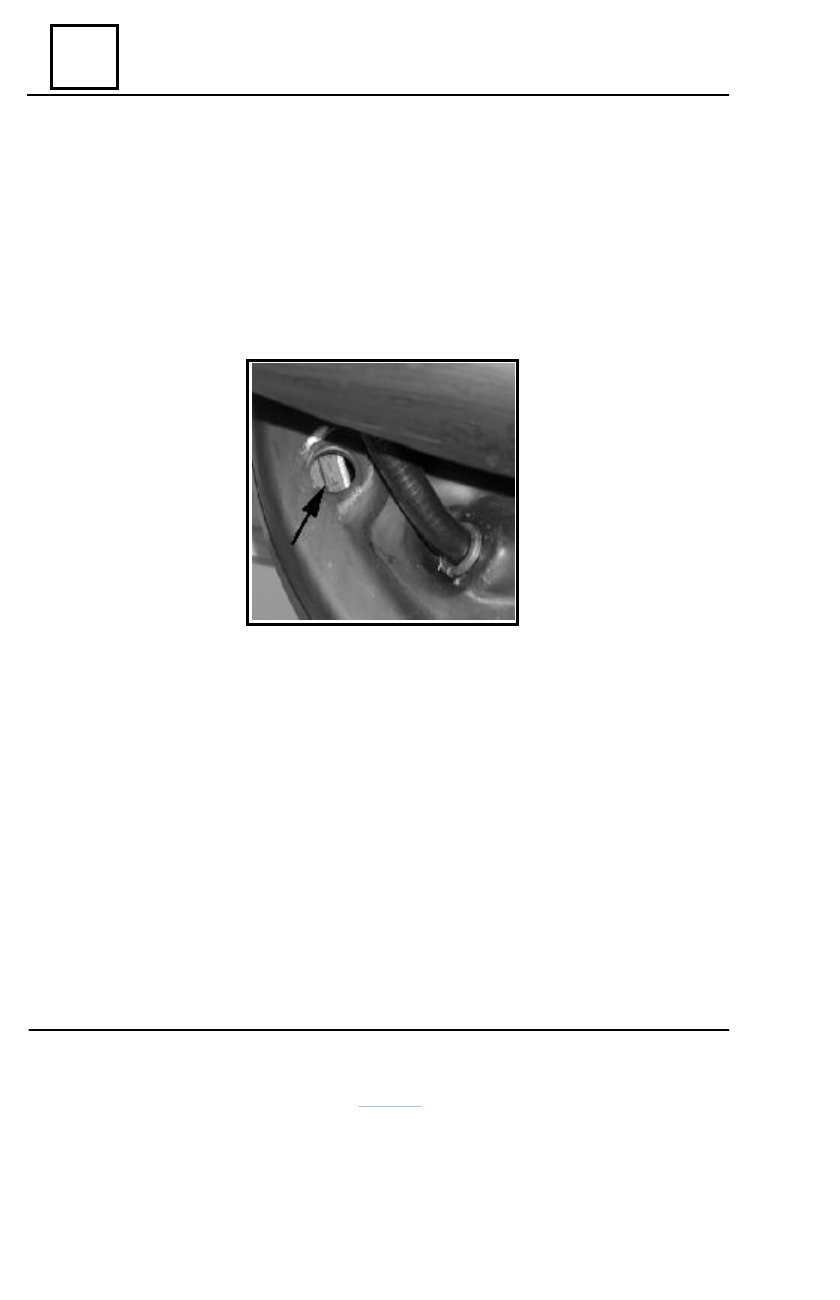

Checking of the brake shoes wear may be performed also without dismounting the brake

drums.

In this purpose:

- lift the vehicle by means of a two-column elevator;
- dismount the rubber protector of the visiting window from  the brake plate;
- check by visual inspection the condition of the brake shoes wear.

   If a serious wear is established, perform the brake shoes replacement (see the corresponding
paragraph).

33

REAR AXLES ELEMENTS

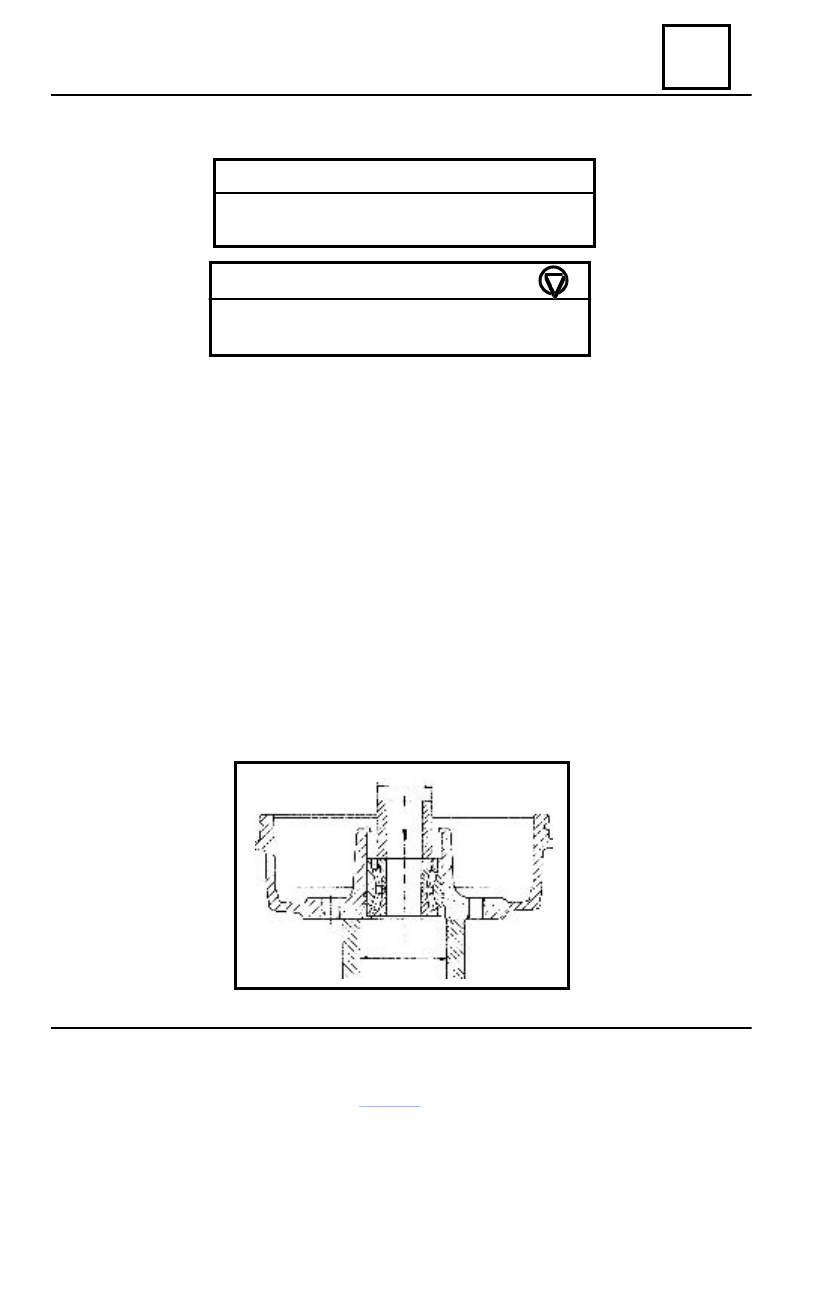

33 - 13

Bearing

SPECIAL TOOLS

Plug extracting pliers                                 RO 441
Drum extractor                                           PF 600

TIGHTENING MOMENTS (da Nm)

Rear wheel steering knuckle nut                     22
Wheel attachment screws                                 7.5

Φ

Φ

Φ

Φ     38

Φ

Φ

Φ

Φ     65

CHECKING

Check by means of a comparing device attached on the drum, the axial clearance: 0 –  0.15

mm max after mounting and tightening to the moment of  22 daNm.

DISMOUNTING

Dismount:

- the drum plug by means of the extracting pliers RO441;
- rear wheel steering knuckle nut;
- the drum.

Dismount from the drum:

- the boring lock;
- the bearing by means of a tube

Ö38mm.

If necessary, use the extractor CV 28  A, in order to extract the bearing inner ring, remained

on the steering knuckle.
