IGNITION AND  INJECTION

17

17 - 2

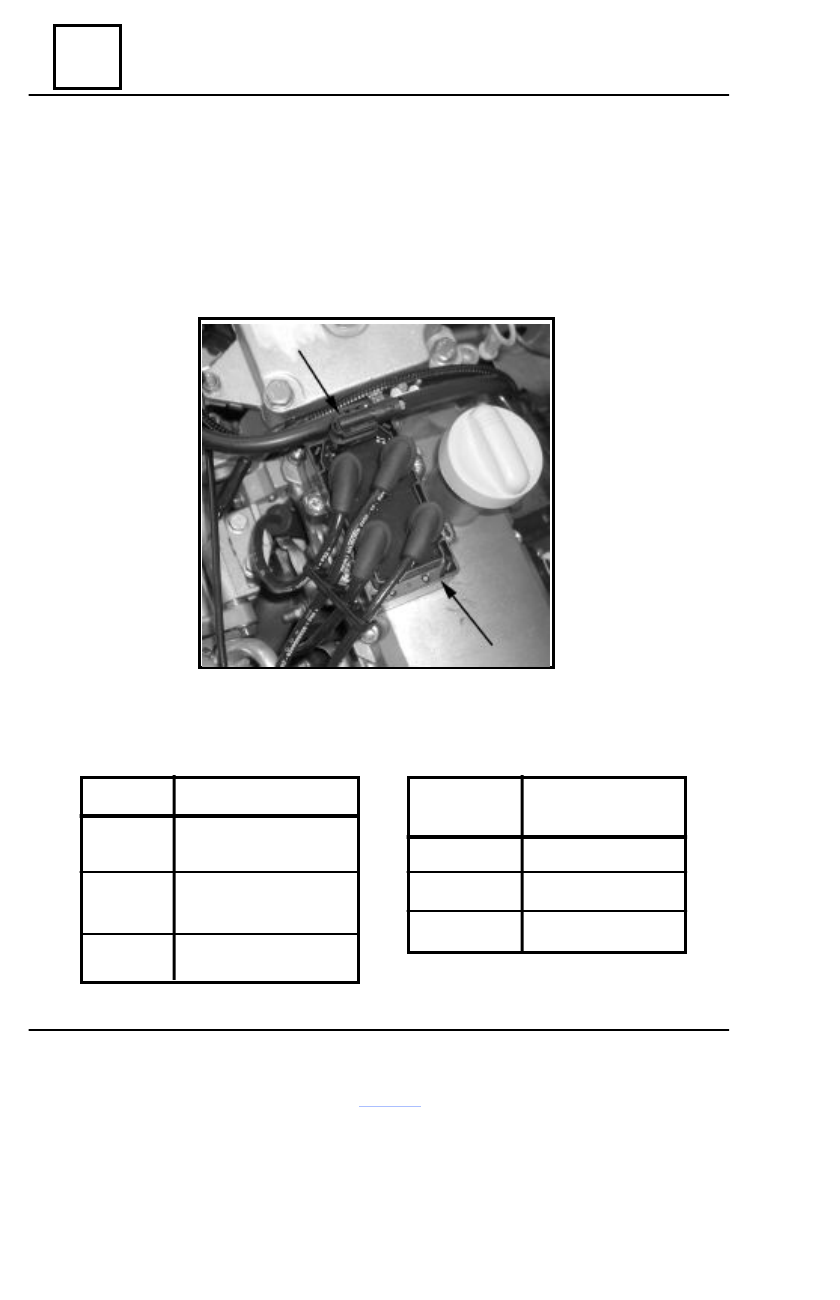

 IGNITION COIL

The system is including a double coil (X), controlled by the electronic control unit (UCE).
The coil has and electric connector (Y) with four ways, and is simultaneously producing sparks at cylinders

1 and 4, when it is controlled by the pin 32 of the UCE injection and at cylinders 2 and 3, when it is controlled
by the pin 1 of the UCE injection.

Ignition system

ELECTRIC CONNECTOR

   PINS

FUNCTION

     A

Controlling ignition at

cylinders 1 and 4

      B

Controlling ignition at

cylinders 2 and 3

     C

Supply 12 V (+DC)

CHECKING

RESIST

ANCE

BETWEEN PINS

A-C

0.52

± 10 %



 Ω

B-C

0.52

 ± 10 %



Ω

HT - HT

7.2

± 10 %

   K

Ω

X

Y

IGNITION AND  INJECTION

17

17 - 3

ENGINE

BRAND

TYPE

E7J - 262

SAGEM

RFC 52 LZ

Distance between electrodes:

0.9 mm

Tightening moment:

2.5 - 3 daNm

Flat seat with gasket

Spark plags

IGNITION AND  INJECTION

17

17 - 4

Injection system



CHARACTERISTICS

• Electronic control unit (UCE injection) with 90 pins SIEMENS.

• Sequential multi-point injection.
• Controlling one injector each time.
• Static ignition with a double ignition coil.
• Canister purging valve controlled in opening duty cycle.
• Idling regime correction subject to:

- climate maintenance (air conditioning);
- battery voltage.

• Maximal regime:

- 6200 rot/min for first, second and third speed;
- 6000 rot/min for fourth and fifth speed.

IGNITION AND  INJECTION

17

17 - 5

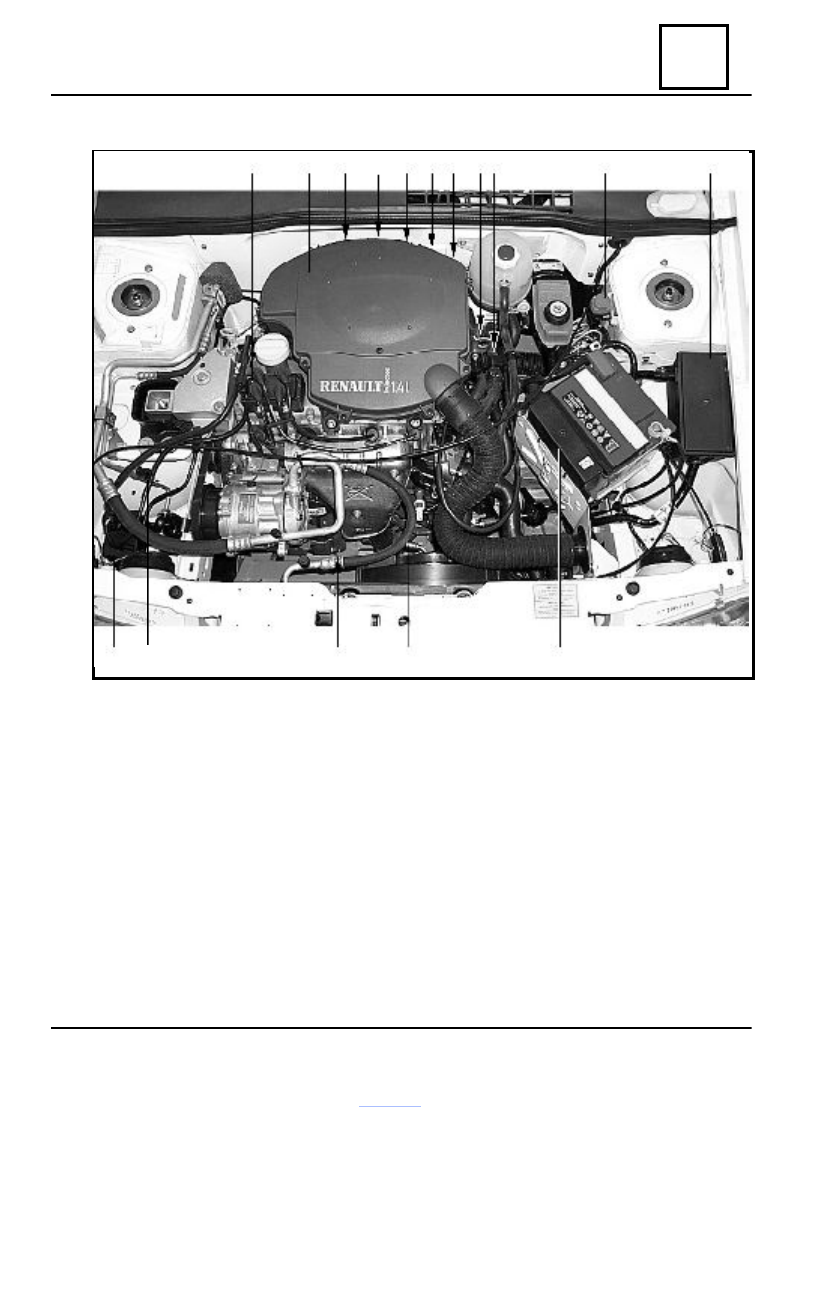

ELEMENTS LOCATION

1. RPM sensor ( tightening moment : 0.8 daNm);
2. Water temperature sensor (tightening moment: 2.5 daNm);
3. Atmospheric pressure sensor;
4. Step-by-step engine for idling adjustment;
6. Air temperature sensor;
7. UCE injection;
8. Choke sensor;
9. Fuse and relays box;

10. Air filter;
11. Detonation sensor (tightening moment: 2.5 daNm);
12. Oxygen sensor (tightening moment: 4.5 daNm);
13. Ignition coil;
14. Carbon canister with purging valve included;
15. Power steering pressure controller(tightening moment: 1.2 daNm);
16. Air conditioning pressure controller (tightening moment: 0.8 daNm).

Injection system



 13

 10    11

  5

  4   6   3  2  1

  8

        9



14   16

     15           12

       7
