89

ELECTRICAL DIAGRAMS

89 - 3

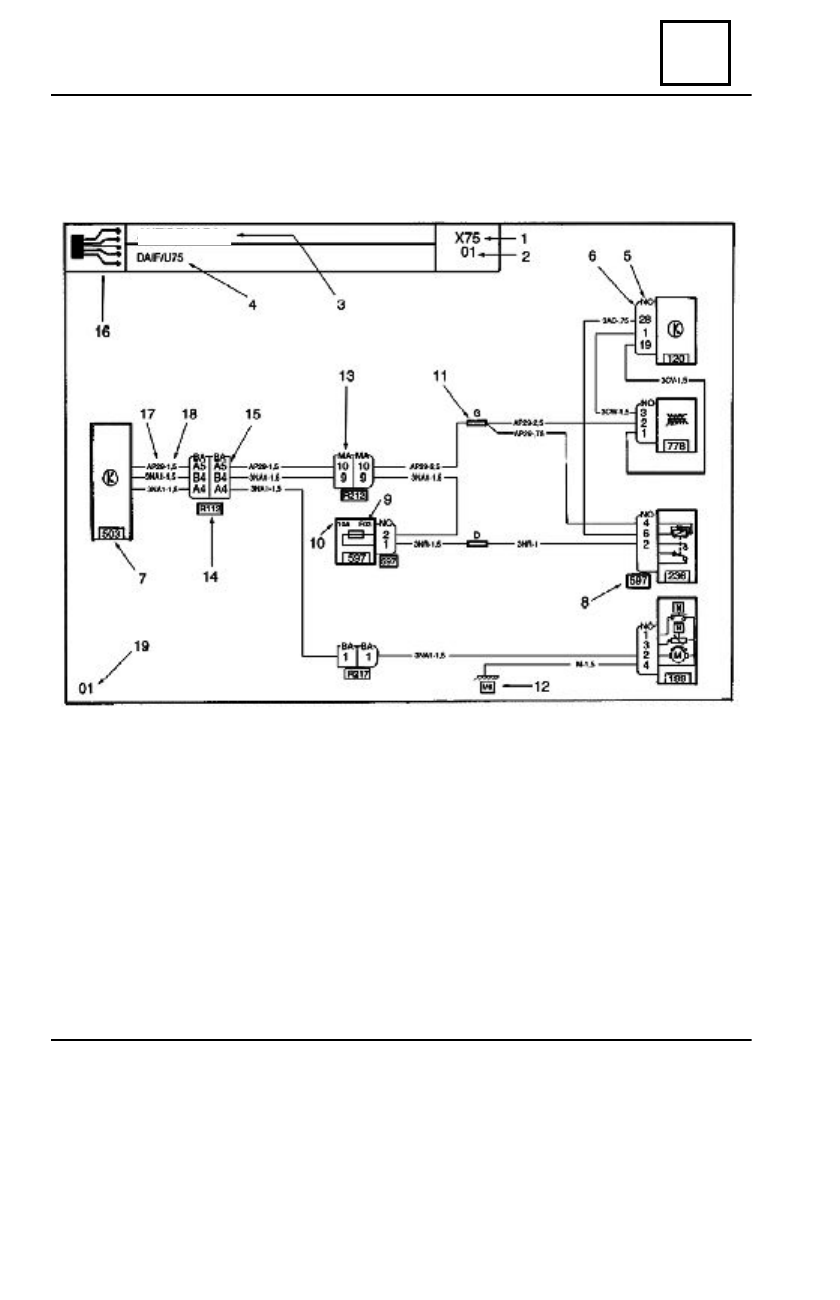

ANTISTARTING

GENERALITIES

89

ELECTRICAL DIAGRAMS

89 - 4

INTERPRETATION OF CONNECTORS WIRES FUNCTION INDEX

The information concerning the function of the wires in connecters and couplings included in

Chapter 1, are to be interpreted taking into account the explanations based upon the following
example:

1 = symbol of the pages containing connectors and couplings
2 = connector destination
3 = vehicle class
4 = manufacturing year
5 = name of the wiring on which the respective connector is placed
6 = wire colour
7 = connector code
8 = component to whom the described connector is to be connected
9 = connector colour

   10 = connector symbol
  11 = indication of the connector socket
 12 = wire sectioning (mm˝)
 13 = wire functional code

        14 = wire destination
        15 = chapter number and connector drawing number

NOTE:
Concerning position 6, we point out that we are to mark one X for one wire and two Xs

for two wires. The colour of the wire is to be symbolized only in case the electric track of
the wire represents one of the fundamental statuses:  + permanent (+IC), + after contact
(+DC), mass, (-) or controls.
      The symbols used for the wire colours are as follows:

A = white

AS = blue

GR = grey

N = black

G = yellow

V = green

M = brown

VI = violet

R = red

GENERALITIES

89

ELECTRICAL DIAGRAMS

89 - 5

 ATMOSPHERE PRESSURE SENSOR

Position  Section

           Destination

1



0,5

3CM

DETONATION SENSOR MASS

 2

 0,5         3S

DETONATION INFO INJECTION COMPUTER

ENGINE WIRING

  X 75
    03

DETONATION SENSOR

 11            12            13

2   5              3              4

 6

14

7

8

9

10

13 - 07

15

11

1

1

    1

   2

   3 CM      3S

   N

  X

CY2AE

           MA

    146

     147

  3CM

    3F

    3D

    N

   AS

   G

     A                B             C

ZW3DT

          VE

GENERALITIES

89

ELECTRICAL DIAGRAMS

89 - 6

FUNCTIONAL DIAGRAMS LIST

Antistarting

O

O

O

O

Speed limit alarm (DAIF)

S

S

S

S

Lighter

S

S

S

S

Climate control system

S

S

S

S

Climate control system and air conditioning

O

O

O

O

Ashtray lighting

S

S

S

S

Ceiling lamp

S

S

S

S

Documents compartment lighting lamp(CHAUFO)

S

S

S

S

Documents compartment lighting lamp

S

S

S

S

Transmission  4x4

O

O

O

O

Starting circuit

S

S

S

S

GMV cooling(CA)

O

O

O

O

Electronic injection (CHAUFO)

S

S

S

S

Electronic injection(CA)

O

O

O

O

Charging circuit

S

S

S

S

Rear wire mass

S

S

S

S

Battery mass

S

S

S

S

4x4 transmission additional wire mass

O

O

O

O

AC additional wire mass

O

O

O

O

  Windscreen wiper additional wire mass

O

O

O

O

Fog lights additional wire mass

O

O

O

O

Driver belt witness additional wire mass(DAIF)

S

S

S

S

Speed limit alarm wire mass (DAIF)

S

S

S

S

Front wire mass/dashboard(CHAUFO)

S

S

S

S

Front wire mass/dashboard(CA)

O

O

O

O

Front wire mass/dashboard(ANTIDID,CA)

O

O

O

O

Engine wire mass

S

S

S

S

Cockpit fuses box

S

S

S

S

Coupling plates (CA)

O

O

O

O

Coupling plates (4x4)

O

O

O

O

Coupling plates (DAIF)

O

O

O

O

Coupling plates (CA,4x4)

O

O

O

O

Coupling plates (DAIF,4x4)

O

O

O

O

Witness hand brake/brake system failure

S

S

S

S

Fuel level indicator

S

S

S

S

Oil pressure witness

S

S

S

S

Instrument panel

S

S

S

S

Cooling fluid temperature alert witness

S

S

S

S

Witness brake plates damage

S

S

S

S

Driver belt witness (DAIF)

S

S

S

S

Acoustic alarm

S

S

S

S

Windscreen wiper - cleaner

S

S

S

S

Windscreen wiper - cleaner  (EVCVAR)

O

O

O

O

1.
2.
3.
4.
5.
6.
7.
8.
9.

10.

11.

12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.

No.              Electric diagrams denomination

U75      H75      E75       M75
