Dacia Pick-Up 1304/1305/1307. Manual - part 74

FRONT BEARING ELEMENTS

31 - 20

31

BRAKE CALIPER SUPPORT

D

ISMO UNTING

Lift the vehicle on a two columns

elevator;

Dismount:

- the wheel;
- the caliper without disconnecting the

flexible connection;

- the brake pads.

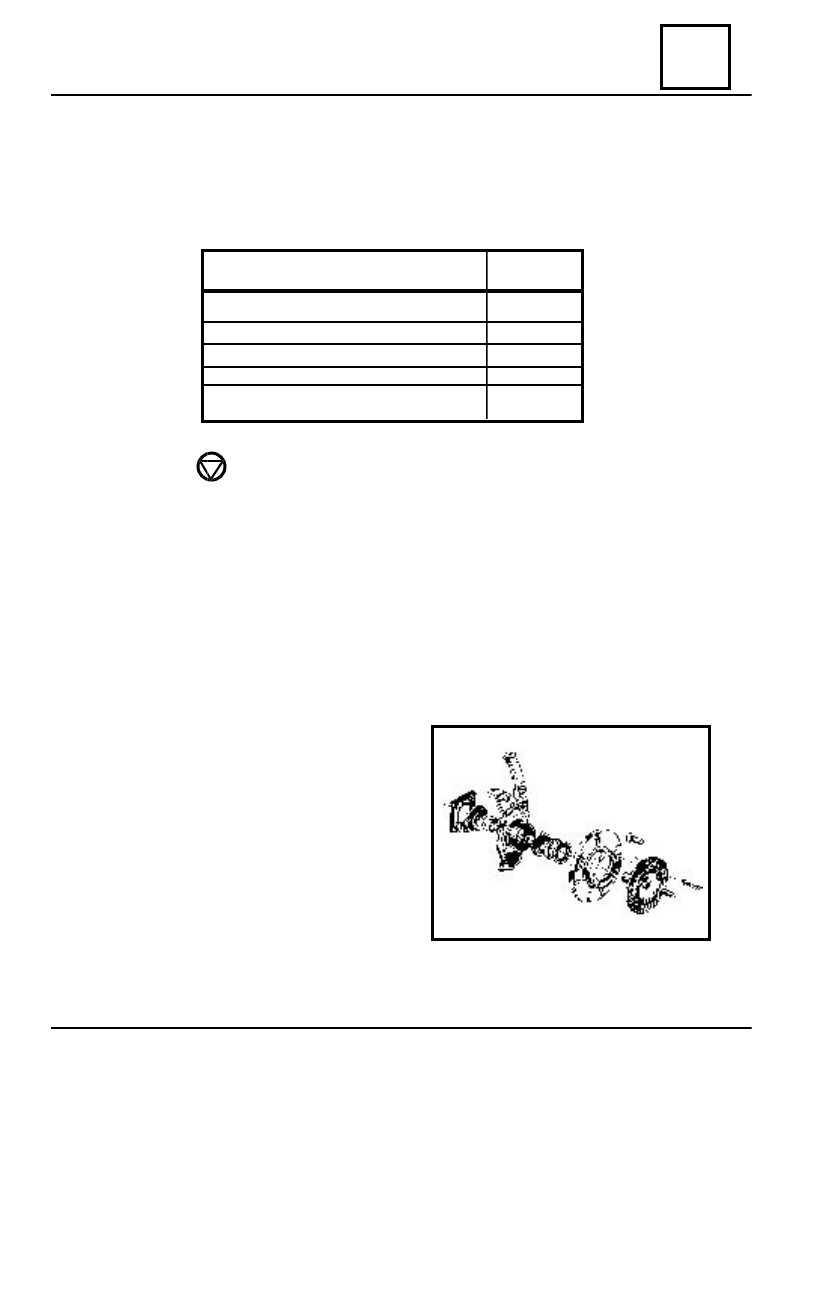

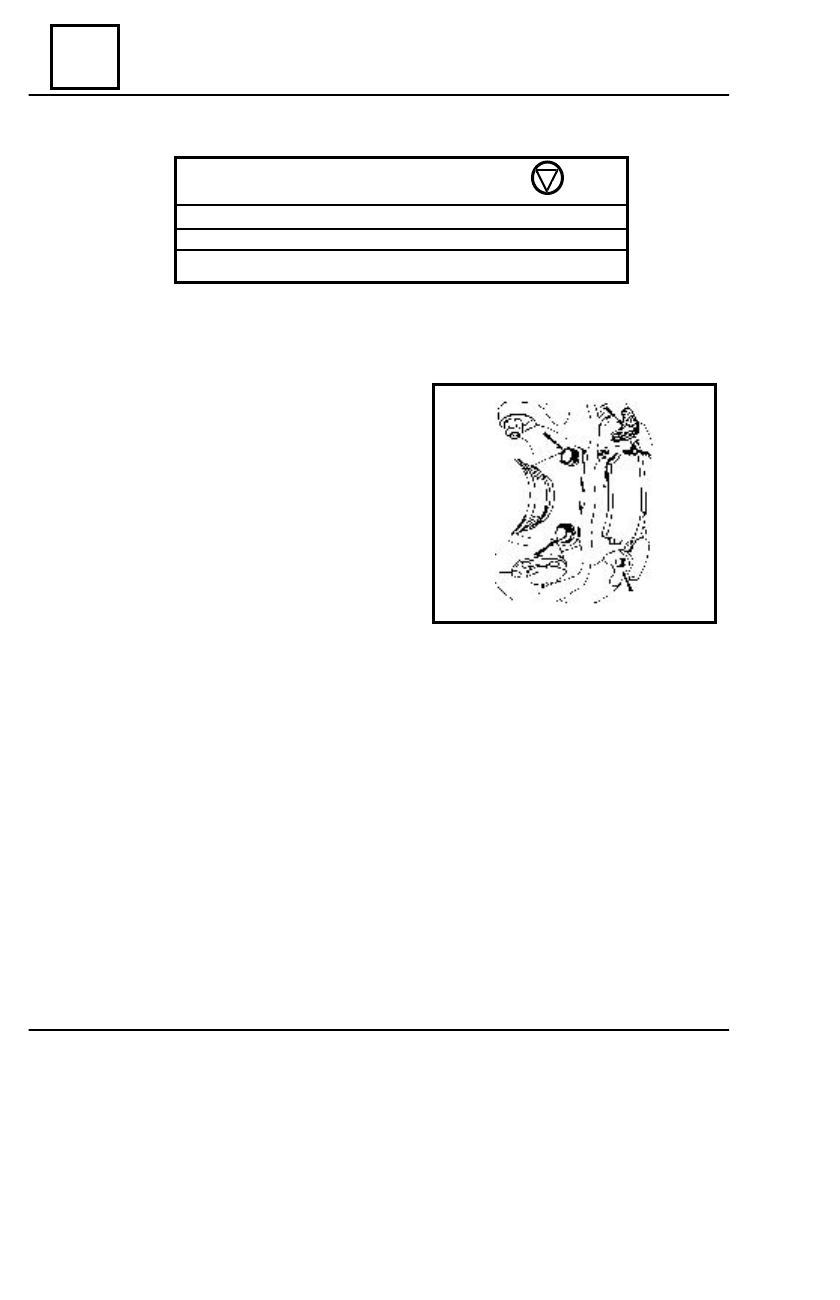

Dismount:

- the two screws M 6 x 1 that attach

the protector on the brake caliper support;

- the two screws M 8  x 1,25 that

attach the brake caliper support on the steer-
ing knuckle;

- the two screws M 12 x 1,25 that at-

tach the brake caliper support on the steering
knucklethe brake caliper support.

R

EMOUNTING

NOTE:
 Upon  remounting, grease the screws with FIXAMED R 58  and replace the Grower

washers.

Place the brake caliper support in the right position.
Tighten the screws  M 12 x 1,25 at the required moment of  6,5 daNm.
Tighten the screws  M 6 x 1 that attach the protector at the required moment of 1,3 daNm.
Mount:

- the brake pads;
- the brake caliper support;
- the wheel.

Take down the vehicle from the elevator.

T

IGHTENING



MOMENTS

 ( în daNm )

The attachment caliper support screw on steering knuckle .......6,5
The attachment protector screw on the caliper support.................1,3
The attachment protector screw on the steering knuckle............
.......2

31

FRONT BEARING ELEMENTS

31 - 21

STEERING KNUCKLE

D

ISMO UNTING

SPECIAL



TO OLS

:

         D

ENO MINATION

C

ODE

Transmission gear and hub extractor

PF 235 A

Transmission gear mounting device

PF 236

Ball joints extractor

PF  476

Front axle support cross bar

PF  509

Dynamometric wrench

MOT 50

T

IGHTENING



MOMENTS

- Upper ball joint nut.......................................5 daN.m
- Lower ball joint nut.......................................5 daN.m
- Steering ball joint nut....................................4 daN.m
- Transmission nut..........................................23 daN.m
- Wheels nut.....................................................9 daN.m

- Caliper support attachment screws

................6,5   daN.m

D

ISMO UNTING

Lift the vehicle by means of an elevator.
Mount the  PF 509 support cross bar.
Dismount:

- the wheel;
- the brake caliper together with flexible

connection;

- the brake caliper support and the mud

flap;

- the transmission gear nut.

FRONT BEARING ELEMENTS

31 - 22

31

STEERING KNUCKLE

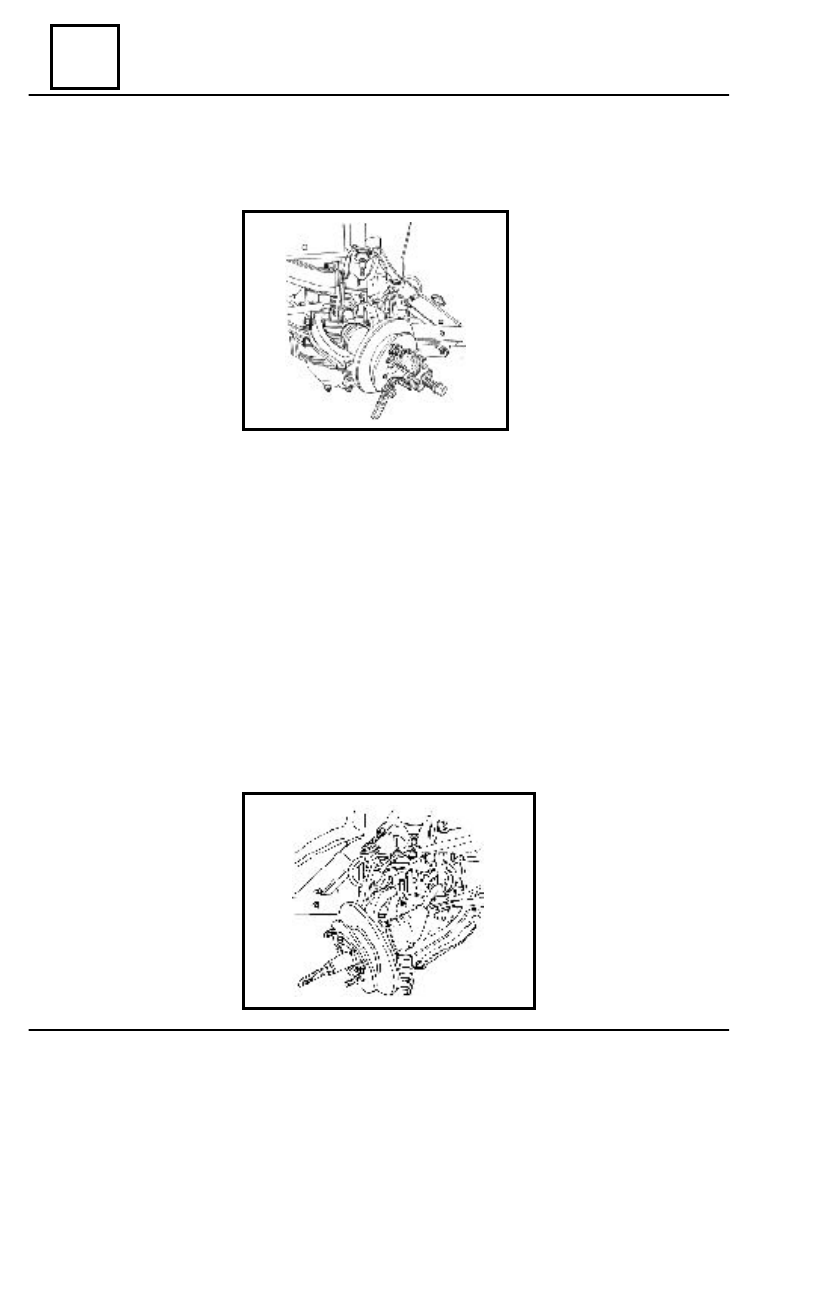

Mount the PF 235 A extractor on the hub;
Depress the “hub – disc” assembly;
Dismount the three ball joints by means PF 476 and take out the steering knuckle.

R

EMOUNTING

Position and press the steering knuckle on the “ hub – disk “assembly ,after previously having

introduced a grease supply.

Mount the “hub – disk - steering knuckle ”assembly, by coupling the ball joints and tighten

their nuts to the required moment.

Mount the transmission gear by means of the PF 236 device.
Mount and tighten:

- the transmission nut;
- the brake caliper support and the mud flap;
- the brake caliper.

Mount the wheel, get the vehicle down from the elevator, recover the PF 509 crossbar.
Press the brake pedal several times in order to bring the brake caliper piston in contact with

the brake pads

When replacing the steering knuckle, check and adjust the steering box position, the parallel-

ism, distribution.

31

FRONT BEARING ELEMENTS

31 - 23

STEERING KNUKLE

STEERING KNUKLE - CHECKING

SPECIAL



TO OLS

:

         D

ENO MINATION

C

ODE

Steering knuckle checking device

PF  496

The steering knuckle is dismounted off the motor car.
Dismount the inner bearing of the steering knuckle.

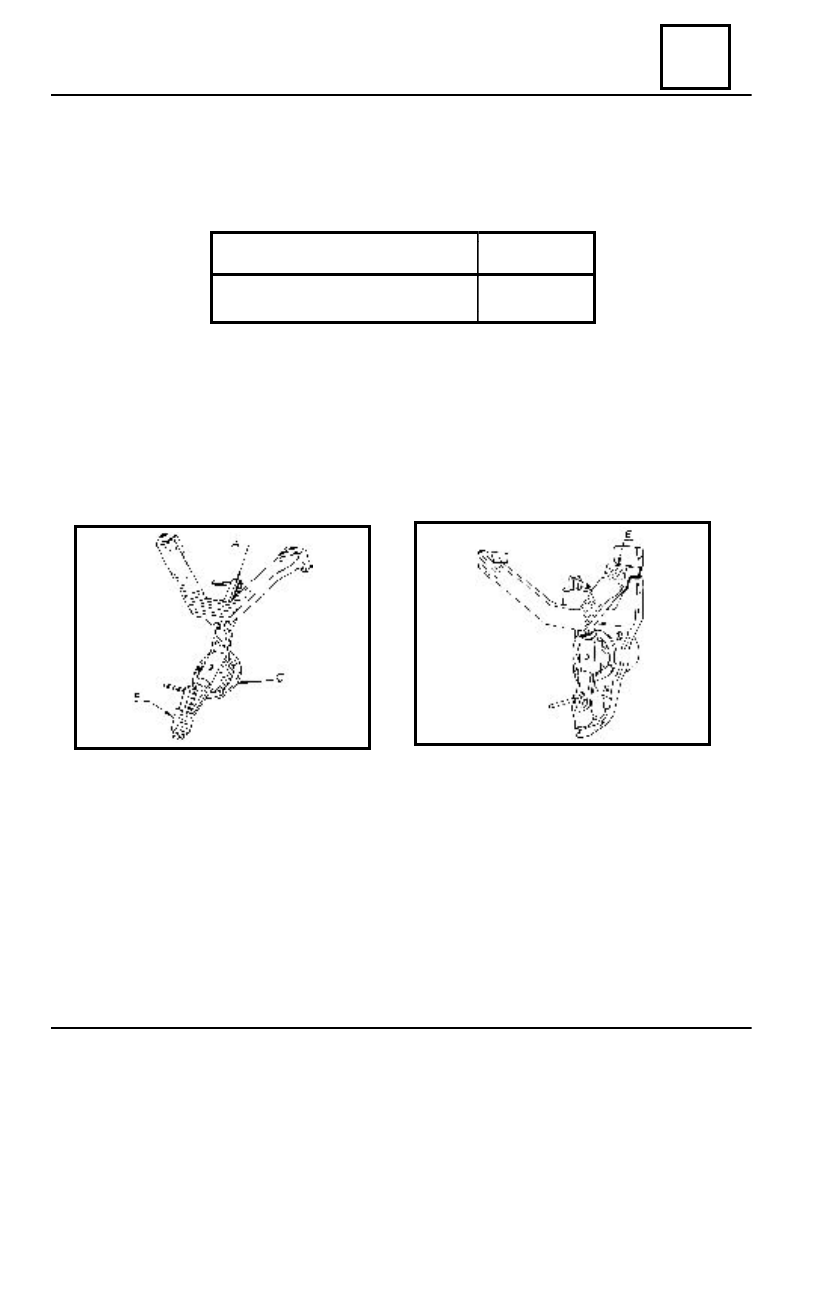

In its seat, place the pin (C) of the PF 496 checking device, and place mandrels  (A) and (B)

in the suspension ball joint seats.

In this situation, the side (E) of the steering knuckle should be parallel to the checking device

front side, and the seat  of the steering ball joint  should get into the device bore.
