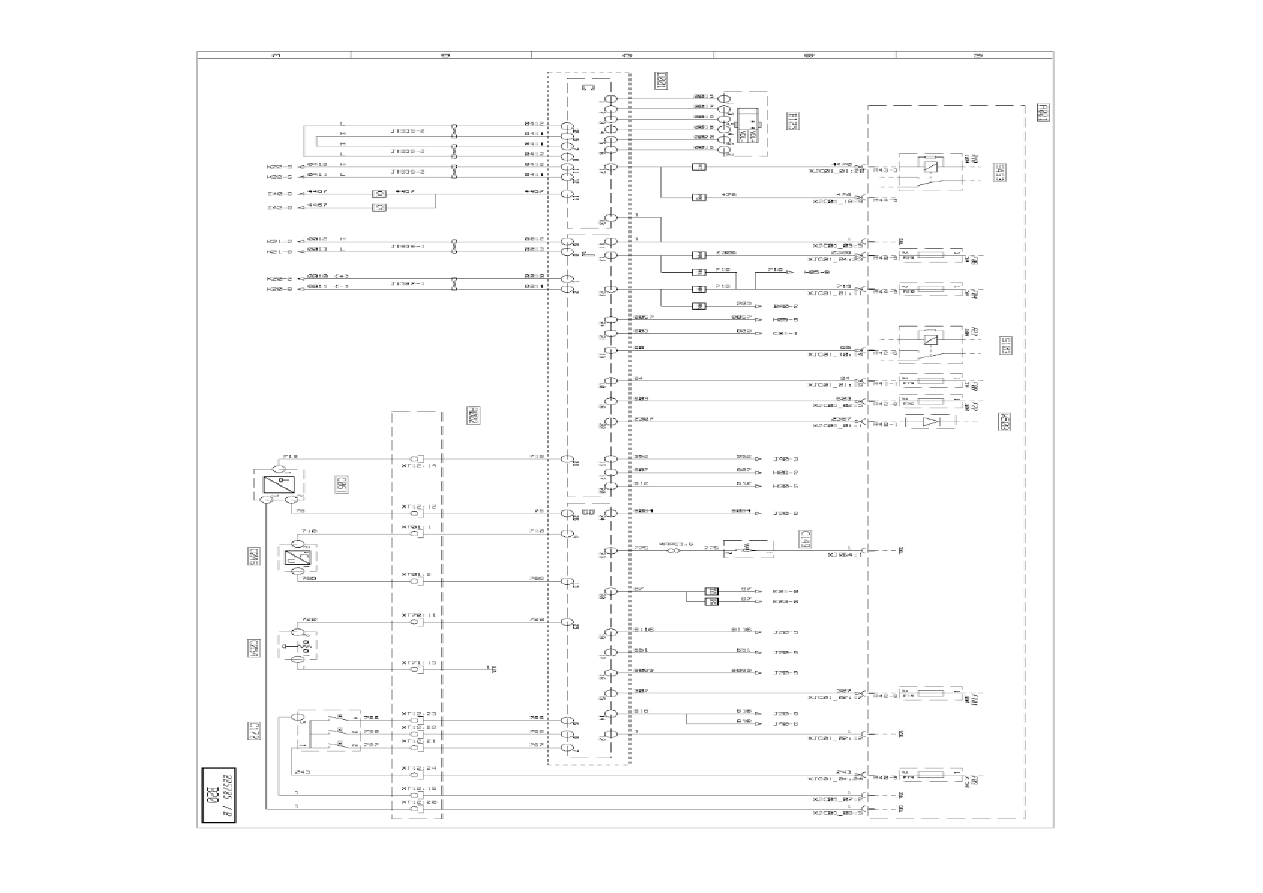

Principal information display

Key to appliances

Code

Function

Location

A001

Cab electrical distribution box

B2c

A002

Chassis-cab connection box

B2c

B125

Radio set control

C2b

C046

External temperature sensor

C2c

C051

Fuel level sensor

A5d

C054

Air filter clogging sensor

C5d

C149

Driver's seatbelt not buckled sensor

C3c

C172

Fifth wheel position sensors

B6c

D001

Principal information display

C2b

S103

Fog driving lights power supply relay

B2c

S453

Add-on heater power supply relay

B2c

W503

Diode on engine running information relay power supply circuit

B2c

AM: with ADR equipment

AN: without ADR equipment

AS: With air / air independent heating

AT: With air / water independent heating

BS:  4x2 vehicles

DD:  6x2 vehicles

CX: Without air / air independent heating

CY: Without air / water independent heating

Principal information display

2 / 2

03/28/2016, 12:05:20 PM (CEST)

1A

5A

5A

F07

F89

F89

A001

A002

C056

C056

D004

225785

B

B40

A

B

D

1

1

1

1

1

1

1

2

2

2

2

2

2

3

3

3

3

4

4

4

4

5

6

6

7

8

8

AD

AD

AD

AD

AM

AN

AY

AY

AY

AY

BQ

BQ

CO

DE

DE

n

n

1 / 2

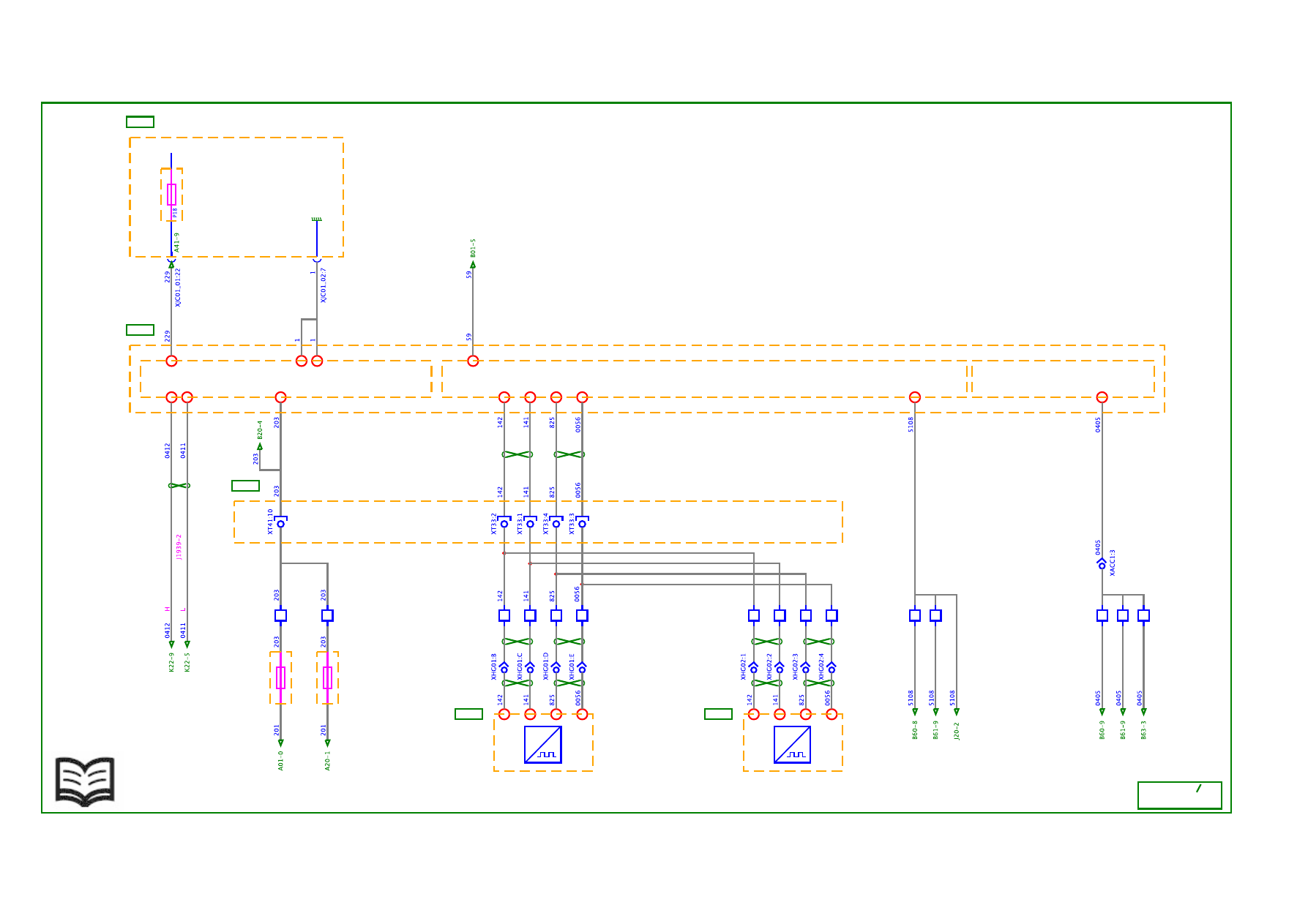

Tachograph

Key to appliances

Code

Function

Location

A001

Cab electrical distribution box

B2c

A002

Chassis-cab connection box

B2c

C056

Tachograph speed sensor

B3c

D004

Tachograph

C2c

AD: with  automatic gearbox

AY: with manual gearbox

AM: with ADR equipment

AN: without ADR equipment

BQ: with  FMS equipment

CO: with  OPTIFLEET equipment

DE: with  DATAMAX equipment

Tachograph
