Renault Magnum engine. Manual - part 2

3 / 3

Match the direction of orientation.

Drive in seal as far as abutment.

Withdraw tool 0166.

Fit flywheel.

See pages .

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

7409990166

PUSHER

1 / 5

Engine flywheel, removal

Removal

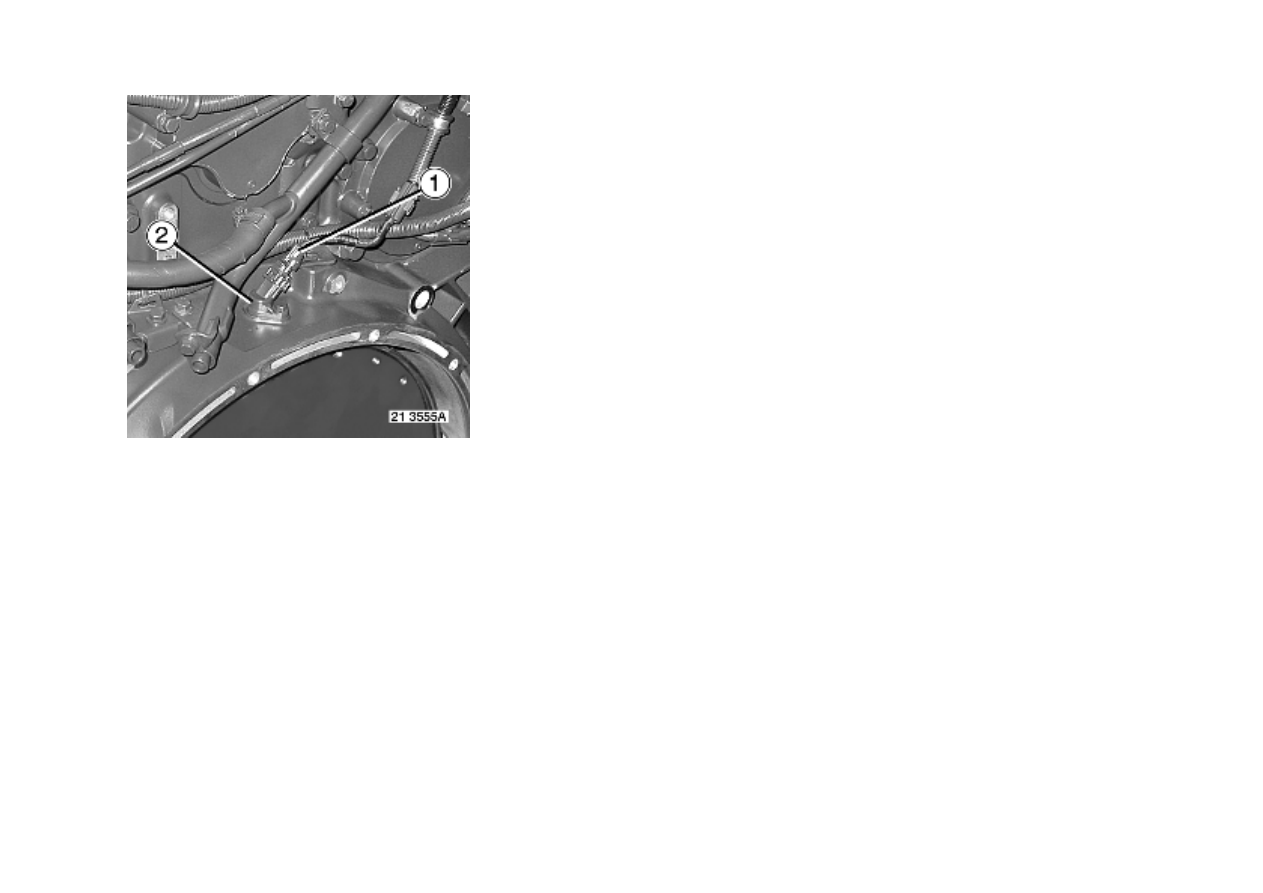

Unplug connector

(1).

Remove engine speed sensor

(2).

2 / 5

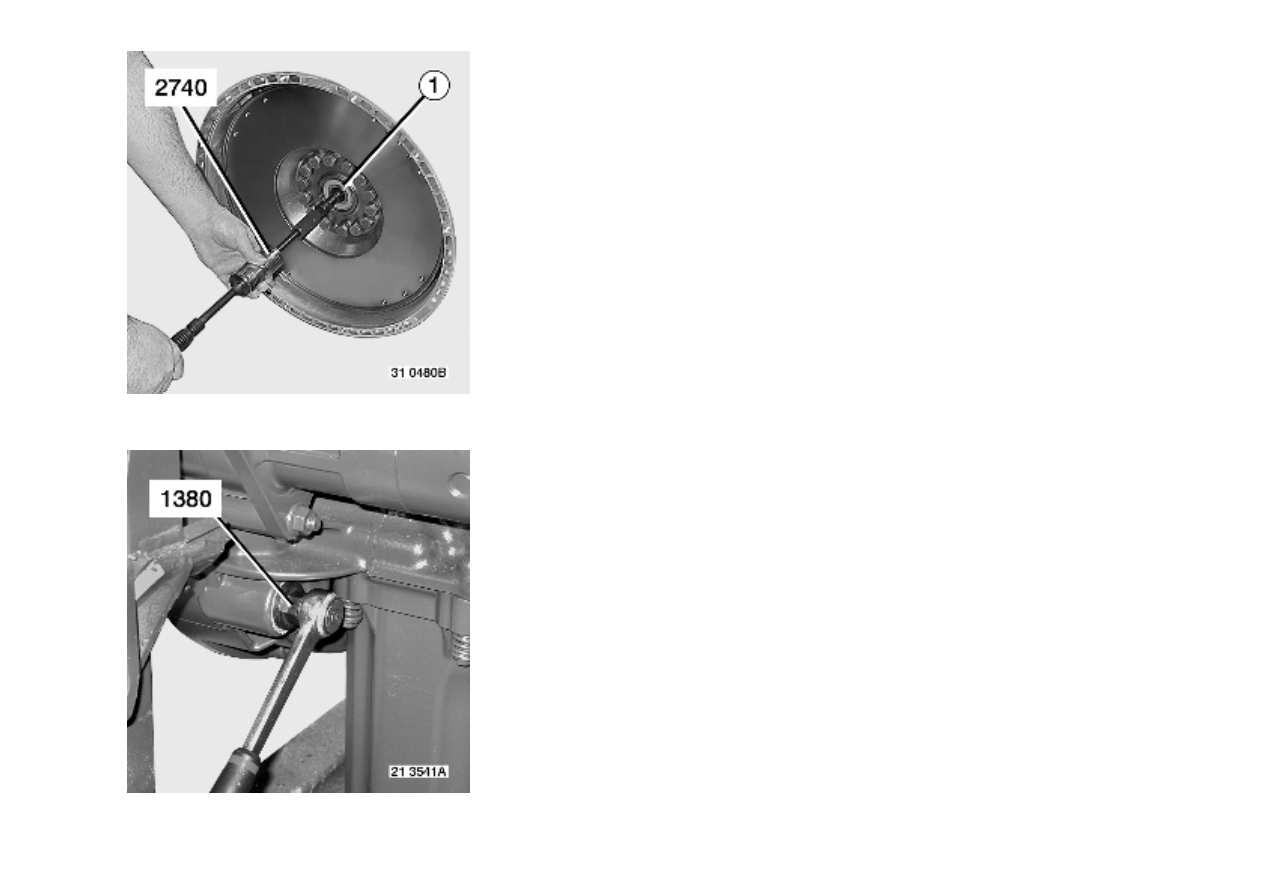

Remove pilot bearing

(1).

Use tool 2740.

Retain the flywheel against motion using tool 1380.

3 / 5

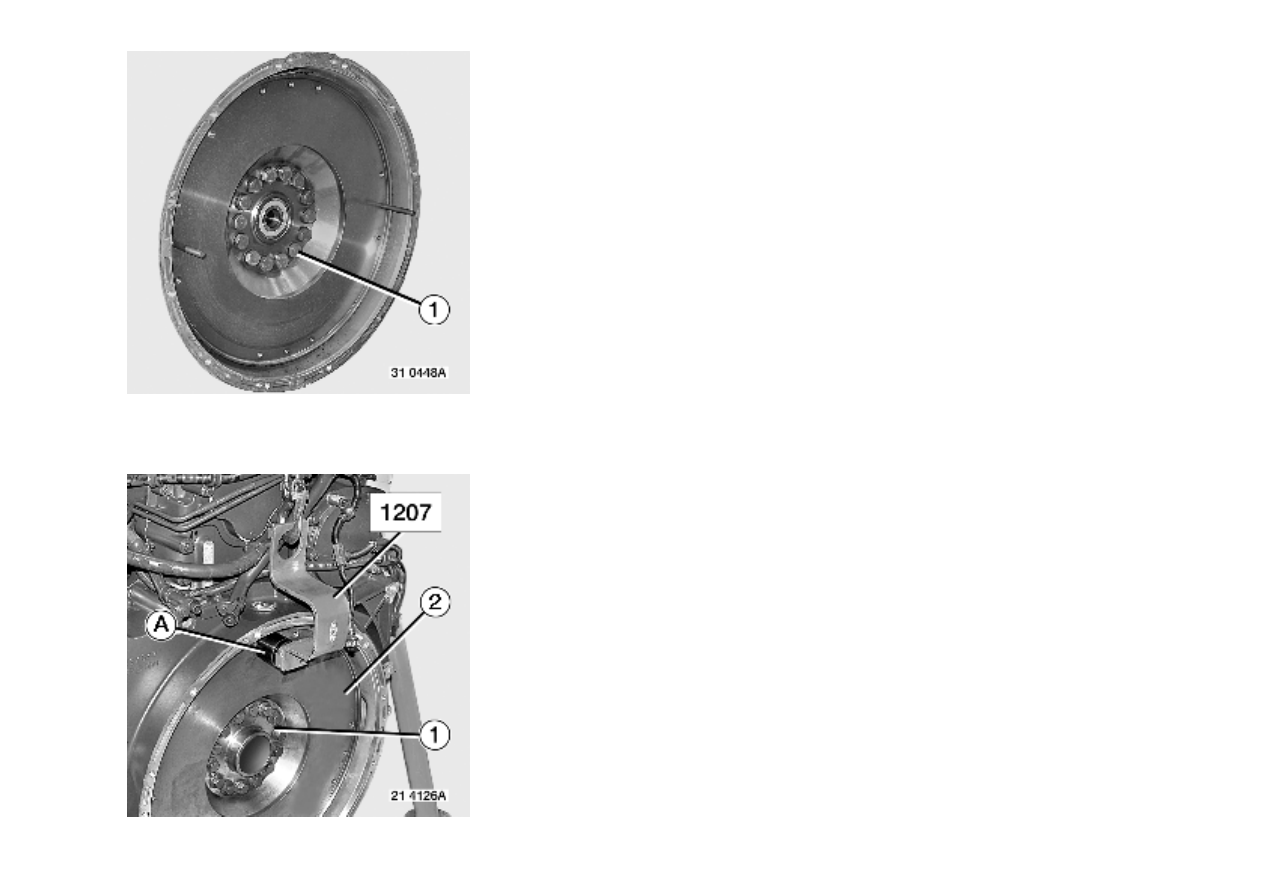

Loosen bolts

(1) proceeding in the reverse sequence to tightening.

See pages .

Withdraw tool 1380.

Mount tool 1207.
