Renault Premium engine. Manual - part 122

9 / 11

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

7488800173

PUSHER

1

1

7409998185

SOCKET

1

1

7409992063

PULLER

1

1

7409992215

MANDREL

1

1

7409998558

PUSHER

2

1

Hubs

Hub securing nut

Stage

1

150±30 Nm

Stage

 2

Rotate the hub through several revolutions.

Stage

3

1000±100 Nm

Half-shaft studs

75±15 Nm

Half-shaft securing nuts

150 Nm

10 / 11

The item numbers indicate the tightening sequence.

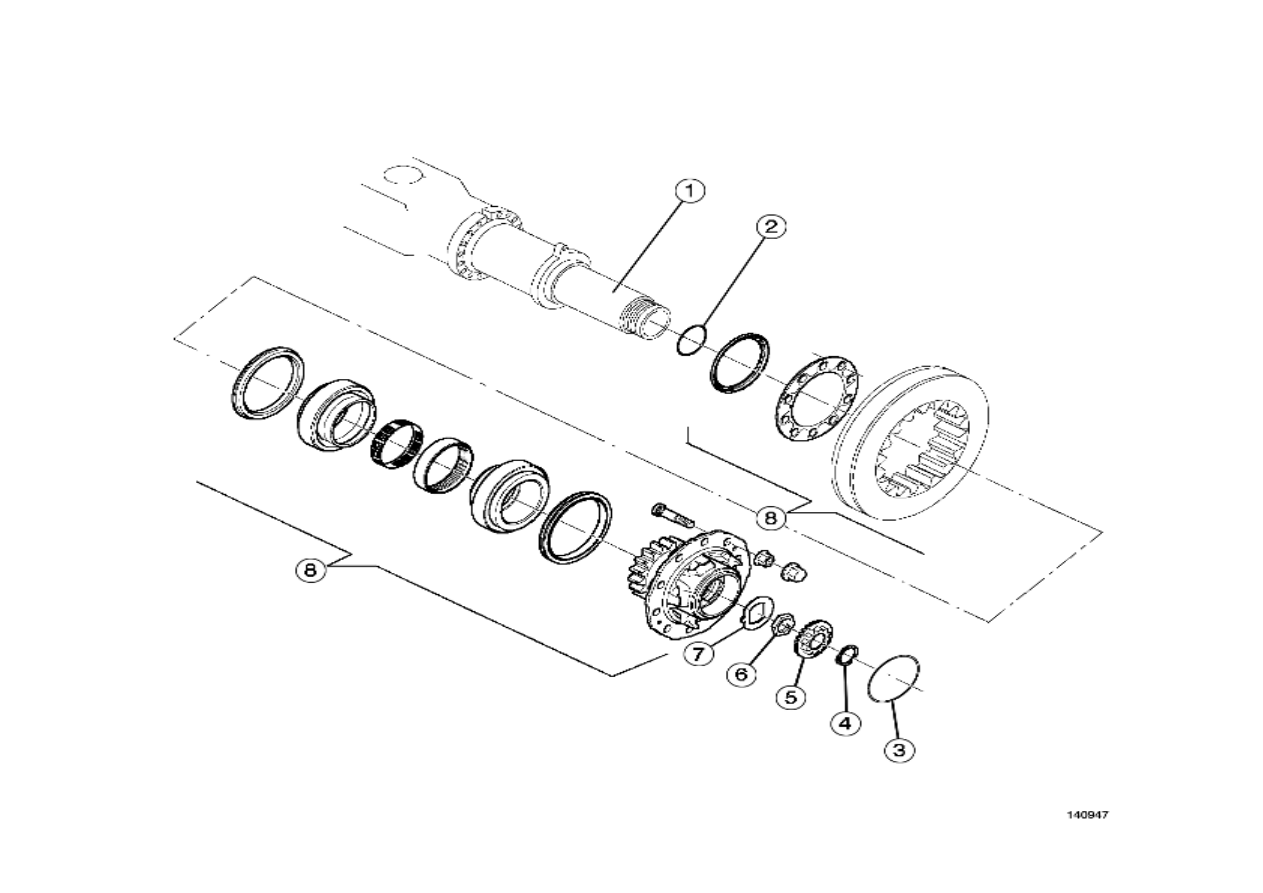

Exploded view

11 / 11

1 / 1

Hubs

Hub securing nut

Stage

1

150±30 Nm

Stage

 2

Rotate the hub through several revolutions.

Stage

3

1000±100 Nm

Half-shaft studs

75±15 Nm

Half-shaft securing nuts

150 Nm

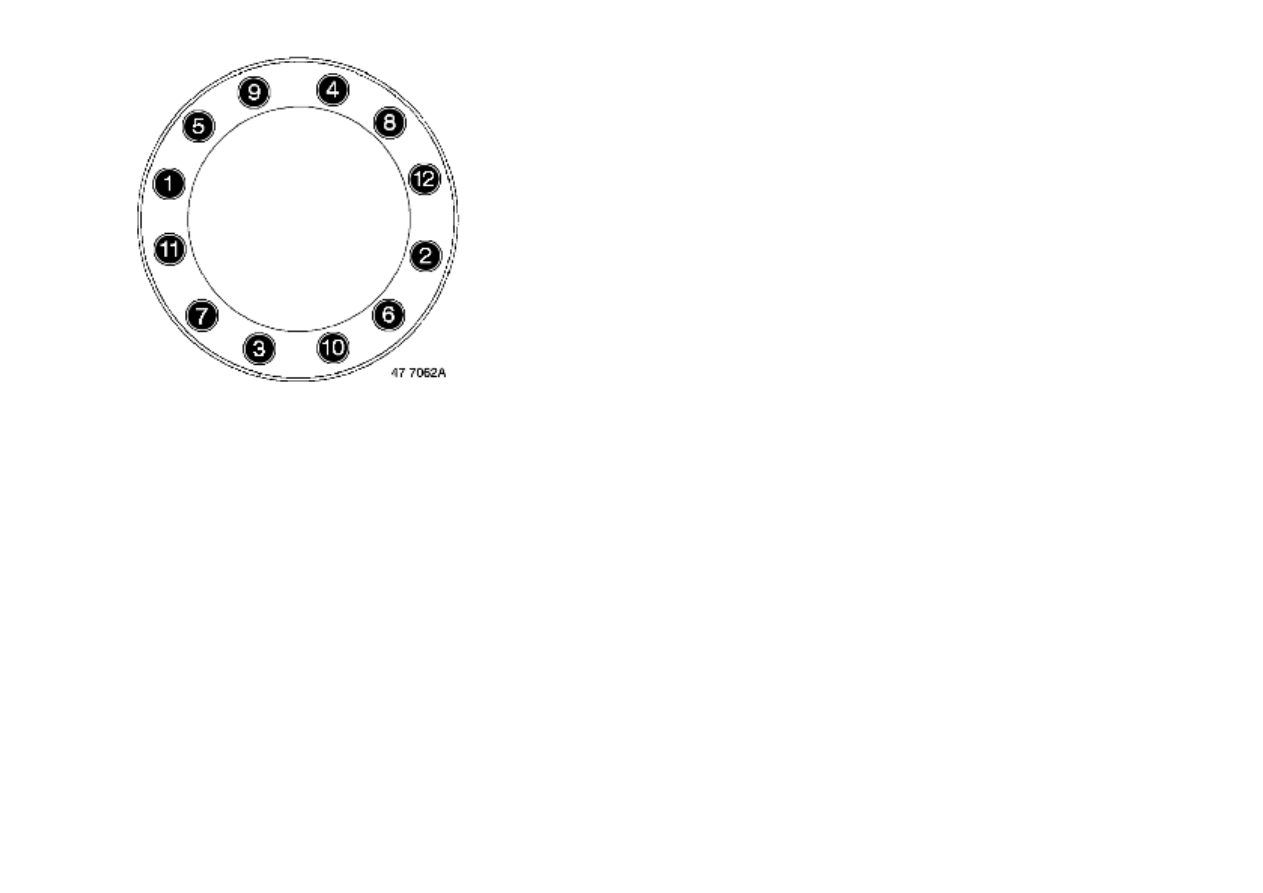

The item numbers indicate the tightening sequence.
