Renault Scenic 3 Chassis. Manual - part 47





38C

-

1

ANTI-LOCK BRAKING SYSTEM

Introduction

38C

The vehicle is fitted with a BOSCH 8.0. ABS system.

Depending on the vehicle equipment, the BOSCH  8.0
system consists of the ABS system only or the Anti-lock
Braking System in conjunction with the Electronic Sta-
bility Program (ESP).

I - DESCRIPTION OF THE ABS SYSTEM WITH
ELECTRONIC STABILITY PROGRAM

The ABS system / Electronic Stability Program compri-
ses:

- a brake servo assembly,

- a pump assembly comprising:

• a hydraulic pump,

• a pressure modulation unit (twelve solenoid valves),

• a computer,

• a pressure sensor,

- a  steering wheel angle sensor built into the electric

power assisted steering,

- a combined yaw speed and transverse acceleration

sensor,

- four wheel speed sensors,

- aneElectronic stability program deactivation pressure

button.

II - PRINCIPLE OF OPERATION OF THE ABS
SYSTEM WITH ELECTRONIC STABILITY
PROGRAM

The reference status is calculated continuously from
wheel speed and steering wheel angle measurements.
The reference status represents the desired correct be-
haviour.

This reference status is compared to the actual status
of the vehicle from the yaw speed and transverse acce-
leration measurements.

Where there is a difference between the desired trajec-
tory and the actual trajectory, the appropriate wheel is
braked. In certain cases, the understeer monitoring
brakes two wheels at the same time. The torque gene-
rated sets the vehicle on the desired trajectory.

In some cases, the anti-skid control modifies the engine
torque.

III - ELECTRONIC STABILITY PROGRAM
OPERATION SPECIAL FEATURES

The ESP function can be disconnected via the switch
located on the dashboard.

This function can not be deactivated above a threshold
of approximately 50 km per hour.

This function is automatically reactivated when the ve-
hicle is switched on, or at speeds above approximately
50 km/h.

Equipment required

Diagnostic tool

IMPORTANT

After any operation on the ESP system, it is essen-
tial to confirm the repair with a road test and a check
with the Diagnostic tool (CLIP).

38C

-

2

ANTI-LOCK BRAKING SYSTEM

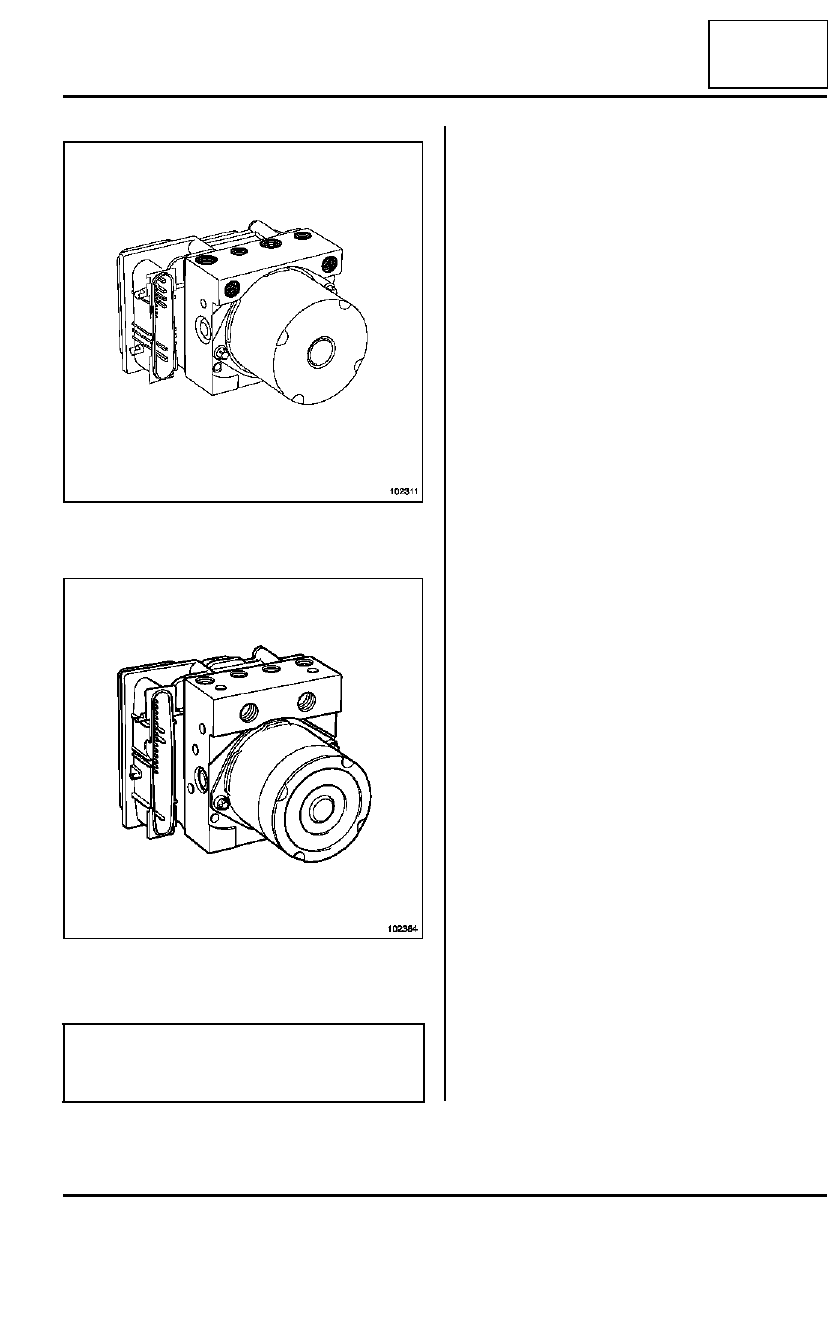

Hydraulic unit: Introduction

38C

The ABS system pump assembly is equipped with a
26-track computer.

The ABS System and Electronic Stability Program
pump assembly is equipped with a 46-track  computer.

102311

102384

Note:

The computer cannot be separated from the pump
assembly.

38C

-

3

ANTI-LOCK BRAKING SYSTEM

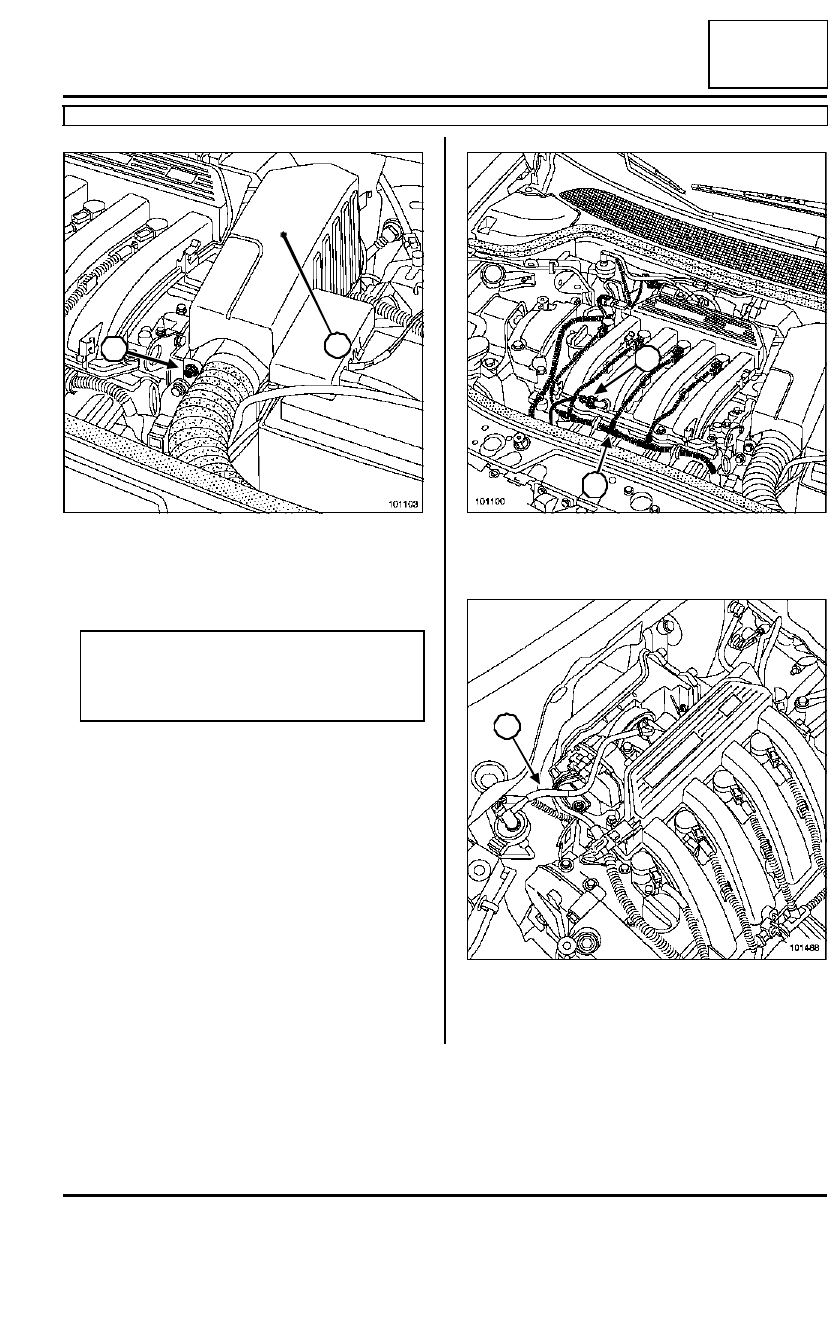

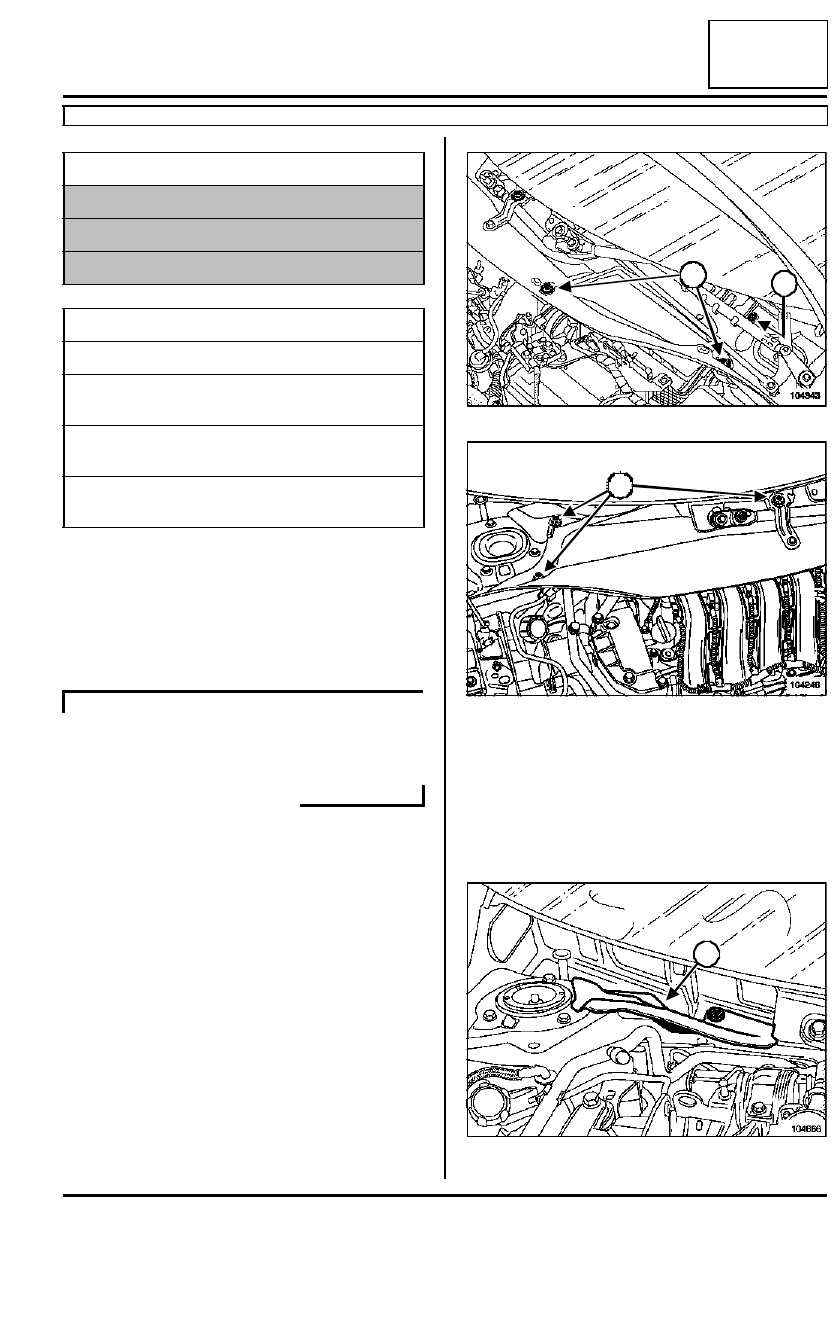

Hydraulic unit

K4J

38C

REMOVAL

Disconnect the battery, starting with the negative ter-
minal.

Fit a pedal press tool to the brake pedal to limit the
outflow of brake fluid.

Drain the refrigerant circuit using the filling station
tool.

Remove the cowl grille ( Wiping - WashingSection).

Remove:

- the engine covers,

- the two air filter access panel mounting bolts (1),

- the plenum chamber partition mounting bolts (2),

- the plenum chamber partition.

Remove the plenum chamber bracket (3)

Equipment required

pedal press

filling station

Diagnostic tool

Tightening torques

m

0.65 daNm

bolts securing the pipes
on the hydraulic unit

1.4 daNm

air distributor mounting
bolts

0.9 daNm

hydraulic unit - support
mounting bolts

0.8 daNm

AIR CONDITIONING or CLIMATE CONTROL

104343

104246

104666

2

1

2

2

3

38C

-

4

ANTI-LOCK BRAKING SYSTEM

Hydraulic unit

K4J

38C

Remove:

- the air resonator unit mounting bolt (4),

- the air resonator unit (5).

Disconnect:

- the brake servo vacuum pipe at the air distributor

end,

- the ignition coil connectors,

- the throttle valve connector.

Disconnect the air temperature sensor (6).

Unclip the engine wiring harness (7).

Unclip the petrol vapour recirculation pipe (8).

Loosen the air filter box mountings, without removing
it from the engine compartment.

101103

WARNING

Do not damage the vacuum outlet on the air dis-
tributor. If it is damaged, the air distributor will
have to be replaced.

4

5

101100

101488

7

6

8
