Peugeot Traveller (2016 year). Instruction

431

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Level 2

Level 3

Comments

Connectivity

MirrorLink

go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink

technology.

go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up
one level.
"Home": go to or return to the "Car mode" page
on your smartphone.

go to the primary page of the "Connectivity"
menu.

433

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
operation must be with the vehicle
stationary.

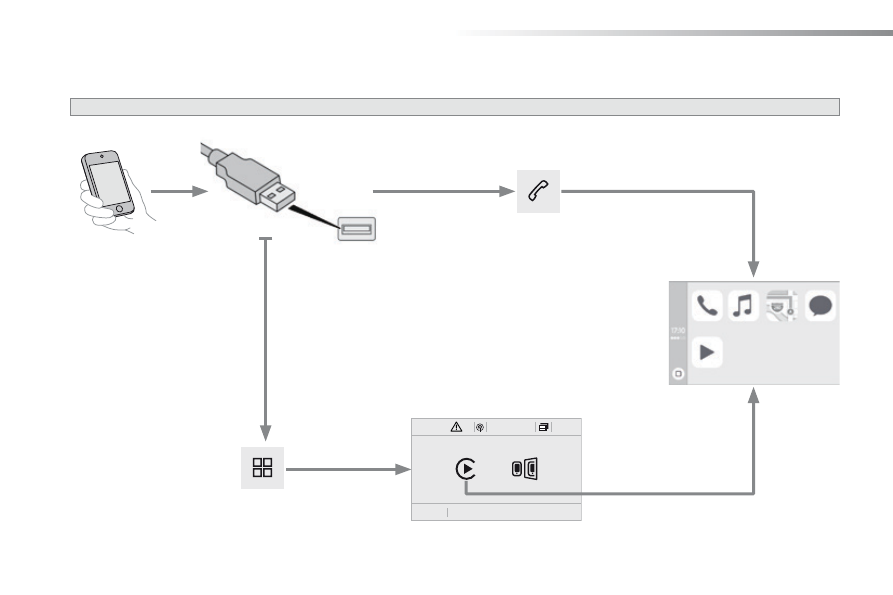

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay

technology to be displayed

in the vehicle's screen, having first
activated the CarPlay

function in your

smartphone.
As the principles and standards
are constantly changing, it is
recommended that you keep your
smartphone's operating system
updated.
For the list of eligible smartphones, go
to the brand's internet website in your
country.

Connect a uSB cable. The
smartphone charges when
connected by a uSB cable.

Press "Telephone" to display the
CarPlay

interface.

Press "CarPlay" to display the
CarPlay

interface.

on connecting the uSB cable, the
CarPlay

function deactivates the

system's Bluetooth

mode.

In the system, press "Connectivity"
to display the primary page.

434

FM/87.5 MHz

87.5MHz

12:13

23 °C

87.5 MHz

FM/87.5 MHz

87.5MHz

12:13

87.5 MHz

23 °C

AM/531 kHz

kHz

12:13

23 °C

531 kHz

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Radio Media

Level 1

Level 2

Radio stations

435

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Level 2

Comments

Radio Media

Source

Radio

Select change of source.

USB

iPod

AUX

Bluetooth

Radio Media

Frequency /

Presets

Frequency

Carry out an automatic or manual search for
radio stations.

Presets

Make a long press on an empty location to preset
a station.

Radio Media

Band

Press Band to change waveband.

DAB

Radio Media

List

Radio stations

open the list of radio stations and press on a
radio station to select it.

436

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Level 2

Radio-media options

Audio settings

Radio settings

Radio stations

437

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Level 2

Comments

Radio Media

Secondary page

Audio settings

Ambience

Select the sound ambience.

Distribution

Sound distribution by the Arkamys

system.

Sound

Adjust the volume or activate volume linked to
speed.

Voice

Adjust the voice volume.

Ringtone

Adjust the ringtone volume.

Confirm

Save settings.

Radio Media

Secondary page

Radio settings

General

Activate or deactivate settings.

Announcements

Confirm

Save settings.

Radio Media

Secondary page

Radio stations

Display the list of radio stations for the band
selected.

DAB

Presets

Select a preset radio station.

Frequency

enter a frequency manually.

Change the screen display mode.

update the list according to reception.

438

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Level 2

Radio-media options

Photos

USB

439

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Level 2

Comments

Radio Media

Secondary page

Music files

Albums

Choose a selection mode.

Artists

Genres

Playlists

Folders

Radio Media

Secondary page

Managing photos

USB

Display photos.
The system supports the following image
formats: .gif, .jpg, .jpeg, .bmp, .png, .raw and .tiff
with a maximum file size of 10 Mb per image.

440

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Press Radio Media to display the
menu.

Press the "OPTIONS" button to go to
the secondary page.

Press "Frequency".

enter the values using the virtual
keypad.
First enter the units then click on the
decimals zone to enter the figures
after the decimal point.

Press one of the buttons for an
automatic search for radio stations.

Press Radio Media to display the
primary page.

Radio

Selecting a station

Radio reception may be affected by
the use of electrical equipment not
approved by the brand, such as a uSB
charger connected to the 12 V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.

Select "Radio stations" in the
secondary page.

Move the cursor for a manual search
for frequencies up or down.

Select a radio station or frequency (refer to the
corresponding section).

Press "Presets".

Make a long press on one of the
buttons to preset the station.

Preset a station

Press "Confirm".

441

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Press Radio Media to display the
primary page.

Press the "OPTIONS" button to go to
the secondary page.

Select "Radio settings".

Select "General".

Select "Announcements".

Activate/deactivate "Station follow".

Activate / Deactivate "Display radio
text".

Activate / Deactivate "Traffic
announcement".

Activate/ Deactivate RDS

RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.

Press "Confirm".

The "radiotext" function allows
information transmitted by the radio
station and related to the station or the
song playing to be displayed.

Display text information

Play TA messages

The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
that carries this type of message. While
traffic information is being broadcast,
the current media is automatically
interrupted so that the TA message can
be heard. Normal play of the media
previously playing is resumed at the
end of the message.

442

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

DAB radio (Digital Audio Broadcasting)

Terrestrial Digital Radio

Display of options:
if active but not available,
the display will be greyed
out.
if active and available, the
display will be clear.

Display "Radiotext" for the
current station.

Switch between the page with the presets and the page
with the frequencies.

Change of band.

Display of the name of the current station
and "multiplex" being listened to, also
called an "ensemble".

Display of the list of radio
stations.

Next "multiplex".
Next radio station.

Secondary page.

Select audio source.

Previous "Multiplex".
Previous radio station.

If the current "DAB" station is not available on
"FM" the "DAB/FM" option is greyed out.

443

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Select the audio source.

Press Radio Media to display the
primary page.

Press "Band" to select the "DAB"
waveband.

Press Radio Media to display the
primary page.

Press the "OPTIONS" button to go to
the secondary page.

DAB / FM auto tracking

Digital radio

"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
"DAB/FM auto tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).

If "DAB / FM auto tracking" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
once the digital signal is restored, the
system automatically changes back to
"DAB".

Digital radio provides higher quality
reception.
The different multiplexes offer a
choice of radio stations arranged in
alphabetical order.

If the "DAB" station being listened to
is not available on "FM" ("DAB/FM"
option greyed out), or "DAB/FM auto
tracking" is not activated, the sound
will cut out while the digital signal is too
weak.

Select "Radio settings".

Select "General".

Activate / Deactivate "Station
follow".

Press "Confirm".

444

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Media

USB player

Selecting the source

Select "Source".

Press Radio Media to display the
primary page.

The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a uSB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.

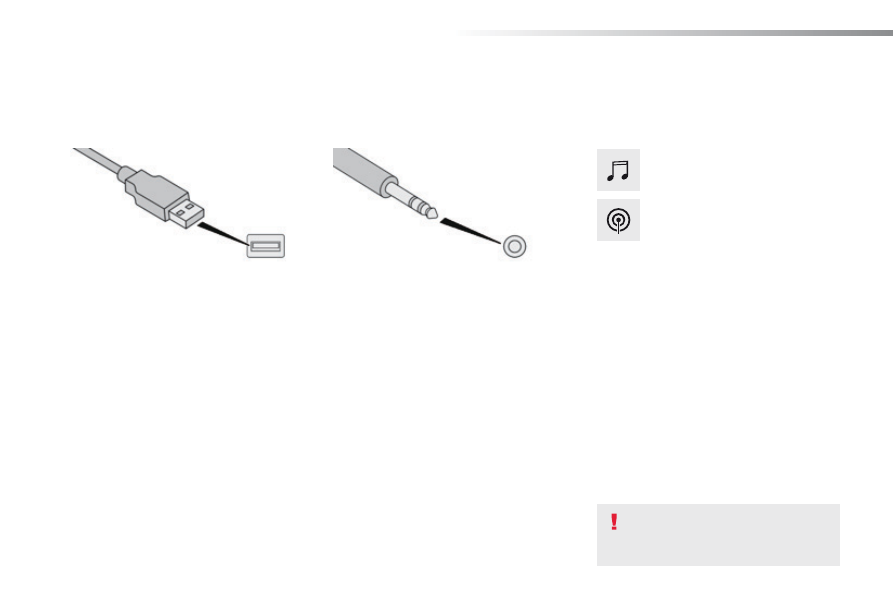

Insert the uSB memory stick into the uSB port
or connect the uSB device to the uSB port
using a suitable cable (not supplied).

Auxiliary (AUX) socket

First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.

This source is only available if "Auxiliary input"
has been checked in the audio settings.

Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).

Choose the source.

Bluetooth

audio streaming

Streaming allows you to listen to music from
your telephone.

The Bluetooth profile must be activated. First
adjust the volume on your portable device
(to a high level).
Then adjust the volume of your audio system.

If play does not start automatically, it may be
necessary to start the audio playback from the
telephone.
Control is from the portable device or by using
the audio system buttons.

once connected in streaming mode,
the telephone is considered to be a
media source.

445

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Connecting Apple

players

Connect the Apple

player to the uSB port

using a suitable cable (not supplied).
Play starts automatically.

Control is via the audio system.

The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts).
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.

The version of software in the audio system
may not be compatible with the generation of
your Apple

player.

The audio equipment will only play audio files
with ".wma, .aac, .flac, .ogg and .mp3" file
extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the standard wma 9 type.
The sampling rates supported are 32, 44 and
48 KHz.

It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.

Information and advice

use only uSB memory sticks formatted FAT 32
(file allocation table).

The system supports uSB mass
storage devices, BlackBerry

devices

or Apple

players via uSB ports. The

adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied) or via Bluetooth streaming,
depending on compatibility.

It is recommended that the uSB cable
for the portable device is used.

446

12:13

23 °C

531 kHz

12:13

23 °C

531 kHz

Audio and Telematics

Traveller-VP_en_Chap10c_RCC-1_ed01-2016

Level 1

Telephone

Level 2

Level 3

Known devices

Recent calls

Contacts and favourites

Peugeot Traveller (2016 year). Instruction - part 28
