Peugeot Traveller (2016 year). Instruction - part 3

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.

Resetting the service indicator

If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.

You can access the service information at any
time.

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself, switch off the ignition:

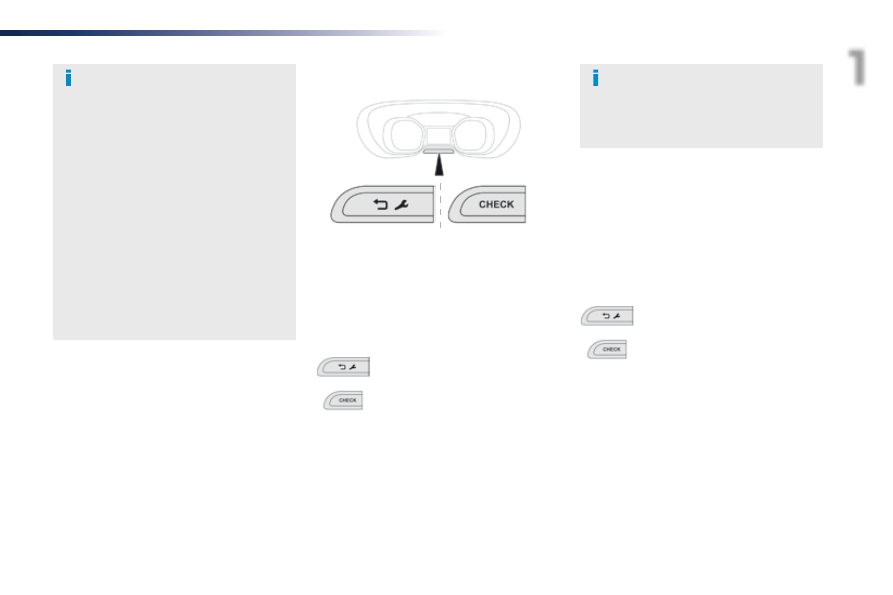

Retrieving the service
information

F Press and hold this button,

F Switch on the ignition; the distance

recorder display begins a countdown,

F When the display indicates "=0", release

the button; the spanner disappears.

F Press this button.

The service information is displayed for a
few seconds, then disappears.

Instruments

Engine oil level
indicator

on versions fitted with an electric oil gauge,
information on the oil level is displayed in the
instrument panel for a few seconds when the
ignition is switched on, at the same time as the
service information.

The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.

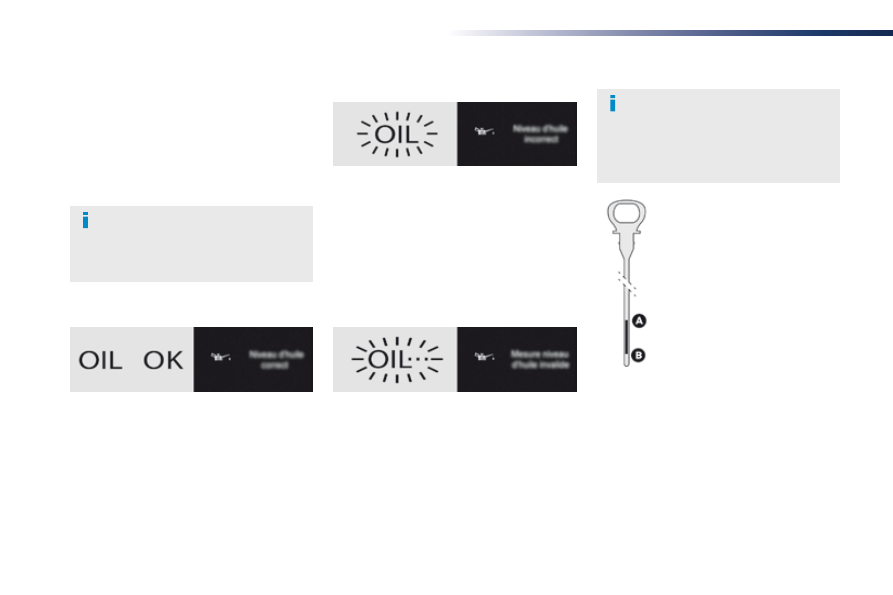

Oil level correct

This is indicated by a message in the
instrument panel.

Oil level incorrect

This is indicated by a message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped-up to
avoid damage to the engine.

Oil level indicator fault

This is indicated by a message in the
instrument panel. Contact a PeugeoT dealer
or a qualified workshop.

Dipstick

There are 2 marks on the
dipstick:
-

A = max; never exceed this
level,

B = min; top-up the level via
the oil filler, using the grade
of oil suited to your engine.

To locate the dipstick and the oil filler
cap for the Diesel engine, refer to the
corresponding section.

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

AdBlue

fluid range

indicators

once the AdBlue

tank is on reserve or after

detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue

level, the shortest range figure is

the one displayed.

In the event of the risk of non-starting related to a lack of AdBlue

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank is

empty.

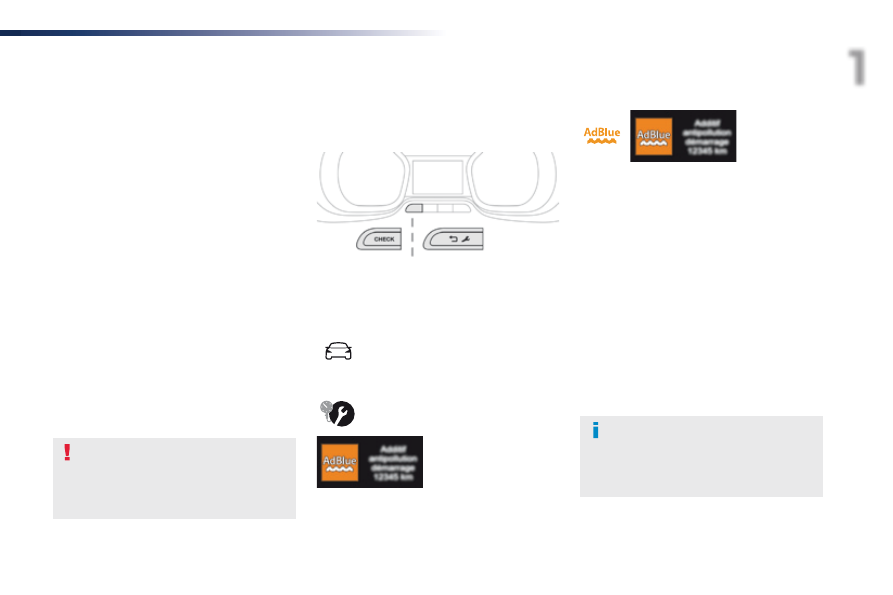

Remaining range greater than 1 500 miles (2 400 km)

Pressing this button will display the remaining
range.

F Then select "Diagnostic".

Above 3 000 miles (5 000 km), the value is not
specified.

When switching on the ignition, there is no
automatic display of range in the instrument
panel.

The range is then displayed temporarily.

You can access this information in the touch
screen, if your vehicle has one.

F Select the "Driving" menu.

Remaining range between 350 and 1500 miles (600 and 2 400 km)

When switching on the ignition, this warning
lamp comes on, accompanied by an
audible signal and the display of a message
(e.g.: "Top up emissions additive: Starting
prevented in 900 miles") indicating the
remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the fluid has been
topped-up.
go to a PeugeoT dealer or a qualified
workshop to have the AdBlue

topped-up.

You can also top-up the tank yourself.

F Select "OPTIONS".

For more information on AdBlue

and

the SCR system, and in particular on
topping-up the AdBlue

, refer to the

corresponding section.

Instruments

Remaining range between 0 and 350 miles (0 and 600 km)

When switching on the ignition, this warning
lamp flashes, accompanied by an audible
signal and the display of a message
(e.g. "Top up emissions additive: Starting
prevented in 350 miles") indicating the
remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
30 seconds until the fluid has been topped-up.
go to a PeugeoT dealer or a qualified
workshop to have the AdBlue

topped-up.

You can also top-up the tank yourself.
otherwise you will not be able to restart your
engine.

Breakdown related to a lack of AdBlue

When switching on the ignition, this
warning lamp flashes, accompanied
by an audible signal and the display
of the message "Top up emissions

additive: Starting prevented".
The AdBlue

tank is empty: the system required

by regulations prevents engine starting.

To be able to start the engine,
we recommend that you call on a
PeugeoT dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue

to the tank.

For more information on AdBlue

and

the SCR system, and in particular on
topping-up the AdBlue

, refer to the

corresponding section.

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

Starting prevented

every time the ignition is switched on, these
warning lamps come on, accompanied by an
audible signal and the display of the message
"emissions fault: Starting prevented".

You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.

To be able to start the engine, you must call on
a PeugeoT dealer or a qualified workshop.

In the event of a fault with the SCR emissions control system

A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a PeugeoT dealer or a qualified workshop as soon as possible.

If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.

In the event of the detection
of a fault

These warning lamps come on, accompanied
by an audible signal and the display of the
message "emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.

During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)

If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), these warning lamps come on,
accompanied by an audible signal and the
display of a message (e.g.: "emissions fault:
Starting prevented in 150 miles") indicating
the remaining range expressed in miles or
kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a PeugeoT dealer or a
qualified workshop as soon as possible.
otherwise, you will not be able to restart your
engine.

Instruments

Distance recorders

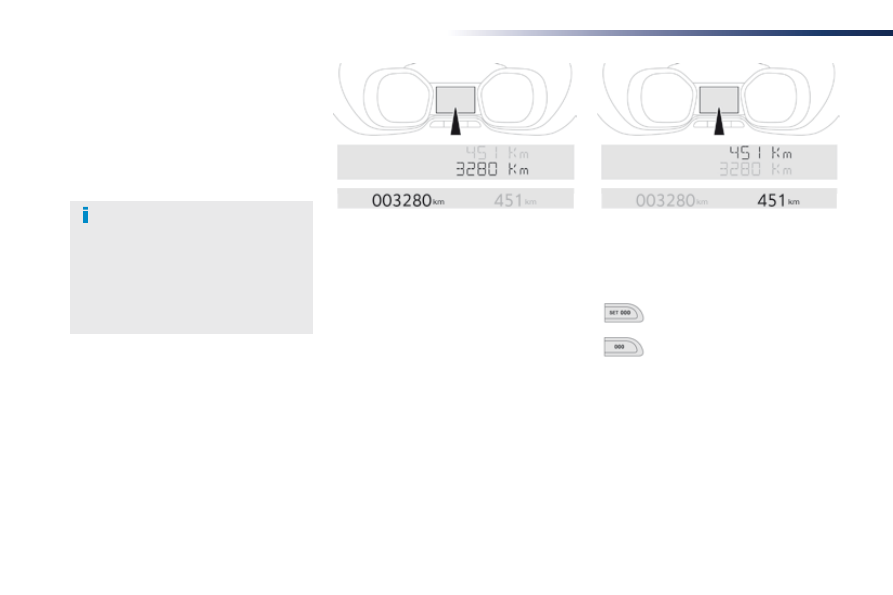

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.

When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country. The change of units is done via
the screen configuration menu, with the
vehicle stationary.

Total distance recorder

It measures the total distance travelled by the
vehicle since its first registration.

Trip distance recorder

It measures the distance travelled since it was
reset to zero by the driver.

F With the ignition on, press this

button until zeros appear.

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

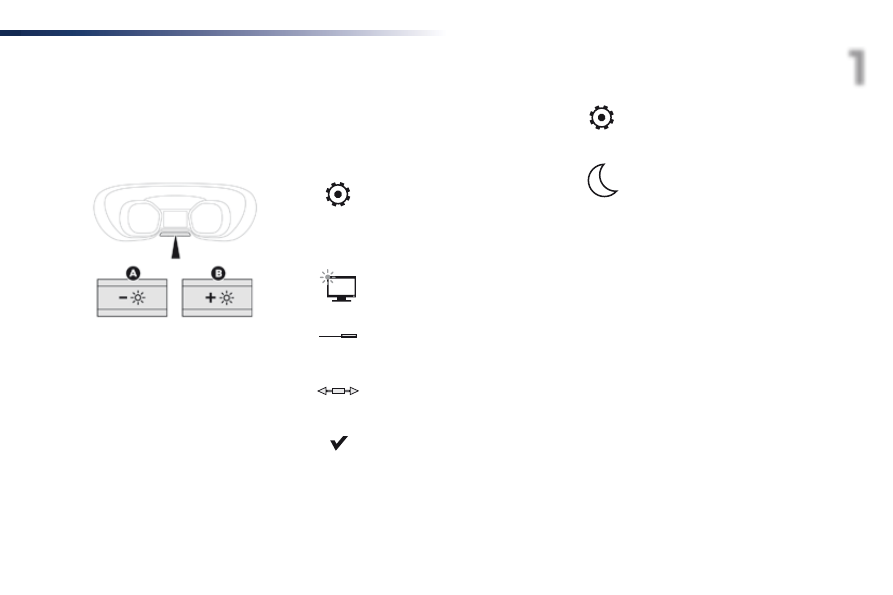

Lighting dimmer

This system allows the brightness of the instruments and controls to be adjusted to suit the ambient
light level.

F With the exterior lighting on, press this

button to raise the level of brightness.

F With the exterior lighting on, press this

button to lower the level of brightness.

As soon as the lighting reaches the required
level of brightness, release the button.

At the instrument panel

With the touch screen

F Press on the Settings button.

F Select "OPTIONS".

F Select "Screen configuration".

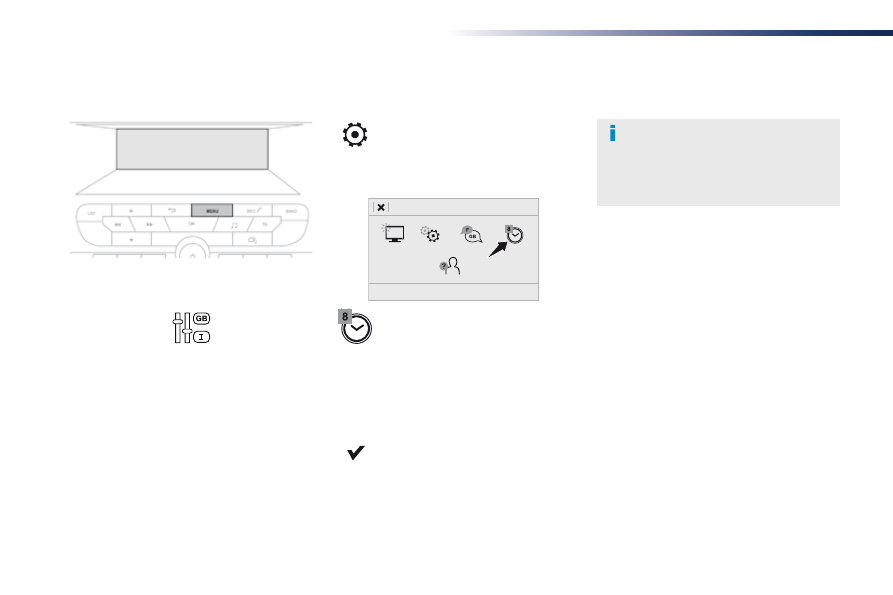

You can also switch off the screen. To do this:

F Select the "Brightness" tab.

F Press on the Settings button.

F Select

Switch off screen.

F Press on "Confirm" to save and

quit.

F Adjust the brightness by moving

the cursor.

The screen goes off completely.
Press on the screen again (anywhere on its
surface) to activate it.

Instruments

System that gives you information on the current journey (range, fuel consumption…).

Trip computer

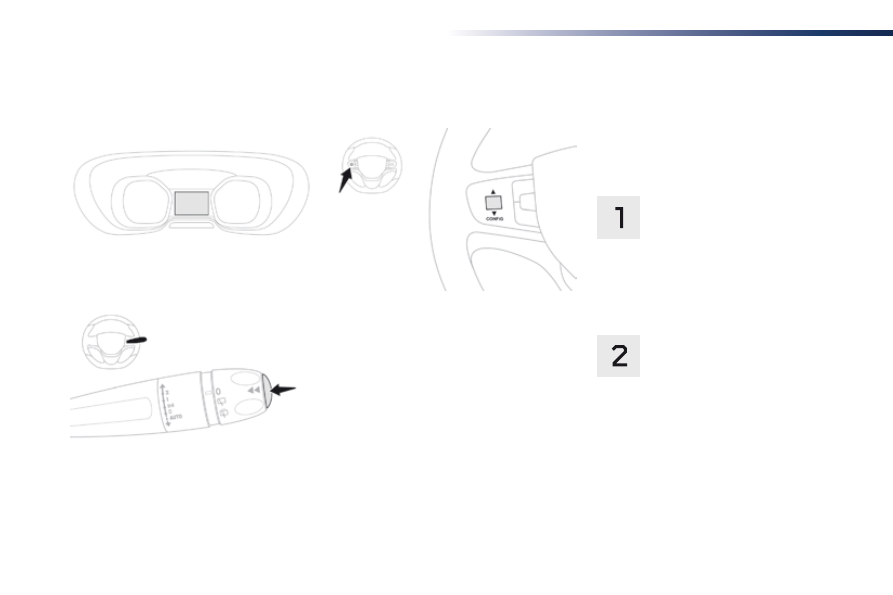

Display of information

F Press the button on the end of the wiper

control stalk to display the different trip
computer tabs in turn.

F or, depending on equipment, press the

thumbwheel on the steering wheel.

The current information with:
●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

- Trip

"2" with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the second trip.

- Trip

"1" with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the first trip.

Depending on equipment, a 2

trip is available.

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

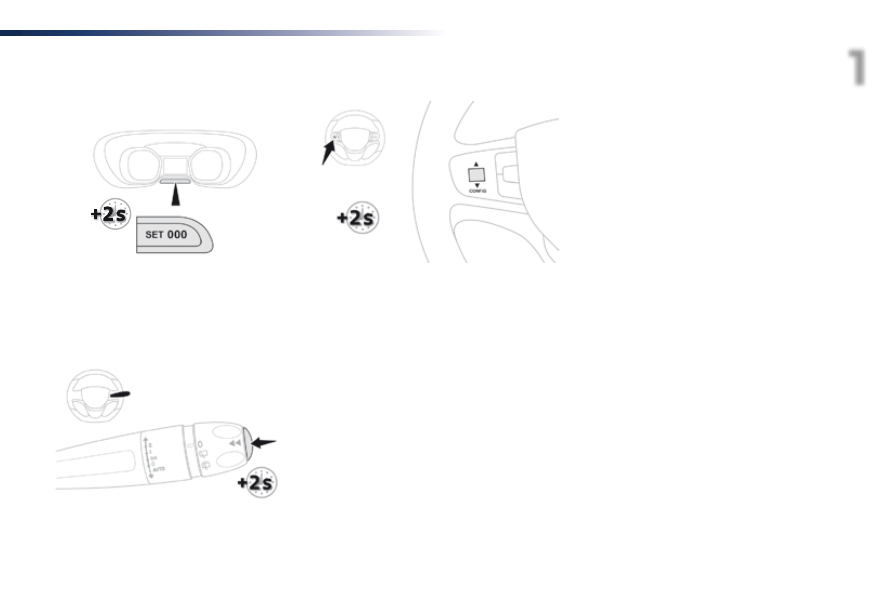

Trip reset

With LCD text instrument panel

F When the trip is displayed, press the button

on the end of the wiper control stalk.

F or, depending on equipment, press the

thumbwheel on the steering wheel for
more than two seconds.

F When the desired trip is displayed, press

the reset button in the instrument panel for
more than two seconds.

With LCD text or matrix
instrument panel

Instruments

A few definitions

Range

(miles or km)
The distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled).

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
8 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

If dashes are displayed continuously
while driving in place of the digits,
contact a PeugeoT dealer or a
qualified workshop.

This function is only displayed from
20 mph (30 km/h).

Current fuel
consumption

(mpg or l/100 km or km/l)
Calculated over the last few seconds.

Average fuel consumption

(mpg or l/100 km or km/l)
Calculated since the last trip reset.

Average speed

(mph or km/h)
Calculated since the last trip reset.

Distance travelled

(miles or km)
Calculated since the last trip reset.

Stop & Start time
counter

(minutes / seconds or hours /
minutes)

If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in SToP
mode during a journey.
It resets to zero every time the ignition is
switched on.

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

use this button to confirm.

use this button to quit.

use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.

Menus

Driving.
Allows certain functions to be switched
on and off and their settings adjusted.

Telephone.

Radio Media.

Connected navigation.

Settings.
Allows configuration of the display
and the system.

Connectivity.

Adjust volume/Mute.
on/off.

Touch screen

As a safety measure, the driver must
only carry out operations requiring
sustained attention with the vehicle
stationary.

For more information on the touch
screen, refer to the Audio and
telematics section.

Instruments

Driving menu

The systems with settings that can be adjusted are detailed in the table below.
For more information on a driving assistance system refer to the corresponding section.

Button

Corresponding function

Comments

Under-inflation initialisation

Reinitialisation of the under-inflation system.

Blind spot monitoring
system

Activation/Deactivation of the function.

Stop & Start system

Activation/Deactivation of the function.

Lane departure warning
system

Activation/Deactivation of the function.

Automatic headlamp dip

Activation/Deactivation of the function.

Instruments

Traveller-VP_en_Chap01_instruments-de-bord_ed01-2016

Button

Corresponding function

Comments

Vehicle settings
To deactivate/activate a
function, press oFF/oN.
To modify a setting (lighting
duration, ...) or find additional
information, press the symbol
for the function.

Access to other functions with settings that can be adjusted.
Select or deselect the tabs at the bottom of the touch screen to sort the display of the desired
functions.
-

Lighting:
-  "Directional headlamps": activation/deactivation of the directional headlamps.
-  "guide-me-home lighting": activation/deactivation of the automatic guide-me-home lighting.
-  "Welcome lighting": activation/deactivation of the exterior welcome lighting.
-  "Mood lighting": activation/deactivation of the interior mood lighting.

Access:
- "Hands-Free Access": activation/deactivation of the motorized opening and closing of a side

door by the hands-free system,

- "Locks your vehicle after the motorized closing of a side door, using hands-free access.":

activation/deactivation of the locking of your vehicle after the motorized closing of a side door
by the hands-free system.

Assistance (driving aids):
- "Rear wiper in reverse": activation/deactivation of the operation of the rear wiper in reverse.
- "Recommended speed display": activation/deactivation of the speed limit recognition system,

allowing a speed setting to be given to the cruise control or speed limiter.

- "Collision risk alert and automatic braking": activation/deactivation of collision risk alerts.
- "Fatigue Detection System": activation/deactivation of the driver fatigue detection system.

Diagnostic

List of current alerts.

Parking sensors

Activation/Deactivation of the function.

Adjust speed settings

Memorisation of speed settings for the speed limiter or active cruise control.

Instruments

With the touch screen

Setting the time and date

F Select "Setting the time-date".

F Press on Settings for acces to

the different menus.

F Modify the settings in the associated

"Date" or "Time" fields then press on
"Confirm".

F Press on "Confirm" to save and

quit.

F Select "OPTIONS".

F Select the "Date" or "Time" tab.

You can choose to synchronise the
time and date with the gPS navigation
system (if fitted to your vehicle) so
that these settings are adjusted
automatically.

With the audio system

F Press the MENU button for access to the

main menu.

F Press the "7" or "8" button to select the

Personalisation-configuration menu,
then confirm by pressing the "OK" button.

F Press the "5" or "6" and "7" or "8" buttons

to set the date and time, then confirm by
pressing the "OK" button.

F Press the "5" or "6" button to select the

Display configuration menu then confirm
by pressing the "OK" button.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

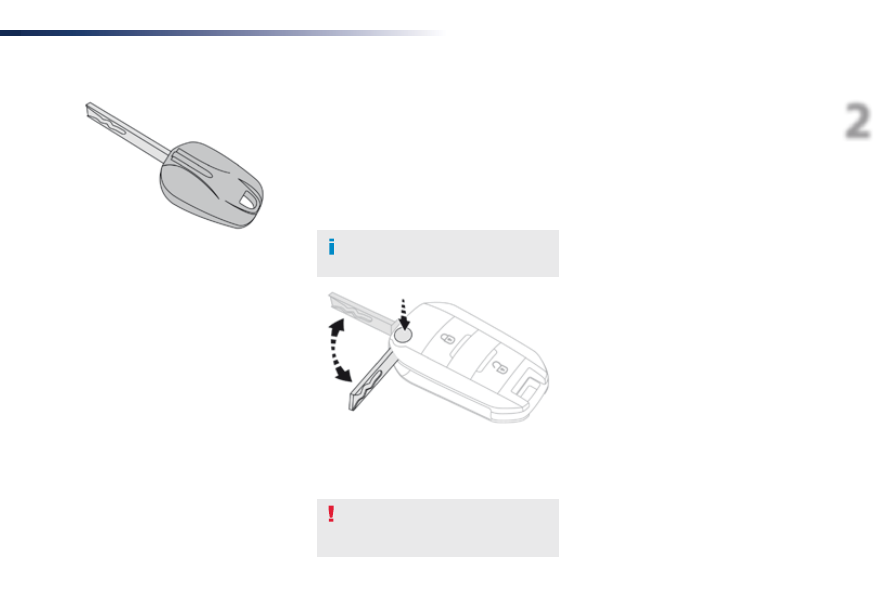

Unfolding / Folding the key

F Press this button to unfold or fold the key.

If you do not press the button, you risk
damaging the remote control.

It allows the central locking or unlocking of the
vehicle using the door lock or from a distance.
It also allows the vehicle to be located, the fuel
filler cap to be removed and refitted and the
engine to be started or switched off, as well as
providing protection against theft.

Key, remote control

The remote control buttons are not
active when the ignition is switched on.

Key

The key allows the central locking or unlocking
of the vehicle using the door lock.
It also allows the fuel filler cap to be removed
and refitted and the engine started or
switched off.

Access

Traveller-VP_en_Chap02_ouvertures_ed01-2016

Using the key

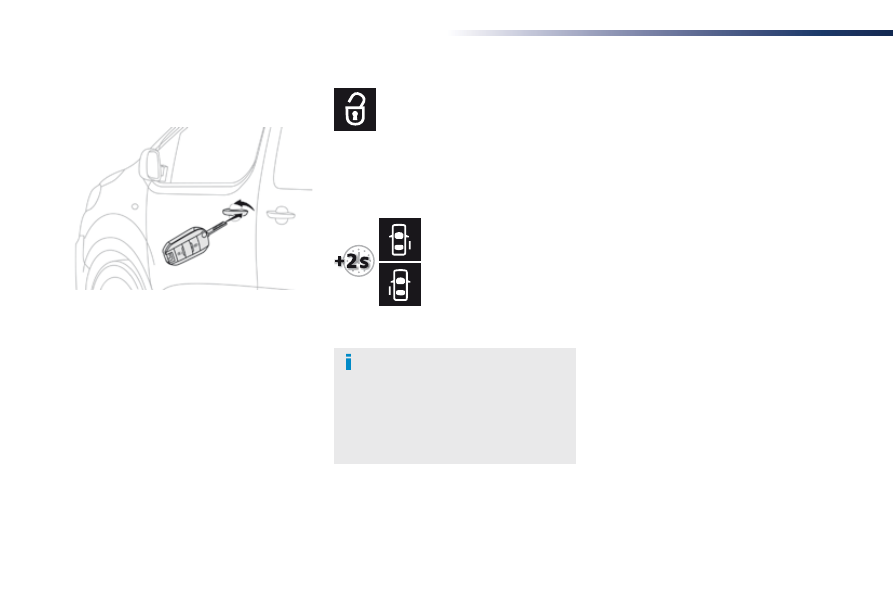

F To unlock the vehicle, turn the key to the

front of the vehicle.

F Then pull the handle to open the door.
If your vehicle has an alarm, this is not
deactivated. opening a door will trigger the
alarm, which can then be stopped by switching
the ignition on.

Unlocking

Using the remote control

F To unlock the vehicle, press this

button.

unlocking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold at the same time.

F To unlock the vehicle and

open the side door, press
and hold this button until
the door has opened.

Using the remote control with
electric sliding side door(s)

Content .. 1 2 3 4 ..
