Peugeot Partner VP (2007 year). Instruction - part 1

4 - Familiarisation

Familiarisation -

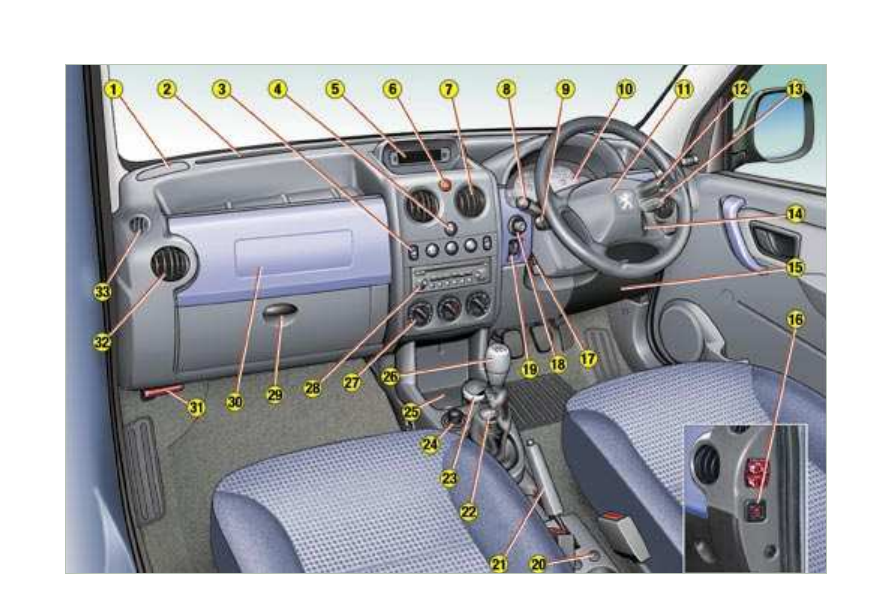

INSTRUMENTS AND CONTROLS

12 - Windscreen wash-wipe stalk.

13 - Audio equipment steering wheel

control.

14 - Steering lock and ignition.

15 - Fuse box.

16 - Passenger air bag disarming

control.

17 - Steering wheel adjustment

control.

18 - Passenger’s electric mirror

control.

19 - Headlamp height adjustment.

20 - Heated seats control or parking

assistance deactivation switch.

21 - Handbrake.

22 - 12 V accessories socket.

23 - Removable ashtray.

24 - Lighter.

25 - Storage.

26 - Gear lever.

27 - Heating/air conditioning

controls.

28 - Audio RB3 or RD3.

29 - Lower glove box.

30 - Upper glove box or passenger

air bag.

31 - Bonnet release.

32 - Side adjustable heating/

ventilation vents.

33 - Side window demisting vents.

1 - Speaker (tweeter).

2 - Windscreen demisting vents.

3 - Controls:

- Electric windows.

- Demisting of rear door

windows or tailgate.

- Air conditioning.

- ASR/ESP.

4 - Central locking button.

5 - Multifunction display or clock.

6 - Hazard lights button.

7 - Central adjustable heating/

ventilation vents.

8 - Lights and direction indicators

stalk.

9 - Speed limiter/cruise control.

10 - Instrument panel.

11 - Driver’s air bag.

Horn.

6 -

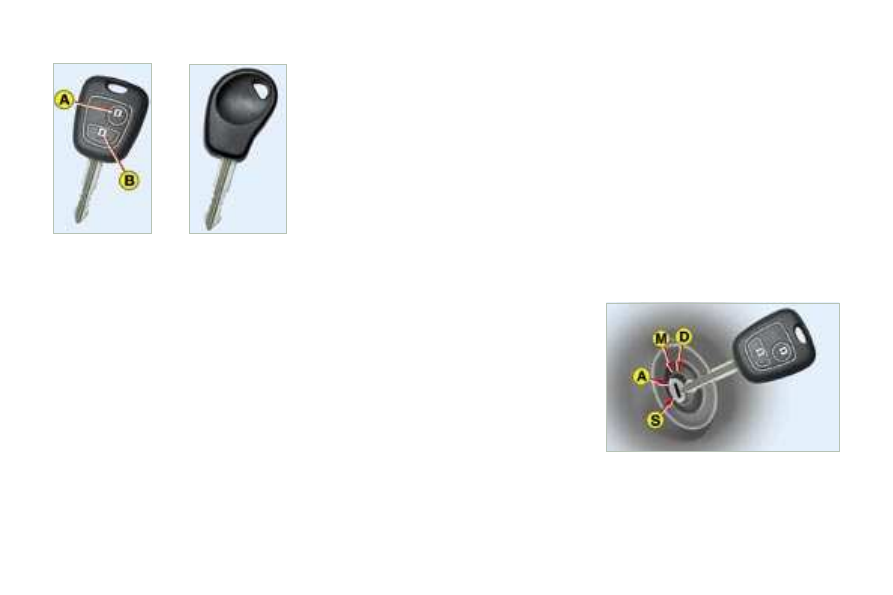

THE KEYS

The keys allow you to switch on the

ignition and operate the passenger

air bag disarming switch, as well as

to independently operate the locks

on the doors and the fuel ﬁller cap.

STARTING

STOP position (S):

the ignition is off.

Accessories position (A):

the ignition is off but the accessories

can be used.

Running position (M):

the ignition is on.

Starting position (D):

operates the starter.

The remote control

Locking

Press button

A to lock the vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.

Central locking

From the front doors, the keys allow

you to lock and unlock the doors and

tailgate.

If one of the doors or the tailgate is

open, it is impossible to operate the

central locking.

The remote control performs the

same functions at a distance.

Unlocking

Press button

B to unlock the vehicle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators.

Locating the vehicle

To locate your vehicle, previously

locked, in a car park:


press button

A, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.



Familiarisation

Familiarisation -

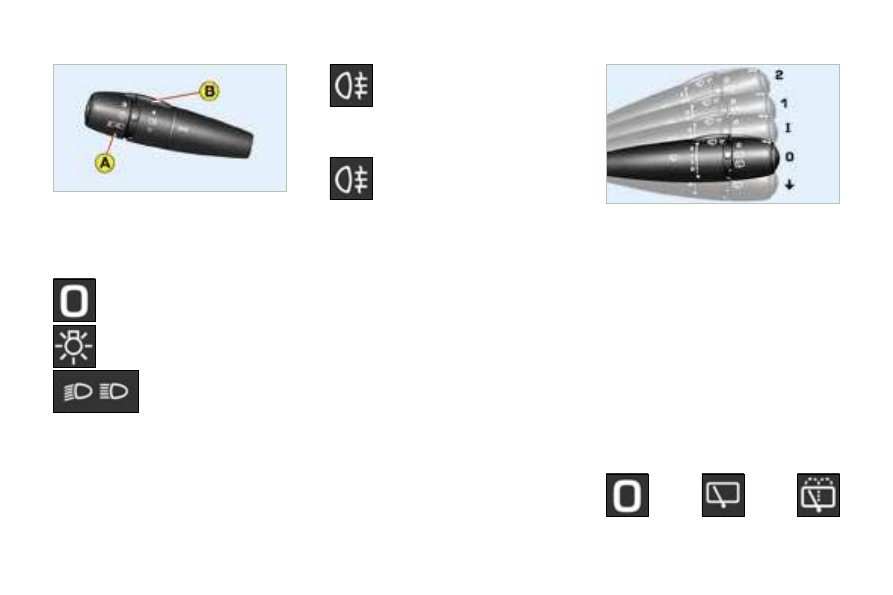

WINDSCREEN WIPERS

Front

2 Rapid wipe (heavy rain).

1 Normal wipe (moderate rain).

Intermittent wipe.

0 Off.


Single wipe.

Windscreen wash-wipe: pull the stalk

towards you.

STEERING WHEEL STALKS
LIGHTING

Front and rear lights (ring A)

Front fog lamps (1st turn of the ring

forwards).

Front fog lamps and rear fog lamp

(2nd turn of the ring forwards).

To switch off: turn the ring rear-

wards.

Lights off

Side lights

Dipped beam/

Main beam

Vehicles ﬁtted with a rear

fog lamp (ring B)

Turn the ring forwards.

Vehicles ﬁtted with front

fog lamps and a rear fog

lamp (ring B)

Rear

Off

Intermittent

wipe

Wash-

wipe



8 -

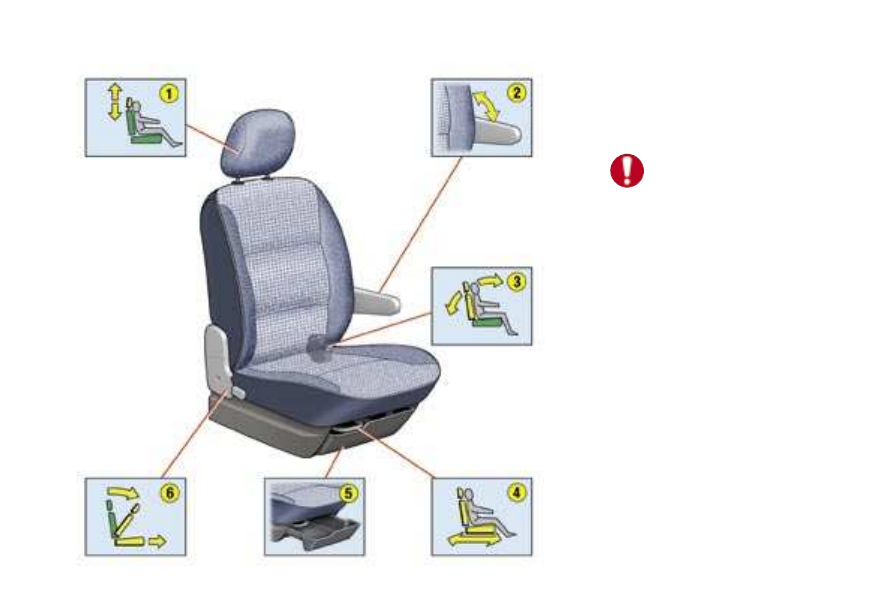

FRONT SEATS

Driver and passenger seats

1 - Head restraint height

adjustment.

2 - Armrest.

3 - Seat back angle adjustment.

4 - Forwards-backwards

adjustment.

5 - Storage drawer (passenger).

6 - Access to rear seats.

Never travel with the head

restraints removed.



Familiarisation

Familiarisation -

AIR BAGS

The air bag system has been de-

signed to maximise the safety of the

occupants in the event of serious col-

lisions. It works in conjunction with

the pretensioning seat belts.

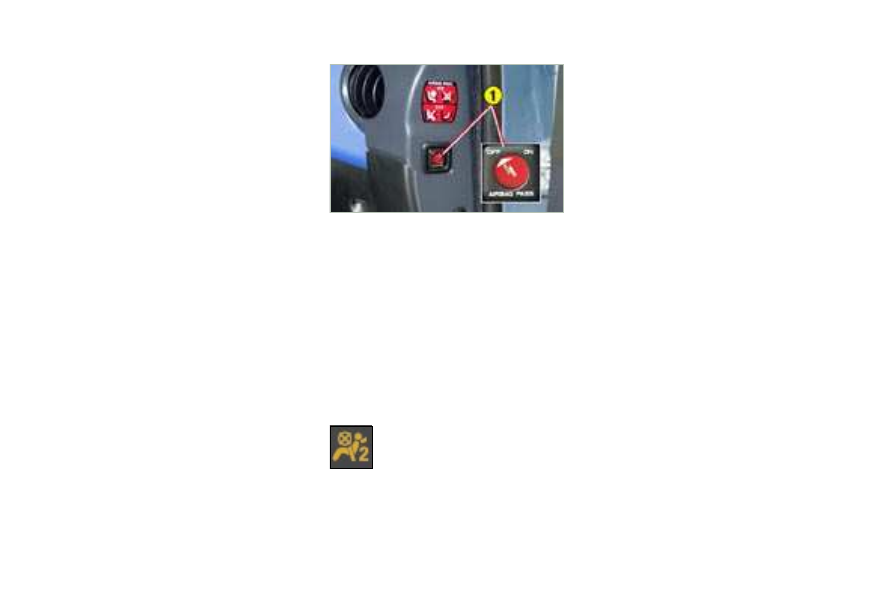

Disarming the passenger air bag


With the ignition off, insert the

ignition key into the passenger

air bag switch

1 and turn it to the

"OFF" position.

As soon as you remove the child

seat, turn the air bag switch to the

"ON" position, to activate the air bag

again.

Disarming check

Side air bags

Side air bags are incorporated into

the front seat back frame, on the

door side.

They are deployed independently of

each other, on whichever side the

collision occurs.

With the ignition switched on

(2nd notch), illumination of

this warning light indicates

that the passenger air bag is

disarmed (switch in the

"OFF" posi-

tion).

The warning light remains on through-

out the duration of disarming.

Front air bags

These are folded in the centre of the

steering wheel for the driver and in

the fascia for the front passenger.

They are deployed simultaneously,

except in cases where the passenger

air bag is disarmed.

Precautions regarding the

passenger air bag


disarm the air bag if you install a

rear-facing child seat,



activate the air bag for an adult

passenger.



10 -

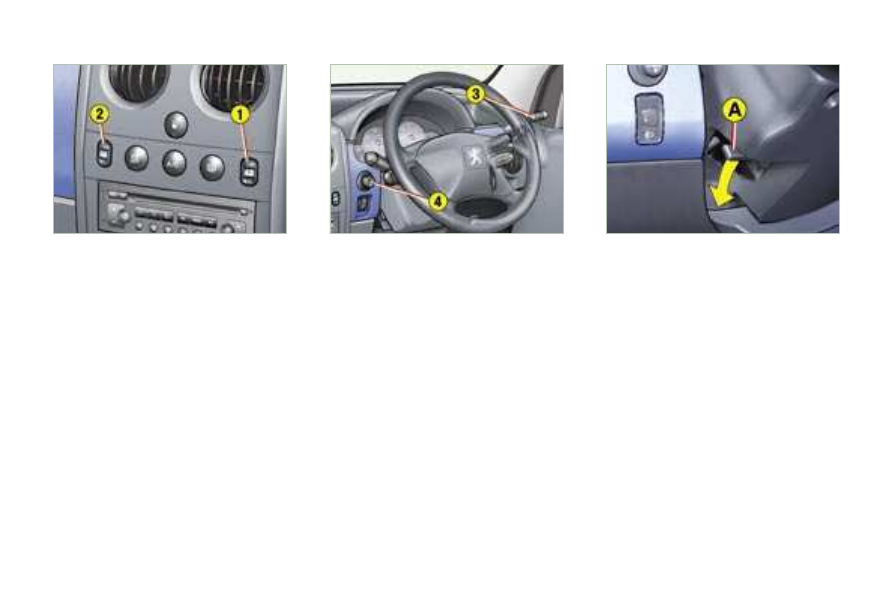

ELECTRIC

WINDOWS

1 - Driver’s electric window

2 - Passenger’s electric window.

EXTERIOR MIRRORS



Move the manual control

3 in all

four directions to adjust.

STEERING WHEEL HEIGHT

ADJUSTMENT



When stationary, push the control

forwards to unlock the steering wheel.



Adjust the height of the steering

wheel.



Lock it by pulling control

A to-

wards you fully.

Electric control for the

passenger’s side mirror



From the driver's seat, adjust in

all four directions by operating the

control

Manual mode:


Press the switch. The window

stops as soon as the switch is re-

leased.

Automatic mode (driver):


Press and hold the switch. One

touch completely opens or closes

the window.



Familiarisation

Familiarisation -

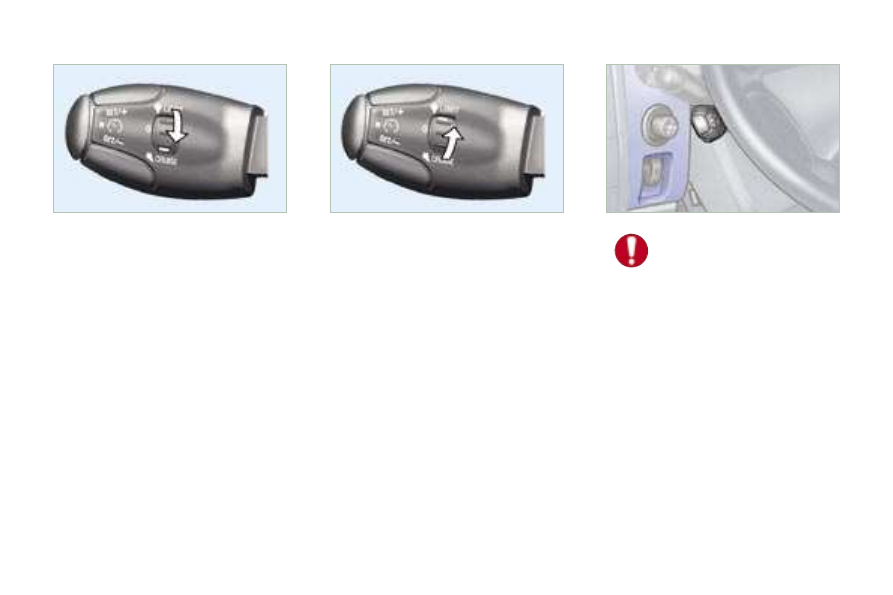

CRUISE CONTROL

The cruise control has a display on

the instrument panel which indicates

the programmed reference speed.

It enables the vehicle to maintain a

constant speed, programmed by the

driver.

In order to be programmed or activat-

ed, the vehicle speed must be above

25 mph (40 km/h), with at least fourth

gear engaged.

SPEED LIMITER

This speed limiter indicates the sta-

tus of selection of the function on the

instrument panel and displays the

programmed speed. The minimum

speed which can be programmed is

20 mph (30 km/h).

It prevents the vehicle from exceed-

ing the speed programmed by the

driver, this function remains active

regardless of any action on the brake

or clutch pedals. On the other hand,

pressing the accelerator pedal to the

point of resistance does not have any

effect. If the driver wishes to exceed

the programmed limit, he must force

the accelerator pedal travel beyond

this point of resistance.

On vehicles which are ﬁt-

ted with the speed limiter

and cruise control functions,

these functions cannot be

activated simultaneously.

Setting adjustments must be

made when stationary with the en-

gine running, or while the vehicle

is moving.



12 -

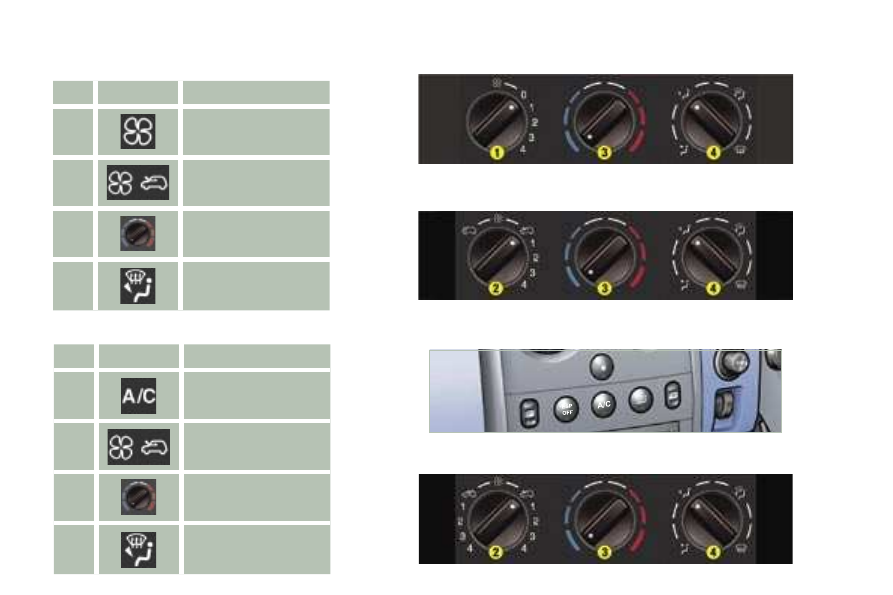

HEATING

N°

Symbol

Function

Air ﬂow adjustment.

Air ﬂow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

AIR CONDITIONING



N°

Symbol

Function

Air conditioning

control.

Air ﬂow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

Familiarisation

Familiarisation -

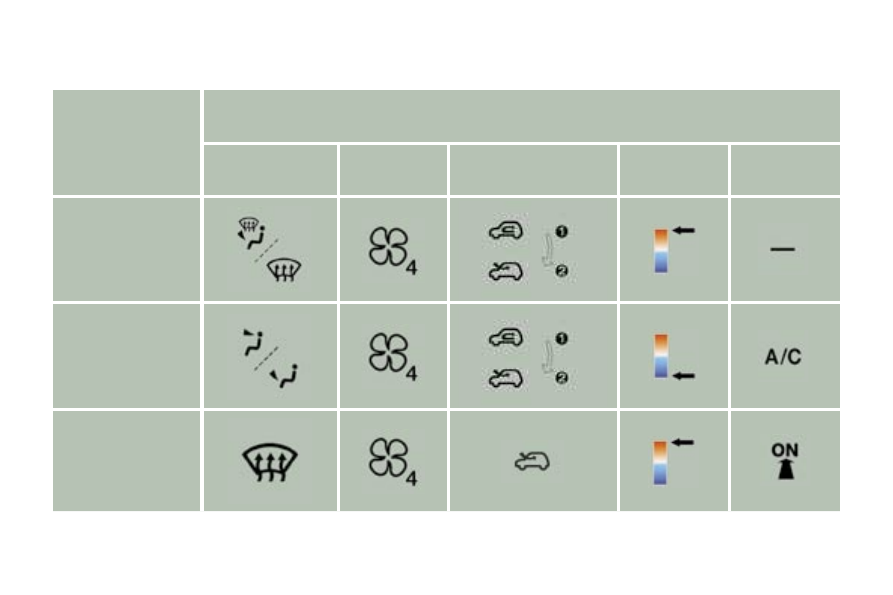

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂow

Air recirculation/Intake

of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

RECOMMENDED INTERIOR SETTINGS

14 -

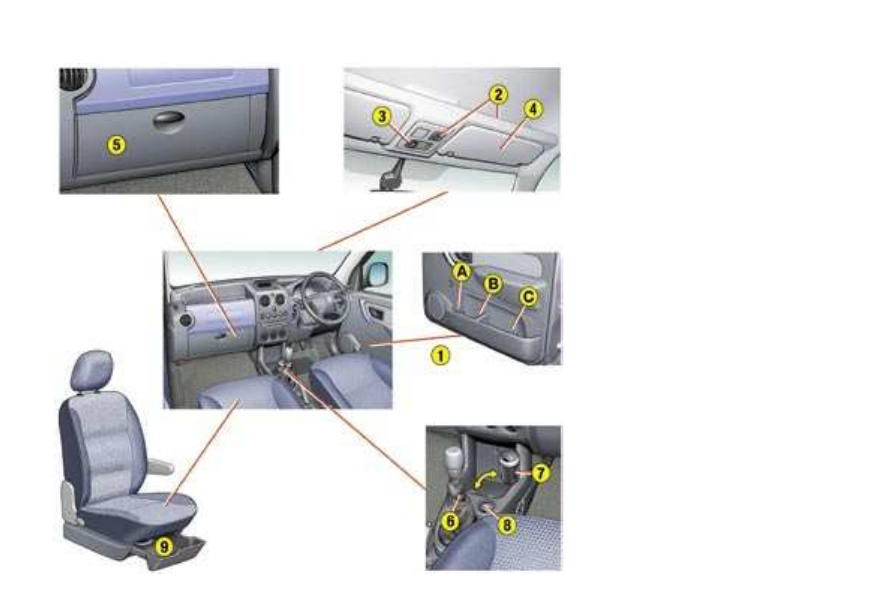

FRONT FITTINGS

1. Storage compartments in the

doors

A. Bottle holder.

B. Can holder.

C. Storage compartment.

2. Overhead storage with map

reading light

3. Courtesy light

4. Sun visors

5. Glove box

6. Lighter

7. Removable ashtray

8. 12 v accessories socket

9. Storage drawer



Familiarisation

Familiarisation -

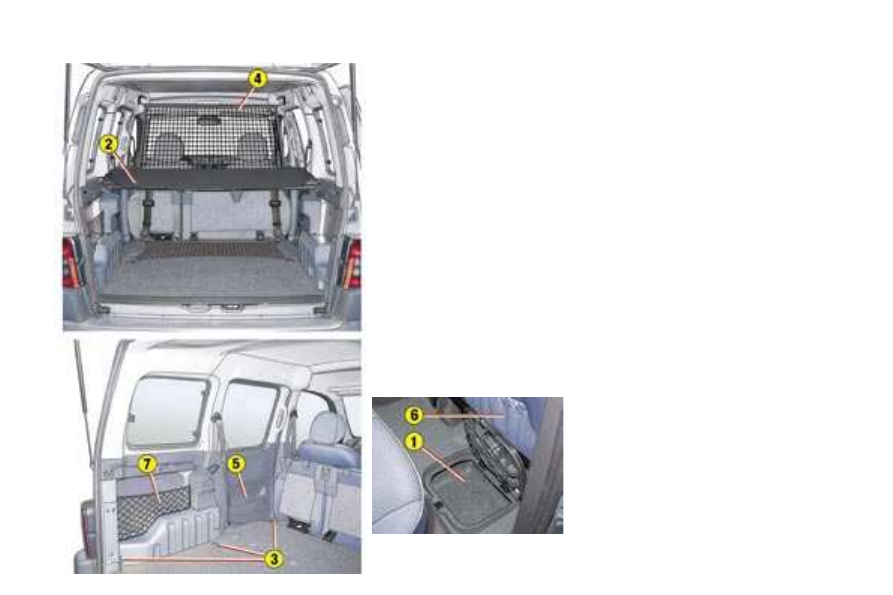

REAR FITTINGS

1. Trays between the front and

rear seats

2. Load space cover

3. Stowing rings

4. High load retaining net

5. Side door storage compartment

6. Seat back storage pockets

7. Storage net



16 -

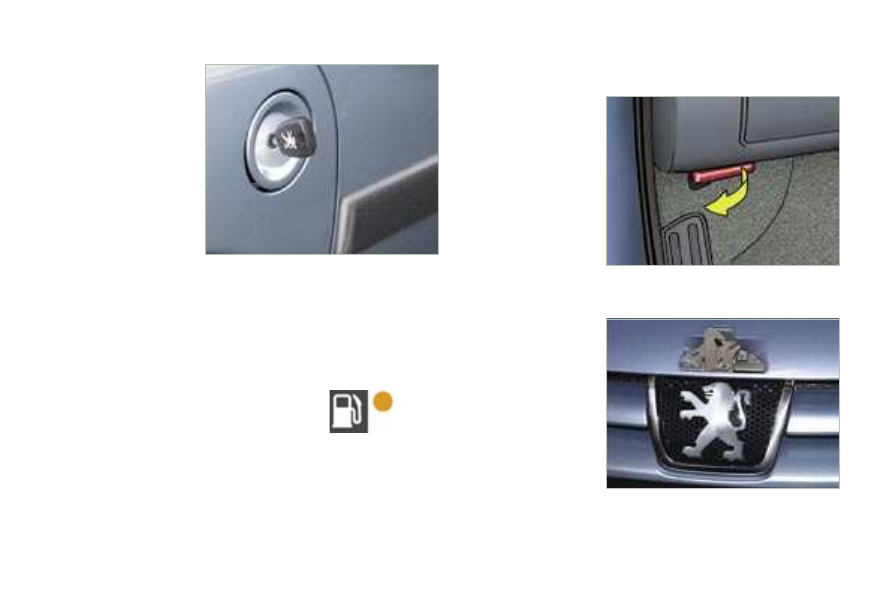

FILLING WITH FUEL

This operation must be carried out

with

the engine switched off.



Insert the key then turn it to the

left.



Remove the cap.

An indication shows which type of

fuel to use.

When you ﬁll your tank, do not contin-

ue after the third cut-off of the pump.

This could cause a malfunction.

The capacity of the tank is approx-

imately 55 litres for petrol engines

and 60 litres for Diesel engines.

Note: the right-hand sliding side door

cannot be opened while the fuel tank

cap is removed.

Low fuel level

warning light

From the time this light comes on,

you have enough fuel left to cover

approximately 30 miles (50 km).

OPENING THE BONNET

Inside the vehicle: Pull the control

on the left-hand side, under the fas-

cia panel.

Outside the vehicle: Lift the control,

raise the bonnet and secure the strut

to keep the bonnet open.



Familiarisation

Instruments, controls and displays

18 -

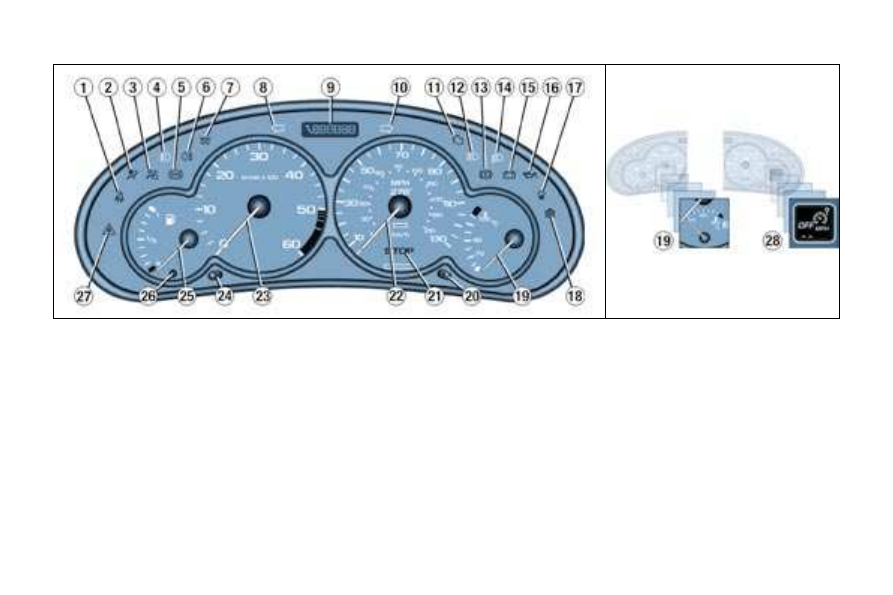

1. Seat belt not fastened warning

light

2. Passenger air bag disarmed

warning light

3. Front and side air bags warning

light

4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)

warning light

6.  Rear fog lamp indicator light
7.  Diesel pre-heat warning light
8.  Left hand direction indicator
9.  Total distance recorder, service

indicator and engine oil level

indicator

10. Right hand direction indicator

11. Emission control system

warning light

12. Main beam headlamps indicator

light

13. Handbrake, low brake ﬂuid

level and electronic brake force

distribution warning light

14. Dipped beam headlamps

indicator light

15. Battery charge warning light

16. Engine oil pressure and

temperature warning light

17. Water in diesel ﬁlter warning light

18. Low coolant level warning light

19. Coolant temperature indicator

20.  Total distance recorder button
21.  Central (STOP) warning light
22.  Speedometer*
23.  Rev counter
24.  Lighting rheostat button
25.  Fuel level indicator
26.  Low fuel level warning light
27.  Electronic stability control

(ESP/ASR) warning light

28. Speed limiter/cruise control

display

* Version indicating kilometres, ac-

cording to country.

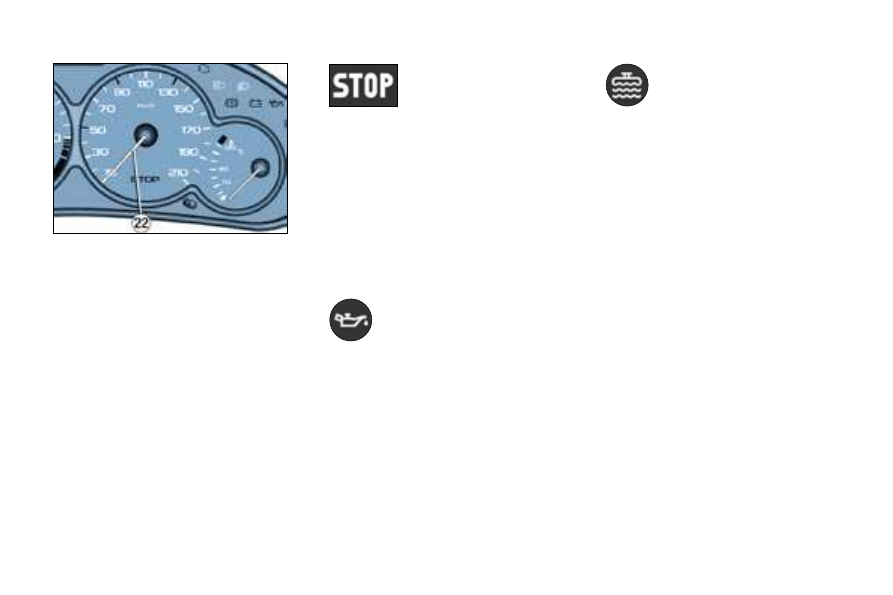

INSTRUMENT PANEL: PETROL - DIESEL

Instruments, controls and displays -

INSTRUMENTS AND

CONTROLS

A permanently lit warning light

or one ﬂashing, with the engine

running, indicates an operating

fault of the unit concerned. The

illumination of certain warning

lights may be accompanied by

an audible signal and a message

on the multifunction display. Do

not ignore this warning: consult a

PEUGEOT dealer as soon as pos-

sible.

If the central STOP warning light

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

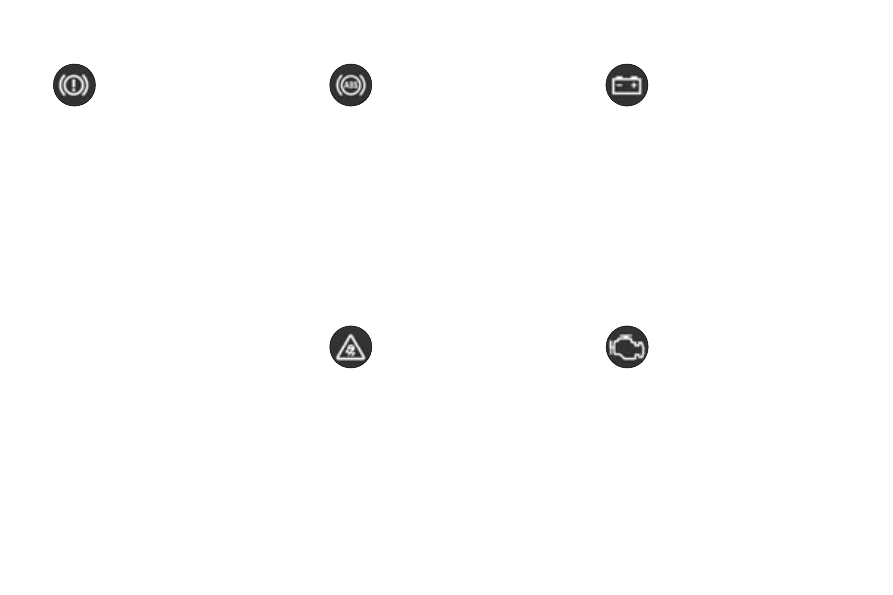

Central (STOP)

warning light

Linked to the warning

lights:

- "engine oil pressure and temperature",

- "low coolant level",

- "handbrake",

- "low brake ﬂuid level",

- "electronic brake force distribution

system fault".

Linked with the "coolant temperature"

indicator.

You must stop if the light ﬂashes

with the engine running.

Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

Linked to the central (STOP) warning

light.

You must stop.

This warning light indicates one of

the following:

- insufﬁcient oil pressure indicated

by the message

"Oil pressure

insufﬁcient" on the multifunction

display.

- a lack of oil in the lubrication circuit.

Top up the level,

- an oil temperature which is too

high. To lower the oil temperature,

reduce your speed.

Lighting of the warning light is

accompanied by an audible signal.

Consult a PEUGEOT dealer.

Diesel engine low

coolant level warning

light

Linked to the central (STOP) warning

light.

This comes on for a few seconds

when the ignition is switched on.

Lighting of this warning light is

accompanied by an audible signal

and the message

"Top up engine

coolant level" on the multifunction

display.

You must stop.

Wait for the engine to cool before

topping up the level.

The cooling circuit is pressurised.

In the event of breakdown and to

prevent any risk of burns, unscrew

the cap by two turns to allow the

pressure to drop.

When the pressure has dropped,

remove the cap and top up the level.

Consult a PEUGEOT dealer.

Instruments, controls and displays

20 -

Electronic stability

control system (ESP/ASR)

warning light

This comes on for a few seconds each

time the ignition is switched on.

Contact a PEUGEOT dealer if the

ESP/ASR switch indicator light

ﬂashes, accompanied by an audible

signal and the message

"ESP/ASR

not functioning" on the multifunc-

tion display, and this warning light

remains on or comes on while the

engine is running and the vehicle is

moving.

While the engine is running and the

vehicle is moving, it ﬂashes if the

system is activated.

It comes on permanently when it is

disarmed.

Battery charge warning

light

This comes on for a few sec-

onds when the ignition is

switched on.

Lighting of this warning light, when

the engine is running, accompanied

by an audible signal and the mes-

sage

"Battery charge fault" on the

multifunction display, indicates one

of the following:

- faulty operation of the charging

circuit,

- slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Emission control

system warning light

This comes on for a few sec-

onds each time the ignition is

switched on.

If it comes on with the engine run-

ning, accompanied by an audible

signal and the message on the multi-

function display:

"Antipollution fault", this indicates

a failure of the emission control

system.

"Catalytic converter fault", this

indicates a malfunction of the

injection or ignition system. There

is a risk of damage to the catalytic

converter (petrol engine only).

Consult a PEUGEOT dealer.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds each

time the ignition is switched on.

If the warning light remains on or

comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.

However, the vehicle retains conven-

tional servo-assisted braking.

Lighting of this warning light,

accompanied by an audible signal

and the message

"ABS fault" on the

multifunction display, indicates an

ABS fault.

Consult a PEUGEOT dealer.

Handbrake, low

brake ﬂuid level and

Electronic Brake Force

Distribution system

fault warning light

Linked to the central (STOP) warning

light.

This comes on each time the ignition

is switched on.

Lighting of this warning light is

accompanied by an audible signal

and a message on the multifunction

display indicating the cause of the

warning:

"Handbrake on", if the handbrake

is applied or not fully released,

"Brake ﬂuid level low" if there is

an excessive drop in brake ﬂuid

level (if the warning light remains

on even when the handbrake is

released),

"Braking fault" is displayed

together with the ABS warning

light, indicating a malfunction of the

electronic brake force distribution

system.

You must stop.

Consult a PEUGEOT dealer.

Content .. 1 2 3 ..
