Peugeot Partner VP Dag (2007 year). Instruction - part 8

107

Practical information -

Fuse

Rating

Functions

15 A

Rear wiper (hinged doors) - Rear 12 V sockets.

20 A

Multi-function display - Instrument panel - Audio equipment - Steering wheel controls.

15 A

Alarm siren.

10 A

Diagnostic socket.

15 A

Alarm - Rain and brightness sensor.

30 A

Heated seats - Zenith roof fan.

40 A

Rear screen and mirror demisting.

15 A

Rear windscreen wiper (tailgate).

30 A

Front electric windows - Sunroof.

10 A

Engine fuse box - Steering wheel controls.

15 A

Instrument panel - Multi-function display - Audio equipment - Parking assistance.

30 A

Locking/unlocking controls for doors, bonnet and boot.

10 A

Right-hand brake light.

15 A

Left-hand brake light.

20 A

Front courtesy light - Map reading light - Lighter - Front 12 V socket - Electric mirror.

Practical information

110 -

ECONOMY MODE FUNCTION

After the engine has stopped, certain

functions (windscreen wiper, elec-

tric windows, courtesy lights, audio

equipment, etc.) can only be used for

a combined duration of approximate-

ly thirty minutes, to prevent discharg-

ing the battery.

Once the thirty minutes are over, a

switching to economy mode mes-

sage appears on the multi-function

display and the active functions are

put on standby.

These functions are reactivated au-

tomatically next time the vehicle is

driven.

In order to resume the use of these

functions immediately, the engine

must be started and left to run for a

few minutes.

The time available to you will then be

double the duration for which the en-

gine is left running. However, this pe-

riod will always be between ﬁve and

thirty minutes.

BATTERY

To charge the battery using a

battery charger:

- Disconnect the battery,

- Follow the instructions for use

given by the battery charger manu-

facturer,

- Reconnect starting with the nega-

tive (-) terminal,

- Check that the terminals and connec-

tors are clean. If they are covered with

sulphate (white or greenish deposit),

disconnect them and clean them.

It is advisable to disconnect the

battery if the vehicle is not to be

used for a period of more than

one month.

Never disconnect a terminal

when the engine is running.

Never charge a battery without ﬁrst

disconnecting the terminals.

After every reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to allow the

electronic systems to be initialised. If

slight difﬁculties are experienced af-

ter this, please contact a PEUGEOT

dealer.

A ﬂat battery prevents the

engine from starting.

To start the vehicle from

another battery:

- Connect the red cable to the positive

(+) terminals of the two batteries,

- Connect one end of the green or

black cable to the negative (-) ter-

minal of the slave battery,

- Connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery.

Operate the starter, let the engine run.

Wait for the engine to return to idle,

then disconnect the cables.

111

Practical information -

FITTING SPEAKERS

The factory-ﬁtted equipment allows

the ﬁtting of:

- 35 mm diameter tweeters in the

fascia,

- 165 mm diameter speakers in the

front doors,

- 100 mm diameter speakers in the

rear roof arch.

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-ﬁtted audio equipment:

-  roof aerial,
-  coaxial aerial cable,
-  basic interference suppression,
-  supply  to  front  speakers  and

tweeters,

- supply to rear speakers,
- two 8-way connectors.

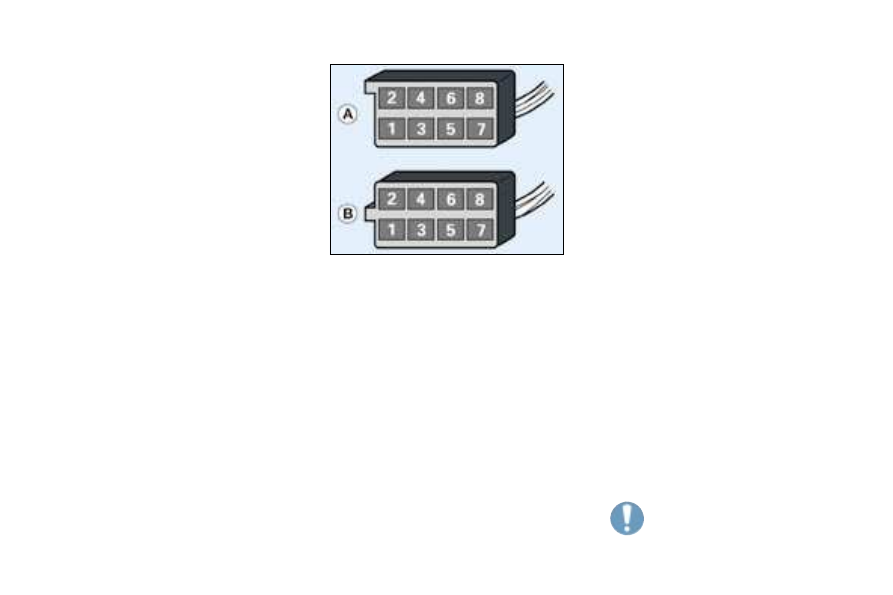

Making the connections

A1: -

A2: -

Digital control

(manufacturer).

A3: -

Digital control

(manufacturer).

A4: -

Audio equipment

multiplexing

(manufacturer).

A5: -

A6: (+ve) Accessories

A7: (+ve) Permanent

A8: (-ve) Earth

B1: (+)

Rear right speaker

B2: (-)

Rear right speaker

B3: (+)

Front right speaker and

tweeter

B4: (-)

Front right speaker and

tweeter

B5: (+)

Front left speaker and

tweeter

B6: (-)

Front left speaker and

tweeter

B7: (+)

Rear left speaker

B8: (-)

Rear left speaker

Contact a PEUGEOT dealer

before ﬁtting audio equipment

or speakers in your vehicle.

Practical information

112 -

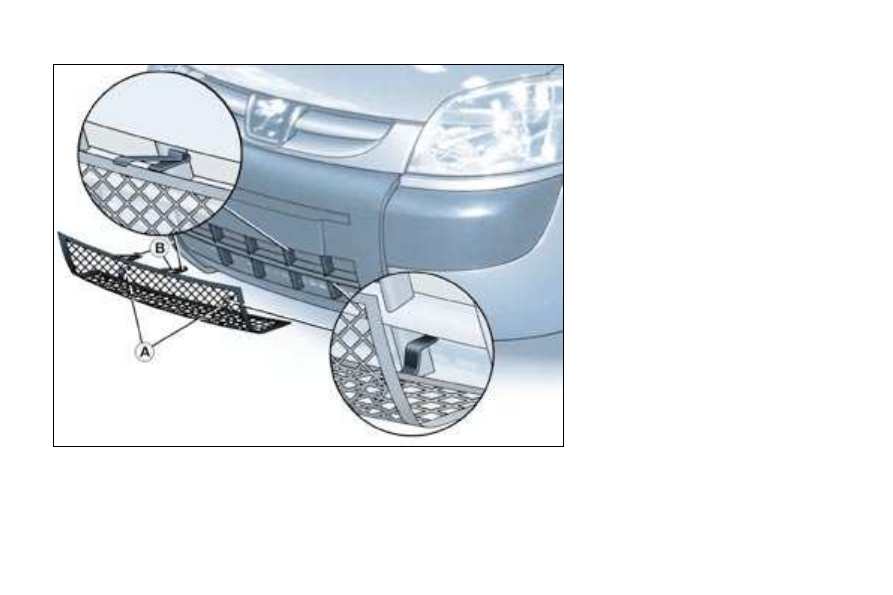

SNOW SCREEN*

The snow screen is installed on the

lower part of the front bumper to pre-

vent the accumulation of snow at the

radiator cooling fan.

When the snow has cleared (tem-

perature above 10 °C), remove the

snow screen.

* According to country.

FITTING


Offer up the snow screen facing

the front bumper.



Put it in place positioning the

lower clips

A in the bumper.



Press the snow screen at each

upper clip

REMOVAL


Press the two upper clips

B and

pull the snow screen.

113

Practical information -

Without lifting

(four wheels on the ground)

You must always use a towbar.

TOWING YOUR VEHICLE

Never use the radiator cross-

member.

When towing another vehicle,

it must freewheel (gearbox in

neutral).

From the front or the rear

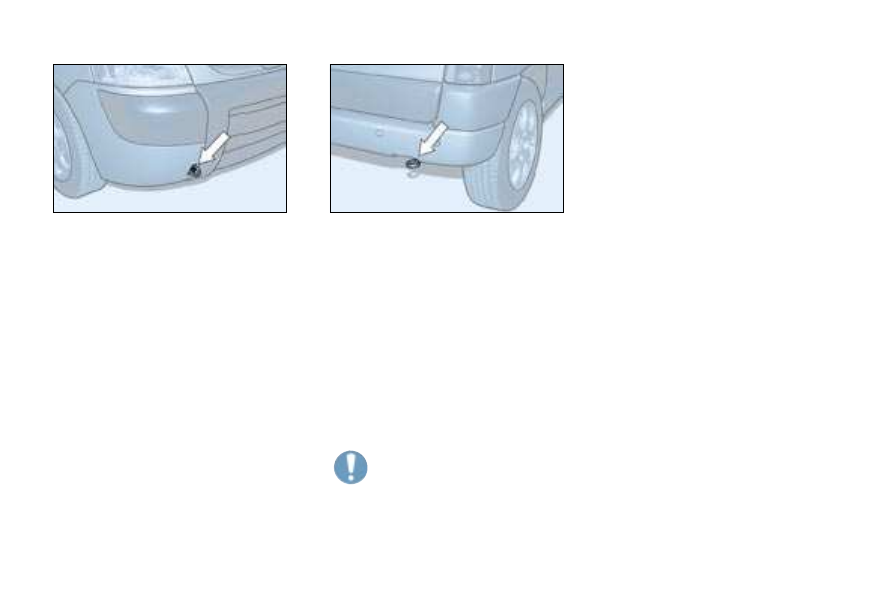

Attach the towbar to the towing eye.

By lifting

(two wheels only on the ground)

It is preferable to lift the vehicle by

the wheels.

Practical information

114 -

TOWING A TRAILER,

CARAVAN, BOAT, etc.

We recommend the use of original

PEUGEOT towbars that have been

tested and approved from the design

stage of your vehicle and that the ﬁt-

ting of the towbar is entrusted to a

PEUGEOT dealer.

Your vehicle is primarily designed

for transporting people and luggage

but it may also be used for towing a

trailer.

Driving with a trailer subjects the tow-

ing vehicle to more signiﬁcant stress

and its driver must be particularly

careful.

Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of

altitude.

Driving advice

Distribution of loads: Distribute the

load in the trailer so that the heaviest

items are as close as possible to the

axle and the nose weight approaches

the maximum permitted without ex-

ceeding it.

Cooling: Towing a trailer on a slope

increases the temperature of the

coolant.

As the fan is electrically controlled,

its cooling capacity is not dependent

on the engine speed.

On the contrary, use a high gear to

lower the engine speed and reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the

coolant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres: Check the tyre pressures of

the towing vehicle and of the trailer,

observing the recommended pres-

sures.

Braking: Towing increases the

braking distance.

Lights: Check the electrical signal-

ling on the trailer.

Side wind: Take into acount the

increased sensitivity to side wind.

115

Practical information -

ACCESSORIES FOR YOUR

PARTNER

A wide choice of accessories recom-

mended by PEUGEOT and original parts

is available through the dealer network.

These accessories and parts, after

being tested and approved for reli-

ability and safety, are all adapted to

your PEUGEOT vehicle.

This product range offered by

PEUGEOT Accessories is structured

around 5 categories:

- PROTECTION

- TOURING

- IN-CAR TECHNOLOGY

- STYLING

- UNIVERSAL,

it is dedicated to:

Depending on the country in

which the vehicle is sold, it is

compulsory to have a safety

jacket, a warning triangle and

a set of spare bulbs available

in the vehicle.

The ﬁtting of electrical equip-

ment or accessories which are not

recommended by PEUGEOT may

result in a failure of your vehicle’s

electronic system.

Please note this speciﬁc warning.

You are advised to contact a repre-

sentative of the Marque to be shown

the range of recommended equip-

ment and accessories.

"Protection":

Anti-theft

alarm, wheel locks, parking

assistance, warning trian-

gle, ﬁrst aid kit, fog lamps,

safety jacket, ...

"In-Car Technology": Audio

systems, audio/telephone,

speakers, CD changer, navi-

gation system, hands-free

kit, telephone console, ....

"Touring": Central armrest

with storage compartment,

audio/telephone console,

seat covers compatible with

side air bags, mats, boot

tray, luggage net, door

deﬂectors, towbar, roof bars

(load on longitudinal bars: 75 kg max;

harmony: 100 kg max), snow chains,

tailgate bicycle carrier, booster seats

and child seats, Isoﬁx seats, ...

Note

To prevent the mat from becoming

caught under the pedals:

- ensure that the mat is positioned

and secured correctly,

- never ﬁt one mat on top of another.

"Universal": Screenwash,

interior and exterior main-

tenance and cleaning prod-

ucts, ...

"Styling": Alloy wheels,

rear wheel arch interior trim,

door sills, mud ﬂaps, ...

116 -

PETROL ENGINES AND GEARBOXES

(1) Draining by gravity - (2) Draining by suction

Model codes

GJKFWC

GJNFUC

ENGINES

1.4 litre

1.6 litre

Cubic capacity (cm

)

1 360

1 587

Bore x stroke (mm)

75 x 77

78.5 x 82

EU standard maximum power (kW)

Maximum power at engine speed (rpm)

5 500

5 750

EU standard maximum torque (Nm)

120

147

Maximum torque at engine speed (rpm)

3 400

4 000

Fuel

Ron 95 - Ron 98

Catalytic converter

Yes

Gearbox

Manual

(5 speed)

Manual

(5 speed)

Oil capacity (in litres)

Engine (with cartridge replacement)

3 (1) - 3.25 (2)

3.2 (1) - 3.4 (2)

Gearbox-Final drive

Technical data

117

DIESEL ENGINES AND GEARBOXES

Model codes

GJ9HWC

GJ9HXC

GJWJYB

GJRHYB

GJRHYK

ENGINES

1.6 litre Turbo HDI 1.6 litre Turbo HDI

1.9 litre

2 litre Turbo HDI

Cubic capacity (cm

)

1 560

1 867

1 997

Bore x stroke (mm)

75 x 88.3

82.2 x 88

85 x 88

EU standard maximum power (kW)

Maximum power at engine speed (rpm)

4 000

4 600

4 000

EU standard maximum torque (Nm)

170

215

125

205

Maximum torque at engine speed (rpm)

1 750

2 500

1 900

Fuel

Diesel

Catalytic converter

Yes

Gearbox

Manual

(5 speed)

Manual

(5 speed)

Manual

(5 speed)

Manual

(5 speed)

Oil capacity (in litres)

Engine (with cartridge replacement)

3.8

4.8

4.5

Gearbox-Final drive

1.9

Technical data

118 -

CONSUMPTION

The consumption values presented here correspond to the values communicated at the time of printing. These consumption

values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of

driving, trafﬁc conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the ac-

cessories.

In accordance with EC Directive 80/1268 (as amended) in M.P.G. (litres/100 km)

Engine

Gearbox

Model

codes

Urban driving

Inter-

urban

Mixed

Emission of

weight (g/km)

1.4 litre

Manual

GJKFWC

29.4 (9.6)

45.6 (6.2)

38.1 (7.4)

175

1.6 litre

Manual

GJNFUC

29.1 (9.7)

45.6 (6.2)

37.6 (7.5)

177

1.6 litre Turbo HDI

Manual

GJ9HWC

42.2 (6.7)

60.1 (4.7)

52.3 (5.4)

143

1.6 litre Turbo HDI

Manual

GJ9HXC

42.2 (6.7)

60.1 (4.7)

52.3 (5.4)

143

1.9 litre

Manual

GJWJYB

32.1 (8.8)

49.6 (5.7)

40.9 (6.9)

181

2 litres Turbo HDI

Manual

GJRHYB

GJRHYK

38.7 (7.3)

56.5 (5.0)

49.6 (5.8)

154

Technical data

119

PETROL WEIGHTS AND TOWING LOADS (IN KG)

Engine

1.4 litre

1.6 litre

Gearbox

Manual

Model codes

GJKFWC

GJNFUC

• Kerb weight

1 197

1 254

• Gross vehicle weight

(GVW)

1 780

1 840

• Gross train weight (GTW)

2 680

2 940

• Unbraked trailer

540

• Braked trailer (within GTW)

900

1 100

• Braked trailer*

(with load transfer within GTW)

• Recommended nose weight

• Recommended weight on roof rack

100

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned

must be reduced by 10 % for each additional 1 000 metres.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the exterior temperature is above 37 °C, limit the towed load.

* The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is

reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road

holding ability.

Technical data

Technical data

120 -

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned

must be reduced by 10 % for each additional 1 000 metres.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the exterior temperature is above 37 °C, limit the towed load.

* The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is

reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road

holding ability.

DIESEL WEIGHTS AND TOWING LOADS (IN KG)

Engine

1.6 litre Turbo

HDI

1.6 litre Turbo

HDI

1.9 litre

2 litre Turbo

HDI

Gearbox

Manual

Model codes:

GJ9HWC

GJ9HXC

GJWJYB

GJRHYB

GJRHYK

• Kerb weight

1 269

1 240

1 311

• Gross vehicle weight

(GVW)

1 880

1 840

1 920

• Gross train weight (GTW)

2 980

2 940

3 020

• Unbraked trailer

540

500

• Braked trailer (within GTW)

1 100

• Braked trailer*

(with load transfer within GTW)

• Recommended nose weight

• Recommended weight on roof rack

100

121

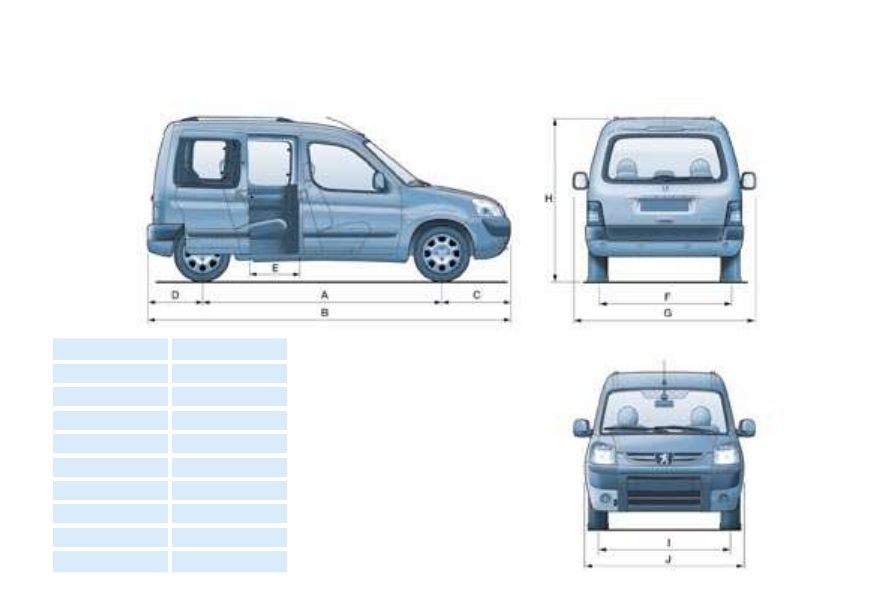

EXTERIOR DIMENSIONS (in mm)

2 693

4 137

836

608

550

1 440 or 1 452

1 960

1 810 to 1 858

1 420 or 1 436

1 724

Technical data

Technical data

122 -

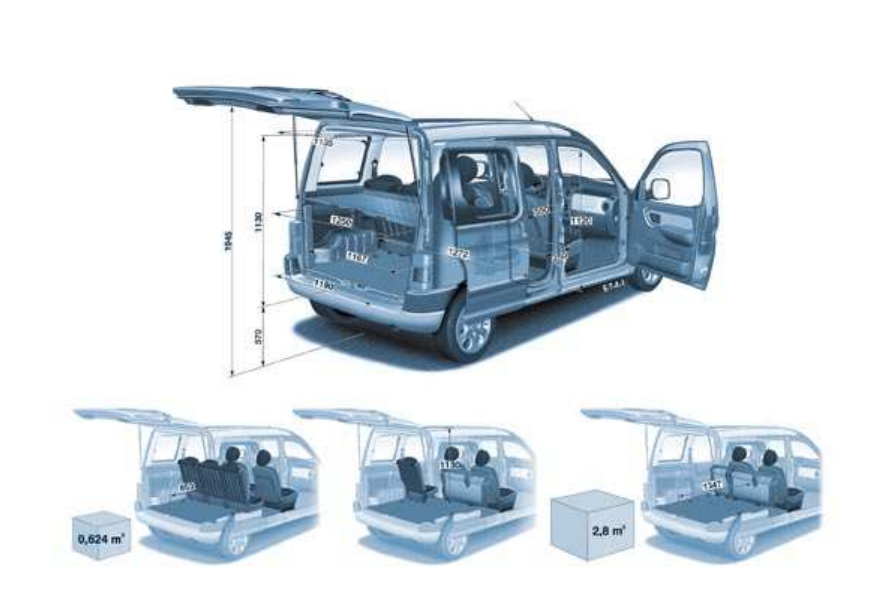

INTERIOR DIMENSIONS (in mm)

123

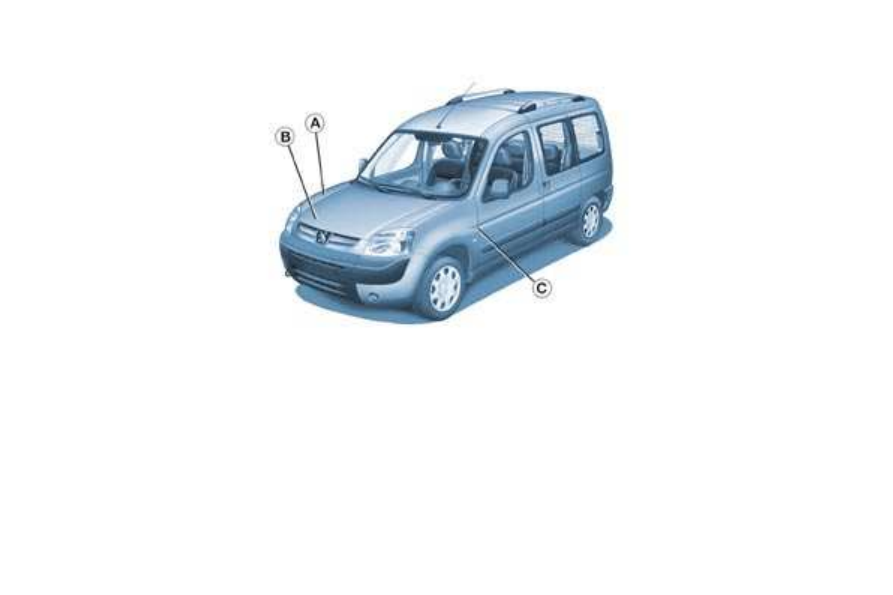

THE IDENTIFICATION FEATURES OF YOUR PARTNER

B. Serial number on the

bodywork

(under the

bonnet, on the right-hand

crossmember).

C. Tyres and paint colour

reference.

The label

C on the driver’s door pillar,

near the hinges, gives:

- the wheel and tyre sizes,

- the tyre pressures:

(tyre pressure

checks must be carried out cold,

at least every month),

- the paint colour reference.

A. Manufacturer’s plate (under

the bonnet, on the front right

wing).

Technical data

Content .. 6 7 8
