Peugeot Expert (2006 year). Instruction - part 6

Practical information

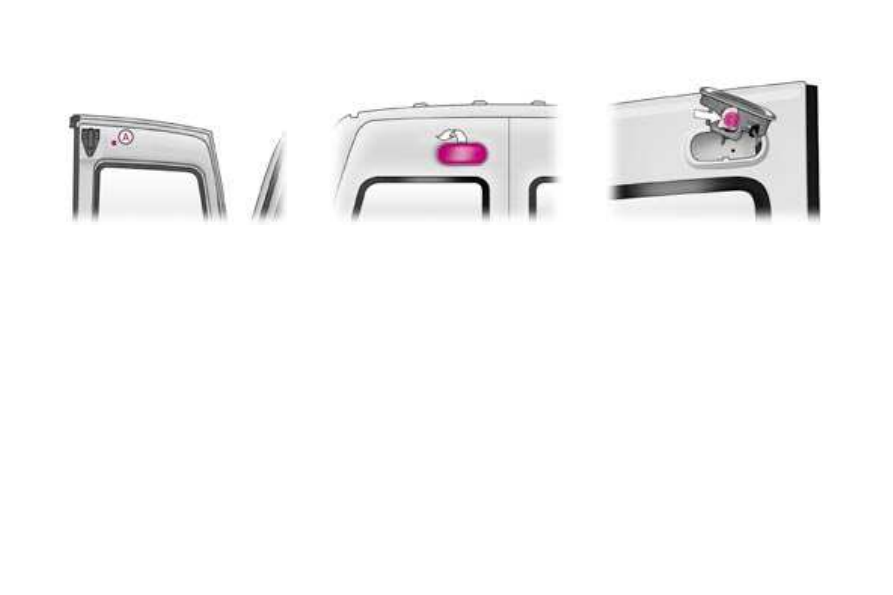

Third brake light

(rear left door) (P 21 W)



Unscrew nut

A on the inside.



Take out the unit from the outside



Unscrew the faulty bulb and

change it.

To reﬁt, proceed in the reverse

order.

80 - Practical information

CHANGING A FUSE

The fuse boxes are located under

the fascia and in the engine compart-

ment.

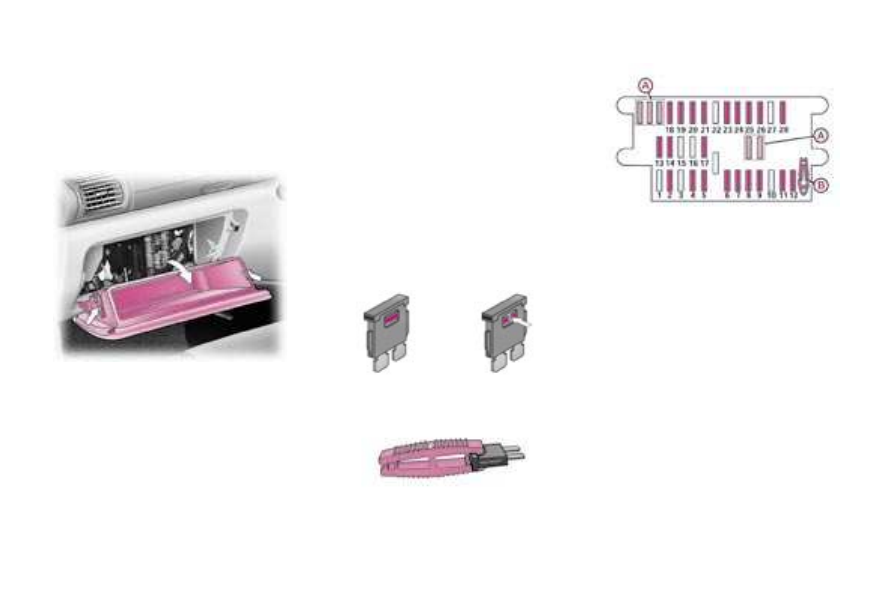

Fascia fuse box

On the passenger side, open the

glove box.

To open it fully and thus gain access

to the fuses, press the springs locat-

ed on each side.

The spare fuses

A and the pliers B

are located inside the box.

Removing and ﬁtting a fuse

Before changing a fuse, the cause

of the fault must be found and reme-

died. The fuse numbers are indicated

on the fuse box.

Use the pliers

Always replace a faulty fuse with a

fuse of the same rating.

Correct

Incorrect

Pliers B

84 - Practical information

The electrical circuit of your

vehicle is designed to oper-

ate with standard or option-

al equipment.

Before installing other elec-

trical equipment or accessories in

your vehicle, consult a PEUGEOT

dealer.

Some electrical accessories or the

way in which they are ﬁtted may have

an adverse effect on the operation of

your vehicle (its electronic control cir-

cuits, the audio circuit and the electri-

cal charging circuit).

PEUGEOT declines any responsi-

bility for expenses incurred through

the repair of your vehicle or for any

malfunctions resulting from the in-

stallation of auxiliary accessories,

not supplied and not recommended

by PEUGEOT and not installed in ac-

cordance with PEUGEOT’s instruc-

tions, in particular for any equipment

the power consumption of which ex-

ceeds 10 milliamps.

The maxi fuses provide additional

protection for the electrical systems.

Any work on these fuses must be

carried out by a PEUGEOT dealer.

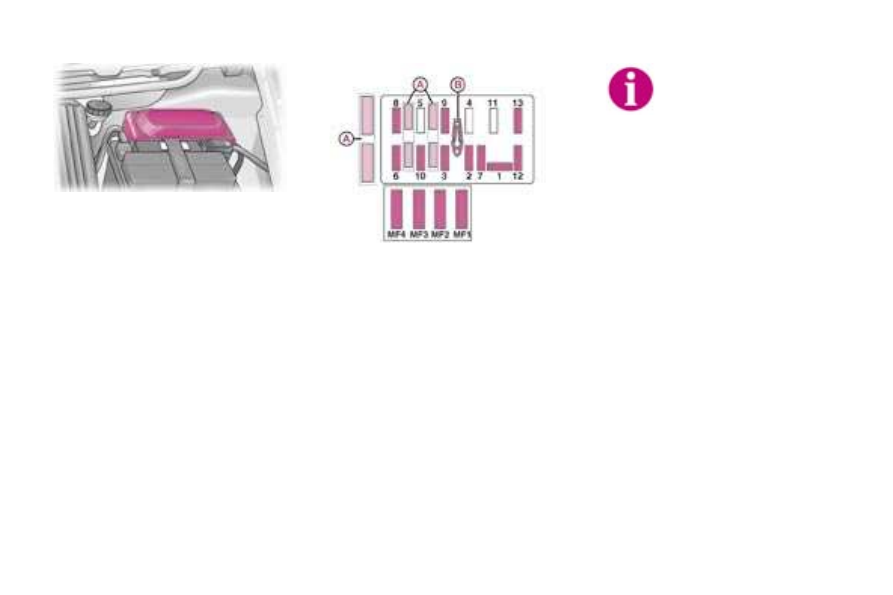

Engine compartment fuse box

To gain access to the box in the en-

gine compartment (next to the bat-

tery), unclip the cover.

After carrying out work, close the

cover very carefully.

The spare fuses

A and the pliers B

are located inside the box

Practical information

N°

Rating

Functions

20 A

Fuel pump.

10 A

Right dipped headlamp.

10 A

Left dipped headlamp.

25 A

Headlamp wash.

Shunt.

10 A

Engine immobiliser.

10 A

Catalytic converter sensor.

20 A

Towbar.

25 A

1-120 W fan assembly.

30 A

1-180 W fan assembly.

15 A

Fog lamps.

Not used.

10 A

Left main beam.

10 A

Right main beam.

MF1

70 A

Engine running relay.

MF2

70 A

ABS control unit - Ignition switch.

MF3

30 A

Air blower - Air conditioning.

MF4

30 A

Fan assembly.

80 - Practical information

CHANGING A FUSE

The fuse boxes are located under

the fascia and in the engine compart-

ment.

Fascia fuse box

On the passenger side, open the

glove box.

To open it fully and thus gain access

to the fuses, press the springs locat-

ed on each side.

The spare fuses

A and the pliers B

are located inside the box.

Removing and ﬁtting a fuse

Before changing a fuse, the cause

of the fault must be found and reme-

died. The fuse numbers are indicated

on the fuse box.

Use the pliers

Always replace a faulty fuse with a

fuse of the same rating.

Correct

Incorrect

Pliers B

Practical information

N°

Rating

Functions

Not used.

10 A

Diagnostic socket - ABS control unit - Reversing lights - Heated mirrors.

Not used.

5 A

Instrument panel - Overspeed buzzer - Speed sensor - Water in diesel ﬁlter detector.

15 A

Cruise control - Brake switch - Clutch switch - Automatic gearbox - Brake lights.

5 A

Courtesy light - Instrument panel - Audio equipment.

30 A

Heated rear screen.

30 A

Passenger compartment protection unit.

5 A

Passenger compartment protection unit.

Not used.

5 A

Fan assembly relay - Compressor relay.

10 A

Electric windows - Air blower relay - Heated seats relay - Heated rear screen switch -

Air conditioning - Pressostat.

15 A

Hazard lights.

30 A

Electric windows.

Not used.

20 A

Heated seats.

20 A

Horn.

10 A

Rear fog lamp.

82 - Practical information

N°

Rating

Functions

5 A

Cruise control - Lights on buzzer - Instrument panel lighting - Audio equipment - Heated

rear screen switch - Hazard lights switch - Air conditioning control panel.

5 A

Headlamp height adjustment switch - Front left and front right side lights.

5 A

Rear left and rear right side lights - Headlamp wash timer - Number plate lights.

Not used.

20 A

Lighter.

10 A

Audio equipment.

10 A

Lights on buzzer - Electric mirrors - Direction indicators.

30 A

Windscreen wipers timer - Windscreen wipers - Wash-wipe pump.

Not used.

5 A

Instrument panel - Electric windows relay.

86 - Practical information

- Never disconnect a ter-

minal when the engine is

running.

- Never charge a battery without ﬁrst

disconnecting the terminals.

- After every reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to allow the

electronic systems to be initialised. If

slight difﬁculties are experienced af-

ter this, please contact a PEUGEOT

dealer.

BATTERY

To charge the battery using a

battery charger:

- Disconnect the battery,

- Follow the instructions for use giv-

en by the battery charger manufac-

turer,

- Reconnect starting with the nega-

tive (-) terminal,

- Check that the terminals and con-

nectors are clean. If they are cov-

ered with sulphate (white or greenish

deposit), disconnect them and clean

them.

To start the vehicle from a bat-

tery on another vehicle:

- Switch off the engine on the gener-

ating vehicle,

- Connect the red cable to the posi-

tive (+) terminals of the two batter-

ies,

- Connect one end of the green or

black cable to the negative (-) ter-

minal of the slave battery,

- Connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery,

- Switch on the generating vehicle,

- Let it run at a slightly accelerated

engine speed for approximately

one minute,

- Start the receiving vehicle,

- Operate the starter, let the engine

run,

- Wait for the engine to return to idle,

then disconnect the cables.

It is advisable to disconnect the

battery if the vehicle is not to be

used for a period of more than

one month.

Practical information

Contact a PEUGEOT dealer

before ﬁtting audio equip-

ment or speakers in your

vehicle.

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-ﬁtted audio equipment:

- coaxial aerial cable,

- basic interference suppression,

- supply to front speakers,

- two 8-way connectors.

FITTING SPEAKERS

The factory-ﬁtted equipment allows the

ﬁtting of 165 mm diameter speakers in

the front doors.

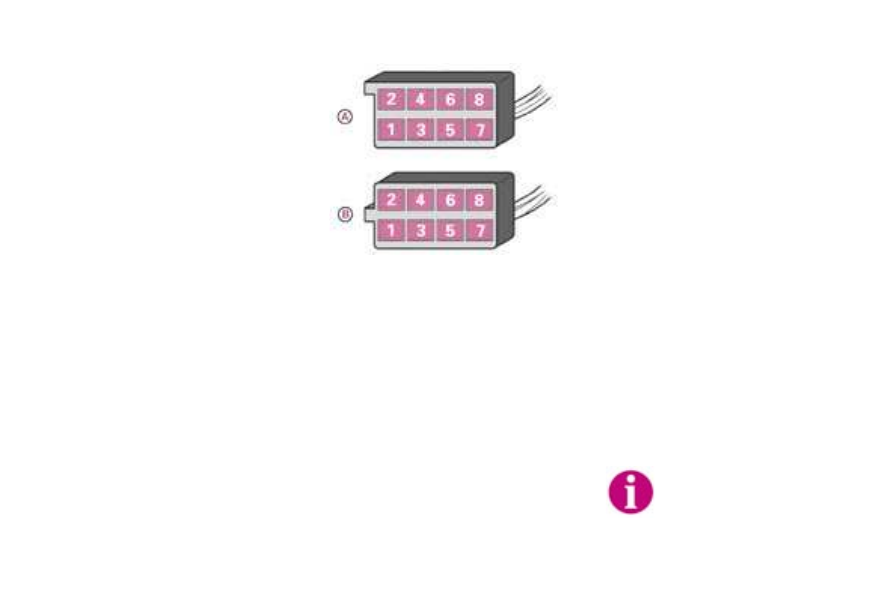

Making the connections

A1 : -

A2 : -

A3 : -

A4 : -

A5 : -

A6 : (+ve) Accessories

A7 : (+ve) Permanent

A8 : (-ve) Earth

B1 : (+)

B2 : (-)

B3 : (+)

Front right speaker

B4 : (-)

Front right speaker

B5 : (+)

Front left speaker

B6 : (-)

Front left speaker

B7 : (+)

B8 : (-)

88 - Practical information

When towing with the en-

gine switched off, there

is no braking or steering

assistance.

TOWING YOUR VEHICLE

Without lifting

(4 wheels on the ground)

You must always use a tow bar.

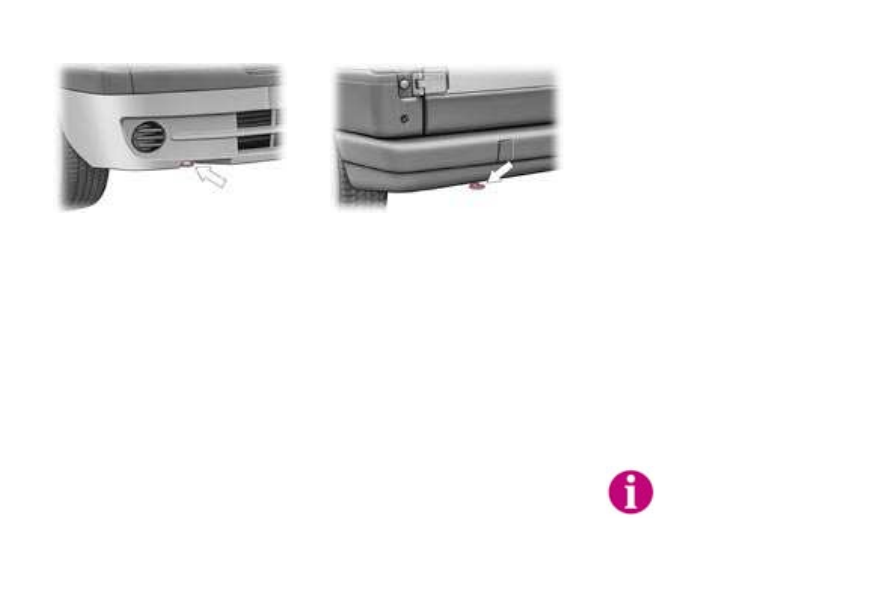

The towing eyes are located at the

front and the rear under the vehicle’s

bumpers.

Lifting (2 wheels only on the

ground)

It is preferable to raise the vehicle

with a professional lifting device.

Never use the radiator crossmember.

Practical information

TOWING A TRAILER,

CARAVAN, BOAT, etc.

We recommend the use of original

PEUGEOT towbars that have been

tested and approved from the design

stage of your vehicle and that the ﬁt-

ting of the towbar is entrusted to a

PEUGEOT dealer.

Your vehicle is primarily designed

for transporting people and luggage

but it may also be used for towing a

trailer.

Driving with a trailer subjects the tow-

ing vehicle to more signiﬁcant stress

and its driver must be particularly

careful.

Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of

altitude.

Driving advice

Distribution of loads: Distribute the

load in the trailer so that the heaviest

items are as close as possible to the

axle and the nose weight approach-

es the maximum permitted without

exceeding it.

Cooling:

Towing a trailer on a slope increases

the temperature of the coolant.

As the fan is electrically controlled,

its cooling capacity is not dependent

on the engine speed.

On the contrary, use a high gear to

lower the engine speed and reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the cool-

ant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres: Check the tyre pressures of

the towing vehicle and of the trailer,

observing the recommended pres-

sures.

Braking: Towing increases the brak-

ing distance.

Lights: Check the electrical signal-

ling on the trailer.

Side wind: Take into acount the in-

creased sensitivity to side wind.

90 - Practical information

Before installing any elec-

trical accessory on your ve-

hicle, contact a PEUGEOT

dealer.

ACCESSORIES FOR YOUR

EXPERT

For your PEUGEOT only use acces-

sories and original parts approved by

the manufacturer.

These accessories and parts are all

adapted to your PEUGEOT, after be-

ing tested and approved for reliability

and safety, which PEUGEOT cannot

guarantee for other products.

A wide choice of original accessories,

approved by PEUGEOT, is available

through the dealer network. They all

carry the PEUGEOT guarantee.

* According to version.

- Communication: Audio systems,

audio-telephone, speakers, CD

changer...

- Customising: Ladder, mud ﬂaps,

front fog lamps kit*...

- Leisure: Towbar, roof bars, snow

chains...

- Children: Booster seats and child

seats...

- Maintenance products: Screen-

wash, interior and exterior mainte-

nance and cleaning products...

- Safety: Window protectors, anti-

theft alarm, wheel locks, signalling

triangle, ﬁrst aid kit, safety jacket...

- Comfort: Rear and side windows,

audio-telephone console, seat cov-

ers compatible with side air bags,

mats, strap-guide...

- Loading: Roof bars, thermoformed

interior protectors, wooden interior

ﬁttings, loading roller...

Technical data

Model codes

PETROL

BARFNC/IF - BBRFNC/IF

ENGINES

2 litre 16V

Cubic capacity (cm

)

1 997

Bore x stroke (mm)

85 x 88

EU standard maximum power (kW)

100

Maximum power engine speed (rpm)

6 000

EU standard maximum torque (Nm)

190

Maximum torque engine speed (rpm)

4 100

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual

(5-speed)

Oil capacity (in litres)
Engine (with cartridge replacement)

4.25

Gearbox-Final drive

ENGINES AND GEARBOXES

92 - Technical data

ENGINES AND GEARBOXES

Model codes

DIESEL

BAWJYB - BBWJYB

BARHXB

BBRHXB

BARHZB

BBRHZB

BARHWB - BBRHWB

ENGINES

1.9 litre

2 litre Turbo HDI

(95 bhp/110 bhp)

2 litre Turbo HDI 16V

Cubic capacity (cm

)

1 868

1 997

Bore x stroke (mm)

82.2 x 88

85 x 88

EU standard maximum power (kW)

Maximum power engine speed (rpm)

4 600

4 000

EU standard maximum torque (Nm)

125

215

250

270

Maximum torque engine speed (rpm)

2 500

1 750

Fuel

Diesel

Catalytic converter

Yes

Gearbox

Manual

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Oil capacity (in litres)
Engine (with cartridge replacement)

4.5

5.5

4.75

Gearbox-Final drive

Technical data

CONSUMPTION

In accordance with EC Directive 80/1268 (as amended) (mpg (litres/100 km))

Engines

Gearboxes

Model

codes

BA... BB...

Urban driving

Inter-urban

driving

Mixed driving

Emission of

by weight

(g/km)

2 litre 16V

Manual

RFNC/IF

23.5 (12.0)

38.7 (7.3)

31.1 (9.0)

216

1.9 litre Diesel

Manual

WJYB

27.9 (10.1)

42.8 (6.6)

35.8 (7.9)

211

2 litre Turbo

HDI (95 bhp)

Manual

RHXB

32.4 (8.7)

47.9 (5.9)

40.4 (7.0)

187

2 litre Turbo

HDI (110 bhp)

Manual

RHZB

32.4 (8.7)

50.4 (5.6)

42.2 (6.7)

180

2 litre Turbo

HDI 16V

Manual

RHWB

31.7 (8.9)

47.1 (6.0)

40.4 (7.0)

186

The consumption values presented here correspond to the values communicated at the time of printing. These consumption

values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of

driving, trafﬁc conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the ac-

cessories.

94 - Technical data

WEIGHTS AND TOWED LOADS (IN KG)

* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).

2 litre 16V

Van

Combi

5-6

Platform

cab

• Payload

1 060

• Kerb weight

1 412

1 520

1 263

• Weight without load

1 397

1 445

1 188

• Gross vehicle weight (GVW)

2 185

2 505

2 185

• Gross train weight (GTW)*

3 485

3 595

3 485

• Unbraked trailer

706

750

631

• Braked trailer (within GTW)

1 300

• Recommended nose weight

Content .. 4 5 6 7 ..
