Peugeot Expert VU Dag (2007 year). Instruction



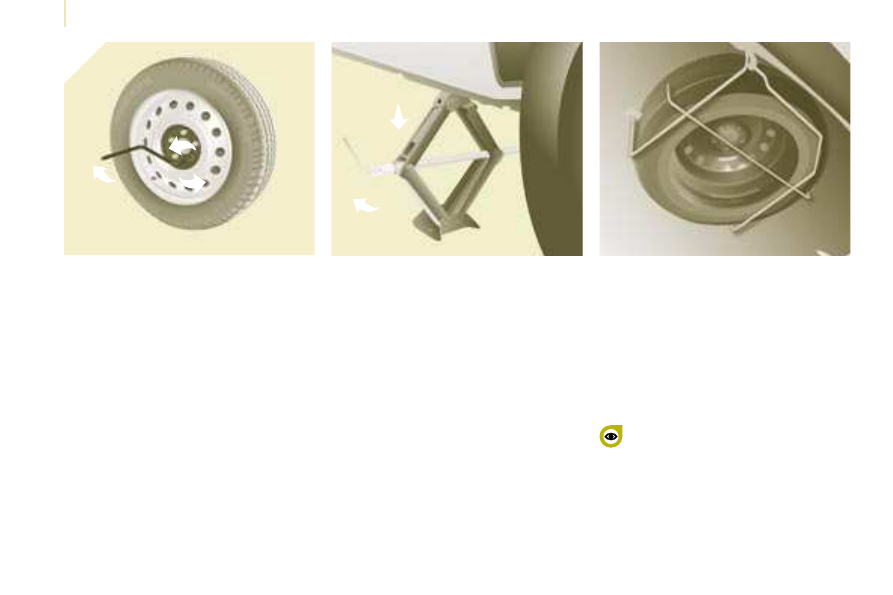

Lower the vehicle completely by folding

the jack, then remove the jack.



Tighten the bolts again using the wheelbrace,

tighten them fully without forcing them.



Place the wheel to be repaired in the carrier.



Secure the carrier on the hook then

raise the carrier using the bolt and the

wheelbrace.



Remember to close the flap, located on

the sill.



Store the trim in the vehicle.

Never go underneath a vehicle that is

supported only by a jack (use a ramp).

Never use a screwdriver in place of the

wheelbrace.

5. Fitting the spare wheel



Position the wheel on the hub and start

tightening the bolts by hand.



Carry out an initial tightening of the bolts

using the wheelbrace.

Changing a wheel

6. Refitting the repaired wheel

The wheel is refitted as described in step 5,

not forgetting to refit the wheel trim.

The spare wheel is not designed to be

used over long distances. Have the

tightening of the bolts and the tyre pressure

checked by a PEUGEOT dealer as soon as

possible.

Also, have the original wheel repaired and

refitted by a PEUGEOT dealer as soon as

possible.

Refer to the "Identification features"

section of chapter 9 to locate the tyre

label.

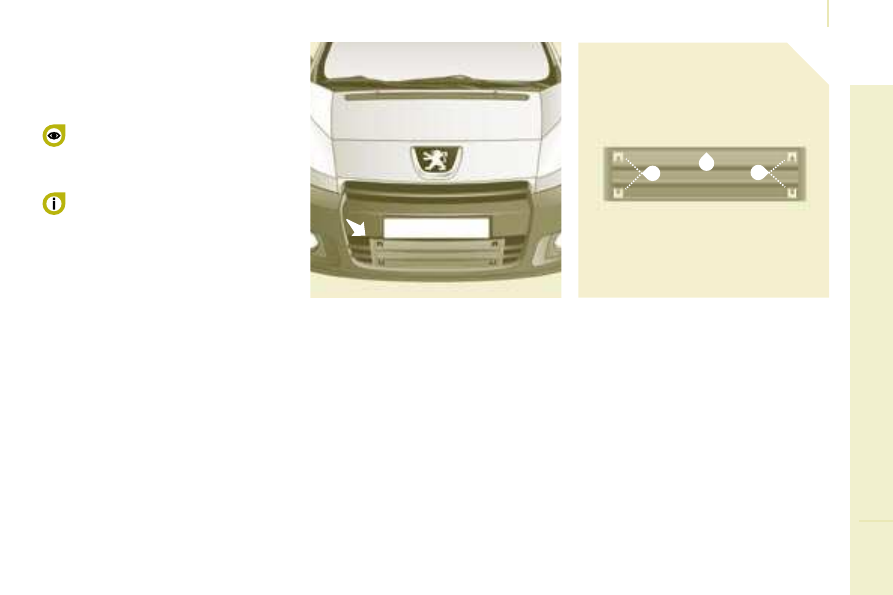

REMOVABLE SNOW SCREEN

According to country, the removable snow

screen is installed on the lower part of the

front bumper to prevent the accumulation

of snow at the radiator cooling fan.

When the snow has cleared, do not forget

to remove the snow screen.

FITTING



Offer up the screen snow screen facing its

centring pin

A on the front bumper.



Put it in place by pressing at each clip

located in the four corners.

REMOVAL



Pass a screwdriver into the hole located

near each of the clips.



Use the screwdriver as a lever to unclip

the four clips

B in turn.

Snow screen

LESH

6. Refitting the repaired wheel

The wheel is refitted as described in step 5,

not forgetting to refit the wheel trim.

The spare wheel is not designed to be

used over long distances. Have the

tightening of the bolts and the tyre pressure

checked by a PEUGEOT dealer as soon as

possible.

Also, have the original wheel repaired and

refitted by a PEUGEOT dealer as soon as

possible.

Refer to the "Identification features"

section of chapter 9 to locate the tyre

label.

REMOVABLE SNOW SCREEN

According to country, the removable snow

screen is installed on the lower part of the

front bumper to prevent the accumulation

of snow at the radiator cooling fan.

When the snow has cleared, do not forget

to remove the snow screen.

FITTING



Offer up the screen snow screen facing its

centring pin

A on the front bumper.



Put it in place by pressing at each clip

located in the four corners.

REMOVAL



Pass a screwdriver into the hole located

near each of the clips.



Use the screwdriver as a lever to unclip

the four clips

B in turn.

Snow screen

LESH

Changing a bulb

Type A Entirely glass bulb: pull gently as it

is fitted by pressure

Type B Bayonet bulb: press on the bulb

then turn it anticlockwise.

Type C Halogen bulb: release the retaining

spring from its housing.

Halogen bulbs must be changed after

the headlamp has been off for several

minutes (risk of serious burns). Do not

touch the bulb directly with your fingers, use

lint-free cloths.

When each operation has been completed,

check the operation of the lights.

CHANGING A BULB

Types of bulb

Various types of bulb are installed on your

vehicle. To remove them:

Changing a bulb

3 - Direction indicators

Type B, PY 21 W - 21 W (amber)

- Turn the bulb holder a quarter turn

anticlockwise.

- Remove the bulb by pressing it lightly while

turning it anticlockwise.

- Change the bulb.

4 - Fog lamps

Type C, H1 - 55 W

Contact a PEUGEOT dealer.

- Ensure that the cover is refitted correctly

over its entire periphery to guarantee

sealing.

2 - Side lights

Type A, W 5 W - 5 W

- Remove the cover by pulling the flexible

rubber tab.

- Remove the bulb holder fitted by pressure

by pulling the connector.

- Change the bulb.

- Ensure that the cover is refitted correctly

over its entire periphery to guarantee

sealing.

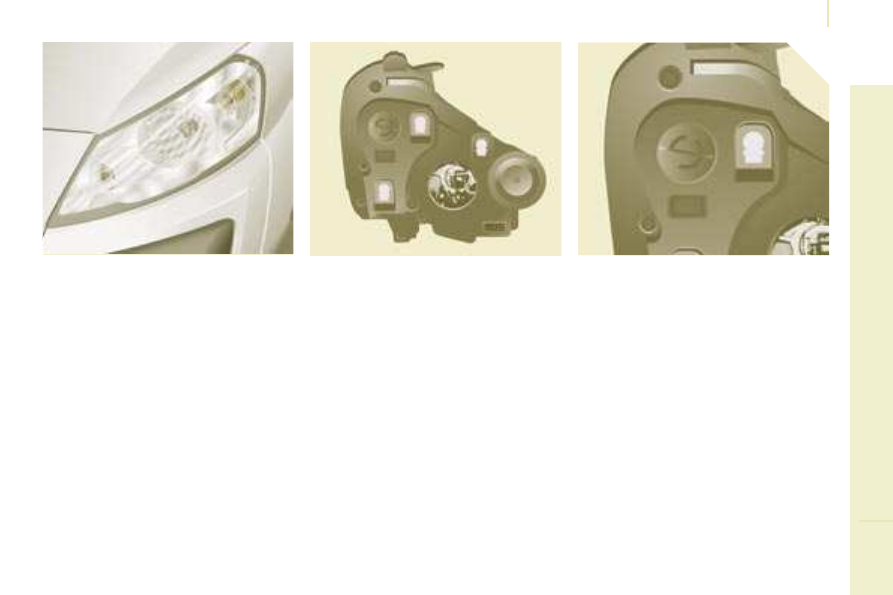

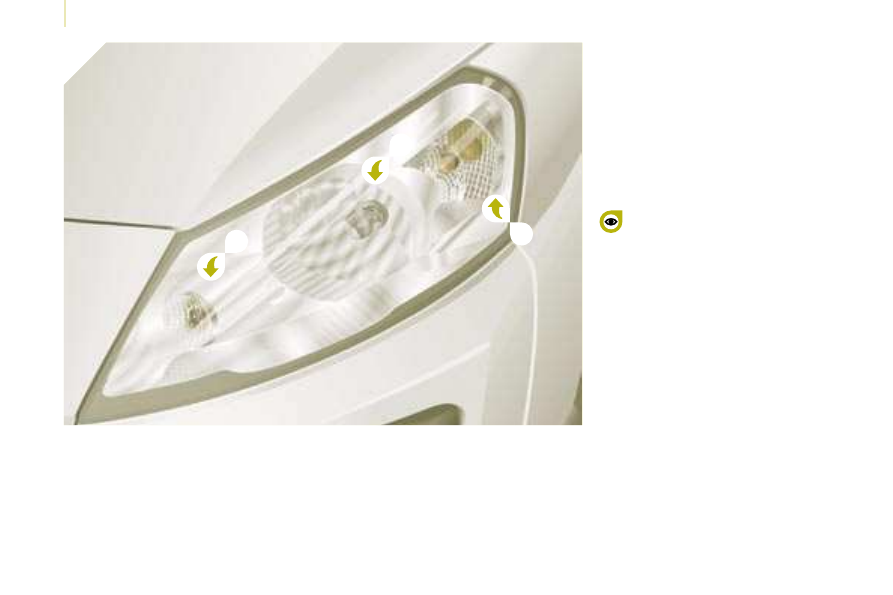

FRONT LIGHTS

Open the bonnet. To access the bulbs, reach

behind the headlamp unit.

Carry out the operations in reverse order to

refit each bulb.

1 - Dipped headlamps/Main beam

headlamps

Type C, H4 - 55 W

Remove the centre cover by pulling the

flexible rubber tab.

- Disconnect the electrical connector.

- Release the retaining spring.

- Change the bulb taking care to align the

metal part with the grooves on the light.

LESH

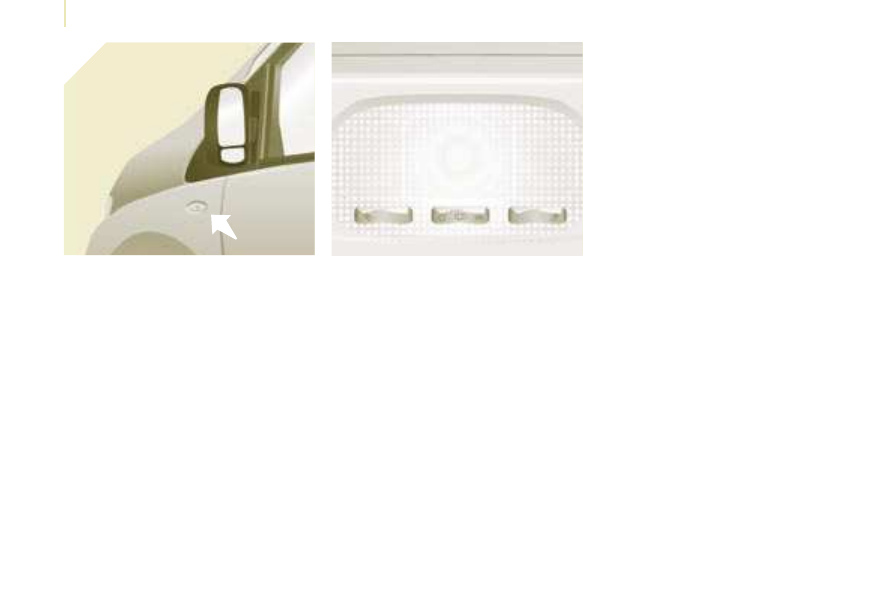

DIRECTION INDICATOR SIDE

REPEATER

Type A, WY 5 W (amber)

- Push the repeater towards the rear and

disengage it.

- Support the connector and turn the bulb

holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,

remove it and change it.

- When refitting, engage the repeater

towards the rear and bring it towards the

front.

Amber coloured bulbs (direction indicators

and side repeaters) must be replaced with

bulbs of identical specification and colour.

Front/Rear

COURTESY LIGHTS

Type A, 12 V 5 W - 5 W

- Unclip the lens by sliding a screwdriver in

the slots on each side of the courtesy light.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure that

it is secured correctly.

Changing a bulb

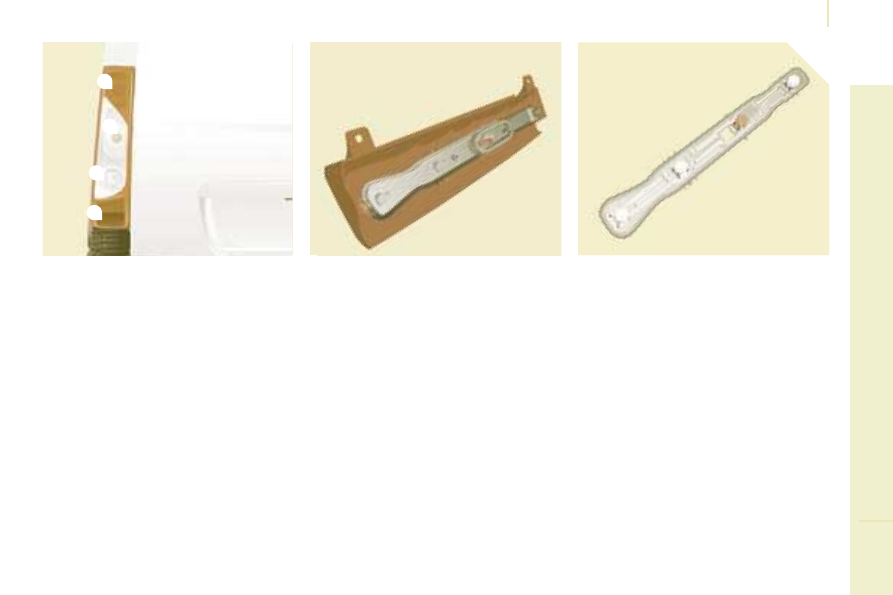

REAR LIGHTS

For further information concerning the bulbs,

refer to the "Types of bulb".

1 - Brake lights/side lights

Type B, P 21/5 W - 21/5 W

2 - Direction indicators

Type B, PY 21 W - 21 W (amber)

3 - Reversing lights

Type B, P 21 W - 21 W

4 - Fog lamps

Type B, P 21 W - 21 W

- Identify the faulty bulb then open the rear

doors to 180°. Refer to the "Accesses"

section of chapter 2.

- Remove the two fixing nuts.

- Pull the lens block from the outside.

- Holding the light, disconnect the electrical

connector.

Changing a bulb

- Move aside the 8 tabs then extract the bulb

holder.

- Remove the faulty bulb by pressing it

lightly while turning it anticlockwise.

- Change the bulb.

When refitting, take care to correctly

reposition:

- the 8 tabs,

- the two white lugs in the two rubber holes

to maintain the sealing of the light,

- the supply wire to avoid trapping it.

LESH

Changing a bulb

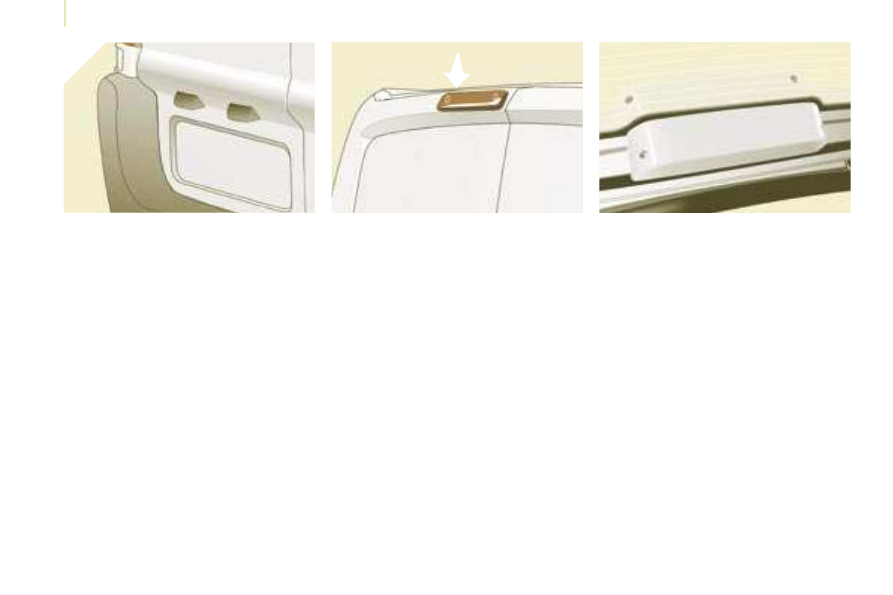

THIRD BRAKE LIGHT

Type A, W 5 W - 5 W

Light located on the outside

(hinged doors)
- Unscrew the two screws using a Torx

screwdriver with 20 socket.

- Remove the light.

NUMBER PLATE

LIGHTS

Type A, W 5 W - 5 W

With tailgate
- Move aside the plastic lens using a

screwdriver, on the point indicated by the

arrow.

- Change the bulb.

- Replace the plastic lens and press on it.

With hinged doors
- Unclip the interior trim.

- Disconnect the connector by moving

aside its tab.

- Remove the plastic cover.

- Turn the bulb holder a quarter turn

anticlockwise.

- Change the bulb.

Type B, P 21 W - 21 W

Light located on the inside (tailgate)
- Unscrew the two screws using a Torx

screwdriver with 20 socket.

- Remove the plastic cover.

- Remove the bulb holder moving aside the

two tabs.

- Remove the faulty bulb by pressing it

lightly while turning it anticlockwise.

- Change the bulb.

Type B, P 21 W - 21 W

Light on high door
- Remove the screws using an 8 wrench.

- Remove the faulty bulb by pressing it

lightly while turning it anticlockwise.

- Change the bulb.

Changing a fuse

CHANGING A FUSE

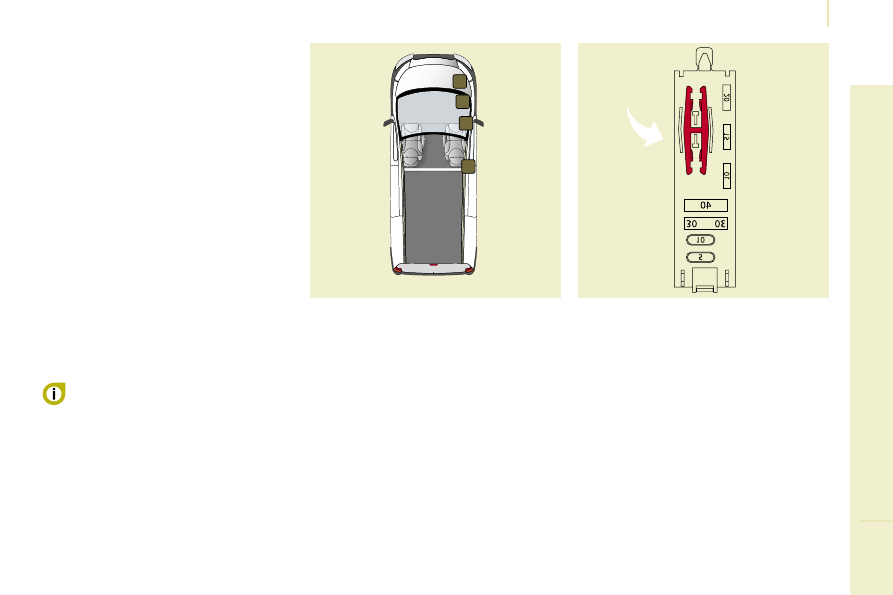

The three fuse boxes are placed:

- in the fascia panel on the right-hand

side (behind the storage compartment,

retractable),

- in the passenger compartment (battery

compartment),

- under the bonnet.

If fitted on your vehicle, a further fuse

box is added for towing, the towbar and

the connections for the coachbuilder and

platform cab conversions. It is located on the

right behind the load retaining partition.

The descriptions communicated are only

the fuses which can be changed by the

user using the pliers and replacement fuses

located behind the fascia panel storage

compartment on the right-hand side. For any

other operations, visit a PEUGEOT dealer.

Intended for professionals: for

complete fuse and relay information,

consult the "Methods" diagram via the

Network or the INFOTEC site.

Removing and fitting a fuse

Before changing a fuse, the cause of the

fault must be found and rectified.

- Use the pliers.

Always replace a faulty fuse with a fuse

of the same rating.

LESH

F11

F17

F16฀/฀SHUNT

F13

F12

F14

F10

F15

Fuses

A (amps)

Allocation

Rear wiper

Not used

Air bag control unit

Steering wheel angle sensor, Diagnostic socket, ESP sensor,

Manual ventilation,

Clutch switch, Headlamp beam height,

Particle emission filter pump

Electric mirrors, Passenger electric window motor

Front electric windows supply

Courtesy lights and glove box light

Multifunction display, Anti-theft alarm siren, Audio equipment,

Compact disc changer,

Audio/telephone, Trailer fuse box (accessory),

Coachbuilder/vehicle modifier unit (platform cab)

Lighter, Load space accessories socket

Rear ride height corrector, Steering wheel switching, Instrument

panel

Diagnostic socket, Ignition switch

Hands-free kit, Air bag control unit, Parking assistance control unit

Engine fuse box, Trailer fuse box

Rain sensor, Automatic air conditioning, Instrument panel

Locking/unlocking/deadlocking of the accesses

Not used

Heated rear screen, Heated mirrors*

17*

10*

Heated mirrors only

Changing a fuse

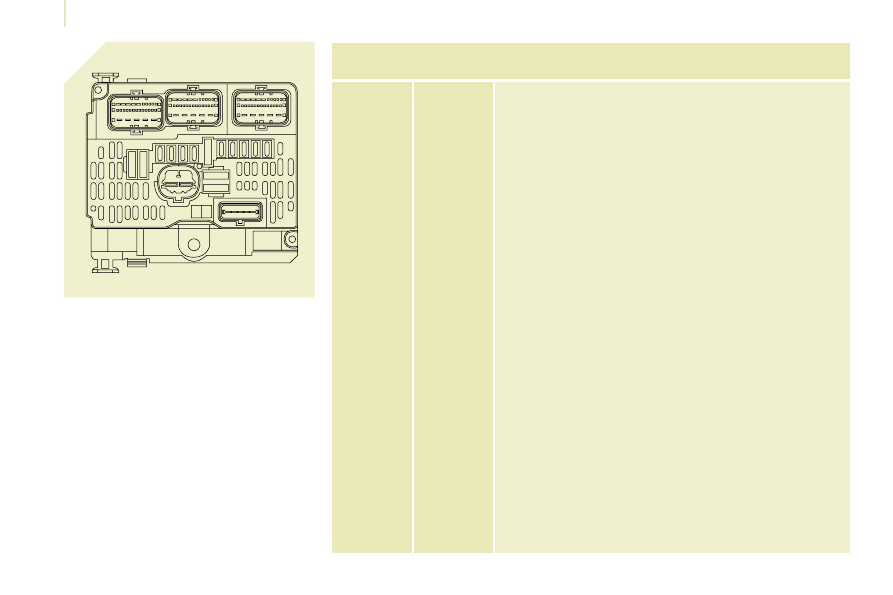

RIGHT-HAND SIDE FASCIA PANEL

FUSES

- Tilt the storage compartment then pull it

firmly to access the fuses.

Changing a fuse

PASSENGER COMPARTMENT

FUSES

- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover

carefully.

Fuses A (amps)

Allocation

Heated seats

Not used

40/50

Trailer fuse box (accessory)/

Coachbuilder/vehicle modifier unit (platform cab)

Not used

Hinged door locks

Hinged door rear wiper

Not used

Folding mirrors

LESH

FUSES UNDER THE BONNET

- After opening the bonnet, slide the

screenwash support to make access

easier.

- Unclip and tilt the box to access the fuses.

Fuses

A (amps)

Allocation

Engine control unit, Fuel supply and air supply systems,

Fan assembly

Horn

Front and rear wash-wipe pump

Headlamp wash pump

Fuel supply system

Power steering, Secondary brake pedal switch

Braking system (ABS/ESP)

Starter control

Main brake pedal switch

Fuel supply and air supply systems, Emission control systems

Front ventilation

Windscreen wipers

Built-in systems interface

Not used

Changing a fuse

Changing a fuse

TOWING/TOWBAR/

COACHBUILDERS/PLATFORM

CAB FUSES

The descriptions communicated are an

indication only as this additional box relates

to other information which depends on the

coachbuilder/vehicle modifier for which the

handbook cannot act as a technical support.

Fuses

A (amps)

Allocation

Not used

Ignition relay and optional generator

Trailer 12 V supply

Permanent supply for vehicle modifiers

Hazard warning lights

LESH

Changing a wiper blade

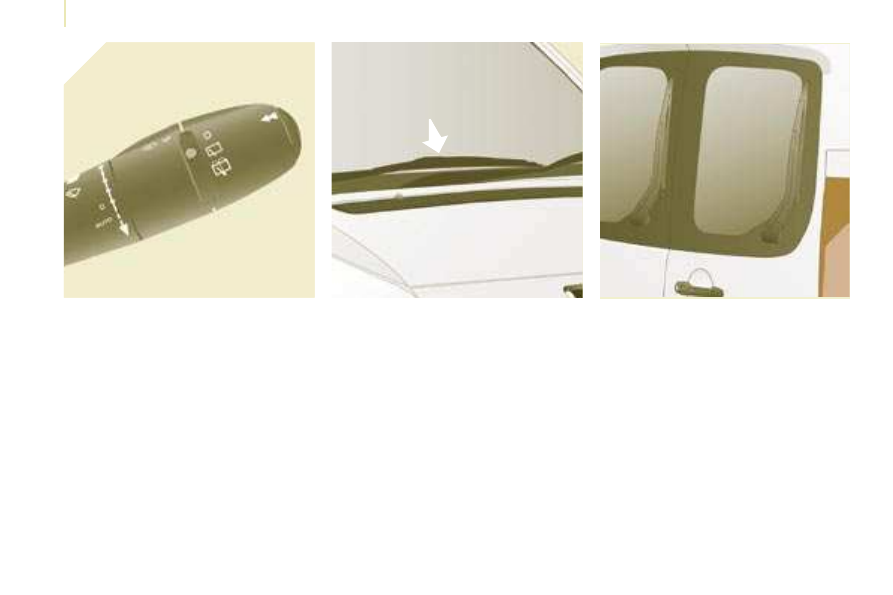

Placing the wiper blades in the

special position

- Less than a minute after switching off the

ignition, press the wipers stalk downwards

to position the wiper blades along

the windscreen uprights (special position).

Changing a front wiper blade

- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.

To return the windscreen wipers to their

normal position, switch on the ignition and

operate the wipers stalk.

Changing the rear wiper blade

If your vehicle is fitted with a rear wiper

blade.

- Lift the wiper arm, then unclip the blade

and remove it.

- Fit the new blade and push back

the wiper arm.

CHANGING A WINDSCREEN WIPER BLADE

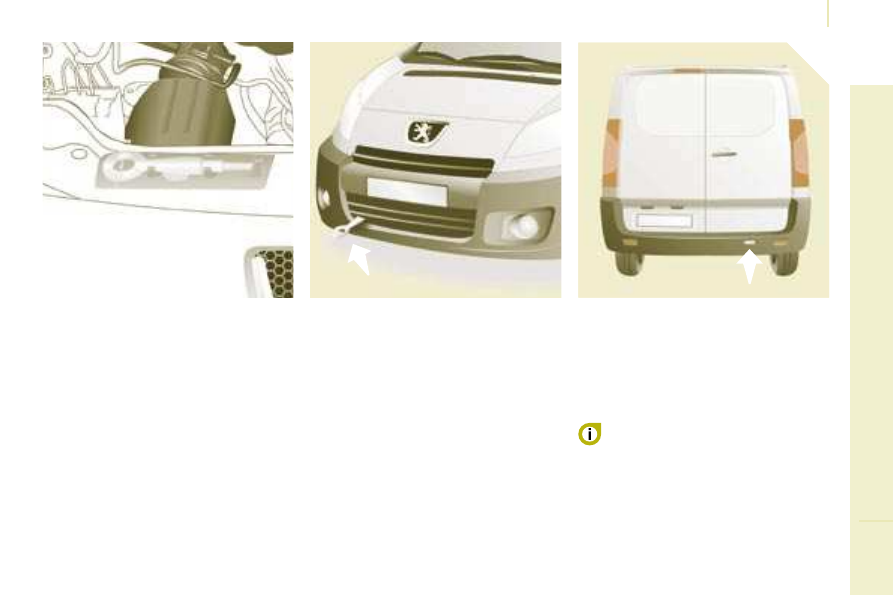

Without lifting (4 wheels on the

road)

You should always use a towbar.

The removable towing eye is inside

the engine compartment.

From the front

- Unclip the cover by pressing the bottom

part.

- Screw in the removable towing eye until

it locks.

From the rear

- Unclip the cover using a coin or the flat

part of the towing eye,

- Screw in the removable towing eye until

it locks.

BEING TOWED

Lifting

(2 wheels on the road only)

It is preferable to raise the vehicle using

professional lifting equipment.

When towing with the engine switched

off, there is no braking or steering

assistance.

Having your vehicle towed

LESH

Environment

ENVIRONMENT

With you, PEUGEOT acts to protect the

environment.

On the

www.peugeot.com site, you are

invited to consult,

the < Tradition & Innovation >

tab, the < Environnement > item and then

specifically to visit the nursery of

< Opération Carbone >.

the < Tradition & Innovation >

tab, the < Environment > item and then

speciﬁcally to visit the nursery of the Fazenda

via < Opération Carbone > (the carbon sink

project).

PEUGEOT’s clean HDi Diesel engines

(Common Rail diesel direct injection)

have the characteristic of offering low

consumption and minimising emissions of

. In addition to this contribution, these

engines provide a highly acclaimed level of

driving pleasure.

As the driver, you also can contribute to

protecting the environment by following

certain rules:

- adopt a preventive style of driving, without

frequent and sharp acceleration.

Refer to the starting and stopping "good

practice" advice in this handbook at the end

of chapter 2,

- observe the service intervals; we

recommend that services are carried out by

a PEUGEOT dealer authorised to collect

used batteries and fluids,

- in order to preserve the reliability of the

engine and emission control system, do not

use engine oil additives.

TEC

Peugeot Expert VU Dag (2007 year). Instruction - part 10
