Dimensions

TECHNICAL

 DA

TA

Bipper_en_Chap10_caracteristique_ed02-2014

DIMENSIONS

the light van "l1" is the standard model, the "l2 - Worksite Pack" version is a model sold according to country.

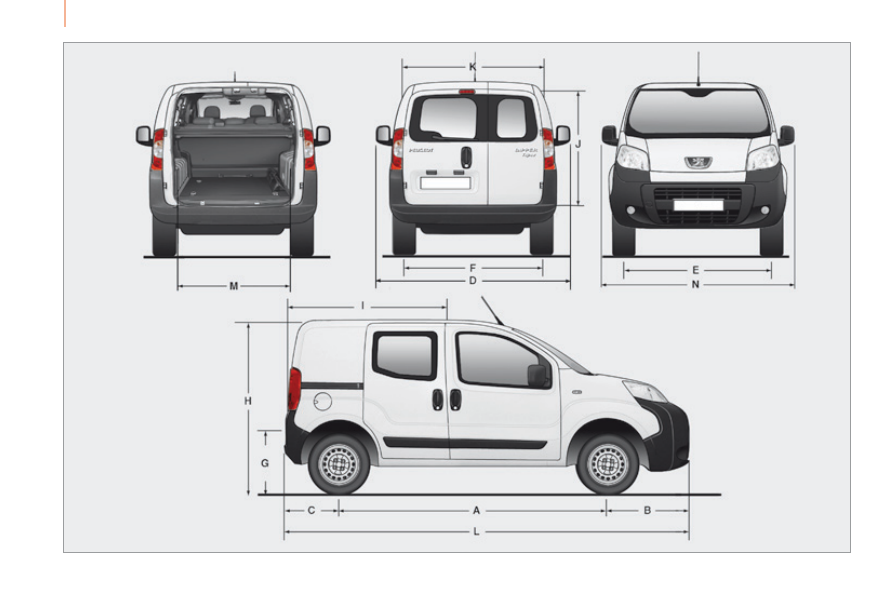

Light van (in mm)

l1

l2 (Worksite Pack)

l

Overall length

3 864

3 881

H

Overall height

1 721

1 742

Height with roof bars

1 782

1 803

A

Wheelbase

2 513

B

Front overhang

760

777

C

Rear overhang

591

D

Overall width

2 019

Width (with mirrors folded)

1 816

e

Width of front track

1 469

1 464

F

Width of rear track

1 465

g

Height of load sill

527

544

I

Length of interior floor

1 523

J

Maximum interior load height

1 205

K

Maximum interior width (10 cm from the floor)

1 473

M

Interior width between wheel arches

1 046

Volume (m

3

)

2.5

 176

Dimensions

Bipper_en_Chap10_caracteristique_ed02-2014

 177

10

Dimensions

TECHNICAL

 DA

TA

Bipper_en_Chap10_caracteristique_ed02-2014

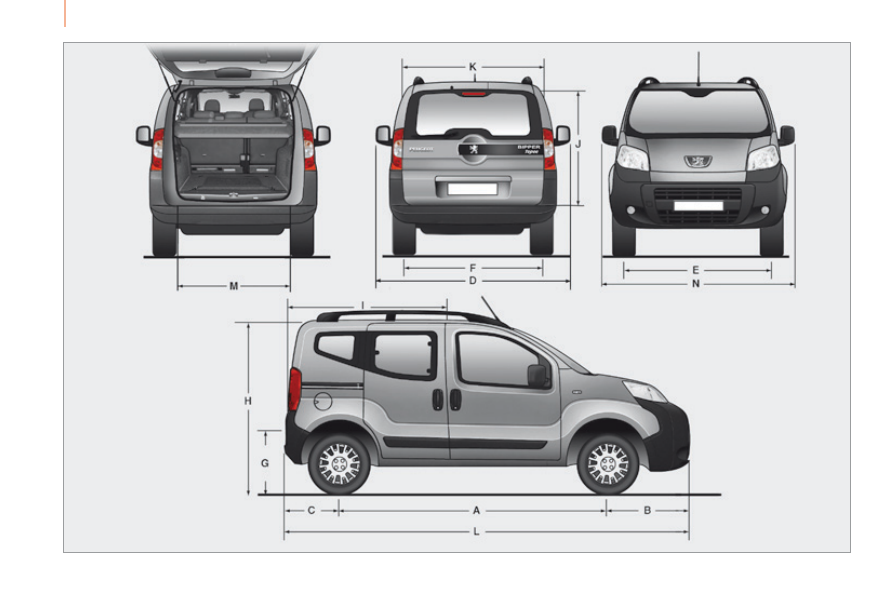

Combi (in mm)

Standard

All-terrain

l

Overall length

3 959

3 970

H

Overall height

1 721

1 742

Height with roof bars

1 782

1 803

A

Wheelbase

2 513

B

Front overhang

855

866

C

Rear overhang

591

D

Overall width

2 019

Width (with mirrors folded)

1 816

e

Width of front track

1 464

F

Width of rear track

1 465

g

Height of load sill

527

544

I

Length of interior floor (rear bench seat in place)

743

Length of interior floor (rear bench seat fully folded)

1 130

J

Maximum interior load height (under rear shelf)

592

K

Maximum interior width (10 cm from the floor)

1 473

M

Interior width between wheel arches

1 046

 178

Dimensions

Bipper_en_Chap10_caracteristique_ed02-2014

 179

10

Dimensions

TECHNICAL

 DA

TA

Bipper_en_Chap10_caracteristique_ed02-2014

Combi (in mm)

Standard

All-terrain

l

Overall length

3 959

3 970

H

Overall height

1 721

1 742

Height with roof bars

1 794

1 803

A

Wheelbase

2 513

B

Front overhang

855

866

C

Rear overhang

591

D

Overall width

2 019

Width (with mirrors folded)

1 816

e

Width of front track

1 464

F

Width of rear track

1 465

g

Height of load sill

527

544

I

Length of interior floor (rear bench seat in place)

743

Length of interior floor (rear bench seat fully folded)

1 130

J

Maximum interior load height (under rear shelf)

592

K

Maximum interior width (10 cm from the floor)

1 473

M

Interior width between wheel arches

1 046

 180

Engines

Bipper_en_Chap10_caracteristique_ed02-2014

DIESEL ENGINES

1.4 litre HDi 70 hp

1.3 litre HDi 75 hp

Gearboxes

Manual

Manual

Electronic

gears

5

5

5

eu standard maximum power (kW)*

50

55

Cubic capacity (cc)

1 399

1 248

Bore x stroke (mm)

73.7 x 82

69.6 x 82

Max power engine speed (rpm)

4 000

3 750

eu standard max torque (Nm)

160

190

Max torque engine speed (rpm)

2 750

1 750

Fuel

Diesel

Diesel

Catalytic converter

Yes

Yes

Particle emissions filter (PEF)

No

Yes

Stop & Start

No

Yes

Engine oil capacity with filter replacement (litres)

3.8

3.0

*  The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

 181

Engines

TECHNICAL

 DA

TA

10

Bipper_en_Chap10_caracteristique_ed02-2014

PETROL ENGINE

1.4 litre 75 hp

Gearbox

Manual

gears

5

eu standard maximum power (kW)*

54

Cubic capacity (cc)

1 360

Bore x stroke (mm)

75 x 77

Max power engine speed (rpm)

5 200

eu standard max torque (Nm)

118

Max torque engine speed (rpm)

2 600

Fuel

unleaded petrol

Stop & Start

No

Engine oil capacity with filter replacement (litres)

3.0

*  The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

 182

Weights

Bipper_en_Chap10_caracteristique_ed02-2014

WEIGHTS AND TOWED LOADS

the maximum weights and towed loads
for your vehicle are given are given in the
registration document, as well as in sales
brochures.
these values are also present on the
manufacturer's plate or label (see the
"Technical data - Identification markings"
section).

the kerb weight is equal to the unladen weight
+ driver (75 kg).
the gross train weight and towed load values
indicated apply up to a maximum altitude of
1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional
1 000 metres.

High ambient temperatures may result
in a reduction in the performance of

the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit
the towed weight.

towing with a lightly loaded vehicle can
adversely affect roadholding.

Braking distances are increased when towing
a trailer.
When towing, the maximum speed allowed is
reduced (comply with the legislation in force in
your country).

For information on the maximum trailer weight
for your vehicle, contact a PeugeOt dealer or
a qualified workshop.

the weight of the braked trailer can be
increased, within the gtW limit, on condition
that the gVW of the towing vehicle is reduced
by the same amount.
the recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).

GVW: gross vehicle weight, the maximum
authorised vehicle weight.
GTW: gross train weight, the maximum
authorised weight of vehicle plus trailer.

In all countries, it is essential to comply with
the local legislation on towed loads.

 183

Identification markings

TECHNICAL

 DA

TA

10

Bipper_en_Chap10_caracteristique_ed02-2014

IDENTIFICATION MARKINGS

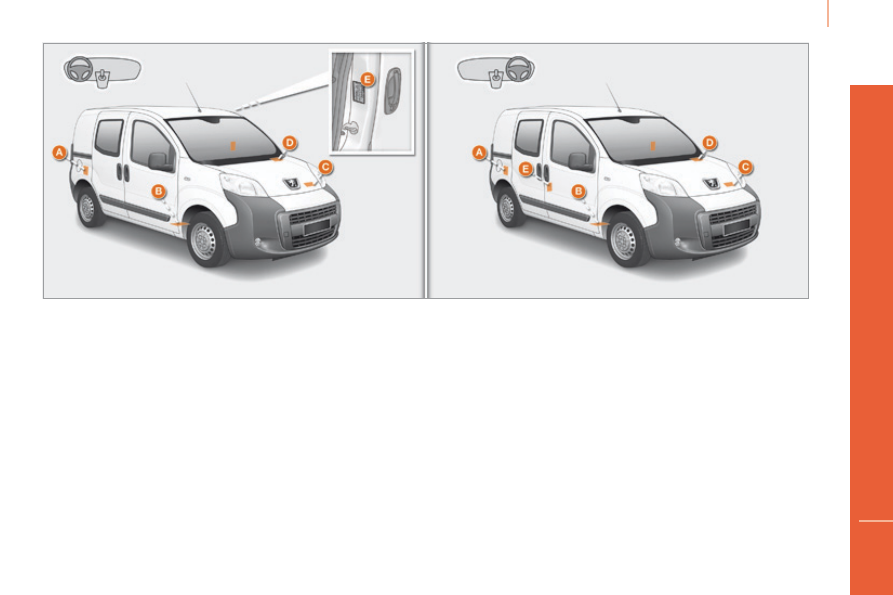

A. Manufacturer's plate

B. Serial number on the body

C. Paint code

D. Serial number on the dashboard

E. Tyre pressures

1.  VF type serial number.
2.  gross vehicle weight (gVW).
3.  gross train weight (gtW).
4.  Maximum weight on front axle.
5.  Maximum weight on rear axle.

05-14

this handbook describes all of the
