Peugeot 4007 (2012 year). Instruction - part 14

AUDIO EQUIPMENT and TELEMATICS

Playing a DVD

Result

Explanations

Selecting a chapter

Press the MODE button then DVD, if the player already contains a DVD.

Otherwise, insert a DVD in the player, the picture is displayed

automatically. Press the screen to access the menus.

While driving, only the soundtrack is played and no picture is displayed.

Press [ Chapter] to select the previous chapter or return to the beginning

of the chapter currently being played.
Press and hold for fast backwards play.

Press [Chapter

] to select the next chapter.

Press and hold for fast forwards play.

Selecting a title

Press [ Title] to select the previous title.

Press [Title ] to select the next title.

Press

AUDIO EQUIPMENT and TELEMATICS

- Choose to switch off the display.

To switch it back on, touch the

screen or press any button.

B -

Choose the settings of the sound

in the vehicle, if an audio source

is selected (FM, CD, ...), for:

B1 - the sound distribution or the vol-

ume such as the front-rear bal-

ance, the bass, the medium, the

treble, the volume adjustment in

relation to the vehicle speed,

B2 - the type of music (with surround

option) such as classic, jazz, pop,

rock, hip hop, country, normal, ...

B3 - the sound fi eld (with surround

option) such as stage, live, hall,

normal, ...

C -

Choose the quality of the picture

for:

C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when

playing DVDs),

C3 -  the brightness,
C4 -  the contrast,
C5  -  the level of black.

SETTING

SETTINGS

Display, sound, picture

AUDIO EQUIPMENT and TELEMATICS

Time and date, language, unit,

picture size

E -

Choose the size of the DVD picture for:

E1 - normal 4/3,
E2 - extends the picture evenly to the right

and to the left in wide screen mode,

E3 - extends the right and left parts only

leaving the centre as it stands in

wide screen mode,

E4 - enlarges the picture in 4/3 format. The top

and the bottom are outside the frame.

D -

Choose the base settings of the

system for:

D1 - setting of the time by the RDS signal,

time zone, summer time,

D2 - the language (English, Français,

Deutsch, Nederlands, Portuguese,

Español, Svenska, Italiano, Dansk),

D3 - the units for calculation of the dis-

tances (km or miles and °C or °F),

D4 - other settings such as:

the voice guidance volume,

- the type of voice guidance voice

(female or male),

- the volume of the operation

bleeps (1 to 3 and 0=no bleep),

- the type of inputting keypad (al-

phabet or PC),

- the range of menu colours (red or

blue),

- the displaying or not of the audio

playing icons on the map screen,

- the reinitialisation of the vehicle

sensor,

- the interruption or not of the dis-

play when the air conditioning is

used.

AUDIO EQUIPMENT and TELEMATICS

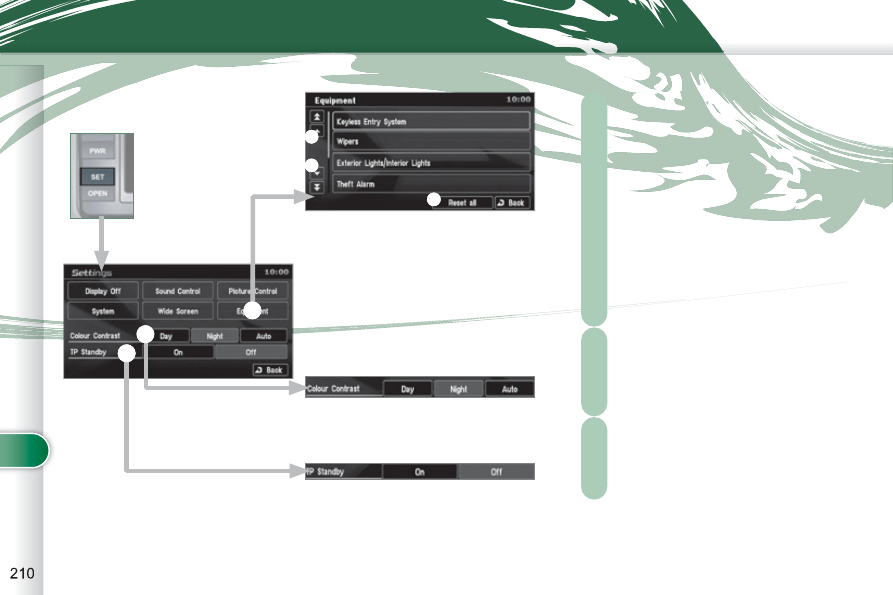

Equipment, contrast, traffic information (TP)

F - Choose to adjust or set the param-

eters of certain equipment offered

in your vehicle (e.g.: unfolding/

folding of the mirrors, closing the

windows on locking, timing and

sensitivity of the automatic light-

ing, direction indicators motorway

function, ...):

F1  -  to scroll up the list,
F2  -  to scroll down the list,
F3 -

to reinitialise all of the settings

(manufacturer's settings).

Press each setting to select or

change the parameters.

G - Choose to adjust the contrast of the

display in relation to the ambient

light level (day, night or automatic).

H -

Choose to activate or deactivate the

traffi c information (TP).

AUDIO EQUIPMENT and TELEMATICS

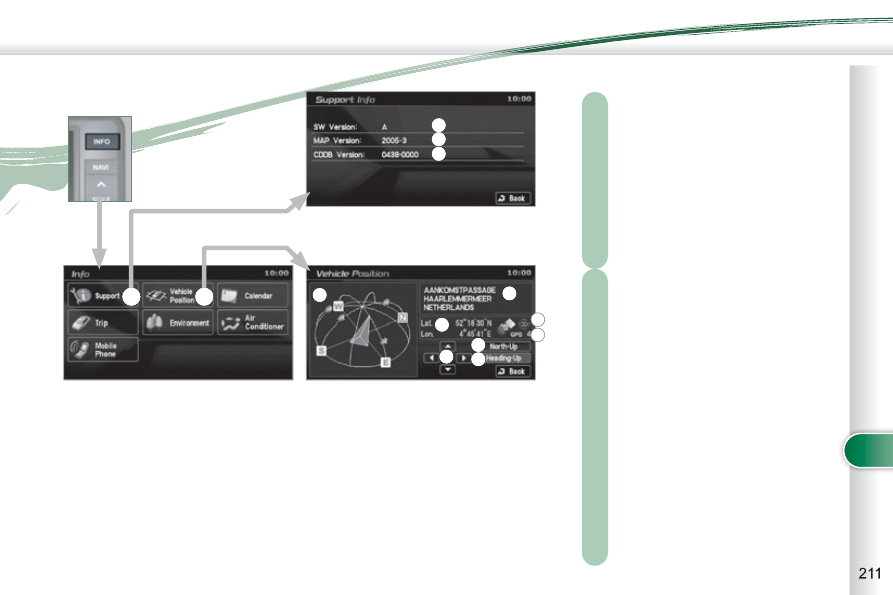

INFORMATION

A  -  Consult the system information:
A1 -  the software version,
A2 -  the map data version,
A3  -   the system information database

version.

To update the versions, insert

the DVD containing the new data

and follow the instructions on the

screen.

B -

Consult the GPS information:

- the satellite positions diagram

with the direction of movement of

the vehicle. Plus the position of

the satellite signal receivers,

B2 - the name of the current location,
B3 - the longitude and latitude of the

current location,

B4 - the position measurement status

(2D=3 satellites or fewer, 3D=4

satellites or more),

B5  -   the number of receiving satellites,
B6 -   to have north at the top of the map,
B7  -   to have the direction of the vehicle

at the top of the map,

B8 - to pivot the map from overhead

or change the angle of the map.

System version, satellite

AUDIO EQUIPMENT and TELEMATICS

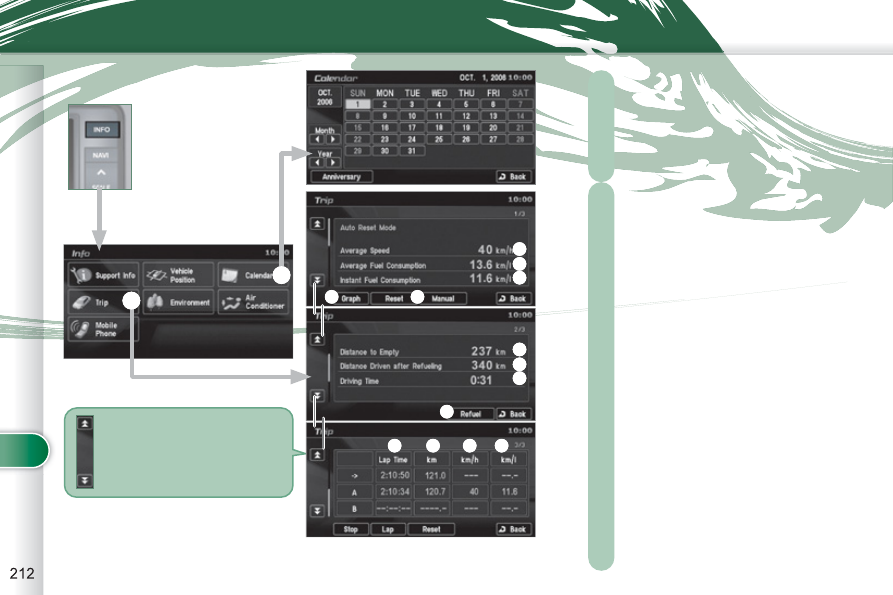

Calendar, trip

These double arrows permit

access to the driving infor-

mation screen, previous or

next.

D   -  Consult the driving information:
D1   -  the average speed,
D2  -  the average fuel consumption,
D3   - the current fuel consumption,
D4  - for speed and fuel consumption

graphs in 5 minute intervals,

D5 - choose an automatic reinitiali-

sation (key at off for more than

4 hours) or manual reinitialisation

(press [Reset]),

D6 - the distance which can still be

travelled (in relation to the fuel

remaining and the recent aver-

age consumption),

D7 - the distance travelled since the

fuel tank was last fi lled (press

[Refuel] to reinitialise),

D8 -

the driving time (duration be-

tween the key being turned to on

then to off).

- press [Start] to measure inter-

mediate times with:

D9   - the duration,
D10  - the distance,
D11  - the speed,
D12  - the fuel consumption.

C - Make a note on the calendar of

special days, birthdays, ...

Use the arrows to fi nd a date

and press directly on the day re-

quired to enter the event.

D10

D11

D12

AUDIO EQUIPMENT and TELEMATICS

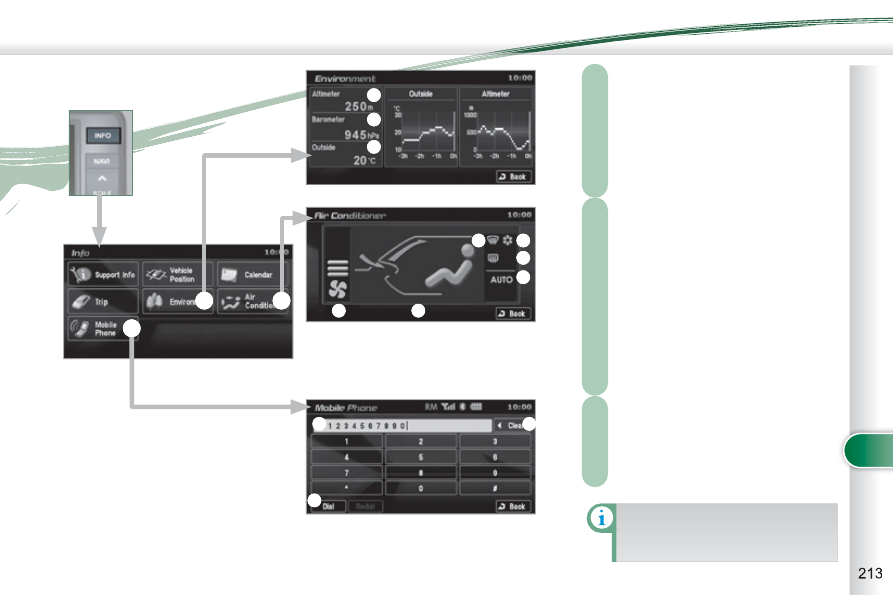

F - Consult the air conditioning con-

ditions:

F1 -   the fan speed indicator,
F2 -   the air selection indicator,
F3  -  the windscreen demisting indicator,
F4 -   the air conditioning indicator,
F5  -  the rear screen demisting indicator,
F6 -   the AUTO mode indicator.

E - Consult the environment informa-

tion:

E1 -   the altitude,
E2 -   the atmospheric pressure,
E3  -   the ambient temperature. The ice

symbol fl ashes if there is a risk of

ice.

G   -   Make and receive telephone calls:
G1 -   enter the telephone number,
G2 -   delete a character,
G3 -   make the call.

Refer to the hands-free tele-

phone section to connect your

Bluetooth

mobile telephone.

Environment, air conditioning,

telephone

AUDIO EQUIPMENT and TELEMATICS

HANDS-FREE TELEPHONE

What is the Bluetooth

hands-free

telephone with voice recognition?

SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telephone call is progress.

Decrease the audio volume.

PICK UP
Press to answer an incoming call.
If a second incoming call is received,

press this button to place the fi rst

call on hold and speak to the second

caller.
In this case, a brief press switches

between callers.
To establish a three-way conver-

sation, press the SPEAK button to

switch to voice recognition mode and

say "Incorporate the call".

HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.

General notes

Increase the audio volume.

Audio system on/off.

The system uses wireless

communication technology

referred to as Bluetooth

which allows you to make

hands-free telephone calls

in your vehicle via your

Bluetooth

compatible mo-

bile telephone.

You can make telephone calls using

a microphone located in the courtesy

lamp, making use of the simple steering

mounted controls or by the voice rec-

ognition function with voice commands.

Five languages are available: English

(by default), Spanish, French, German

and Italian.

AUDIO EQUIPMENT and TELEMATICS

Changing the language,

programming the voice

Changing the language of the voice

commands
By default, the recognition system is in

English.

Programming the user's voice
You can use the user's voice program-

ming function to create a voice model

for one person per language.
The characteristics of your voice and

your pronunciation are recorded in this

model for improved voice recognition.
It is essential that the vehicle is parked

in a safe place, with the parking brake

applied.
Switch off your telephone during the

process to avoid any interruption.

1 - Press the SPEAK button.

5 - The system says the fi rst of 45 typical

phrases.

If you do not start the program-

ming process within approxi-

mately 3 minutes after pressing

the SPEAK button, the process

is cancelled.
If you press the SPEAK button

within 5 seconds following the

reading of a voice command,

the recording of this command

is repeated.

1 - Press the SPEAK button.

2 - Say "Setup".

3 - Say "Language".

5 - Say the language of your

choice in English, example:

say "French" for French.

7 - Say "Yes" to start the change

of language process or say

"No" to return to steps 4 to 7.

2 - Say "Word training".

4 - When you are ready to start,

press and hold the SPEAK

button.

6 - Repeat each phrase in the

table on the next page.

The system records your voice

and moves on to the recording of the

next command.
Continue the process until all of the

phrases have been recorded.

4 - The system says "Select a language:

English, Spanish, French, German

or Italian".

6 - The system then says "French se-

lected. Is this correct?" .

8 - The system repeats the language

chosen and completes the change

of language process.

3 - An explanation message is given.

7 - After reading all the voice com-

mands, the system says "The word

enrolment is complete" and ends the

process.

AUDIO EQUIPMENT and TELEMATICS

Training voice commands

# 790 (for # = "Hash")

* 671 (for * = "Star")

212 - 4 903

235 - 3 494

315- 5 657

456 - 7 930

793 - 5 462

794 - 1 826

826 - 3 145

962 - 7 305

(531) 742 - 9 860

(632) 807 - 4 591

(800) 222 - 5 015

(888) 555 - 1 212

0 123 456 789

55 66 77 88 99

44 33 22 11 00

Call 293 - 5804

Call * 350

Call 1 (234) 567 - 8 901

Dial 639 - 1542

Dial # 780

Dial (987) 654 - 3210

1058# 3794# Send

27643# 4321# Send

Cancel

Continue

Emergency number

Clear all

Help

Home, Work, Mobile, Pager

List of names

Phone book: Delete

Phone book: New entry

Phone book: Clear all

Redial

Repeat the training

Confi gure the confi rmation requests

Confi gure the language

Confi gure the matching options

Match a telephone

Transfer the call

Yes

AUDIO EQUIPMENT and TELEMATICS

Matching your Bluetooth

telephone

The system can register up to 7 Bluetooth

compatible mobile telephones.
The telephone which has the highest

level of priority is connected automati-

cally.
It is absolutely essential that the vehicle

is parked in a safe place with the parking

brake applied.

1 - Press the SPEAK button.

7 - Say a 4-digit number which will

be recorded as the matching

code.

12 - After the audible signal, allo-

cate a name to the telephone

by saying the name of your

choice.

13 - The system says "Allocate an order

of priority between 1 and 7. One is

the highest level of priority".

If the system does not detect the

Bluetooth

compatible mobile

telephone, the matching proc-

ess stops accompanied by an

audible signal.
If you select a level of priority

which has already been allo-

cated to another telephone, the

system asks you if you wish to

replace this level of priority.

Remember this matching code as

you must enter it in the telephone

in one of the following steps of

the matching procedure.

9 - The system says "Start the match-

ing procedure on the telephone.

Consult the instructions in the tel-

ephone manual".

2 - Say "Confi gure".

3 - Say "Matching options".

5 - Say "Match a telephone".

8 - The system confi rms the validity of

the number spoken, answer "Yes".

Say "No" to return to step 7.

10 - Consult your mobile tele-

phone's user manual and

enter the matching code

recorded in step 7 in the

telephone.

14 - Say a number between 1 and

7 to establish the level of pri-

ority of the mobile telephone.

15 - The system says and confi rms the

<name of the telephone> and the

<number> of its priority.

16 - Answer <Yes> or say <No>

to return to step 13.

17 - The systems says "Matching com-

plete" then emits an audible signal and

deactivates the voice recognition.

4 - The system says "Do you wish to

match a telephone, delete a tele-

phone or obtain the list of matched

telephones?".

6 - The systems says "Please say the

4 digits of a matching code".

If the code is incorrect, the system

locks. To clear the code:
- check that the telephone's

voice recognition is not acti-

vated,

- with the ignition on and the

audio system active, press

the HANG UP button for

2 seconds, 3 times in suc-

cession.

11 - When it detects a Bluetooth

com-

patible mobile telephone, the system

says "Please say the name of the

telephone after the bleep".

AUDIO EQUIPMENT and TELEMATICS

Making a telephone call using a number, phone book

A Bluetooth

compatible mobile telephone

must be matched with the system.

Using a telephone number

If your vehicle is fi tted with the

audio-telematics screen, you

can use the press buttons to dial

a number then make a call.

Recording a name in the system's

phone book
The system has its own phone book,

independent of that of the mobile tele-

phone.
It can contain up to 32 names for each

language.
Each name in the phone book is asso-

ciated with 4 locations: HOME, WORK,

MOBILE and PAGER.

1 - Press the SPEAK button.

7 - The system says "HOME, WORK,

MOBILE OR PAGER".

2 - Day "Dial".

4 - Say the telephone number.

5 - The system asks you to

confi rm this number, answer

"Yes". Say "No" to return to

the previous step.

2 - Say "Phone book".

4 - Say "New entry".

6 - Say the name of your choice.

8 - Say the location which cor-

responds to the number that

you wish to record.

10 - Answer "Yes" or say "No" to

return to step 7.

12 - If you do not wish to change

the telephone number, re-

peat the original number to

retain it, otherwise say the

new number.

14 - Answer "Yes" or say "No" to

return to step 11.

1 - Press the SPEAK button.

3 - The system says "Number please".

3 - The system says "Select one of the

following items: New Entry, Change,

List of names, Delete or Clear all,

or say Cancel to return to the main

menu".

5 - The system says "Name please".

To enter a new number:

9 - The system asks you to confi rm the

location.

11 - If a telephone number has already

been recorded for this location, the

system says "The current number

is <number>, number please".

13 - The system asks you to confi rm the

number.

AUDIO EQUIPMENT and TELEMATICS

Making a telephone call using a name in the phone book, receiving a call

Using a name in the system's phone

book
The name must be recorded in the sys-

tem's phone book.

8 - Answer "Yes" or say "No" to

return to step 4.

Redialling the last number

Receiving a call
The telephone ring is transmitted on the

speaker by the front passenger's seat.
If an audio source (CD, radio, ...) is in

operation when the call is received, it is

placed on mute and only the incoming

call is heard.
When the ignition switch is in the ACC

or ON position, the audio system is ac-

tivated automatically if an incoming call

is received, even if it was originally off.

1 - Press the PICK UP button.

At the end of the call, the audio system

returns to its previous status.

1 - Press the SPEAK button.

2 - Say "Call".

4 - Say the name of the person

that you wish to call.

6 - Say the location corresponding

to the number that you wish to

call.

1 - Press the SPEAK button.

2 - Say "Redial".

3 - The system says "Name please".

5 - If several telephone numbers have

been recorded for this person, the

system says "Do you wish to call

<name> {home}, {work}, {mobile} or

{pager]?" .

7 - The system request confi rmation of

the name.

9 - The system says "Call to <name> at

<location>" and makes the call.

AUDIO EQUIPMENT and TELEMATICS

When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the

current situation.

Voice commands (1/2)

Press this button to start the voice recognition.

Confi gure

Phone book

Dial

Call

Redial

Emergency number

Matching options

Match a telephone

Delete a telephone

List of matched telephones

Select a telephone

Divert the call

Add a location

Confi gure the confi rmation requests

Language

New entry

Delete

Change

Call this number

Change another entry

Try again

Clear all

List of names

Home, at home

Work, at work

Mobile, on mobile

Pager, on pager

Help

Continue

All

Cancel

Mute

Deactivate mute

Yes

AUDIO EQUIPMENT and TELEMATICS

Voice commands (2/2)

Zero

One

Two

Three

Four

Five

Six

Seven

Eight

Nine

Star (*)

Hash (#)

Word training

Repeat training

Activate

Deactivate

Incorporate the call

<digits> Send

English

Phone book New entry

Phone book Change

Phone book Delete

Phone book Clear All

Phone book List of names

Confi gure the confi rmation requests

Confi gure Select a telephone

Confi gure the matching options

Delete a name

Confi gure the language

Confi gure the PIN

Press this button to start the voice recognition.

When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the

current situation.

VISUAL SEARCH

FRONT EXTERIOR

Remote control key,

starting, battery ......................... 73-76

Central locking ...................................79

Sunroof ........................................ 82-83

Windscreen wipers ...................... 90-91

Rain sensor .......................................90

Opening the bonnet .........................126

Engine ..................................... 127-128

Towing .............................................152

Door mirrors ......................................61

Opening/closing the doors ........... 79-80

Filling with fuel ...................................84

Fuel gauge ........................................84

Lighting, direction indicators, foglamps,

headlamps ................................ 86-89

Changing bulbs ....................... 137-140

Brakes ..................................... 112, 131

ABS .................................................103

Tyres, pressures ..............................160

Brake pads ......................................131

Alloy wheels ....................................132

Content .. 12 13 14 15 ..
