Peugeot 2008 (2016 year). Instruction

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

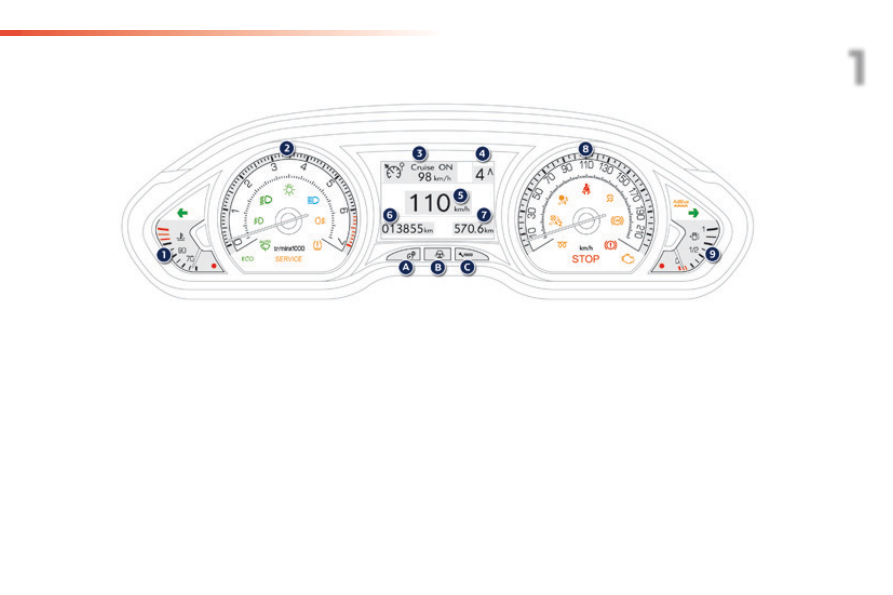

Matrix instrument panel

Dials and screens

Control buttons

1. Engine coolant temperature

gauge.

2. Rev counter (x 1 000 rpm or tr/min),

graduation according to engine (petrol
or Diesel).

3. Cruise control or speed limiter settings.
4. Gear shift indicator for a manual gearbox

or gear lever position and gear for an
electronic or automatic gearbox.

5. Speedometer (mph or km/h).

A.  Main lighting dimmer.
B.  Instrument panel mood lighting.
C.  Recall of the service information.

Reset the selected function (service
indicator or trip distance recorder).

6. Service indicator, then total distance

recorder (miles or km).

These functions are displayed successively
on switching on the ignition.

7.  Trip distance recorder (miles or km).
8.  Analogue speedometer (mph or km/h).
9.  Fuel gauge.

Monitoring

Library of indicator and warning lamps

Certain warning lamps may come on in
one of two modes. Only by relating the
type of lighting to the operating status
of the vehicle can it be ascertained
whether the situation is normal or
whether a fault has occurred.

When the ignition is switched on

Certain warning lamps come on for a few
seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information in the table on the warning lamp
concerned.

Associated warnings

The illumination of certain warning lamps
may be accompanied by an audible signal
and a message in the instrument panel or
multifunction screen.
The warning lamps may come on continuously
(fixed) or flash.

Indicator and warning lamps

● indicator lamp informing that a system is switched on,
● warning lamp for preventive purposes or for a fault.

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Left-hand
direction indicator

Flashing with audible
signal.

The lighting stalk has been pushed
down.

When changing lane

Right-hand
direction indicator

Flashing with audible
signal.

The lighting stalk has been pushed
up.

Sidelamps

fixed.

The lighting stalk is in the
"Sidelamps" position.

Dipped beam
headlamps

fixed.

The lighting stalk is in the "Dipped
beam headlamps" position.

Main beam
headlamps

fixed.

The lighting stalk is pulled towards
you.

Pull the stalk to return to dipped beam headlamps.

Front foglamps

fixed.

The front foglamps are switched on
using the ring on the lighting control
stalk.

Turn the ring on the lighting control stalk rearward
once to switch off the front foglamps.

Rear foglamp

fixed.

The rear foglamp has been switched
on using the ring on the lighting
control stalk.

Turn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.

For more information on the lighting controls, refer to the corresponding section.

Monitoring

Warning / indicator lamp

State

Cause

Action / Observations

Diesel engine
pre-heating

fixed.

The key is at position 2 (ignition on) in
the ignition switch.

Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
30 seconds in very low temperatures).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Parking brake

fixed.

The parking brake is applied or not
properly released.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.

Foot on the
brake pedal

fixed.

The brake pedal must be pressed.

With an electronic gearbox, press the brake pedal to
start the engine (lever in position N).
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

flashing.

With an electronic gearbox, if you
hold the vehicle on an incline using
the accelerator for too long, the
clutch overheats.

Use the brake pedal and/or the parking brake.

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Foot on the
clutch*

fixed.

In the STOP mode of Stop & Start,
changing to START mode is refused
because the clutch pedal is not fully
down.

You must declutch fully to allow the change to engine
START mode.

Stop & Start

fixed.

When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
system has put the engine into STOP
mode.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off.

STOP mode is temporarily
unavailable.
Or
START mode is invoked
automatically.

For more information on Stop & Start, refer to the
corresponding section.

Automatic
wiping

fixed.

The wiper control is pushed
downwards.

Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

* Except for the matrix instrument panel.

Monitoring

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
airbag system

fixed.

The control, located in the glove box,
is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault with
the operation of the airbags (Airbag
warning lamp on).

Set the control to the ON position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rearward
facing position.

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Warning lamps

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.

Warning / indicator lamp

State

Cause

Action / Observations

STOP

fixed, associated with
another warning lamp.

Major faults have occurred.

Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or qualified workshop.

Service

fixed, associated with
another warning lamp.

Major faults have occurred.

Refer to the section on this warning lamp and you
must then contact a PEUGEOT dealer or qualified
workshop.

fixed, associated with
a message
(if a display screen is
fitted).

Faults have occurred for which there
is no specific warning lamp.

Identify the fault by reading the message shown in the
screen (if a display screen is fitted) and refer to the
corresponding section:
-

engine oil level alert,

risk of blockage of the particle filter (Diesel),

Diesel fuel additive level (Diesel with particle
filter).

You must contact a PEUGEOT dealer or a qualified
workshop.

Monitoring

Warning / indicator lamp

State

Cause

Action / Observations

Braking

fixed.

The brake fluid level has dropped
significantly.

You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

fixed, associated
with the ABS warning
lamp.

The electronic brake force distribution
(EBFD) system has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Maximum
coolant
temperature

fixed with the needle
in the red zone.

The temperature of the cooling
system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
a qualified workshop.

Anti-lock
Braking System
(ABS)

fixed.

The anti-lock braking system has a
fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Engine
autodiagnosis
system

fixed.

The emission control system has a
fault.

The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.

flashing.

The engine management system has
a fault.

Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

fixed, associated with the
SERVICE warning lamp.

A minor engine fault has been
detected.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

fixed, associated with
the STOP warning
lamp.

A major engine fault has been
detected.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

Dynamic
stability control
(DSC/ASR)

flashing.

The DSC/ASR regulation is
operating.

The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.

fixed.

The DSC/ASR system has a fault.

Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Power steering

fixed.

The power steering has a fault.

Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Monitoring

Warning / indicator lamp

State

Cause

Action / Observations

AdBlue

(BlueHDi Diesel)

fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.

The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).

Top-up the AdBlue

as soon as possible: go to a

PEUGEOT dealer or a qualified workshop, or carry out
this operation yourself.

flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

The remaining driving range is
between 0 and 350 miles (600 km).

You must top-up the AdBlue

to avoid a breakdown:

go to a PEUGEOT dealer or a qualified workshop, or
carry out this operation yourself.

flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented.

The AdBlue

tank is empty: the

starting inhibition system required
by legislation prevents starting of the
engine.

To be able to start the engine, you must top-up the
AdBlue

: go to a PEUGEOT dealer or a qualified

workshop, or carry out this operation yourself.
It is essential to add at least 3.8 litres of AdBlue

the fluid tank

For topping-up or for more information on AdBlue

, refer to the corresponding section.

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

SCR emissions
control system
(BlueHDi Diesel)

fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.

A fault with the SCR emissions
control system has been detected.

This alert disappears once the exhaust emissions
return to normal levels.

flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range.

After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.

Contact a PEUGEOT dealer or a qualified workshop
without delay, to avoid a breakdown.

flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.

You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.

To be able to start the engine, you must call on a
PEUGEOT dealer or a qualified workshop.

Monitoring

Warning / indicator lamp

State

Cause

Action / Observations

Engine oil
pressure

fixed.

There is a fault with the engine
lubrication system.

You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

Battery charge*

fixed.

The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).

The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

Low fuel level

fixed with the needle
in the red zone.

There remains approximately 5 litres
of fuel in the tank.
At this point, you begin to use the fuel
reserve.

Refuel as soon as possible to avoid running out of
fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 50 litres.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.

flashing with the
needle in the red
zone.

There remains very little fuel in the
tank.

Under-inflation

fixed.

The pressure in one or more wheels
is too low.

Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.

flashing then fixed,
accompanied by the
Service warning lamp.

The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels.

Under-inflation detection is not assured.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

* Depending on the country of sale.

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Airbags

on temporarily.

This lamp comes on for a few
seconds when you turn on the
ignition, then goes off.

This lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

fixed.

One of the airbag or seat belt
pretensioner systems has a fault.

Have them checked by a PEUGEOT dealer or a
qualified workshop.

Seat belt(s)
not fastened /
unfastened

fixed or flashing
accompanied by an
audible signal.

A seat belt has not been fastened or
has been unfastened.

Pull the strap then insert the tongue in the buckle.

Door(s) open

fixed, associated with
a message identifying
the door, if the speed
is below 6 mph
(10 km/h).

A door or the boot is still open.

Close the door or boot.

fixed, associated with
a message identifying
the door, together with
an audible signal if the
speed is above 6 mph
(10 km/h).

Monitoring

Service indicator

More than 1 800 miles (3 000 km)
remain before the next service is due

When the ignition is switched on, no service
information appears in the screen.

System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last reset of the indicator,
according to the mileage covered and the time
elapsed since the last service.
For BlueHDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account.

Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due

For 7 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example:

1 700 miles (2 800 km) remain before

the next service is due.
For 7 seconds after the ignition is switched on, the
screen indicates:

7 seconds after the ignition is switched on,
the spanner goes off; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.

Less than 600 miles (1 000 km)
remain before the next service is due

Example: 560 miles (900 km) remain before
the next service is due.
For 7 seconds after the ignition is switched on,
the screen indicates:

7 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.

Gauges and indicators

Monitoring

2008_en_Chap01_controle-de-marche_ed01-2016

Service overdue

For 7 seconds after the ignition is switched on, the
spanner flashes to indicate that the service must
be carried out as soon as possible.
Example: the service is overdue by 186 miles
(300 km).
For 7 seconds after the ignition is switched on, the
screen indicates:

For BlueHDi Diesel versions, this
alert is also accompanied by the fixed
illumination of the Service warning
lamp, when the ignition is switched on.
The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
warranty and maintenance record.
For BlueHDi Diesel versions, the
spanner can also come on early,
according to the degree of deterioration
of the engine oil. The deterioration
of the engine oil depends on the
conditions in which the vehicle is used.

7 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.

Monitoring

Retrieving the service
information

You can access the service information at any
time.
F Press the trip distance recorder reset

button.

The service information is displayed for a
few seconds, then disappears.

If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset
to be registered.

Resetting the service
indicator

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F switch off the ignition,
F press and hold the trip distance recorder

reset button,

F switch on the ignition; the distance recorder

display begins a countdown,

F when the display indicates "=0", release

the button; the spanner disappears.

Peugeot 2008 (2016 year). Instruction - part 2
