Peugeot 1007 Dag (2008.5). Instruction - part 2

WARNING LIGHTS

A permanently lit warning light or one ﬂ ashing, with the engine running, indicates an operating fault of the unit

concerned. The illumination of certain warning lights may be accompanied by an audible signal and a message on

the multifunction display. Do not ignore this warning: consult a PEUGEOT dealer.

If the central STOP warning light comes on when you are driving, stop your vehicle immediately, where it is safe to

do so.

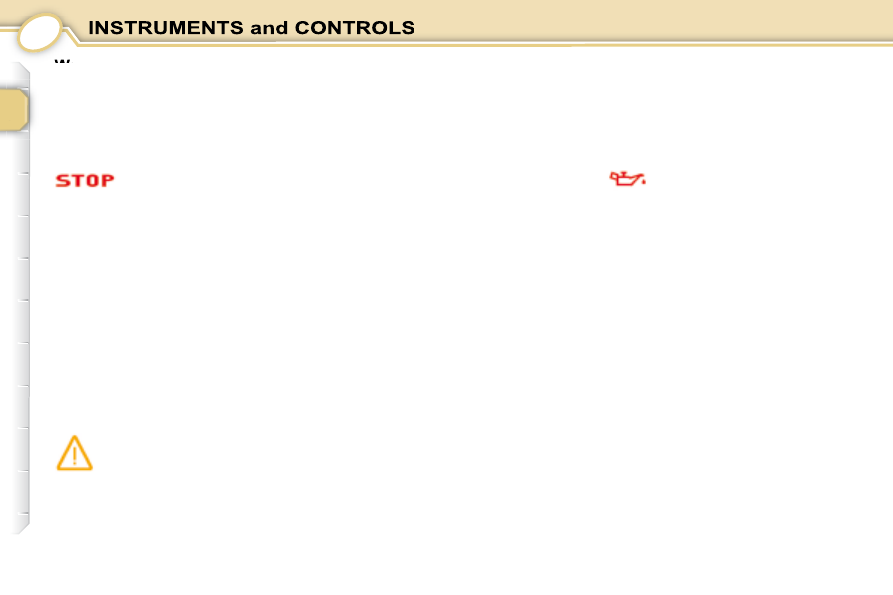

Central STOP
warning light

This comes on for a few
seconds each time the
ignition is switched on.

Linked to the warning lights:
-

''engine oil pressure and tempera-
ture'',

"punctured wheel",

"maximum coolant temperature",

"handbrake'', ''low brake ﬂ uid

level'', and ''electronic brake
force distribution''.

You must stop if the light comes

on with the engine running.
Consult a PEUGEOT dealer.

Engine oil pressure and

temperature warning

light

This comes on for a few seconds each
time the ignition is switched on.
Linked  to  the  central  STOP  warning
light.
If  this  warning  light  comes  on,  with
the  engine  running,  it  indicates  one
of the following:
   -

insufﬁ cient oil pressure,

a lack of oil in the lubrication circuit.
Top up the level,

an  oil  temperature  which  is  too
high. The warning light is accom-
panied  by  an  audible  signal.  To
lower the oil temperature, reduce
your speed.

You must stop.
Consult a PEUGEOT dealer.

Service warning light

This comes on for a few se-
conds each time the ignition
is switched on.

If this warning light comes on, with the en-
gine running, accompanied by an audible
signal and a message on the multifunc-
tion display, it indicates the occurrence of
a problem in one of the systems which

does not have a speciﬁ c warning light.

Consult the message on the multi-
function display to identify the system
concerned.
Check:
-

the remote control battery,

the pressure of the tyres,

the engine oil level,

the screenwash level,

the condition of the bulbs.

For all other cases, contact a PEUGEOT
dealer.
The lighting of this warning light may
also indicate the start of saturation of

the particle emission ﬁ lter (Diesel),

due to exceptionally prolonged urban
driving conditions: low speed, long

trafﬁ c jams, ...

In order to regenerate the ﬁ lter, you

are advised to drive, as soon as traf-

ﬁ c conditions permit, at a speed of

35 mph (60 km/h) or more for at least

ﬁ ve minutes (until the warning light

switches off).
If the warning light remains on, contact
a PEUGEOT dealer.

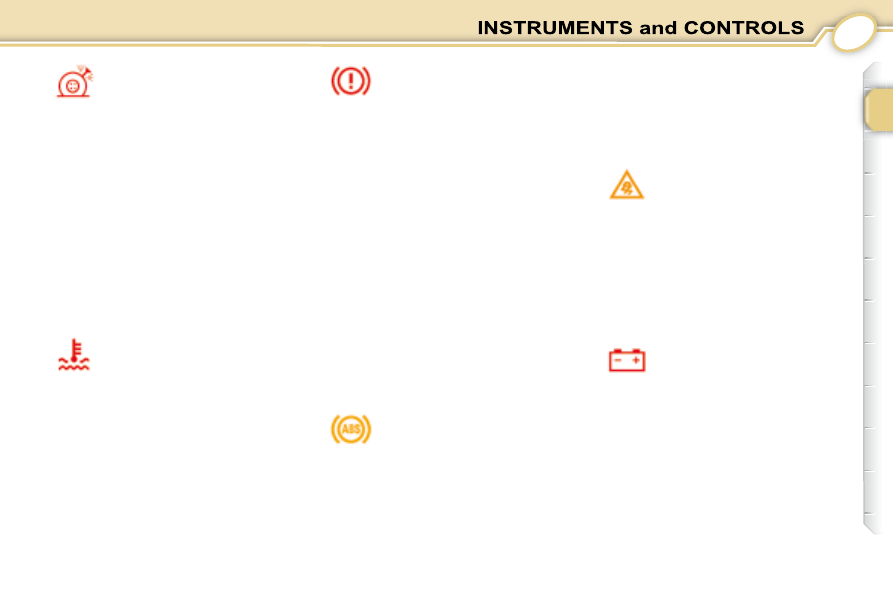

Punctured wheel

warning light

This comes on for a few
seconds each time the ignition
is switched on.

Linked  to  the  central  STOP  warning
light.
If  this  warning  light  comes  on  while
the vehicle is moving, it indicates that
one or more wheels are punctured.
It  is  accompanied  by  an  audible
signal  and  a  message  on  the  multi-
function  display  locating  the  wheel
concerned.

You must stop.
Change  the  damaged  wheel  and
have  it  repaired  by  a   PEUGEOT
dealer.

Maximum coolant

temperature warning

light

You must stop.
Consult a PEUGEOT dealer.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds each
time the ignition is switched on.
If the warning light remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS malfunction.

Electronic stability

control system (ESP/

ASR) warning light

This comes on for a few seconds each
time the ignition is switched on.
While the engine is running and the

vehicle is moving, it ﬂ ashes if the

system is activated.
It comes on permanently when it is
disarmed.

Battery charge warning

light

This comes on for a few

seconds each time the ignition is
switched on.
If it comes on, with the engine running,
it indicates one of the following:
-

faulty operation of the charging
circuit,

slack battery or starter terminals,

a cut or slack alternator belt,

an alternator failure.

Consult a PEUGEOT dealer.

Handbrake, low brake

fluid level and Electronic

Brake Force Distribution

warning light

This comes on for a few sec-
onds each time the ignition is
switched on.

Linked  to  the  central  STOP  warning
light.
If  this  warning  light  comes  on,  with
the  engine  running,  it  indicates  one
of the following:
   -

that the handbrake is applied or
not fully released, if the vehicle is
moving,

an excessive drop in brake ﬂ uid

level (if the warning light remains
on even when the handbrake is
released),

a fault in the Electronic Brake
Force Distribution.

You must stop.
Consult a PEUGEOT dealer.

However, the vehicle retains conven-
tional servo-assisted braking.
Lighting of this warning light, accom-
panied by an audible signal, indicates
an ABS fault.
Consult a PEUGEOT dealer.

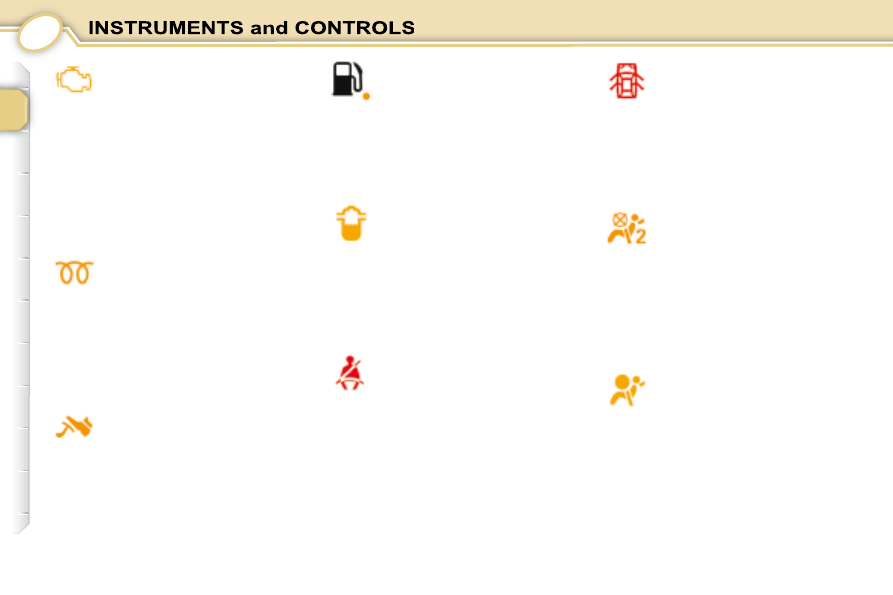

Low fuel level warning

light

This comes on for a few seconds each
time the ignition is switched on.
When this light ﬁ rst comes on, you

have enough fuel to drive approxi-

mately 30 miles (50 km) (The tank

capacity is approximately 40 litres).

Water in diesel filter

indicator

This comes on for a few seconds each
time the ignition is switched on.
If it comes on, with the engine run-
ning, this indicates that there is a risk

of damage to the injection system.
Consult a PEUGEOT dealer as soon
as possible.

Diesel engine pre-heat

warning light

Wait  until  the  warning  light  goes  out
before starting the engine.
If  the  temperature  is  high  enough,
the  warning  light  comes  on  for  less
than  one  second.  You  can  start  the
engine without waiting.

Passenger air bag

disarmed warning light

This comes on for a few seconds each
time the ignition is switched on.
If the passenger air bag is disarmed,
the warning light remains on.
Always consult a PEUGEOT dealer if

the warning light ﬂ ashes.

Seat belt not fastened

warning light

When the ignition is switched
on, this warning light comes

on if the driver (and/or a passenger)
has not fastened his seat belt.
Above 12 mph (20 km/h), this warning

light ﬂ ashes for two minutes accom-

panied  by  an  audible  signal  which
becomes  progressively  louder.  Once
the  two  minutes  have  elapsed,  the
warning light remains on until the driver
(and/or  passenger)  fastens  his  seat
belt.

The driver must ensure that all

passengers fasten and use the

seat belts correctly.

Door open warning
light

This  comes  on  if  a  door,  the  bonnet
or the boot is still open.
Above 6 mph (10 km/h), this warning
light  is  accompanied  by  an  audible
signal  and  a  message  on  the  multi-
function display.

"Foot on brake" warning

light ("2 Tronic" gearbox)

When this warning light comes on,
you must put your foot on the brake
(example: when starting the engine).
If you do not put your foot on the

brake, this warning light ﬂ ashes.

Front, steering column,

side and curtain air

bags warning light

This comes on for a few seconds each
time the ignition is switched on.
With  the  engine  running,  illumination
of  this  warning  light,  accompanied
by an audible signal, indicates a fault
in  the  front,  steering  column,  side  or
curtain air bags.
  Consult a PEUGEOT dealer.

Emission control

system warning light

This comes on each time the ignition
is  switched  on  and  remains  on  until
the engine is started.
If  it  comes  on,  with  the  engine  run-
ning, it indicates a malfunction of the
emission control system.
  Consult a PEUGEOT dealer.

Lack of oil
If "OIL"

ﬂ ashes and the service warn-

ing  light  comes  on,  accompanied  by
an  audible  signal  and  a  message  on
the multifunction display, this indicates
a lack of oil which could damage the
engine.
If  the  lack  of  oil  is  conﬁ rmed  by  a

check using the dipstick, it is essential
that the level is topped up.

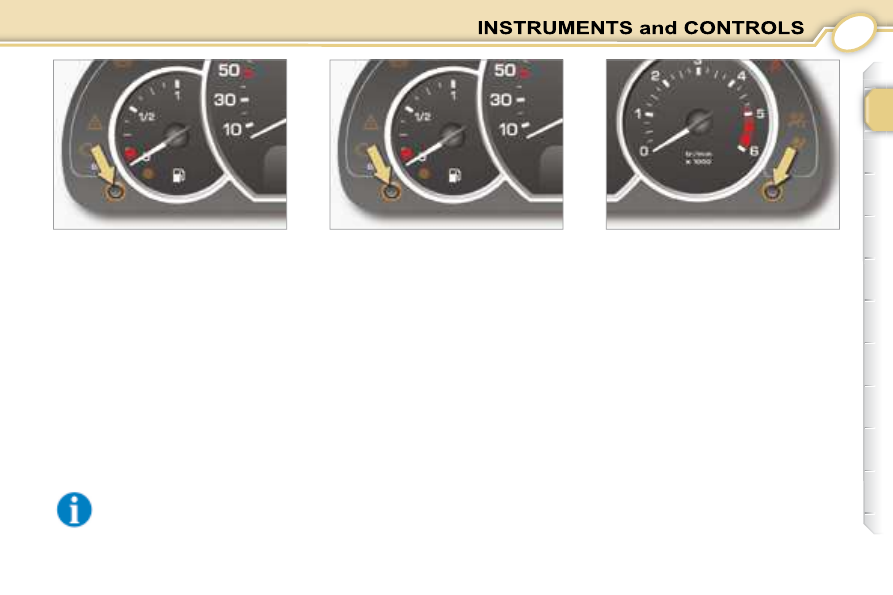

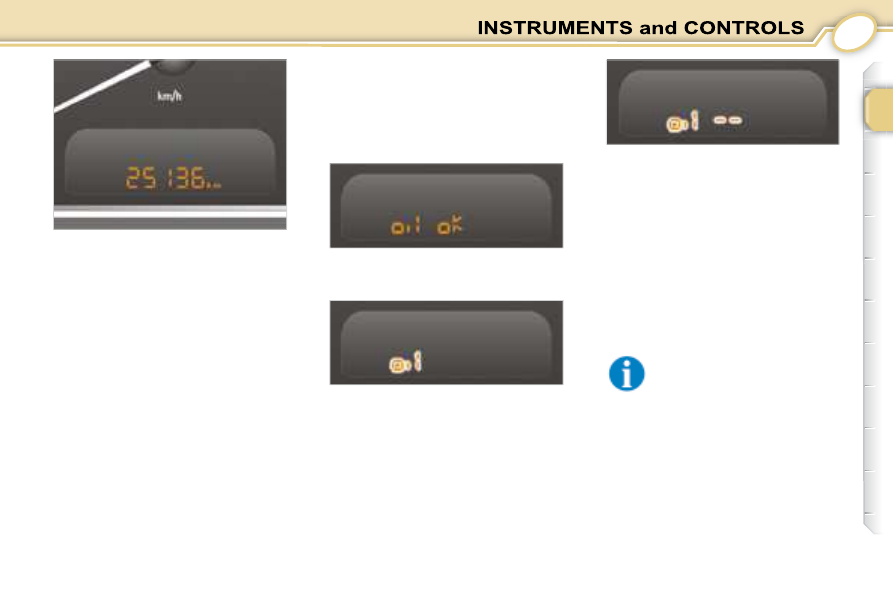

Engine oil level indicator

When the ignition is switched on, the
engine oil level is indicated for approxi-
mately 5 seconds after the service indi-
cator display.

Oil level gauge fault
Check the oil level using the dipstick.
If "OIL --"

ﬂ ashes, this indicates a

malfunction of the engine oil level
gauge.
Consult a PEUGEOT dealer.

INSTRUMENT PANEL
DISPLAY

After switching on the ignition, three
functions are shown in succession:
-

service indicator,

engine oil level indicator

total distance recorder (total and
trip distances).

The level read on the  dipstick
will  only  be  correct  if  the
vehicle  is  on  level  ground
and the engine has been off
for more than 15 minutes.

Oil level correct

Note: the trip distance is displayed

for thirty seconds, when the ignition is
switched off, on opening and closing
the driver's door as well as on locking
the vehicle.

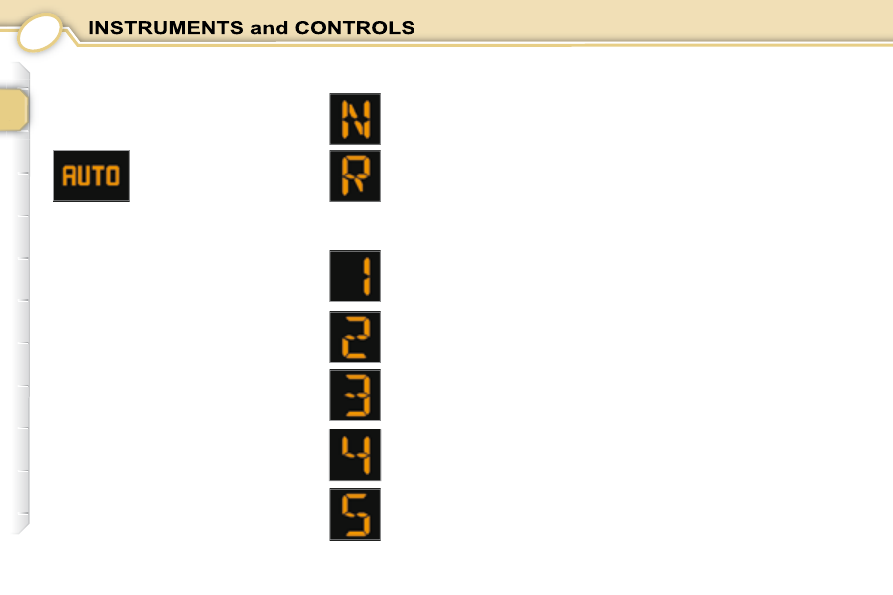

It  also  displays  the  "2  Tronic"  gear-
box  positions  and  operating  modes
selected,  as  well  as  the  information
relating to the cruise control or speed
limiter when one of these functions is
active.

Service indicator

This indicates when the next service
is due in accordance with the manu-
facturer's servicing schedule.
The  point  at  which  the  next  service
is due is calculated from the last indi-
cator  zero  reset.  It  is  determined  by
two parameters:
   -

the distance travelled,

the time which has elapsed since
the last service.

  Operation
When the ignition is switched on, the
spanner  symbolising  the  servicing
operations  comes  on;  the  distance
recorder display indicates the number
of  miles  [kilometres]  (rounded  off)
remaining until the next service.

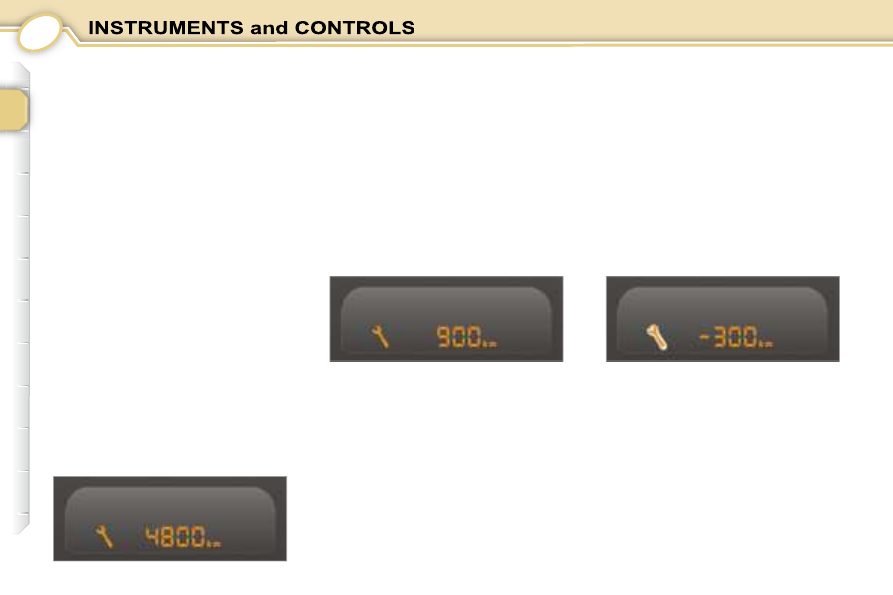

Example: 4,800 miles/km remain before

the next service. For ﬁ ve seconds after

the ignition is switched on, the display
indicates:

10  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes  its  normal  operation  and
the  display  indicates  the  total  or  trip
distance.

10  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes its normal operation and the
spanner remains lit.
It  indicates  that  a  service  must  be
carried  out  soon.  The  display  indi-
cates the total or trip distance.

The service is overdue.

The spanner ﬂ ashes for 5 seconds

each time the ignition is switched on.

10  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes its normal operation and the
spanner remains lit.
The display indicates the total or trip
distance.
The  distance  remaining  before  the
next service may be weighted by the
time  factor,  depending  on  the  user's
driving habits.
The  spanner  may  also  come  on  if
more  than  two  years  have  elapsed
since the last service.

The distance remaining to

the next service is less than

500 miles/1,000 km.

Example: 400 miles/900 km remain

before the next service.
For 5 seconds after the ignition is
switched on, the display indicates:

Example: the service is overdue by

300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:

Service indicator zero re-set

   Your   PEUGEOT   dealer  carries  out
this operation after each service.
However, if you carry out the service
yourself,  the  re-set  procedure  is  as
follows:
      Switch off the ignition,
     Press and hold the trip recorder

re-set button,

     Switch on the ignition.
The display begins a countdown.
When the display shows  "=0" ,  release
the button; the spanner  disappears.

Total/trip distance recorder

Brieﬂ y pressing the button alternates

between  the  total  and  trip  distance
displays.
To reset the trip distance recorder to
zero,  when  it  is  displayed  press  the
button until zeros appear.

Lighting rheostat

With the lights on, press the button to
vary the intensity of the lighting of the
instruments  and  controls.  When  the
lighting  reaches  the  required  bright-
ness, release the button.

After  this  operation,  if  you
wish  to  disconnect  the  bat-
tery,  lock  the  vehicle  and

wait for at least ﬁ ve minutes,

otherwise the zero re-set will not be
registered.

"2 Tronic" gearbox indicator

This comes on when
the "AUTO" automated
operation

mode

selected.

It is switched off on switching to the
sequential operation mode.
It ﬂ ashes if a malfunction occurs.

Gear lever positions:

"Neutral"

"Reverse"

Sequential operating mode

1st gear

2nd gear

3rd gear

4th gear

5th gear

"AUTO" indicator light

TRIP COMPUTER

 Press the button, located at the

end of the

wipers stalk , to dis-

play the various items of trip
computer data in succession.

The trip computer data is the
following:

System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).

 Press the control for more than two

seconds to reset the distance trav-
elled, the average consumption
and the average speed to zero.

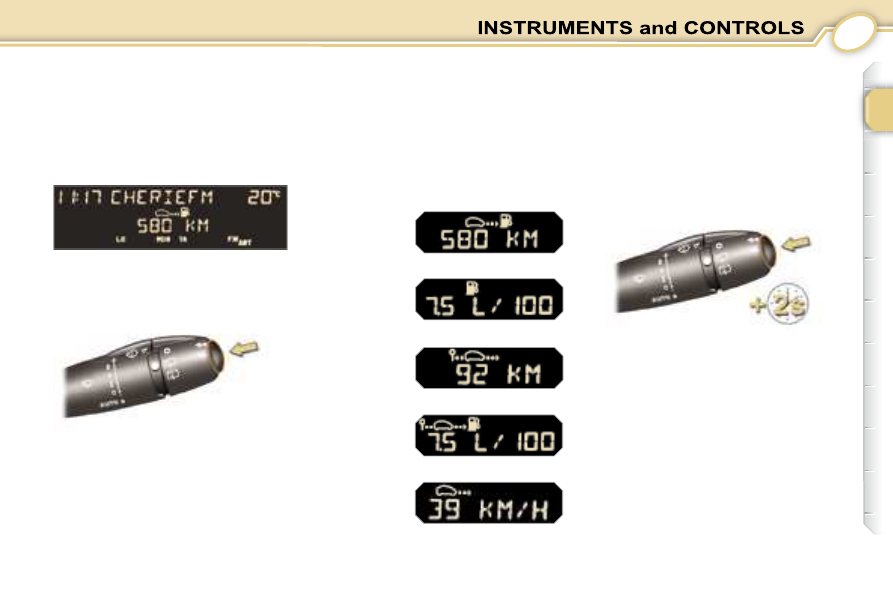

Monochrome display A

Zero reset

Data displays

the range,

the current consumption,

the distance travelled,

the average consumption,

the average speed.

 The next press then returns you

to the normal display.

- the current information

tab with:

the range,

the current
consumption,

the distance
remaining to be
travelled,

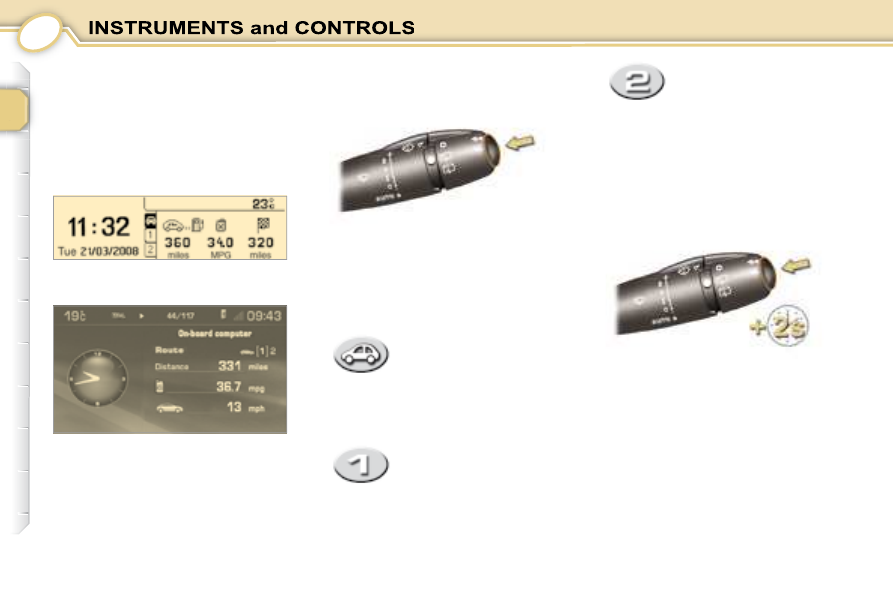

Colour display

Route zero reset

Monochrome display C

 Press the button, located at the

end of the

wipers stalk , to dis-

play the various trip computer
tabs in succession:

Data displays

 When the route required is dis-

played, press the control for
more than two seconds.

- the route "1" tab with:

the distance
travelled,

the average
consumption,
the average speed,
for the ﬁ rst route.

for the ﬁ rst r

- the route "2" tab with:

the distance
travelled,

the average
consumption,

the average
speed, for the
second route.

The  routes   "1"   and   "2"   are  inde-
pendent but their use is identical.
Route  "1"  permits, for example, daily
calculations,  and  route   "2"   monthly
calculations.

TRIP COMPUTER

System which provides current infor-
mation concerning the route travelled
(range, consumption, …).

Distance remaining to be

travelled
(km or miles)

This is the distance remaining to be

travelled to the ﬁ nal destination. It

is either calculated instantly by the
navigation system if guidance is acti-
vated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

Average speed
(km/h or mph)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

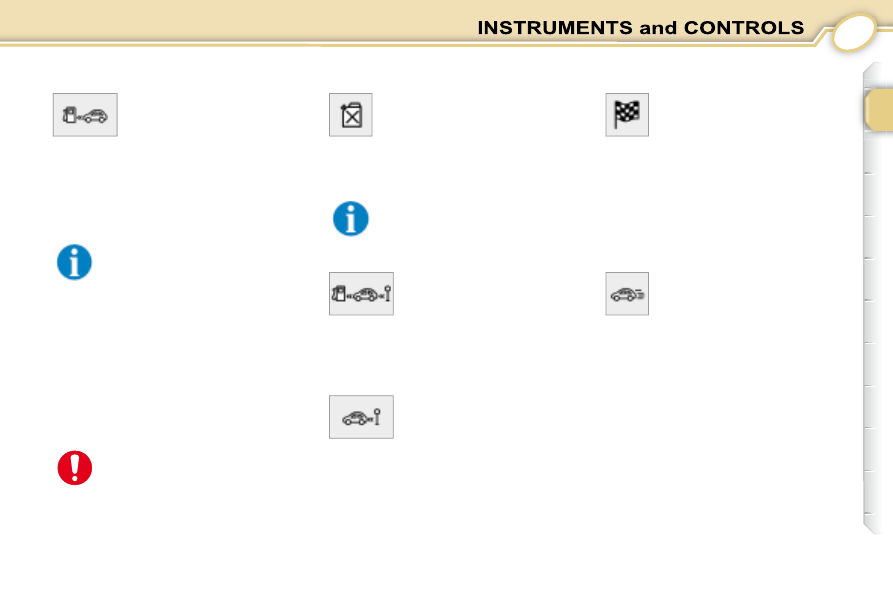

Range
(km or miles)

This  indicates  the  number  of  miles
(or  kilometres)  which  can  still  be
travelled  with  the  fuel  remaining  in
the  tank  in  relation  to  the  average
consumption  over  the  last  few  miles
(kilometres) travelled.

Current consumption
(l/100 km or km/l or mpg)

This is the average quantity of fuel
consumed over the last few seconds.

Average consumption
(l/100 km or km/l or mpg)

This  is  the  average  quantity  of  fuel
consumed  since  the  last  trip  compu-
ter zero reset.

Distance travelled
(km or miles)

This indicates the distance travelled
since the last trip computer zero reset.

A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After

ﬁ lling with at least 5 litres of fuel, the

range is recalculated and is displayed
when it exceeds 60 miles (100 km).

If dashes are displayed con-
tinuously while driving in
place of the digits, contact a
PEUGEOT dealer.

This function is only displayed
from 20 mph (30 km/h).

This ﬁ gure may increase fol-

lowing a change of driving
style or relief, resulting in a

signiﬁ cant change in the cur-

rent consumption.

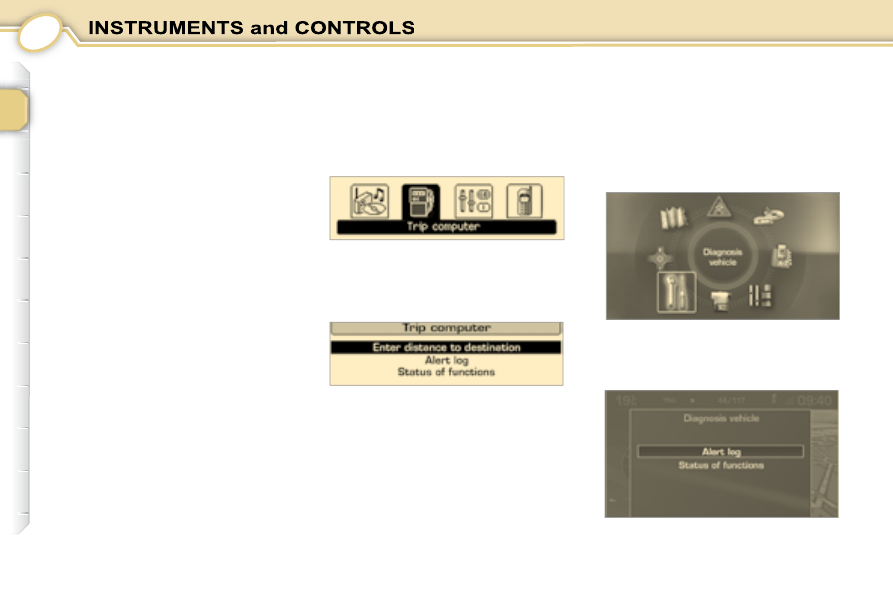

Display C

 Press the "MENU" button to gain

access to the general menu.

 Press the arrows, then the "OK"

button to select the

"Trip com-

puter" menu.

 On the

"Trip computer" menu,

select one of the following appli-
cations:

  Warnings log
This  summarises  the  active  warning
messages,  displaying  them  in  suc-
cession on the multifunction display.

Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.

Enter the distance to the

destination
This enables you to enter an approxi-

mate value for the distance to the ﬁ nal

destination.

"TRIP COMPUTER" MENU

System  which  provides  general  infor-
mation concerning the status of certain
equipment  with  which  your  vehicle  is
equipped,  such  as  the  warnings  log,
the status of the functions...

"DIAGNOSTICS" MENU

 On the

"Diagnostics" menu,

select one of the following appli-
cations:

Colour display

 Press the "MENU" button to gain

access to the general menu.

 Turn the dial and press it to

select the

"Diagnostics" menu.

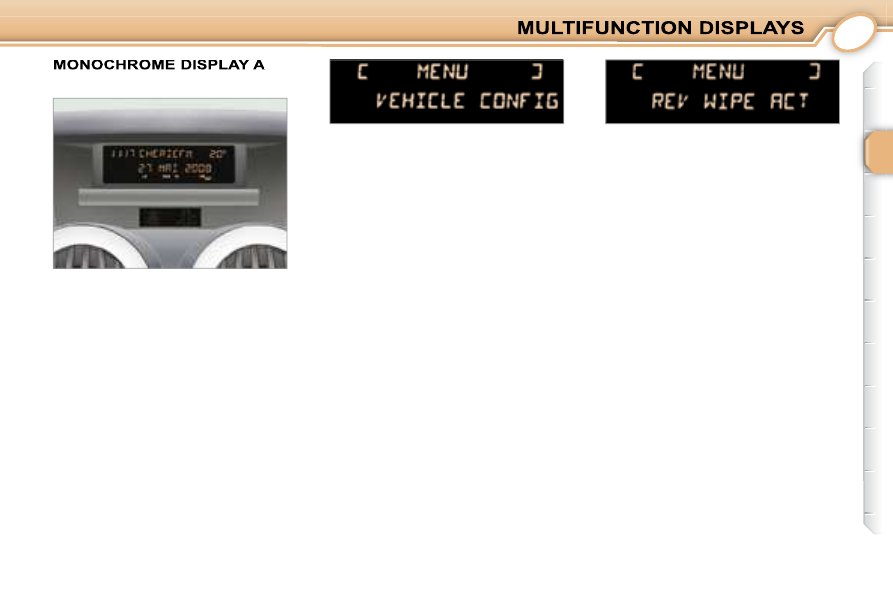

MONOCHROME DISPLAY A
(without WIP Sound)

Presentation

This displays the following information:
-

the time,

the date,

the outside temperature (this

ﬂ ashes if there is a risk of ice),

the status of the accesses

(doors, boot, ...),

the warning messages (e.g.:

"Antipollution system faulty") or

information messages

(e.g.: "Auto lights on"),

displayed temporarily, can be

cleared by pressing the "ESC"

button,

the trip computer (see

corresponding section).

Parameter configuration

There are three display control but-

tons:
-

"ESC" to abandon the operation
in progress,

"MENU"

to scroll through the

menus or sub-menus,

"OK"

to select the menu or sub-

menu required.

General menu

Press the "MENU"

button to scroll

through the various menus of the
general menu:
-

vehicle conﬁ guration,

options,

display settings,

languages,

units.

Press the "OK"

button to select the

menu required.

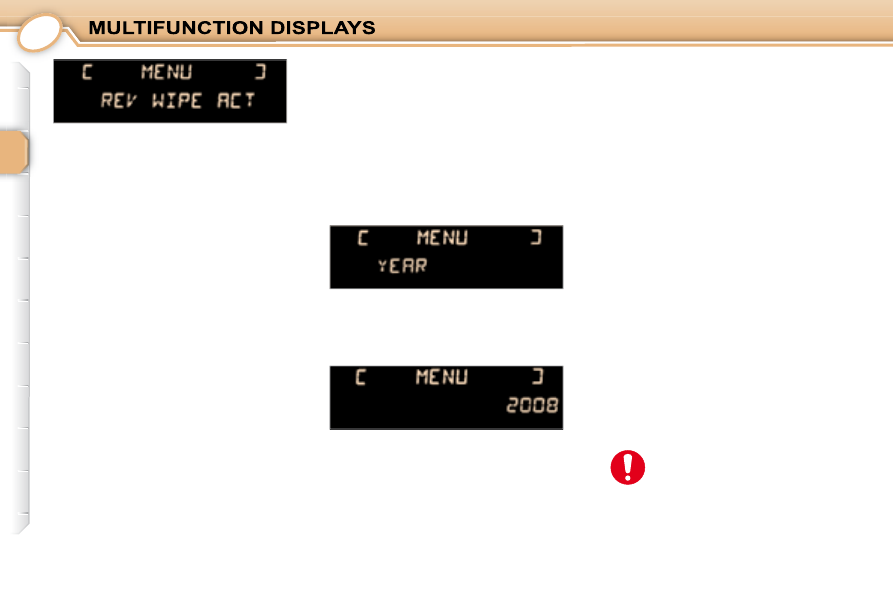

Vehicle conﬁ guration

Once the "Vehicle conﬁ guration"

menu has been selected, you can

activate or deactivate the following

equipment:
-

wiper linked with reverse gear,

"follow-me-home" lighting.

Languages
Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

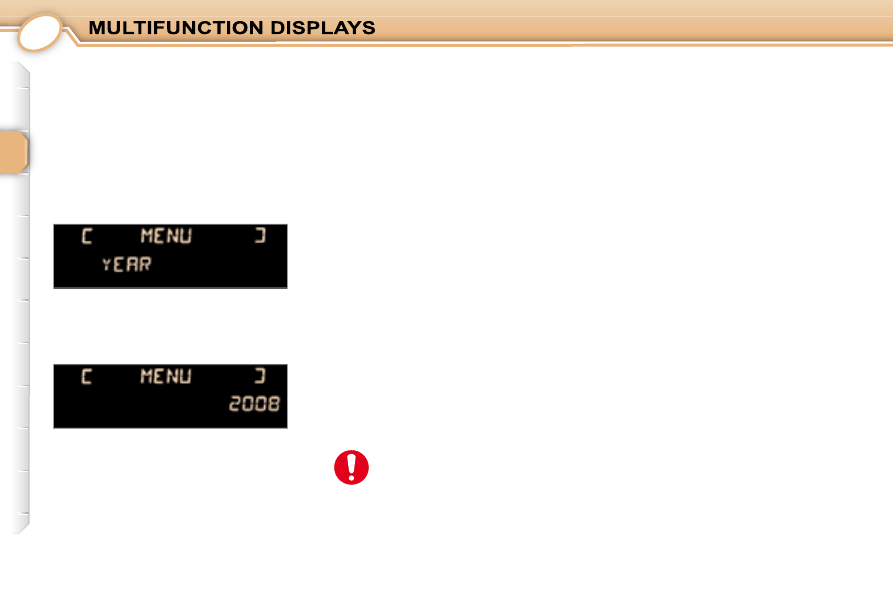

Display settings
Once the "Display settings" menu

has been selected, you can gain ac-

cess to the following settings:
-

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

Once you have selected a setting,

press the "OK"

button to change its

value.

Wait for approximately ten sec-

onds without any action to allow the

changed data to be recorded or press

the "ESC"

button to cancel.

The display then returns to the normal
display.

Units
Once the "Units" menu has been se-

lected, you can change the units of

the following parameters:
-

temperature (°C or °F),

fuel consumption (l/100, mpg or

km/l).

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

General menu

Press the "MENU"

button to gain ac-

cess to the general menu, then press

the "  " or "  "

buttons to scroll

through the following items:
-

radio-CD,

vehicle conﬁ guration,

options,

display settings,

languages,

units.

Press the "OK"

button to select the

menu required.

Vehicle conﬁ guration

Once the "Vehicle conﬁ guration"

menu has been selected, you can

activate or deactivate the following

equipment:
-

rear wiper linked with reverse

gear,

"follow-me-home" lighting.

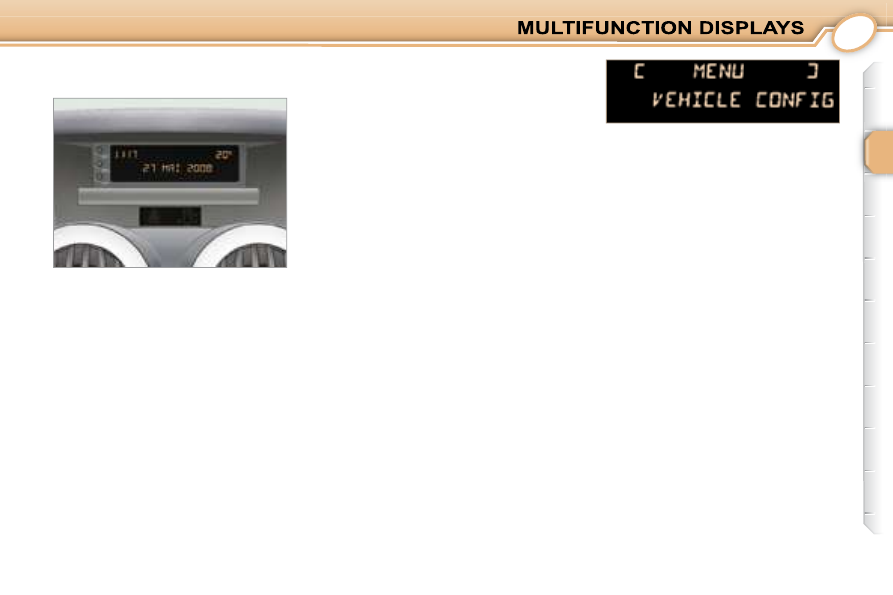

Presentation

This displays the following information,

via the WIP Sound control keypad:
-

the time,

the date,

the outside temperature (this

ﬂ ashes if there is a risk of ice),

the audio source displays

(radio, CD, ...),

the status of the accesses

(doors, boot, ...),

the warning messages
(e.g.: "Antipollution system

faulty") or information messages

(e.g.: "Auto lights on"),

displayed temporarily, can be

cleared by pressing the "ESC"

button,

the trip computer

(see corresponding section).

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

Radio-CD
With the WIP Sound switched on,

once the "Radio-CD" menu has been

selected, you can activate or deacti-

vate the functions linked with the use

of the radio (RDS following, REG

mode), the CD or the CD changer

(introscan, random play, CD repeat).

Display settings
Once the "Display settings" menu

has been selected, you can gain ac-

cess to the following settings:
-

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Languages

Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-

lected, you can change the units of

the following parameters:
-

temperature (°C or °F),

fuel consumption (l/100, mpg or

km/l).

Once you have selected a setting,

press the

"" or "" buttons to

change its value.

Press the "" or "" buttons to
move to the previous or next setting

respectively.
Press the "OK"

button to record the

change and return to the normal dis-

play or press the "ESC" button to

cancel.

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

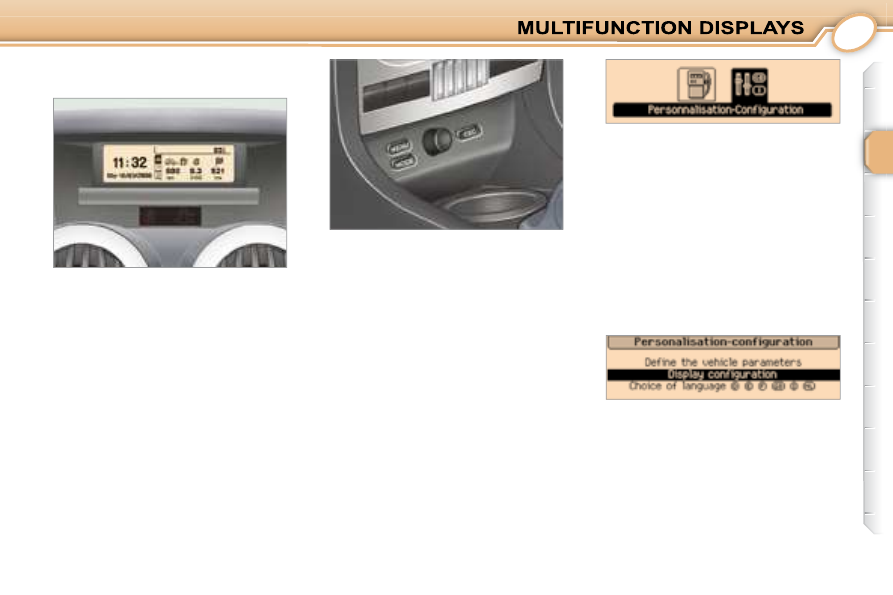

MONOCHROME DISPLAY C
(without WIP Sound)

General menu

Press the "MENU"

button to access

the general menu:
-

trip computer (see

corresponding section),

personalisation-conﬁ guration.

Turn the navigator to select the menu

required, then conﬁ rm by pressing

the navigator.

Presentation

It displays the following information:
-

the time,

the date,

the exterior temperature (this

ﬂ ashes if there is a risk of ice),

the accesses check (doors,

boot, ...),

the warning messages
(e.g.: "Antipollution system

faulty") or information messages

(e.g.: "Automatic headlamp

lighting activated"), displayed

temporarily, can be cleared by

pressing the "ESC" button,

the trip computer

(see corresponding section),

Parameter configuration

There are three buttons and a navi-

gator to enable you to control the

screen:
-

"MENU" to display the general
menu,

"MODE"

to change the

permanent application (trip

computer, date,...),

"ESC" to abandon the operation
in progress,

Rotation of the navigator:
movement on the display or

changing of a setting,

Press on the navigator:

conﬁ rmation of the selection.

"Personalisation-
Configuration" menu

Once this menu has been selected,

you can access the following func-

tions:
-

deﬁ ne the vehicle parameters,

display conﬁ guration,

selection of the language.

Content .. 1 2 3 ..
