Peugeot 607 (2007.5). Instruction - part 4

COMFORT

Automatic day/night interior
mirror

Operation

Switch on the ignition and press switch 1 :
-

Indicator light 2

lit (switch pressed):

automatic operation.

Indicator light 2

off: automatic sys-

tem off. The mirror remains at its
most clear.

Special feature
To ensure maximum visibility

during manoeuvres, the mir-

ror clears automatically when

reverse gear is engaged.

Manual interior mirror
The interior mirror has two positions:

- day (normal),
-

night (anti-dazzle).

To change from one to the other, push

or pull the lever on the lower edge of

the mirror.

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT

This

automatically

and

gradually

changes between the day and night

positions. To prevent dazzling, the

glass of the mirror darkens automati-

cally depending on the intensity of the

light from behind. It clears as the light

(headlamps of following vehicles, sun-

light) decreases, ensuring maximum

visibility.



When the vehicle is stationary, un-

lock the steering wheel by pushing

handle A .



Adjust the height and depth of the

steering wheel.



Lock by pulling handle A fully.

COMFORT

Automatic day/night interior
mirror

Operation

Switch on the ignition and press switch 1 :
-

Indicator light 2

lit (switch pressed):

automatic operation.

Indicator light 2

off: automatic sys-

tem off. The mirror remains at its
most clear.

Special feature
To ensure maximum visibility

during manoeuvres, the mir-

ror clears automatically when

reverse gear is engaged.

Manual interior mirror
The interior mirror has two positions:

- day (normal),
-

night (anti-dazzle).

To change from one to the other, push

or pull the lever on the lower edge of

the mirror.

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT

This

automatically

and

gradually

changes between the day and night

positions. To prevent dazzling, the

glass of the mirror darkens automati-

cally depending on the intensity of the

light from behind. It clears as the light

(headlamps of following vehicles, sun-

light) decreases, ensuring maximum

visibility.



When the vehicle is stationary, un-

lock the steering wheel by pushing

handle A .



Adjust the height and depth of the

steering wheel.



Lock by pulling handle A fully.

COMFORT

FRONT SEATS

B - Seat cushion angle adjustment

C - Seat height adjustment

A - Forwards-backwards

adjustment

Push the control forwards or back-

wards to slide the seat.

Tilt the front of the control upwards

or downwards to obtain the required

angle.

Tilt the rear part of the control upwards

or downwards to obtain the required

height.

Electric front seats

The electric functions of the

driver’s seat are deactivated

one minute after the ignition is

switched off.

The operation of the electric

seats will be deactivated tem-

porarily if the energy economy

mode is activated.

COMFORT

E - Head restraint height and angle

adjustment

F - Lumbar adjustment

(manual adjustment)

D - Seat back angle adjustment

Never drive with the head

restraints removed; they must

be in place and adjusted

correctly.

Tilt the control to the front or the rear to
obtain the correct angle.

Tilt the control upwards or push it down-

wards to obtain the correct height.

Raise or lower the lever to obtain the

required position.

  The  setting  is  correct  when
the  upper  edge  of  the  head
restraint is level with the top
of the head.

The head restraint angle can also be

adjusted manually.

To remove the head restraint, tilt the

seat back to 45° and place the head

restraint in the high position, then pull

with both hands.

COMFORT

Memorising driving and mirror
positions

Memorising using the controls on
the driver’s door
To memorise:


Place the key in the ignition on po-

sition,



Adjust your seat and mirrors,

 Press button M

, then button 1 "i rst

driving position" or button 2 "sec-

ond driving position" within four

seconds.

An audible signal coni rms that a posi-

tion has been memorised.
Memorising a new position cancels

the previous one.

Recalling a memorised driving
position

Ignition on, vehicle stationary


Briel y press button 1 or 2 to recall

the corresponding memorised

position. The end of the setting is

indicated by a bleep.

After recalling a memorised position

a few times in succession, the func-

tion will be cancelled until the engine

is started.

G - Heated seats adjustment

With the engine running, use the cor-

responding adjustment dial to select

the required degree of heating:
0: Off.
1:

Low.

2: Medium.
3: High.

The electrical adjustments of the seat

and exterior mirrors are memorised.

Two driving positions can be memo-

rised using buttons M/1 and M/2 .

Vehicle moving


Keep button 1 or 2 pressed down

until the bleep indicates that setting

of the corresponding memorised

position is complete.

COMFORT

Memorising driving and mirror
positions

Memorising using the controls on
the driver’s door
To memorise:


Place the key in the ignition on po-

sition,



Adjust your seat and mirrors,

 Press button M

, then button 1 "i rst

driving position" or button 2 "sec-

ond driving position" within four

seconds.

An audible signal coni rms that a posi-

tion has been memorised.
Memorising a new position cancels

the previous one.

Recalling a memorised driving
position

Ignition on, vehicle stationary


Briel y press button 1 or 2 to recall

the corresponding memorised

position. The end of the setting is

indicated by a bleep.

After recalling a memorised position

a few times in succession, the func-

tion will be cancelled until the engine

is started.

G - Heated seats adjustment

With the engine running, use the cor-

responding adjustment dial to select

the required degree of heating:
0: Off.
1:

Low.

2: Medium.
3: High.

The electrical adjustments of the seat

and exterior mirrors are memorised.

Two driving positions can be memo-

rised using buttons M/1 and M/2 .

Vehicle moving


Keep button 1 or 2 pressed down

until the bleep indicates that setting

of the corresponding memorised

position is complete.

COMFORT

REAR SEATS

Folding down the seat back

Rear heated seats controls

The seat back in the rear is folded

down in two 1/3-2/3 parts.

Before folding down the seat back:


check that the seat belt strap on

the side of the seat back (1/3 or

2/3) is positioned correctly,



release the lap belt strap by press-

ing the black button of the lock
(2/3).



Press the switch. The temperature

is regulated automatically.



Press it again to stop operation.

Note:

the command to activate heating

of the seat(s) remains in the memory
for one minute after the ignition is

switched off.

The unlocking controls are located in
the boot.
To unlock from the boot:


pull the control A corresponding to

the part of the seat back that you

wish to fold down.

To unlock from inside the vehicle:


lower the armrest and open the ski

l ap,



pull the button B located on the un-

locking housing corresponding to

the part of the seat back that you

wish to fold down.

Rear seat

When returning the seat back

to its original position, en-

sure that the seat belt is not

trapped.

When putting the seat back to

its original position, for your

safety make sure that it is cor-
rectly locked.

COMFORT

"Forwards-facing"

INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT

GENERAL POINTS RELATING
TO CHILD SEATS

* The rules for transporting children

are specii c to each country. Consult

the current legislation in your
country.

Intermediate longitudinal

position

When a "rearwards-facing"

child seat is installed on the
front passenger seat

, it is

essential that the passenger

air bag is disarmed. Otherwise, the

child would risk being seriously in-
jured or killed if the air bag were to

inl ate.

When a "forwards-facing" child seat

is installed on the front passenger
seat

, adjust the vehicle’s seat to the

intermediate longitudinal position with

the seat back upright and leave the

passenger air bag armed.

For maximum safety, please

follow these precautions:

- in accordance with Directive

2003/20, all children under the

age of 12 or less than one metre

i fty * tall must travel in approved

child seats suited to their weight

on seats i tted with a seat belt or

ISOFIX mountings * ,

statistically,  the  safest  seats  in
your  vehicle  for  the  transpor-
tation  of  children  are  the  rear
seats,

a  child  weighing  less  than  9  kg
must  travel  in  the  "rearwards-
facing" position both in the front
and in the rear.

PEUGEOT recommends that chil-

dren should travel in the rear seats of

your vehicle:
-

"rearwards-facing"

up to the age of 2,

"forwards-facing"

over the age of 2.

Although one of PEUGEOT’s main cri-

teria when designing your vehicle, the

safety of your children also depends

on you.

"Rearwards-facing"

COMFORT

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-

cured using a three point seat belt

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children

(from 9 to 18 kg), PEUGEOT

recommends use of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start’’

"KLIPPAN

Optima"

From

the age of 6 years

(approximately 22 kg),

the booster

is used on its own.

COMFORT

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations (Directive 2000/3), this table indicates the options for the installation of child seats,

secured using the seat belt and universally approved, in relation to the weight of the child and the seat in the vehicle.

Seat(s)

Weight of the child

/indicative age

Less than 13 kg

(group 0 ( a ) to 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years

approx

From 15 to 25 kg

(group 2)

From 3 to 6 years

approx

From 22 to 36 kg

(group 3)

From 6 to 10 years

approx

Front passenger (b)

Height adjustable seat

U (R)

Rear side

Rear centre

RÖMER Duo *

L2, L3, L4

: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rearwards facing"

and/or "forwards facing".
U (R)

: idem U , the vehicle seat must be adjusted to its highest position.

: seat which is not suitable for the installation of a child seat of the weight group indicated.

L-

: only the child seats indicated may be installed on the seat concerned (according to country).

(a) Group 0: from birth to 10 kg.
(b) Consult the current legislation in your country before installing your child on this seat.

* Only secured using the seat belt.

COMFORT

ADVICE ON CHILD
SEATS

Installing a booster seat

The chest part of the seat belt must

be positioned on the child’s shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child’s

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, i t-

ted with a seat belt guide at shoulder

level.

As a safety precaution, do not leave:
-

one or more children alone and un-

supervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To prevent accidental opening of the

doors, use the "Child lock".

Take care not to open the rear win-

dows by more than one third.

To protect young children from the

rays of the sun, i t side blinds on the

rear windows.

The incorrect installation of a child seat

in a vehicle compromises the child’s

protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack

in relation to the child’s body to

a minimum, even for short journeys.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle’s seat and

that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,

ensure that it is stored or attached

securely to prevent it from being

thrown around the vehicle in the event

of sharp braking.

Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied by

other children, cannot be used or are

absent.
Disarm the passenger air bag when

a "rear facing" child seat is installed

on the front seat. Otherwise, the child

would risk being seriously injured or

killed if the air bag were to inl ate.

"ISOFIX" MOUNTINGS

This seat is i tted with ISOFIX mountings.

These are two rings located between

the seat back and the seat cushion.
The ISOFIX child seats

are i tted with

two locks which are secured easily on

these rings.
This ISOFIX mounting system guaran-

tees reliable, safe and fast i tting of the

child seat in your vehicle.

If a child is not installed in a

vehicle correctly, the child’s

protection in the event of a

collision will be compromised.

COMFORT

ADVICE ON CHILD
SEATS

Installing a booster seat

The chest part of the seat belt must

be positioned on the child’s shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child’s

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, i t-

ted with a seat belt guide at shoulder

level.

As a safety precaution, do not leave:
-

one or more children alone and un-

supervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To prevent accidental opening of the

doors, use the "Child lock".

Take care not to open the rear win-

dows by more than one third.

To protect young children from the

rays of the sun, i t side blinds on the

rear windows.

The incorrect installation of a child seat

in a vehicle compromises the child’s

protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack

in relation to the child’s body to

a minimum, even for short journeys.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle’s seat and

that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,

ensure that it is stored or attached

securely to prevent it from being

thrown around the vehicle in the event

of sharp braking.

Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied by

other children, cannot be used or are

absent.
Disarm the passenger air bag when

a "rear facing" child seat is installed

on the front seat. Otherwise, the child

would risk being seriously injured or

killed if the air bag were to inl ate.

"ISOFIX" MOUNTINGS

This seat is i tted with ISOFIX mountings.

These are two rings located between

the seat back and the seat cushion.
The ISOFIX child seats

are i tted with

two locks which are secured easily on

these rings.
This ISOFIX mounting system guaran-

tees reliable, safe and fast i tting of the

child seat in your vehicle.

If a child is not installed in a

vehicle correctly, the child’s

protection in the event of a

collision will be compromised.

COMFORT

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

These child seats can also be used on seats which are not i tted with ISOFIX mountings. In this case, it is essential

that they are secured to the vehicle’s seat by means of the three point seat belt.

Follow the instructions for i tting the child seat indicated in the seat manufacturer’s installation guide.

ISOFIX KIDDY

ISOFIX RÖMER Duo Plus

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position.

Installed in the forwards facing position. Installed in the forwards facing position only.

The body of the child seat must be in

contact with the back of the vehicle’s

front seat.

It is essential that the vehicle’s front

seat is adjusted to the intermediate lon-

gitudinal position.

Secured without the top strap.

Three child seat body angles: sitting,

reclining and lying positions.

Adjust the vehicle’s front seat so that

the child’s feet do not touch the seat

back.

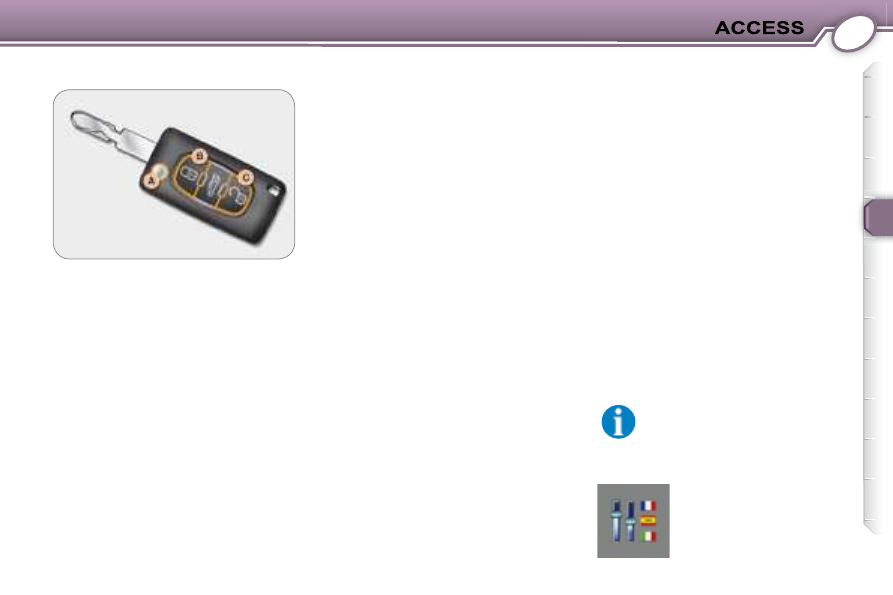

REMOTE CONTROL KEY

Unfolding/Folding the key

To unfold or fold the key, press button

i rst.

Unlocking

Normal locking

 Press button B

for complete locking

of the vehicle.

 Press button B for more than

2 seconds  for  automatic closing
of  the  windows  and  sunroof   in
addition to locking.

Each action is coni rmed by i xed

lighting of the direction indicators for

approximately two seconds.

The exterior mirrors fold at the same

time.

Complete
 Press button C

for complete un-

locking of the vehicle.

This is coni rmed by rapid l ashing of

the direction indicators for approxi-

mately two seconds.

The complete or selective

unlocking can be coni g-

ured by means of a param-

eter, via the multifunction

display "Personalisation-

Coni guration" menu.

The remote control in the key permits

remote locking, deadlocking and un-

locking of the doors, boot and fuel i ller

l ap, as well as folding and unfolding of

the exterior mirrors.

The key permits mechanical and inde-

pendent operation of the glove box lock,

of the passenger air bag disarming con-

trol and of the mechanical child lock as

well as switching on of the ignition.

From the driver’s door, the key permits

electrical control of the locking or un-

locking of the doors, boot and fuel i ller

l ap.

If one of the doors or the boot is open,

the central locking does not function.

When the vehicle is locked,

if unlocking is activated inad-

vertently, without a door being

opened within 30 seconds, the

vehicle will lock automatically.

Selective
 Press button C to unlock the

driver’s door and the fuel i ller l ap

only.

 Press the button again to unlock

the other doors and the boot.

Each action is coni rmed by rapid

l ashing of the direction indicators for

approximately two seconds.

The exterior mirrors unfold at the same

time.

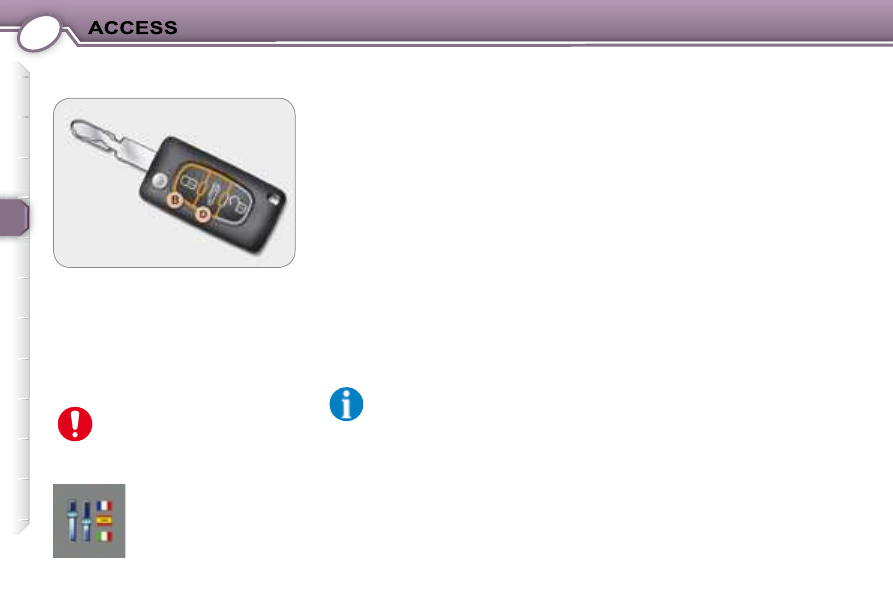

Unlocking, opening and
stopping of the boot

Deadlocking

This renders the external and internal

door controls inoperative.

It also deactivates the internal central

locking button.
 Pressing button B

permits com-

plete locking of the vehicle or

pressing button B for more than
2 seconds

permits automatic clos-

ing of the windows and sunroof in

addition to locking.



Within i ve seconds, a second

press

permits deadlocking of the

vehicle.

This function can be con-

i gured by means of a

parameter, via the multi-

function display "Person-

alisation-Coni guration"

menu.

Each action is coni rmed by

i xed lighting of the direction

indicators for approximately

two seconds.

Key in ignition

A buzzer sounds on opening the

driver’s door, if the key has been left in

the ignition.

Locating your vehicle
To locate your vehicle, if you have

locked it, in a car park:


press button B , the courtesy lights

come on and the direction indica-

tors l ash for a few seconds.

If the permanent locking of the

boot is activated, unlocking is

only possible via button D on

the remote control.

 Press button D

to unlock and open

the boot.

This action also unlocks the doors.
 Press button D

again to stop

the movement of the boot in an

intermediate position.

Changing the remote control
battery

Reprogramming the remote
control

Following disconnection of the vehicle’s

battery, replacement of the remote con-

trol battery or in the event of a remote

control malfunction, the remote control

must be reinitialised.


Switch off the ignition.



Switch the ignition on again.

 Press the remote control locking but-

ton immediately for a few seconds.



Switch off the ignition and remove

the remote control key from the
ignition lock.

The remote control is now working

again.

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system

a few moments after the ignition has

been switched off and therefore pre-

vents starting of the vehicle by anyone

who does not have the key.

The ignition key has an electronic chip

which has a special code. When the

ignition is switched on, the code is rec-

ognised and starting is possible.
If the system does not function cor-
rectly,

the service warning light comes

on, accompanied by an audible signal

and a message on the multifunction

display.

In this case, your vehicle will not start.

Contact a PEUGEOT dealer as soon

as possible.

A heavy object attached to the key (key

ring, ...), weighing down on the shaft

of the key in the switch, may cause a

malfunction.

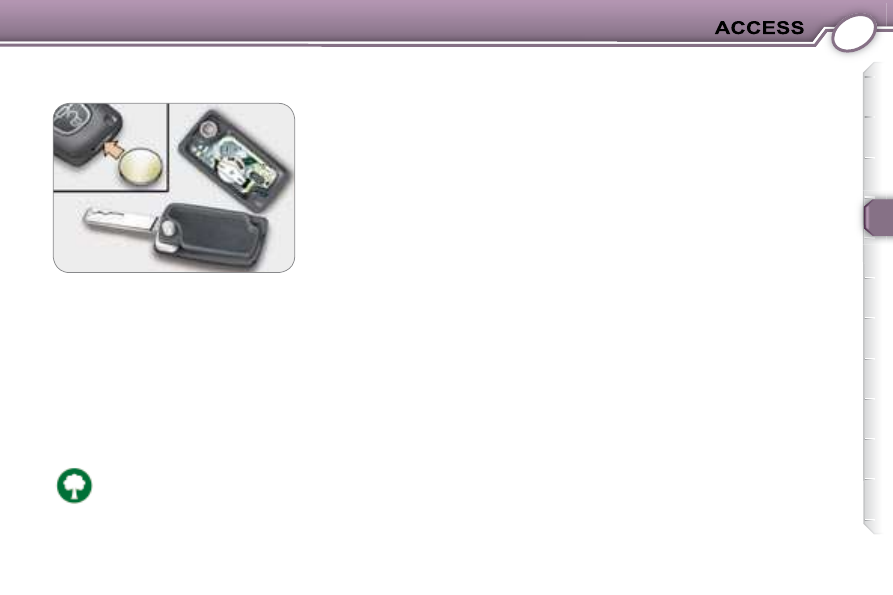

Battery ref.: CR1620/3 volts.

The information "battery l at" is given

by displaying of the service warning

light, accompanied by an audible

signal and a message on the multi-

function display.

To replace the battery, unclip the

casing using a coin at the notch.
If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

Do not discard the batteries,

they contain metals which are

harmful to the environment.

Take them to an approved

collection point.

Content .. 2 3 4 5 ..
