Automatic switching on of
the lights

This equipment switches on the side
lights and dipped headlamps automati-
cally when a low level of light is detected
or when the wipers are switched on.

 69

Motorised boot

This equipment makes loading and
unloading of the boot easier by means
of its motorised opening and closing.

 63

Tyre under-inflation detection

This equipment monitors the pressure
in each tyre and warns you of punctures

or deﬂ ation.

 79

Visual and audible rear and
front parking assistance

When parking, this equipment warns
you of obstacles detected in front of and
behind the vehicle.

 92

Fuel tank

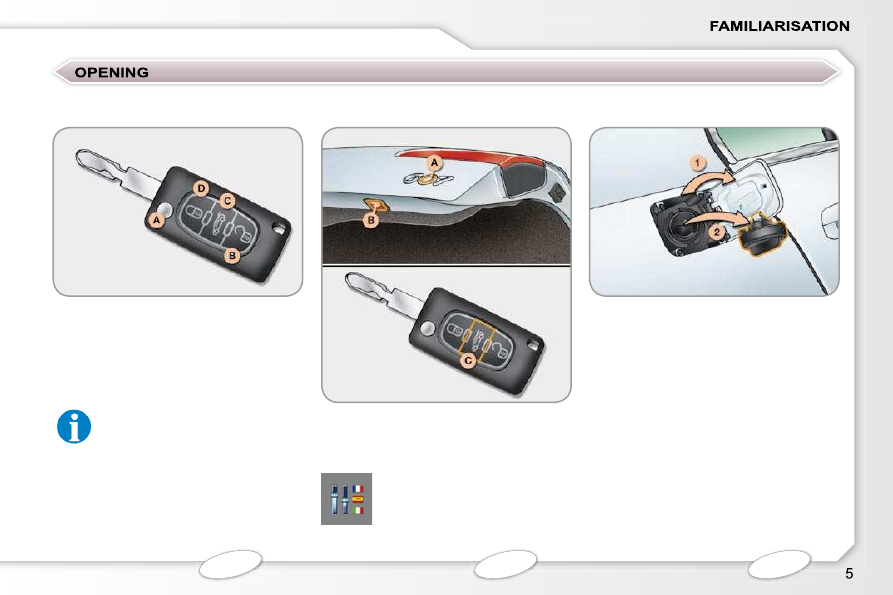

Remote control key

   A.   Unfolding/Folding of the key.
  B.   Complete or selective unlocking.
  C.   Unlocking, opening and stopping of

the boot.

D. Normal locking or deadlocking.

  Also...
  Pressing button D for more than
2  seconds   permits   automatic
closing  of  the  windows  and
sunroof  in addition to locking.

Motorised boot

   A.   Exterior opening.
  B.   Interior closing.
  C.   Unlocking, opening and stopping of

the boot.

 55

 63

 65

Opening of the fuel ﬁ ller ﬂ ap.

2. Opening and hooking of the fuel

tank cap.

Tank capacity: approximately 80 litres.

You  can  activate  or  deactivate
the  permanent  locking  of  the
boot via the multifunction display
"Personalisation - Configura-
tion"  menu.

Cruise control/speed limiter

These two functions allow you to control
the speed of the vehicle in relation to
the value that you have programmed.

 89

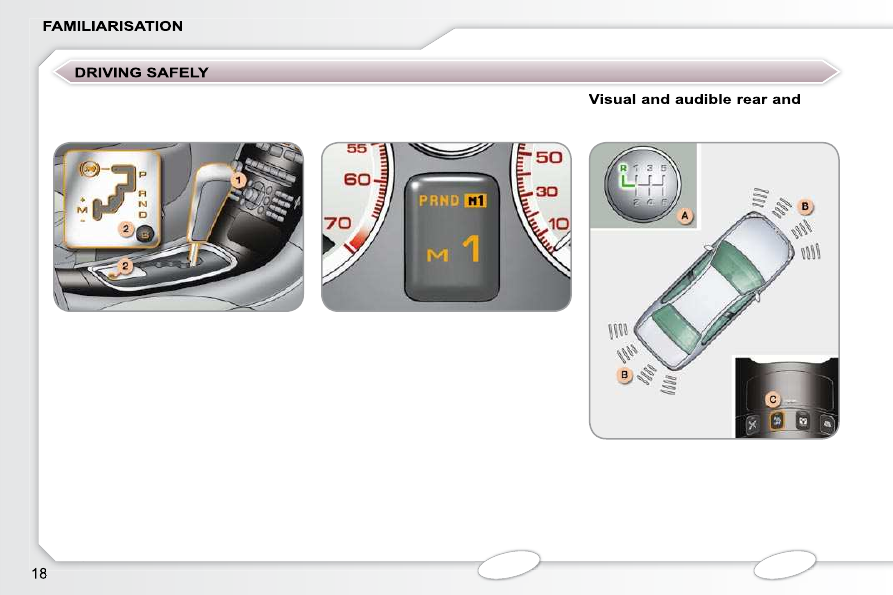

Automatic gearbox

This  equipment  guarantees  perfect
driving  by  combining  a  fully  automatic
mode,  associated  with  two  special
programmes, and a manual mode.

 86

Audio and communication
systems

This equipment beneﬁ ts from the latest

technology: MP3 compatible PC Com,
colour screen, auxiliary sockets.

 120

Dual zone automatic air
conditioning

This  equipment  allows  you  to  set  a
different comfort level for the driver and
front  passenger.  It  then  manages  this
level  automatically  in  relation  to  the
exterior climatic conditions.

 40

9. Deactivation of the interior alarm.

Deactivation of the ESP/ASR system.

10. Adjustable and closing side vent.

11. Driver's side window de-icing and

demisting vent.

12. Driver's seat electric controls.

13. Driver's heated seat control.

14. Bonnet release.

15. Deactivation of the parking assistance.

SPORT suspension control.

Sunroof control.

Rear blind control.

16. Armrest with storage compartment.

17. Rear ashtray.

18. Rear lighter (100 W max.).

19. Rear heated seat controls.

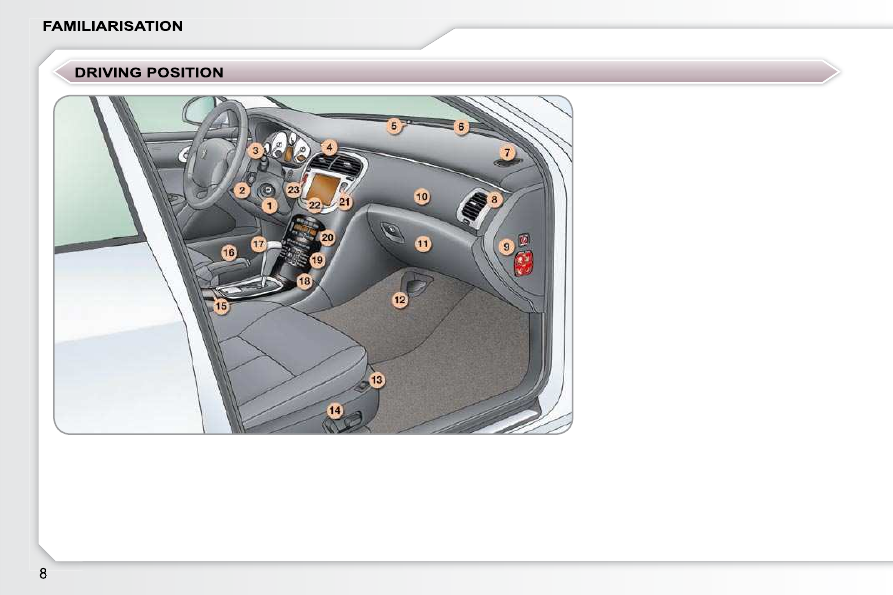

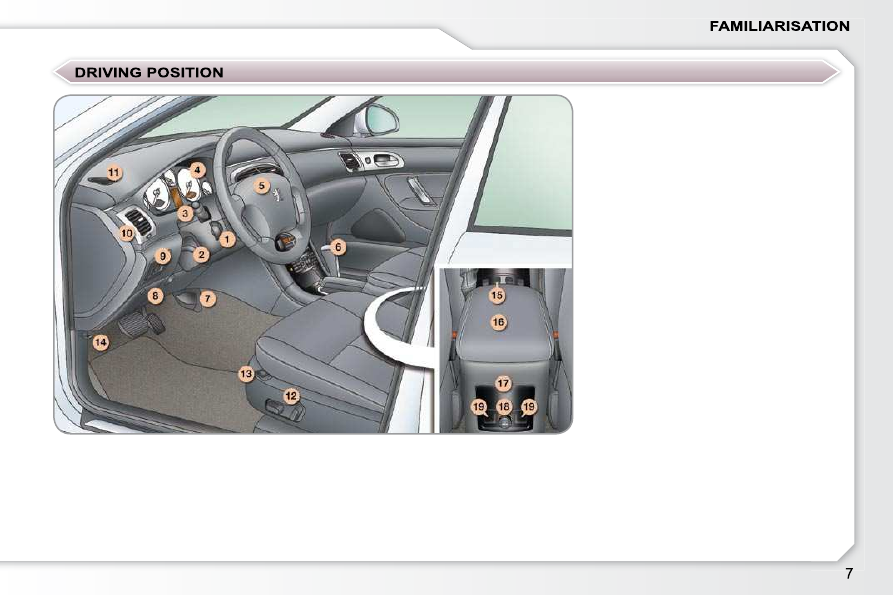

1. Cruise control/speed limiter switches.

2. Steering wheel height and depth

adjustment.

3. Lights and direction indicators

controls.

4. Instrument panel.

5. Driver's air bag.

Horn.

6. Gear lever.

7. Driver's footwell air outlet.

8. Fascia fuse box.

9. Disarming of the passenger air bag * .

10. Passenger air bag.

11. Glove box/Video sockets.

12. Passenger footwell air outlet.

13. Passenger heated seat control.

14. Passenger seat electric controls.

15. Front ashtray/lighter (100 W max.).

16. Handbrake.

17. Gear lever.

18. Storage compartment.

19. Audio and telematics system.

20. Automatic air conditioning controls.

21. Central locking from the inside.

22. Multifunction display.

23. Hazard warning lights.

1. Steering lock and ignition.

2. Audio equipment steering wheel

control.

3. Wipers/wash-wipe and trip

computer controls.

4. Adjustable and closing central

vents.

5. Sunshine sensor.

6. Windscreen de-icing and demisting vent.

7. Passenger side window de-icing

and demisting vent.

8. Adjustable and closing side vent.

* According to country.

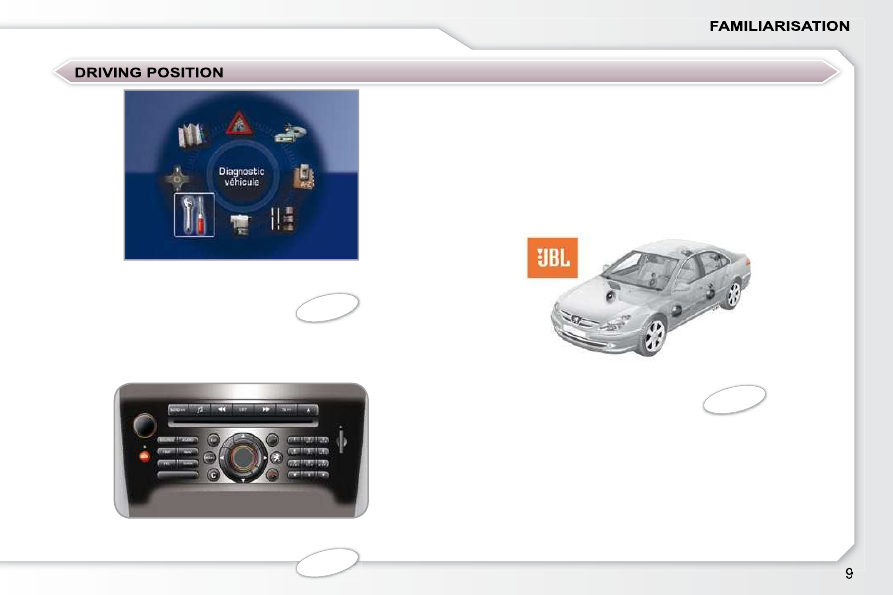

Colour and

map screen DT

 120

PC Com

JBL equipment

 164

 36

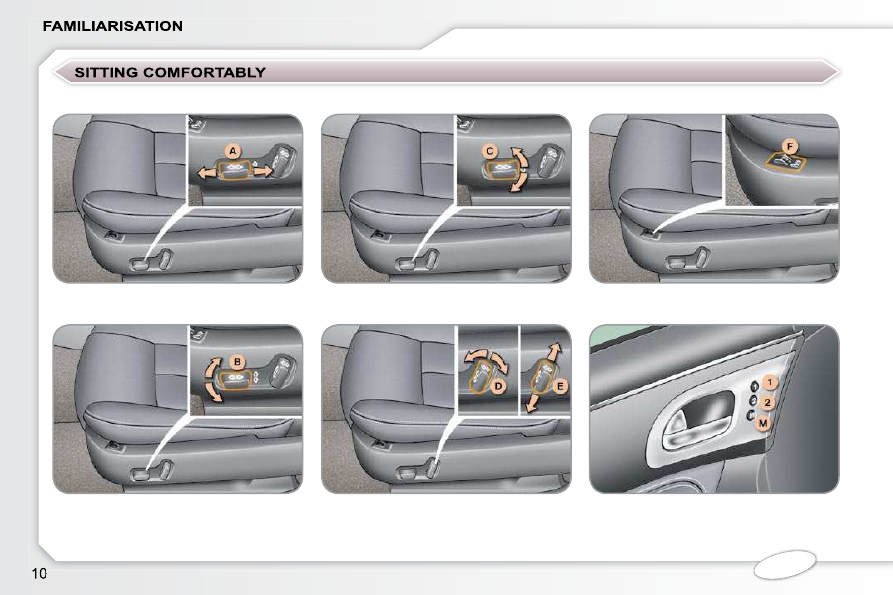

A. Forwards-backwards adjustment.

Electric front seat adjustment

D. Seat back angle adjustment.
E. Head restraint height adjustment.

B. Seat cushion angle adjustment.

F. Heated seat adjustment.

C. Height adjustment.

M. Adjustments memorisation.
1.

Recall of the ﬁ rst position.

2. Recall of the second position.

 46

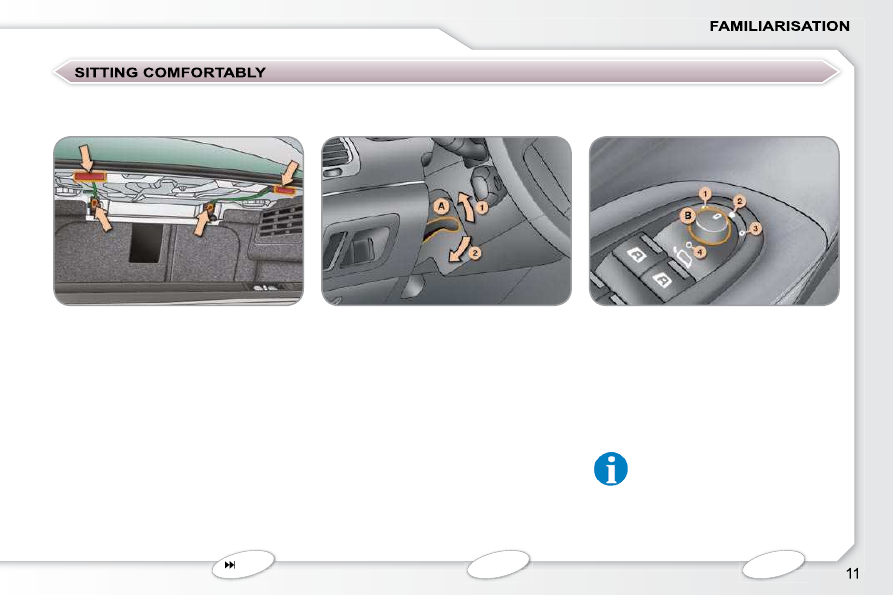

Electric mirror adjustment

Steering wheel adjustment

 44

 45

A. Steering wheel height and depth

adjustment locking and release
control.

1. Locked position.
2. Released position.

B. Exterior mirrors selection, adjustment

and folding control.

1. Selection of the driver's mirror.
2.

Central position " ".

3. Selection of the passenger mirror.

Also...
4. Folding of the mirrors.

Rear bench seat

The back of the bench seat can be folded
in two 1/3 - 2/3 sections.
The release controls are located in the
boot.
Before folding the seat back:
 check that the seat belt strap is

positioned correctly on the side of
the seat back (1/3 or 2/3),

 release the strap of the central seat

belt by pressing the black button on
the buckle (2/3).

When returning the seat back to its orig-
inal position, take care not to trap the
seat belt.

Front seat belts

 61

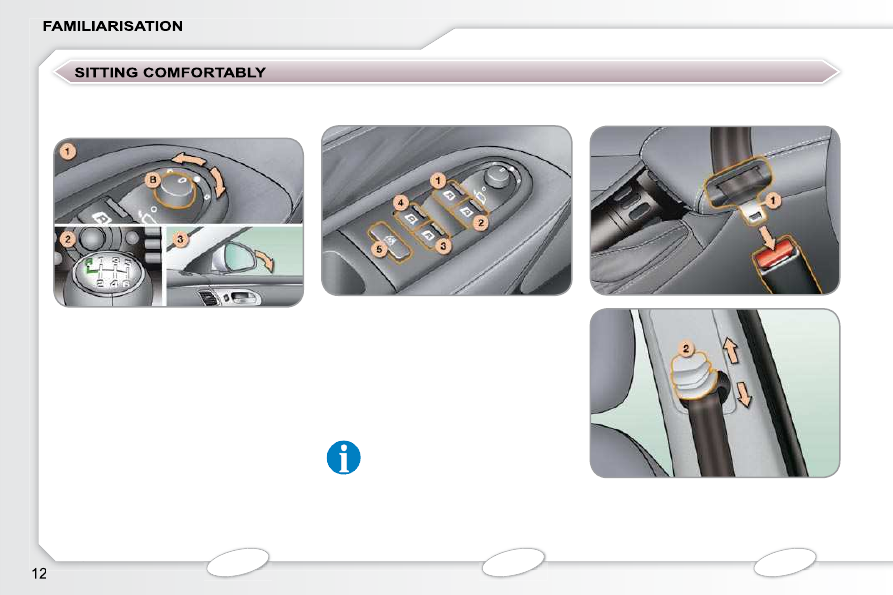

Electric window controls

  1.  Driver's electric window control.
  2.  Passenger electric window control.
  3.  Rear right electric window control.
  4.  Rear left electric window control.

Also...
5. Deactivation of the electric

window controls located in
the rear (child safety).

 80

1. Fastening.
2. Height adjustment.

Mirrors with automatic tilting in
reverse gear

Initial setting of the function
(memorisation)
 With the engine running, engage

reverse gear.

 Select and adjust the left and right

mirrors in succession using button B .

 44

Tilting the mirror to the parking
position (use)
 Turn control B to the right or to the

left, then engage reverse gear.

Returning the mirror to the normal
position
 Exit reverse gear or place button B

in the central position " ".

The position is indicated on the instrument
panel by the corresponding indicator light.

Ring A

Lights off

Side lights

Dipped headlamps/Main
beam headlamps

Ring B

Front fog lamps

Front fog lamps and rear
fog lamps

  2.   Fast wipe.
  1.   Normal wipe.
  I.   Intermittent wipe.
  0.   Park.
  AUTO.   Automatic wipe or single wipe.

A. Wash-wipe.
The automatic wiping must be reactivat-
ed if the ignition has been switched off
for more than one minute, by pressing
the stalk down.

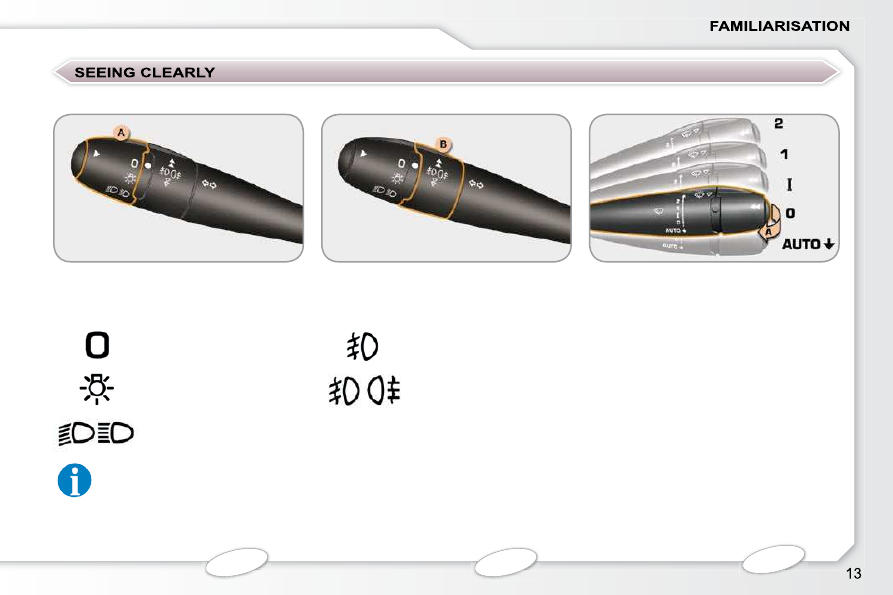

Lights

Wipers

 69

 70

Your vehicle is ﬁ tted with the parking lights, automatic follow-me-home

lighting and automatic switching on of the lights system. To activate or de-
activate these functions, refer to the corresponding sections.
If you switch the lights on manually, return the ring to position 0 , lights off.

 68

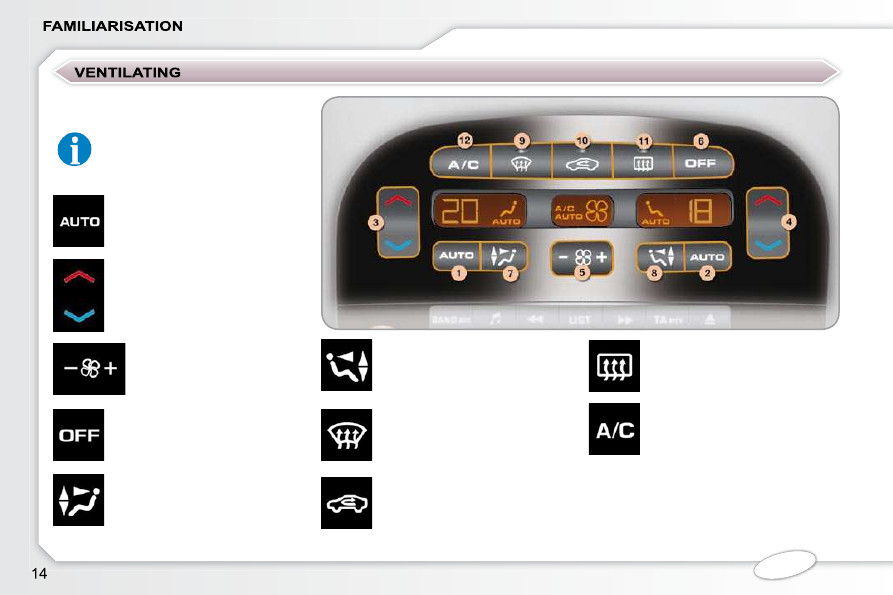

1. Driver's automatic comfort

programme.

2. Passenger automatic

comfort programme.

3. Driver's temperature

adjustment.

4. Passenger temperature

adjustment.

Air ﬂ ow adjustment.

6. System off.

7. Driver's air distribution

adjustment.

8. Passenger air distribution

adjustment.

9. Automatic visibility

programme (demisting).

10. Air intake/Air recirculation.

11. Rear screen and exterior

mirrors demisting.

12. Air conditioning On/Off (A/C).

 40

Dual zone automatic air
conditioning

Use of the automatic regulation
of the air conditioning is recom-
mended.

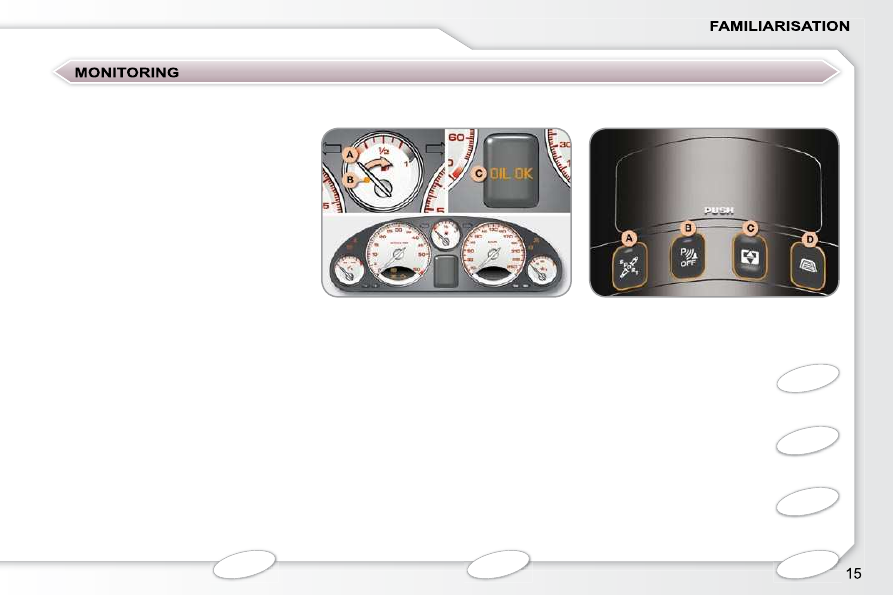

Instrument panel and warning
lights

Controls bar

A. When the ignition is on, the fuel

gauge needle should rise.

B. When the engine is running, its

associated low fuel level warning
light should switch off.

C. When the ignition is on, the display

should

indicate

"CHECK

OK" ,

"OIL OK" , "Pressure OK" for a few
seconds.

If the messages are not correct, refer to
the corresponding section.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.

Lighting of the indicator light indicates the
status of the corresponding function.

 19

 88

A. Selection of the electronically con-

trolled suspension.

B. Deactivation of the visual and audible

rear and front parking assistance.

C. Sunroof control.

D. Rear blind control.

 92

 67

 75

Energy economy mode

 110

110

After  the  engine  has  stopped,  certain
electrical functions can only be used for
a limited combined duration, to prevent
discharging of the battery.
Once  this  period  has  elapsed,  the  active
functions are put on standby.
In  order  to  exit  the  energy  economy
mode  and  resume  the  use  of  these
functions immediately, the engine must
be  started  and  left  running  for  a  few
minutes.
If  the  engine  has  been  running  for  at
least  10  minutes,  the  functions  are  ac-
tive for 30 minutes.
If the engine has been running for less
than 10 minutes, this duration before re-
turning to economy mode is 5 minutes.
If the doors or boot are opened several
times  or  if  the  alarm  is  triggered,  this
may  result  in  activation  of  the  energy
economy mode.

Front passenger air bag

   1.   Insertion of the key.
  2.   Selection of the  "OFF"  position.
  3.   Removal  of  the  key  keeping  the

switch in this position.

With the vehicle stationary, when the igni-
tion is switched on, the warning light comes
on if the driver and/or the front passenger
has not fastened his seat belt.
From approximately 12 mph (20 km/h)
and for two minutes, the warning light

ﬂ ashes accompanied by an audible signal

which  increases  in  volume.  Once  these
two  minutes  have  elapsed,  the  warning
light  remains  on  until  the  driver  or  front
passenger fastens his seat belt.
When  the  vehicle  is  moving,  the  warning
light  comes  on  if  the  driver  or  one  of  the
front  or  rear  passengers  unfastens  his
seat belt.

Seat belt not fastened/
unfastened detection

 82

 80

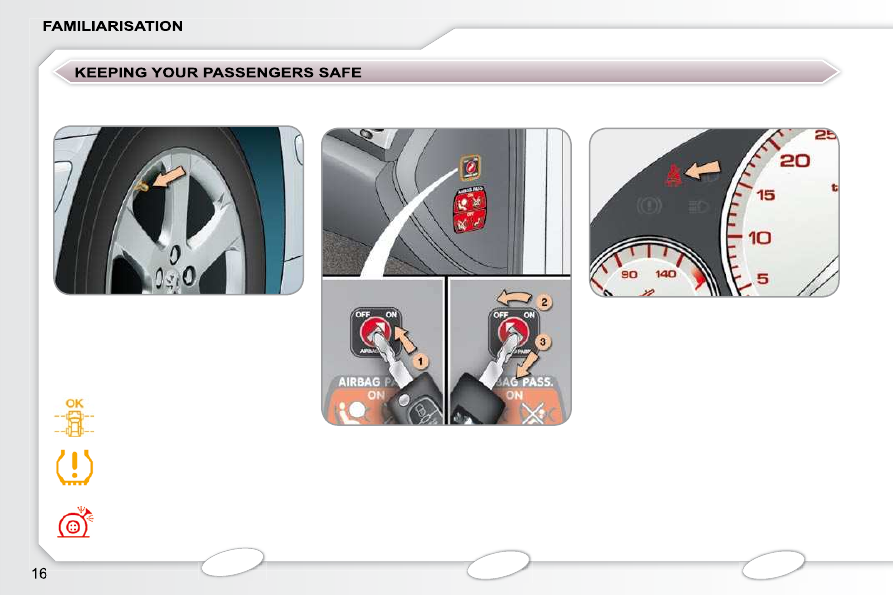

Tyre under-inflation detection

Sensors check the pressure of the tyres
while  driving  and  trigger  a  warning  if
a  malfunction  occurs  (speed  above
15 mph (25 km/h)).
If one of the warning lights below ap-
pears,  refer  to  the  corresponding
paragraph.

 79

Pressure OK

Under-inﬂ ated wheel

Punctured wheel

This  enables  the  vehicle  to  maintain
a  constant  speed  programmed  by  the
driver.

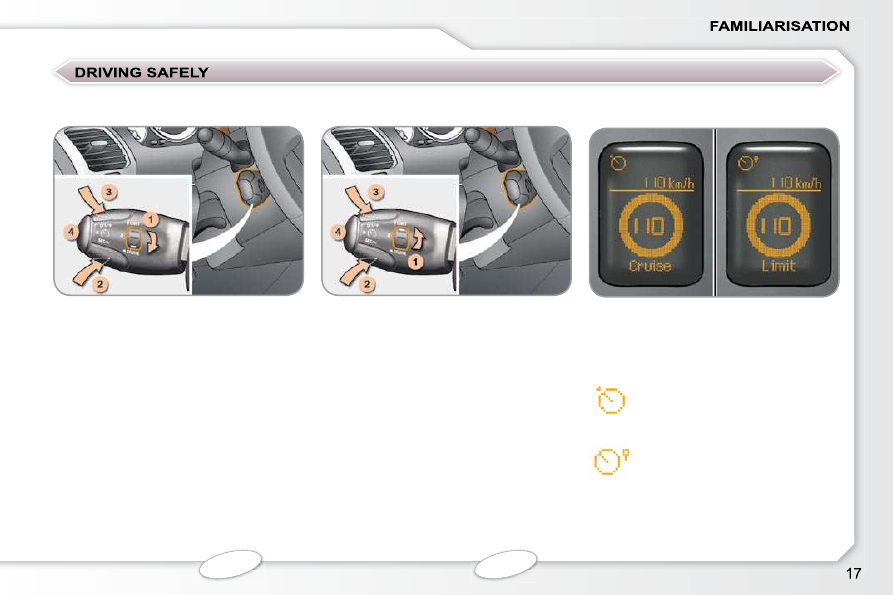

   1.   Selection/Switching off of the function.
  2.   Storing  of  a  speed/Decreasing  of

the stored speed.

3. Storing of a speed/Increasing of the

stored speed.

4. Deactivation/Recalling of the stored

speed.

In order for it to be stored, the vehicle
speed must be above 25 mph (40 km/h),
with at least fourth gear engaged on the
manual gearbox (second gear on the
automatic gearbox).

This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed of 18 mph (30 km/h)).
   1.   Selection/Switching off of the function.
  2.   Decreasing of the speed.
  3.   Increasing of the speed.
  4.   Activation/Deactivation  of  the  system.
Adjustments  must  be  made  with  the
engine running.

 89

 90

Cruise control

Display on the instrument panel

The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

Speed limiter

Cruise control

Speed limiter

"Porsche Tiptronic System"
automatic gearbox

Indication on the instrument
panel display

Switching the engine on

With the handbrake applied, select po-
sition P or N .
Switch on the ignition.

1. Gear lever.
2. "SPORT" button.

  P:  Park.
  R:  Reverse.
  N:  Neutral.
  D:  Drive.
  M:  Manual mode.
  S:  Sport programme.
  1 2 3 4 5 6:  gears engaged.
Move the lever in the gate to select one
of the positions.
Once  the  position  has  been  selected,
the corresponding indicator light is dis-
played on the instrument panel display

Moving off

With  the  engine  running,  from  position
P   or   N ,   with  your  foot  on  the  brake,
release the handbrake .
Select position  R ,  D  or  M .
Release the brake pedal gradually; the
vehicle moves off immediately.

front parking assistance

 86

 92

   A.   Activation of the rear assistance.
  B.   Detection.
  C.   Deactivation/Reactivation.
During  parking  manoeuvres,  you  are
guided  by  an  audible  signal  and  a
graphic on the multifunction display.

DIESEL MANUAL AND AUTOMATIC GEARBOXES
INSTRUMENT PANEL

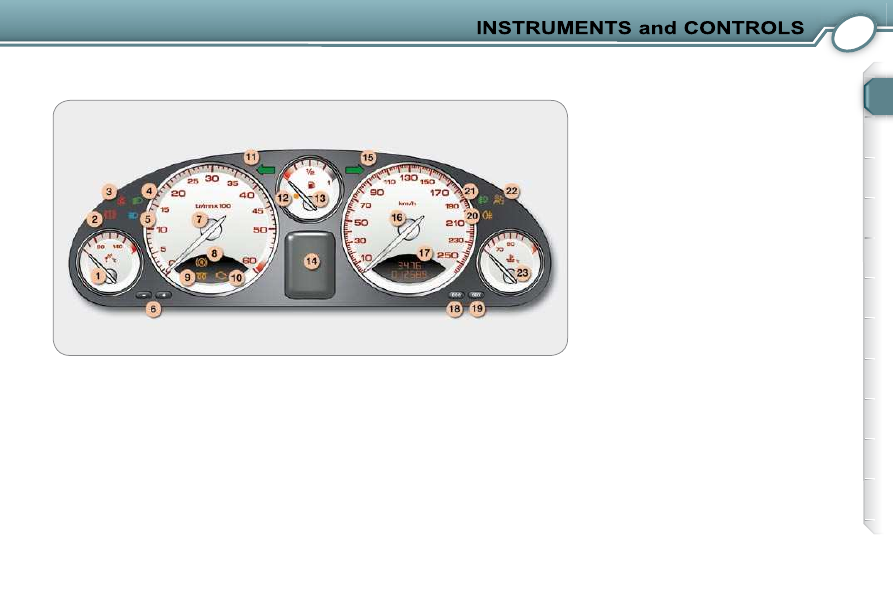

1. Engine oil temperature indicator.

Handbrake, low brake ﬂ uid level and

electronic brake force distribution
warning light.

3. Seat belt not fastened/unfastened

warning light.

4. Dipped headlamps indicator light.

5. Main beam headlamps indicator

light.

6. Lighting rheostat buttons.

Rev counter.

8. Anti-lock braking system (ABS)

warning light.

9. Diesel engine pre-heating warning

light.

10. Emission control system warning

light.

11. Left direction indicator.

12.

Low fuel level warning light.

13. Fuel gauge.

14. Functions display screen:

   -   Check.
  -   Engine oil level gauge.
  -   Warning  and  status  indicator

lights.

  -   Cruise control/speed limiter.
  -   Automatic gearbox.
  -   Trip computer.
  -   Satellite navigation system.

15. Right direction indicator.

16. Speedometer.

17.

Service indicator, total and trip

distance recorders.

18. Trip distance recorder zero reset

button.

19. Manual check button.

20. Rear fog lamps indicator light.

21. Front fog lamps indicator light.

22. Passenger air bag disarmed warning

light *

23. Coolant temperature indicator.

* According to country.

Content .. 1 2 3 ..
