Peugeot 508 RXH (2016 year). Instruction

255

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
-

if you use your vehicle essentially for short
journeys,

if the vehicle is to be taken off the road for
several weeks.

Contact a PeugeOt dealer or a qualified
workshop.

Charging the battery using
a battery charger

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.

If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.

Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PeugeOt dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

It is not necessary to disconnect the
battery.

F Switch off the ignition.
F Switch off all electrical consumers (audio

system, lighting, wipers, ...).

F Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

F ensure that the charger cables are in good

condition.

F Raise the plastic cover, if your vehicle has

one, on the (+) terminal.

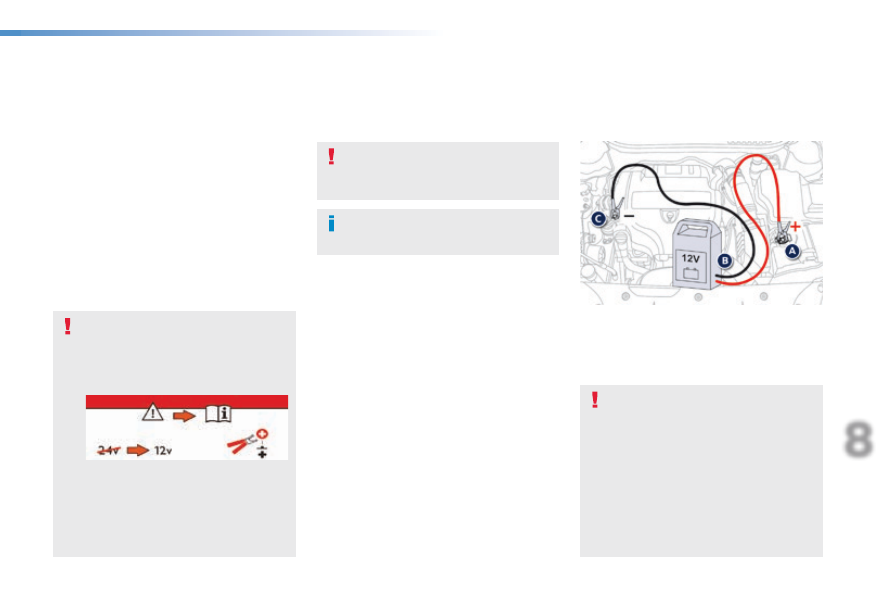

F Connect the charger B cables as follows:

- the positive (+) red cable to the (+)

terminal of the battery A,

- the negative (-) black cable to the earth

point C on the vehicle.

F At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A.

256

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.

Disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
F close the windows and the doors before

disconnecting the battery,

F switch off all electrical consumers (audio

system, wipers, lighting, ...),

F switch off the ignition and wait for

four minutes.

Having exposed the battery, it is only
necessary to disconnect the (+) terminal.

Following reconnection of
the battery

After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a PeugeOt dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-

the remote control or electronic key
(depending on version),

the electric blind(s),

the electric windows

the date and time,

the radio preset stations.

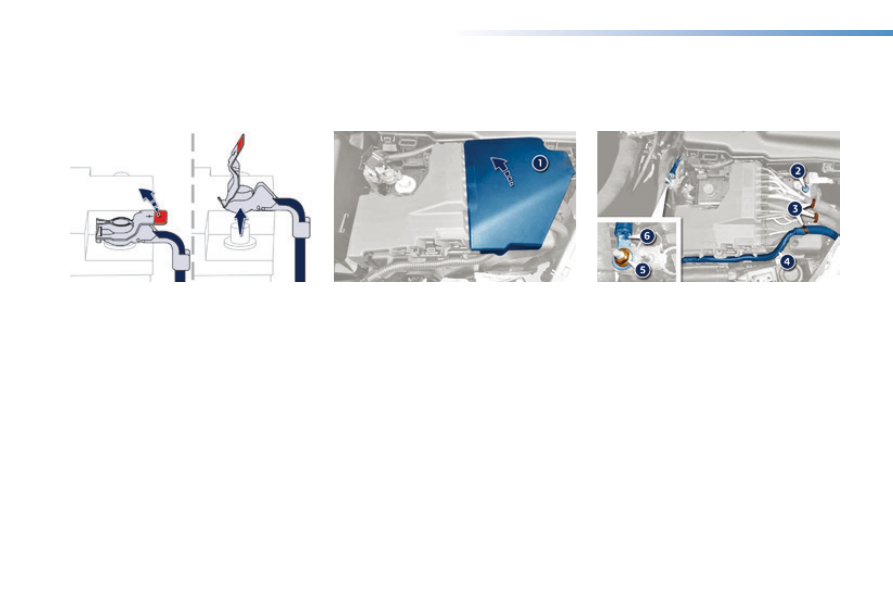

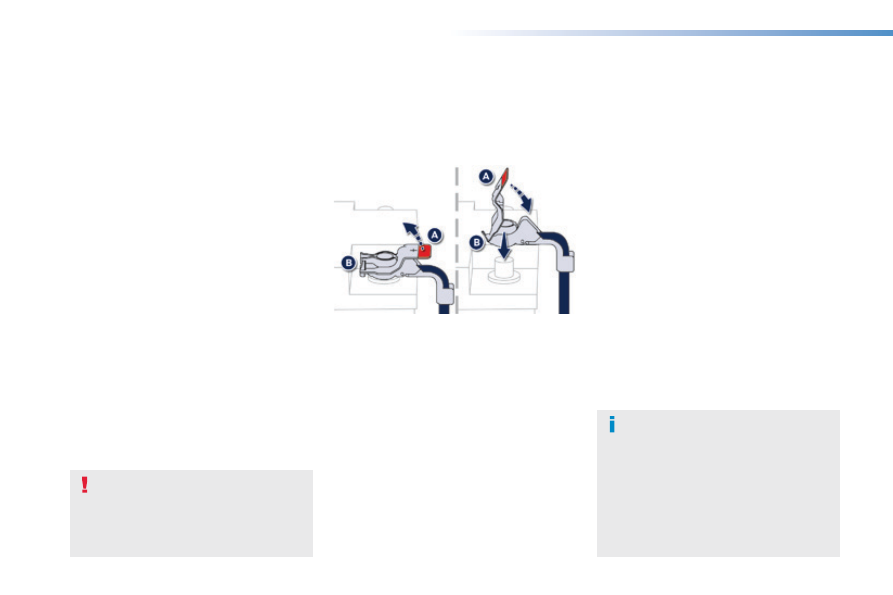

Quick release terminal

Disconnecting the (+) terminal
F Raise the lever A fully to release the

clamp B.

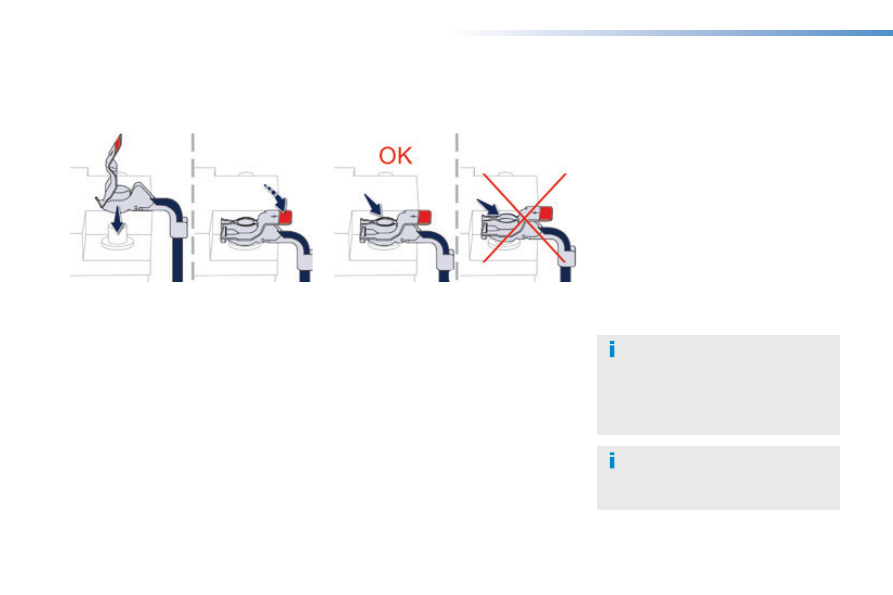

Reconnecting the (+) terminal
F Position the open clamp B of the cable on

the positive post (+) of the battery.

F Press down on the clamp to position it

correctly on the battery post.

F Lock the clamp by lowering the lever A.

the Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

257

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

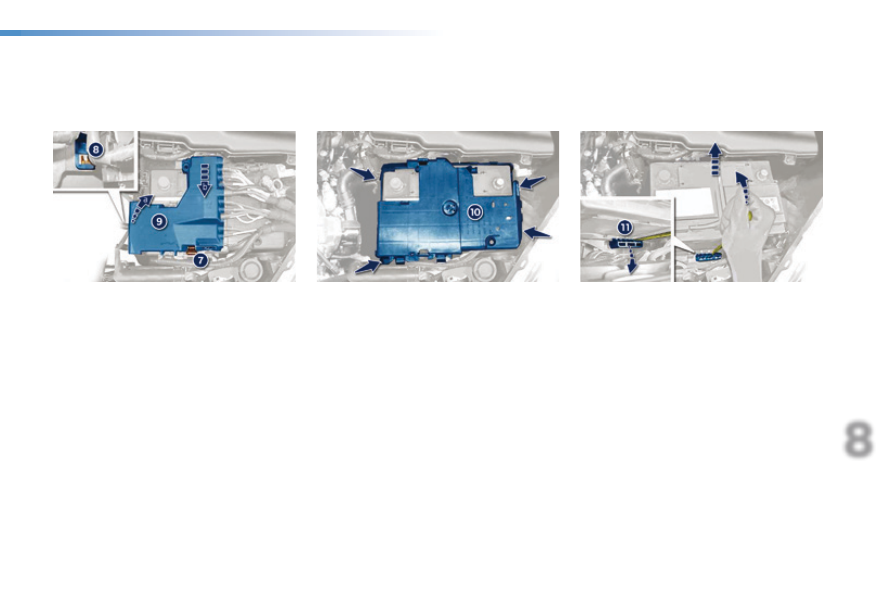

Removing - refitting the battery*

* Valid only for Saloon, SW and non-hybrid

RHX.

this procedure allows you to safely remove the
battery when needed to change a failed bulb.

You can also call on a PeugeOt
dealer or a qualified workshop to carry
out this procedure.

Before removal

Place the vehicle in a ventilated location,
with free access and preferably on a level
surface.

Apply the parking brake.

Put the gear lever into neutral (position N
for an automatic gearbox).

If the vehicle has an alarm, leave the
bonnet open to avoid triggering the alarm.

Leave at least one window open if in a
secure location, otherwise lock all the
doors and the boot.

If the vehicle has a motorised tailgate,
it will not be possible to open it after
disconnecting the battery.

Switch off the ignition and remove the key.

If the vehicle has Keyless entry and
Starting, take the remote control at least
3 metres away from the vehicle.

Wait about 4 minutes (or 12 minutes
with an automatic gearbox) before
disconnecting the battery.

260

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

Refitting

to reassemble, carry out the removal
operations in reverse order, connecting the
positive (+) terminal last.

After refitting

Check that the battery terminals are
secure.

Switch on the ignition, without starting the
engine.

Check that there are no error messages or
warning lamps on. If necessary contact a
PeugeOt dealer or a qualified workshop
to have the system reset.

Check the correct operation of all doors
and windows.

After refitting, wait around 1 minute (or
2 minutes for an automatic gearbox).

Start the engine.

Check the correct operation of anti-pinch
systems: electric windows, opening roof,
panoramic sunroof.

If the vehicle has an electric parking
brake, check that it is working correctly by
releasing and applying it.

Switch the ignition off.

get out of the vehicle then check that the
remote control works correctly.

Set: the time, the preset radio stations and
the audio settings.

After refitting the battery, some systems
may be temporarily unavailable:
Stop (Stop & Start), Air conditioning,
Navigation.

In all cases, contact a PeugeOt dealer
or a qualified workshop if there are any
faults after refitting the battery.

261

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

System which manages the duration of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
combined duration of about forty minutes.

energy economy mode

Switching to economy
mode

A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.

Exiting economy mode

these functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
-

for less than ten minutes, to use the
equipment for approximately five minutes,

for more than ten minutes, to use the
equipment for up to approximately
thirty minutes.

Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from starting.
For more information on the battery, refer to the
corresponding section.

Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
the deactivated functions are reactivated
automatically as soon as conditions permit.

262

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

towing the vehicle

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

Towing your vehicle

Access to the tools

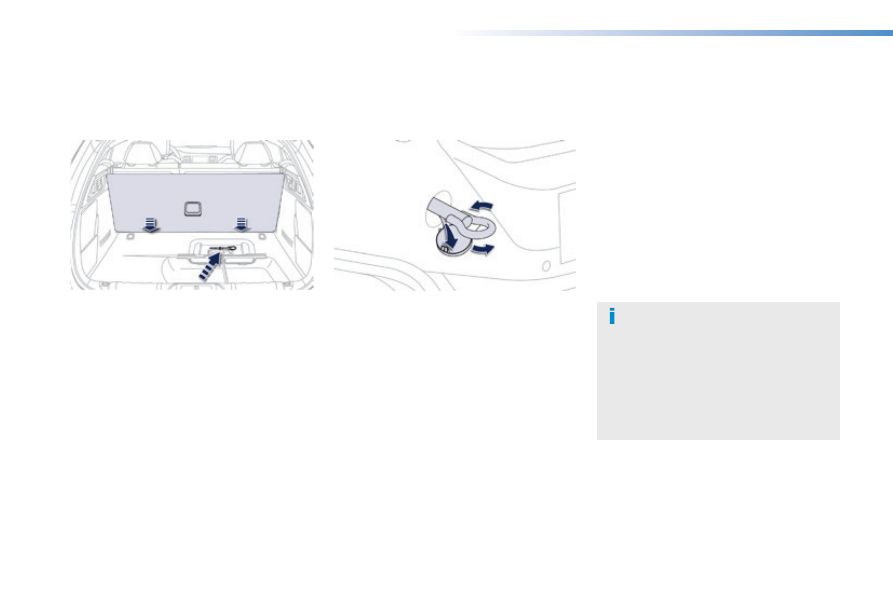

the towing eye is installed in the boot under
the floor.
to gain access to it:
F  open the boot,
F  position the floor vertically,
F  remove the towing eye.

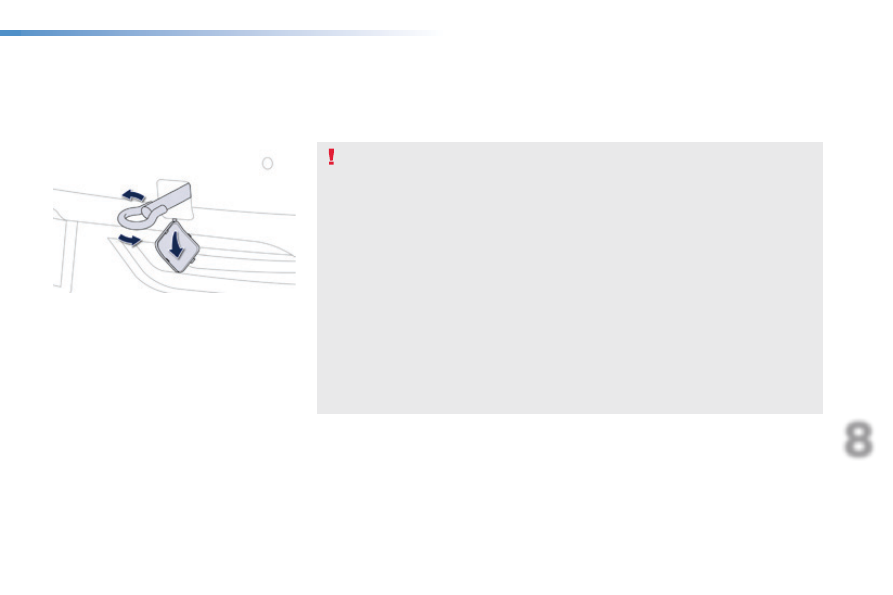

F On the front bumper, unclip the cover by

pressing at the bottom.

F  Screw the towing eye in fully.
F  Install the towing bar.
F  Switch on the hazard warning lamps on the

towed vehicle.

Put the gear lever into neutral
(position N for an automatic gearbox).
Failure to follow this instruction could
lead to damage to certain components
(brakes, transmission, ...) and the
absence of braking assistance on
restarting the engine.

263

In the event of a breakdown

508_en_Chap08_en-cas-de-pannes_ed01-2016

General recommendations

Observe the legislation in force in your country.
ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
the driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
the towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

vehicle broken down on a motorway or fast road,

four-wheel drive vehicle,

when it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,

towing with only two wheels on the ground,

where there is no approved towing arm available...

Towing another vehicle

F On the rear bumper, unclip the cover by

pressing at the bottom.

F  Screw the towing eye in fully.
F  Install the towing bar.
F  Switch on the hazard warning lamps on the

towed vehicle.

264

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

Petrol engine

1.6 litre THP 150 / 156

1.6 litre THP 165 S&S

Gearbox

Automatic

(6-speed)

Manual

(6-speed)

eAt6 automatic

(6-speed)

Model code
8D...: 508 saloon
8E...: 508 SW

8D5FNA - 8e5FNA

8D5FVA - 8e5FVA

8D5FZA**

8D5GZM/S

8E5GZM/S

8D5GZT/S
8E5GZT/S

Cubic capacity (cc)

1 598

1 601**

1 598

Bore x stroke (mm)

77 x 85.8

Max power: eu standard (kW)*

110
115

115**

121

Max power engine speed (rpm)

6 000

Max torque: eu standard (Nm)

240

Max torque engine speed (rpm)

1 400

3 000**

1 400

Fuel

unleaded

Catalytic converter

yes

Oil capacities (in litres)

engine (with filter replacement)

4.25

Petrol engines and gearboxes

* the maximum power corresponds to the value type approved on a test bed, under conditions defined by european legislation

(Directive 1999/99/eC).

** For Iran only.

265

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

* the kerb weight is equal to the unladen weight + driver (75 kg).
** the weight of the braked trailer can be increased, within the gtW limit, if the gVW of the towing vehicle is reduced by an equal amount; warning,

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Petrol weights and towed loads (in kg)

Petrol engine

1.6 litre THP 150 / 156

1.6 litre THP 165 S&S

Gearbox

Automatic

(6-speed)

Manual

(6-speed)

eAt6 automatic

(6-speed)

Model code

8D5FNA

8D5FVA

8D5FZA***

8e5FNA

8e5FVA

8D5GZM/S

8E5GZM/S

8D5GZT/S

8E5GZT/S

Body

Saloon

unladen weight

1 410

1 430

1 400

1 420

1 410

1 430

Kerb weight*

1 485

1 505

1 475

1 495

1 485

1 505

gross vehicle weight
(gVW)

2 015

2 100

1 995

2 080

2 015

2 100

gross train weight (gtW)

on a 12 % gradient

3 615

2 515***

3 600

3 595

3 580

3 615

3 600

Braked trailer (within gtW limit)

on a 10 % or 12 % gradient

1 600

500***

1 500

1 600

1 500

1 600

1 500

Braked trailer** (with load transfer within
the gtW limit)

1 875

775***

1 775

1 875

1 775

1 875

1 775

unbraked trailer

740

500***

750

735

745

740

750

Recommended nose weight

*** For Iran only.
the gtW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
the speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

266

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

Diesel engine

1.6 litre BlueHDi 120 S&S

2.0 litre HDi 140

Gearbox

Manual

(6-speed)

eAt6 automatic

(6-speed)

Manual

(6-speed)

Model code
8D...: 508 saloon
8E...: 508 SW

8DBHZM/S
8eBHXM/S

8DBHZT/S - 8DBHXT/S

8EBHZT/S - 8EBHXT/S

8DRHR8

8DRHF8

Cubic capacity (cc)

1 560

1 997

Bore x stroke (mm)

75 x 88.3

85 x 88

Max power: eu standard (kW)*

103

Max power engine speed (rpm)

3 500

4 000

Max torque: eu standard (Nm)

300

320

Max torque engine speed (rpm)

1 750

2 000

Fuel

Diesel

Catalytic converter

yes

Particle filter

yes

Oil capacity (in litres)

engine (with filter replacement)

3.25

5.25

Diesel engines and gearboxes

* the maximum power corresponds to the value type approved on a test bed, under conditions defined by european legislation

(Directive 1999/99/eC).

267

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

Diesel engine

2.0 litre HDi 136 / 163

2.0 litre BlueHDI 136** /

150 S&S

2.0 litre BlueHDi 180

S&S

Gearbox

Manual

(6-speed)

eAt6 automatic

(6-speed)

Manual

(6-speed)

eAt6 automatic

(6-speed)

Model code

8D... : 508 Berline

8E... : 508 SW

8U...

508 Non-hybrid RXH

8DRHHA
8DRHDA

8DRHH8

8DAHXM/S
8eAHXM/S

8DAHWt/S
8eAHWt/S
8uAHWt/S

Cubic capacity (cc)

1 997

Bore x stroke (mm)

85 x 88

Max power: eu standard (kW)*

120

100
120

100**

110

132

Max. power engine speed (rpm)

3 750

4 000

3 750

Max torque: eu standard (Nm)

340

370

400

Max torque engine speed (rpm)

2 000

Fuel

Diesel

Catalytic converter

yes

Particle filter

yes

Oil capacities (in litres)

engine (with filter replacement)

6.1

5.1

Diesel engines and gearboxes

* the maximum power corresponds to the value type approved on a test bed, under conditions defined by european legislation

(Directive 1999/99/eC).

** For Belgium only.

268

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

the gtW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
the speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Diesel weights and towed loads (in kg)

Diesel engine

1.6 litre BlueHDi 120 S&S

Gearbox

Manual

(6-speed)

eAt6 automatic

(6-speed)

Model code

8DBHZM/S

8eBHXM/S

8DBHZT/S
8DBHXt/S

8EBHZT/S
8eBHXt/S

Body

Saloon

unladen weight

1 410

1 430

1 425

1 445

Kerb weight*

1 485

1 505

1 500

1 520

gross vehicle weight
(gVW)

2 025

2 120

2 045

2 140

gross train weight (gtW)

on a 12% gradient

3 225

3 220

2 945

2 940

Braked trailer (within gtW limit)

on a 10% or 12% gradient

1 200

1 100

900

800

Braked trailer** (with load transfer with the
gtW limit)

1 475

1 375

1 175

1 075

unbraked trailer

740

745

740

750

Recommended nose weight

269

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

Diesel engine

2.0 litre HDi 140

2.0 litre HDi 136 / 163

Gearbox

Manual

(6-speed)

Manual

(6-speed)

eAt6 automatic

(6-speed)

Model code

8DRHR8

8DRHF8

8DRHHA
8DRHDA

8DRHH8

Body

Saloon

unladen weight

1 430

1 520

1 480

Kerb weight*

1 505

1 595

1 555

gross vehicle weight
(gVW)

2 065

2 105

2 075

gross train weight (gtW)

on a 12 % gradient

3 665

3 405

3 675

Braked trailer (within gtW limit)

on a 10% or 12% gradient

1 600

1 300

1 600

Braked trailer** (with load transfer with the
gtW limit)

1 875

1 575

1 875

unbraked trailer

750

Recommended nose weight

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Diesel weights and towed loads (in kg)

270

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Diesel weights and towed loads (in kg)

Diesel engine

2.0 litre BlueHDi 136*** / 150 S&S

2.0 litre BlueHDi 180 S&S

Gearbox

Manual

(6-speed)

eAt6 automatic

(6-speed)

Model code

8DAHXM/S

8eAHXM/S

8DAHWt/S

8eAHWt/S

8uAHWt/S

Body

Saloon

non-hybrid RXH

unladen weight

1 500

1 520

1 540

1 620

1 650

Kerb weight*

1 575

1 595

1 615

1 695

1 725

gross vehicle weight
(gVW)

2 125

2 200

2 165

2 240

gross train weight (gtW)

on a 12% gradient

3 725

3 700

3 465

3 440

Braked trailer (within gtW limit)

on a 10% or 12% gradient

1 600

1 500

1 300

1 200

Braked trailer** (with load transfer with the
gtW limit)

1 875

1 775

1 575

1 475

unbraked trailer

750

Recommended nose weight

*** For Belgium only
the gtW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
the speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Peugeot 508 RXH (2016 year). Instruction - part 17
